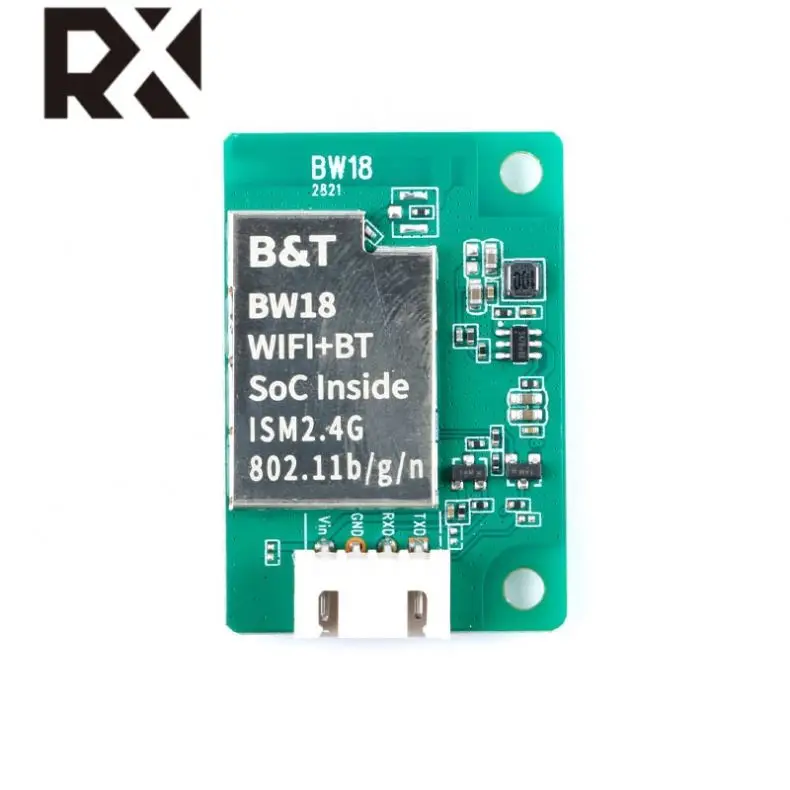

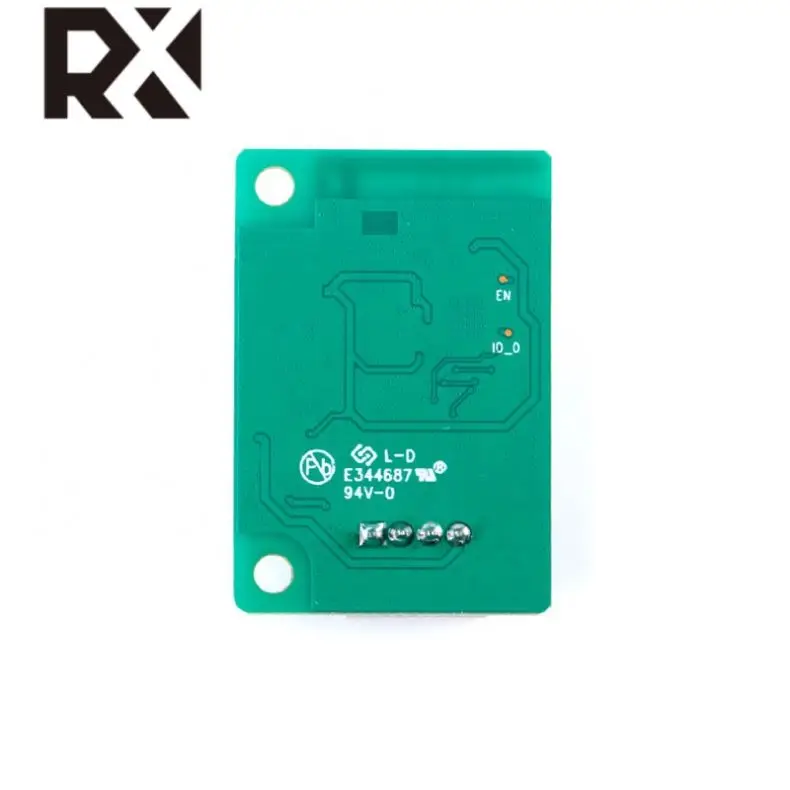

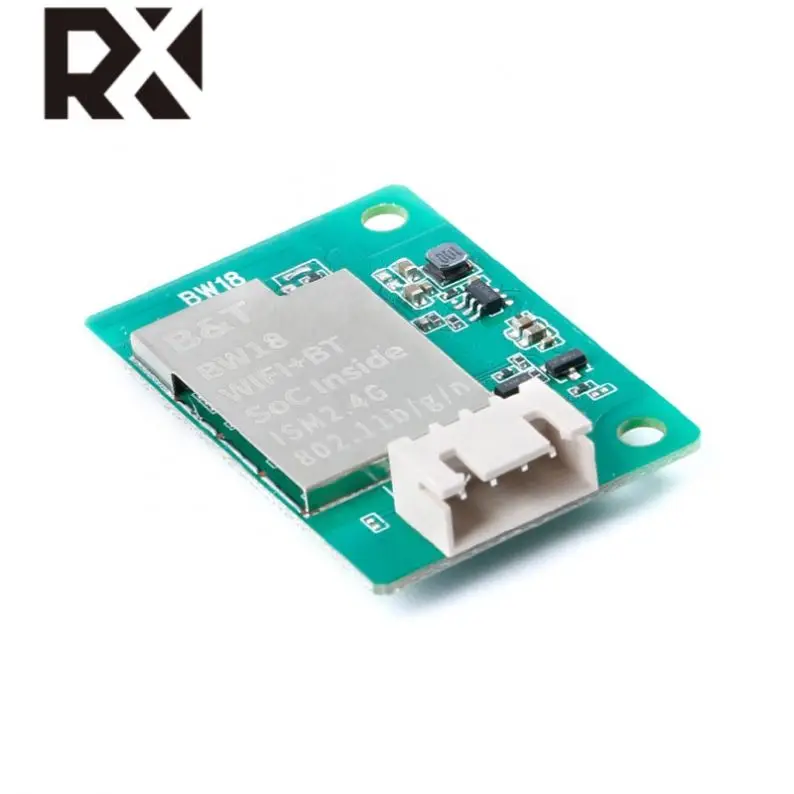

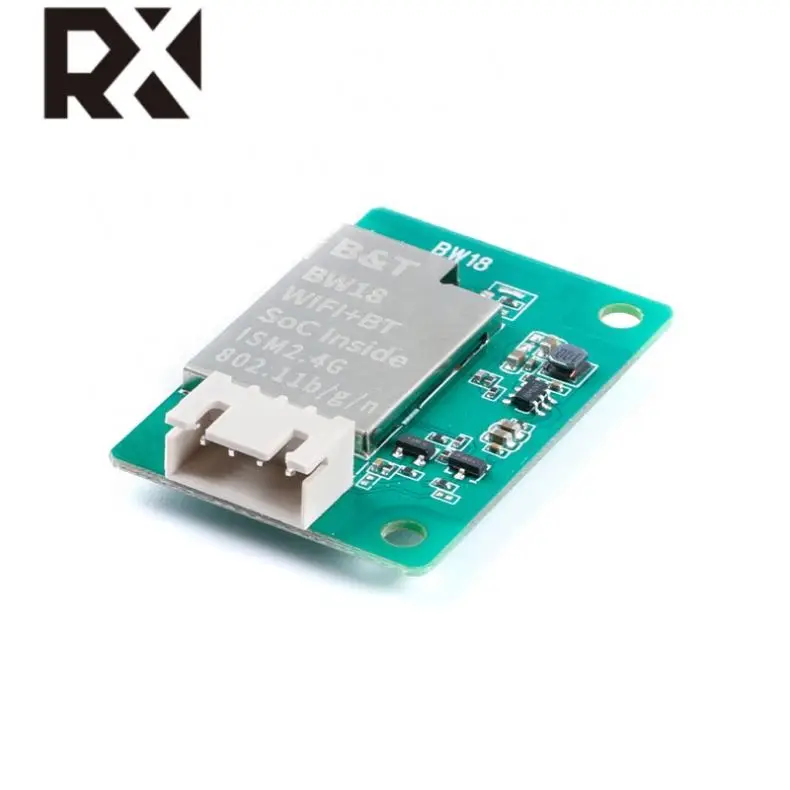

RX ESP32 WiFi BT 4.2 Serial Port Transparent Transmission Module BW18
- Category: >>>
- Supplier: Shenzhen Rongxing Electronics Co. Ltd.
Share on (1601006289910):
Product Overview
Description
Product Description
Product Introduction
BW18 is a dual-band WiFi+BT SoC module developed based on RTL8720DN. It supports 5V power supply and does not need to consider
whether it is compatible with 5V microcontroller level. It is simpler to use, independent module, only need to lead out the serial
cable to connect, and the wiring is more convenient. As long as the 4P connection is used, the MCU can be transparently
transmitted to the cloud through WIFI for data interaction.
Parameter:
Antenna form: onboard PCB antenna
Spectrum range: 24000~2483.5MHZ
Ble-compatible: 4.2BR/EDR and BLE standards
Working temperature: 20C~70 Degree
Storage environment: -40-125degree, <90%RH
Power supply range: power supply voltage 4.5V~16V, power supply current>350mA
Support interface: only supports UART
Serial port rate: support 110~4608000 bps, default 115200 bps
Security: WPA/WPA2/WPA2-Enterprise/WPS
SPI Flash: default 32Mbit
Product size: 41*28*8.9(±0.2)mm
Type
WiFi Module
Country of Origin
China
Brand
Yourcee
Chipset
ESP32
Application
IOT
Module
BW18
Quality
Original
Antenna form
onboard PCB antenna
Spectrum range
24000~2483.5MHZ
Ble-compatible
4.2BR/EDR and BLE standards
Working temperature
-20℃~70℃
Power supply voltage
4.5V~16V
Power supply current
>350mA
Support interface
only supports UART
SPI Flash
default 32Mbit
BW18 is a dual-band WiFi+BT SoC module developed based on RTL8720DN. It supports 5V power supply and does not need to consider
whether it is compatible with 5V microcontroller level. It is simpler to use, independent module, only need to lead out the serial
cable to connect, and the wiring is more convenient. As long as the 4P connection is used, the MCU can be transparently
transmitted to the cloud through WIFI for data interaction.
Parameter:
Antenna form: onboard PCB antenna
Spectrum range: 24000~2483.5MHZ
Ble-compatible: 4.2BR/EDR and BLE standards
Working temperature: 20C~70 Degree
Storage environment: -40-125degree, <90%RH
Power supply range: power supply voltage 4.5V~16V, power supply current>350mA
Support interface: only supports UART
Serial port rate: support 110~4608000 bps, default 115200 bps
Security: WPA/WPA2/WPA2-Enterprise/WPS
SPI Flash: default 32Mbit
Product size: 41*28*8.9(±0.2)mm
Type
WiFi Module
Country of Origin
China
Brand
Yourcee
Chipset
ESP32
Application
IOT
Module
BW18
Quality
Original
Antenna form
onboard PCB antenna
Spectrum range
24000~2483.5MHZ
Ble-compatible
4.2BR/EDR and BLE standards
Working temperature
-20℃~70℃
Power supply voltage
4.5V~16V
Power supply current
>350mA
Support interface
only supports UART
SPI Flash
default 32Mbit
Specification
item | value |
Model Number | 75191 |
Type | WiFi Module |
Country of Origin | China |
Brand | Yourcee |
Chipset | ESP32 |
Application | IOT |
Module | BW18 |
Quality | Original |
Antenna form | onboard PCB antenna |
Spectrum range | 24000~2483.5MHZ |
Ble-compatible | 4.2BR/EDR and BLE standards |
Working temperature | -20℃~70℃ |
Power supply voltage | 4.5V~16V |
Power supply current | >350mA |
Support interface | only supports UART |
SPI Flash | default 32Mbit |
