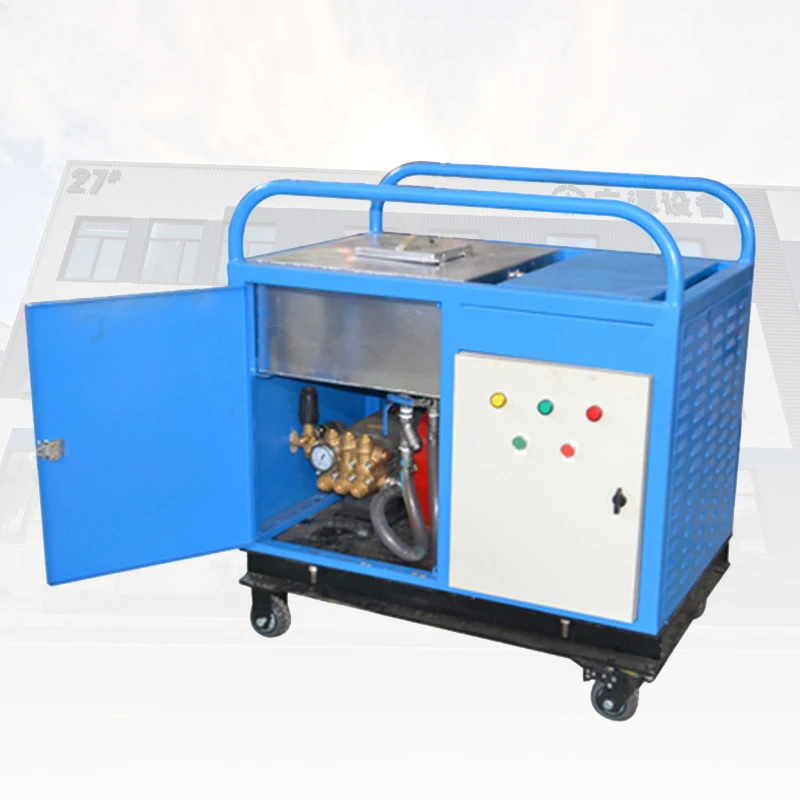

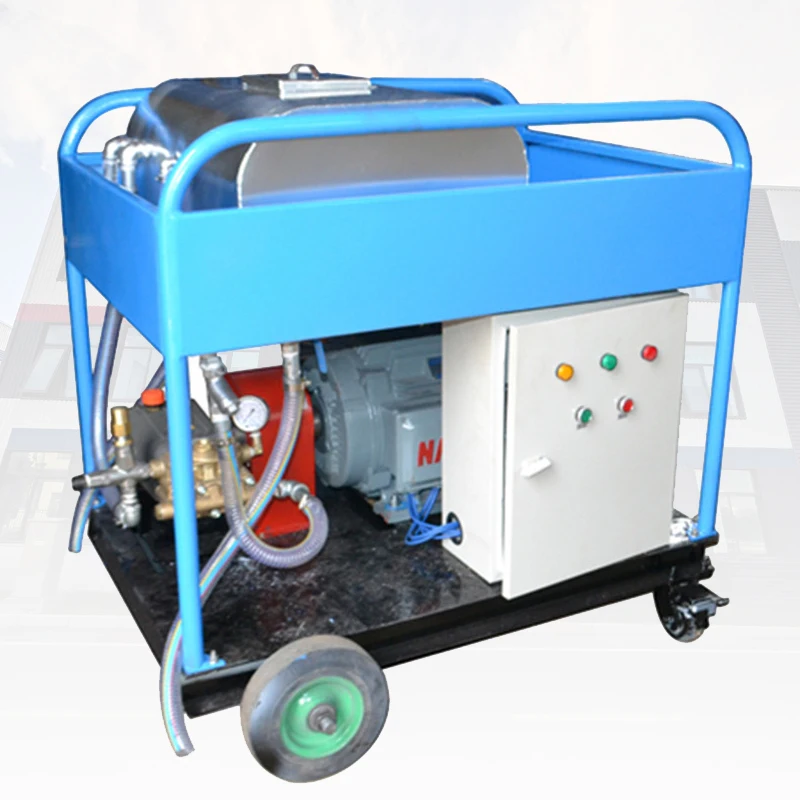

Surface Floor Roof Cleaning High Pressure Water Jet Cleaner Hydro Blasting Machine price
- Category: >>>
- Supplier: Zhengzhou Guangyuan Cleaning Equipment Co. Ltd.
Share on (1601006313541):
Product Overview
Description
Product Description
Main Features
1.Pressure: 100~500bar ( 1450~7250 psi)
2.Flow Rate: 15~23 L/min
3.Under 200bar, pump is made in China, with the tech. of Italy AR; 200bar to 500bar, pump is use the imported Italy AR pump. It’s classified with direct-coupled type and belt-driven type.
4.For water, it divided into for cold water cleaner and hot water cleaner.
5.Small Volume, bigger power, easy to be move (with wheels)

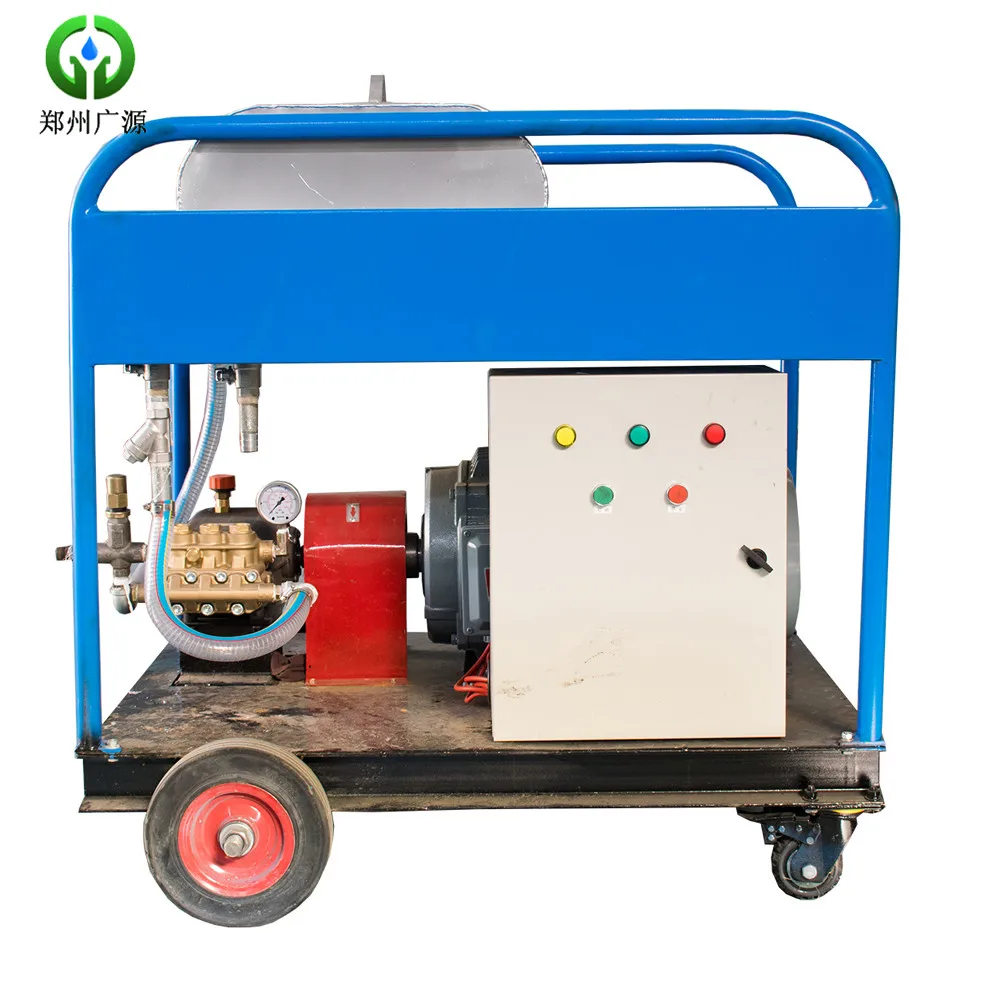

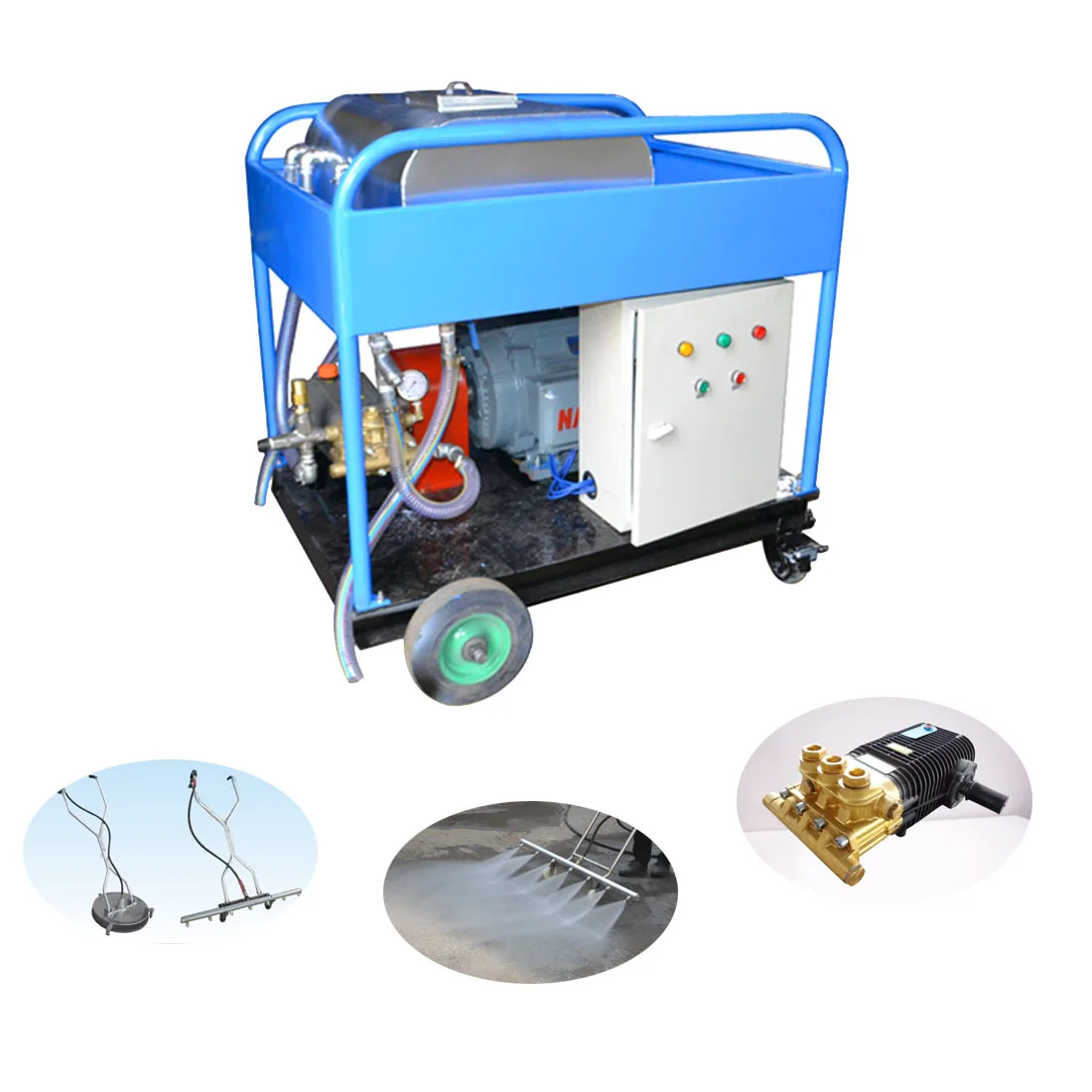

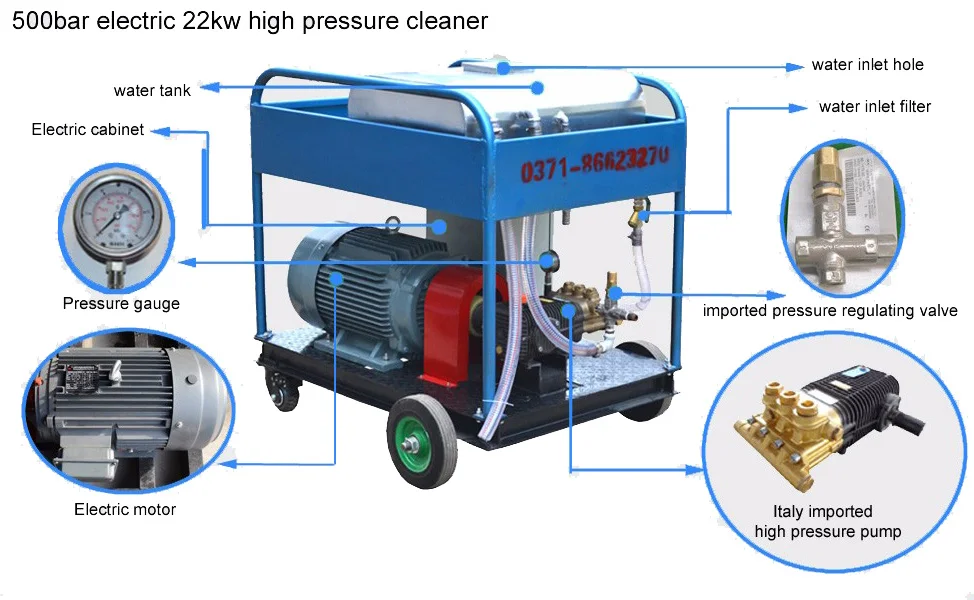

22kW Electric Cold Water High Pressure Cleaner, a powerful cleaning solution for a wide range of applications. With its robust 22kW electric motor, this cleaner delivers high-pressure water jets to effectively remove dirt, grime, and contaminants from various surfaces. Designed for cold water use, it offers versatility in cleaning tasks where hot water is not required. Whether you need to clean machinery, vehicles, or outdoor surfaces, this high-pressure cleaner provides the strength and efficiency needed for thorough cleaning. Its user-friendly design, durable construction, and reliable performance make it an ideal choice for industrial settings.

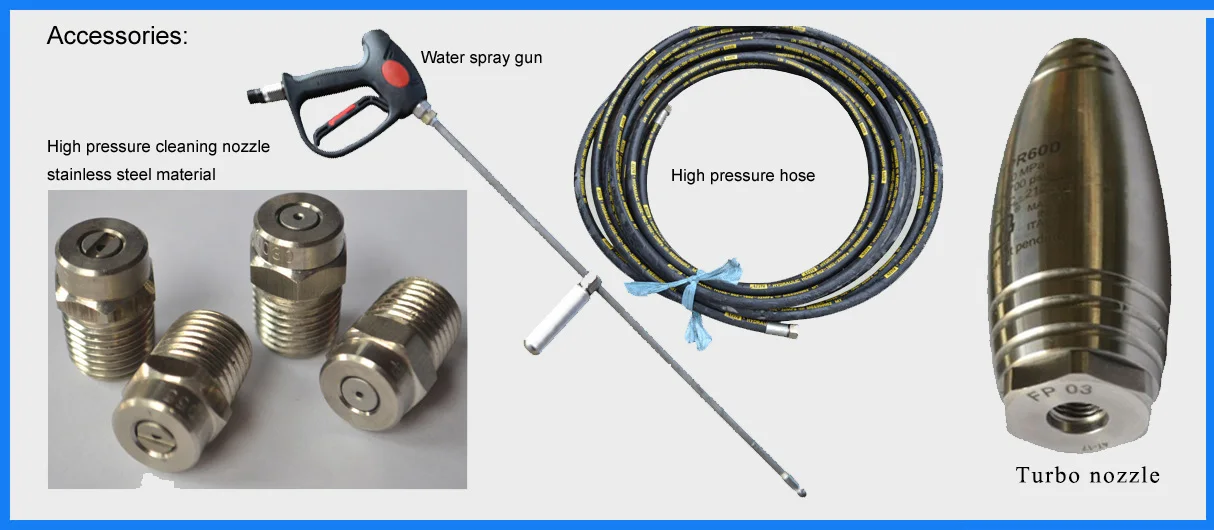

Accessories:
Standard accessories:
high pressure hose + high pressure spray gun+ cleaning nozzle

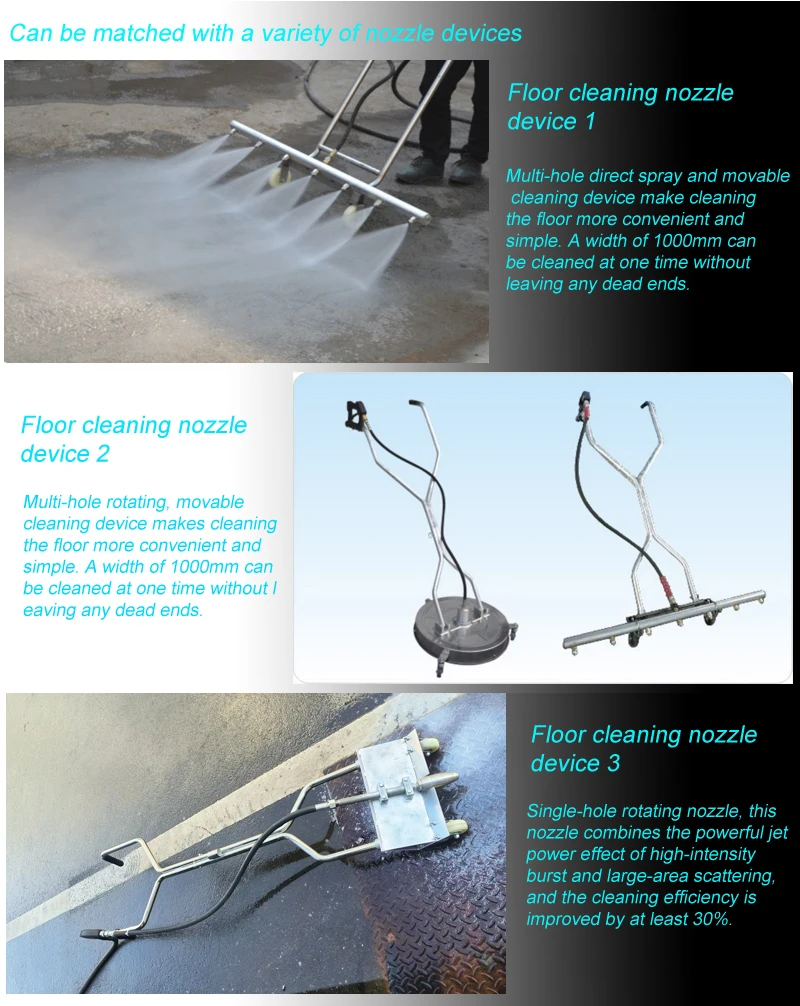

Optional accessories:
single-hole rotating nozzle; sewer cleaning nozzle, pipe cleaning nozzle, etc.
high pressure hose + high pressure spray gun+ cleaning nozzle
Optional accessories:
single-hole rotating nozzle; sewer cleaning nozzle, pipe cleaning nozzle, etc.
Specification
Model | GYB-1 |
Speed | 1480 rpm |
High pressure pump | Triple plunger pump Pump head material: copper Plunger material:ceramic |
Rate Pressure | 500 bar / 7250 psi |
Water flow | 23 L/min |
Plunger dia. | 18mm |
Electric power | 22kw, 3Phase, 380v/50Hz; IP55 |

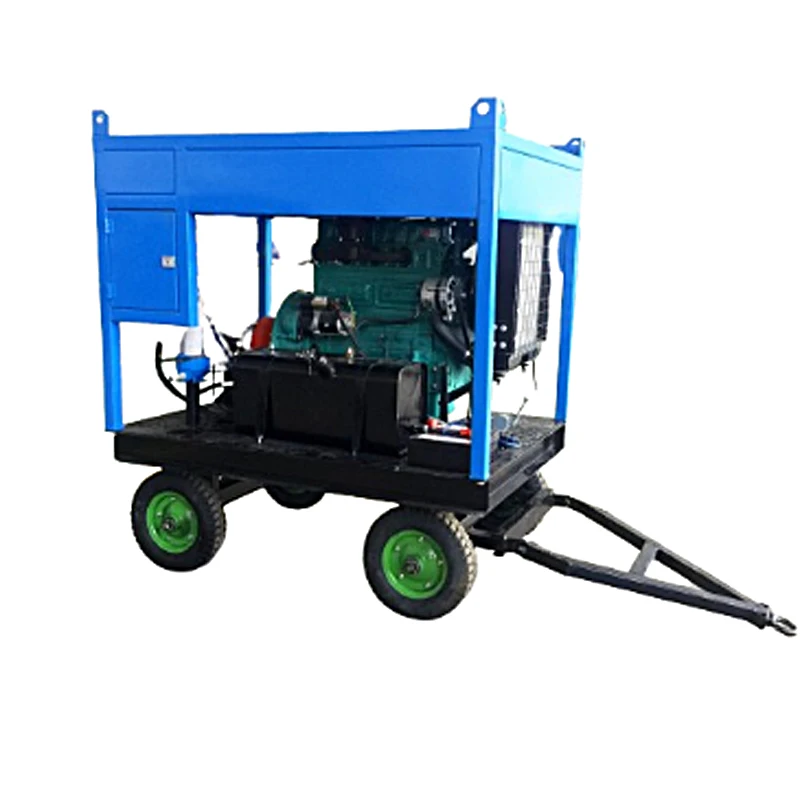

Diesel engine drive | 33kw, 4-cylinder |
GYB-1 series high pressure cleaning machine technical parameter
Water flow（L/min） | Rate Pressure（Bar） | Electric power（Kw） |
15 | 150 | 5.5 |
15 | 200 | 8.8 |
15 | 300 | 11 |
23 | 300 | 15 |
23 | 350 | 18.5 |
23 | 500 | 22 |
50 | 180 | 15 |
30 | 600 | 30 |
22 | 800 | 37 |

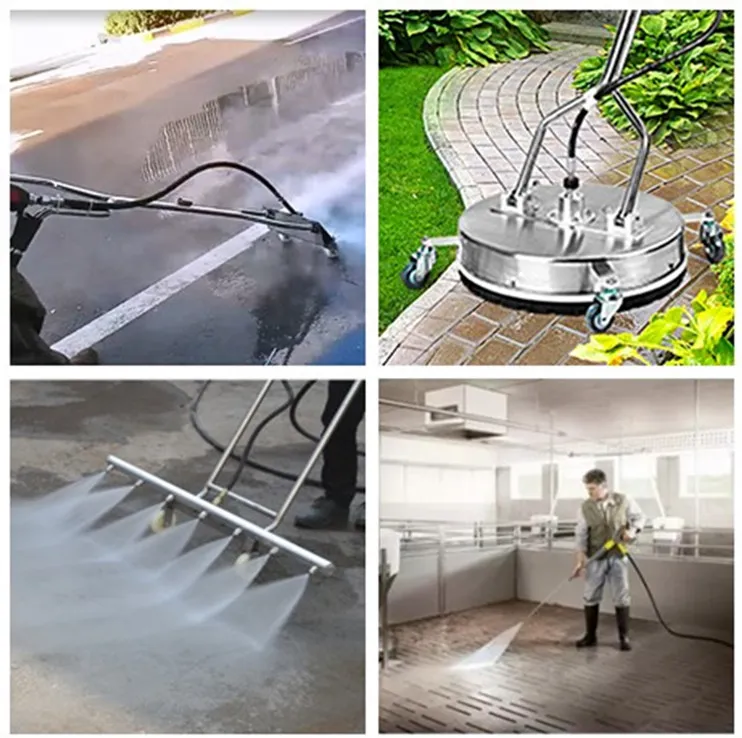

Application

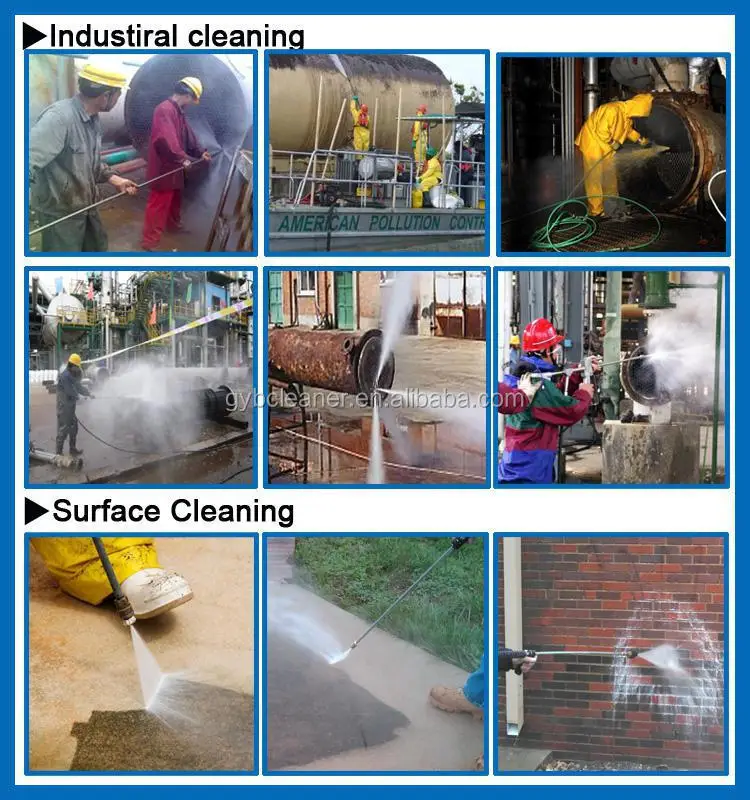

1. Many area industrial cleaning purpose, heat exchanger tube cleaning, condenser tube cleaning, pipe cleaning, reactor tank cleaning, filter screen cleaning, boil cleaning, tank cleaning, etc…
2. Pipe pressure test, valve / hose pressure test, hydro pressure test, etc
3. Water injection
4. Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal
5. Construction industry, car/truck cleaning, mixing drum/tank cleaning, tar/cement/agglutinant cleaning, etc…
6. Food processing plant, mixing tank cleaning, grease/ fouling layer / residual removal, evaporator/boil cleaning, etc

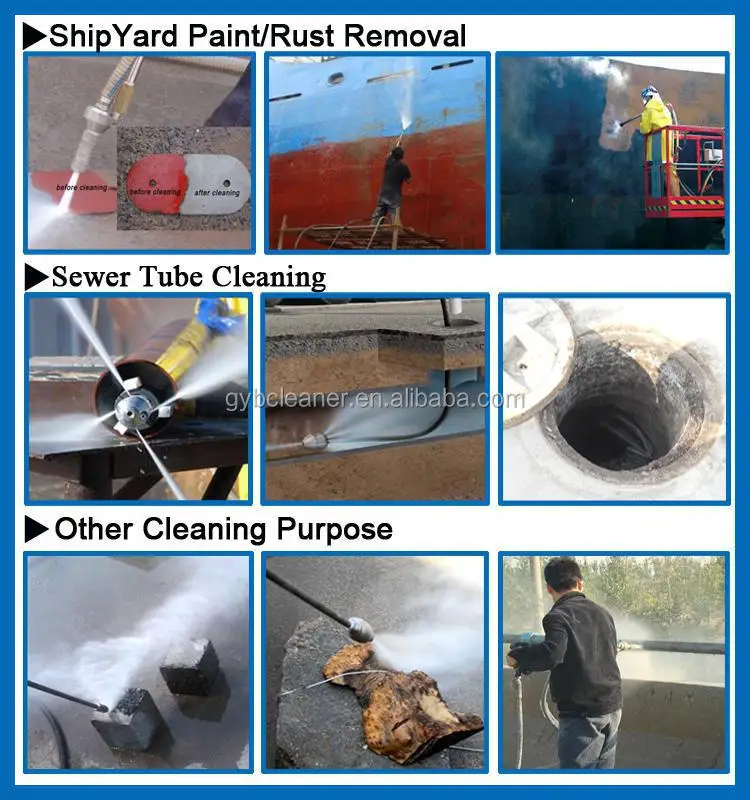

7. Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom.
8. Metallurgy plant, heat exchanger tube cleaning, boil, feed tank, warehouse dirt cleaning, descale removal…
9.Machine producing plant, volume / pipe / tank / rust / oxide skin cleaning…
2. Pipe pressure test, valve / hose pressure test, hydro pressure test, etc
3. Water injection
4. Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal
5. Construction industry, car/truck cleaning, mixing drum/tank cleaning, tar/cement/agglutinant cleaning, etc…
6. Food processing plant, mixing tank cleaning, grease/ fouling layer / residual removal, evaporator/boil cleaning, etc
7. Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom.
8. Metallurgy plant, heat exchanger tube cleaning, boil, feed tank, warehouse dirt cleaning, descale removal…
9.Machine producing plant, volume / pipe / tank / rust / oxide skin cleaning…
Customized service
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

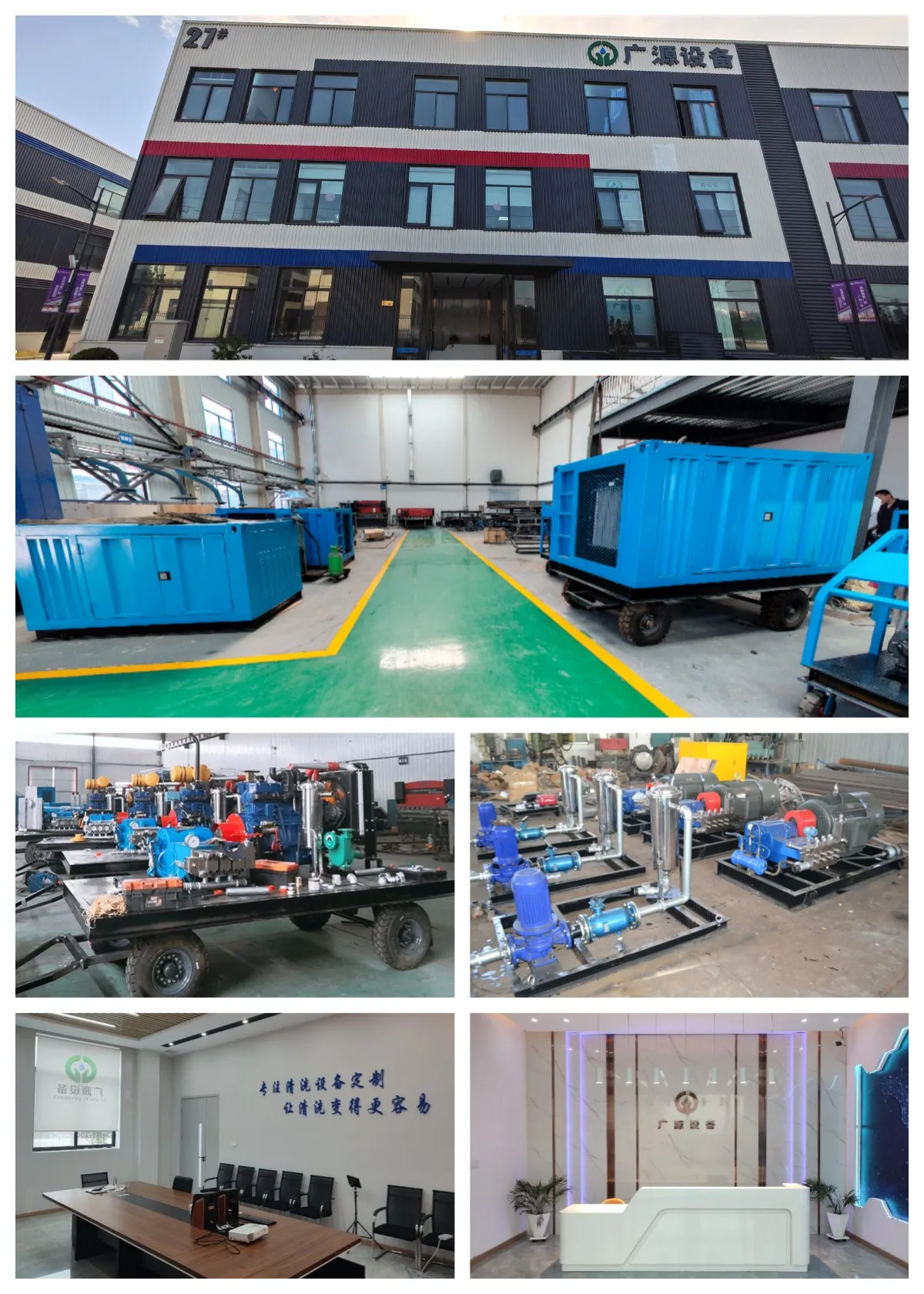

Company Profile
Zhengzhou GuangYuan Cleaning Equipment Co.,Ltd. Is a manufacturer for high pressure water jetting machine, founded in 2012, is committed to explore the field of a high pressure water jet market brand. Our company is located in Henan Province, China.
We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, High pressure cleaner, high pressure pump, cleaning system customization etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. 15kw electric sewer pipeline cleaner, which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc. Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world. We sincerely look forward to cooperating with new and old clients.
Certifications
FAQ
1.Are you trading company or manufacturer?
--We are manufacturer here for over 15 years. Producing commercial high pressure cleaner.
2. How to choose suitable model?
-- You can confirm your working purpose request, we have rich experience on water jetting field, and also we have our own Professional technical team to give you better suggest and recommend;
3.What kind of engine we can choose?
-- Here has Electric motor drive, Diesel engine, Petrol engine; you can freely choose it.
4.What's your warranty?
--Warranty is one year.
5.How long is your delivery time?
--It's according to the model you order. If has in stock,within 2 days; if without stock, within 15 days.
6.What's your payment terms?
-- We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment <=USD 5000, suggest 100% in advance;
Payment >=USD 5000, suggest 40% in advance, balance before shipment.
7.What Certificate do you have?
--We can offer CO ( Certificate of Origin), FA(Form A), FE, FF; CE certificate,
-- Or if you have other request certificate, pls confirm with us.
8.Which is your shipping port?
--Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
9.What's the shipping way?
--As machine is little big, suggest delivery by sea, if accessories or spare parts, suggest by express (DHL, Fedex, etc).
--We are manufacturer here for over 15 years. Producing commercial high pressure cleaner.
2. How to choose suitable model?
-- You can confirm your working purpose request, we have rich experience on water jetting field, and also we have our own Professional technical team to give you better suggest and recommend;
3.What kind of engine we can choose?
-- Here has Electric motor drive, Diesel engine, Petrol engine; you can freely choose it.
4.What's your warranty?
--Warranty is one year.
5.How long is your delivery time?
--It's according to the model you order. If has in stock,within 2 days; if without stock, within 15 days.
6.What's your payment terms?
-- We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment <=USD 5000, suggest 100% in advance;
Payment >=USD 5000, suggest 40% in advance, balance before shipment.
7.What Certificate do you have?
--We can offer CO ( Certificate of Origin), FA(Form A), FE, FF; CE certificate,
-- Or if you have other request certificate, pls confirm with us.
8.Which is your shipping port?
--Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
9.What's the shipping way?
--As machine is little big, suggest delivery by sea, if accessories or spare parts, suggest by express (DHL, Fedex, etc).
