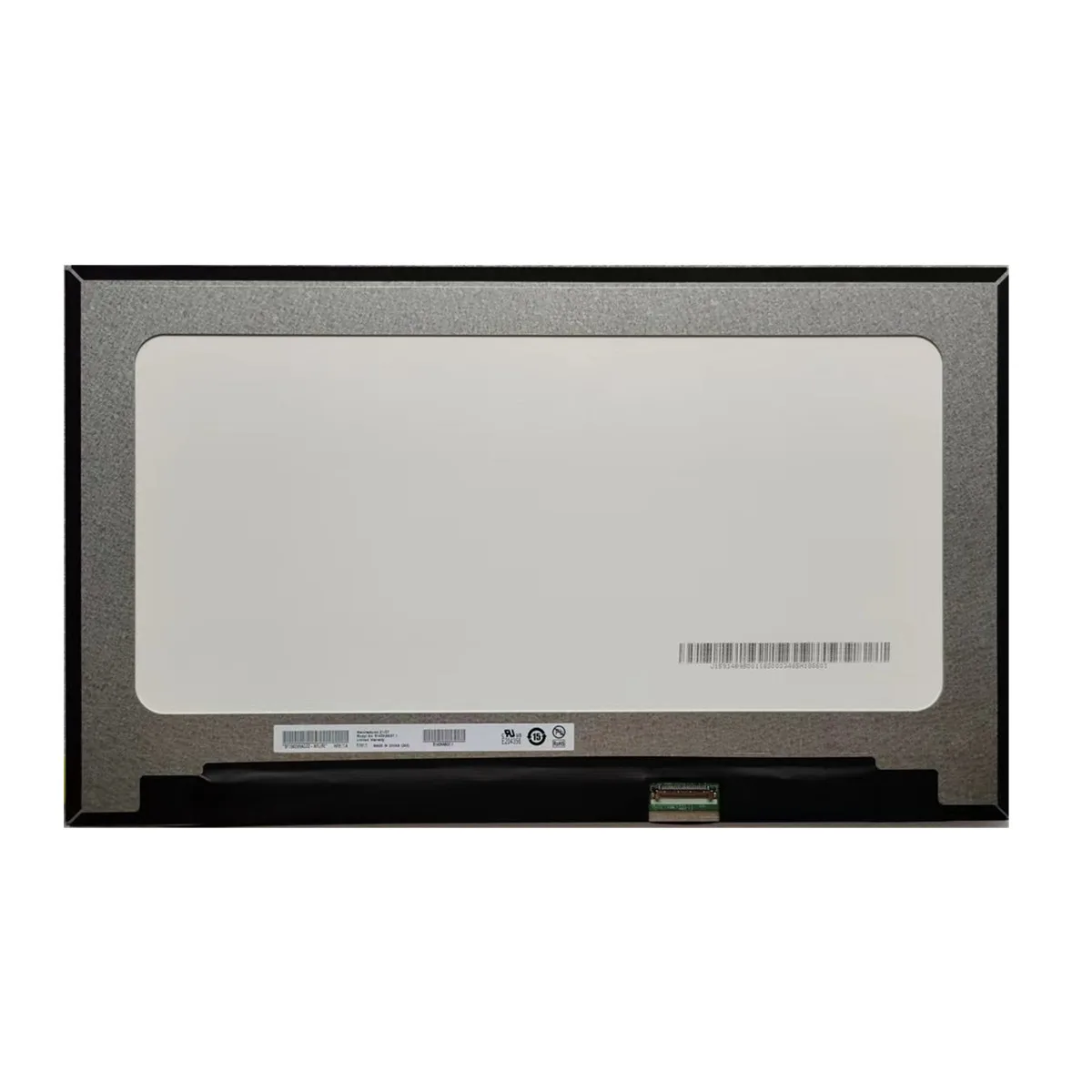

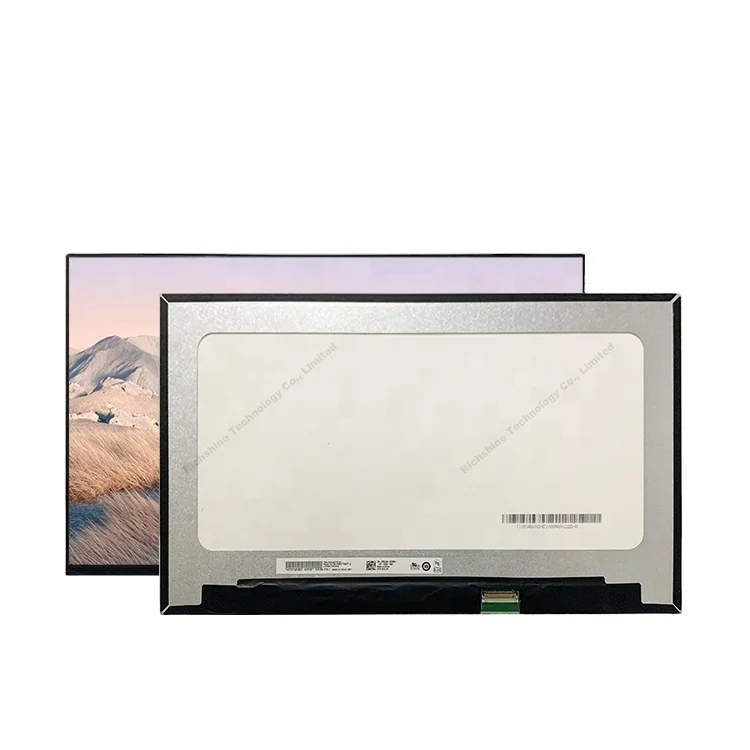

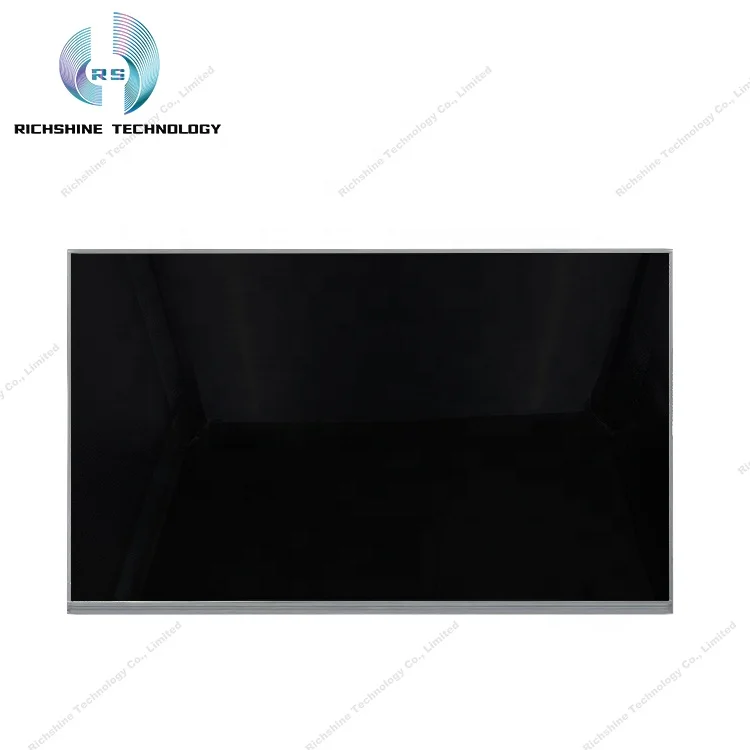

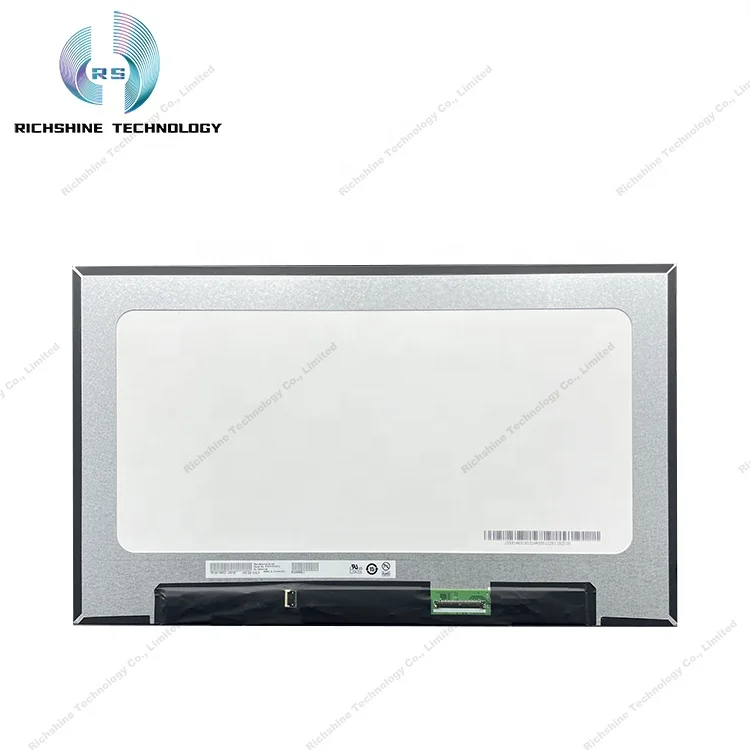

Original AUO TFT LCD Screen 14.0 inch FHD Slim laptop replacement screen eDP 30 pins B140HAN07.1 for laptop panel
- Category: >>>
- Supplier: Richshine Technology Co. Limited
Share on (1601006320283):
Product Overview
Description
Brand | AUO | Model P/N | B140HAN07.1 | ||
Diagonal Size | 14.0" | Panel Type | a-Si TFT-LCD, LCM | ||
Resolution | 1920(RGB)x1080, FHD 157PPI | Pixel Format | RGB Vertical Stripe | ||
Active Area | 309.37(W)x174.02(H) mm | Bezel Opening | - | ||
Outline(mm) | 315.87(W)x187.68(H)x5.25(D) | Treatment | Antiglare | ||
Luminance | 250 (Typ.)(cd/²) | Contrast Ratio | 700: 1 (Typ.) (TM) | ||
Viewing Angle | 85/85/85/85(Min.)(CR≥10) | Work Mode | AHVA, Normally Black, Transmissive | ||
Good View at | Symmetry | Response | 25 (Typ.)(Tr+Td) ms | ||
Color Depth | 16.2M 45% NTSC | Backlight | WLED，15K hours , With LED Driver | ||
Outline Shape | Slim (PCBA Bent, T≤3.0mm) | Used for | laptop | ||
Refresh Rate | 60Hz | Touchscreen | Without | ||

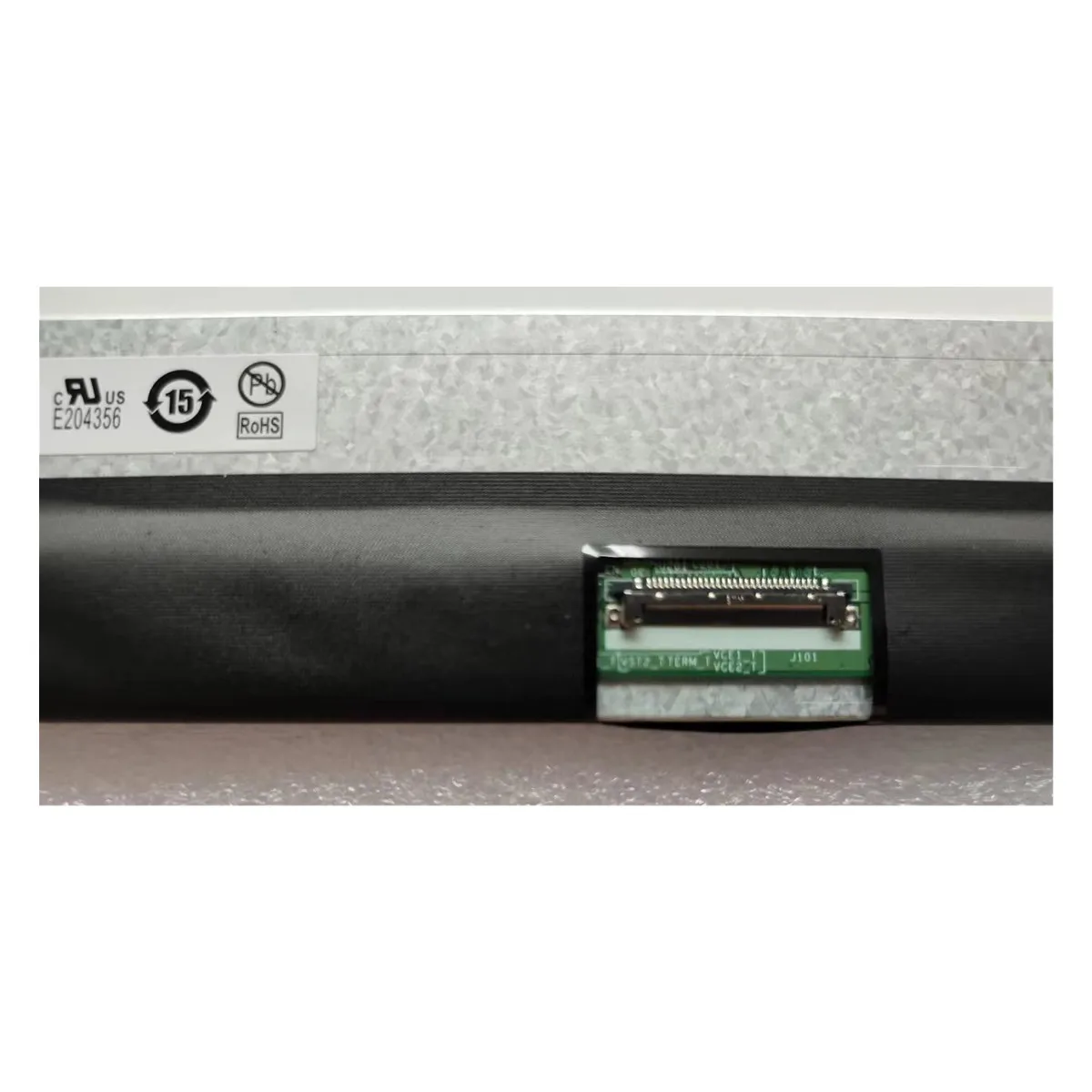

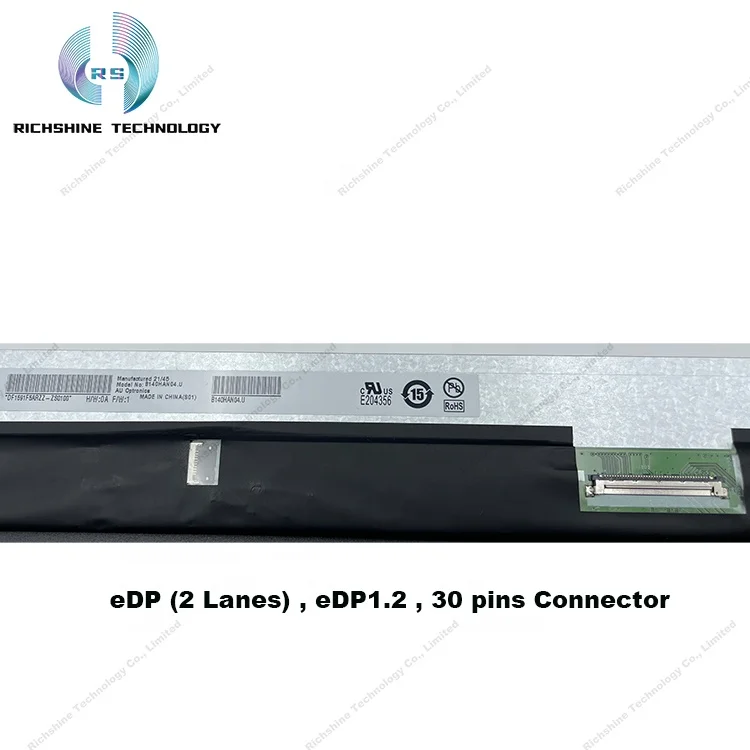

Signal Type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector | ||||
Voltage Supply | 3.3V (Typ.) | ||||
Max. Ratings | Storage Temp: -20 ~ 60°C Operating Temp:0~ 50 °C | ||||
