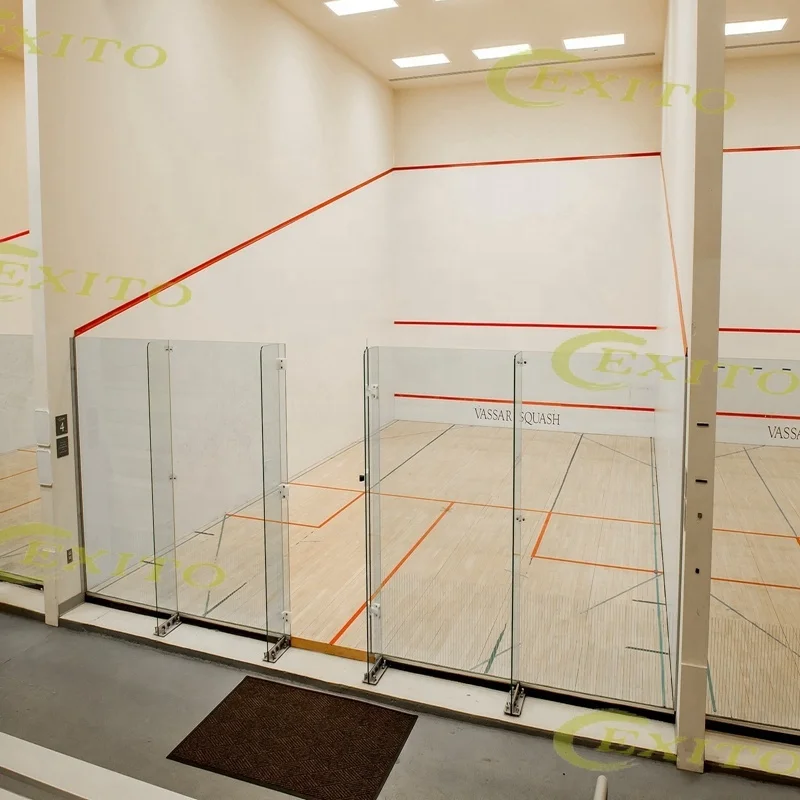

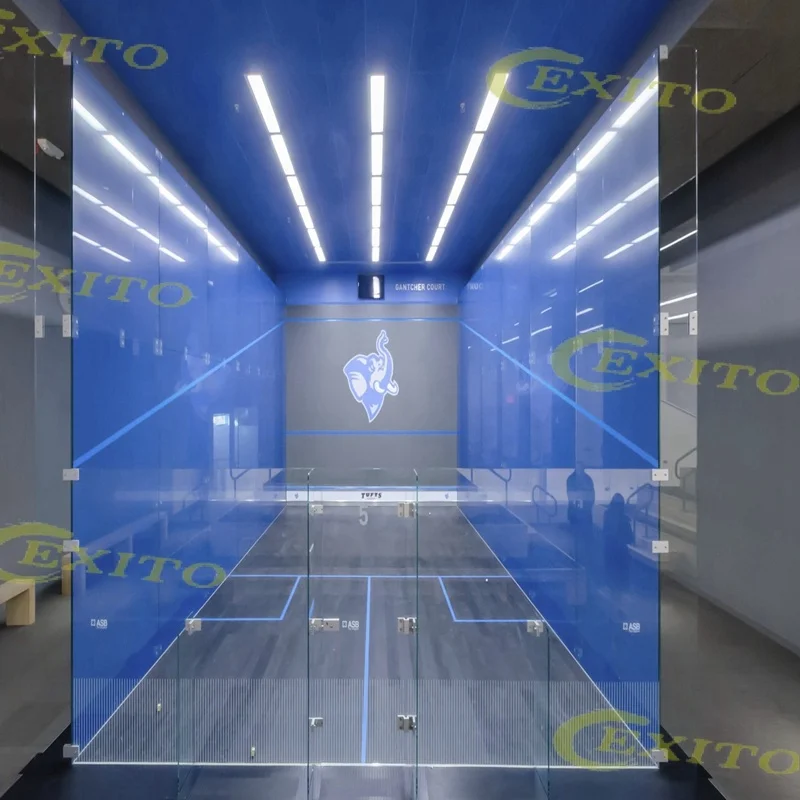

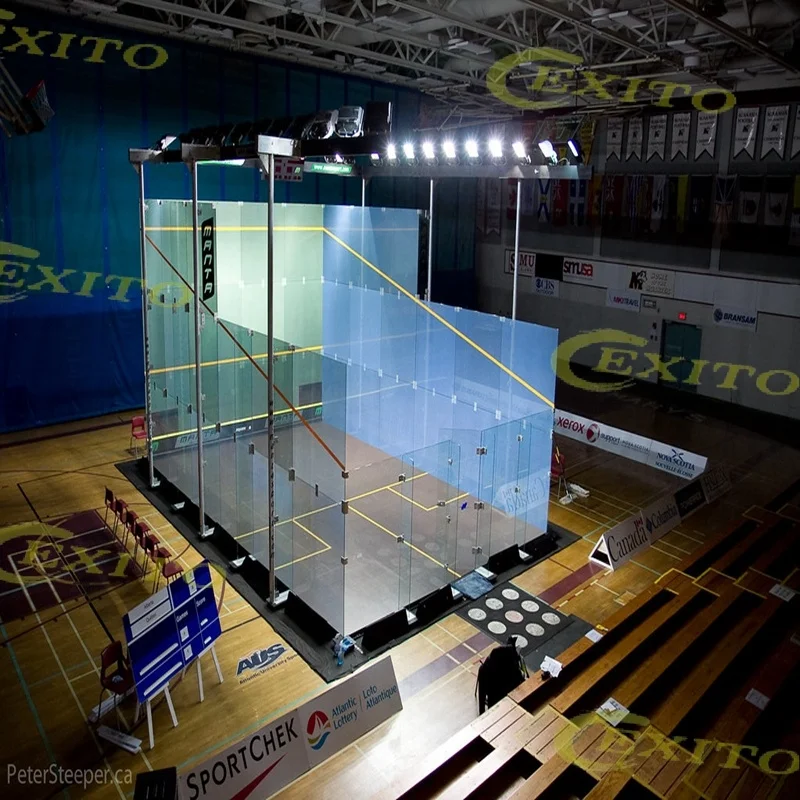

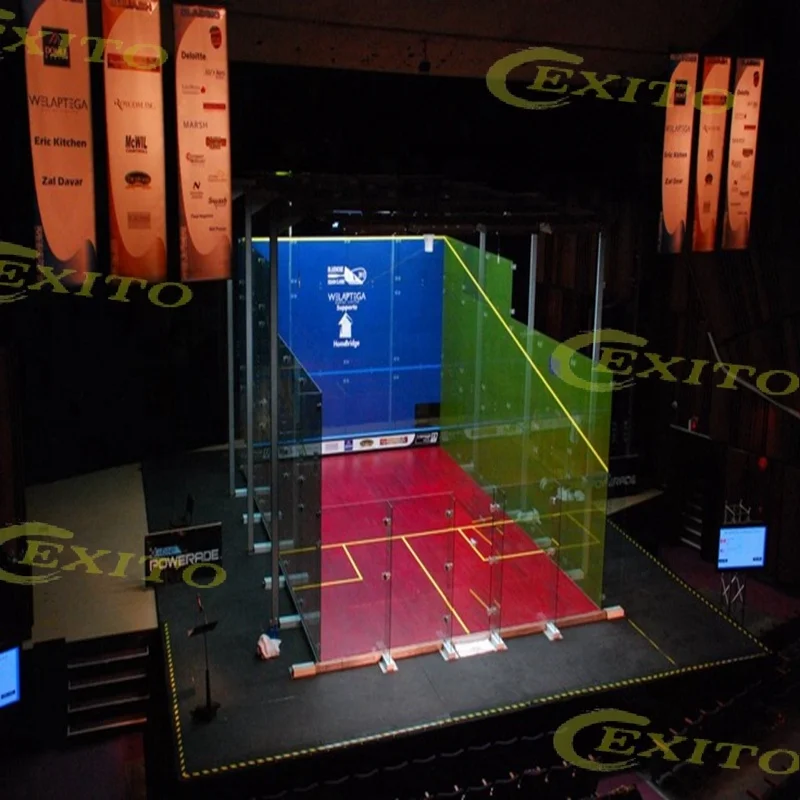

EXITO Most Popular Squash Court Single Squash Court Double Squash Court for Sale
- Category: >>>
- Supplier: Yangzhou Exito Industrial Co. Ltd.
Share on (1601006325319):
Product Overview
Description
Product Description
A squash court is a rectangular box with four vertical walls of varying height. These walls are known as the front wall, side walls and back wall. The front wall line, side wall line, back wall line and upper 50mm of the tin are shaped to deflect any ball that strikes them.
The court has a level floor and a clear height above the court area.
The length, width and diagonal of the court are measured at a height of 10cm above the floor.
Squash courts are also used for racquetball.
The court has a level floor and a clear height above the court area.
The length, width and diagonal of the court are measured at a height of 10cm above the floor.
Squash courts are also used for racquetball.
Specification
item | value |
Sport | Squash |
Place of Origin | China |
Province | Jiangsu |
Brand Name | EXITO |
Product name | Squash Court |
Color | Customized Color |
Size | 9.75*6.4*11.665 |
Warranty | 12 Months |
Usage | Sports Venue |
MOQ | 1 Set |
Delivery Time | 20-25 Days |
Certificate | CE |

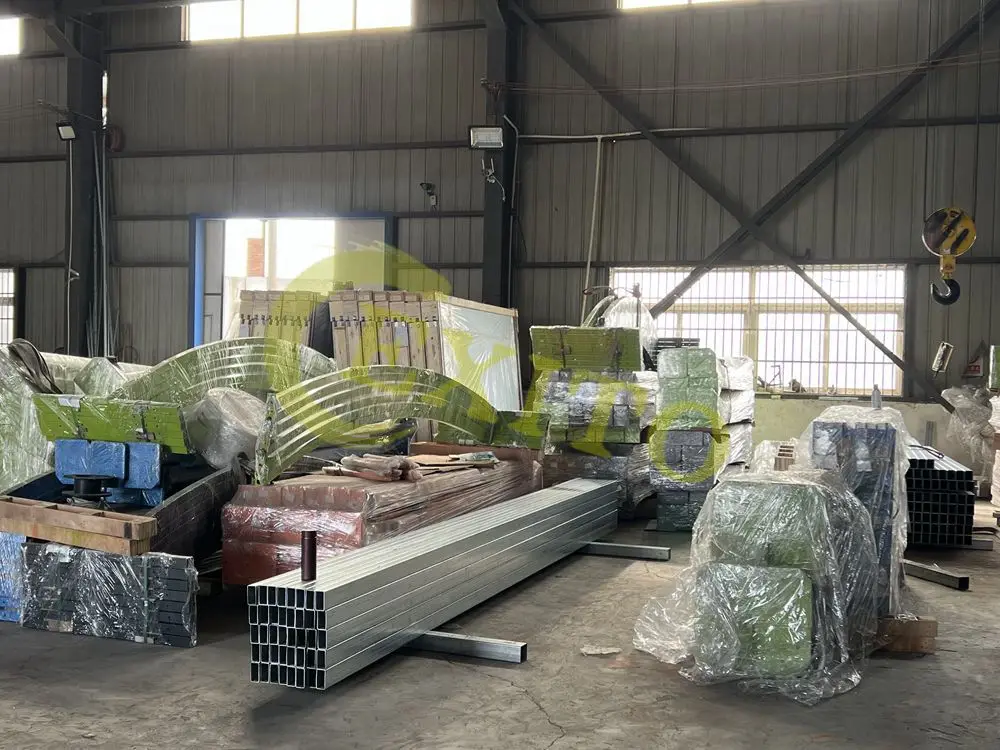

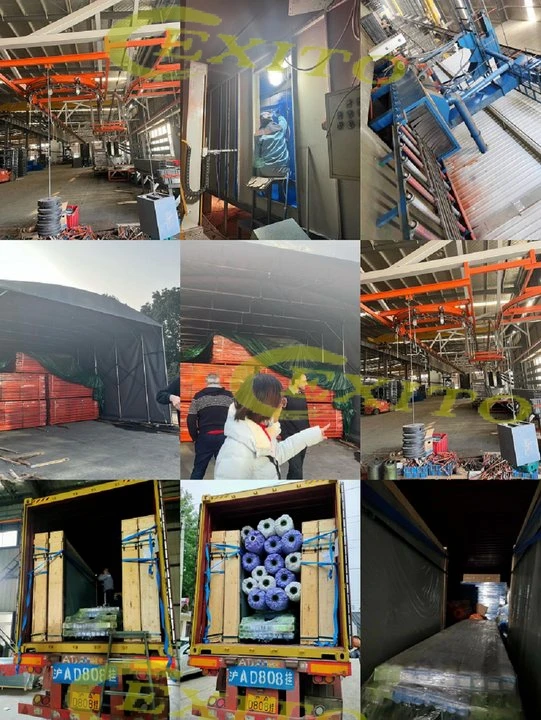

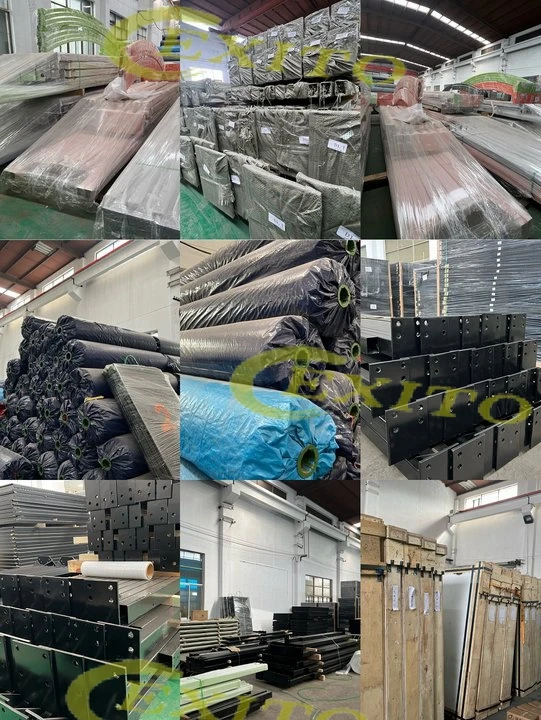

Packing & Delivery

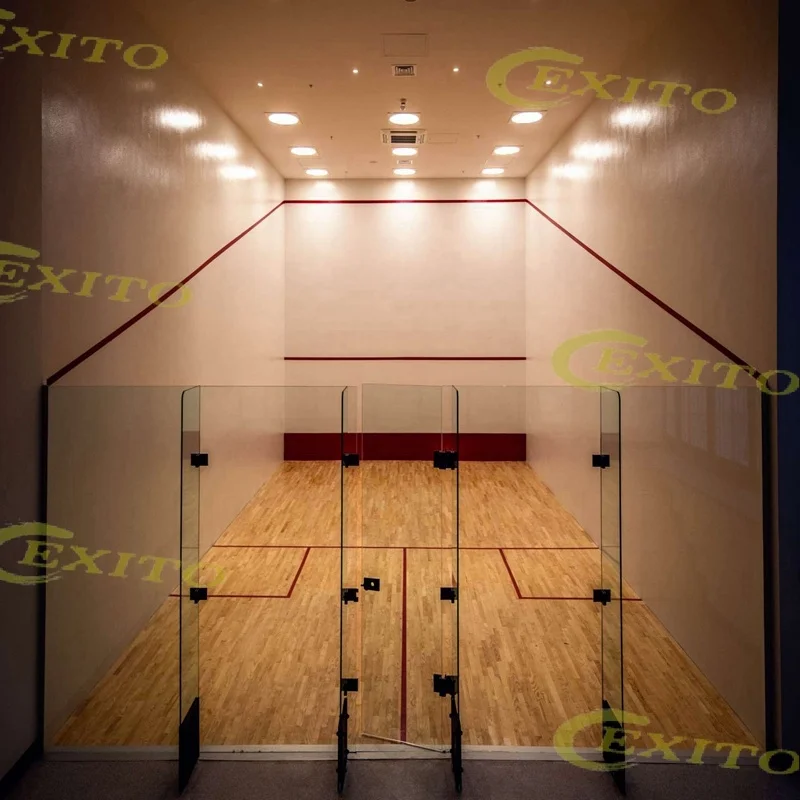

Singles squash court
Dimensions
The dimensions of a standard squash court are:
Length of court is 9.75m.
Width of court is 6.4m.
Diagonal is 11.665m.
Height from floor to lower edge of front wall line is 4.57m.
Height from floor to lower edge of back wall line is 2.13m.
Height from floor to lower edge of service line on front wall is 1.780m
Height from floor to top of the tin is 4.8m.
Distance to nearest edge of short line from back wall is 4.26m.
Dimensions of service boxes is 1.600m.
Width of all lines and upper section of tin is 5cm.
Minimum clear height above court floor is 5.640m.
Floor
The floor is a hard smooth surface with limited spring. It has a matt finish and is generally a natural wood colour.
Front wall
The three horizontal markings on the front wall are the front wall line, the service line and the upper 50mm of the tin. All edges of the tin are rounded and the tin makes a distinctive noise when struck by the ball.
Back wall
The back wall line is the only horizontal court marking on the back wall.
Side walls
The side wall line is angled between the front wall line and the back wall line.
Floor markings
There is a short line, half court line and two service boxes marked on the floor. The short line is parallel to the front and back walls of the court and is 4.26m.
The half court line is parallel to and equidistant from the side walls. It runs from the back wall to the short line.
There are two service boxes, one on each side of the court behind the short line. Each service box is bounded on three sides by lines and on the fourth side by one of the walls.
Door
The door to the court is located in the middle of the back wall and opens into the court. The door is no more than 900mm wide and 2130mm high.
squash court singles dimensions
Doubles/hardball squash court
Dimensions
The dimensions of a doubles/hardball squash court are:
Length of court between playing surfaces is 13.72m.
Width of court between playing surfaces is 7.62m.
Diagonal is 15.69m.
Height above floor to lower edge of front wall line is 6.09m.
Height above floor to lower edge of back wall line is 2.13m.
Height from floor to upper edge of service line on front wall is 2.46m.
Height from floor to top of the tin is 4.3m.
Distance to nearest edge of short line from back wall is 4.57m
Dimensions of quadrant service boxes is 1.37m2
Width of all lines and the board is 38mm.
Minimum clear height above the floor of the court is 7.31m.
squash hardball doubles court dimensions
Dimensions
The dimensions of a standard squash court are:
Length of court is 9.75m.
Width of court is 6.4m.
Diagonal is 11.665m.
Height from floor to lower edge of front wall line is 4.57m.
Height from floor to lower edge of back wall line is 2.13m.
Height from floor to lower edge of service line on front wall is 1.780m
Height from floor to top of the tin is 4.8m.
Distance to nearest edge of short line from back wall is 4.26m.
Dimensions of service boxes is 1.600m.
Width of all lines and upper section of tin is 5cm.
Minimum clear height above court floor is 5.640m.
Floor
The floor is a hard smooth surface with limited spring. It has a matt finish and is generally a natural wood colour.
Front wall
The three horizontal markings on the front wall are the front wall line, the service line and the upper 50mm of the tin. All edges of the tin are rounded and the tin makes a distinctive noise when struck by the ball.
Back wall
The back wall line is the only horizontal court marking on the back wall.
Side walls
The side wall line is angled between the front wall line and the back wall line.
Floor markings
There is a short line, half court line and two service boxes marked on the floor. The short line is parallel to the front and back walls of the court and is 4.26m.
The half court line is parallel to and equidistant from the side walls. It runs from the back wall to the short line.
There are two service boxes, one on each side of the court behind the short line. Each service box is bounded on three sides by lines and on the fourth side by one of the walls.
Door
The door to the court is located in the middle of the back wall and opens into the court. The door is no more than 900mm wide and 2130mm high.
squash court singles dimensions
Doubles/hardball squash court
Dimensions
The dimensions of a doubles/hardball squash court are:
Length of court between playing surfaces is 13.72m.
Width of court between playing surfaces is 7.62m.
Diagonal is 15.69m.
Height above floor to lower edge of front wall line is 6.09m.
Height above floor to lower edge of back wall line is 2.13m.
Height from floor to upper edge of service line on front wall is 2.46m.
Height from floor to top of the tin is 4.3m.
Distance to nearest edge of short line from back wall is 4.57m
Dimensions of quadrant service boxes is 1.37m2
Width of all lines and the board is 38mm.
Minimum clear height above the floor of the court is 7.31m.
squash hardball doubles court dimensions
Company Profile
Yangzhou EXITO is specialized in design and manufacture of sports equipment, independent development of sports-related products;
Our main bussiness: padel courts, single padel courts,squash court, padel sports related products or equipment. We had been export courts to Mexico, Kuwait, Chile, Spain and Italy about hundreds sets; EXITO is a comprehensive enterprise integrating R&D, manufacturing, and sales, and there are more than 120 workers because of our excellent products, and professional services.
Furthermore, We already got the CE from TUV ;We also have agent in KUWAIT, ITALY and UAE; Based on the principle of mutual trust, we provide customers with high-quality products and win good feedback and appreciation from customers.
Focus on customers' needs and provide customers with satisfactory services as far as possible. Professional products and services are our best weapons; We aim to be a leader in the industry through our efforts and form our own unique style.Create greater value for our customers and partners.
Our main bussiness: padel courts, single padel courts,squash court, padel sports related products or equipment. We had been export courts to Mexico, Kuwait, Chile, Spain and Italy about hundreds sets; EXITO is a comprehensive enterprise integrating R&D, manufacturing, and sales, and there are more than 120 workers because of our excellent products, and professional services.
Furthermore, We already got the CE from TUV ;We also have agent in KUWAIT, ITALY and UAE; Based on the principle of mutual trust, we provide customers with high-quality products and win good feedback and appreciation from customers.
Focus on customers' needs and provide customers with satisfactory services as far as possible. Professional products and services are our best weapons; We aim to be a leader in the industry through our efforts and form our own unique style.Create greater value for our customers and partners.
If you have any interest , pls contact us!!!
FAQ
1. Are you a manufacturer or a trading company?
We are experienced manufacturer and we have our own trading company.
2. How can you guarantee quality?
Always final inspection before shipment;
3.What can i buy from you?
Paddle Tennis Court, Squash Court, Single Squash Courts, padel rackets and padel balls
4. Why should you buy from you not from other suppliers?
We are the most professional and competitive company in China for producing tennis courts. We provide a complete
set of facilities.Customers are distributed throughout Europe, Africa.
5. What services can you provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
We are experienced manufacturer and we have our own trading company.
2. How can you guarantee quality?
Always final inspection before shipment;
3.What can i buy from you?
Paddle Tennis Court, Squash Court, Single Squash Courts, padel rackets and padel balls
4. Why should you buy from you not from other suppliers?
We are the most professional and competitive company in China for producing tennis courts. We provide a complete
set of facilities.Customers are distributed throughout Europe, Africa.
5. What services can you provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
