JM 8121 digital portable 12 channel 12 lead ECG machine with inner thermal printer for hospital
- Category: >>>
- Supplier: Shanghai Jackmolly Technology Co. Ltd.
Share on (1601006325388):
Product Overview
Description
Products Description

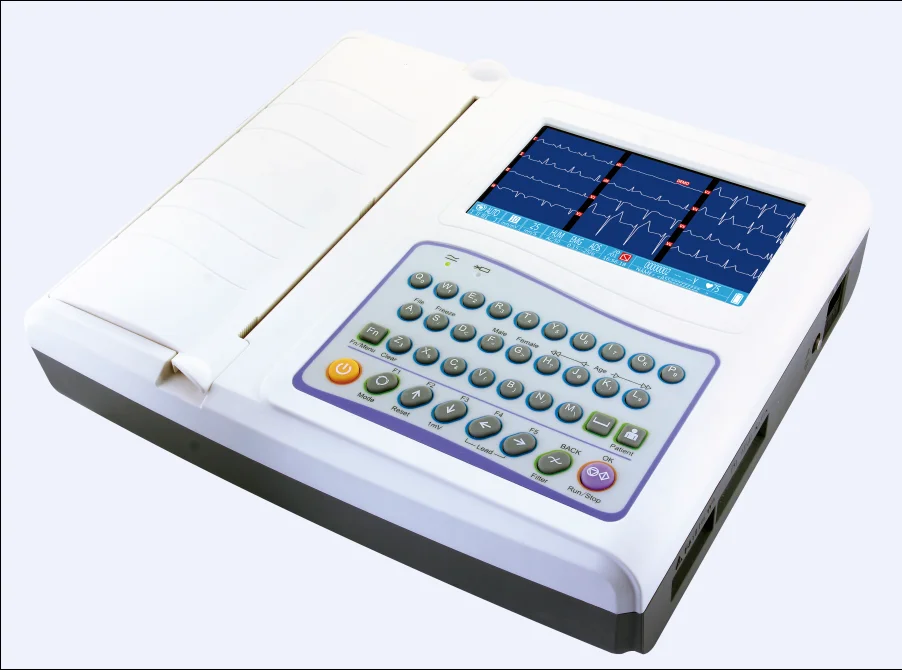

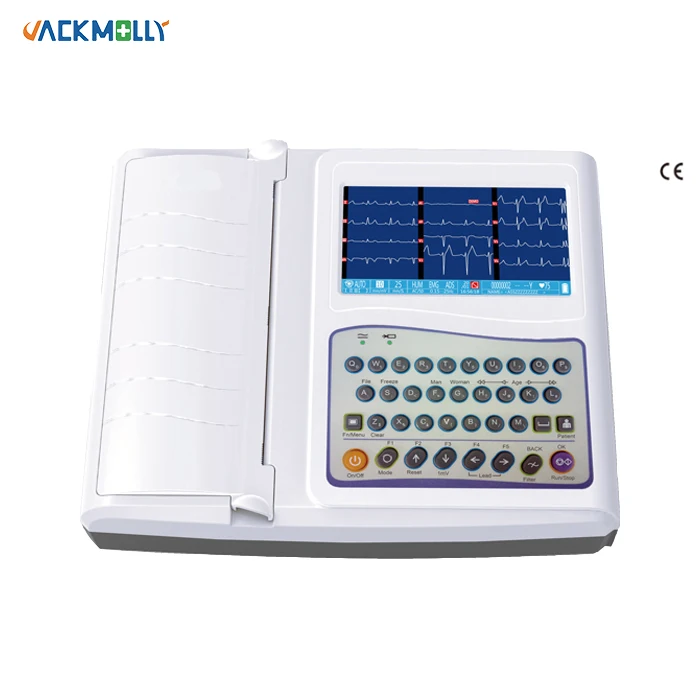

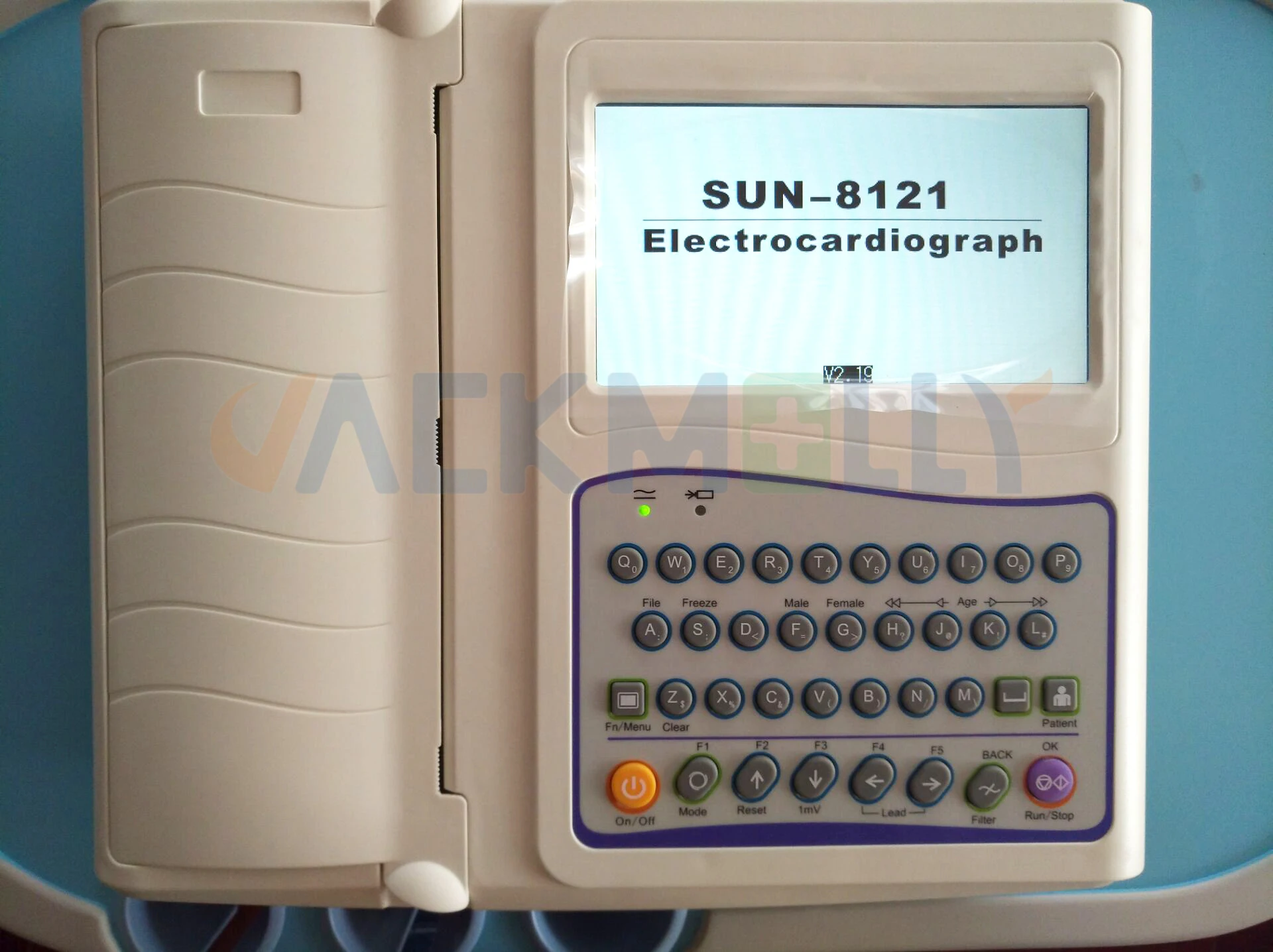

JM-8121 digital portable 12 channel 12 lead ECG machine with inner thermal printer for hospital
Features
Portable 12 channel ECG machine
Work modes: Manual/Auto/Arrhythmia analysis modes
10 inch colour LCD with Alphabet keyboard

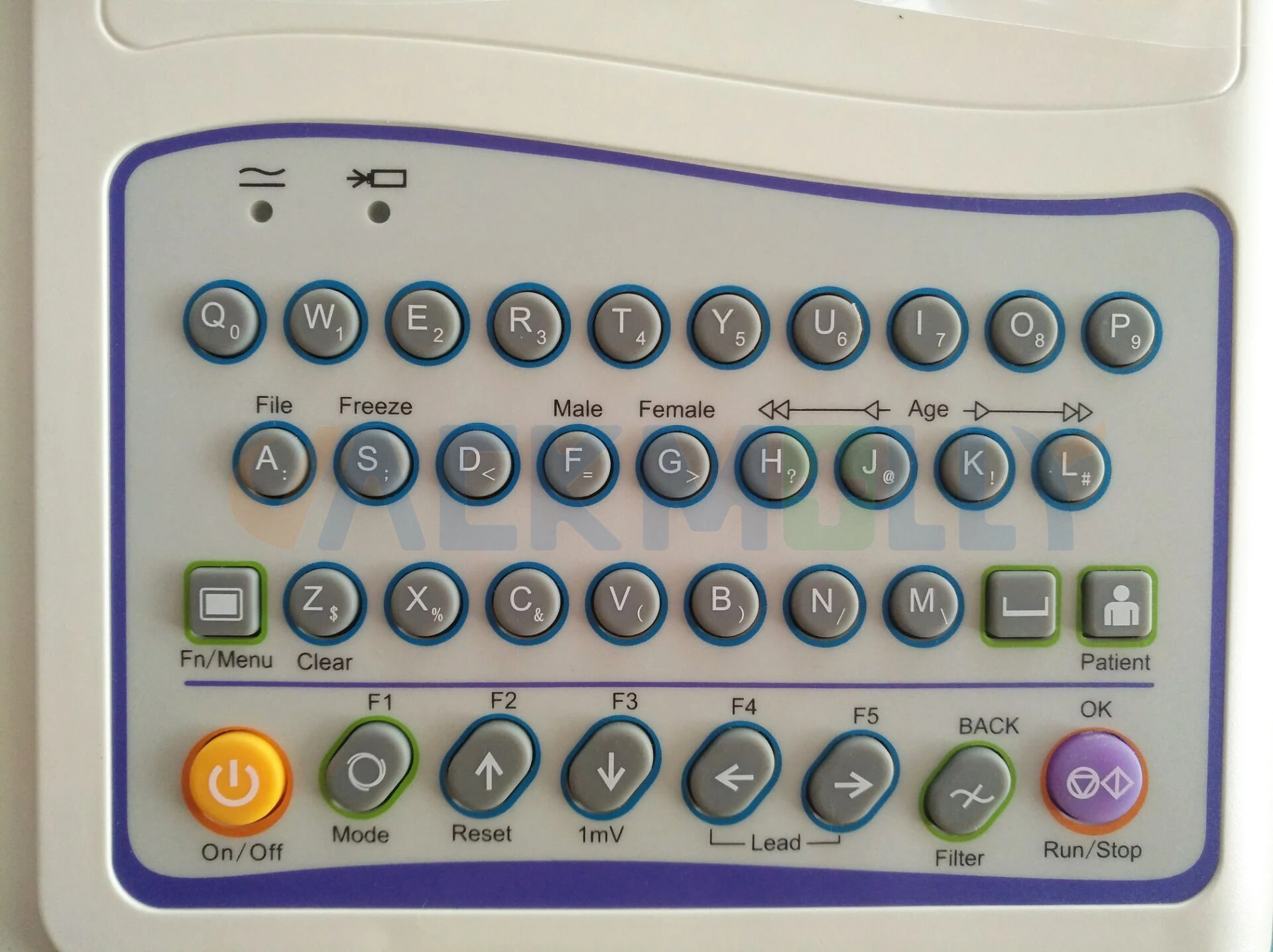

Alphabetic keyboard for patient information
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay
Built in USB/RS232 interface(ECGNET software Optional)
Work modes: Manual/Auto/Arrhythmia analysis modes
10 inch colour LCD with Alphabet keyboard
Alphabetic keyboard for patient information
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay
Built in USB/RS232 interface(ECGNET software Optional)
Technical Specifications
Lead standard | 12 leads |
Calibrating voltage | 1mV±2% |
Voltage tolerance | ≥±500mV |
Inter-channel interference | ≤0.5mm |
Frequency response | 0.05~160Hz(-3db) |
Patient current leakage | <10μA |
Noise level | <15μVp-p |
Sensitivity valve | ≤20μV |
Paper speed | 6.25,12.5, 25,50mm/s(±3%) |
Time constant | ≥3.2s |
Input dynamic range | ±10Vpp |
* Filter:
AC flter: 50Hz / 60Hz
EMG filter: 25Hz / 45Hz
Anti-drift filter: 0.15Hz(Adaptive)
* Sensitivity: 5,10,20mm/mV
* CMMR: ≥120dB (with AC filter
* Input impedance: ≥50MΩ
* Input circuit current:≤0.05μA
* Work mode: MAN,AUTO,ANALYSIS modes
* Lead acquisition12bit/1000Hz(synchronously 12 leads)
* Input circuit: floating; protection circuit against defibrillator effect
EMG filter: 25Hz / 45Hz
Anti-drift filter: 0.15Hz(Adaptive)
* Sensitivity: 5,10,20mm/mV
* CMMR: ≥120dB (with AC filter
* Input impedance: ≥50MΩ
* Input circuit current:≤0.05μA
* Work mode: MAN,AUTO,ANALYSIS modes
* Lead acquisition12bit/1000Hz(synchronously 12 leads)
* Input circuit: floating; protection circuit against defibrillator effect

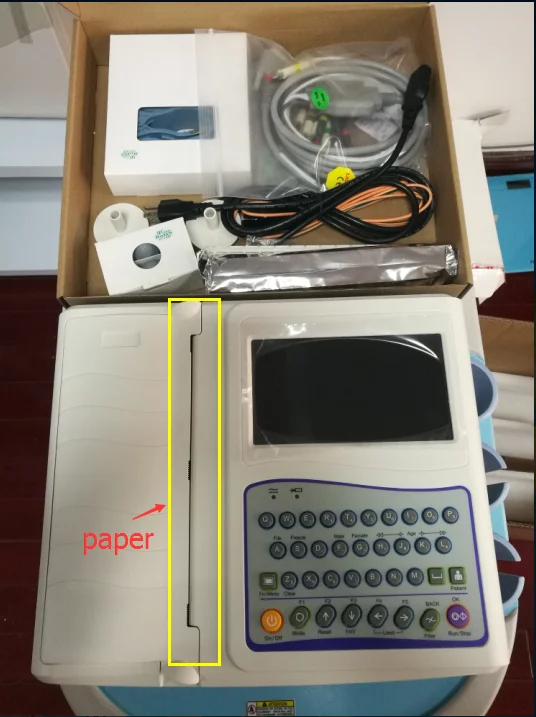

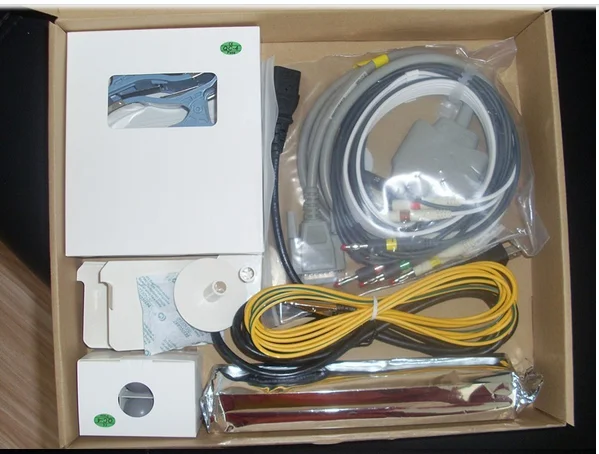

Standard Configuration
Patient cable : 1 set
Limb electrode : 4 sets
Chest elelctrodes : 6 sets
Gounding cable : 1 set
Paper axis : 1 set
Thermal paper : 1 set
Fuse : 2 sets
3-cord power cord : 1 set
AC Adaptor : 1 set
Limb electrode : 4 sets
Chest elelctrodes : 6 sets
Gounding cable : 1 set
Paper axis : 1 set
Thermal paper : 1 set
Fuse : 2 sets
3-cord power cord : 1 set
AC Adaptor : 1 set

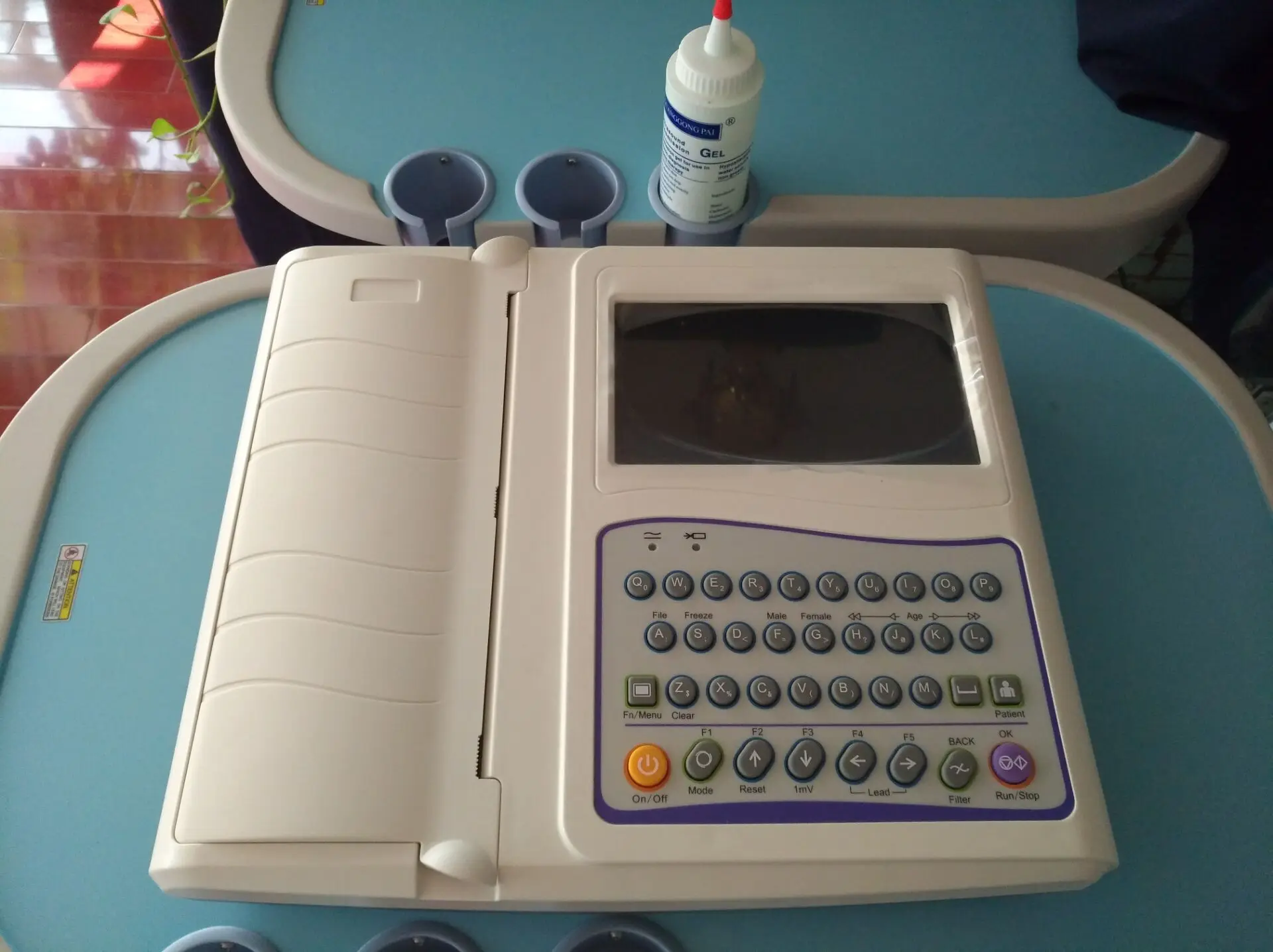

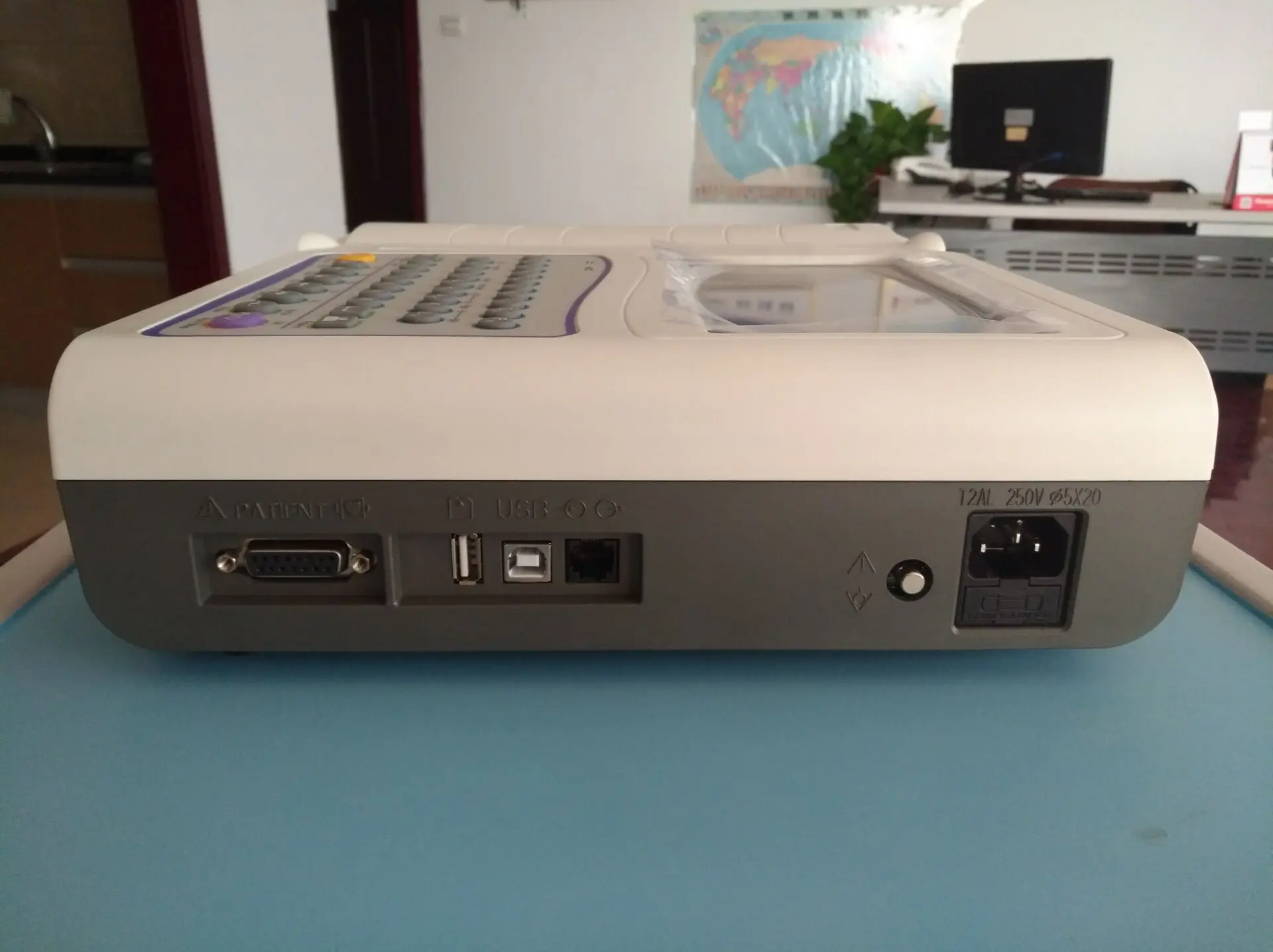

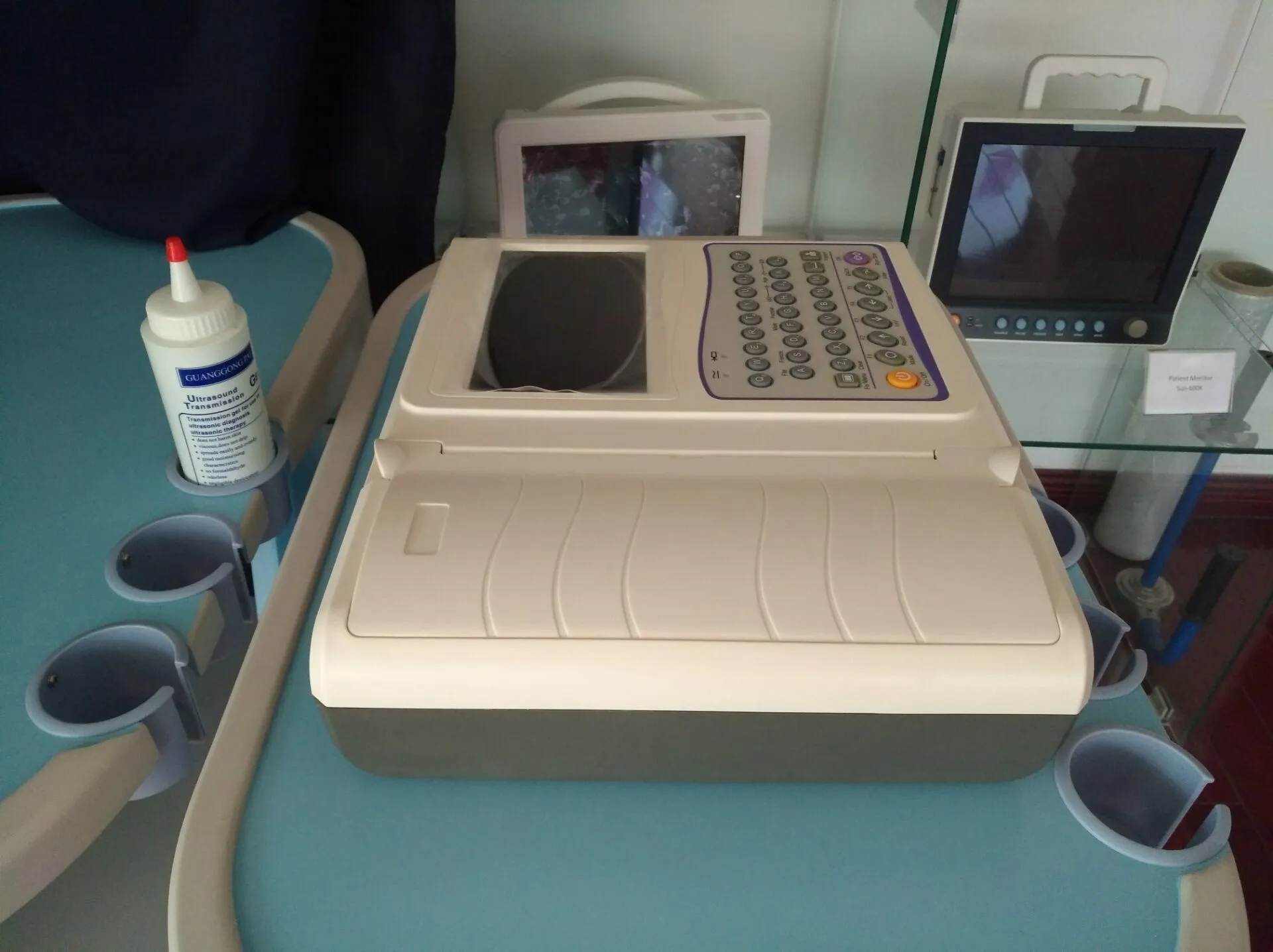

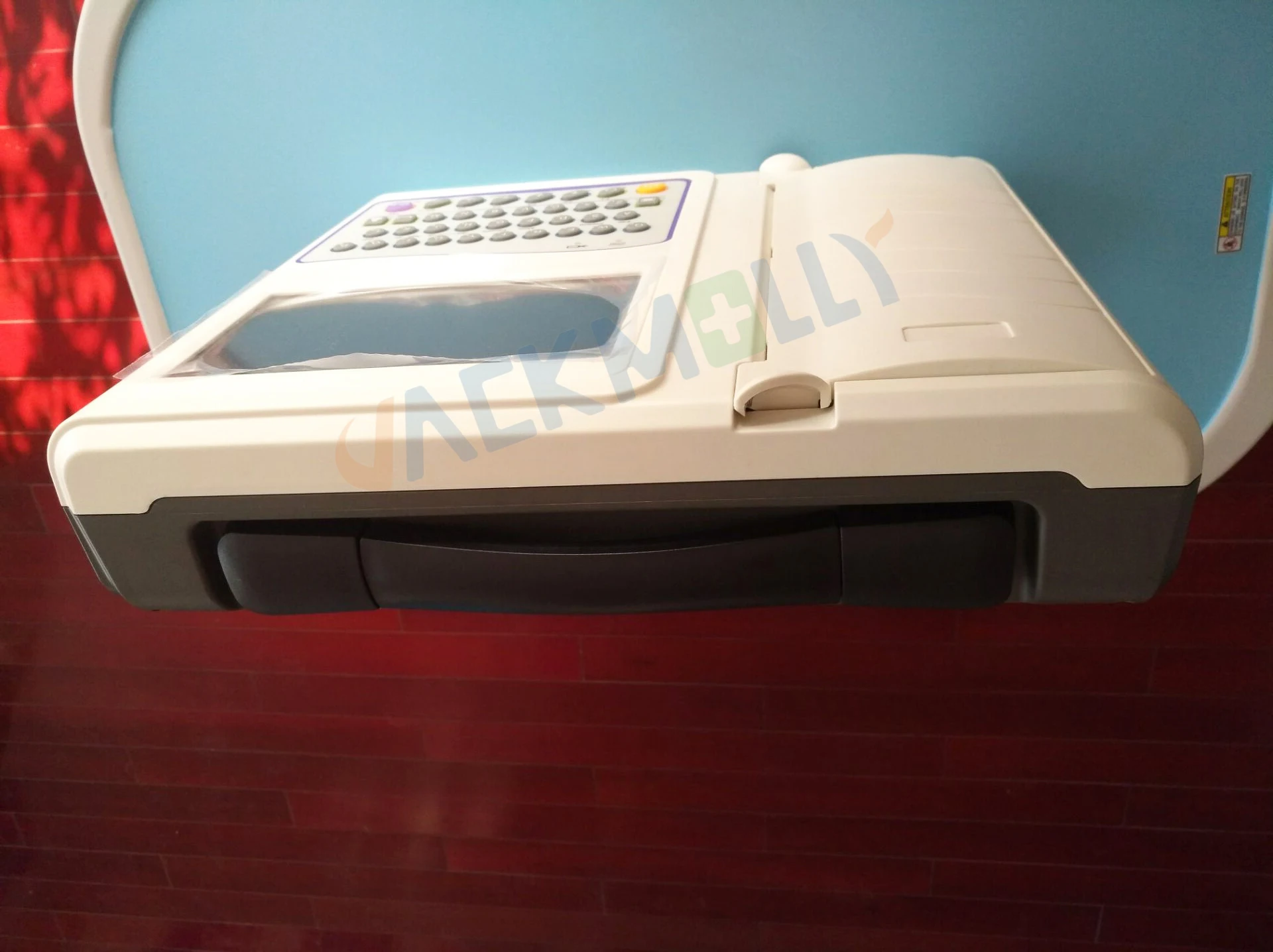

Details Images
Recommend Products
Packing & Delivery
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
