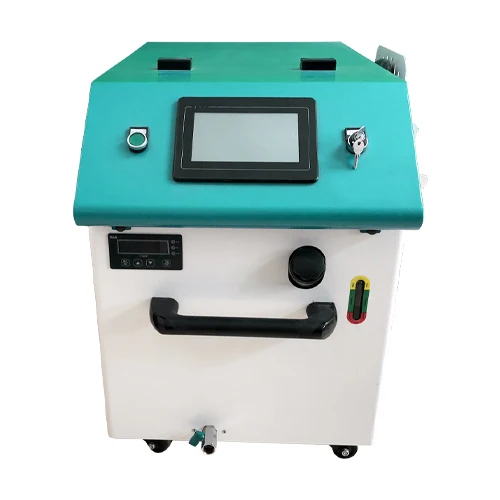

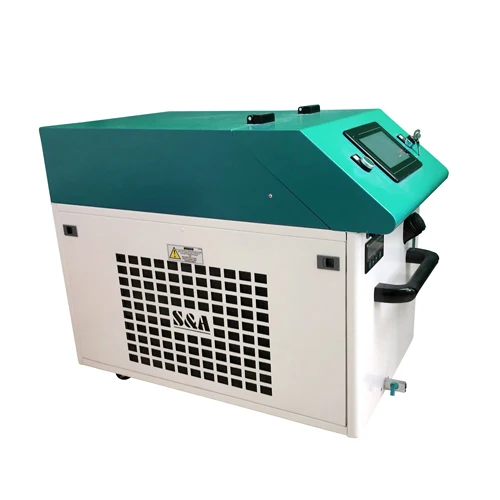

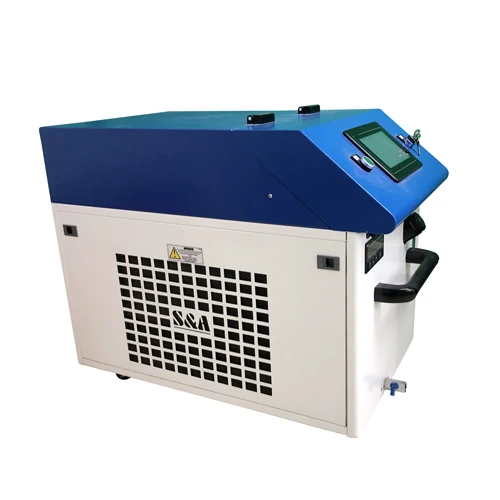

mould repering platform manual handle fibre laser beam welding cutting and cleaning machine 3000w for battery cells
- Category: >>>
- Supplier: Shandong Hengming Intelligent Technology Co. Ltd.
Share on (1601006326154):
Product Overview
Description
Products Description

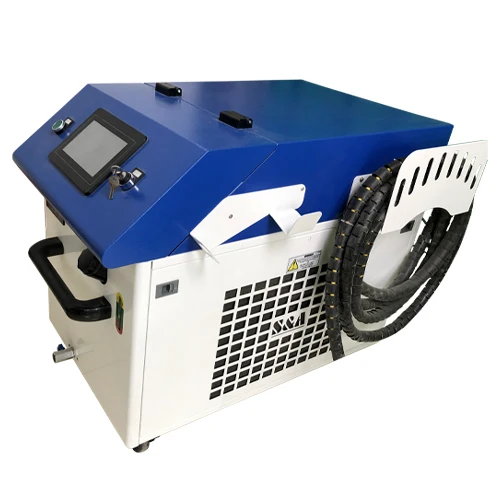

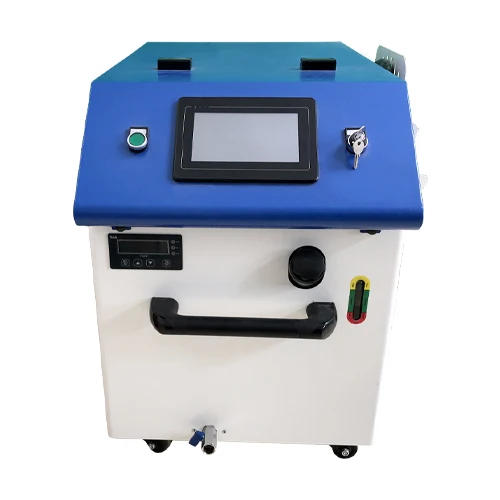

3-in-1 handheld laser welding machine
One laser machine can perform laser welding, laser cleaning and handheld metal cutting at the same time. There is no need to
purchase multiple lasers for these different laser processing operations.
purchase multiple lasers for these different laser processing operations.

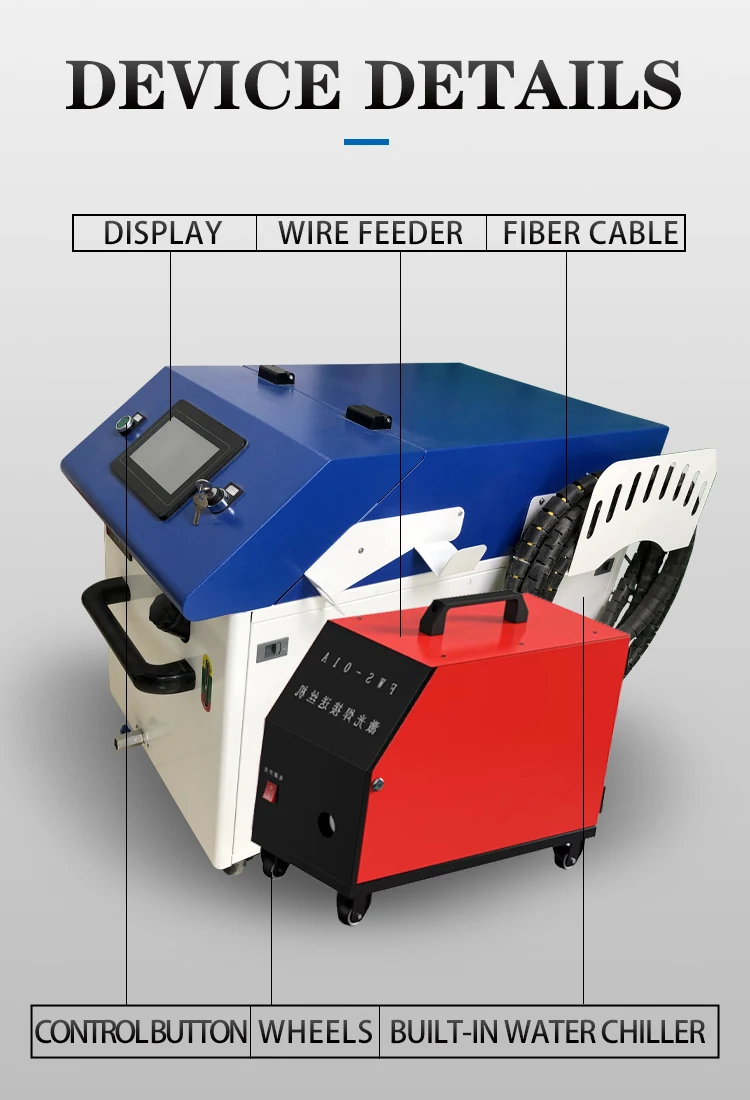

Product details
Equipment technical parameters | ||||||||
Model | GH-1000W | GH-1500W | GH-2000W | GH-3000W | ||||
Laser Power | 1000W | 1500W | 2000W | 3000W | ||||
Welding thickness range | 0.3-3.5mm | 0.3-4.5mm | 0.3-6mm | 0.3-8mm | ||||
Laser Source | Raycus / Max / IPG / JPT | |||||||
Water chiller | S&A / HANLI | |||||||
Operating system | SUP21T / 23S | |||||||
Four major functions | Welding + cutting + cleaning+Welding surface cleaning | |||||||
voltage | 220V | 220V | 220V | 380V | ||||
Fiber Wire Length | 10M | |||||||

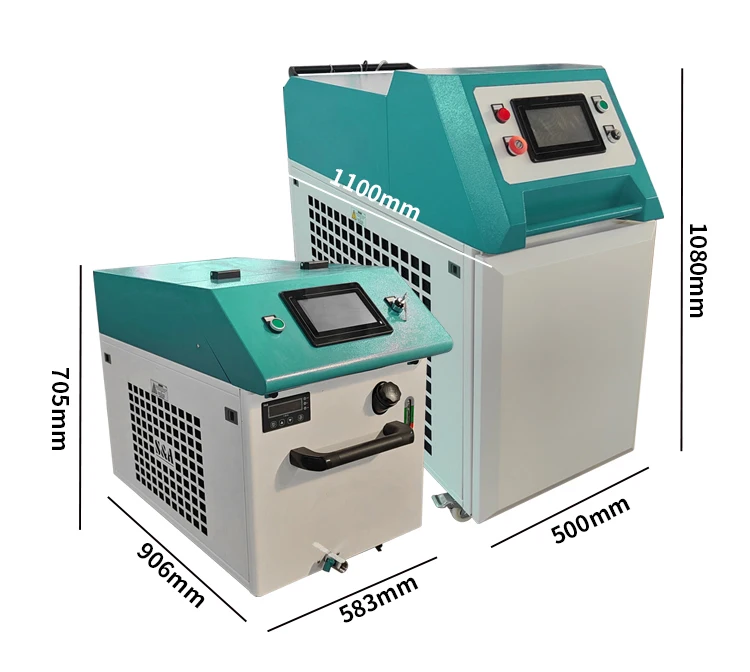

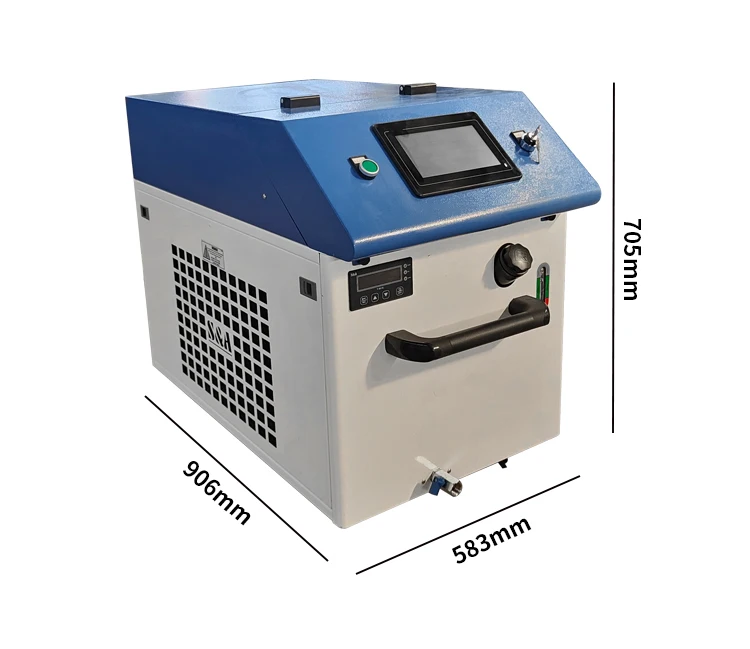

Machine size | 906*583*705 | 906*583*705 | 906*583*705 | 110*500*1080 | ||||
Machine Weight | 145KG | 145KG | 145KG | 185KG | ||||
Warranty time | Machine warranty for 3 years, free maintenance for life | |||||||
Welding mode | Spot welding/continuous welding/fish scale welding | |||||||
Welding mode | Inside Angle/outside Angle/straight Angle/wire or no wire | |||||||
Welding material | Stainless steel/iron/aluminum/galvanized sheet/copper | |||||||
It supports 15 languages | The system supports Chinese, English, Russian, German, French, Korean, Japanese, Spanish, Portuguese, Arabic, Polish, Czech, Thai, and Turkish | |||||||

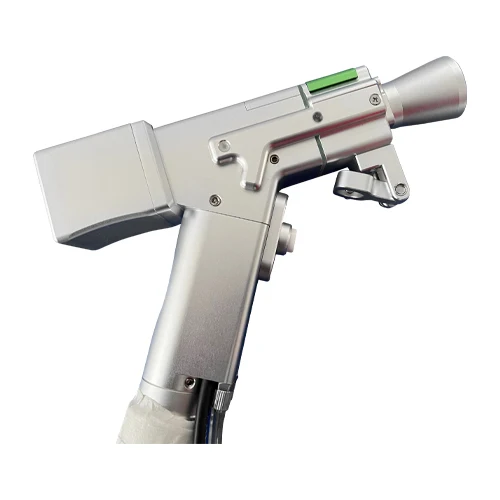

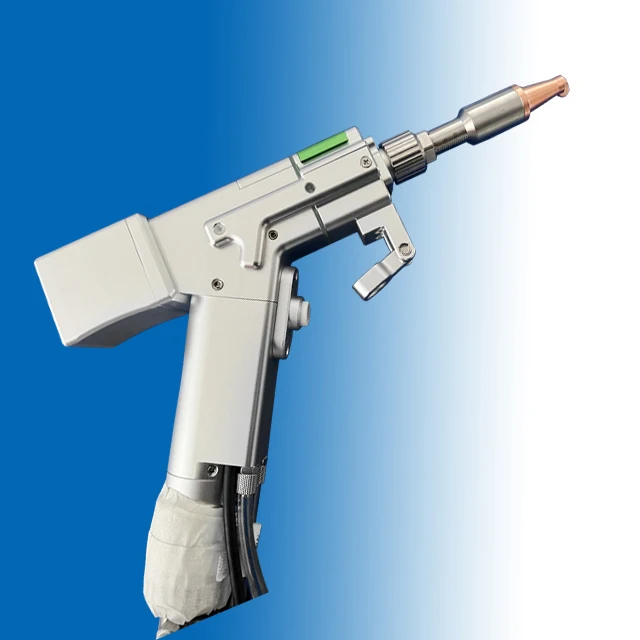

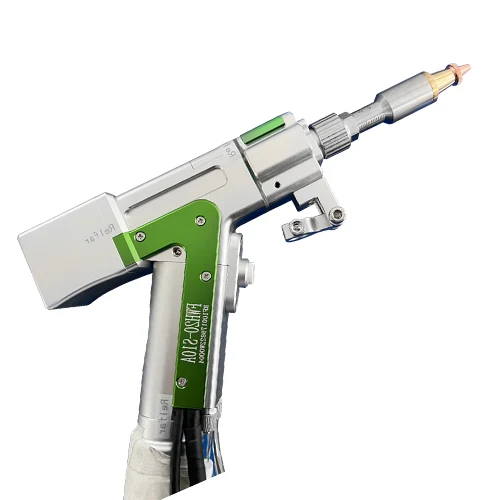

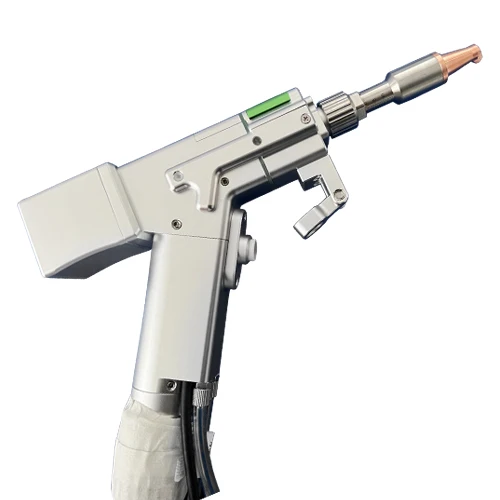

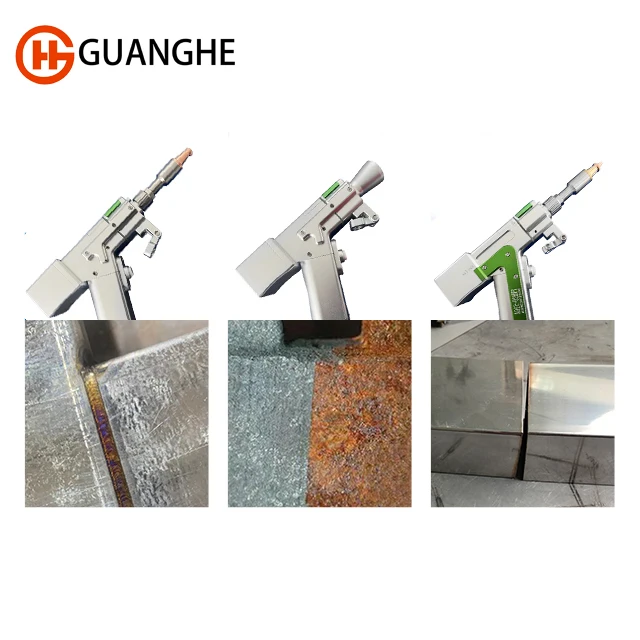

Welding gun
Handheld lightweight laser welding head weighing only 710g, allowing operators to work longer each day. There are double
protective lenses and a temperature sensor inside the laser head for maximum protection.
protective lenses and a temperature sensor inside the laser head for maximum protection.

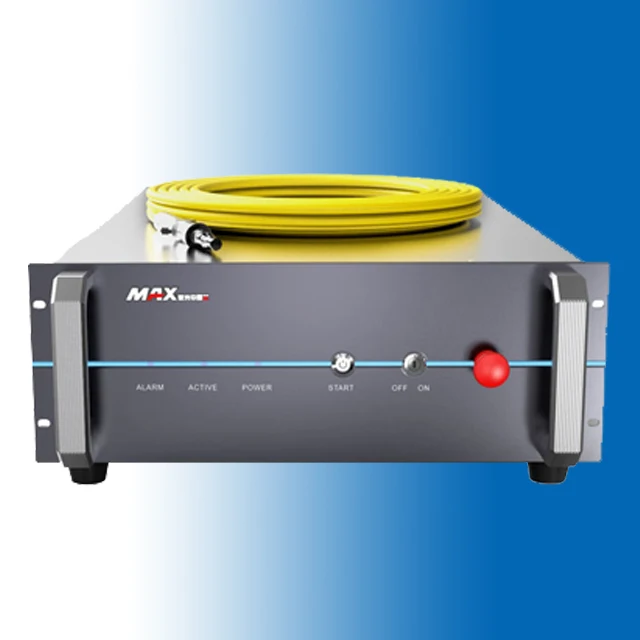

laser
High stability, energy saving, low maintenance cost, improve production efficiency

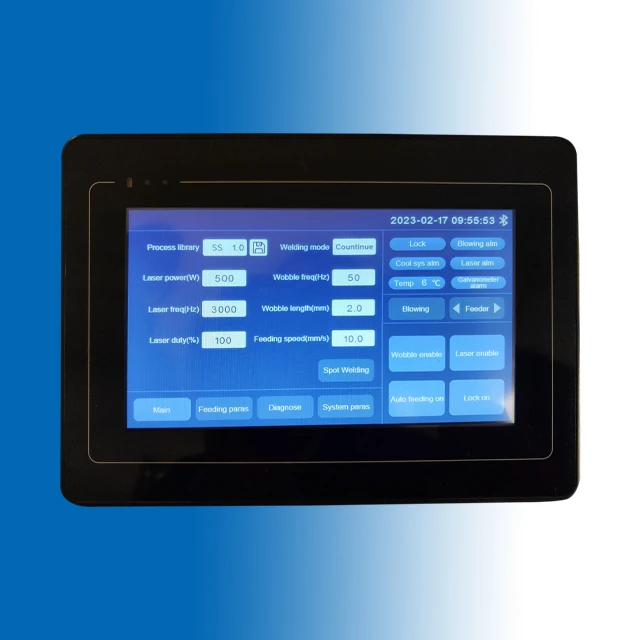

system
Change welding parameters via touchscreen control panel. Users can save the normaling parameters inside the system and quickly set
them before working.
them before working.

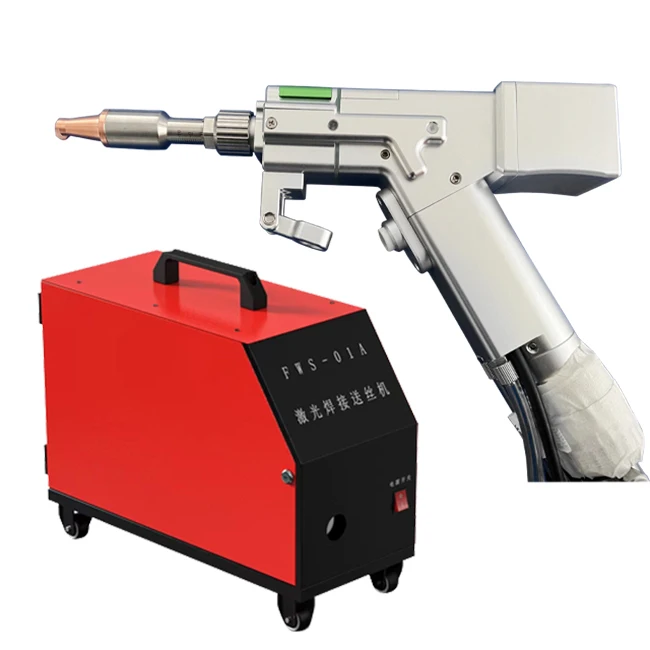

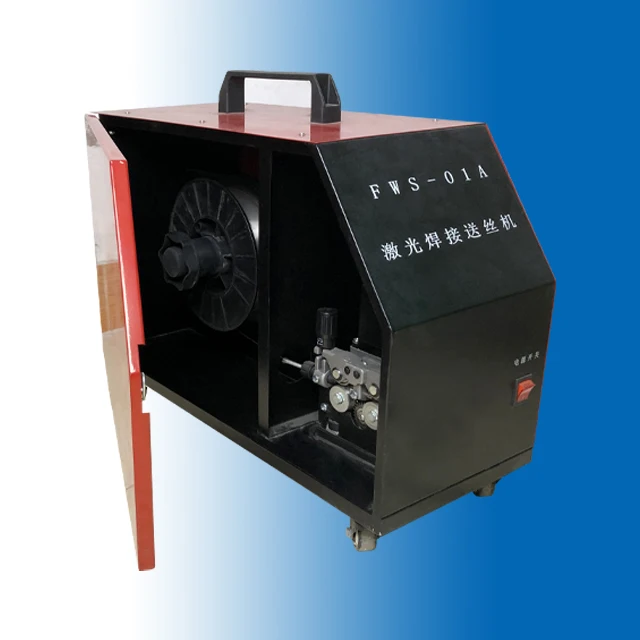

Wire feeder
Change welding parameters via touchscreen control panel. Users can save the normaling parameters inside the system and quickly set
them before working.
them before working.
Product Paramenters
Why Choose Us
HANDHELD LASERWELDING MACHINE | Traditional welding |
Save time and manpower | Time and employment costs are high |
Simple operation, half an hour to get started, high labor costs | High professional and technical requirements, high labor costs. |
The welding is perfect and strong | Bad welding is not strong |
Beautiful weld, deep pool, high strength | The welds are thick and irregular, requiring secondary welding. |
Welding safety | High radiation, unsafe |
The energy is concentrated and the influence of heat deformation is small. | Large thermal influence, large deformation. |
High speed welding | Slow welding |
The speed is fast and the efficiency can reach 3-8 times that of argon arc welding. | Slow speed and low efficiency. |

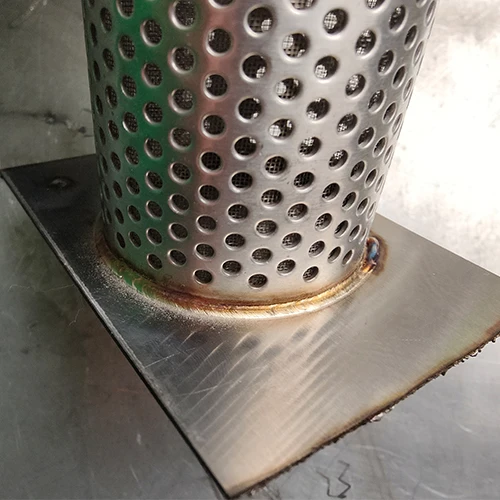

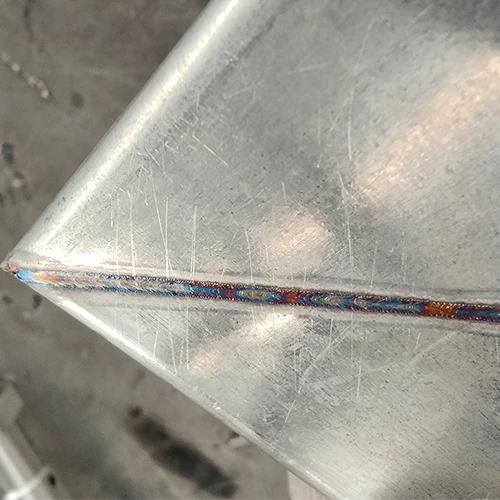

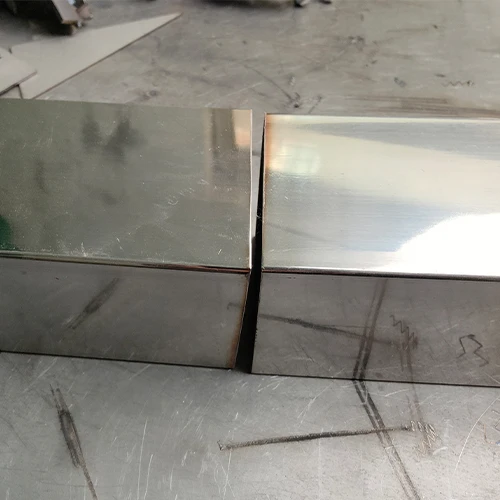

Distribution of welding effect
It has high stability, less maintenance, more energy saving, fast welding speed and high efficiency and other advantages. No
deformation, no blackening, large welding depth, firm welding, no need to grind, simple operation, ordinary people It's easy to
master in half an hour
deformation, no blackening, large welding depth, firm welding, no need to grind, simple operation, ordinary people It's easy to
master in half an hour

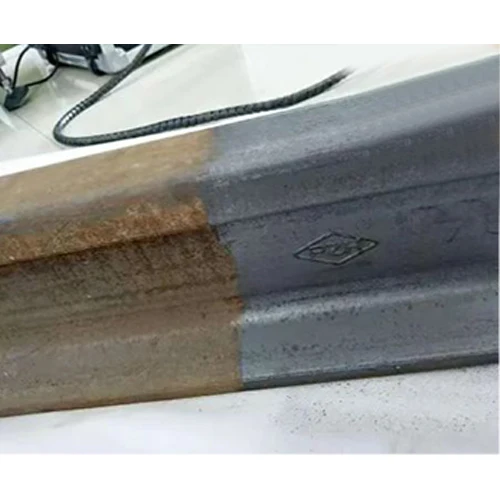

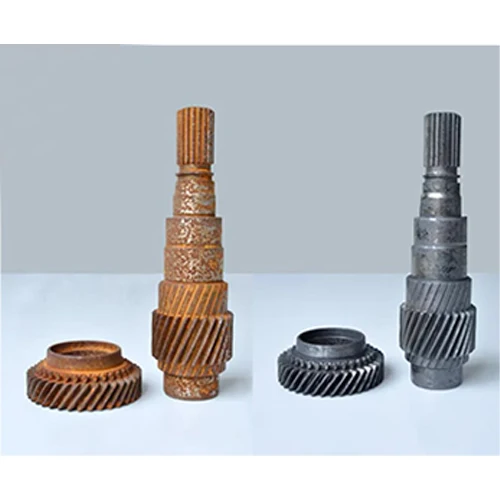

Cleaning effect display
Metal surface rust removal, paint stripping treatment, oil cleaning, painting, coating cleaning, welding surface, spraying surface
Dispose. Small laser cleaning head, light and convenient, can work for a long time, power supply can run. No consumables, no
damage, no pollution
Dispose. Small laser cleaning head, light and convenient, can work for a long time, power supply can run. No consumables, no
damage, no pollution

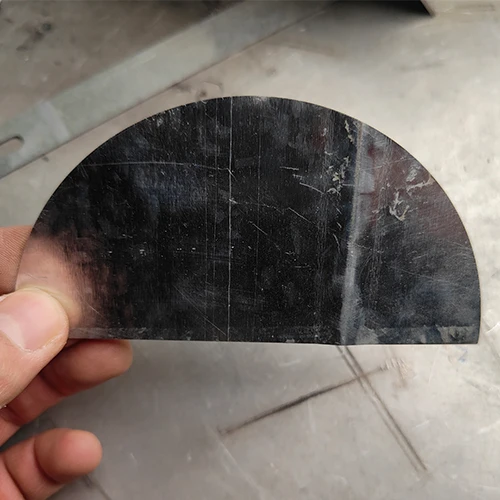

Cutting effect display
As a three-in-one product, it will meet the cutting requirements of welding materials, and the specific cutting speed is simple
and convenient features
and convenient features

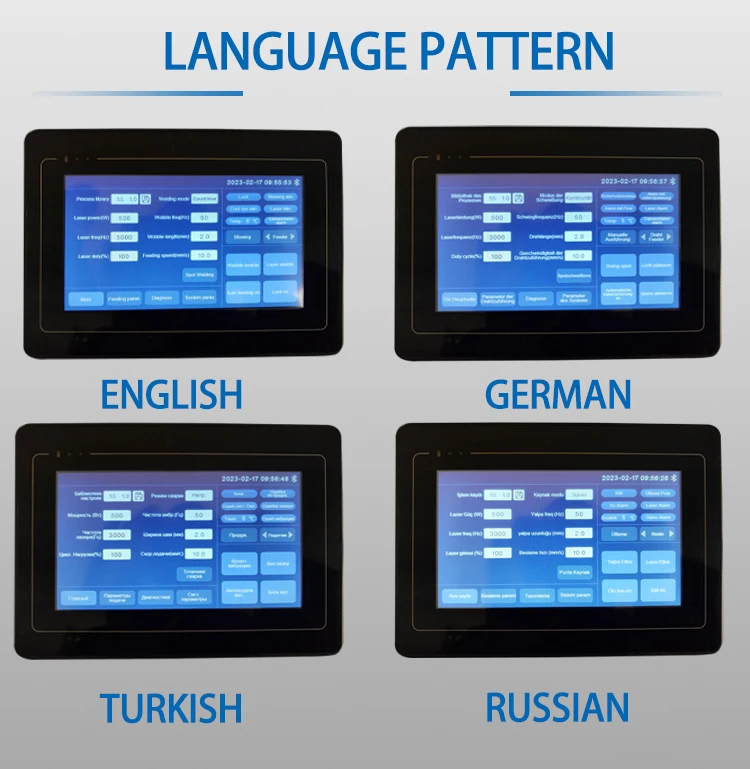

Language support
The system supports 15 languages including simplified Chinese, Traditional Chinese, English, Russian, German, French, Korean, Japanese, Spanish, Portuguese, Arabic, Polish, Czech, Thai, and Turkish

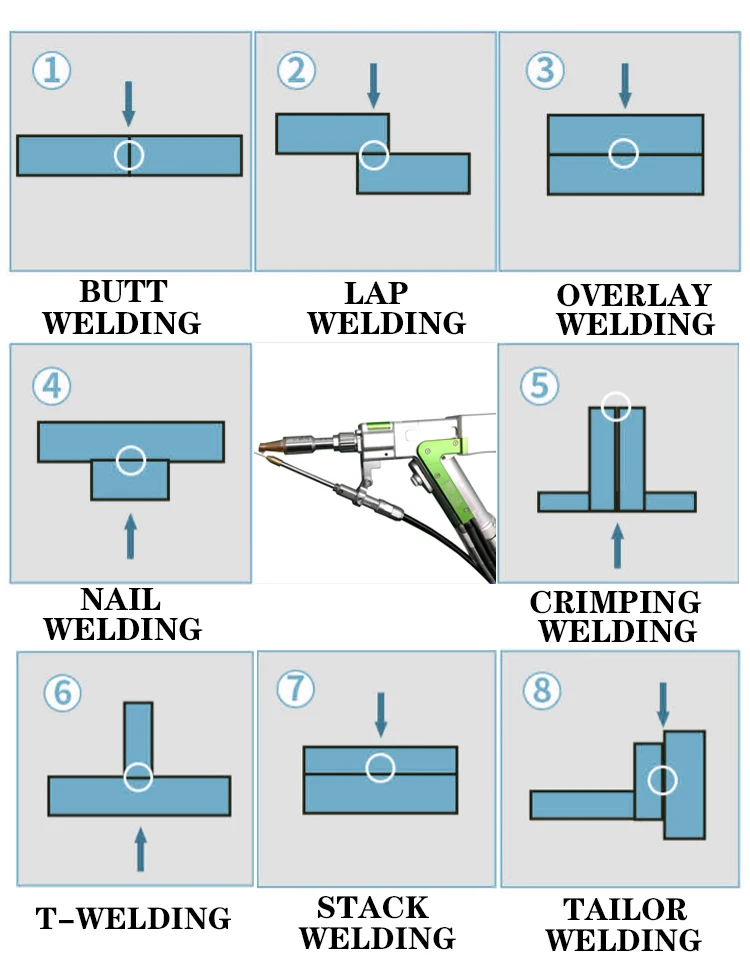

Welding methods and cases
Support spot welding, continuous welding, fish scale welding and other modes, welding inside, outside, straight Angle, wire feeding or no wire feeding
Product physical and transportation

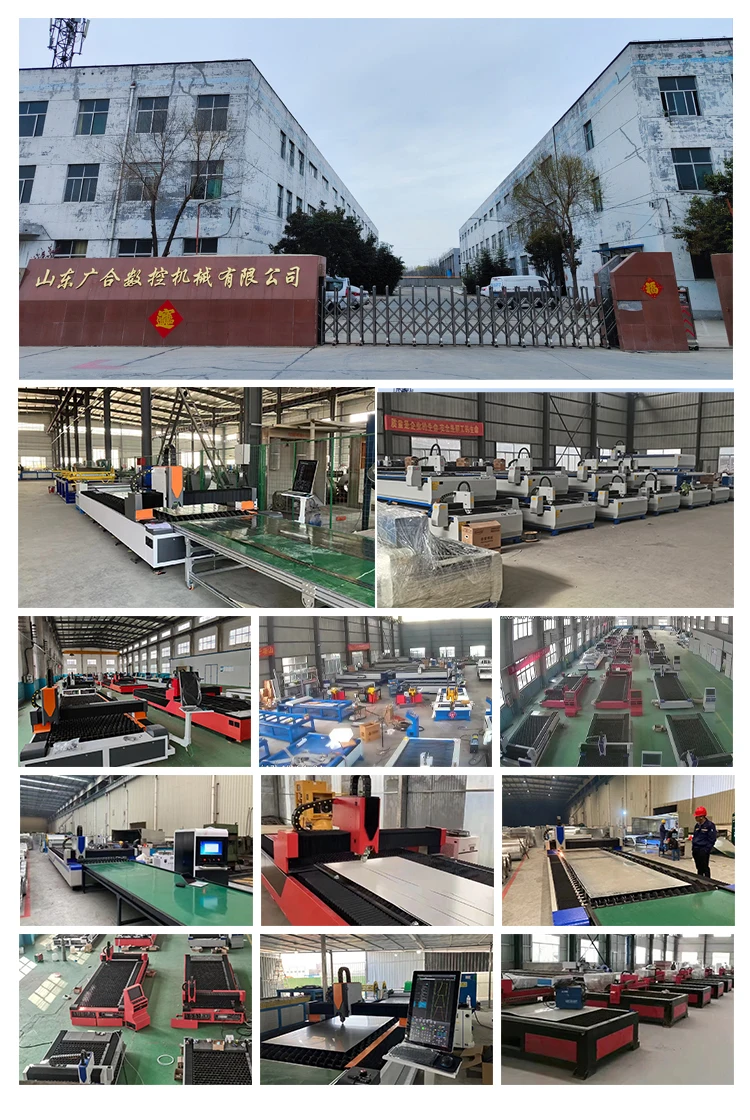

Company profile and certification
济南广和数控机械有限公司，公司位于美丽的山东济南。工厂占地面积
10平方米，生产销售人员000人，是一家集科研、生产、销售及
售后服务为一体的企业 作为一家技术公司，公司主要经营：数控光纤激光切割机、光纤
激光焊接机、数控等离子切割机、 数控自动送料机，数控自动
送料激光切割机 生产销售
10平方米，生产销售人员000人，是一家集科研、生产、销售及
售后服务为一体的企业 作为一家技术公司，公司主要经营：数控光纤激光切割机、光纤
激光焊接机、数控等离子切割机、 数控自动送料机，数控自动
送料激光切割机 生产销售
FAQ
Is your laser welding machine really faster than MIG and TIG welding?
Yes, our laser welders travel up to four times faster than conventional methods, jigs are simpler or unnecessary, and no or significantly reduced post-weld grinding or sanding is required - all of which increases productivity while minimizing rework.
What kind of materials can your welding machine weld?
Stainless steel, iron, aluminum, galvanized sheet, copper, etc
How many protective lenses are in the gun?
Double protection lens design inside the gun body, higher safety, multiple protection
What kind of silk is used for each material?
Stainless steel, carbon steel, galvanized sheet can be used stainless steel wire, carbon steel can be used carbon steel wire, aluminum is recommended to use more than 5 series of aluminum magnesium wire, wire feeding machine using stepper motor plus reducer design can effectively drive the plate wire
