2 3 3.5 4 5 6mm high temperature resistant optical fiber, automotive original products, whole body optical fiber manufacturer

model

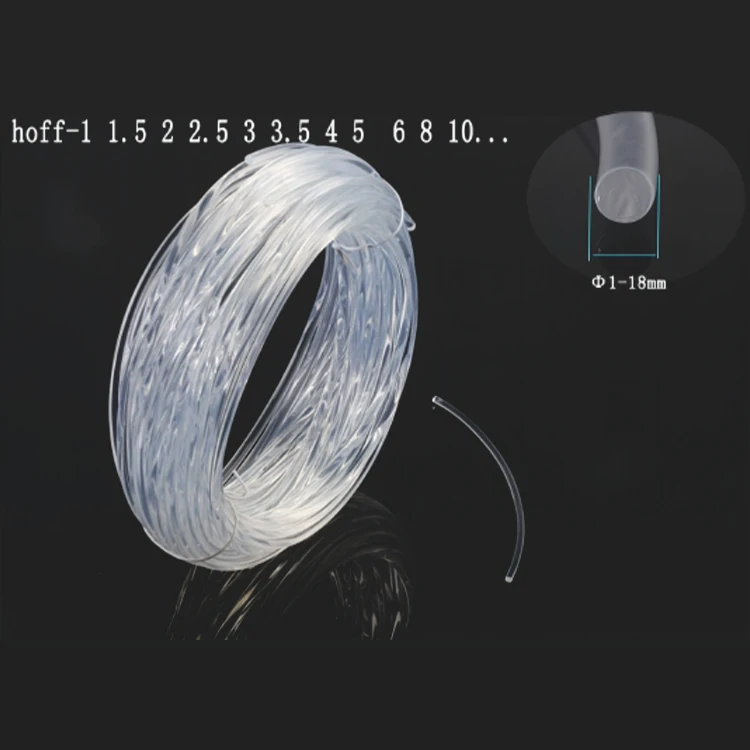

Hoff-2 2.5 3 3.5 4 5 6 8 10 12 14mm-U

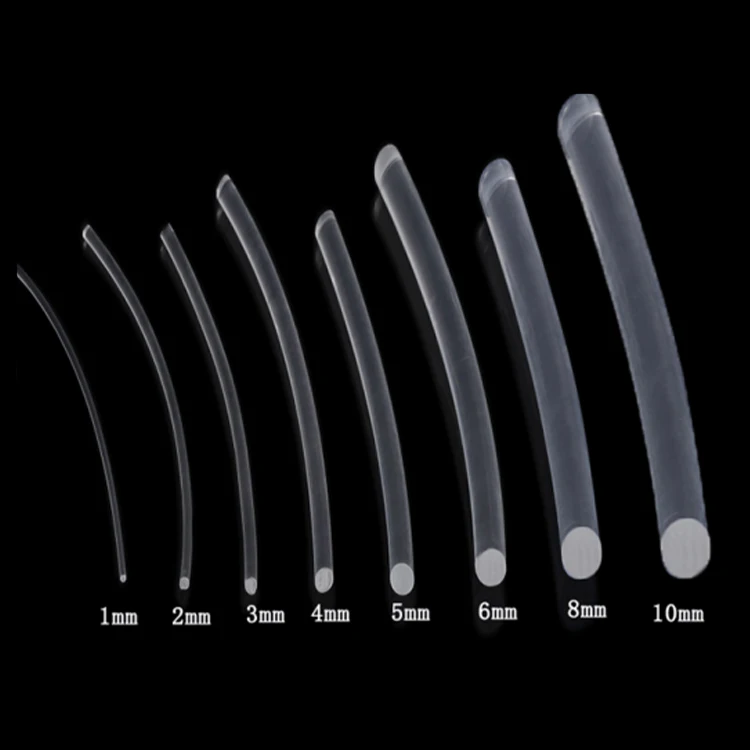

Diameter（mm)

2 ~ 18mm

Core material

Heat-resistant Polymer

Transparent coating material

（PTFE)

Attenuation rate

200-500db/km

Refraction method

Stepped

Transmittable light wavelength

/all visible light

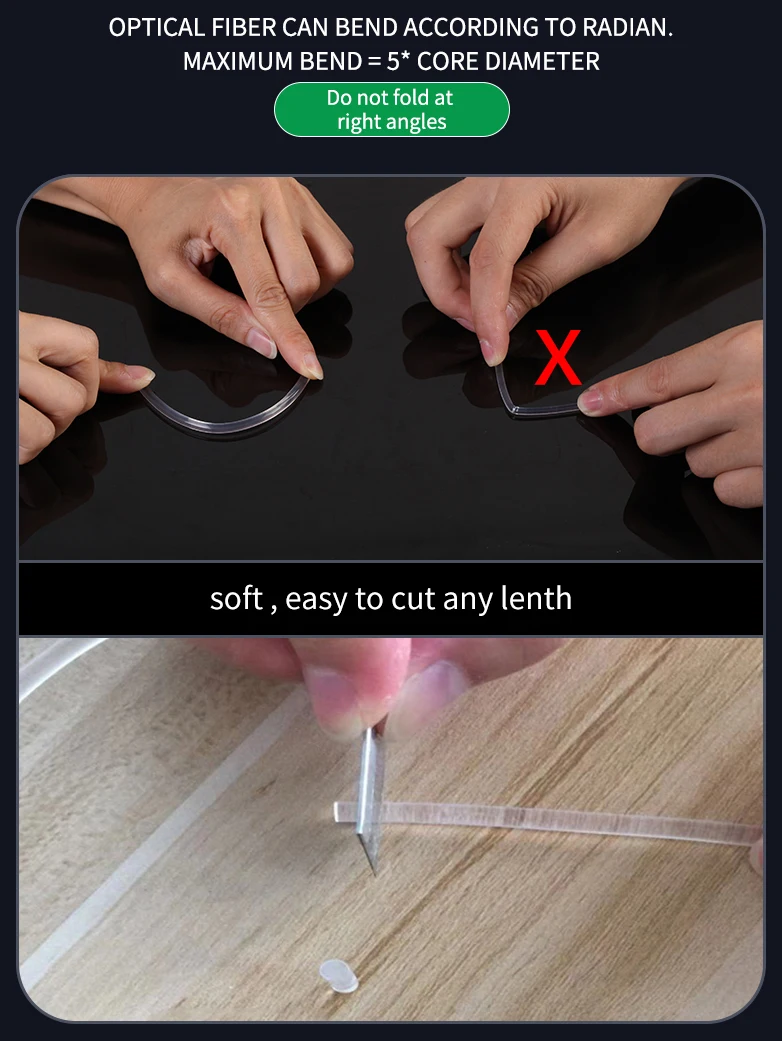

Minimum radius of arc bending

5 times the fiber diameter value

Suggested work environment

10 ~70℃

Tolerated temperature

-40 ~ 120℃

Recommended storage environment

No dust no light

Certification test

RoHS MSDS Reach

Physical properties

l Soft & flexible, can be curved and shaped at will
l Soft fiber core, but cut the length with a blade, the cut surface is flat and not rough
l Can not be used with corners, bending will destroy the integrity of the core
l The structure is 2 layers and cannot be used separately

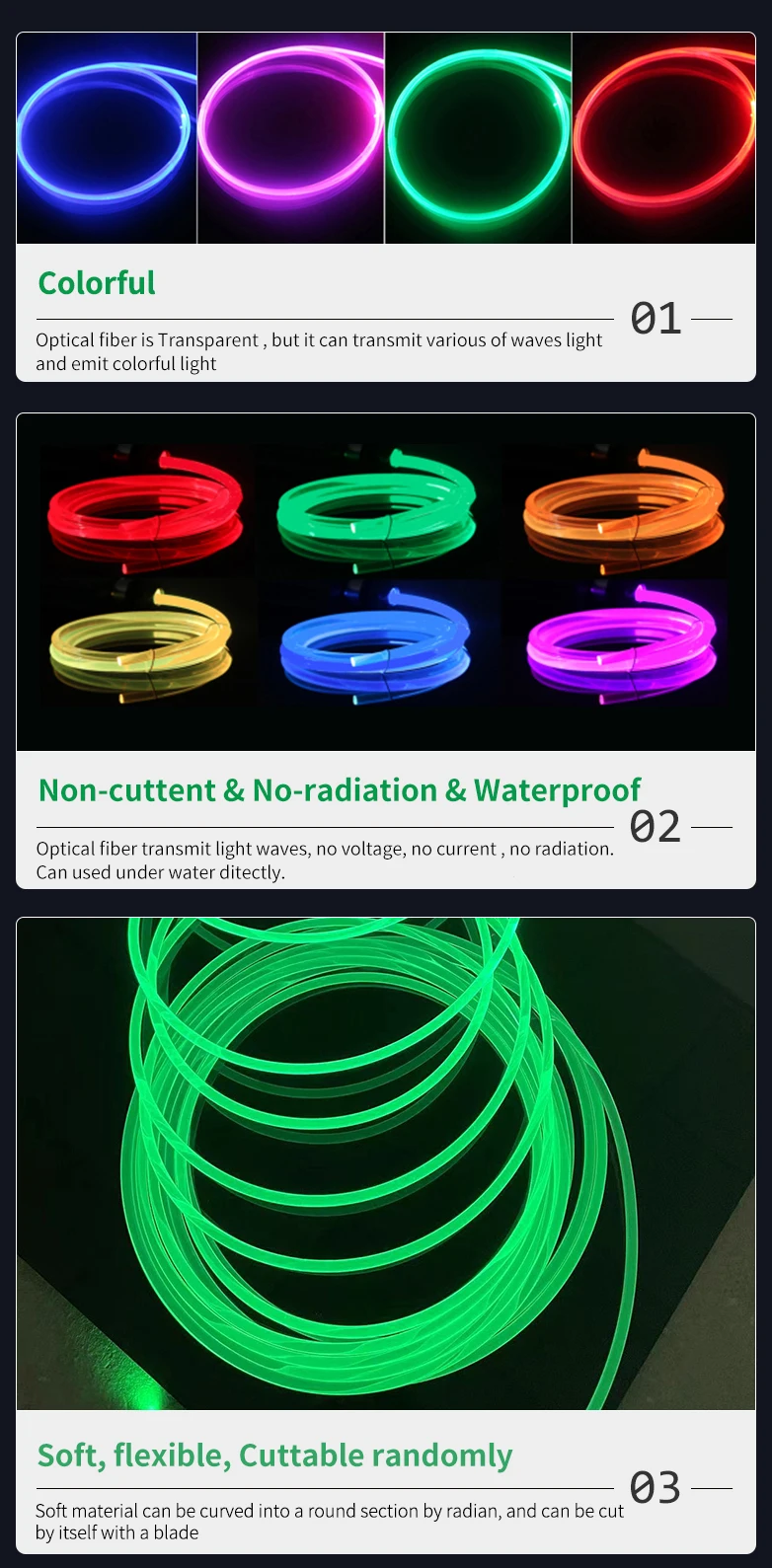

Optical properties

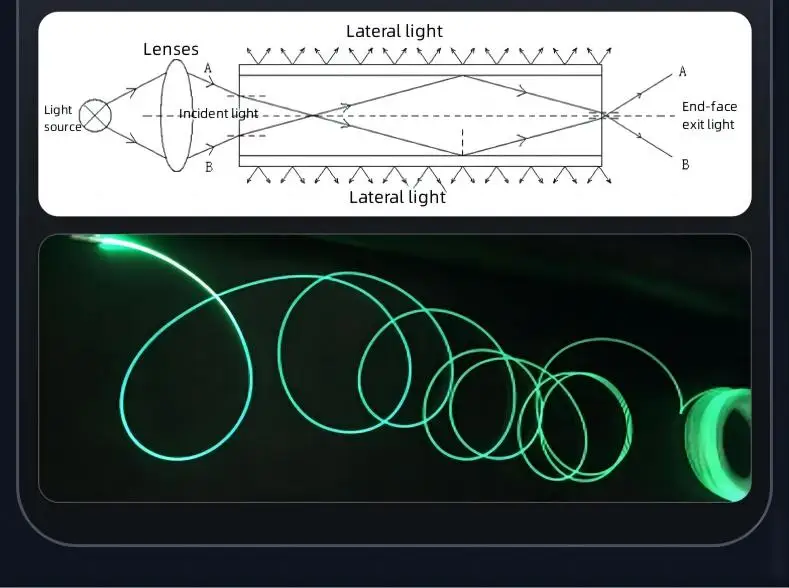

l 360° illumination eliminates. The point light source can be line-emitting

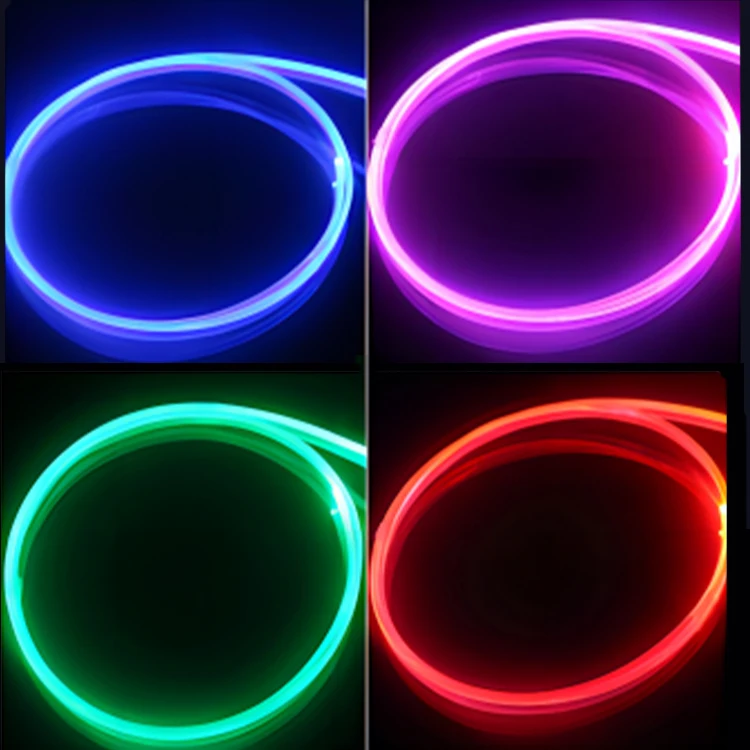

l Only transmit light, not reflect light, the color of the light source determines the bright color of the fiber, the color can be
changed at will, not limited to a certain color
l Waterproof and UV resistant, the light is evenly scattered along the length of the fiber
l The product has a light guide distance limit. The brightness and the light guide distance are in a reverse relationship. The
light guide distance can be customized according to the actual needs of customers

Thermal characteristics

l lSeparation of light and electricity, no charge, no heat, maximum safety performance, no hidden dangers due to heat generation
l lSafety, energy saving, environmental protection, maintenance-free

patience

l Teflon outer coating layer, Teflon has strong corrosion resistance, yellow resistance and long life
