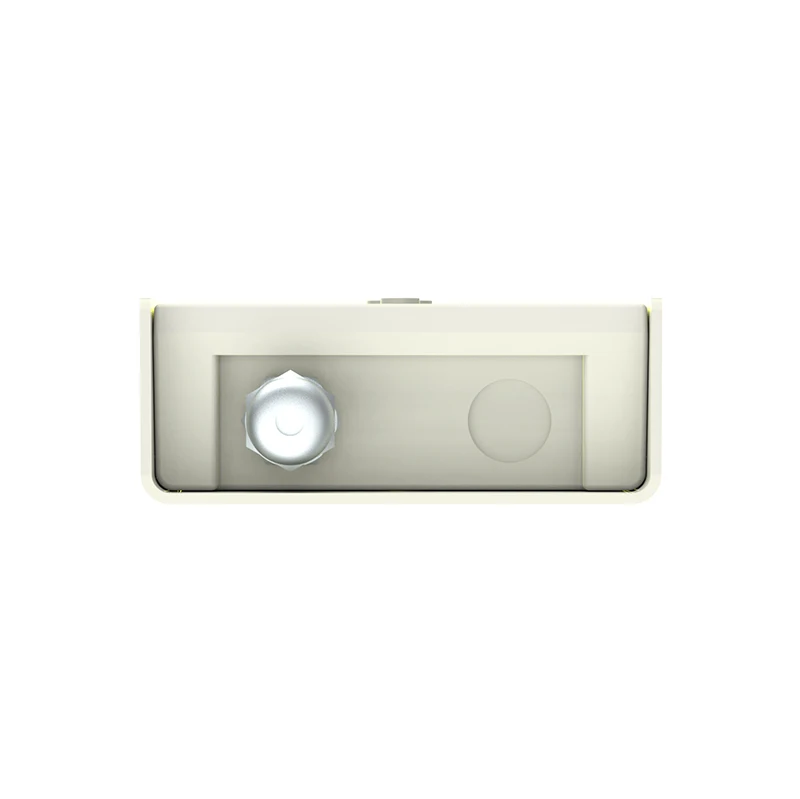

IP Surveillance Microphone Sound Pick up Accessories for Security System
- Category: >>>
- Supplier: Spon Communications Co. Ltd.
Share on (1601006392607):
Product Overview
Description
Products Description

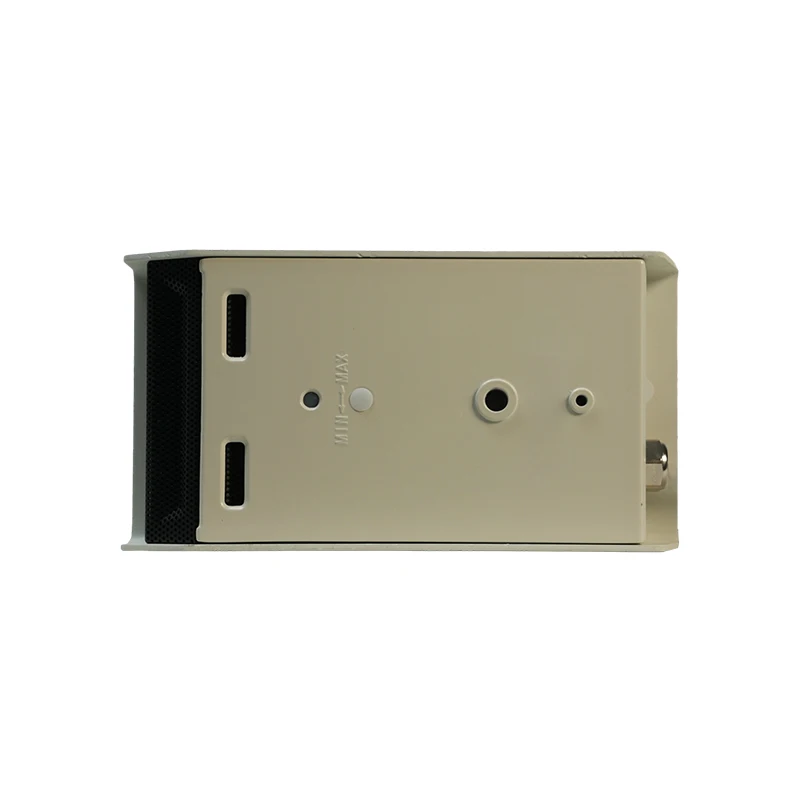

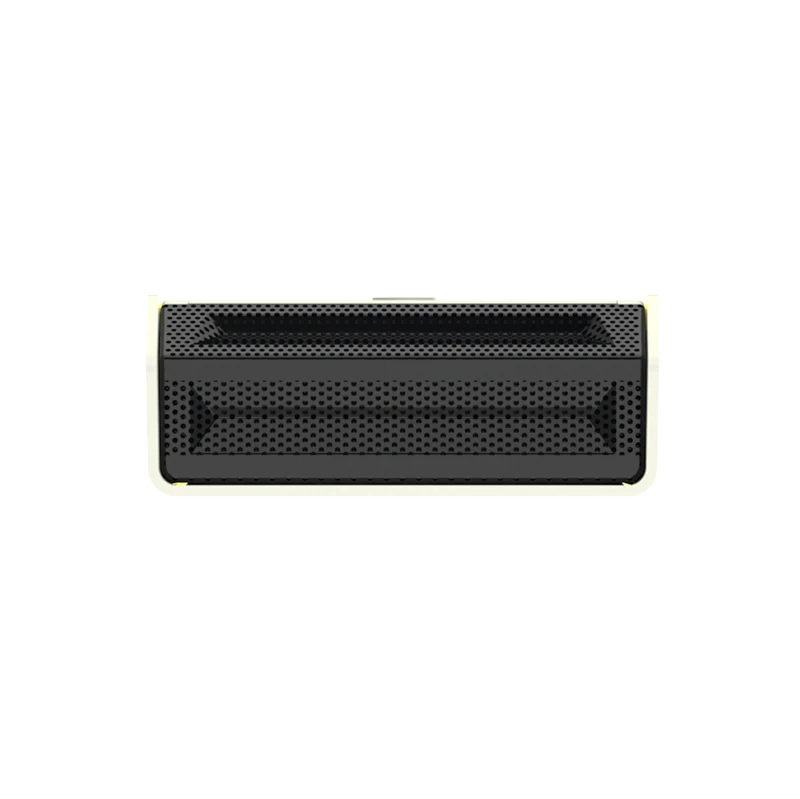

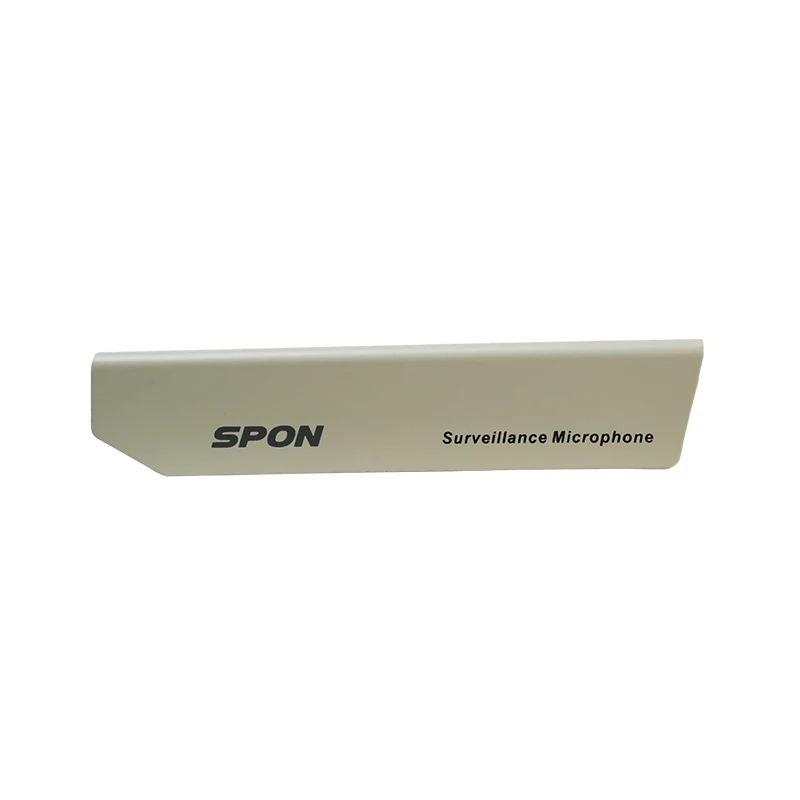

TS-929E- Outdoor Directional Surveillance Microphone
Ideal for applications in prisons, public security, inspections, and similar scenarios requiring sound collection. Suitable for outdoor installation on surveillance poles, walls, and ceilings.
Key Features:
Advanced Noise Reduction: Proprietary noise reduction algorithms feature multi-level adaptability, effectively diminishing background and ambient noise. It autonomously selects the ideal noise reduction mode for diverse scenarios.
High-Speed DSP and AEC Technology: High-speed voice Digital Signal Processor (DSP) combined with Acoustic Echo Cancellation (AEC) assures swift and seamless microphone response, resulting in crystal-clear and authentic voice reproduction.
Automatic Gain Control (AGC): Integrated AGC circuitry automatically suppresses high-intensity sounds, equalizing sound volume differences between distant and close sources. The outcome is more comprehensive and vivid playback sound.
Versatile Power Supply Options: Direct network connection supports Power over Ethernet (POE) and other supply methods including centralized power, camera power, or standalone power.
Effortless Configuration and Management: Web-based microphone performance configuration enables remote management and system upgrades.
Durable Performance: Operating in temperatures from -20°C to 60°C, the device thrives in challenging environments.
Power Protection: Built-in reverse polarity protection eliminates installation and wiring concerns.
Seamless Audio Synchronization: Supports both analog audio isolation output and network output for seamless video synchronization without delays.
Comprehensive Compatibility: Integrates a professional voice processing chip, making it compatible with active speakers, computers, digital video recorders, network cameras, and other devices.
Advanced Audio Transmission: Employs cutting-edge line audio transmission technology, allowing signal transmission distances of up to 3000 meters in complex electromagnetic environments using shielded cables.
Easy Connectivity: The Ethernet port simplifies connection and management through web pages, supporting cross-segment and cross-router connections.
Key Features:
Advanced Noise Reduction: Proprietary noise reduction algorithms feature multi-level adaptability, effectively diminishing background and ambient noise. It autonomously selects the ideal noise reduction mode for diverse scenarios.
High-Speed DSP and AEC Technology: High-speed voice Digital Signal Processor (DSP) combined with Acoustic Echo Cancellation (AEC) assures swift and seamless microphone response, resulting in crystal-clear and authentic voice reproduction.
Automatic Gain Control (AGC): Integrated AGC circuitry automatically suppresses high-intensity sounds, equalizing sound volume differences between distant and close sources. The outcome is more comprehensive and vivid playback sound.
Versatile Power Supply Options: Direct network connection supports Power over Ethernet (POE) and other supply methods including centralized power, camera power, or standalone power.
Effortless Configuration and Management: Web-based microphone performance configuration enables remote management and system upgrades.
Durable Performance: Operating in temperatures from -20°C to 60°C, the device thrives in challenging environments.
Power Protection: Built-in reverse polarity protection eliminates installation and wiring concerns.
Seamless Audio Synchronization: Supports both analog audio isolation output and network output for seamless video synchronization without delays.
Comprehensive Compatibility: Integrates a professional voice processing chip, making it compatible with active speakers, computers, digital video recorders, network cameras, and other devices.
Advanced Audio Transmission: Employs cutting-edge line audio transmission technology, allowing signal transmission distances of up to 3000 meters in complex electromagnetic environments using shielded cables.
Easy Connectivity: The Ethernet port simplifies connection and management through web pages, supporting cross-segment and cross-router connections.
Pickup Distance | 1-20 meters (adjustable) | ||||||
Frequency Response | 20Hz to 20KHz | ||||||
Sensitivity | -35dB | ||||||
Signal-to-Noise Ratio | 90dB (@1KHz) | ||||||
Waterproof Rating | IP67 | ||||||
Directional Characteristics | Directional | ||||||
Dynamic Range | 100dB (@1KHz) | ||||||
Max Sound Pressure Level | 120dB (@1KHz) | ||||||
Signal Output Amplitude | 1Vrms (@1KHz) / 2.8Vpp (@1KHz) | ||||||
Output Impedance | 600-1000 ohms unbalanced | ||||||
Protection Circuits | Power polarity reverse protection, ESD protection | ||||||
Connection Options | Standard RJ45, three-wire, four-wire audio isolation output | ||||||
Signal Transmission Distance | 3000 meters (Use shielded cables in complex electromagnetic environments) | ||||||
Network Communication Rate | 10M/100M Adaptive | ||||||
Power Voltage | POE IEEE 802.3at/af / DC 10V-30V / AC 10V-30V | ||||||
Operating Temperature | -20°C to 60°C | ||||||
Casing Material | Aluminum alloy | ||||||
Dimensions | 135x71x28 mm | ||||||
Installation Method | Bracket installation | ||||||
Compliance Standards | Inspected by Ministry of Public Security's Safety and Police-use Electronic Products Quality Testing Center | ||||||

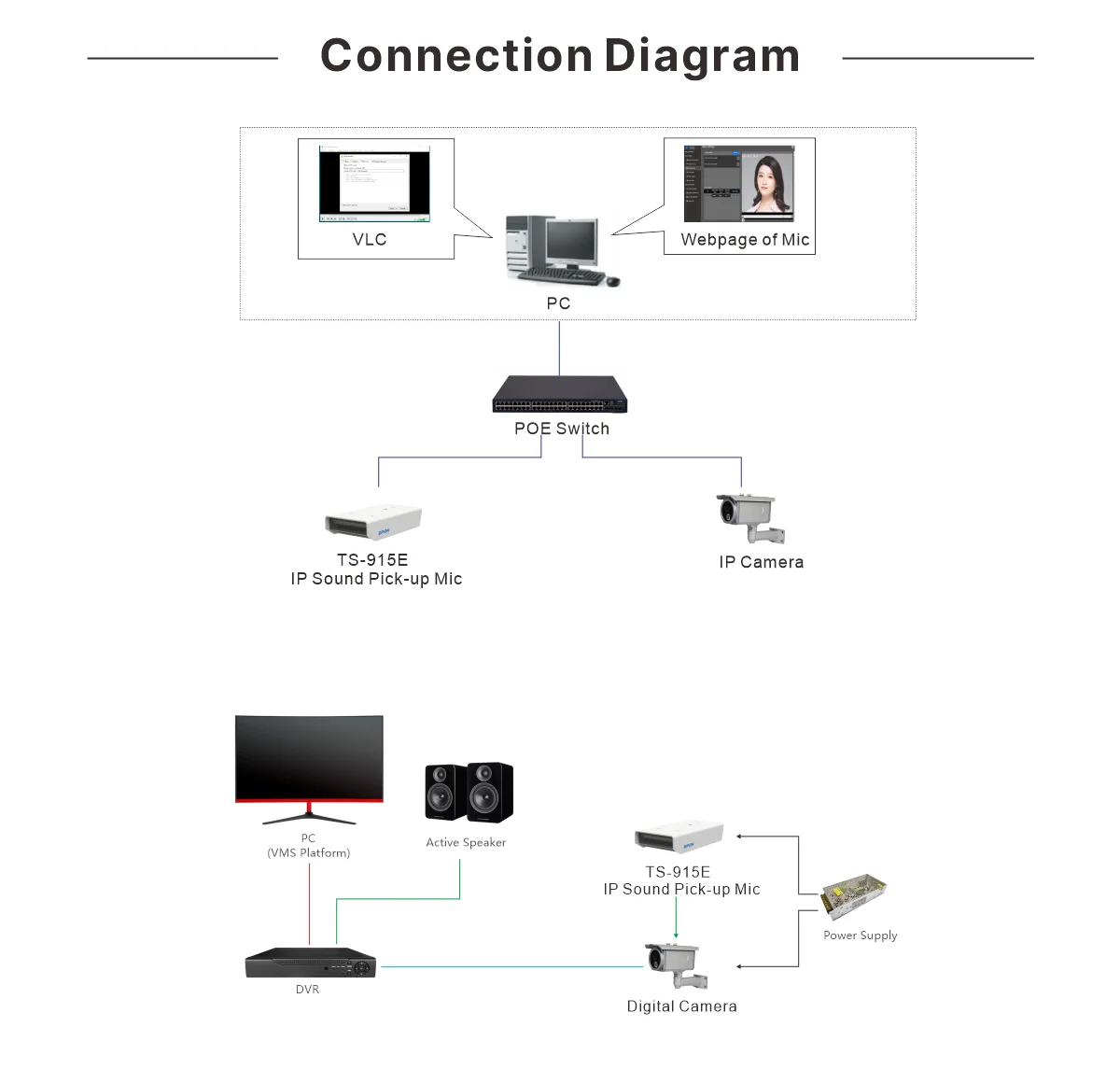

Connection Topology

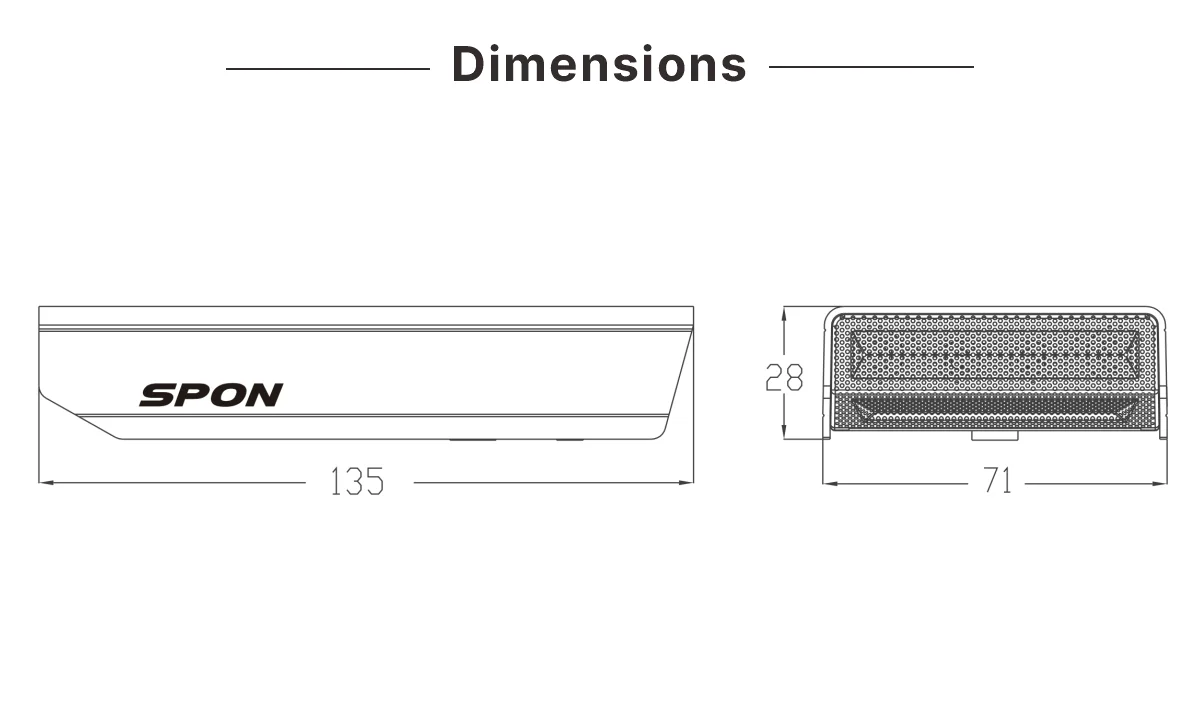

Dimensional Drawing

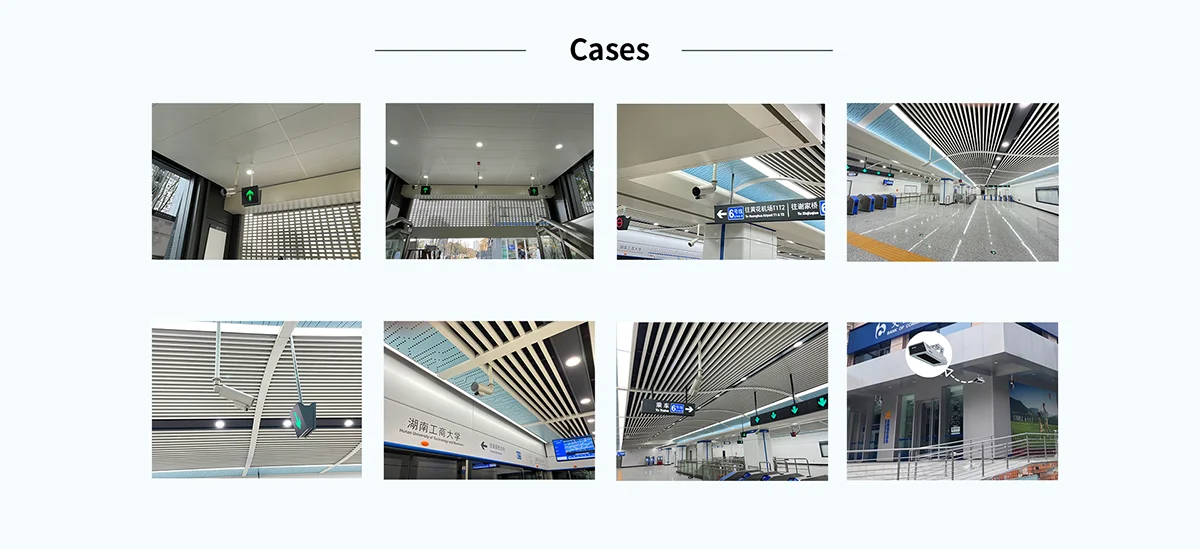

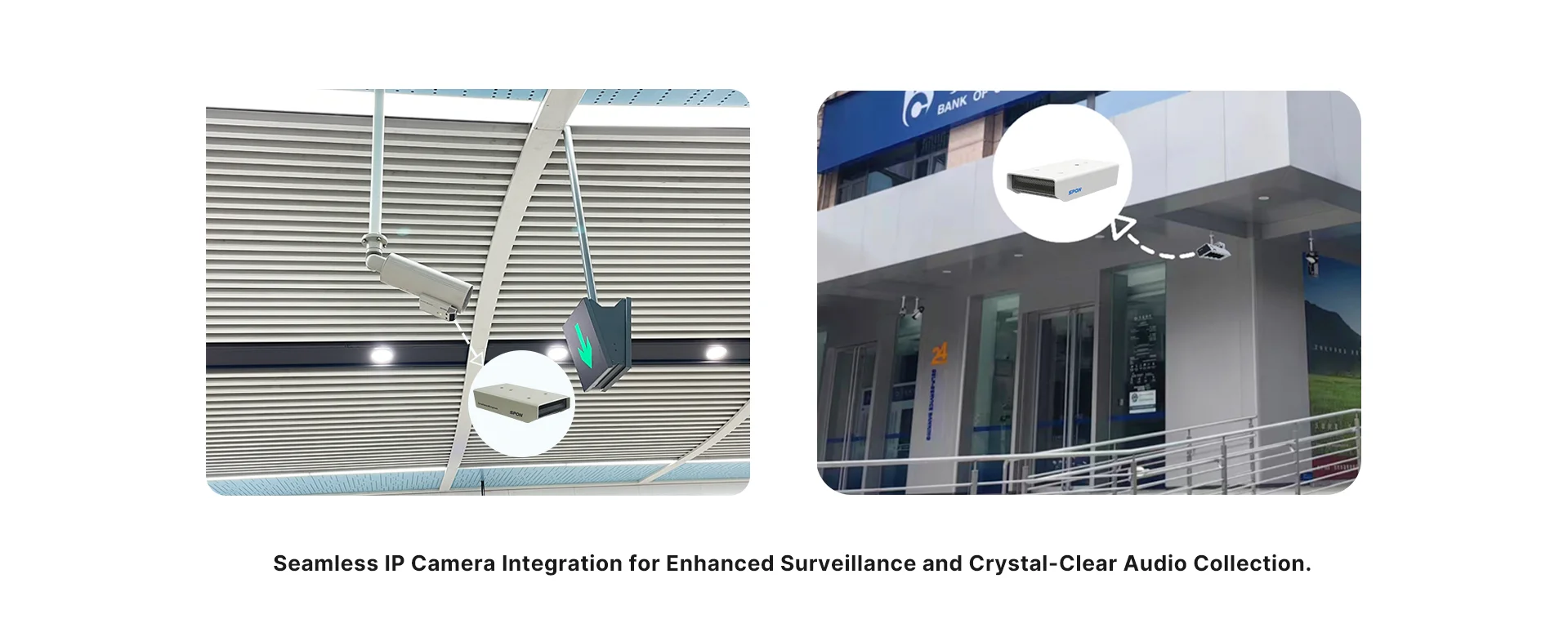

Application
