Growatt 5KW 8KW 10KW 15KW 20KW 25KW 30KW Single Phase Three Phase On Grid Solar Inverter for Home
- Category: >>>
- Supplier: Shenzhen Lavie Technology Co. Ltd.
Share on (1601006420065):
Product Overview
Description
Product Description
The Growatt MOD inverters have 2 MPPT, Type II SPD on DC and AC side, string monitoring, and Arc-Fault Circuit Interrupter (AFCI) function. The Growatt MOD inverters have a 10 years product warranty.
The Growatt MOD series is the latest 3-phase inverter solution designed specifically for residential use. The MOD series features an aesthetically pleasing, compact design that will add visual appeal to your home. With an outstanding efficiency of up to 98.3%,the Growatt MOD 3-phase inverter is a smart choice that offers great performance at an excellent price point.
The Growatt MOD series is the latest 3-phase inverter solution designed specifically for residential use. The MOD series features an aesthetically pleasing, compact design that will add visual appeal to your home. With an outstanding efficiency of up to 98.3%,the Growatt MOD 3-phase inverter is a smart choice that offers great performance at an excellent price point.
Specifications
Datasheet | MOD 3000TL3-X | MOD 5000TL3-X | MOD 7000TL3-X | MOD 9000TL3-X | MOD 10000TL3-X | MOD 13000TL3-X | MOD 15000TL3-X | |||||||
Input data (DC) | ||||||||||||||
Max. recommended PV power (for module STC) | 4500W | 7500W | 10500W | 13500W | 15000W | 19500W | 22500W | |||||||
Max. DC voltage | 1100V | |||||||||||||
Start voltage | 160V | 200V | ||||||||||||
Nominal voltage | 580V | |||||||||||||
MPPT voltage range | 140V-1000V | |||||||||||||
Output data (AC) | ||||||||||||||
AC nominal power | 3000W | 5000W | 7000W | 9000W | 10000W | 13000W | 15000W | |||||||
Max. AC apparent power | 3300W | 5500W | 7700W | 9900W | 11000W | 14300W | 16500W | |||||||
Nominal AC voltage（range*） | 220V/380V, 230V/400V (340-440V) | |||||||||||||
AC grid frequency（range*） | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||||||
Max. output current | 5.0A | 8.3A | 11.7A | 15.0A | 16.7A | 21.7A | 25.0A | |||||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||||||||
Efficiency | ||||||||||||||
MAX. efficiency | 98.3% | 98.3% | 98.6% | 98.6% | 98.6% | 98.6% | 98.6% | |||||||
European efficiency | 97.5% | 97.5% | 98.1% | 98.1% | 98.1% | 98.2% | 98.2% | |||||||
MPPT efficiency | 99.9% | |||||||||||||
General data | ||||||||||||||
Dimensions (W / H / D) | 425/387/147mm | 425/387/147mm | 425/387/178mm | 425/387/178mm | 425/387/178mm | 425/387/178mm | 425/387/178mm | |||||||
Weight | 12.5kg | 12.5kg | 14kg | 14kg | 14kg | 16kg | 16kg | |||||||
Operating temperature range | –25°C ... +60°C | |||||||||||||
Protection degree | IP66 | |||||||||||||
Relative humidity | 0~100% | |||||||||||||
Altitude | 4000m | |||||||||||||
Display | OLED+LED/WIFI+APP | |||||||||||||
Features of Growatt MOD3000TL3-X~15000TL3-X
* 3 phase power
* 3-15KW solar inverter
* Max efficiency: 98.6%
* DC/AC ratio up to 1.5
* Type II SPD on DC and AC side
* AFCI function optional
* Touch key and OLED display
* Free online service
* IP66 protection rating
* 3 phase power
* 3-15KW solar inverter
* Max efficiency: 98.6%
* DC/AC ratio up to 1.5
* Type II SPD on DC and AC side
* AFCI function optional
* Touch key and OLED display
* Free online service
* IP66 protection rating

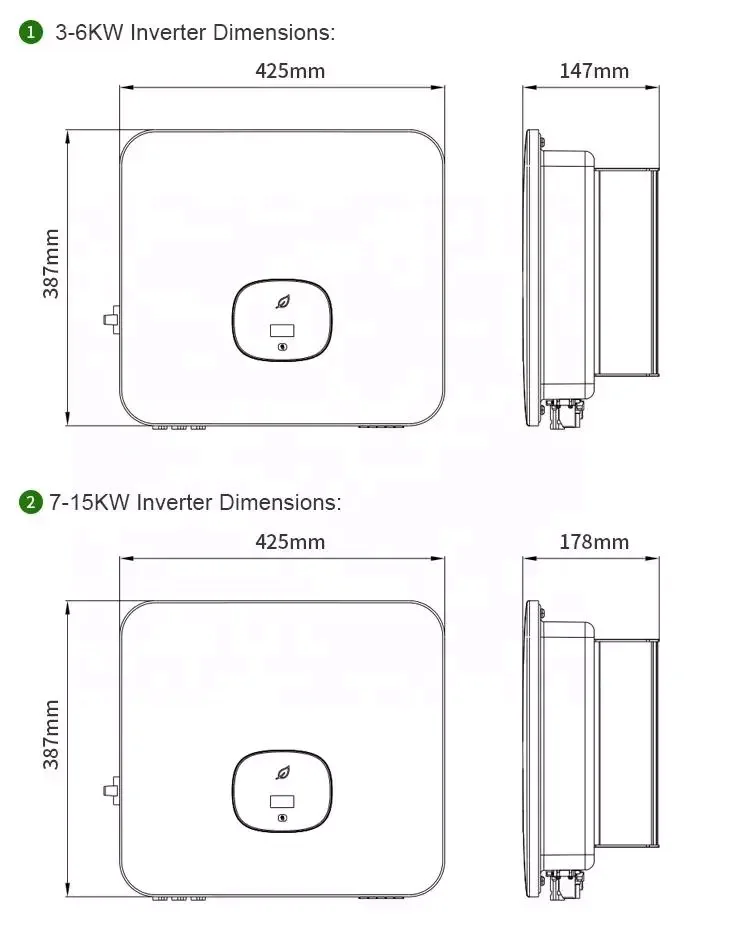

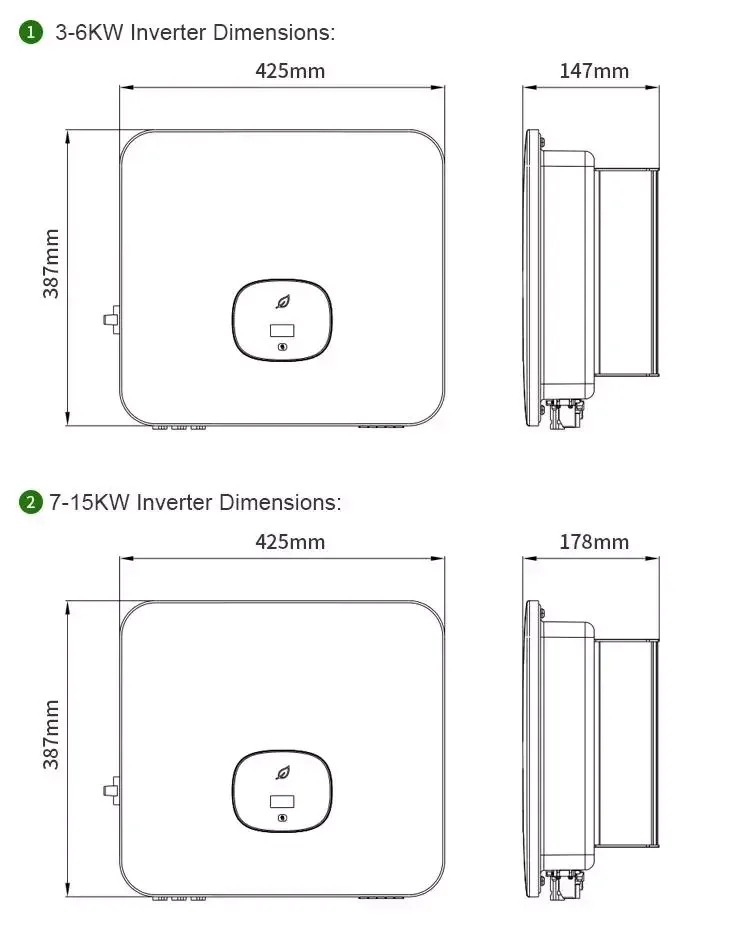

Size and weight | ||||||||
Model | Height (H) | Width (W) | Depth (D) | Weight | ||||
MOD 3-6KTL3-X | 387mm | 425mm | 147mm | 12.5kg | ||||
MOD 7-11KTL3-X | 387mm | 425mm | 178mm | 14kg | ||||
MOD 12 - 15KTL3 - X & MOD 7- 11KTL3-X-AU | 387mm | 425mm | 178mm | 16.0kg | ||||

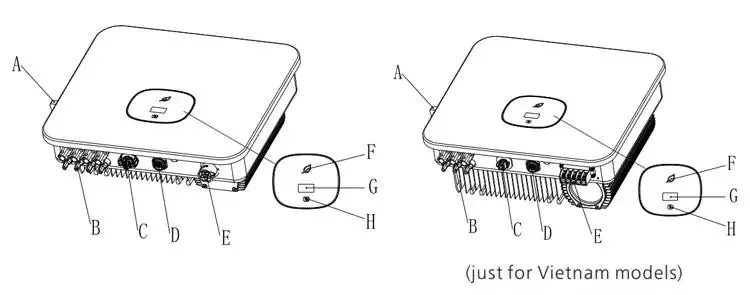

The appearance instructions are as follows: | ||||||
No. | Name | No. | Name | |||
A | DC switch | E | AC terminal | |||
B | PV terminal | F | LED indicator | |||
C | RS485 port | G | LCD screen | |||
D | USB port | H | Touch button | |||
Packing & Delivery
Shipping
1.Samples policy
Sample order is available and the costs & shipping and taxes paid by the buyer.

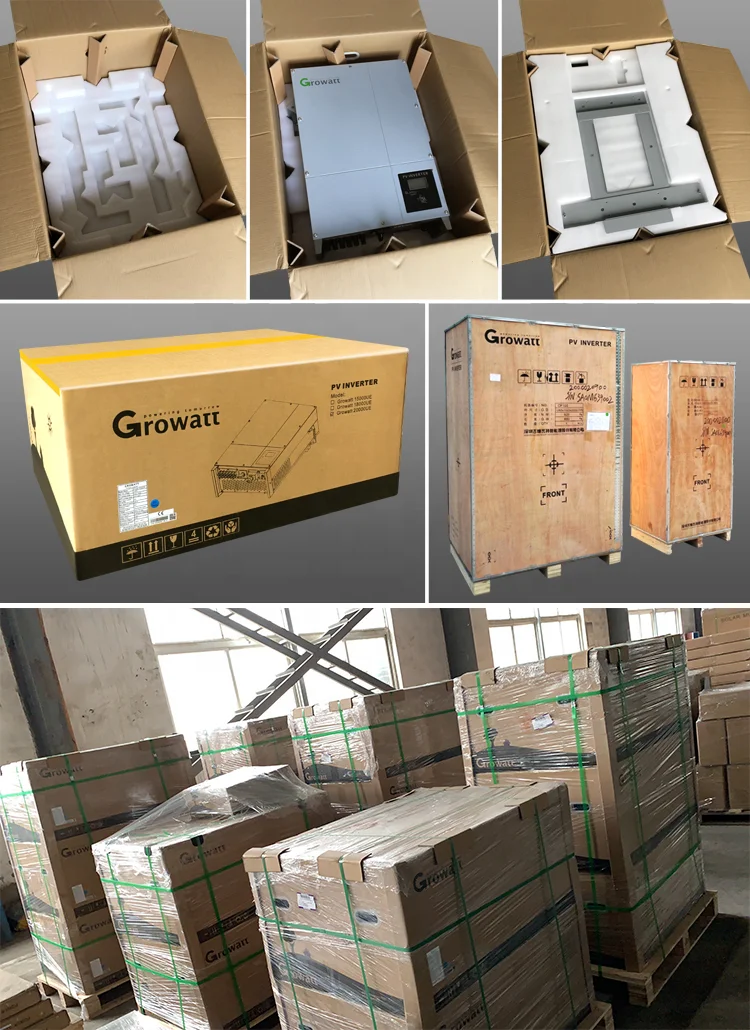

2. Packaging
Standard gift box, OEM packaging available at MOQ 1K.
3.Shipping
1) Small order: By express, DHL/ UPS/ Fedex/ EMS etc.
2) Large order: By sea or By air.
1.Samples policy
Sample order is available and the costs & shipping and taxes paid by the buyer.
2. Packaging
Standard gift box, OEM packaging available at MOQ 1K.
3.Shipping
1) Small order: By express, DHL/ UPS/ Fedex/ EMS etc.
2) Large order: By sea or By air.
3) Contact us and choose the best and convenient way for your need.
Company Introduction
Contact Us
FAQ
Q: Are you a factory?
A: Yes, we are a factory mainly produce off grid solar inverters, lithium battery, solar systems and portable power stations, with 10 years experience in this field. And we are authorized by Growatt.
Q: What can you supply?
A: We can provide solar panels, solar inverters on grid, off grid and hybrid, lithium batteries, and solar energy systems.
Q: Can I make my own design and logo for the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China/Vietnam.
Q: How can I choose the right system for my home?
A: We have on grid, off grid and hybrid systems with different capacities, can be with or without battery. Our online customer service will help you to choose the suitable system with the most efficient costs.
Q: What’s the warranty?
A: All of our products are original quality with real capacity, warranty from 5 years to 25 years.
Q: What’s payment term?
A: Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
Q: How about the delivery time?
A: The common products we always have the stock, it can be shipped within 48 hours. While the big order takes 15-20 days to finish production.
A: Yes, we are a factory mainly produce off grid solar inverters, lithium battery, solar systems and portable power stations, with 10 years experience in this field. And we are authorized by Growatt.
Q: What can you supply?
A: We can provide solar panels, solar inverters on grid, off grid and hybrid, lithium batteries, and solar energy systems.
Q: Can I make my own design and logo for the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China/Vietnam.
Q: How can I choose the right system for my home?
A: We have on grid, off grid and hybrid systems with different capacities, can be with or without battery. Our online customer service will help you to choose the suitable system with the most efficient costs.
Q: What’s the warranty?
A: All of our products are original quality with real capacity, warranty from 5 years to 25 years.
Q: What’s payment term?
A: Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
Q: How about the delivery time?
A: The common products we always have the stock, it can be shipped within 48 hours. While the big order takes 15-20 days to finish production.
