7mo LS301 LS300 Thermal Shielding Glass Solar Film Temperature Meter with IR Heat Insulation Property Demonstration

LS301 Solar Film Temperature Meter

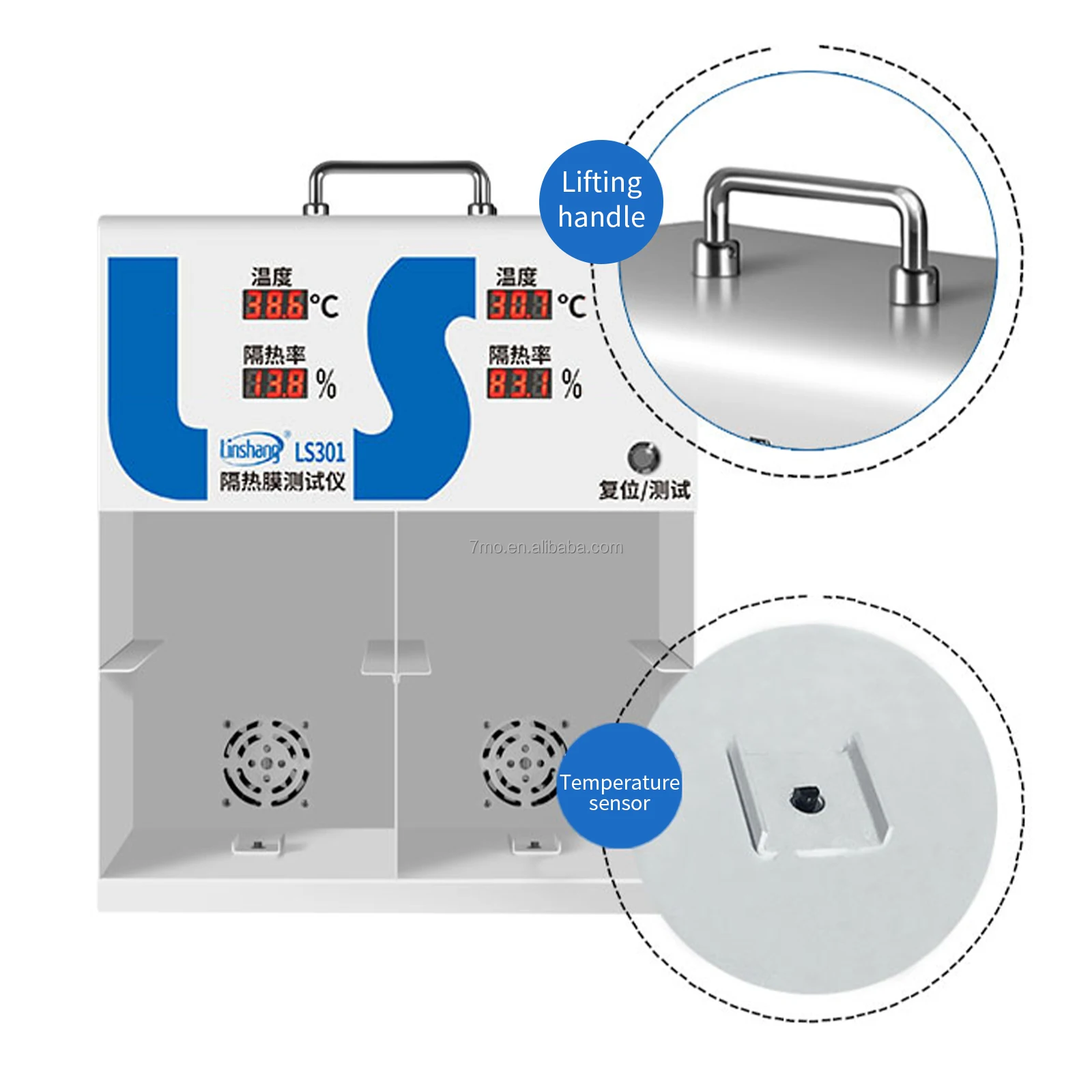

Linshang LS301 thermal insulation film temperature tester is a temperature test box that can directly demonstrate the solar film thermal insulation rate and energy-saving glass thermal insulation rate. It can also test the thermal insulation effects of two different materials while testing the thermal insulation rate of 940nm , Expressed by temperature.

1. Now we will demonstrate how to read and understand the data accordign to the following pictures

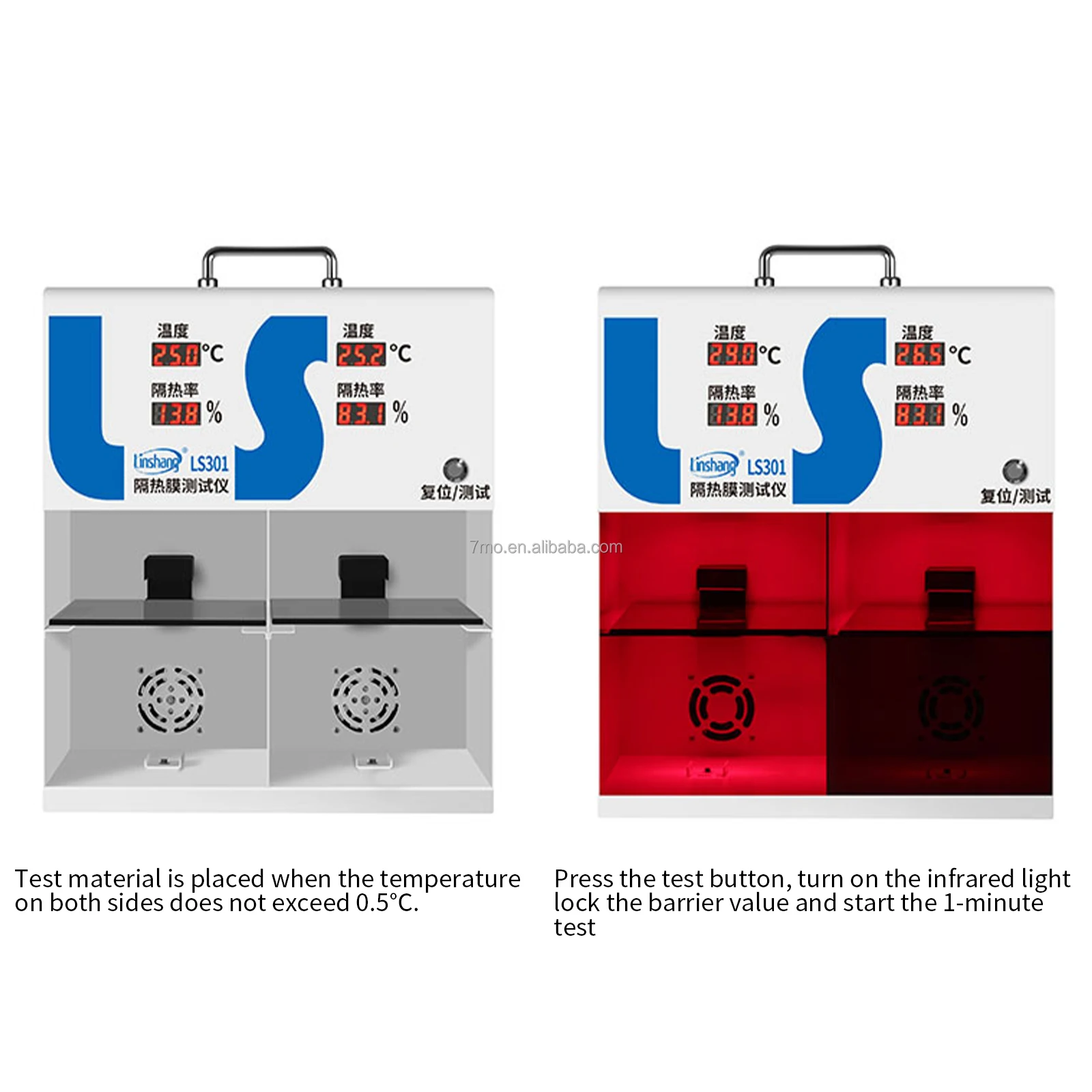

(1) The left side of the figure below is the data when no test sample is placed and the power is on. You can see that the
real-time temperature on both sides is 20.8 ℃ and the heat insulation rate is 0.0%.
(2) After placing 2 test samples, the instrument will immediately display the heat insulation rate of the glass. After the light
is turned on, the insulation data will be locked on the interface. (Be sure to put the test sample before turning on the light,
otherwise the insulation rate cannot be tested.)
(3) After the light is turned on, the real-time temperature above the instrument will rise. As can be seen from the right side of
the figure below, the real-time temperature will rise to 38.6℃ and 30.7 ℃, respectively.                      2. The LS301 solar film temperature meter can simultaneously display the real-time temperature value and the insulation rate of
tested materials during the test.

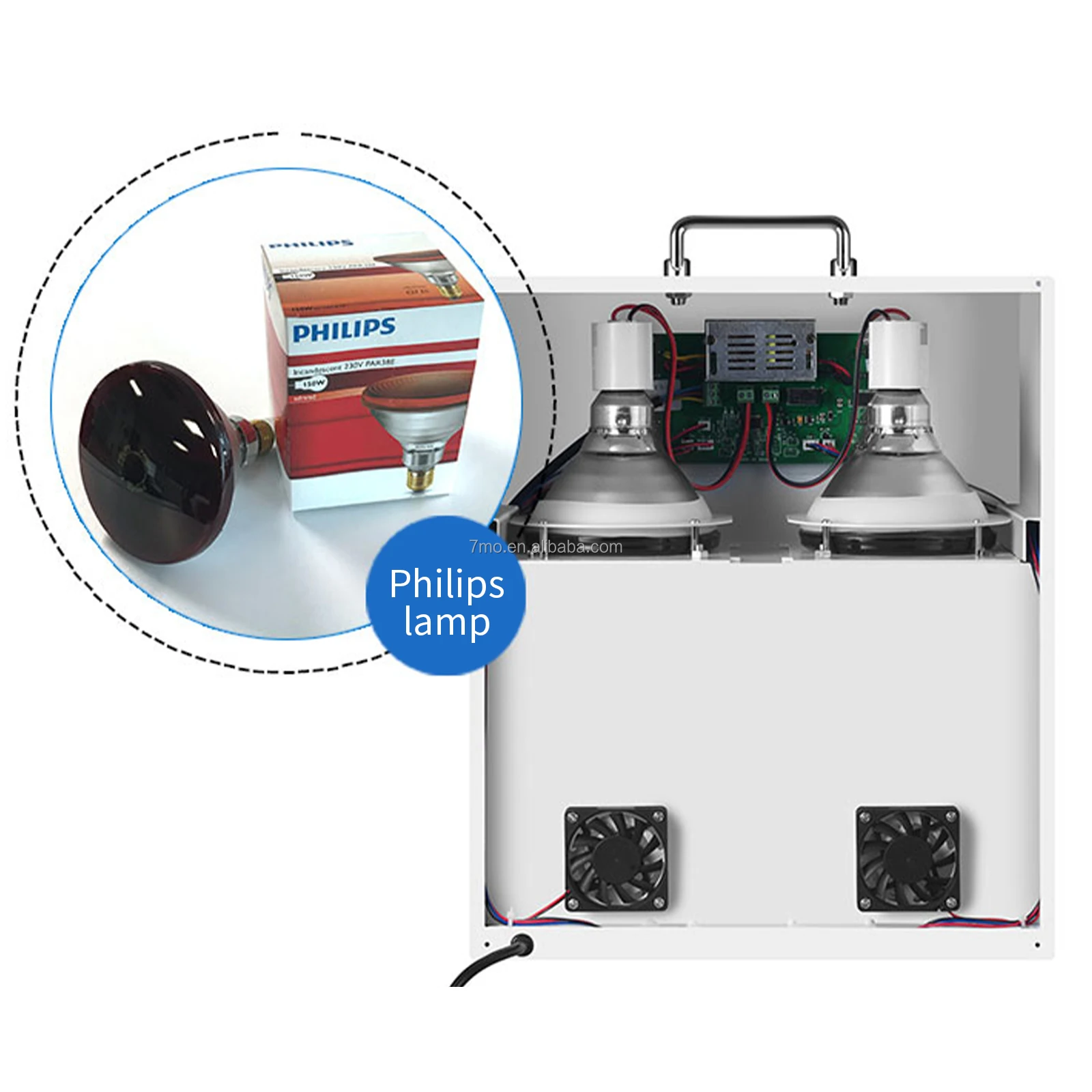

3. Using 150W genuine Philips infrared light with better insulation effect.

Unilateral temperature measurement accuracy

± 0.5°C

Temperature unevenness of double lamps

2°C

-55°C to + 125°C

Temperature test time

1 minute

IR peak wavelength

940nm

Insulation rate measurement accuracy

± 2% (colorless and uniform trasparent materials)

Test glass size (not included)

200mm × 160mm

Weight

about 13 kg

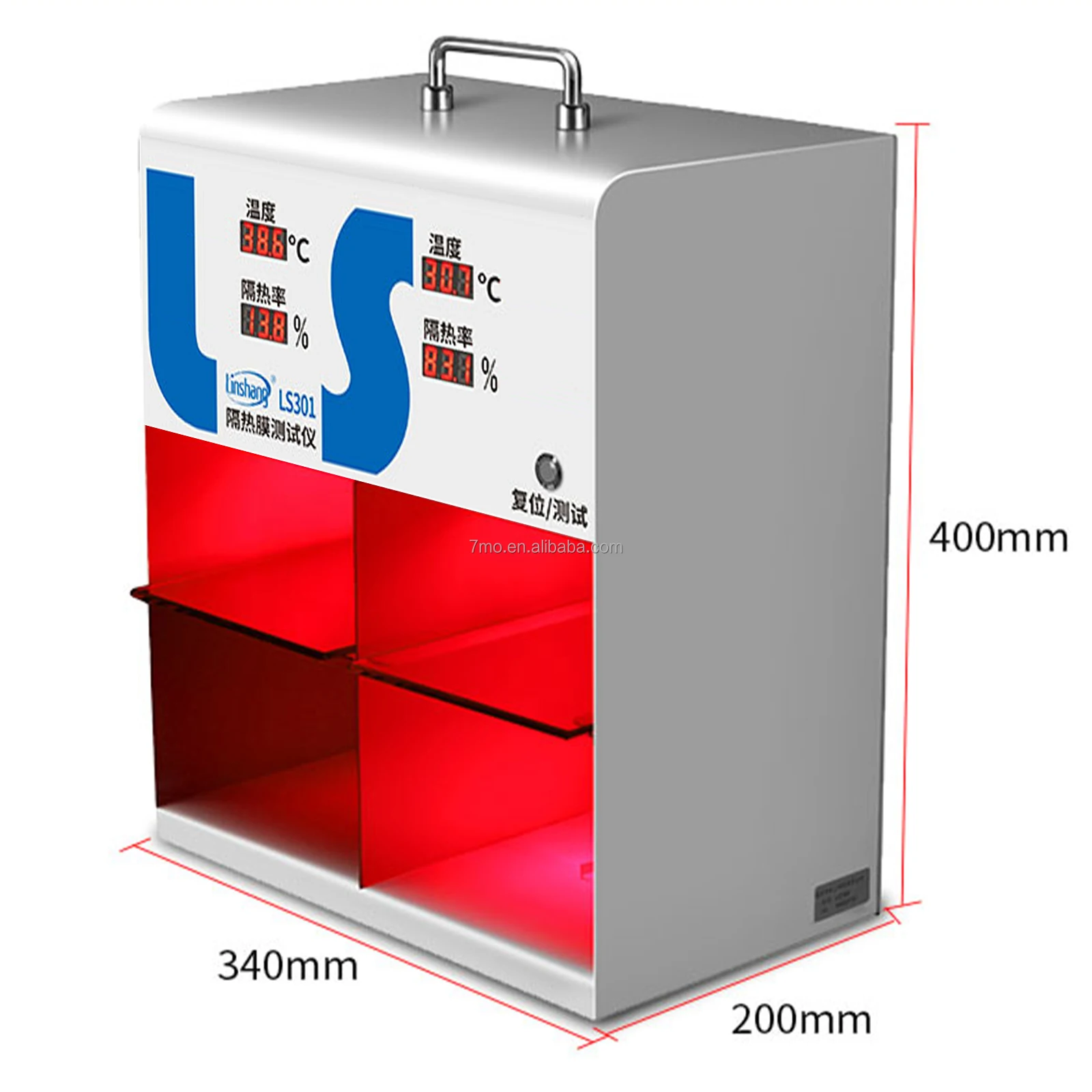

Dimension

340mm ×200mm ×400 mm(L*W*H)

Power supply

220V AC
