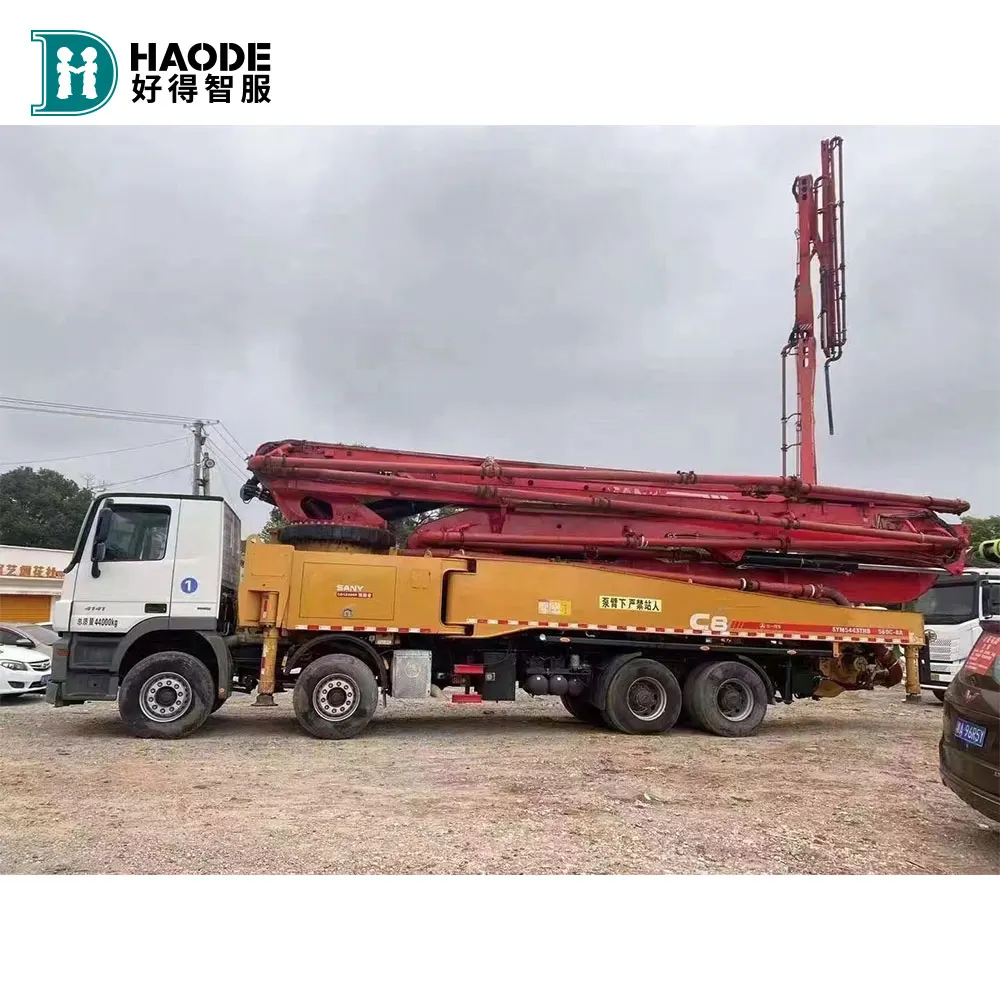

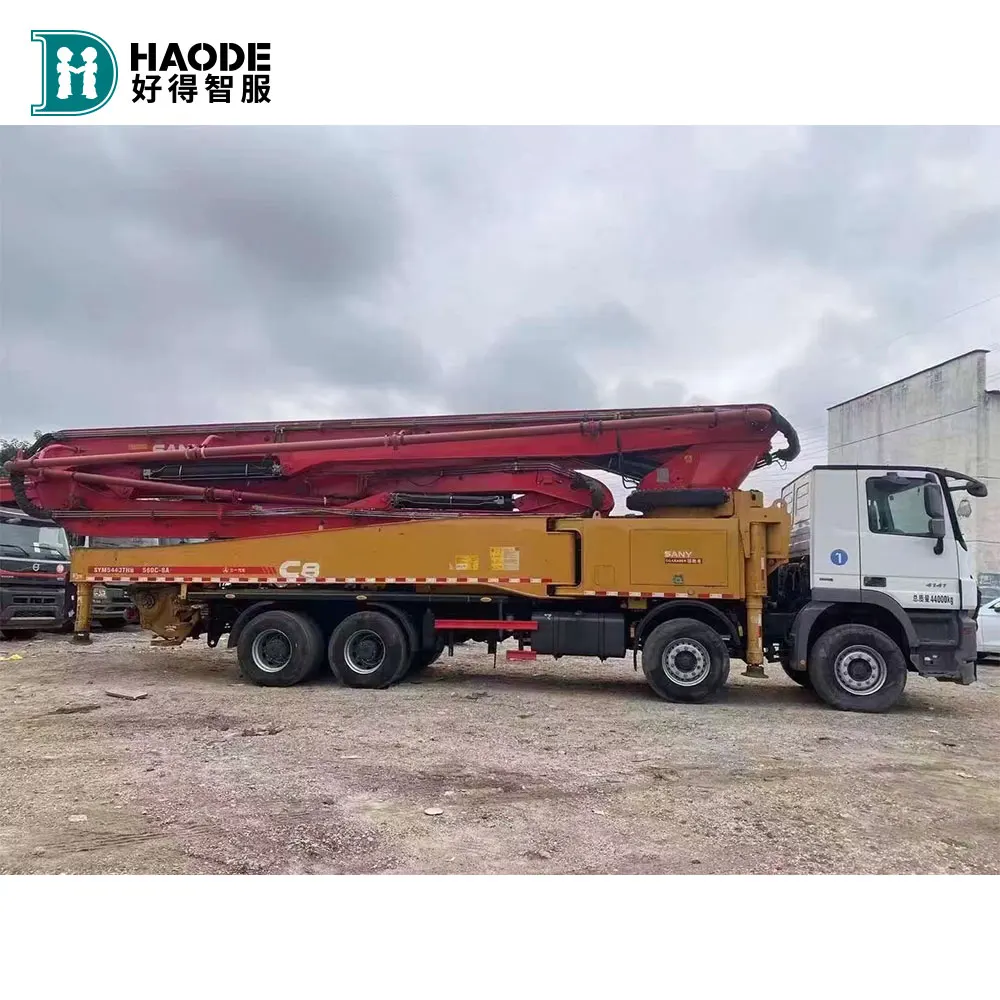

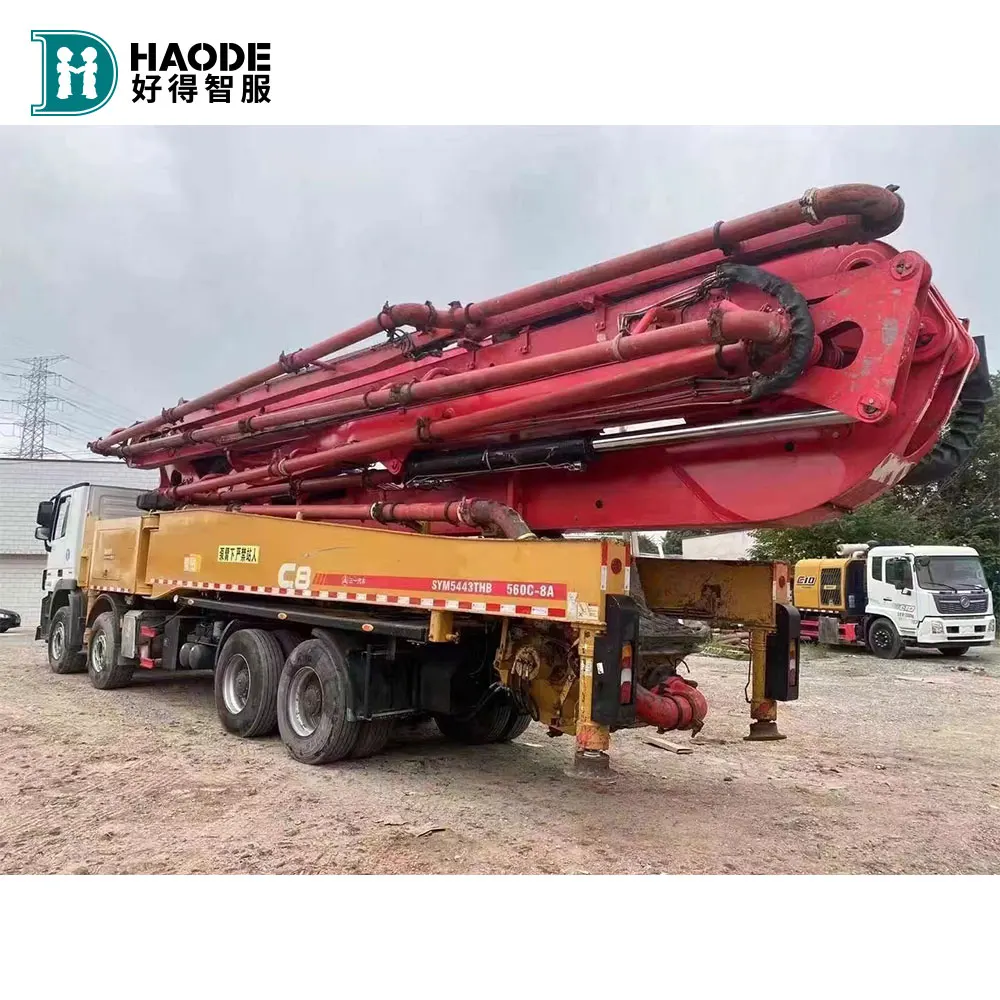

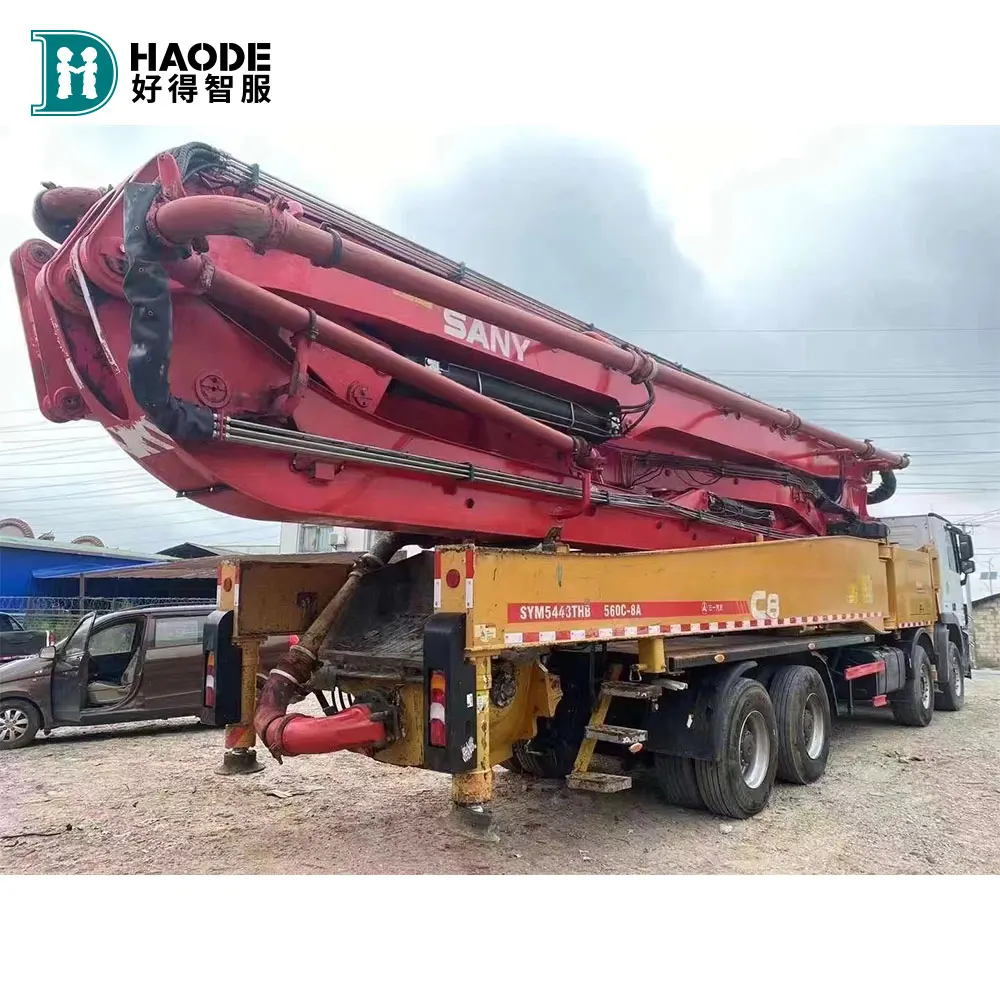

Haode Used Concrete Pump China Wholesale Used 37m 52m 56m Sany Truck Mounted Concrete Pump Price
- Category: >>>
- Supplier: Haode Beijing Smart Service Co. Ltd.
Share on (1601006431877):
Product Overview
Description
Boom | Pumping system | ||||
Vertical reach | 56 m | Output | 200 m3/h (137 m3/h) | ||
Horizontal reach | 51 m | Pressure | 12 MPa (8.3 MPa) | ||
Depth reach | 36.6 m | Delivery cylinder diameter | 260 mm | ||
Unfolded reach | 15.2 m | Stroke length | 2100 mm | ||
Rotation | ±360 ° | Hydraulic system | Open | ||
Front outrigger spread L-R | 9470 mm | Hydraulic system oil pressure | 32 MPa | ||
Rear outrigger spread L-R | 12530 mm | Oil tank capacity | 610 L | ||
End hose length | 3 m | Water tank capacity | 600 L | ||
End hose diameter | 125 mm | Drive pump | Rexroth/Danfoss | ||
Pipeline size | 125 mm | Volume of hopper | 700 L | ||
Chassis | Safety |
Brand: BENZ | Mushroom button for horn, yellow |
Model: Arocs 4140 | Emergency stop |
Engine type: OM460LA. Ⅲ /4 | Hopper plate |
Engine max net power: 290/1600 kW/rpm | |
Emission standard: Euro Ⅲ (Euro Ⅴ adjustable) | Cleaning |
Capacity of fuel tank: 390 L | Sponge balls |
Displacement: 12.8 L | High pressure water pump |
Max.speed: 90 km/h | |
Others | |
Functions | Remote control System, wired (optional) |
Agitator rotation, 2 direction | Industrial display control screen 7'' (optional) |
Single-button double pistion return | Operating manual |
Single-button high/low pressure switch | MachineLink+ APP/web connected |
Auto-lubrication for core pump | 7×24 service with no worry |
