Gold Mining Machinery Equipment Miner Separator Lowest Price Mini Gravity Separator Vibration Gold Shaking Shaker Table

                          Product Description

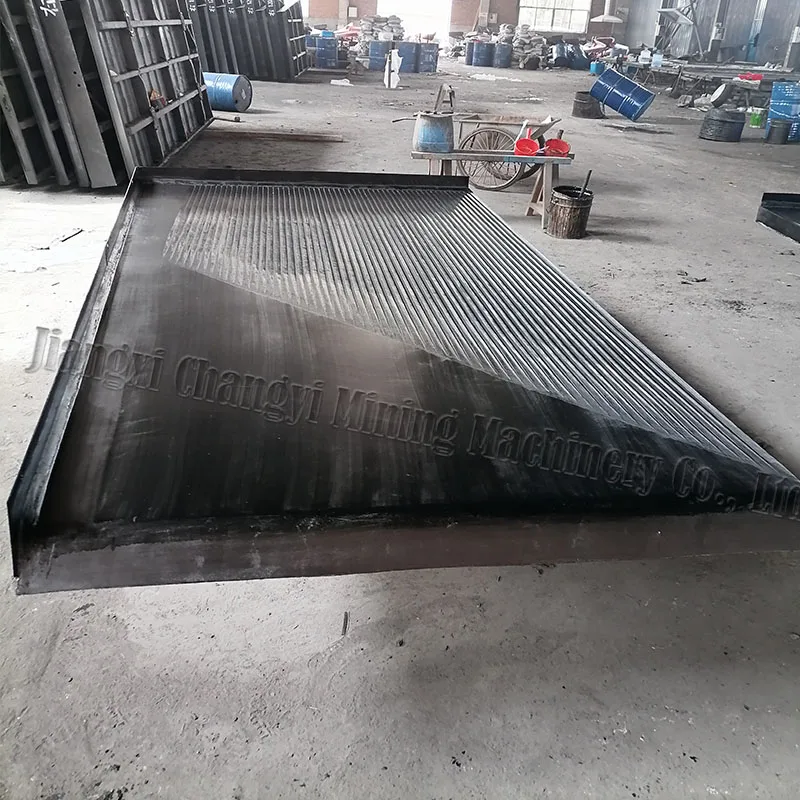

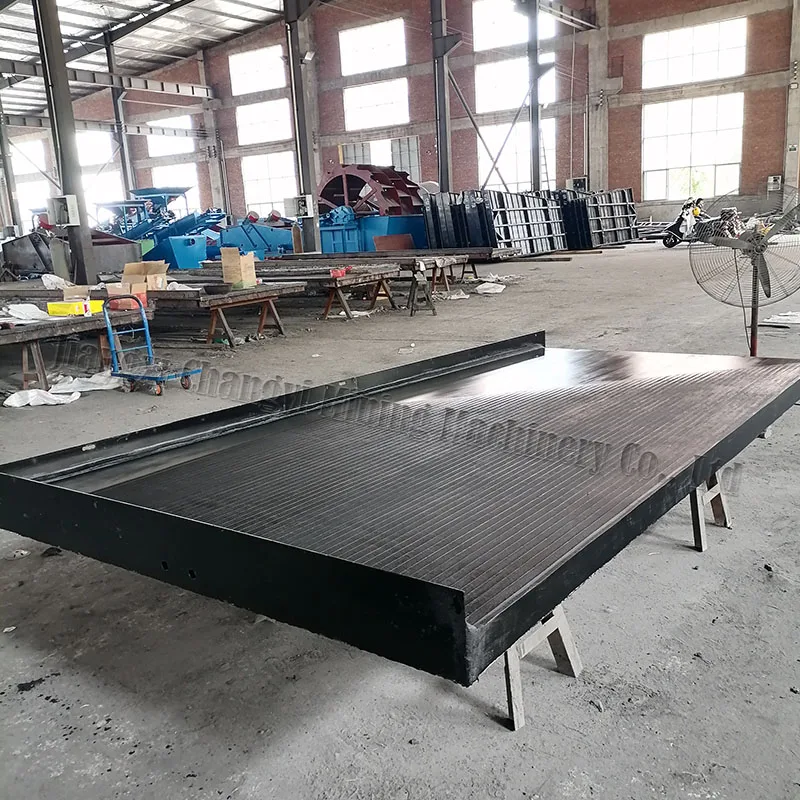

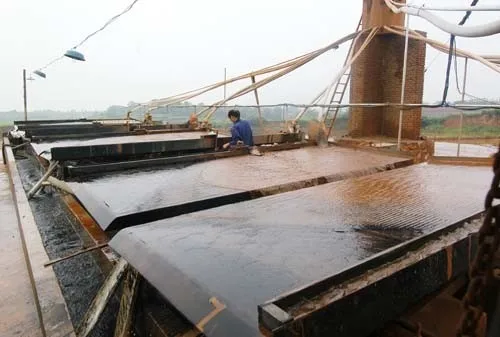

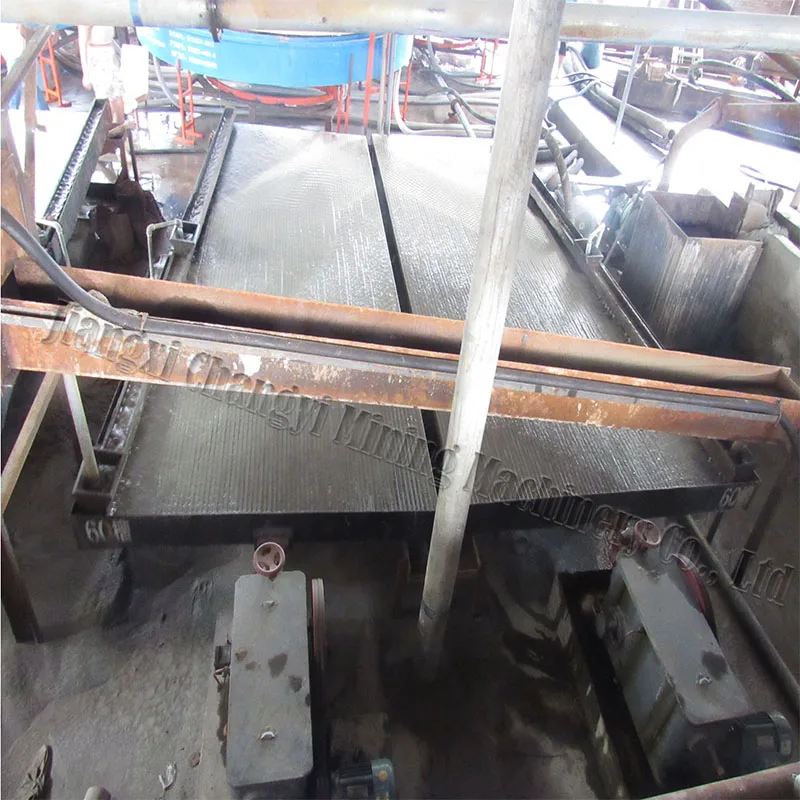

Jiangxi Changyi Shaking table is a widely used equipment for gravity separation. Shaking bed beneficiation uses the function of mechanical shaking and water flushing to separate mineral particles according to density. It is a process of separating mineral particles according to density on a wide inclined bed surface by means of mechanical asymmetric reciprocating motion and thin inclined surface water flushing. It is one of the most widely used gravity separation methods for separating fine materials.

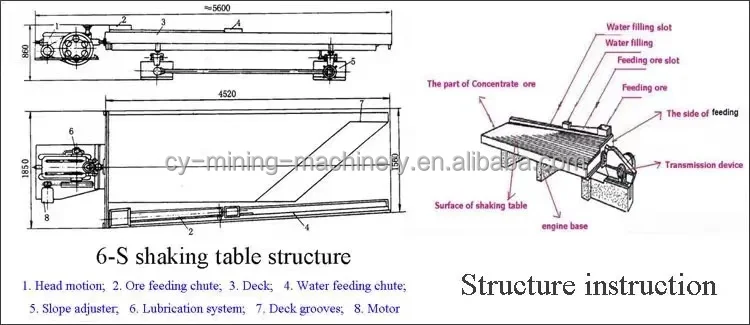

                          Working Principle

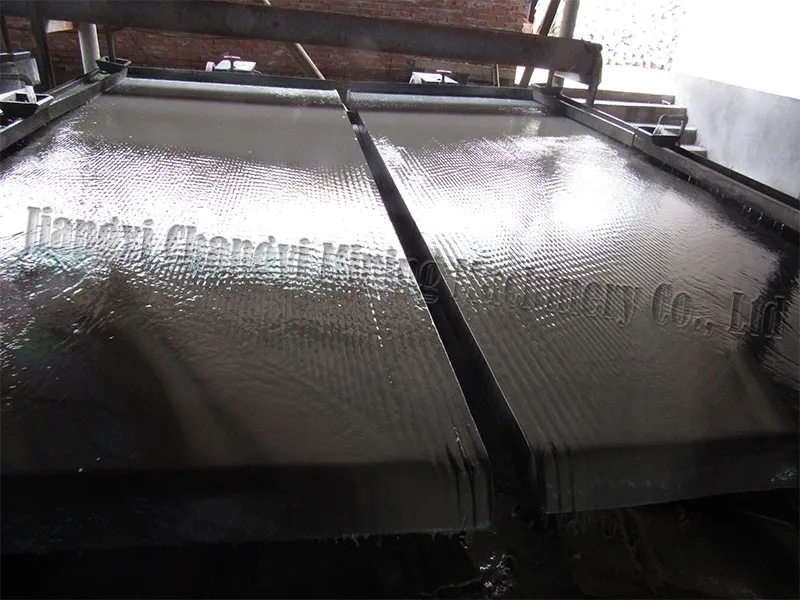

Gravity gold shaking table is shaken back and forth longitudinally, using a slow forward stroke and a rapid return strike that causes particles to raw along the deck parallel to the direction of motion. The lighter materials move up and over the riffles and down to exit on the tailing side of the table. Wash water is fed at the top of the table at right angles to the direction of table movement. These forces combine to move particles diagonally across the deck from the feed end and they separate out on the table according to size and density. Tables are most commonly used to recover gold from hard rock ores, but can also be used to recover other mineral materials of higher than normal density. They do an excellent job of recovering small gold particles, even with a fairly high feed rate.

                                 Advantage
1.The large range of transverse slope adjustment(0 -10°) and adjustable stroke available (be stably operation when change them).

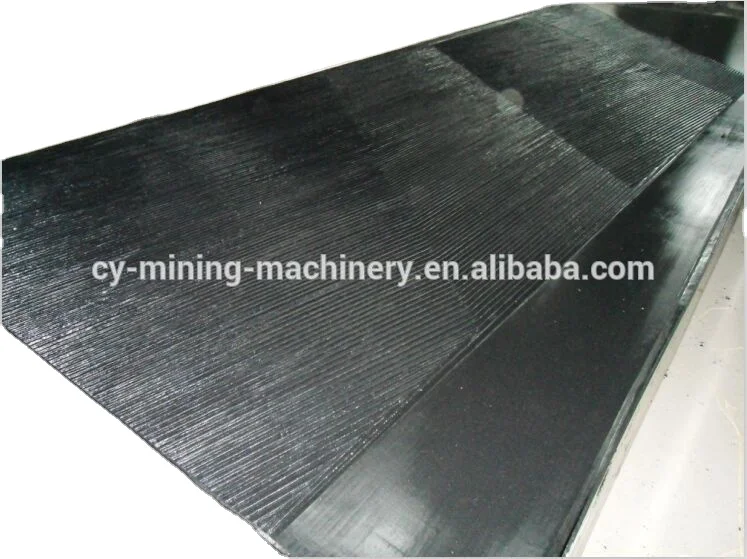

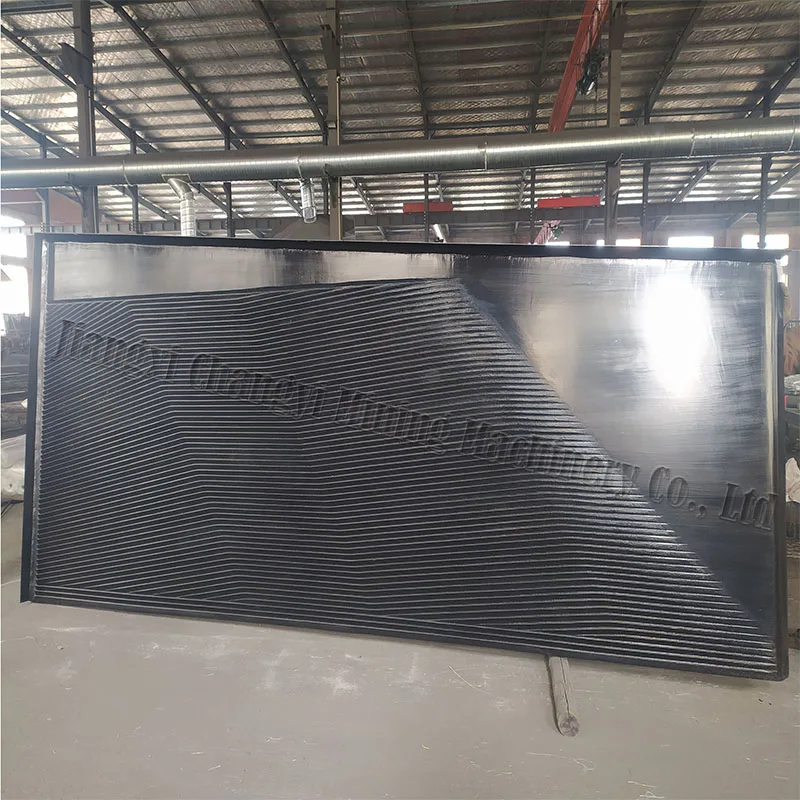

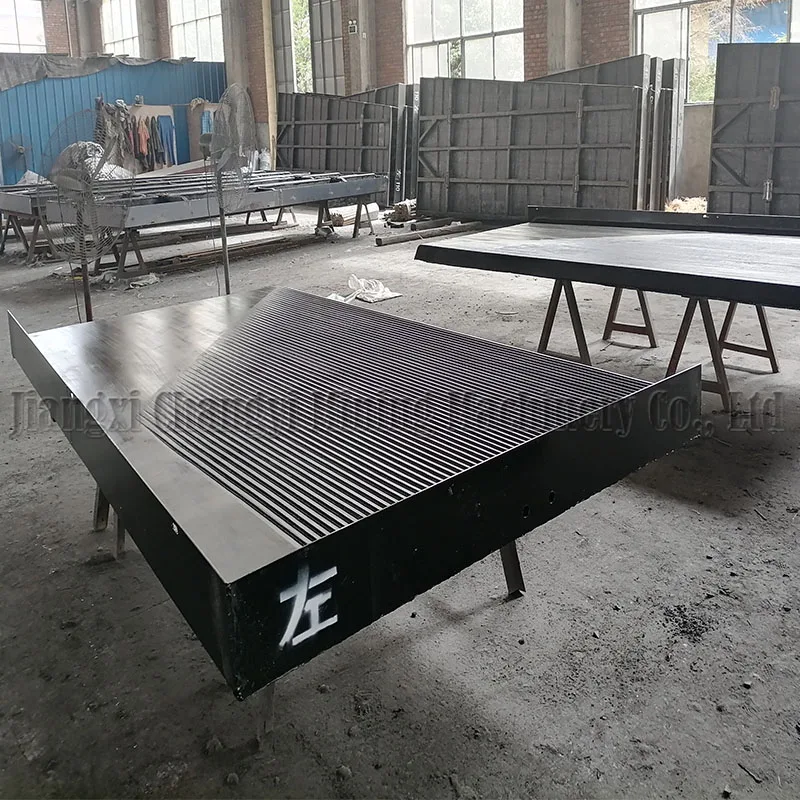

2. The deck surface is smooth with good corrosion resistance, strong and durable, not easy to deform, and is convenient for local repair.

3. With feeding chute and collection chute,deck with emery and fiberglass steel.

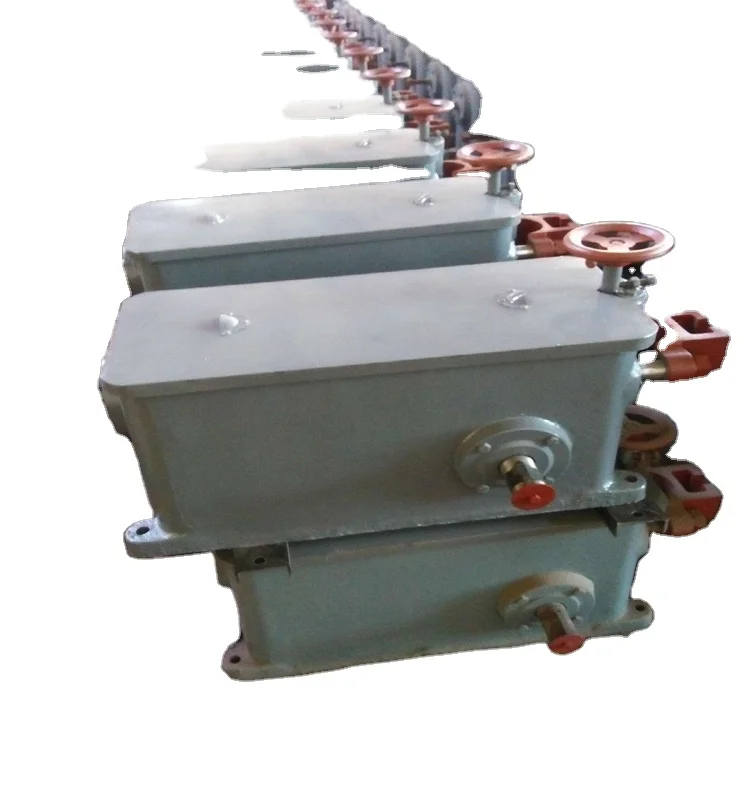

4. The head of the deck is reliable with less wear parts and no oil-leakage.
5. Without reagents consumption, little electricity consumption.

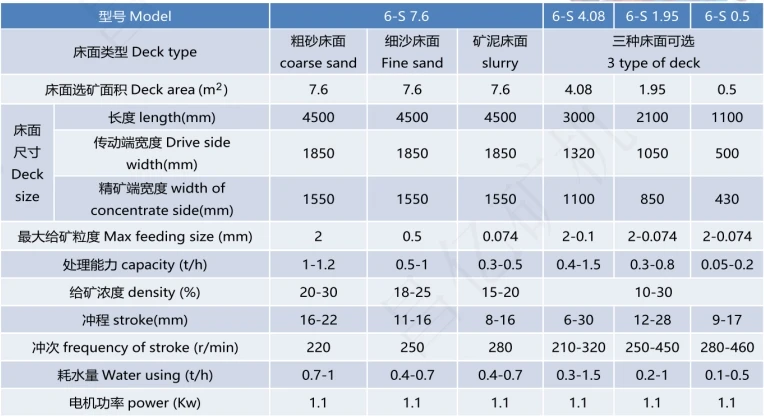

                         Product Parameter

                              Application

Concentrating shaker is a common equipment for the separation of fine ore, widely used in the separation of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ilmenite and coal.

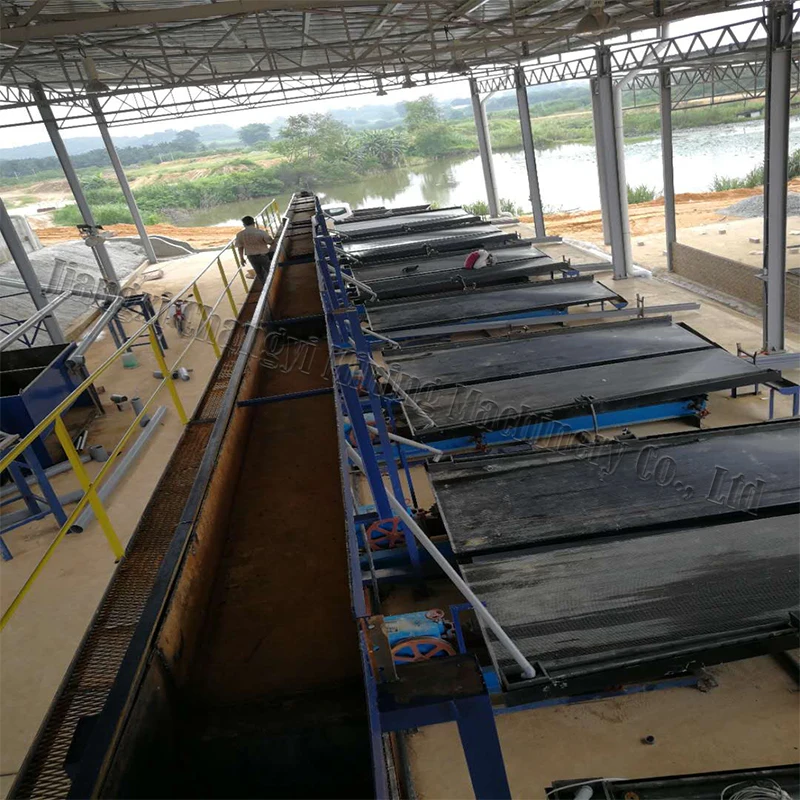

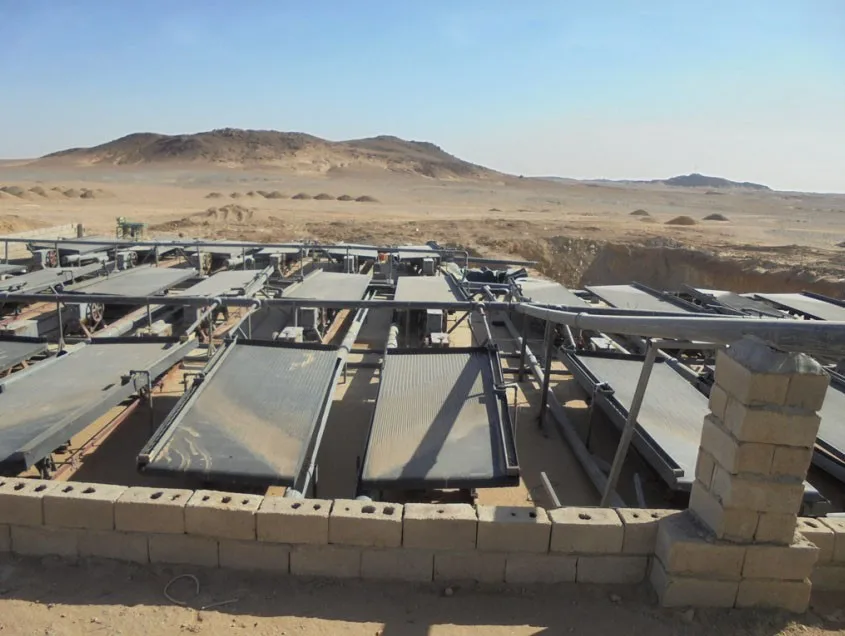

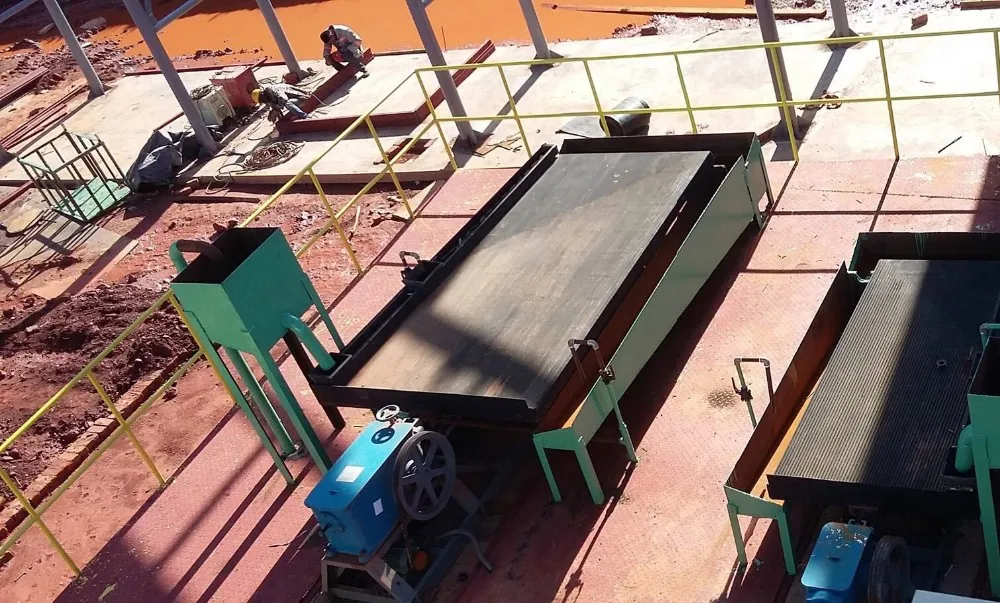

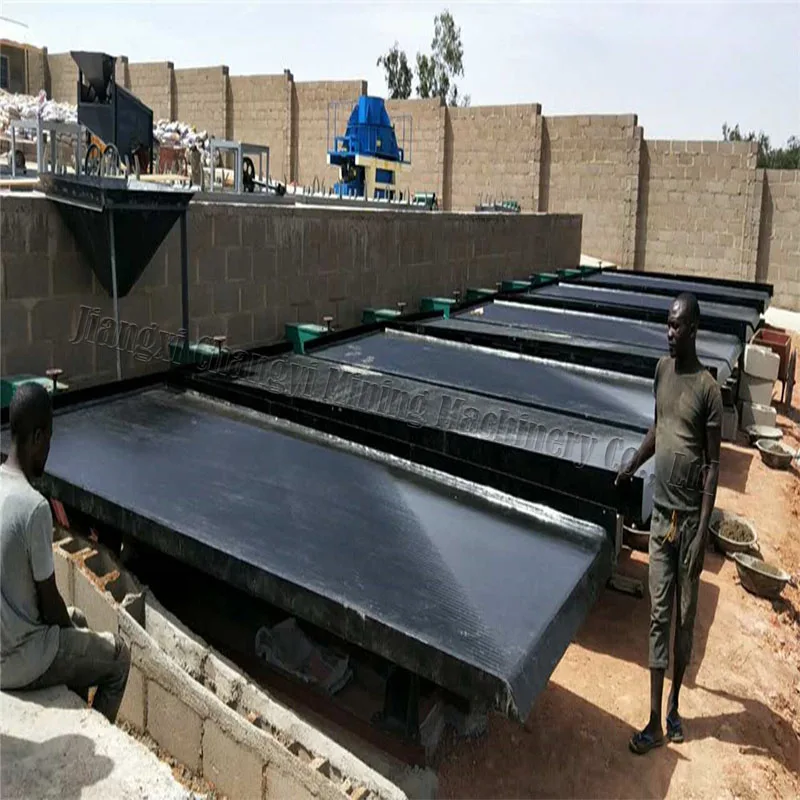

                            Succesful Project

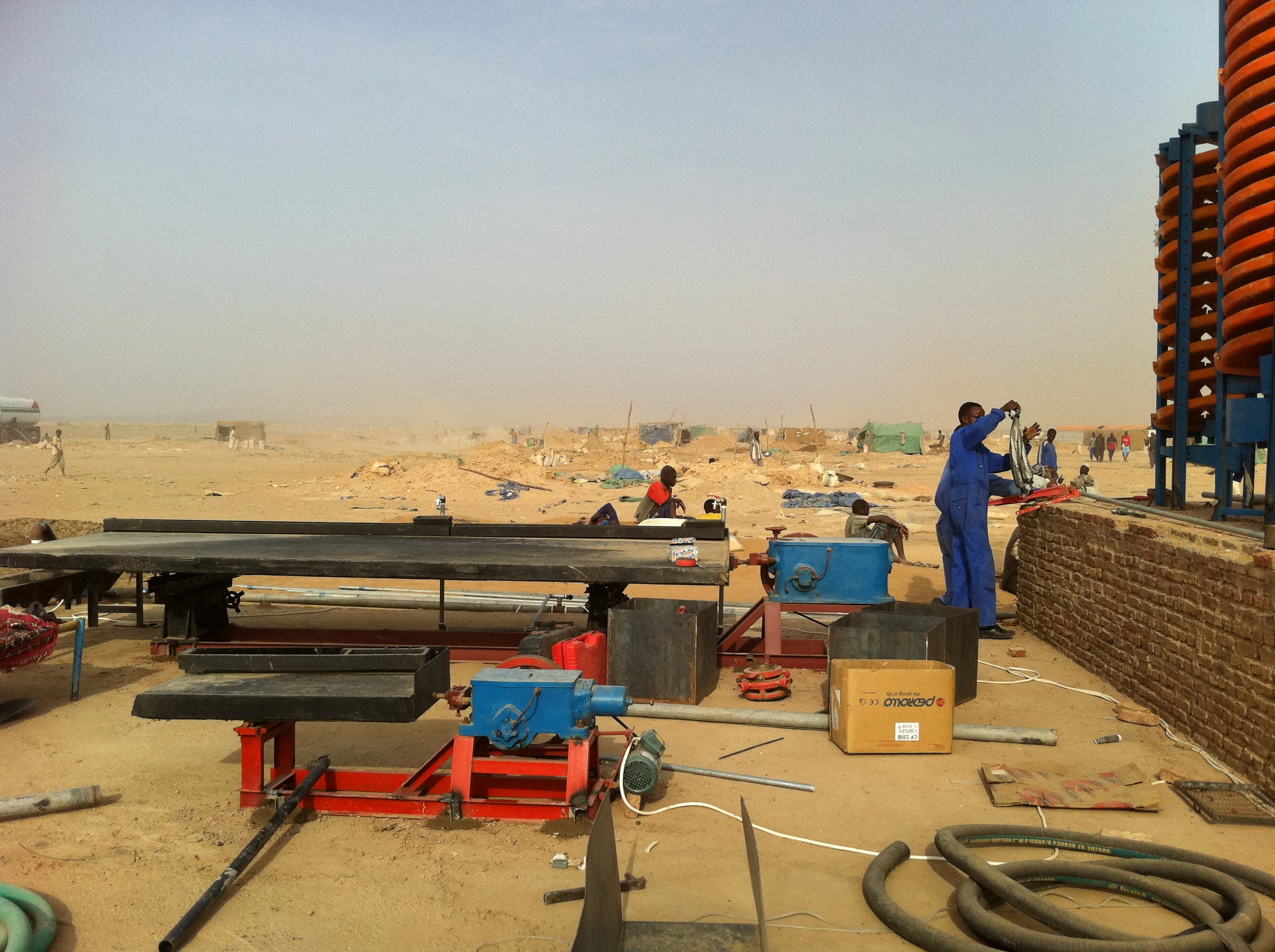

            Malaysia                                     Nigeria                                    Africa

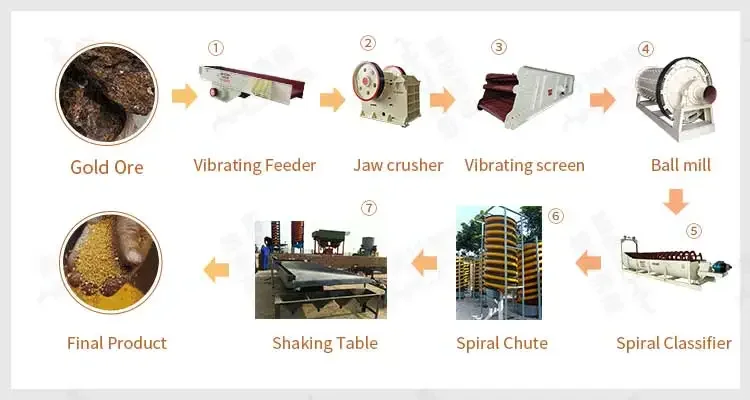

-----Maybe you are interested in-----

    Spiral Chute               Shaking Tabling                 Ball Mill

Above are our factory's hot selling products, if you need, feel free to contact us, we are happy to serve you !

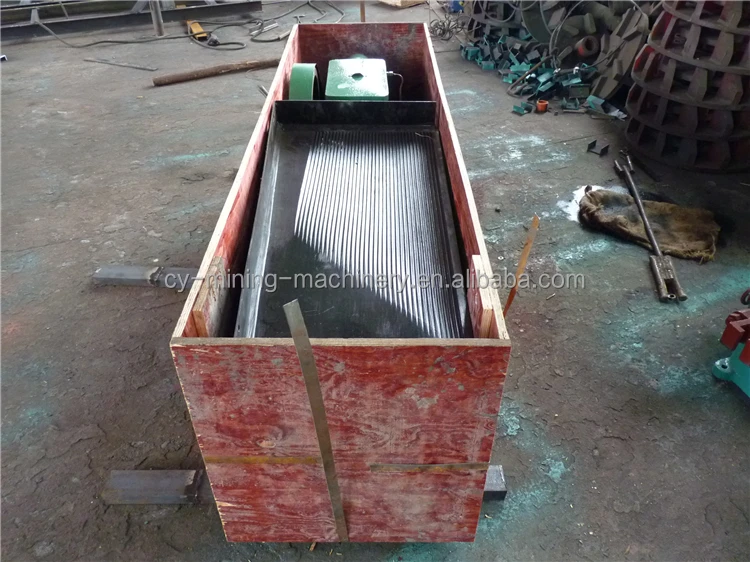

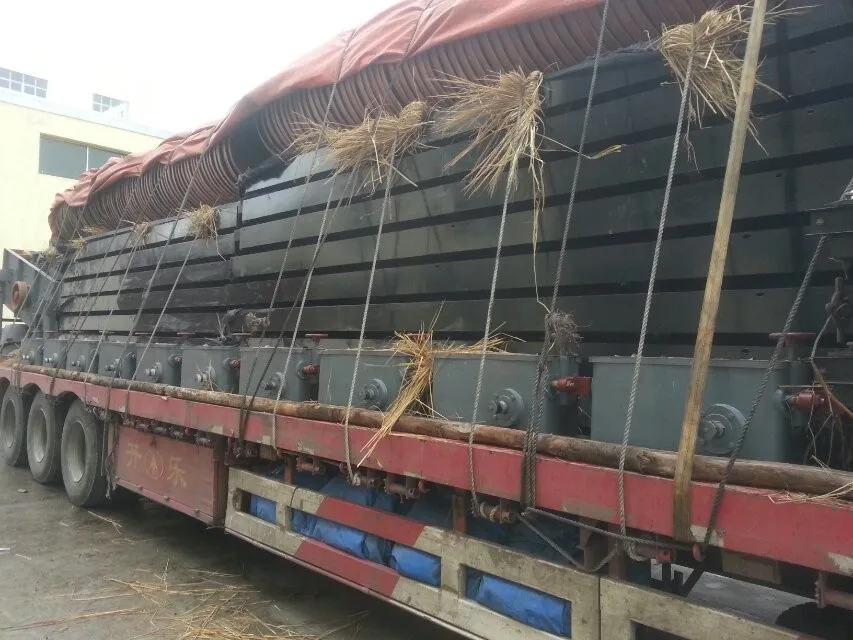

                 Packaging and Shipping

                                      FAQ

Q: 1.What is your machine used for ?

A: This machine is used for separation the materials such as Gold, silver, platinum, tin, tungsten, lead, antimony, chrome,titanium etc.

Q: 2.Are you factory or trade company?

A: we are the Professional manufacturer from 2014.So we could give you original factory price than those trade companies. We're also warmly welcome your Visiting our factory if you are in China.

Q: 3.Can I operate it well, if I have no experience?

A: Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.

Q: 4. Can you send me the video to show how the machine works?

A: Surely.we have made video of every machine,so if you need we can send for you to checking in clearly.

Q: 5. What should I take care when using the machine?

A: Please using the machine in regular and Keeping the machine away from thinner and other chemical liquid.

Q: 6.How about your Service ?

A: All of our machines have one year warranty and Whole-life Technology support to make sure your machine work well.

Q: 7.How long is your delivery time?

A: Generally it is 1-5 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

                                Our Services

We provide 12months quality warranty to make sure gravity machine well runs consistently.

Pre-sale services:
a. Professional engineer design the production line for you
b.Recommend suitable equipment according to your special demand.

During-sale services:
a.Pre-check and accept products before delivery
b.Send technicians to the jobsite for guiding the installation and adjustment
c.Training operators and finishing the check to satisfy your requiremnet

After-sale services:
a.Common problem can be solved through web in 24 hours,complex problem can be reacted immediately in 24 hours and solved as soon as possible
b.To establish long-term friendship, we will regulary contact with our customers.

                                   About Us

Shicheng Changyi mining machine equipment  manufacturing established in 1958,

located in Ganjiang River source and Wuyi mountain,is a professional supplier in producing

and sale kinds of bearing bushes and mining equipments.

We produce high precise vibrating feederJaw crusher,Hammer crusher,Vibrating screen,

spiral classifier,ball mill,belt conveyor,shaking table,centrifugal concentrator,spiral chute,jig

machine,flotation cell,magnetic separator,rotary scrubber,gold trommel screen,lab mining equipment etc.
