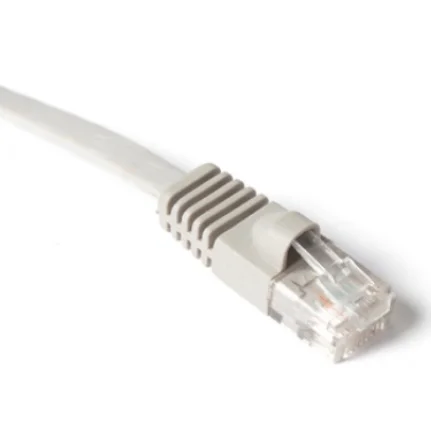

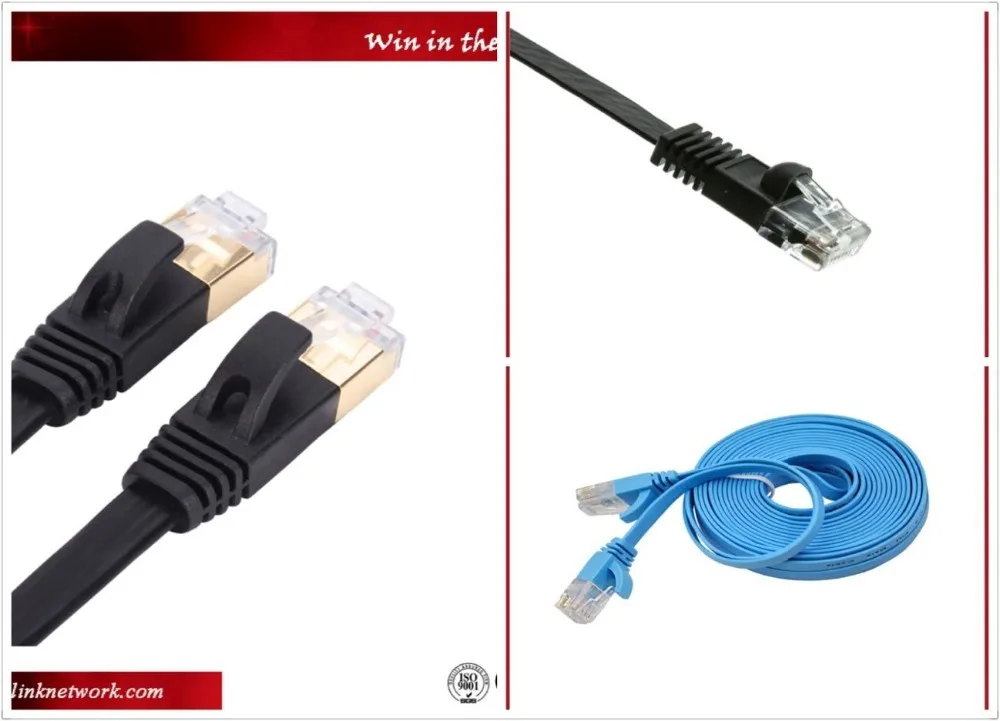

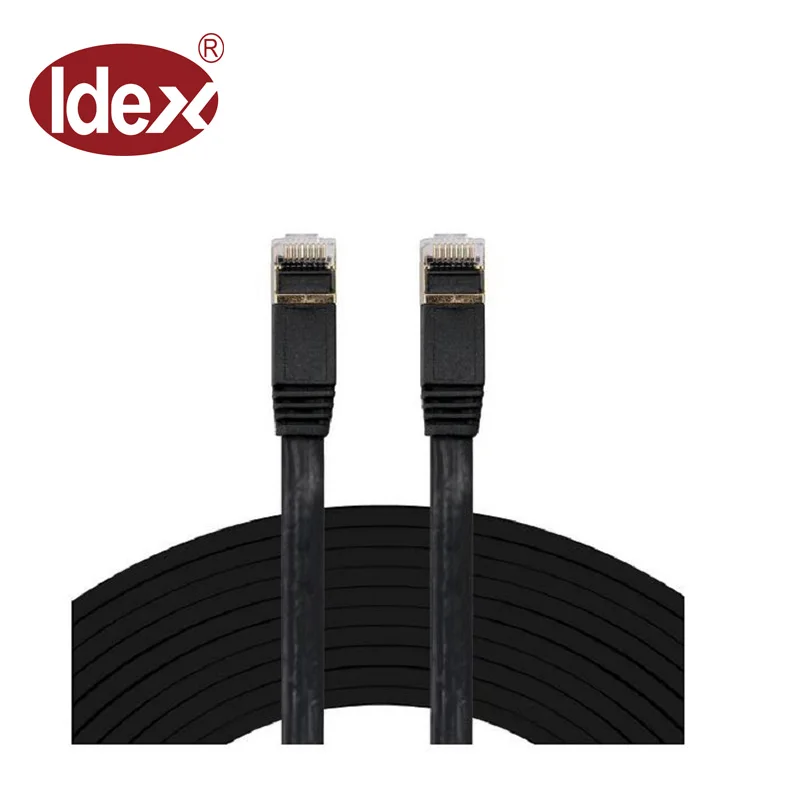

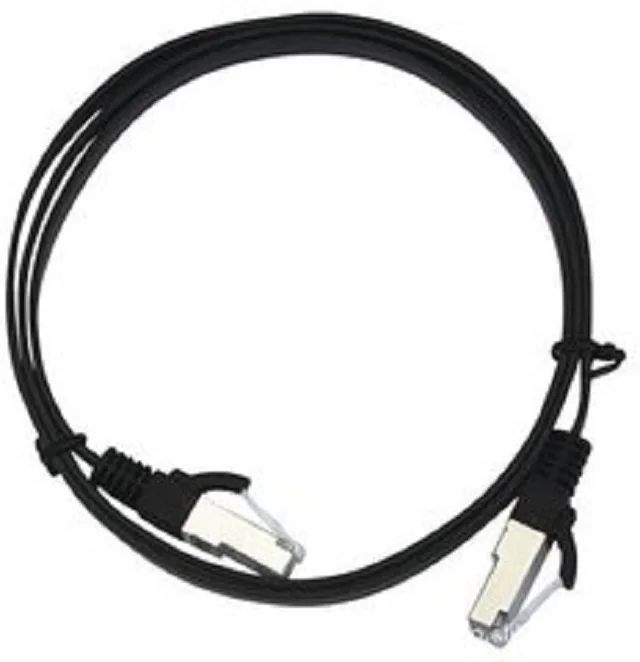

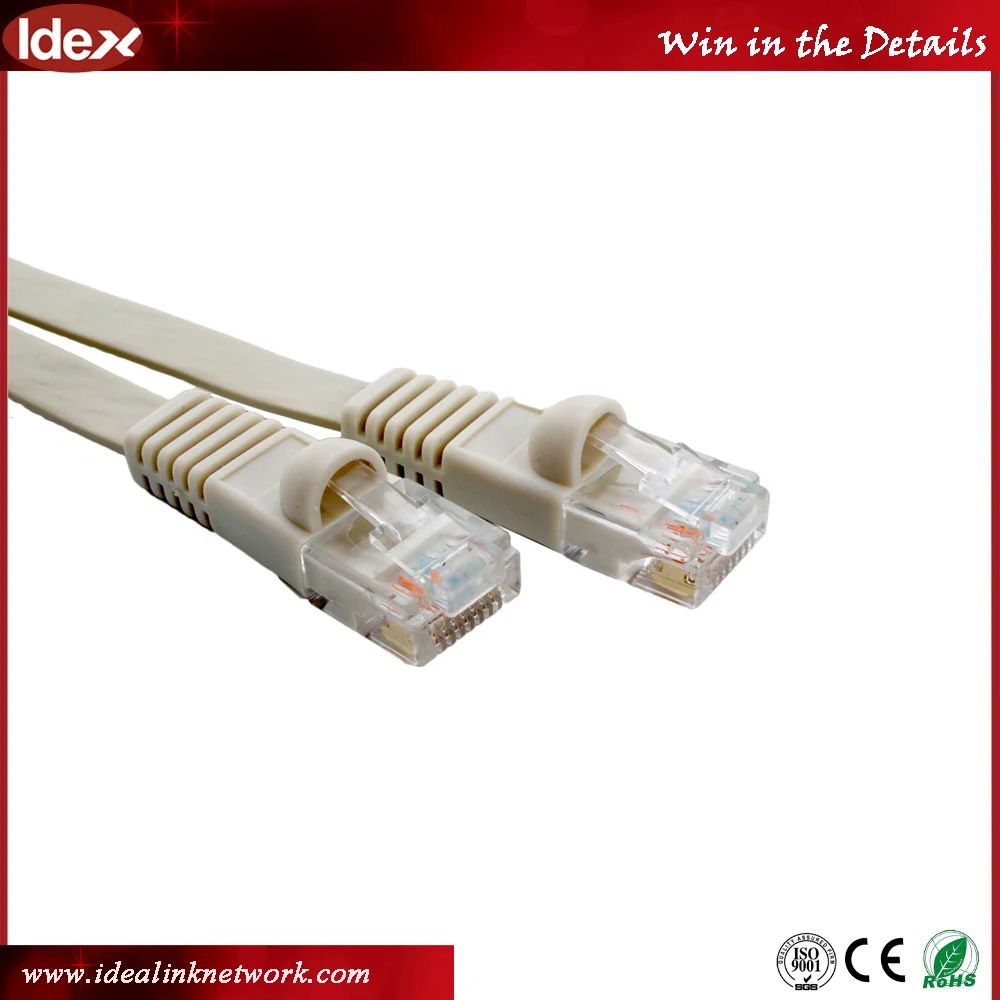

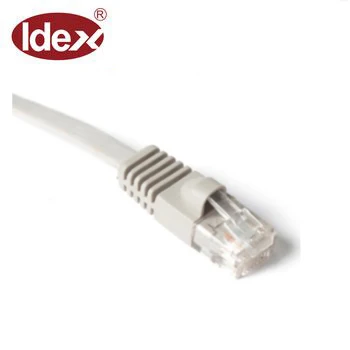

Manufacturer UTP indoor rj45 patch cord flat cat5e cable
- Category: >>>
- Supplier: Idealink Network Technology Co. Ltd.
Share on (1601006450105):
Product Overview
Description

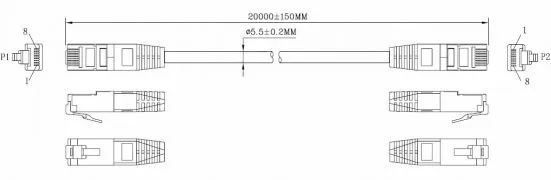

product description
\t\t\t Item : \t\t\t | \t\t\t Cat5e/CAT6 UTP/FTP Flat patch cord \t\t\t |
\t\t\t Brand : \t\t\t | \t\t\t Idex \t\t\t |
\t\t\t Conductor : \t\t\t | \t\t\t 32AWG stranded copper \t\t\t |
\t\t\t Path Cord Plug : \t\t\t | \t\t\t unshielded/Shielded RJ-45 Plug \t\t\t |
\t\t\t Boot : \t\t\t | \t\t\t FR PVC High injection \t\t\t |
\t\t\t Jacket : \t\t\t | \t\t\t PVC/LSZH \t\t\t |
\t\t\t Impedance : \t\t\t | \t\t\t 100ohms ± 15%, IMHz to 600MHz \t\t\t |
\t\t\t Transport delay: \t\t\t | \t\t\t 536ns/100mmax. @ 250MHz \t\t\t |
\t\t\t Delay offset: \t\t\t | \t\t\t 45ns max \t\t\t |
\t\t\t Conductor resistance: \t\t\t | \t\t\t 66.58 ohms max / km \t\t\t |
\t\t\t Capacitance: \t\t\t | \t\t\t 5.6NF max/100m \t\t\t |
\t\t\t DC Resistance: \t\t\t | \t\t\t ≤7.55&Omega \t\t\t |
\t\t\t Pressure: \t\t\t | \t\t\t 300 volts AC DC \t\t\t |
\t\t\t Bend radius: \t\t\t | \t\t\t 5MM \t\t\t |
\t\t\t U / NEC level: \t\t\t | \t\t\t CMR, CM \t\t\t |
\t\t\t Operating temperature: \t\t\t | \t\t\t -20 degree to 60 degree range \t\t\t |
\t\t\t Storage temperature: \t\t\t | \t\t\t -20 degree to 80degree between \t\t\t |
\t\t\tApplication: |
| Improved attenuation provides cleaner data and video transmissions. |
| For 1000BASE-T, 100BASE-TX, 155-Mbps ATM, and other high-speed applications. |

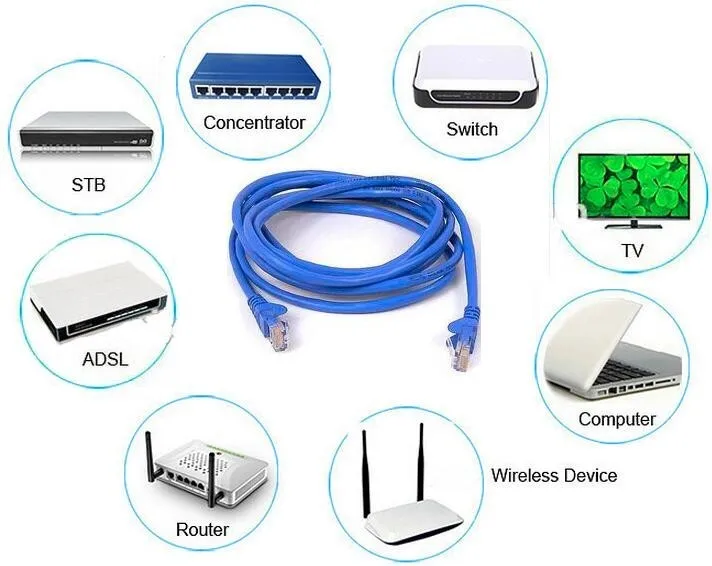

| Designed For: Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, and Patch Panels. |
| Snagless Patch Cables you can stay ahead of the game with the use of this high-speed cabling to distribute data, voice and video. |
| Constructed with high-quality cable and a shortened body plug. The molded, snag-free boot prevents unwanted cable snags during installation and provides strain-relief. |
\t\t\t The Snagless Patch Cables are available in a variety of colors to easily color-code your network installation. \t\t\t
\t\t\t
\t\t\t
\t\t\t |
Related products
patch cord packing
Fast delivery and standard packing.
1.Packing details: Neutral packing/Logo packing/poly bag 0.5m, 1m, 2m, 3m, 5m(customize for your order)
2.Delivery details:
Shipped in 7-15 days after payment.
Company information
Our company
Idealink Network Technology Co., Ltd. established in 2002, is one of professional manufacturers in LAN network cable, coaxial cable, telephone cable, structural fixed wiring electric cable, control cable etc. Idealink covers 15,000 square meters factory building.
The monthly manufacturing capacity for Idealink is more than 25,000km. With many years rich experiences on OEM, we are able to supply our customers individual and one-stop network solutions whatever required cables, wires or related components.
We could supply end to end cabling solutions to customers, such as patch cord, patch panel, keystone jack, face plate, cabinet, tester, tools etc.

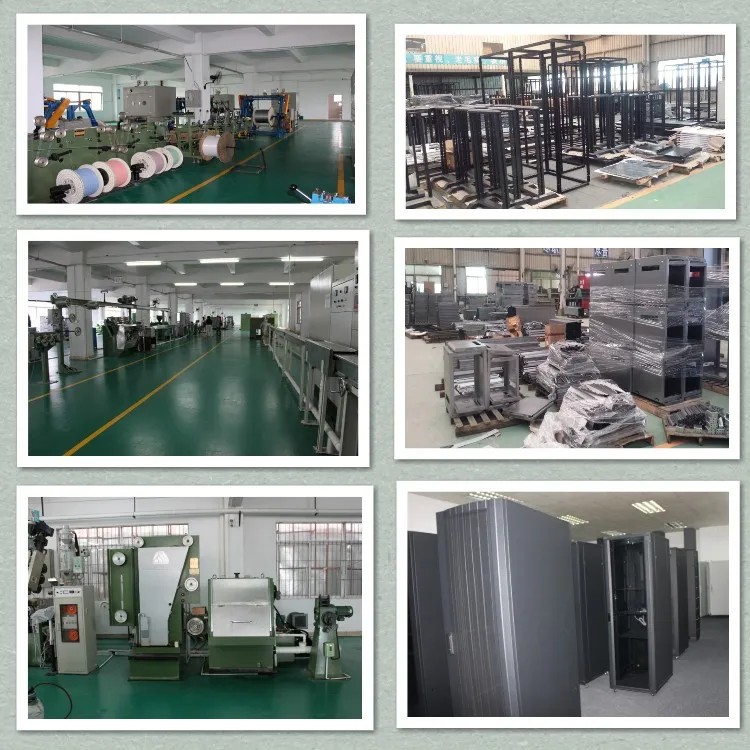

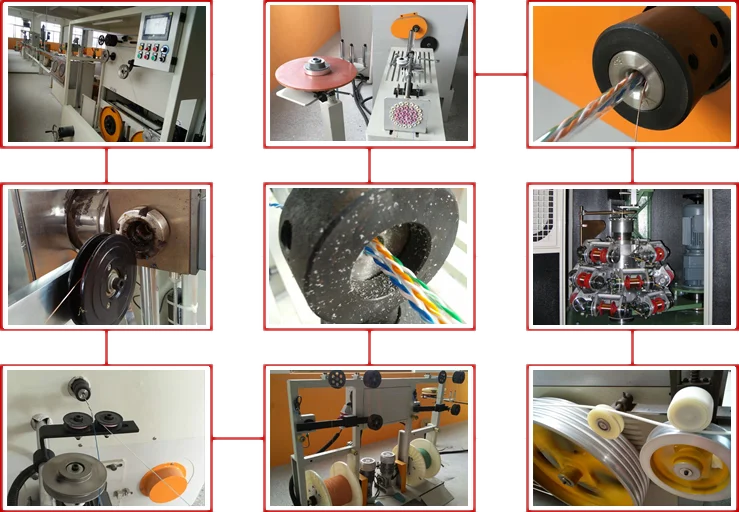

Our Factory
Our Exibition
FAQ
1. Q: What kind of cable do you produce?
We specialize in producing lan cable,patch cord,telephone cable,network accessories etc.
2.what's your MOQ?
A: Our MOQ is 30boxes per item. Free samples can be sent for your quality evaluation.
3. Q: What’s your delivery time?
Normally, our delivery time is 7-15 days after receiving deposit. Base on the quantity of the order.
4. Q: What are your payment terms?
We accept T/T, L/C. Western Union,Other payments accept through negotiation.
5. Q: What is your manner of packing?
the color box and cartons,It can as the customers'requests.
6. Q: Can your factory customize cables based on customer’s samples?
Yes, we can. OEM is welcome.
Contact
Any question please contact me !
