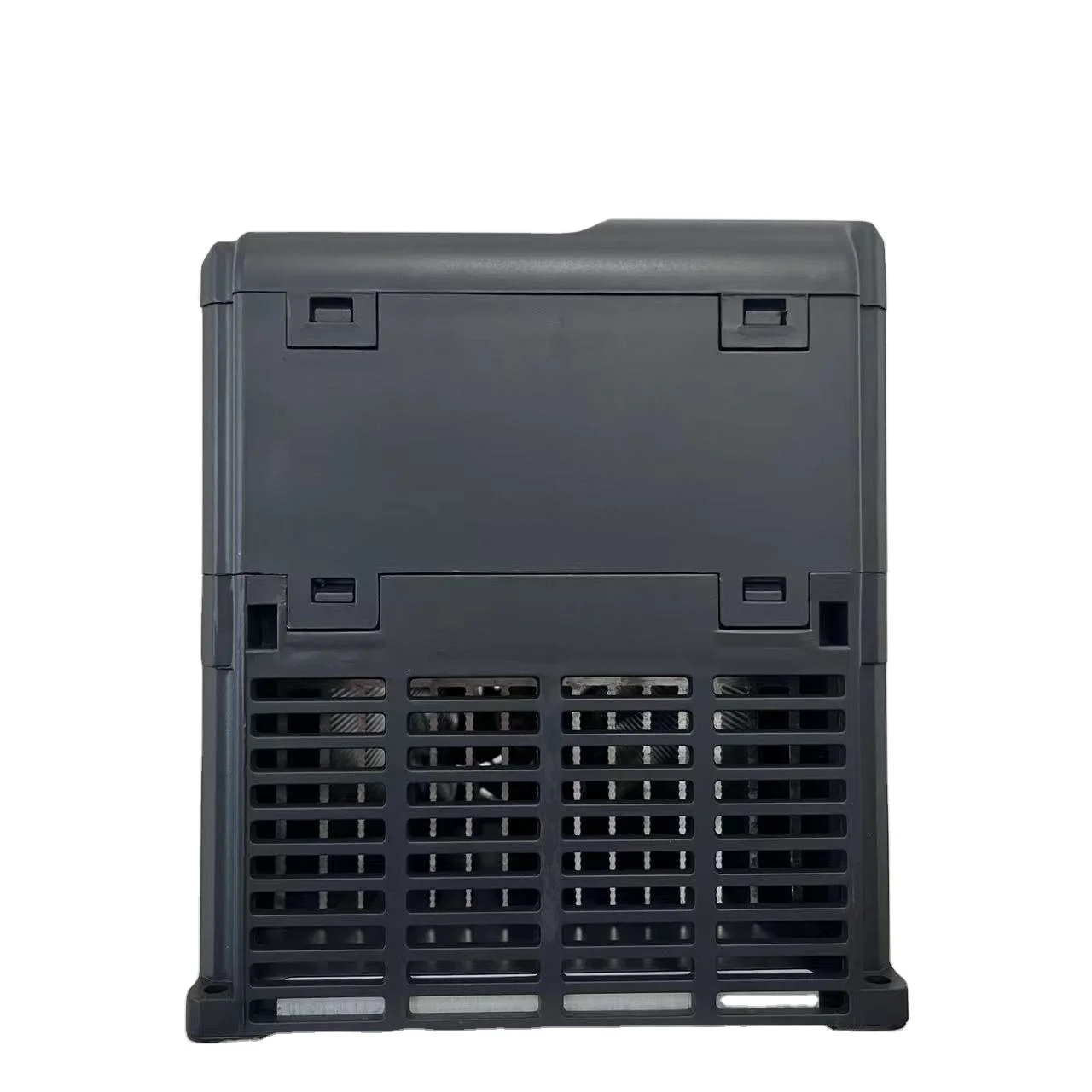

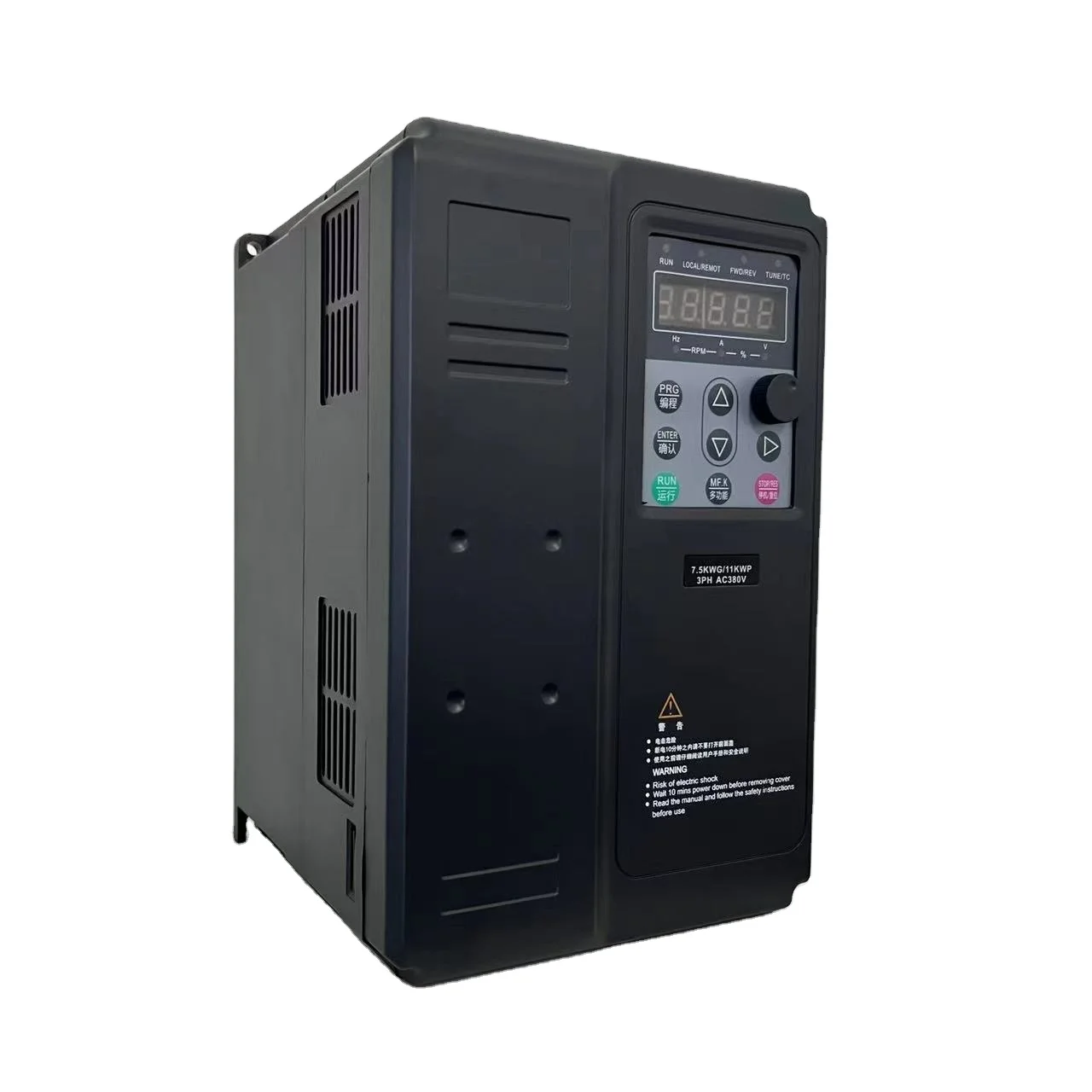

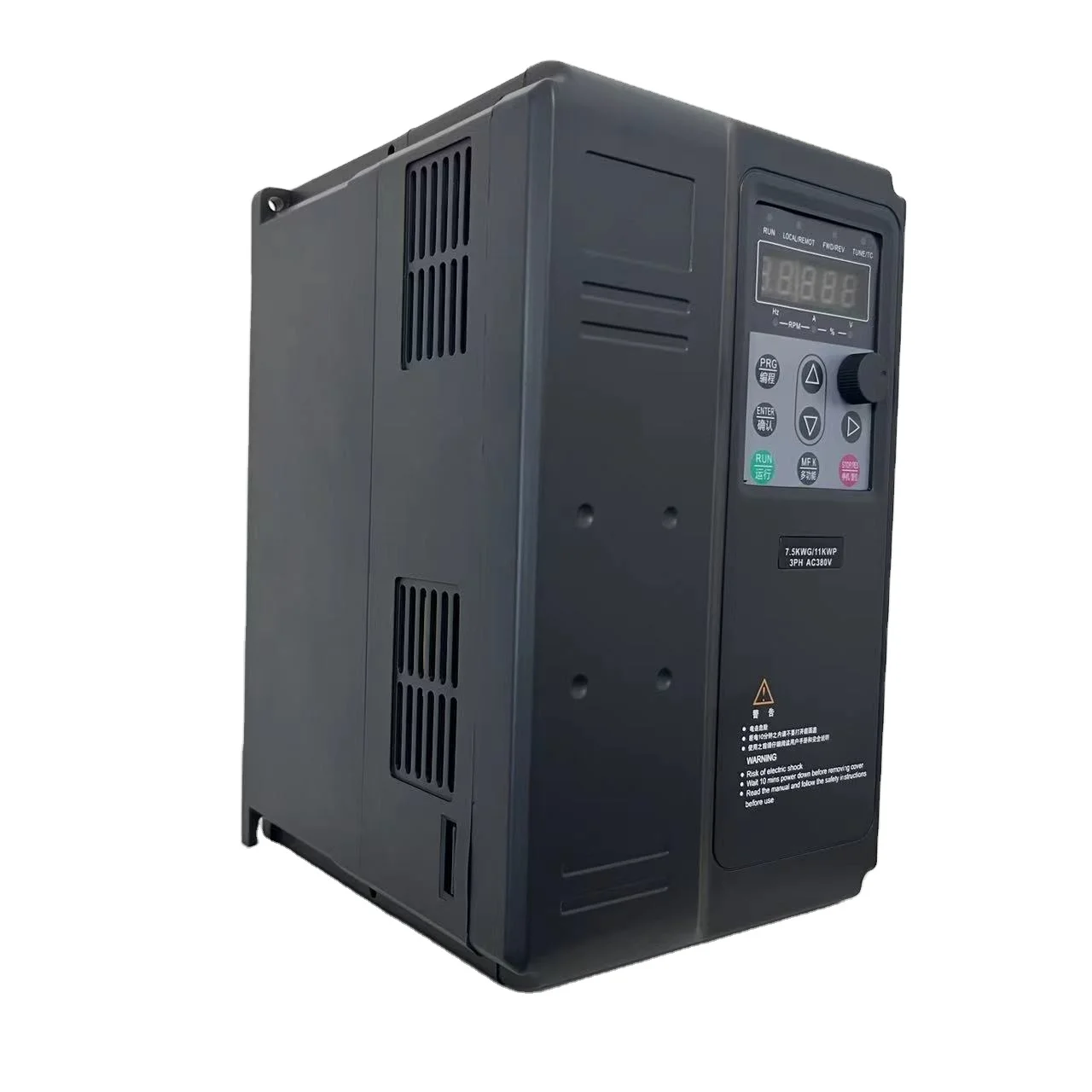

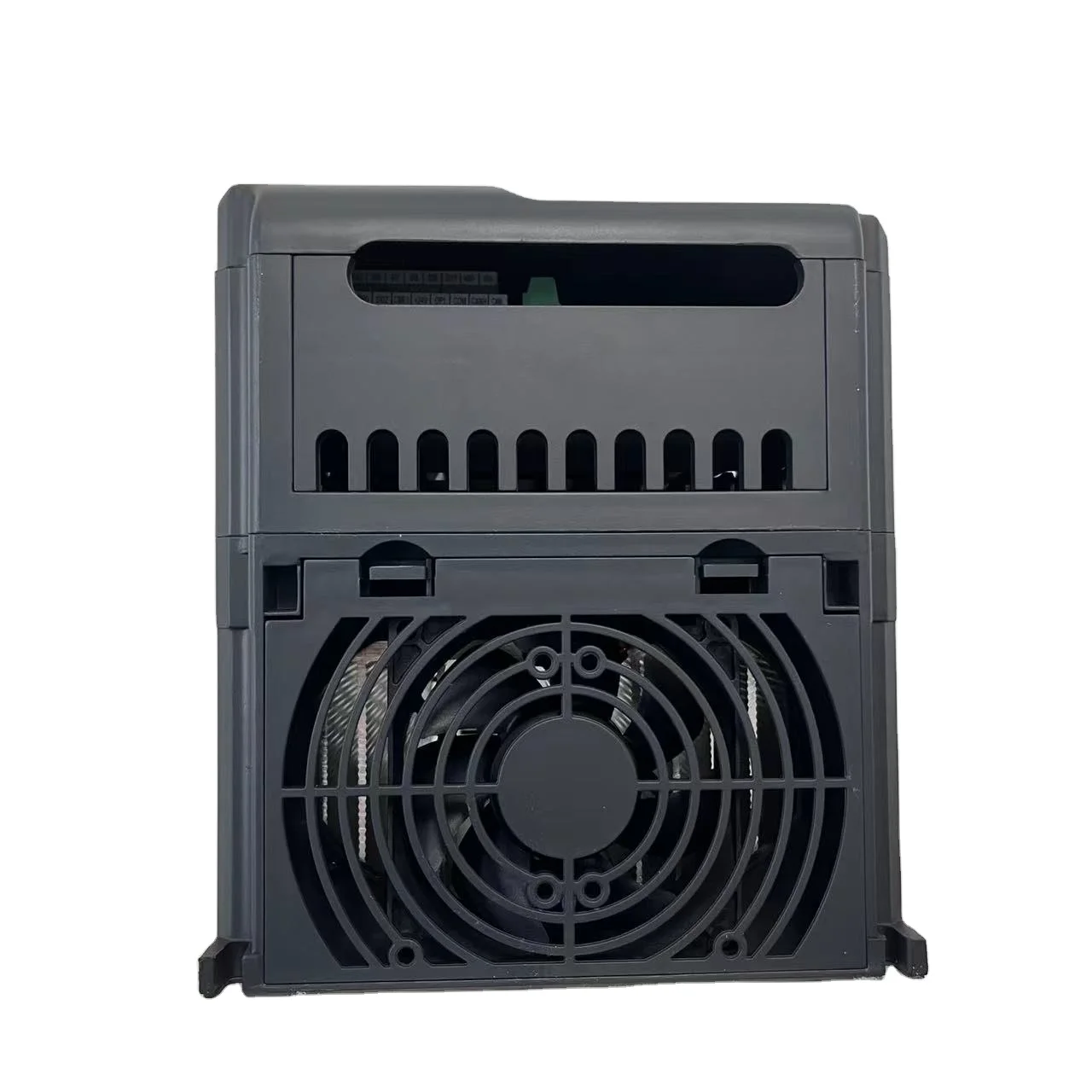

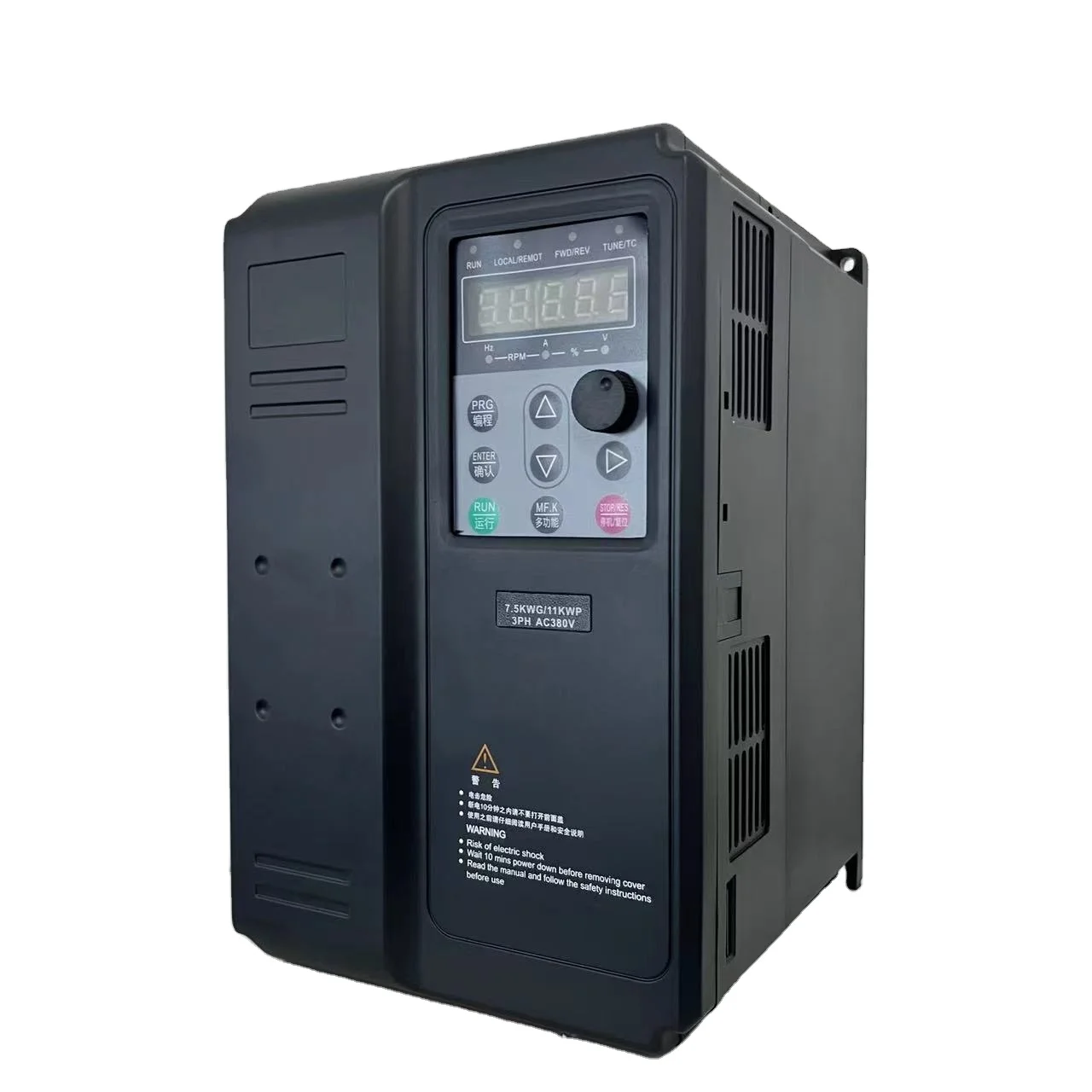

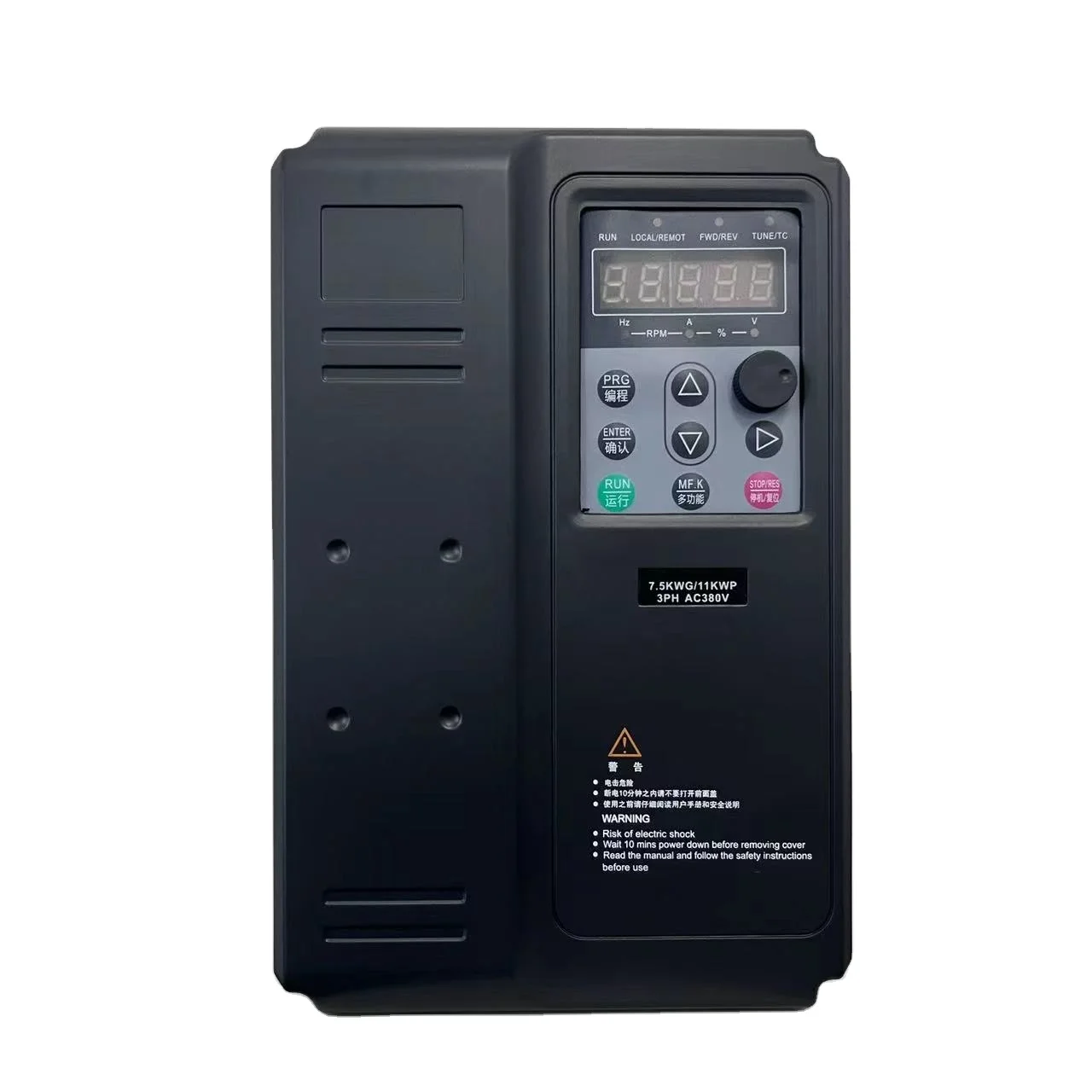

RIQNO CE RoHS 220v to 380v inverter vfd permanent magnet synchronous motor elevator vfd inverter 15kw
- Category: >>>
- Supplier: Jiangsu Riqno Electric Co. Ltd.
Share on (1601006590891):
Product Overview
Description
Product Description
A500 series Frequency Inverter is a general high-performance current vector inverter, which is mainly used to control and adjust the speed of three-phase AC asynchronous motor.It adopts high-performance vector control technology,low speed and high torque output,has good dynamic characteristics,strong overload capacity,added user programmable function and background monitoring software,communication bus function,support a variety of PG cards,etc,with rich and powerful combined functions and stable
performance ,It can be used for driving textile,paper,wire drawing,machine tool,packaging ,food,fan,water pump and various automatic production equipment.
performance ,It can be used for driving textile,paper,wire drawing,machine tool,packaging ,food,fan,water pump and various automatic production equipment.
Specification
Item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | RIQNO |

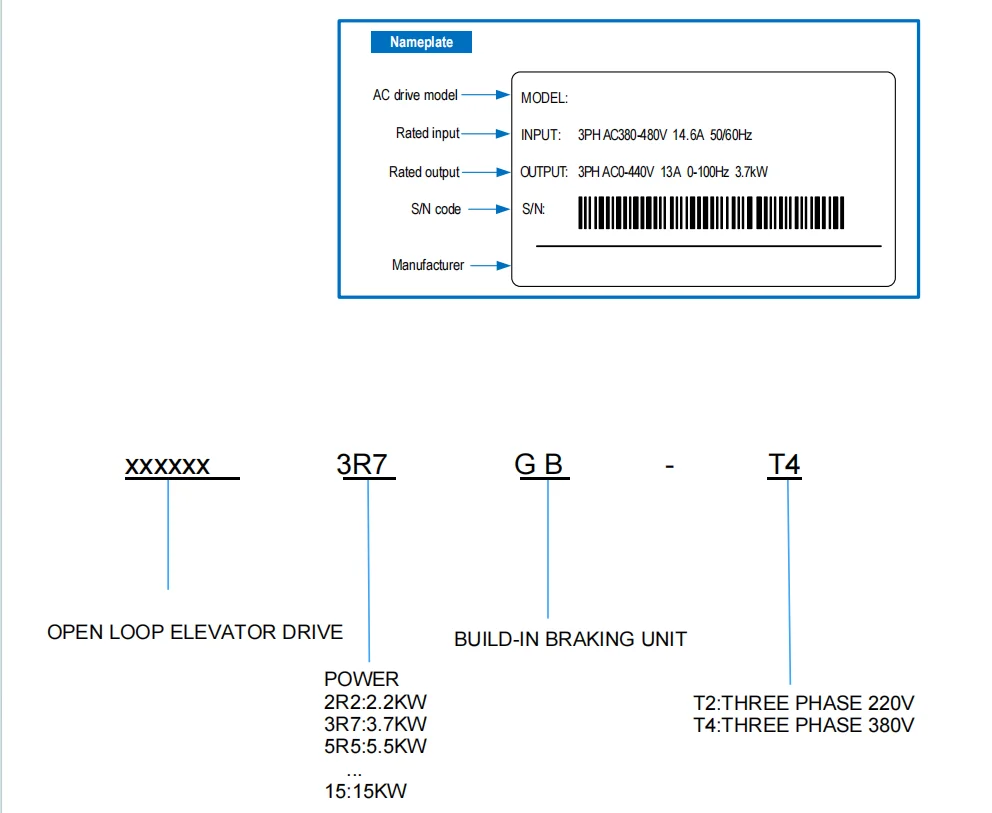

Model Number | A500-7R5G/11RP-T4 |
Type | AC/DC/AC |
Certification | OEM/ODM |
Size | 248*160*183 mm |
Customized | Yes |
Control Mode | V/F or Vector control |
Rated Power | 17/25A |
Nominal Voltage | 380V |
power phase number | Single Phase To Three Phase |
Product name | Frequency Inverter VFD AC Drive |
Input voltage | 380V |
Output voltage | 380V |
Display | LED |
CONTROL MODEL | SVC,FVC,V/F Control |
Quality | High-quality |
Protection | IP 20 |
Package | Standard Package |
MOQ | 1pcs |
Warranty | 18 Months |
A500 Series High Performance Vector Frequency Inverter Single Phase 220V Input & Three Phase 380V Output | ||||||||||||

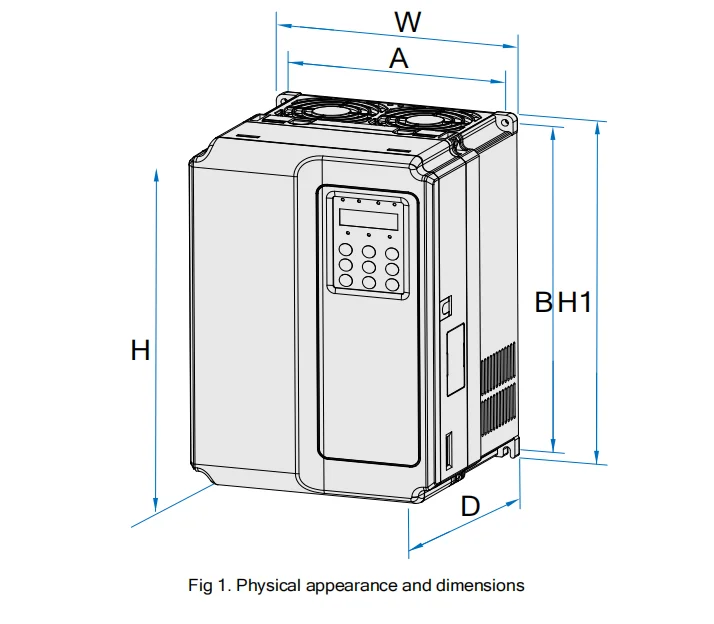

Model No. | Motor power | Rated Current | Outline Dimensions | Package Dimensions | Gross Weight | |||||||
(kw) | (A) | (H*W*D)(mm) | (H*W*D)(mm) | (KG) | ||||||||
1 | A500-1R5G/2R2P-S4 | 1.5 | 3.8/5.1 | 186*125*164 | 257*193*235 | 2.3 | ||||||
2 | A500-2R2G/4R0P-S4 | 2.2 | 5.1/9 | 2.3 | ||||||||
3 | A500-4R0G/5R5P-S4 | 3.7 | 9/13 | 248*160*183 | 305*235*243 | 3.6 | ||||||
4 | A500-5R5G/7R5P-S4 | 5.5 | 13/17 | 3.8 | ||||||||
5 | A500-7R5G/11RP-S4 | 7.5 | 17/25 | 4.1 | ||||||||
6 | A500-11RG/15RP-S4 | 11 | 25/32 | 322*208*192 | 377*296*256 | 6.1 | ||||||
7 | A500-15RG/18RP-S4 | 15 | 32/37 | 6.3 | ||||||||
8 | A500-18RG/22RP-S4 | 18 | 37/45 | 6.5 | ||||||||
9 | A500-22RG/30RP-S4 | 222 | 45/60 | 6.8 | ||||||||
10 | A500-30RG/37RP-S4 | 30 | 60/75 | 463*285*228 | 530*385*310 | 25.5 | ||||||
11 | A500-37RG/45RP-S4 | 37 | 75/91 | 26 | ||||||||
Products Description

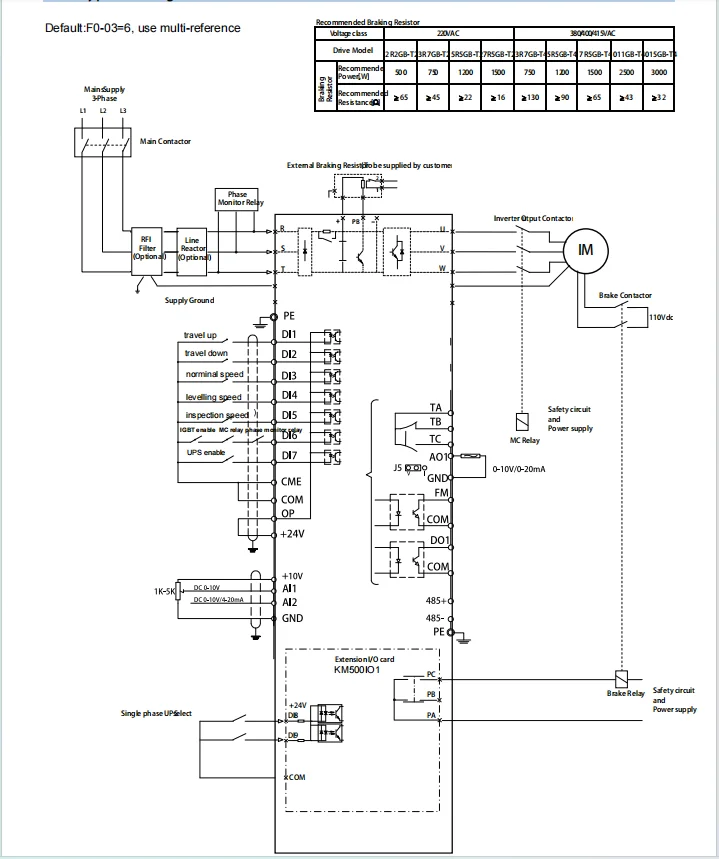

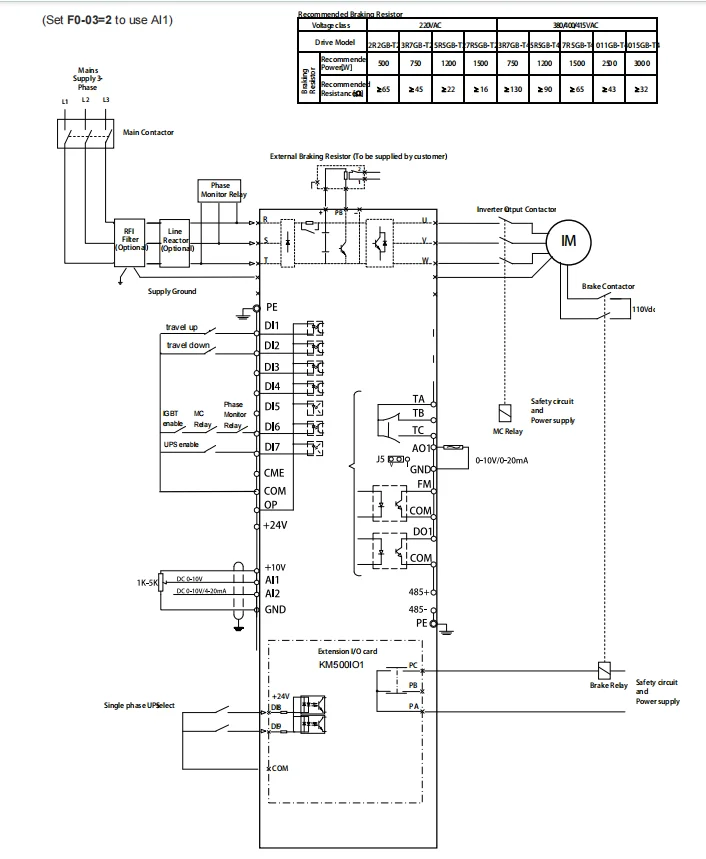

Wiring Diagram
Recommend Products
Packing & Delivery
Company Profile
Jiangsu RIQNO Electric Co., Ltd. is an enterprise integrating automation control, motor drive, system solution integration and technical services. For many years, the company has been focusing on the research and development, production, sales and service of electric drive products.
At present, the company has strong technical strength and excellent production quality system which are the guarantee for providing customers with high-quality services. The company has mastered key technologies such as high-performance vector frequency conversion technology, servo drive technology and automation control technology, and has a high-quality, high-level R&D team to maintain continuous upgrading and improvement of core technology.
Since its establishment, the company has always been adhering to the business philosophy of "seeking truth, being pragmatic,pioneering, and innovating", and is committed to providing customers with "all-round, full-cycle, and sustainable operation" industrial automation solutions to achieve the common value of corporate and customer values To grow and be committed to becoming the most trustworthy partner of customers.
At present, the company has strong technical strength and excellent production quality system which are the guarantee for providing customers with high-quality services. The company has mastered key technologies such as high-performance vector frequency conversion technology, servo drive technology and automation control technology, and has a high-quality, high-level R&D team to maintain continuous upgrading and improvement of core technology.
Since its establishment, the company has always been adhering to the business philosophy of "seeking truth, being pragmatic,pioneering, and innovating", and is committed to providing customers with "all-round, full-cycle, and sustainable operation" industrial automation solutions to achieve the common value of corporate and customer values To grow and be committed to becoming the most trustworthy partner of customers.
FAQ
1.Can I get some samples?
Yes,Sample order is available for quality check and market test.
2.What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order.
3.What's your payment terms?
We usually accept all kinds of payment terms.Such as T/T,L/C, Western Union.PayPal,Cash.
4.What's your warranty terms?
We offer 18 months warranty time.
5.Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order quantity.
Yes,Sample order is available for quality check and market test.
2.What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order.
3.What's your payment terms?
We usually accept all kinds of payment terms.Such as T/T,L/C, Western Union.PayPal,Cash.
4.What's your warranty terms?
We offer 18 months warranty time.
5.Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order quantity.
