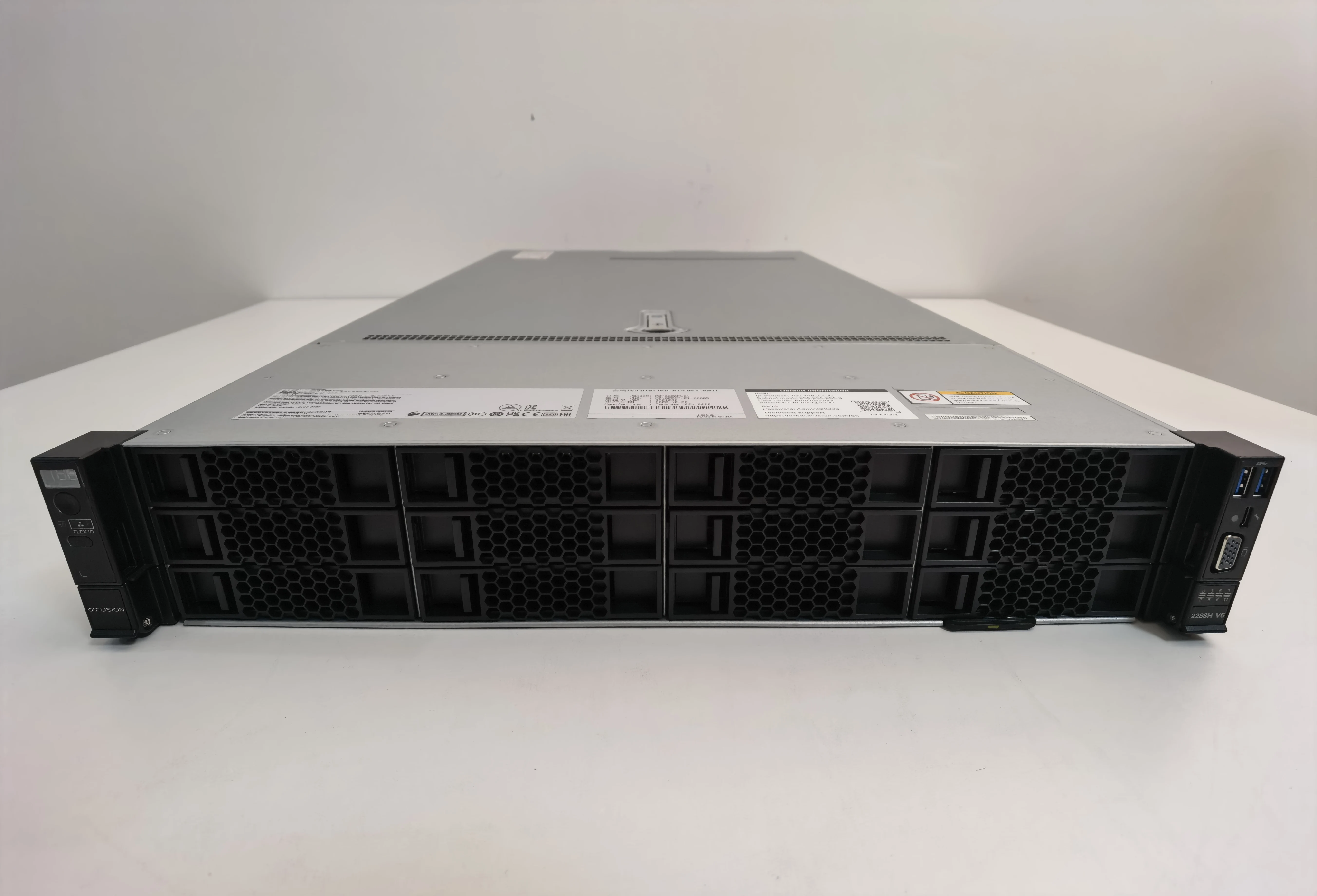

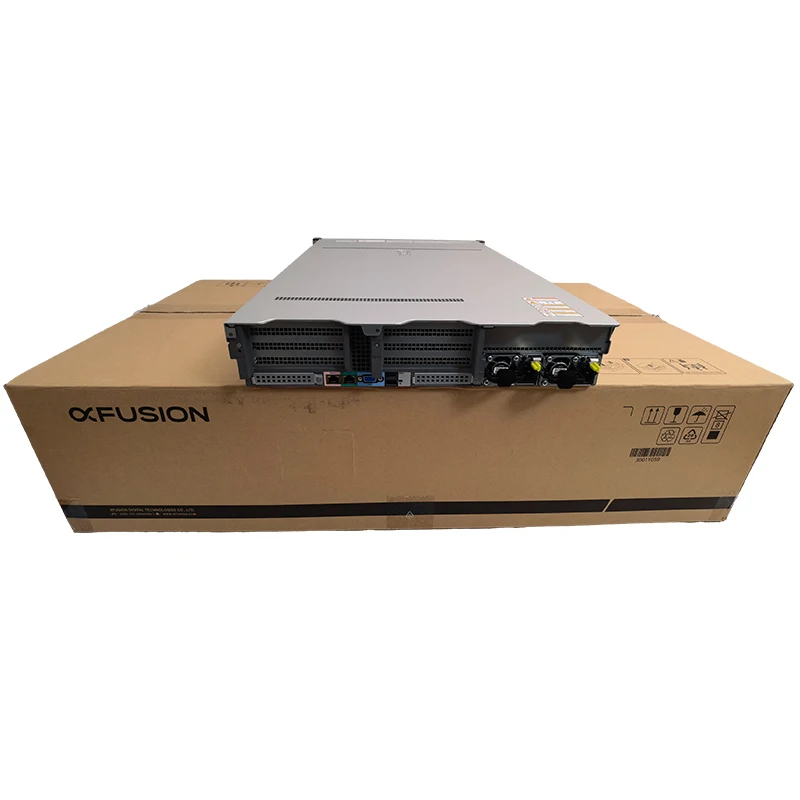

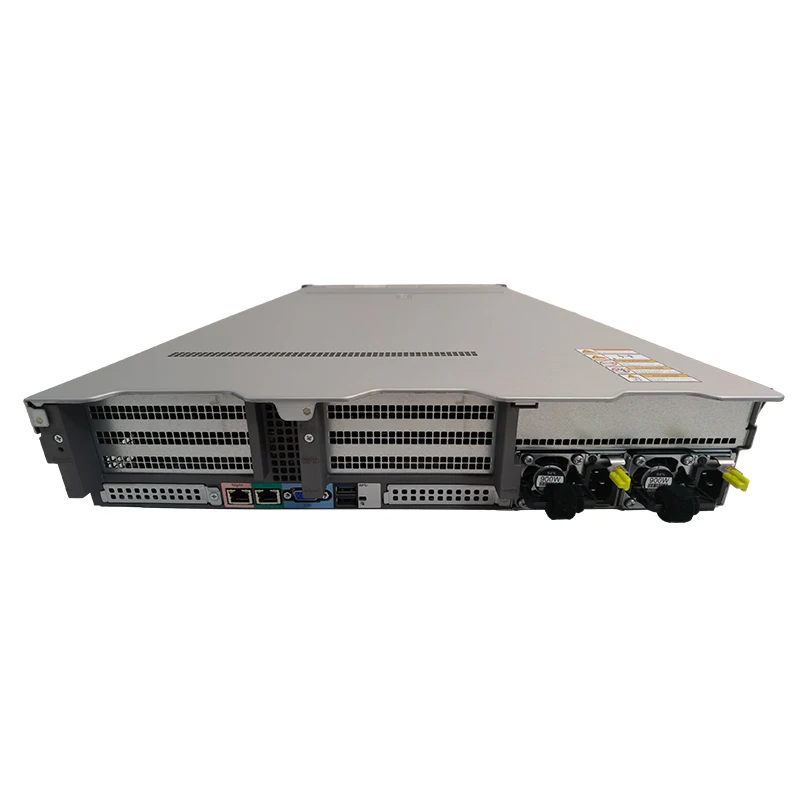

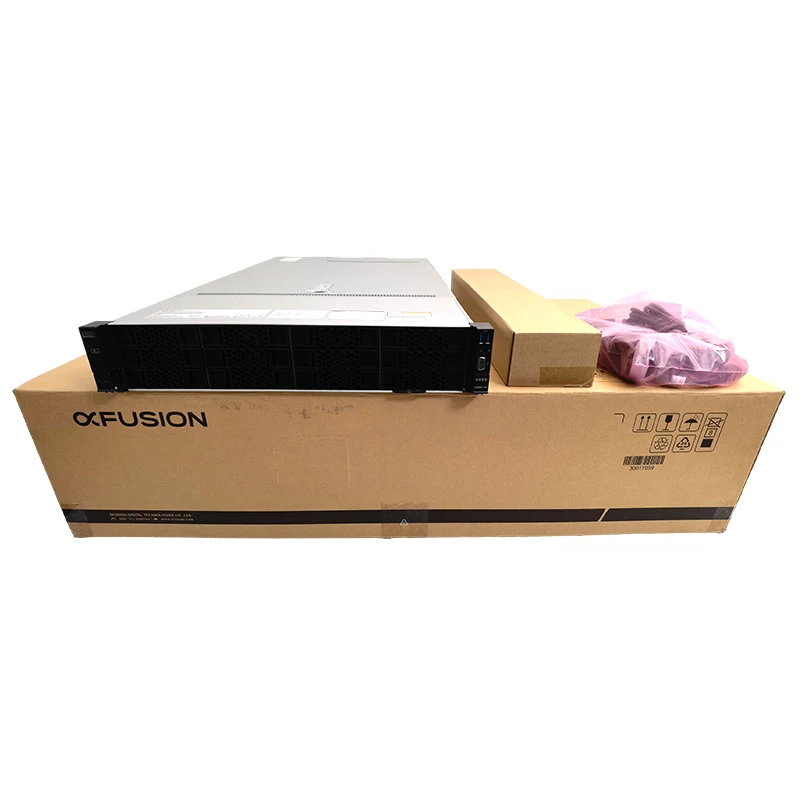

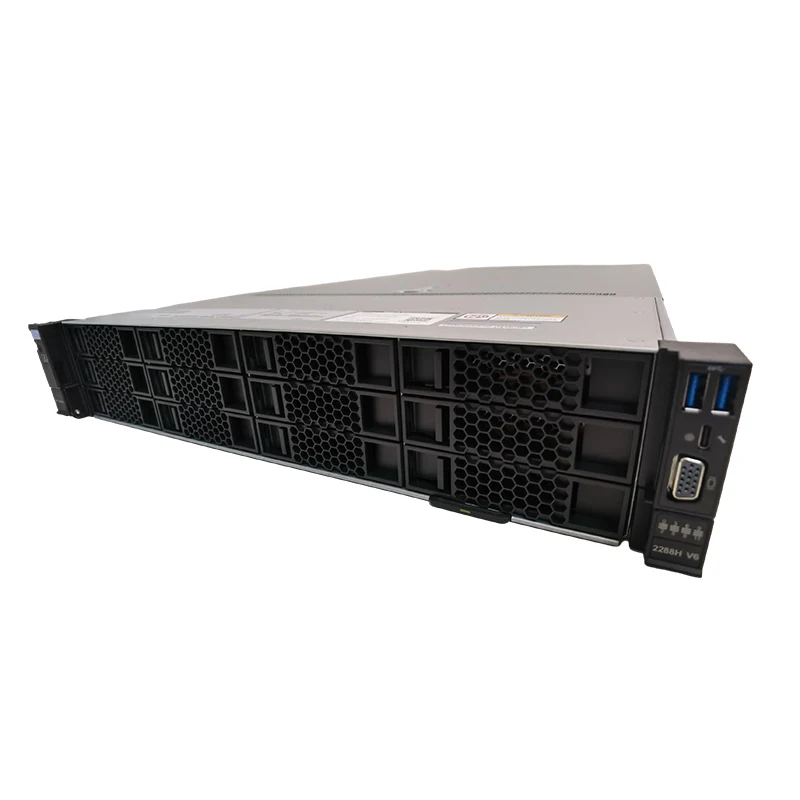

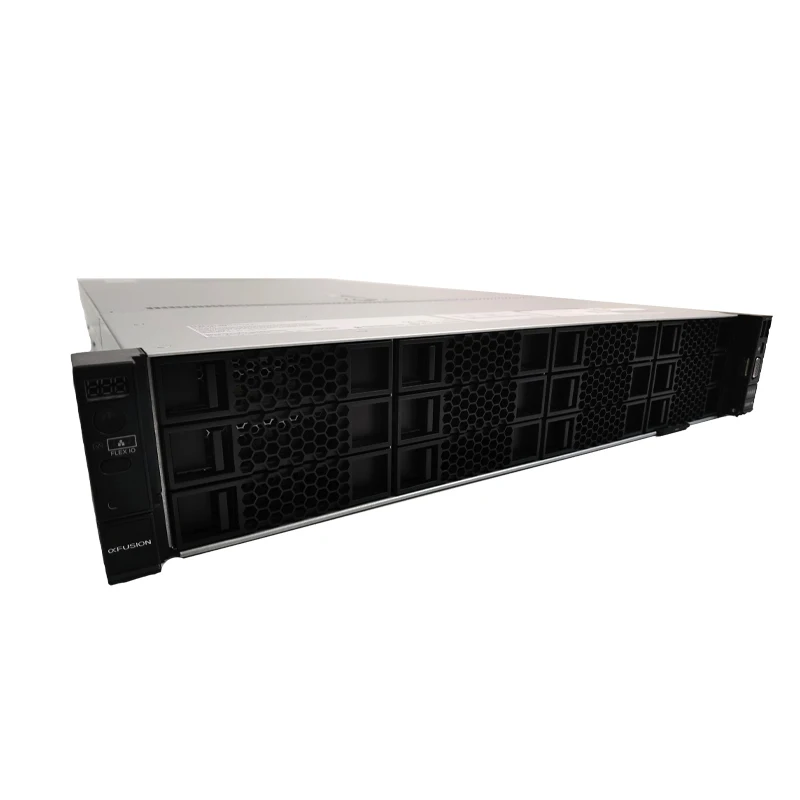

Huawei 2288h v6 2U server 12x3.5 Hard Disk 4208 processor 32GB DDR4 3200MHz memory 900W Power Supply xfusion server
- Category: >>>
- Supplier: Beijing Haoyuan Shichuang Technology Co. Ltd.
Share on (1601006634041):
Product Overview
Description
contact us

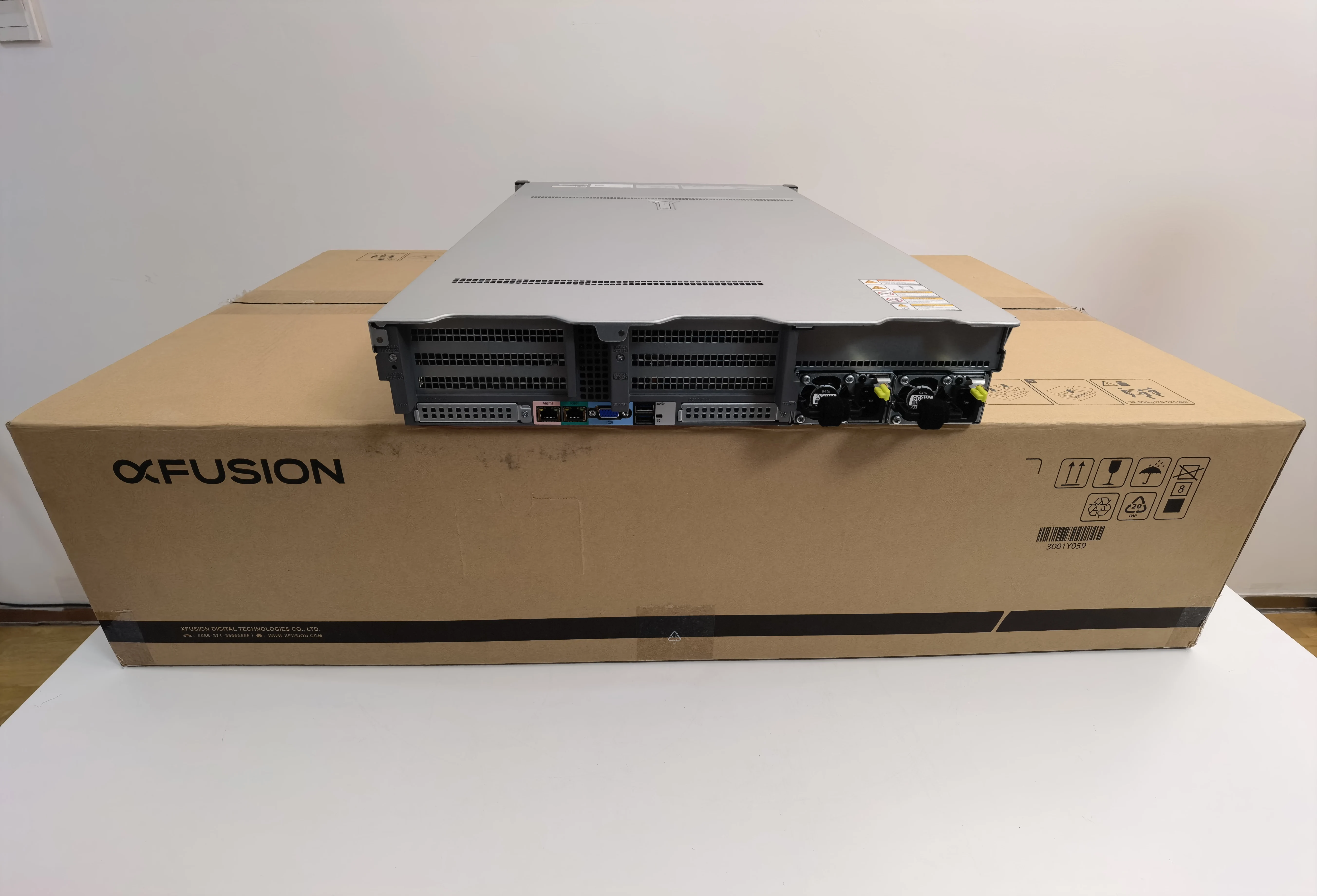

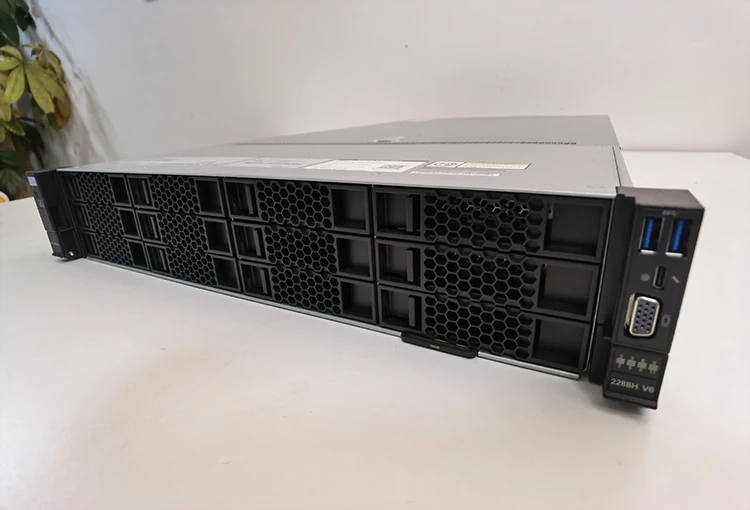

Product display
FusionServer Pro 2288H V6 rack server
configuration. Applicable to cloud computing, virtualization, databases, and big data. The 2288H V6 supports two Intel Xeon ® scalable processors, 32 DDR4 memory modules, 14 PCIe expansion slots, and large-capacity local storage resources. It integrates DEMT intelligent power management, FDM intelligent fault management, and Huawei FusionDirector lifecycle management software, effectively reducing operating costs and improving investment returns.
Larger storage
45 2.5-inch hard drives
34 NVMe SSDS
12TB memory capacity
More computing power
80 cores of universal computing power
Four 300W full-height double-width GPU acceleration cards
Eight full-height full-length single-width GPU acceleration cards
11 half-high, half-long, half-wide GPU acceleration cards
Configure more
32DIMM and 16DIMM models are available
Two OCP3.0 network adapters, hot swappable
14 PCIe 4.0 expansion slots for various applications
2 M.2 SSDS, hot swappable, hard RAID
Larger storage
45 2.5-inch hard drives
34 NVMe SSDS
12TB memory capacity
More computing power
80 cores of universal computing power
Four 300W full-height double-width GPU acceleration cards
Eight full-height full-length single-width GPU acceleration cards
11 half-high, half-long, half-wide GPU acceleration cards
Configure more
32DIMM and 16DIMM models are available
Two OCP3.0 network adapters, hot swappable
14 PCIe 4.0 expansion slots for various applications
2 M.2 SSDS, hot swappable, hard RAID
Product Paramenters
Model | server2288HV6 |
Form Factor | 2U, 2-socket rack server |
Processors | 1 or 2 2nd Generation Intel® Xeon® Scalable processors (4300/5300/6300/8300 series) |
Memory | 32DDR4 DIMM slots, 3200 MT/s; up to 16 Intel® Optane™ PMem modules (100 series), 3200 MT/s |

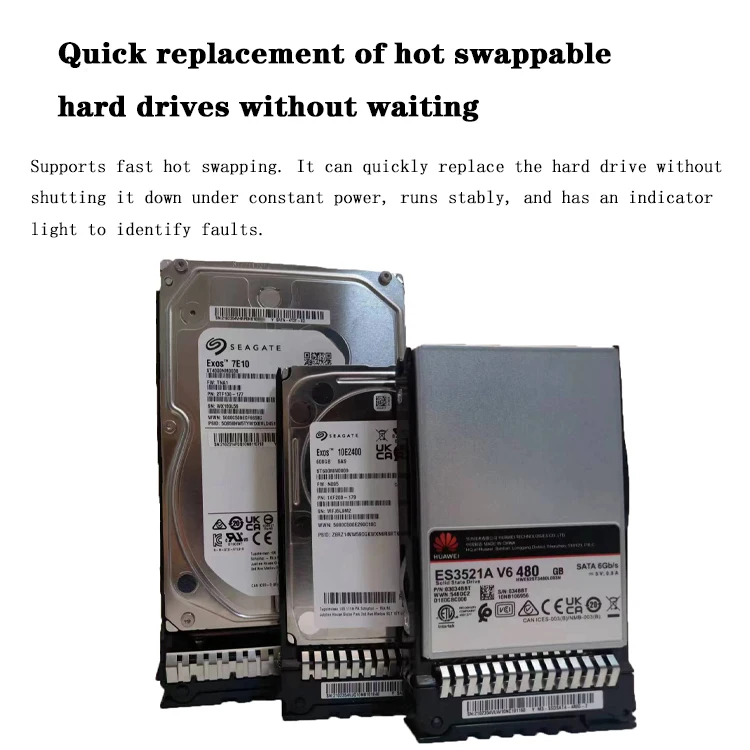

Internal Storage | 8 x 2.5/25 x 2.5-inch SAS/SATA HDDs or SSDs，12/16/20 x 3.5-inch SAS/SATA HDDs |

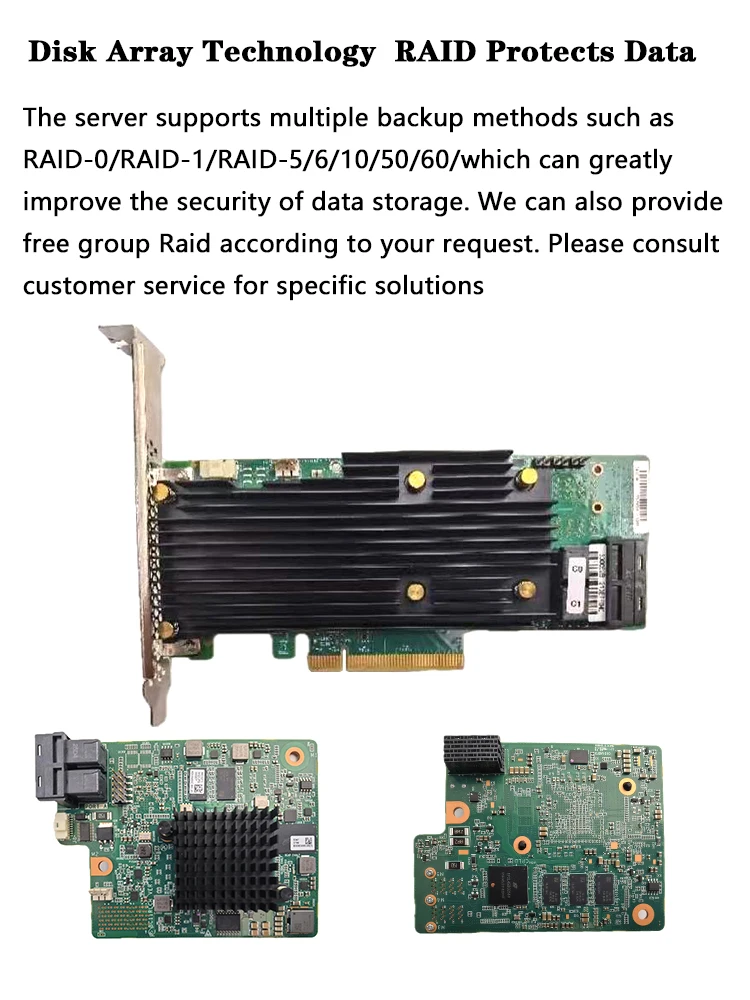

RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60,Configured with a supercapacitor for cache power-off protection (optional),RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration. |
Network Ports | Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports/100G FDR IB ports |
PCIe Expansion | Up to 14 PCIe 4.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
Heterogeneous accelerator card | Up to 10 single-width half-height half-length accelerator cards Up to 3 dual-width full-height full-length accelerator cards |
Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |

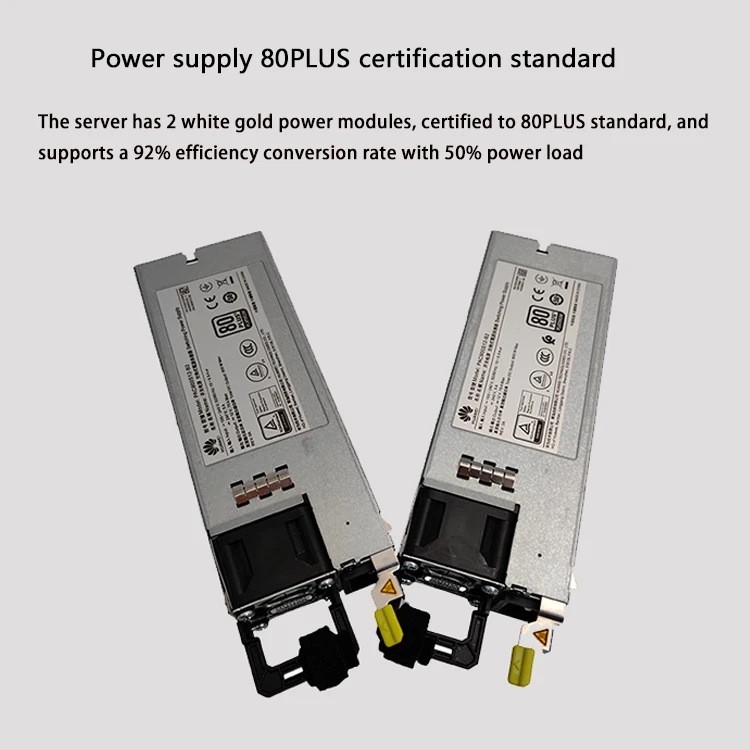

Power Supply Units | 2 hot-swappable PSUs with support for 1+1 redundancy |
Management | BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening |
Operating Temperature | 5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant |
Certifications | CE, UL, FCC, CCC, and RoHS |
Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
Dimensions (H x W x D) | Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
Products Description

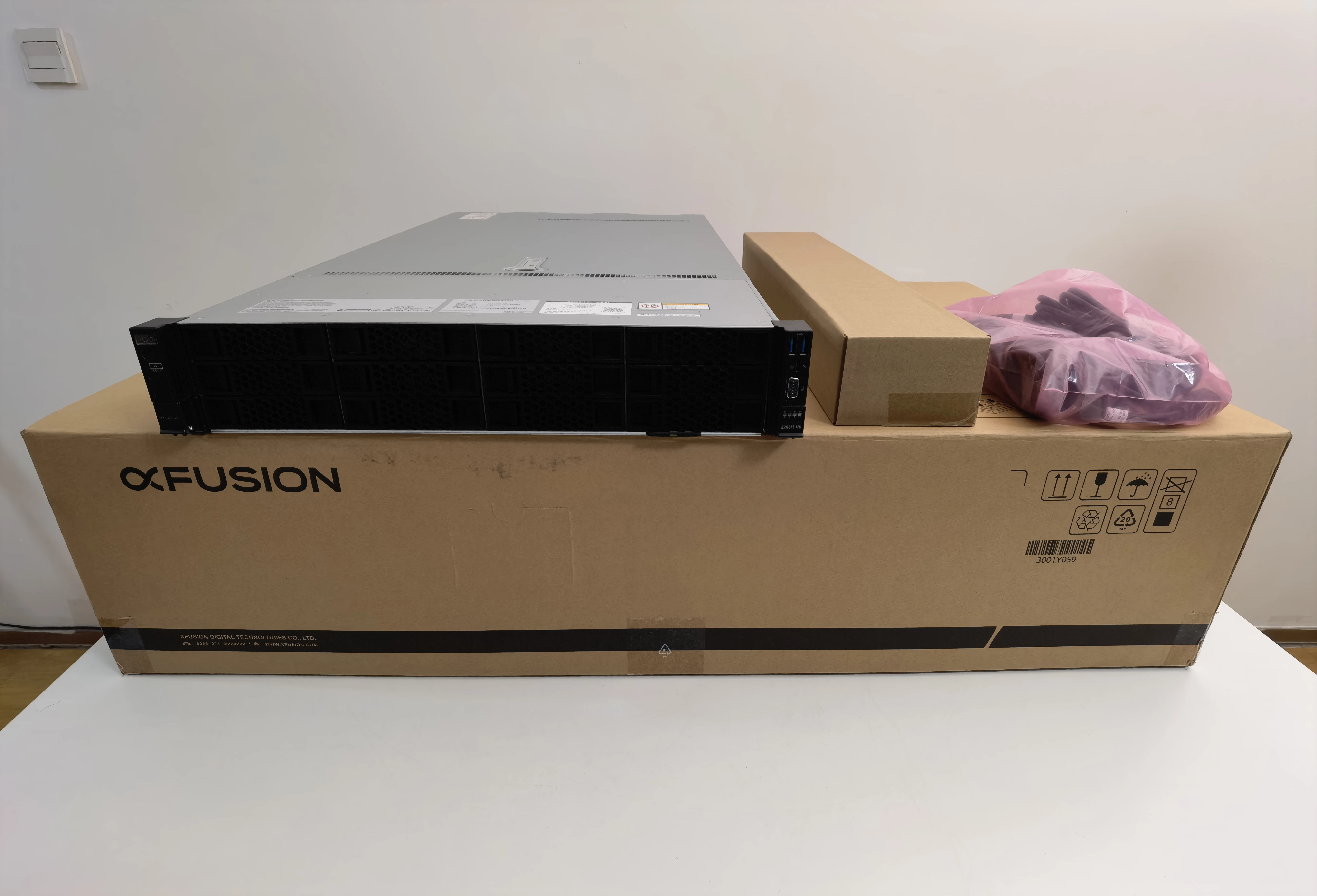

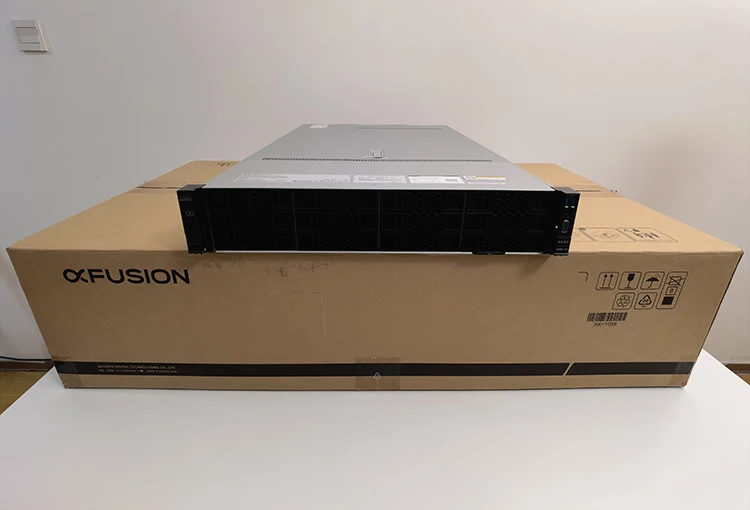

Packaging shipping and payment
Company Profile
Certifications
FAQ
Q1. What are your company’s main products?
A：Our company mainly sells Dell Huawei Lenovo servers and storage and server
accessories, such as server hard drives, memory cards, etc.
accessories, such as server hard drives, memory cards, etc.
Q2. Are your products regular?
A：We are a regular agent authorized by dll Huawei and Lenovo manufacturers. We have agency
qualifications issued by these manufacturers. Our products are original and regular products.
qualifications issued by these manufacturers. Our products are original and regular products.
Q3. Where is your company located?
A：We have been operating in the IT industry in Beijing for more than 10 years, and everyone has
very professional experience
very professional experience
Q4. How is your product after-sales service?
A：We have professional engineers with more than 10 years of experience, who can
provide free remote service support, then determine the problem and replace the corresponding parts
provide free remote service support, then determine the problem and replace the corresponding parts
Q5. How do you pay?
A：Our company supports payment methods such as Western Union TT and Alibaba
Q6. How do you transport these products?
A：We have our own forwarder that can deliver products to anywhere you require
