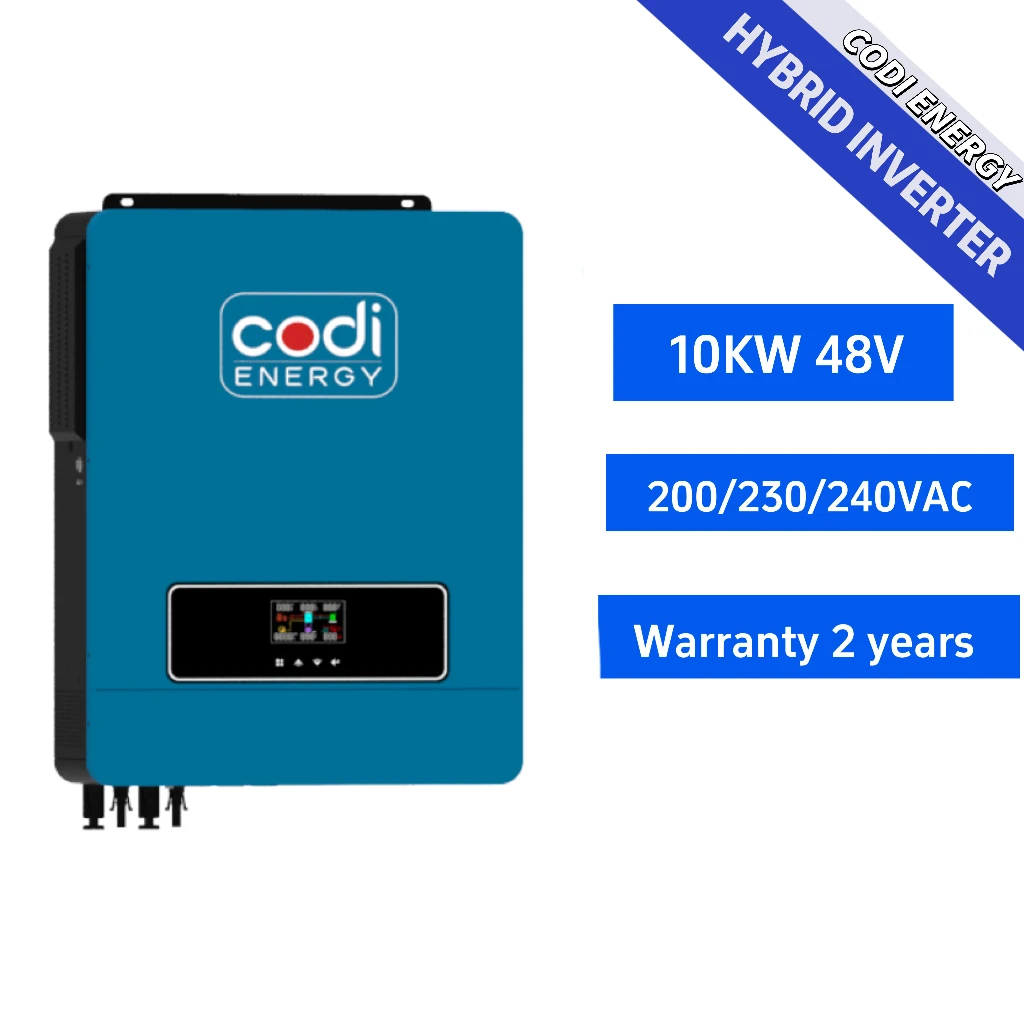

Factory sell 10KW On Off Hybrid Solar inverter 10.2KW 48V to 230V Dual Output 180A MPPT Controller with WiFi Monitoring
- Category: >>>
- Supplier: Codi Energy Ltd.
Share on (1601006654924):
Product Overview
Description
Specification
MODEL | CO-O-F 7.2KW | CO-O-F 8.2KW | CO-O-F 10.2KW | ||
Phase | 1-phase | ||||
Maximum PV Input Power | 7200W | 8200W | 10200W | ||
Rate Output Power | 7200W/7200VA | 8200W/8200VA | 10200W/10200VA | ||
Maximum Solar Charging Current | 160A | 160A | 180A | ||
GRID- TIE OPERATION | |||||
PV Input(DC) | |||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||||
MPPT Voltage Range | 90VDC~450VDC | ||||
Number Of MPPT Trachers/Maximum Input Current | 1/27A | ||||
GRID- OUTPUT(AC) | |||||
Nominal Output Voltage | 220/230/240VAC | 800W | 1100W | ||
Output Voltage Range | 195.5~253VAC | 1600W | 2150W | ||
Nominal Output Current | 31.3A | 35.6A | 44.3A | ||
Power Factor | >0.99 | 3200W | 4300W | ||
Feed-in Grid Frequency Range | 49~51±1Hz | ||||
EFFICIENCY | 30A | 60A | 80A | ||
Maximum Conversion Efficiency(DC/AC) | 98% | ||||
TWO LOAD OUTPUT POWER(V2.0) | |||||
Full Load | 7200W | 8200W | 10200W | ||
Maximum Main Load | 7200W | 8200W | 10200W | ||
Maximum Second Load(Battery mode) | 2400W | 2733W | 3400W | ||
Main Load Cut Off Voltage | 44VDC | 44VDC | 44VDC | ||
Main Load Return Voltage | 48VDC | 48VDC | 48VDC | ||
OFF-GRID OPERATION | |||||
AC INPUT | |||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC / 180VAC | ||||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||||
Maximum AC Input Current | 40A | 40A | 50A | ||
Nominal Operating Frequency | 50/60Hz | ||||
Surge Power | 14400W | 16400W | 20400W | ||
PV INPUT(DC) | |||||
Maximum DC Voltage | 500VDC | 280*202*97mm | 297*214*90mm | ||
MPPT Voltage Range | 90VDC~450VDC | 3.6KG | 4.2KG | ||
Number of MPPT Trackers/Maximum Input Current | 1/27A | ||||
BATTERY MODE OUTPUT(AC) | |||||
Nominal Output Voltage | 48VDC | 48VDC | 48VDC | ||
Output Wavefrom | Pure sinewave | ||||
Efficiency(DC to AC) | 94% | ||||
BATTERY & CHARGER | |||||
Nominal DC Voltage | 48VDC | 48VDC | 48VDC | ||
Maximum Solar Charging Current | 160A | 160A | 180A | ||
Maximum AC Charging Current | 140A | 140A | 160A | ||
Product feature
▸Pure sine wave solar inverter(on/off Grid)
▸Inverter running without battery▸Output power factor 1.0
▸High PV input voltage range(90~500VDC)
▸WIFI&GPRS available for IOS and Android
▸Built-in anti-dusk kit for harsh environment
▸Built-in 160A(for 7.2KW/8.2KW)/180A(for 10.2KW)MPPT solar charge
▸Smart battery charge design to optimize battery life
▸One-click restoration to factory Settings
▸Dual output
▸Built-in Lithium battery automatic activation
▸Touch buttom
▸Smart battery charge design to optimize battery life
▸One-click restoration to factory Settings
▸Dual output
▸Built-in Lithium battery automatic activation
▸Touch buttom
Product Description

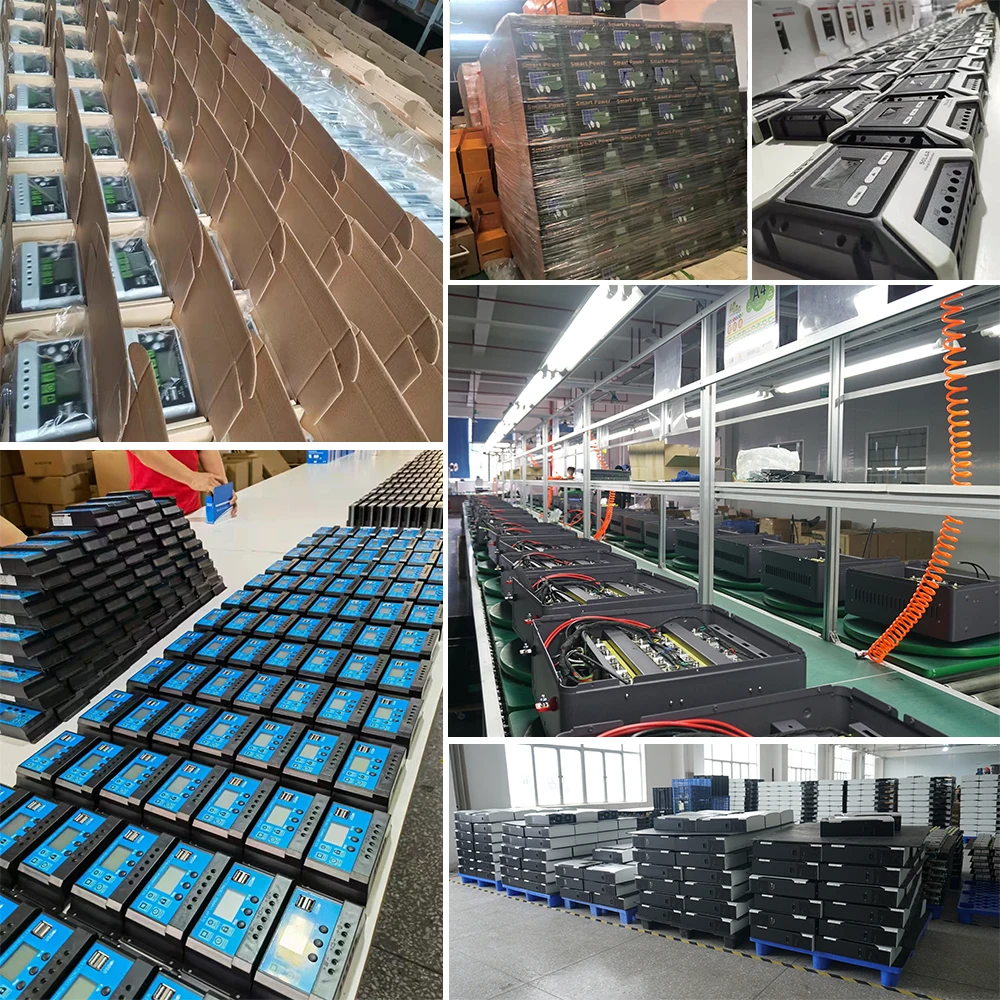

Our Factory
We entered solar business since 2004. We provide one-stop solution for solar products buyers. Our team is made up with experienced staff who also have worked in this field for many years, with rich field experience, which enable us to provide good products and good service. Our products include solar panel, solar panel testing and repacking, solar mounting system design and production, all kinds of solar lighting and solar power systems. We have complete testing equipments to ensure every single piece of product we sell is good quality. We also offer sourcing and testing services to returned clients.

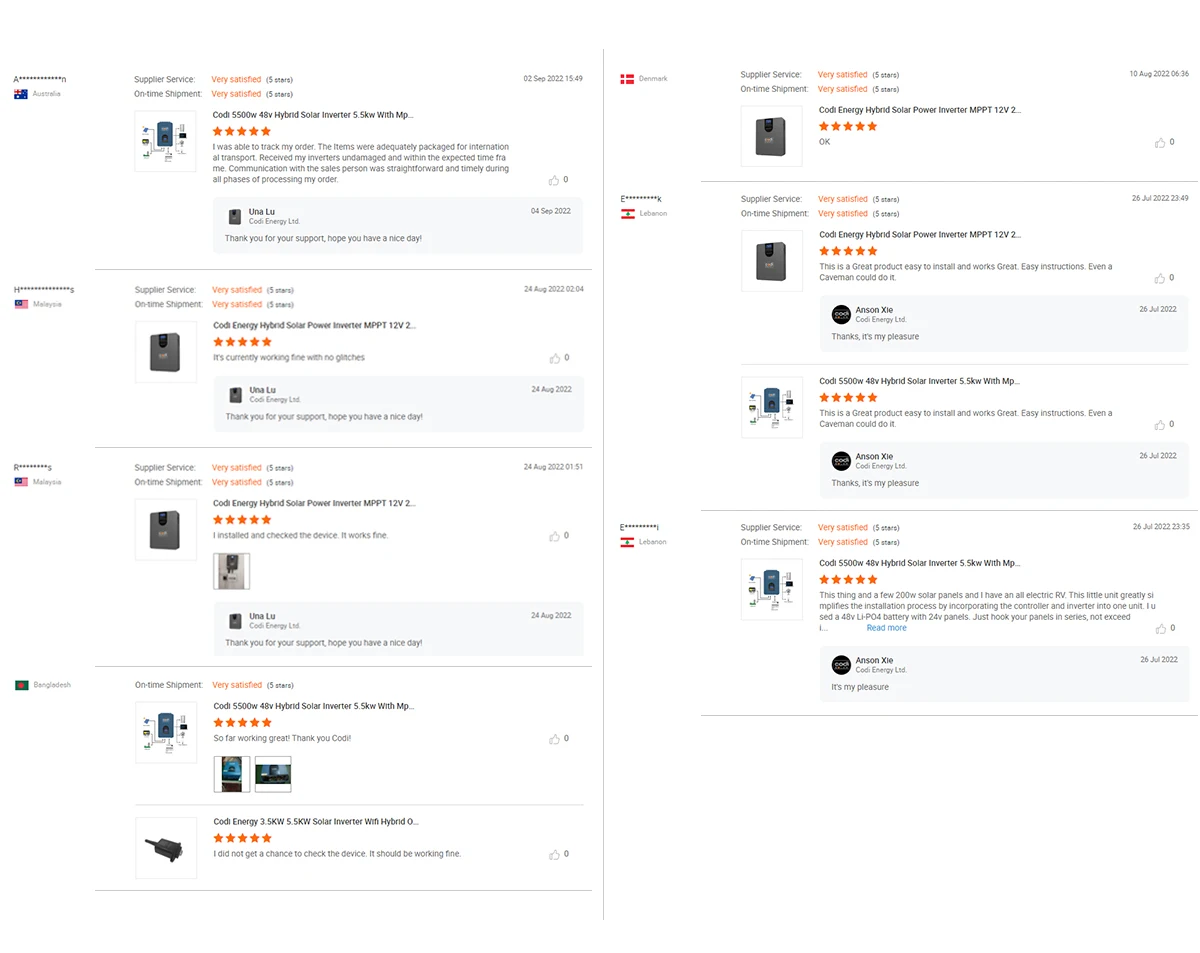

Ratings & Reviews
