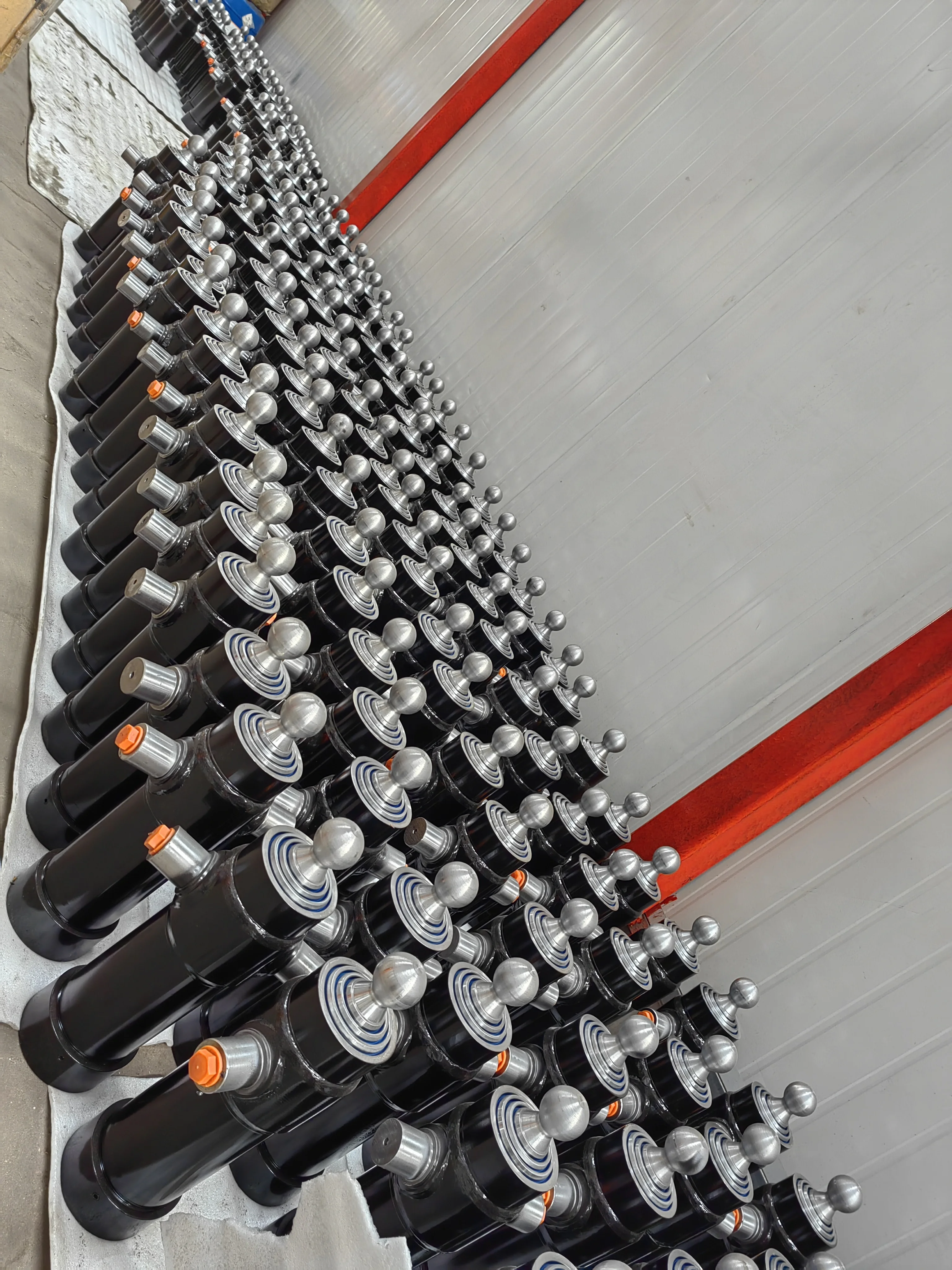

Multistage Hydraulic Tipper Hoist Ram Mid Mount Underbody Cylinder
- Category: >>>
- Supplier: Yishui Zhongxin Machinery Co. Ltd.
Share on (1601006680787):
Product Overview
Description

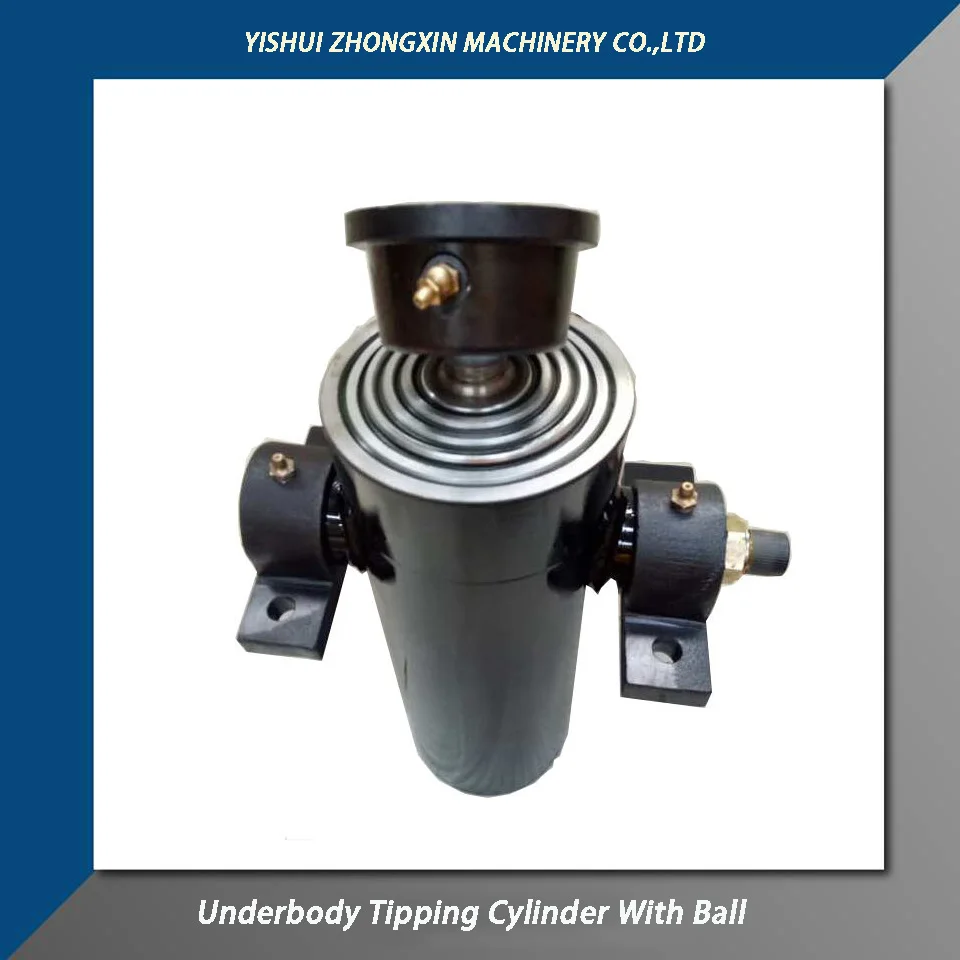

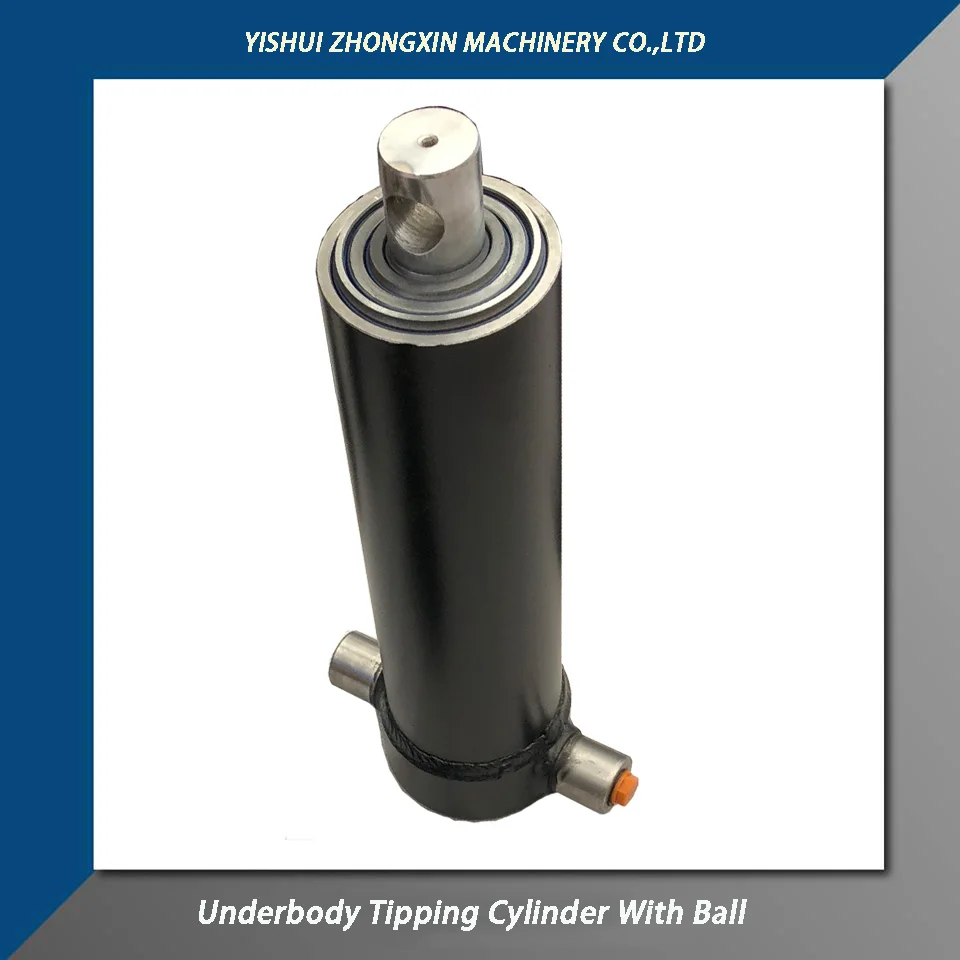

Multistage Underbody Hydraulic Trailer Lift Kit Hoist Cylinder
Product Description
PRODUCT FEATURE
1.compact Size, easily installed under tipper body ,idea for rear,side or 3 way tipping applications.

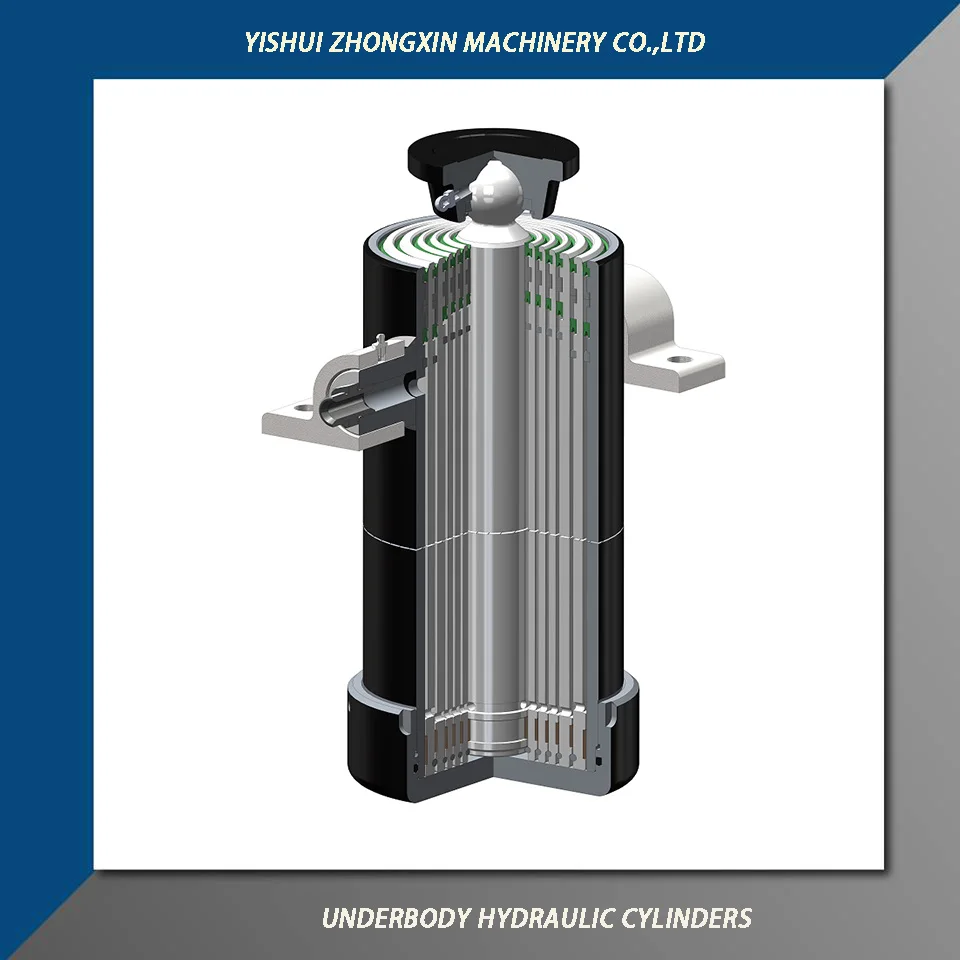

2.Reasonable design , reduce friction and smooth sliding with extra guide and special sealing structure
3.For ease of fitment, no need complicated tooling and molds

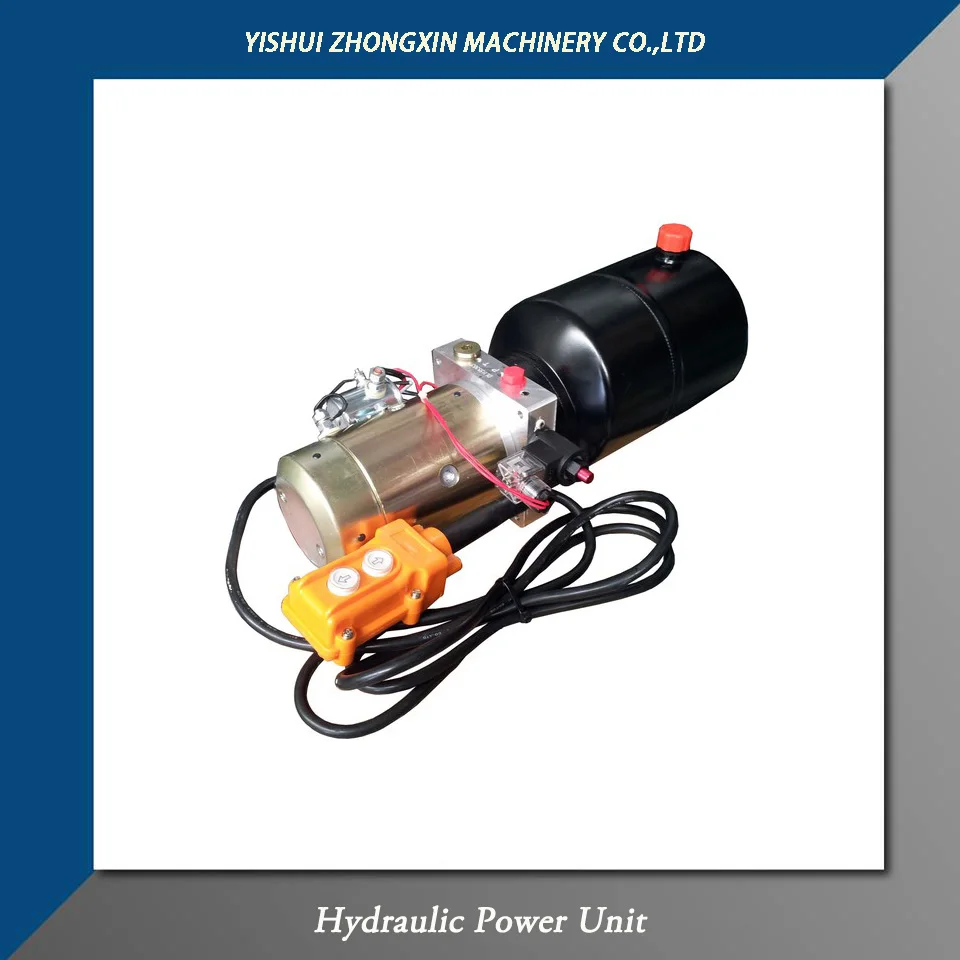

4.with standard Hydraulic power units for your options
5.all stages are chrome plated externally to increase working life
6. Guarantee good performance with top class seal kits
7.working pressure can be up to 2750 psi

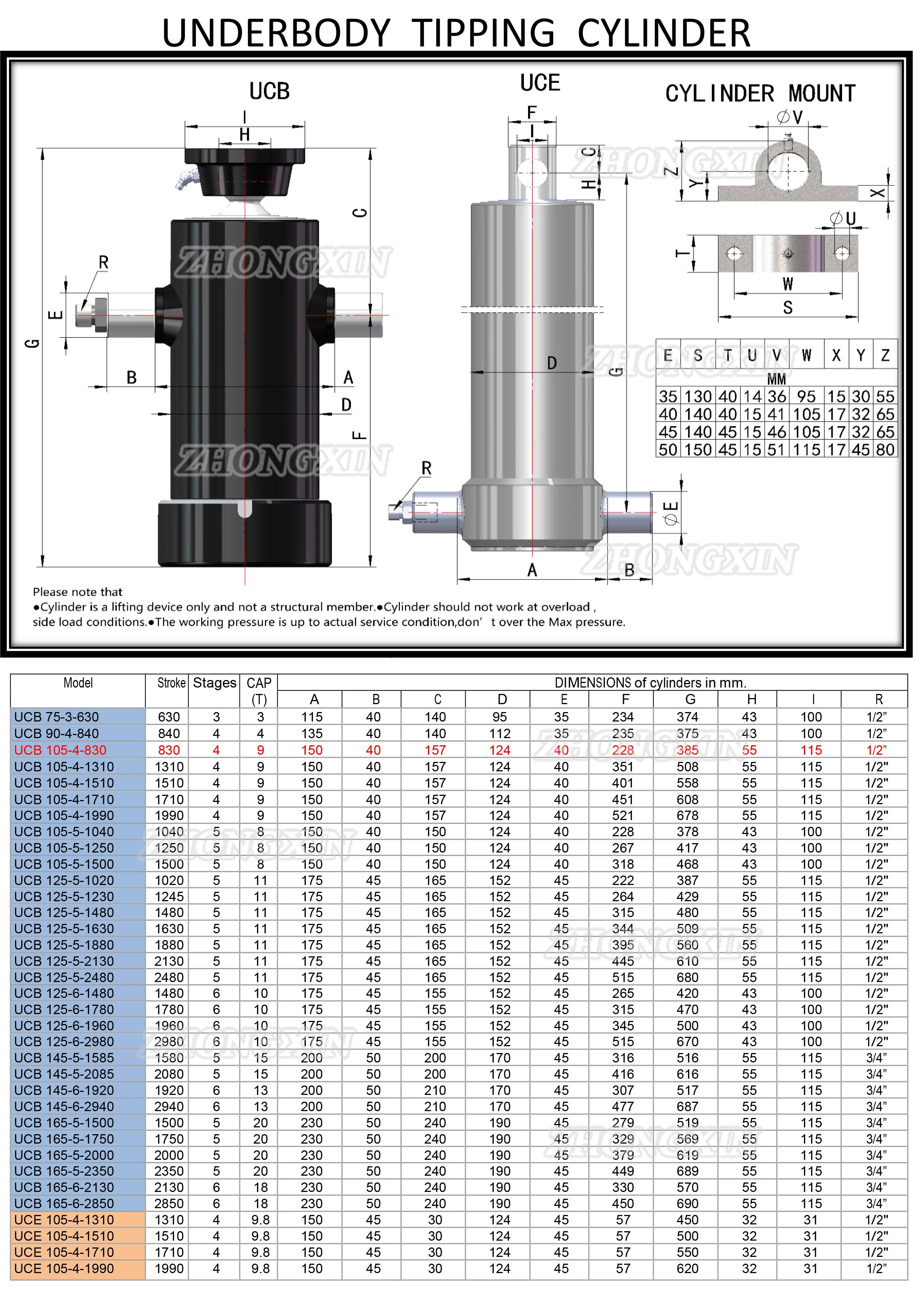

8.All stages diameter:
191/169/149/129/110/90/75/60/45/30
185/165/145/125/105/90/75/60/45/30
180/160/140/120/105/90/75/60/45/30
190/170/150/130/110/90/70/50
2.Reasonable design , reduce friction and smooth sliding with extra guide and special sealing structure
3.For ease of fitment, no need complicated tooling and molds
4.with standard Hydraulic power units for your options
5.all stages are chrome plated externally to increase working life
6. Guarantee good performance with top class seal kits
7.working pressure can be up to 2750 psi
8.All stages diameter:
191/169/149/129/110/90/75/60/45/30
185/165/145/125/105/90/75/60/45/30
180/160/140/120/105/90/75/60/45/30
190/170/150/130/110/90/70/50

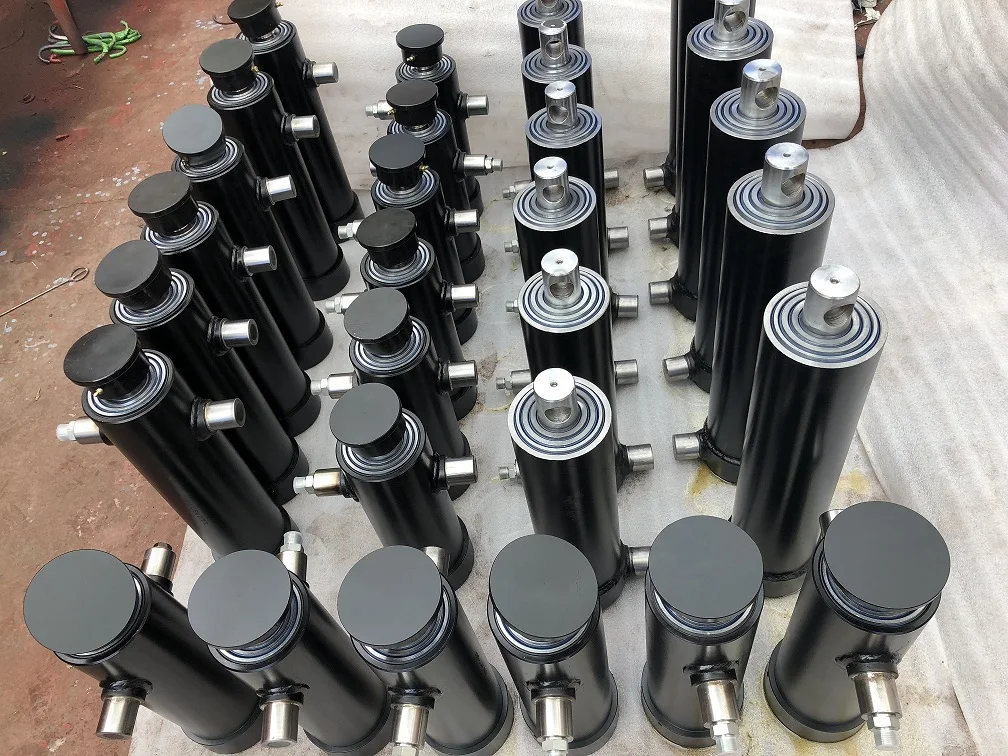

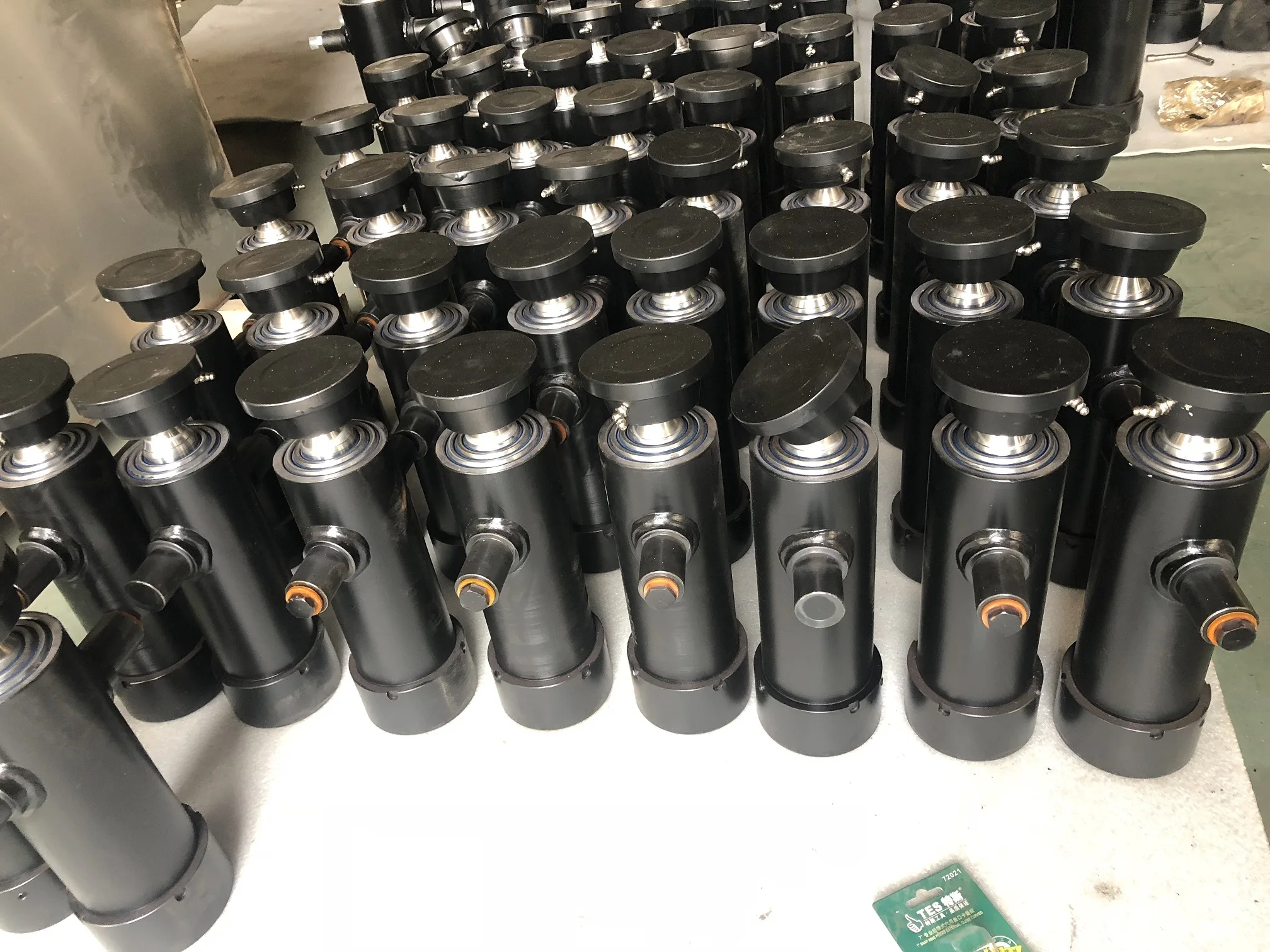

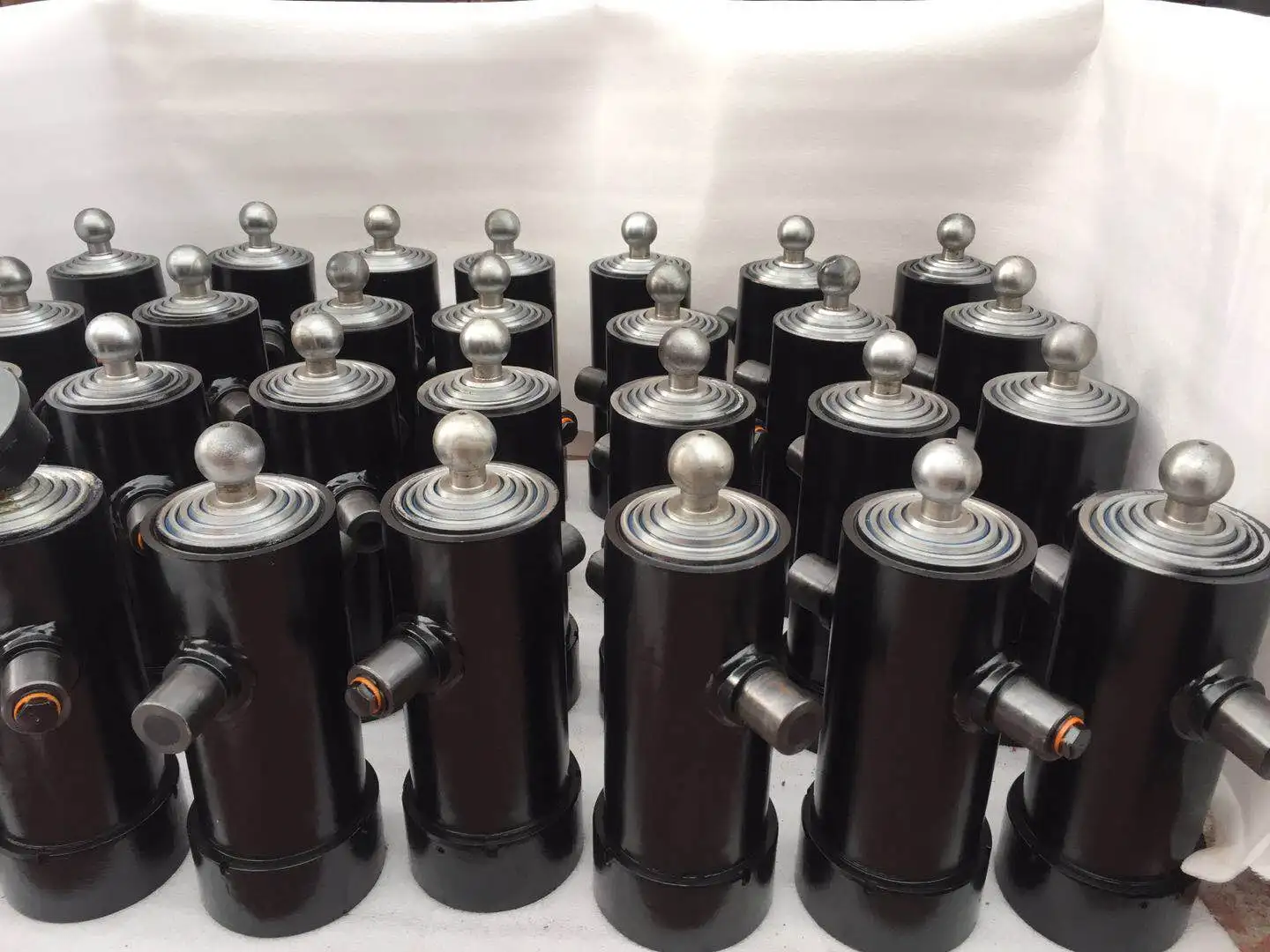

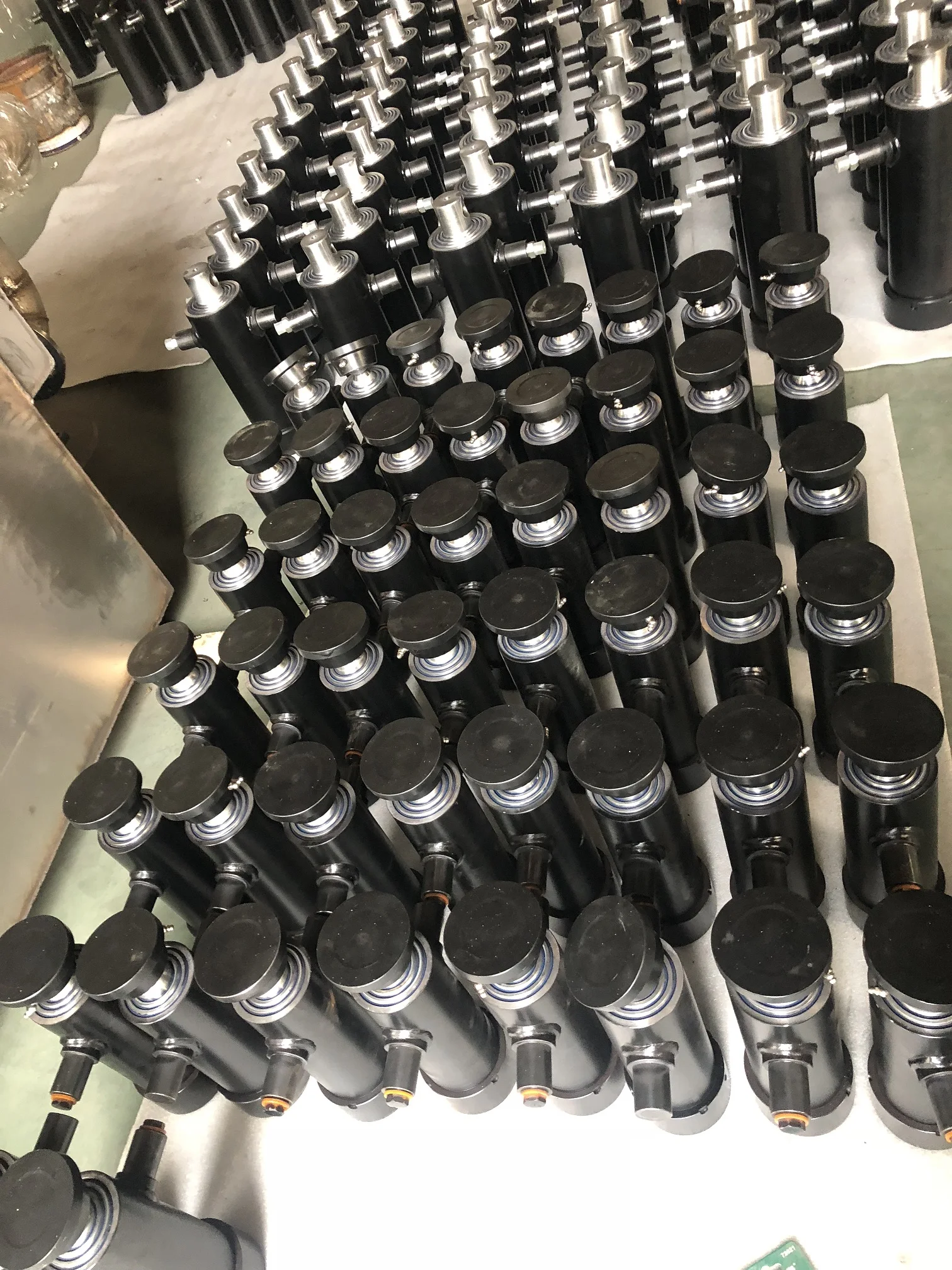

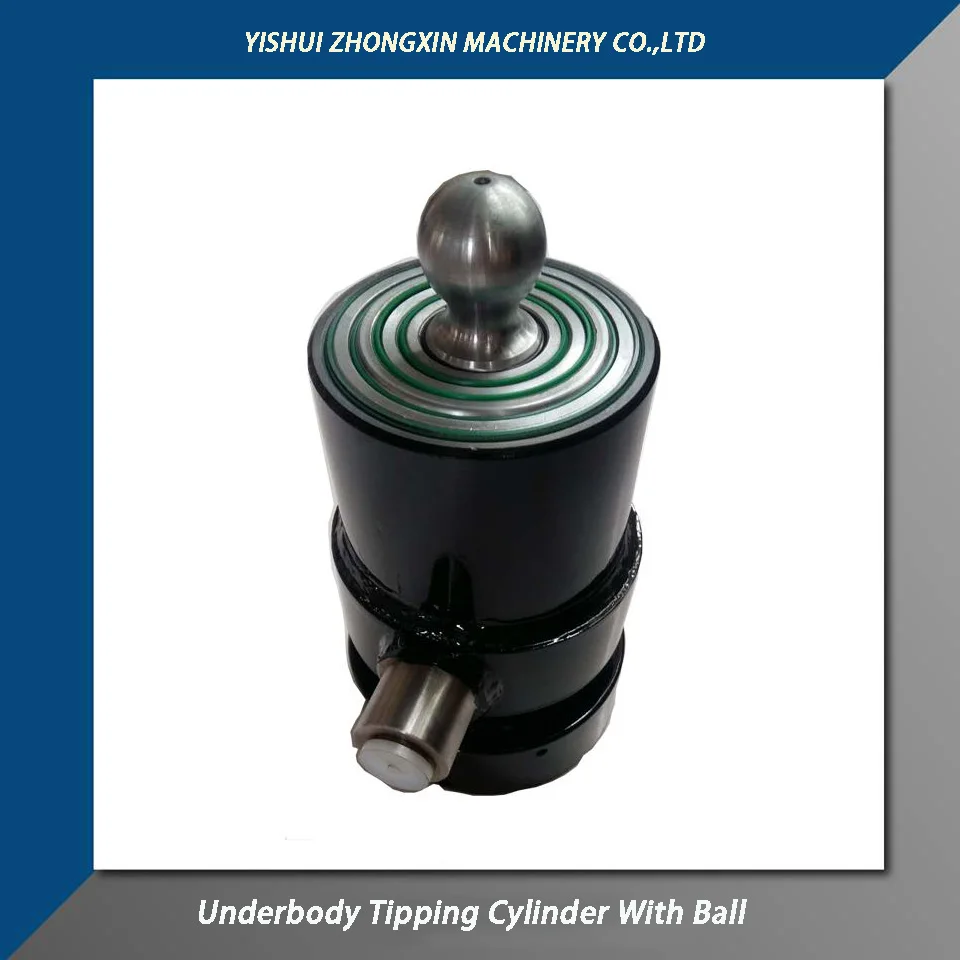

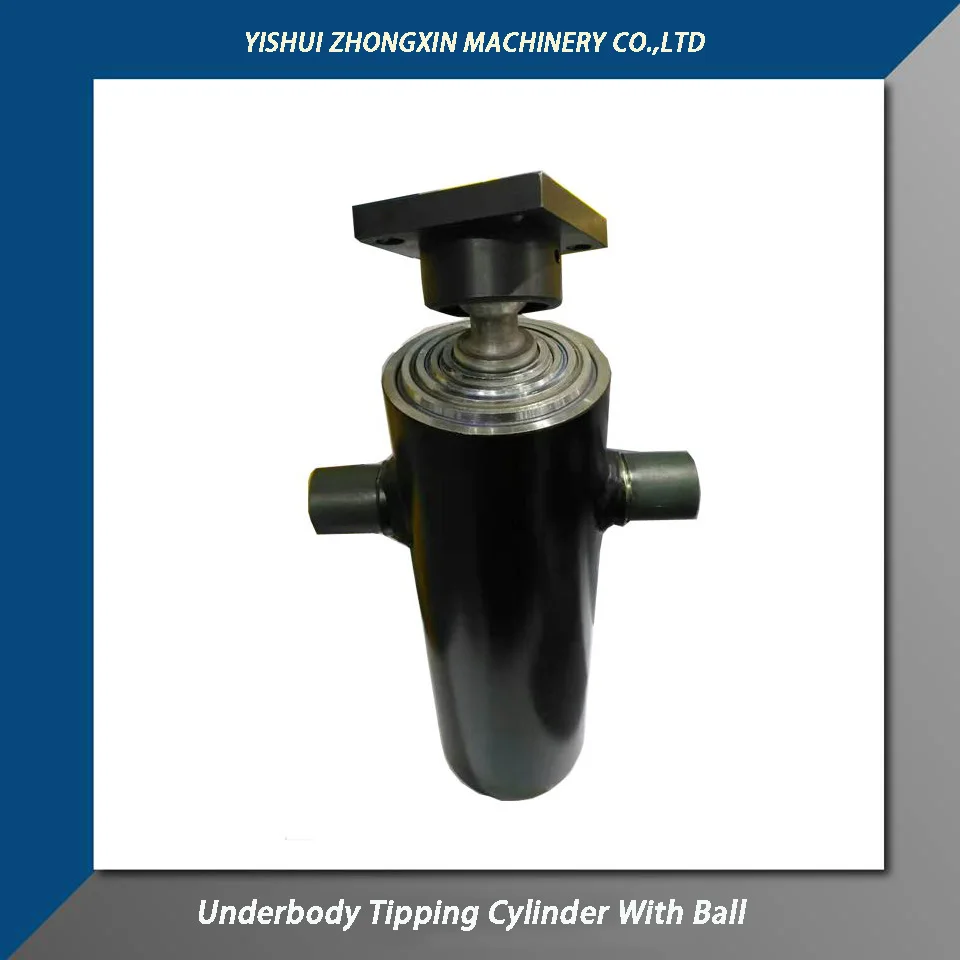

Detailed Images
Related Products

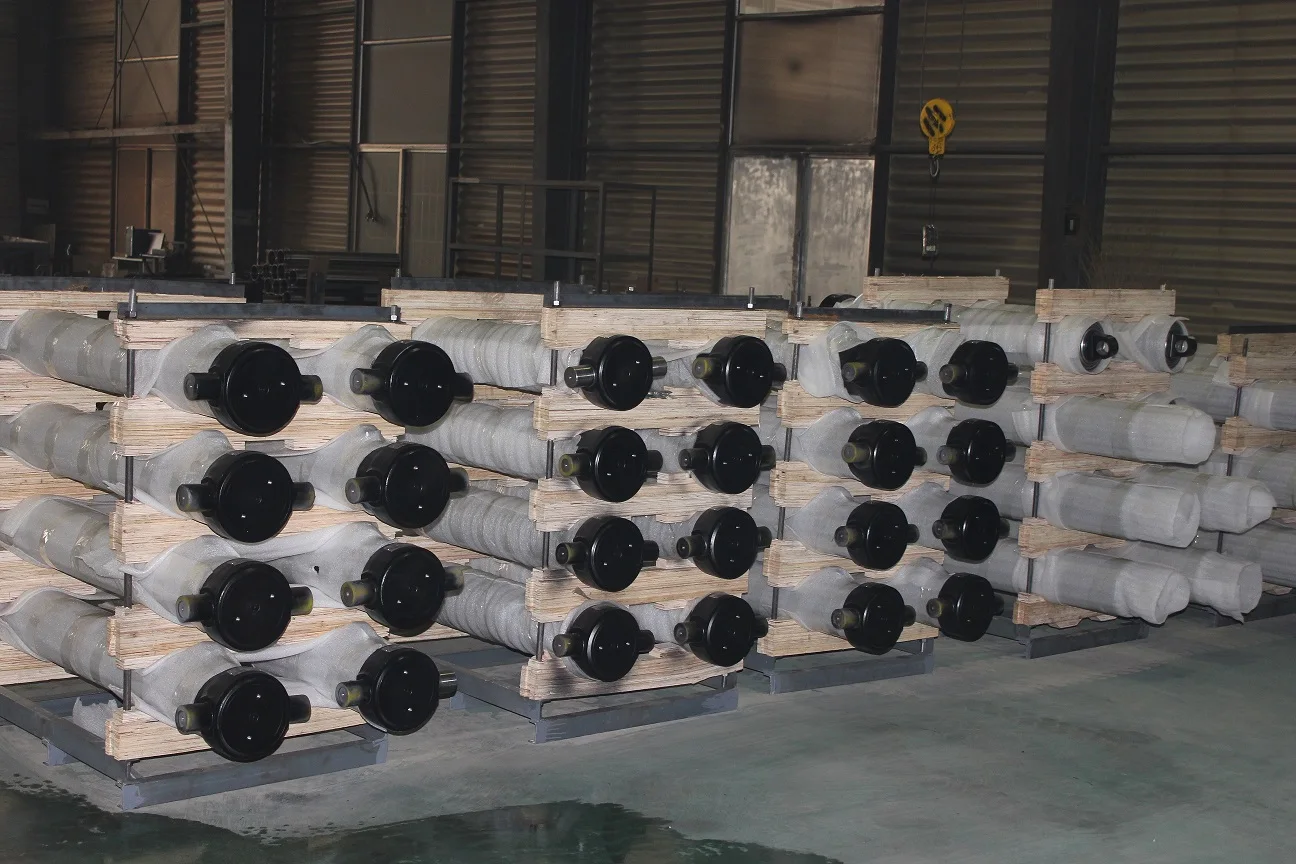

Packing&Shipping

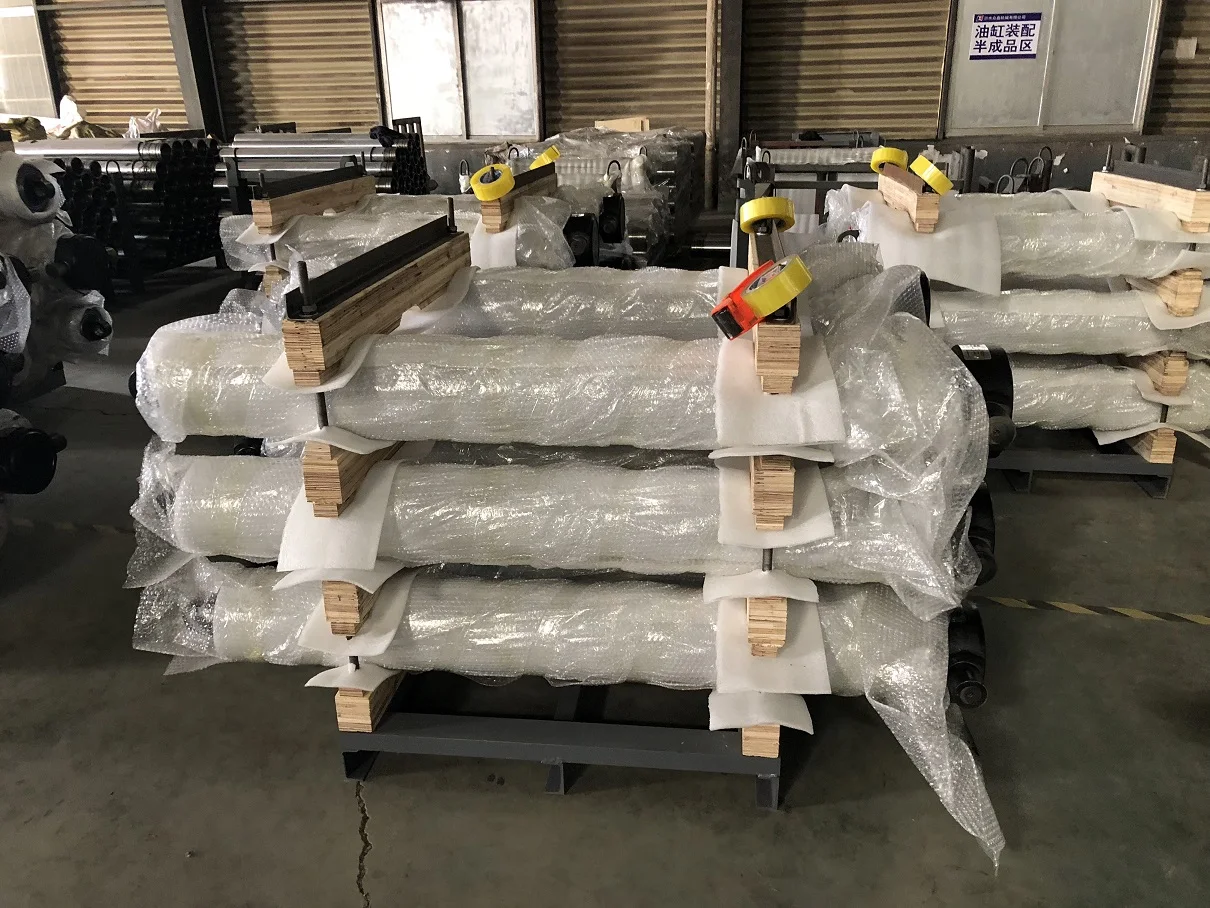

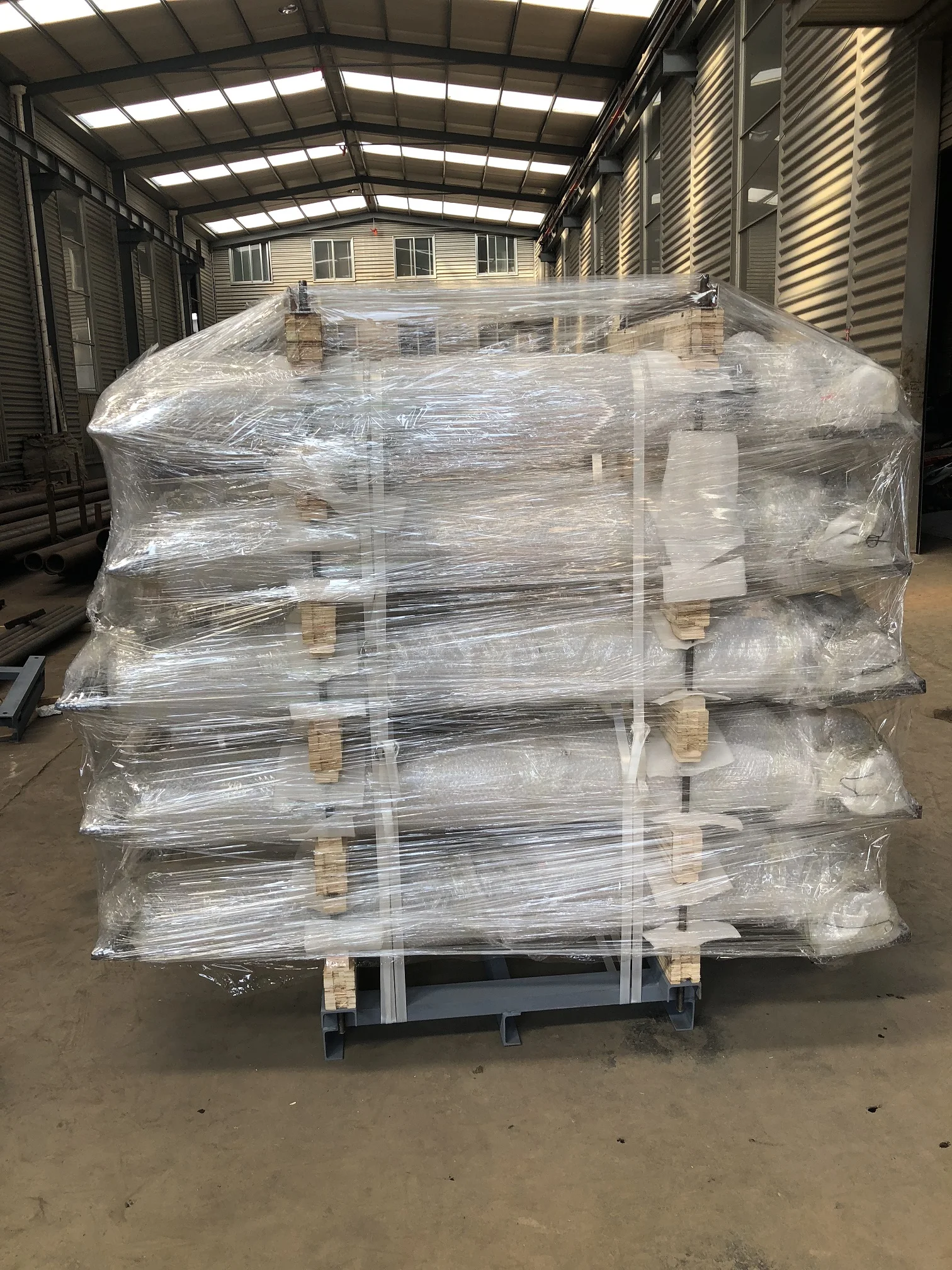

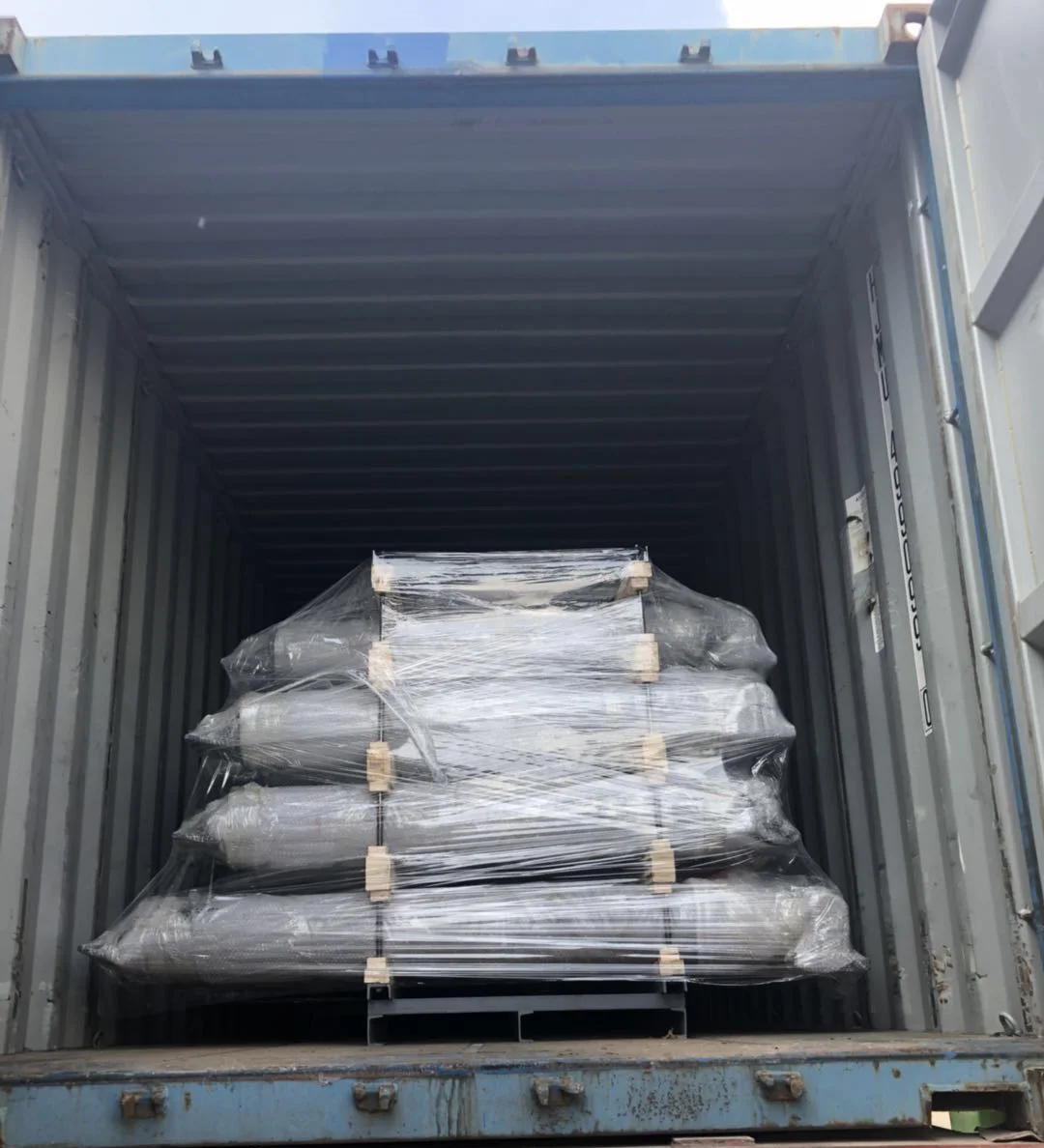

Packing:Packed by PP bag and then in wooden box,also packed according to customer' request. Shipping:Sample can be shipped by air express or air transportation,bulk can be shipped by sea.
Company Introduction
Yishui Zhongxin Machinery Co.,ltd,Produce hydraulic Cylinders(Hydraulic Ram) since 2008,main goal has always been to provide both the china market and overseas markets with high-quality products,by using raw materials which are certified as having undergone quality control.we has the complete design and engineering capability to support your custom and standard hydraulic cylinder needs.Throughout the product life-cycle, we offer full support and development aiming to deliver continuous improvement.
Application
Zhongxin cylinders are used in a wide variety of applications and markets. We have supplied cylinders for use in:
Materials Handling
Typical applications: Mobile & Static Hoists & Cranes, Conveying Equipment, Lifting Arms & Front
End Loaders.
Agricultural
Typical applications: Tillage Bars, Harvester Headers, Spraying Equipment, Seed Drills, Wool Presses,
Slashers & Mowers.
Waste Management
Typical applications: Static & Mobile Compactors, Transfer Stations, Road Sweepers, Liquid Vacuum Trucks.
Transport
Typical applications: Trailers: Side Tippers, Car Transporters, Low Loaders, Deck Widening, Tilt Trays.
Custom as your special requirements
Materials Handling
Typical applications: Mobile & Static Hoists & Cranes, Conveying Equipment, Lifting Arms & Front
End Loaders.
Agricultural
Typical applications: Tillage Bars, Harvester Headers, Spraying Equipment, Seed Drills, Wool Presses,
Slashers & Mowers.
Waste Management
Typical applications: Static & Mobile Compactors, Transfer Stations, Road Sweepers, Liquid Vacuum Trucks.
Transport
Typical applications: Trailers: Side Tippers, Car Transporters, Low Loaders, Deck Widening, Tilt Trays.
Custom as your special requirements

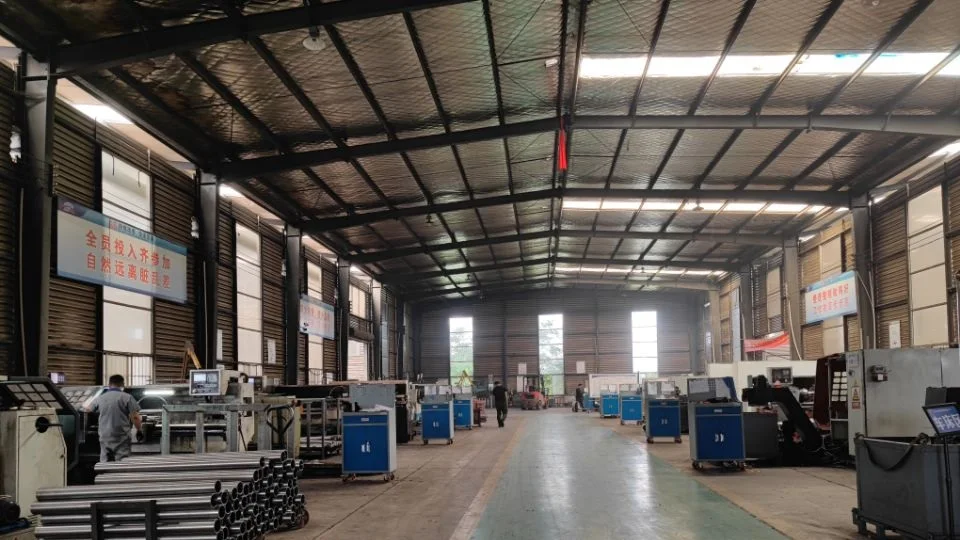

Production Plant
Chrome Plating Plant
THE INSPECTION | ||||||||
NO. | Test Item | Testing Content | ||||||
1 | Testing station | Test the running of hydraulic station and valves,pressure gauge and pipe | ||||||
2 | Minimum pressure for running | Drawing requirment | ≤ MPa | |||||
3 | no-load capacity performance MPa | When it is no-load,the cylinder run more than two cycles,it should work normally | ||||||
4 | Mounting size | Drawing requirment | ||||||
5 | Stroke | Drawing requirment | ||||||
6 | Outer Size | Drawing requirment | ||||||
7 | Port Size | Drawing requirment | ||||||
8 | Durability | Testing time | ||||||
9 | Keep Pressure | With the working pressure MPa,keep pressure for 15 minutes,the working pressure should not low moer 0.5 MPa. | ||||||
10 | Leak | When the testing pressure is 1.5 times of working pressure,keep pressure for three minutes,check the piston rod,welding parts and other parts,it should not be leak,spare parts can't be damaged | ||||||
11 | Shape | After all inspection,put all oil insidee cylinder out,clean inner surface and outer surface of barrel,confirm the shape and quality is in line wiht drawing,add plug at the oil port | ||||||
Confirm the writing of label is clear,scale and model is in line with drawing | ||||||||
12 | Package | After up to standard,put cylinder and certification and into pack | ||||||
FAQ
1.What kind of products do you sell?
We specialize in hydraulic cylinders and cylinder components.
Zhongxin's obligation is subject to confirmation of the claim by our inspection Dep.
Generally ,We can deduct the compensation value or send a new one or a new seal kits set in the following order.
Warranty Procedures
1,Description of failure
2,Cylinder model and manufacturing date as laser engraved on all cylinders
3,Invoice Number and Date
2.What are Your Lead times for standard Cylinders?
Generally ,It will be longer for the 1st order, because we need to issue all the set production drawings ,and some details need to double confirm. it is about 40-45 days .
For 2nd and following order, It is about 30-35 days after the deposit received.We can discuss if some special status.
3.Do you Provide technical Assistance?
Yishui Zhongxin Machinery Co.,ltd is supported by a team of dedicated and experienced hydraulic design engineers with years of knowledge in the working of hydraulic cylinders.
4.Warantty?
Generally,Zhongxin Machinery will replace or repair defective articles for free Within 1 years from time of the delivery.
This warranty doen not cover damages caused by the use of defective articles,worn out articles,wrong use of the
articles,non-observance of both above mentioned general instructions for first installation and warning ans safety measures for dumpers,as well as obvious
tampering of articles.
This warranty doen not cover damages caused by the use of defective articles,worn out articles,wrong use of the
articles,non-observance of both above mentioned general instructions for first installation and warning ans safety measures for dumpers,as well as obvious
tampering of articles.
Zhongxin's obligation is subject to confirmation of the claim by our inspection Dep.
Generally ,We can deduct the compensation value or send a new one or a new seal kits set in the following order.
Warranty Procedures
1,Description of failure
2,Cylinder model and manufacturing date as laser engraved on all cylinders
3,Invoice Number and Date
5,Seals
NOK(Japan),Hallite(UK),TRELLEBORG(Sweden),ASTON(Italy),Kaden(Italy) , or As your special requirements
