handheld welding machine ultrasonic spot welder portable plastic welding machine 300W
- Category: >>>
- Supplier: Hangzhou Cheersonic Ulltrasonics Equipments Co. Limited
Share on (1601006722116):
Product Overview
Description
Please contact us for more information. Cheersonic Linked with success. We follow this guiding principle by constantly developing our technologies and products so that we can continue to produce optimum plastic connections. Our corporate history is also associated with success: continuous growth ensured that we were able to expand our customer base.

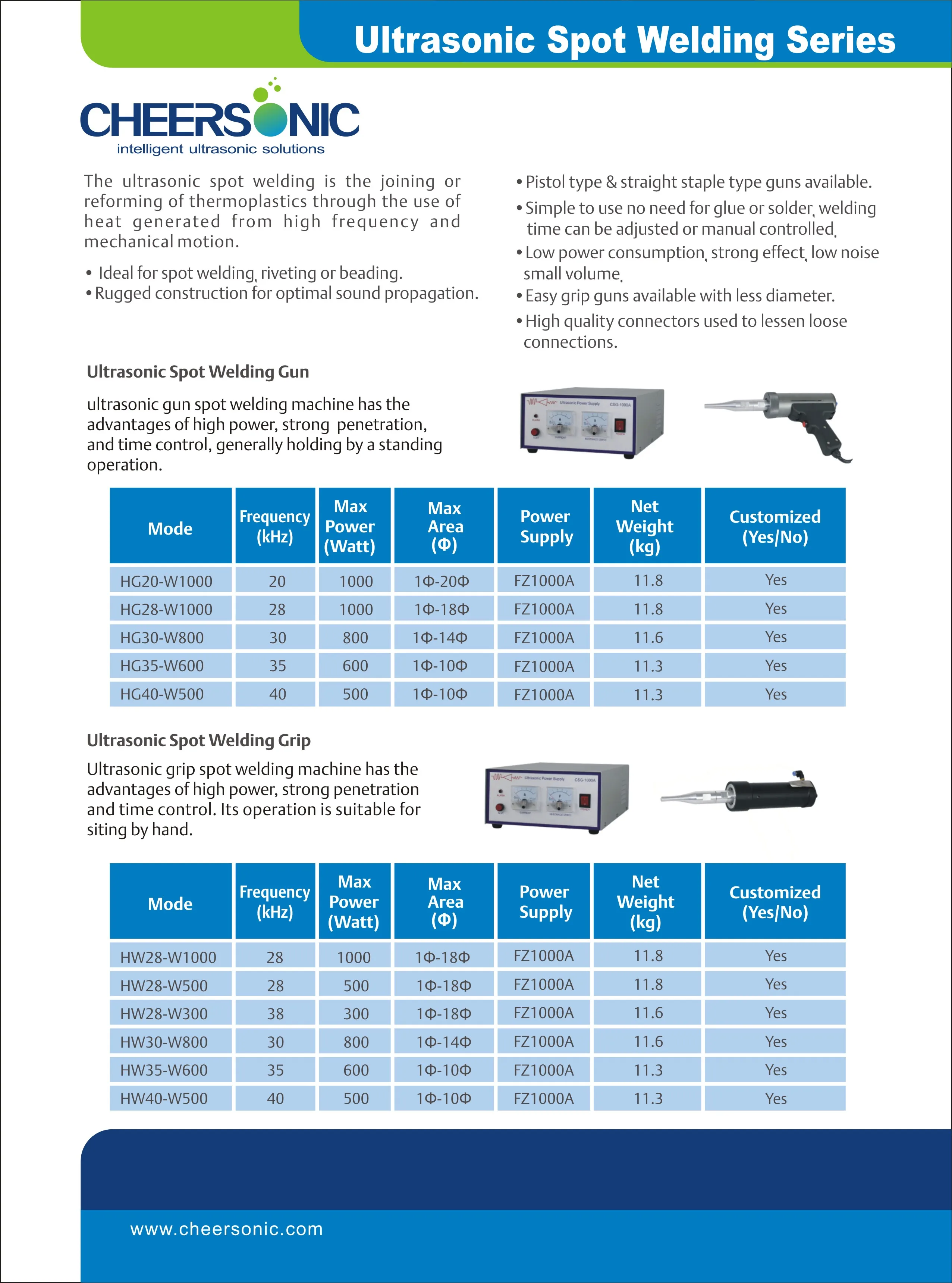

HW30-W800 Ultrasonic Plastic Welders
Product Description
The HW30-W800 family of low power systems is Cheersonic’s latest offering for applications with power requirements of 800 Watts or less. The HW30-W800 units can be used with their appropriate hand-held devices or can be connected directly to a converter/booster/horn stack for use in automation. An ultrasonic spot welding machine in accordance with ergonomics is arranged on the basis of the handheld welder. It is primarily used for point-ny-point riveting, welding and molding of thermoplastic. With the modular integrated circuit, it has strong output power and is easy for operation. The built-in fully-automatic protection circuit ensures safe application and stable and reliable operation.
FEATURES:
• Multifunctional ultrasonic series models, different from the kind of electric iron plug type, when in operation.
• Simple to used no need for glue or solder, welding time can be adjusted or manual controlled.
• Low power consumption, strong effect, low noise small volume.
• Pistol type&straight staple type guns available.
• Easy grip guns available with less diameter
• High quality connectors used to lessen loose connections
• Available in below frequencies:
20kHz & 30kHz & 35kHz & 40kHz
Optional Accessories
With our full customization service for OEMs, we can respond to unique customer requirements, and build components, horns to meet the specific needs of your system configuration and processing application.

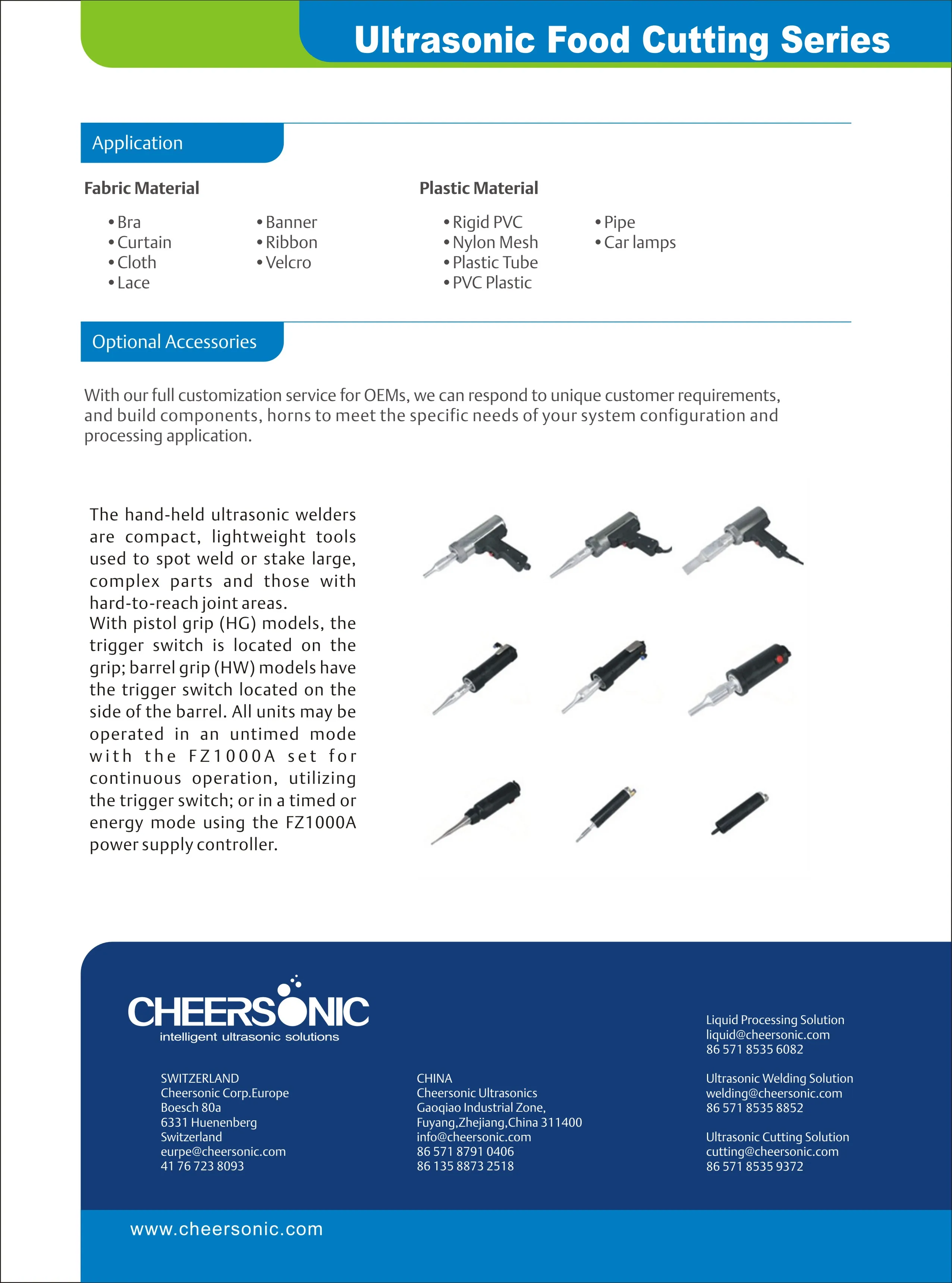

The hand-held ultrasonic welders are compact, lightweight tools used to spot weld or stake large, complex parts and those with hard-to-reach joint areas.

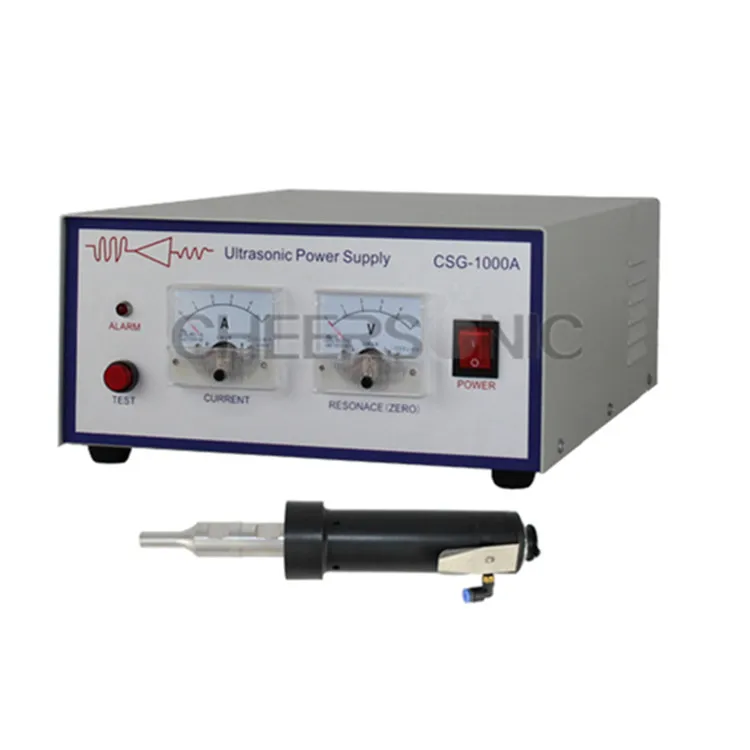

With pistol grip (HG) models, the trigger switch is located on the grip; barrel grip (HW) models have the trigger switch located on the side of the barrel. All units may be operated in an untimed mode with the FZ1000A set for continuous operation, utilizing the trigger switch; or in a timed or energy mode using the FZ1000A power supply controller.
Parameter
| Name | HW30-W800 Ultrasonic Welders |
| Power Rating: | 800watts |
| Frequency | 30kHz |
| Dimensions: | 380x285x140mm |
| Voltage: | 110v,50/60Hz/220V |
| Generator: | Power cable |
| Converter: | Converter cable |
| Horn: | Wrench Set |
Packaging & Shipping ·
Choose Cheersonic ·
Founded in 1998, Cheersonic is the manufacturer and marketer of industrial ultrasonic products. As an industrial leader of ultrasonic technology, Cheersonic specializes in the design, development, manufacture, and marketing of ultrasonic products in the line of food process, plastics joining, medical coating and ultrasonic processing. Cheersonics principal manufacturing and distribution facility is located in Fuyang, Zhejiang province.
We develop and produce ultrasonic equipments which we sell as complete units or individual assembles such as generators and converters. Our customers and special purpose machine builders benefit from high-quality components and machines with simple, user-friendly operation. We are committed to providing solutions that can meets the needs of our customers, providing the latest in technology, both in products and processes.
For us, quality is not just an empty word but a basic attitude which is the foundation for our thinking and actions. Each product has checked by our QC department before sending to our customers.
Free test
Economic, Environmental & compatible design of all products
Easy maintenance & inexpensive spare parts
24 hours technical supports and after sales services
Diversity of customized services, Strong OEM capability available
One step sourcing on all ultrasonic products
The most professional team in line of ultrasonic
Certificate ·
How to work with cheersonic ·
Visit the website for more details and send us the enquire, we will reply it within 24 hours
Welcome to visit our official website for more details and leave message on“contact us", we will reply it within 24 hours
Let our sale engineers know your condition and requirement and then we will estimate your process and let you know the solutions
We will help you test and estimate if you send us your materials for test
The ultrasonic solutions will be made according to your condition
Please contact us for more detail. Cheersonic Ultrasonics are Looking forward to have a cooperation with you.
