Product Overview
Description

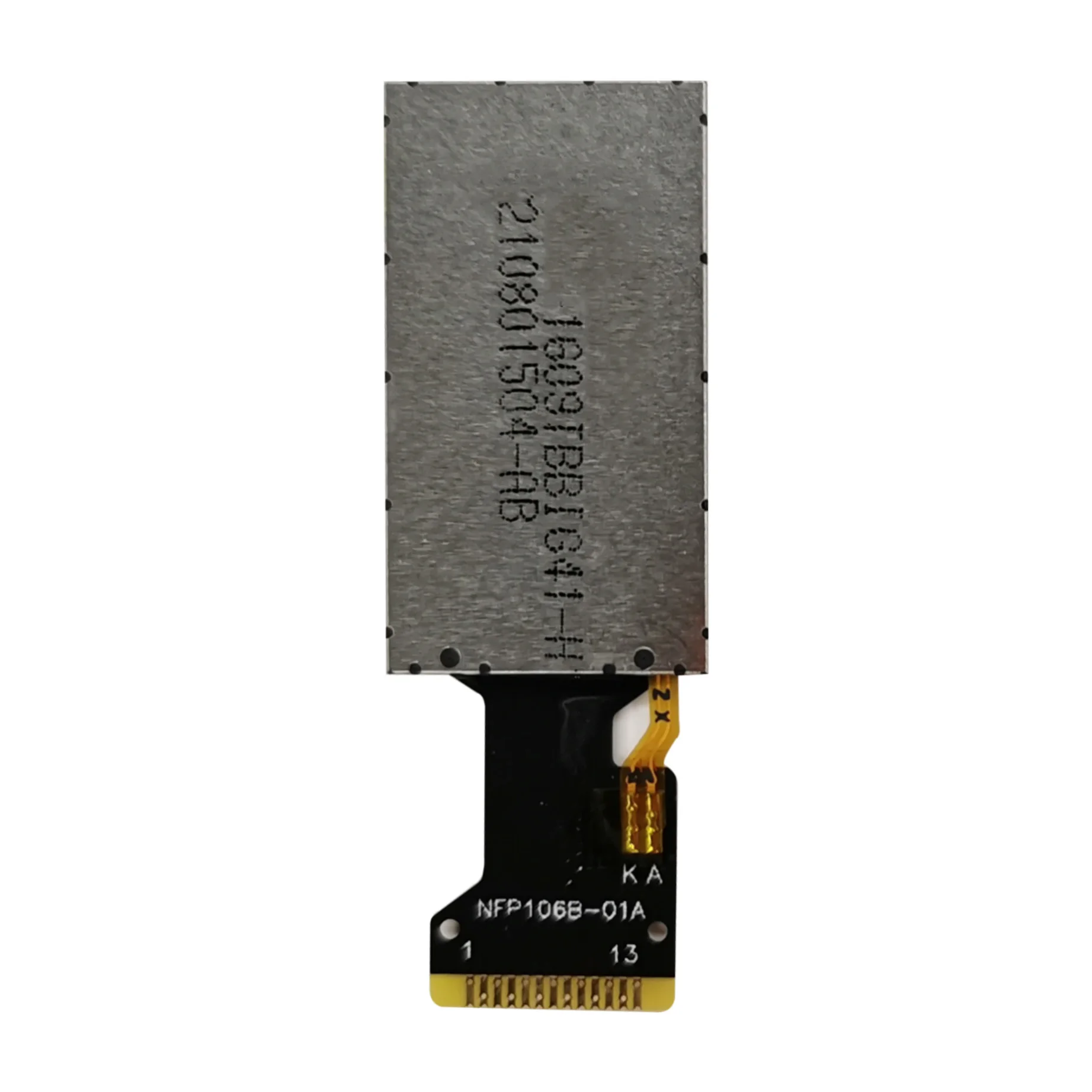

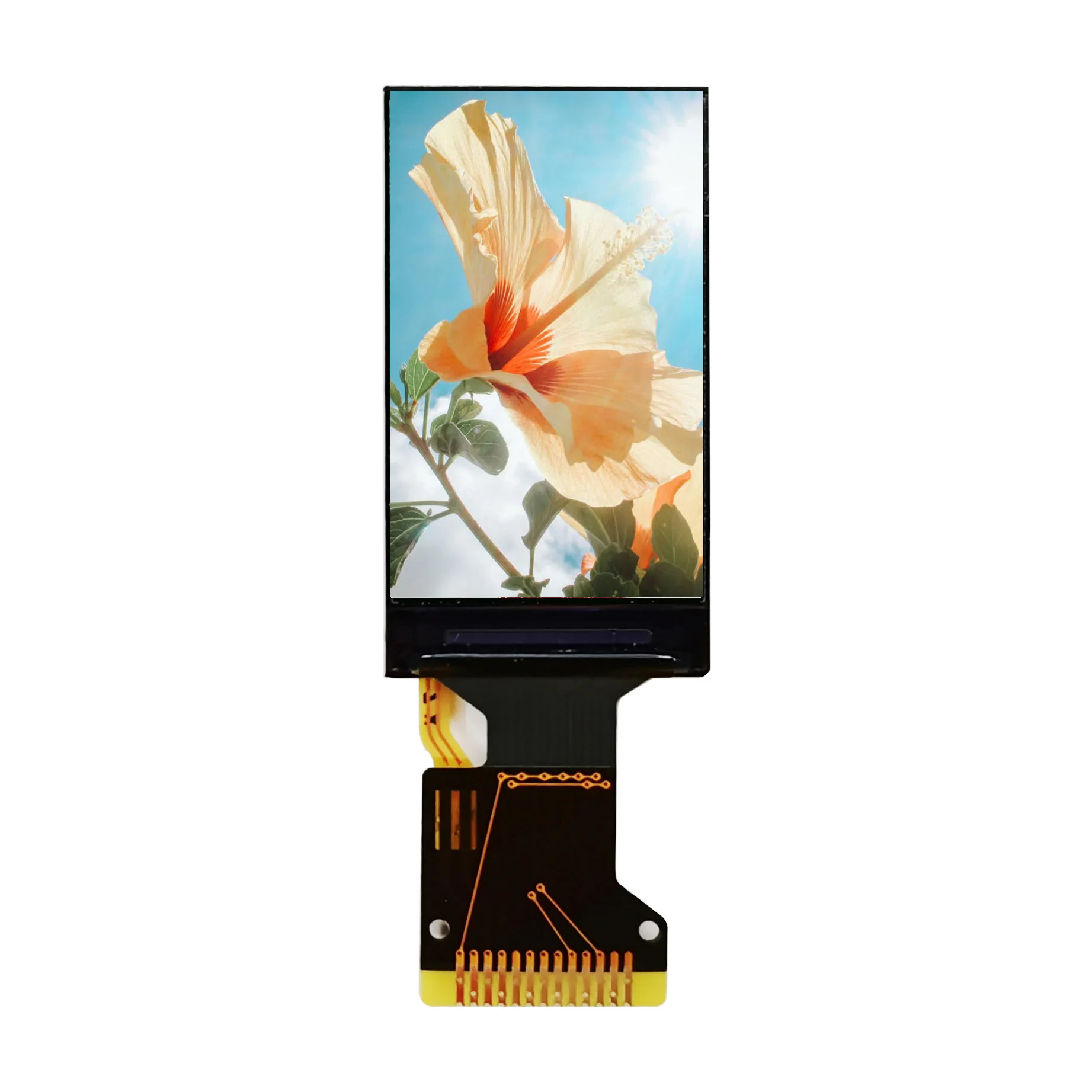

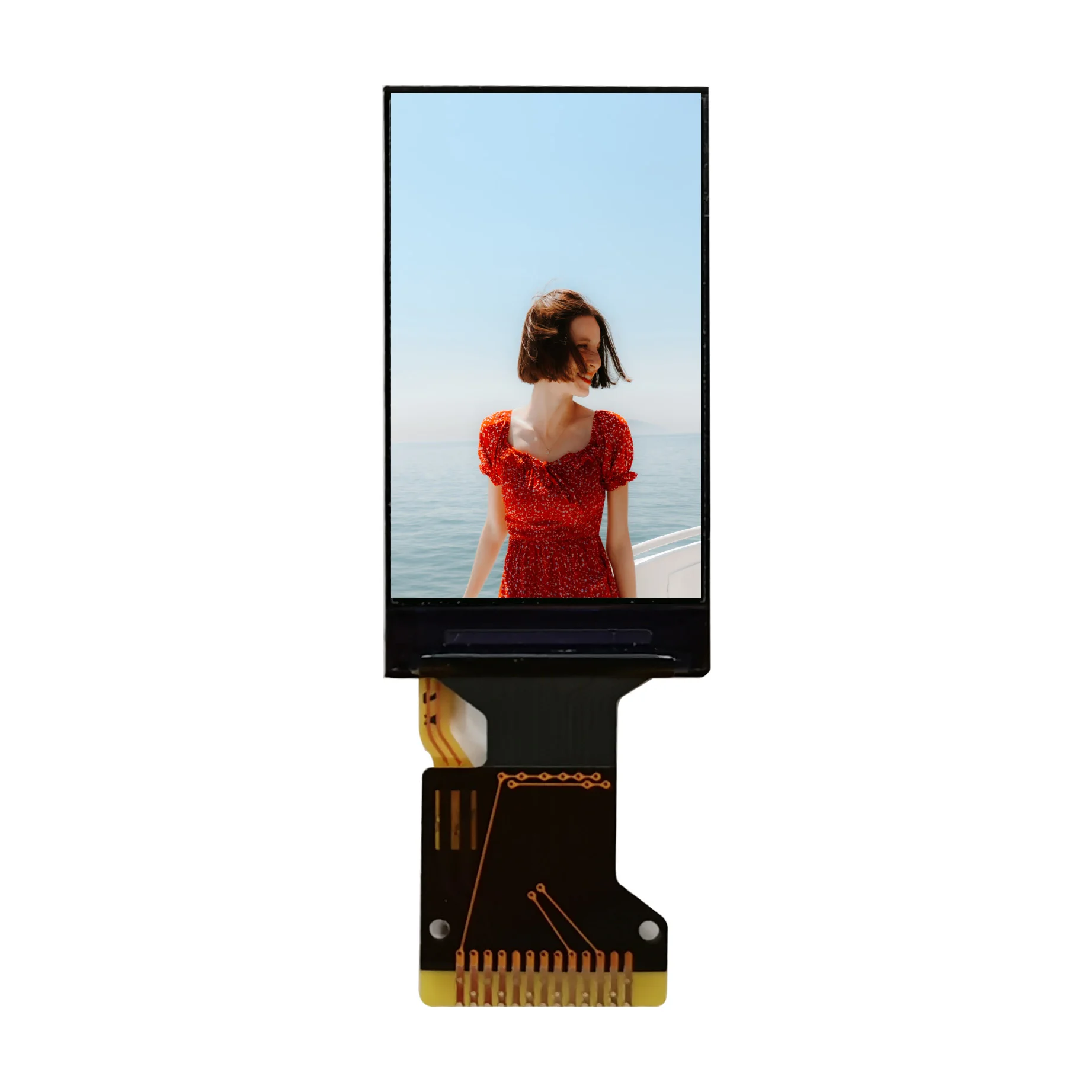

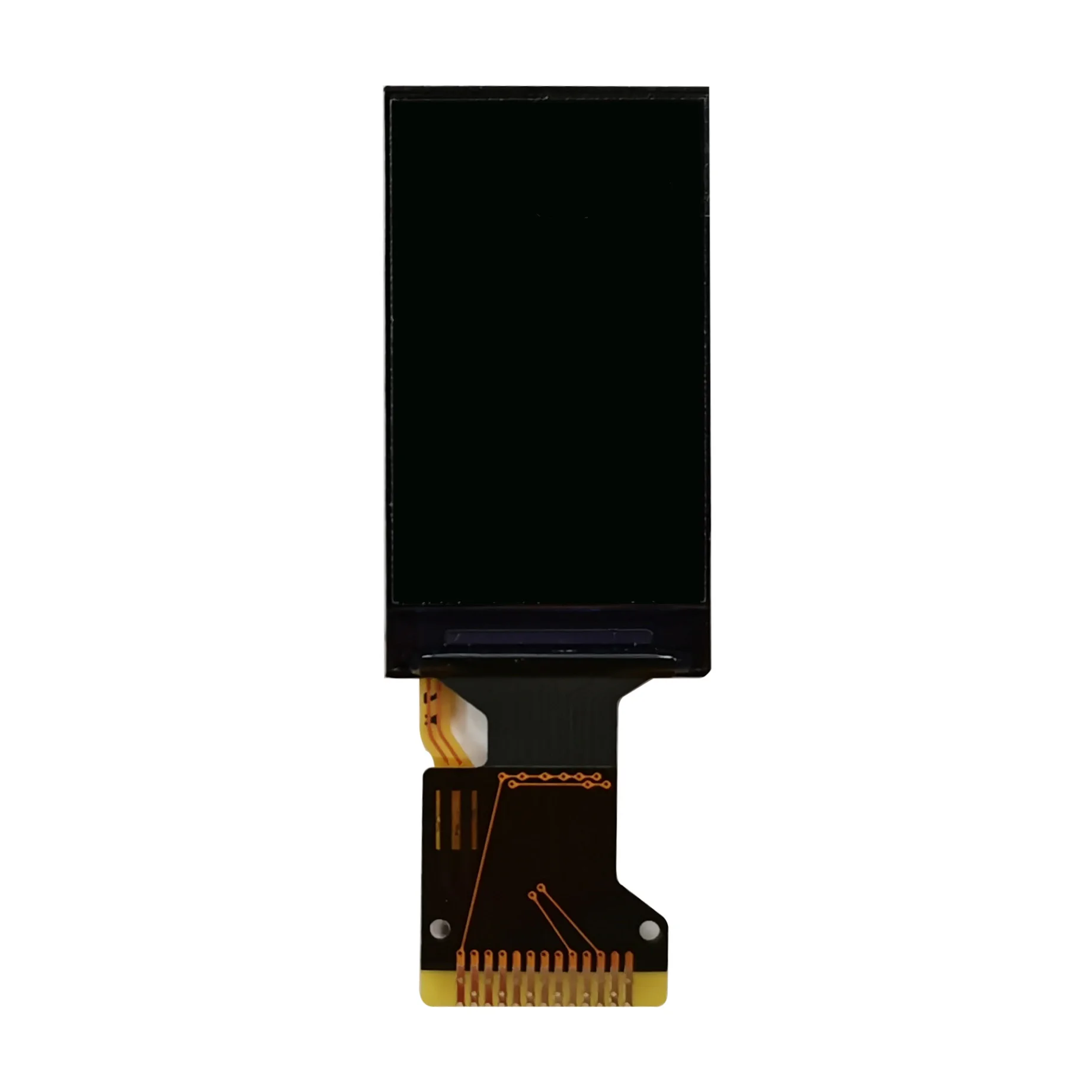

Display General Description
The SWICN S106TBBIG41-H13 is a compact and vibrant 1.06-inch TN TFT LCD module. Manufactured by SWICN, this module features a 96x160 RGB pixel resolution on a black background, providing an appealing visual experience. With a typical brightness of 400cd/m2, it ensures clear visibility even in various lighting conditions. Powered by the GC9107 driver IC and supporting the 4-wire SPI interface, this module delivers reliable performance.
What distinguishes the S106TBBIG41-H13 is its compatibility with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for a broad range of applications, such as embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, cryptocurrency hardware wallets, and handheld devices.
The module's Flexible Printed Circuit (FPC) is designed with a Zero Insertion Force (ZIF) connector type, allowing for effortless and direct connection to your PCB. This simplifies the integration process and ensures a secure and reliable connection.
Shineworld Innovations Limited, the manufacturer of the S106TBBIG41-H13, offers customization options to meet specific
requirements. They provide tailored solutions, including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility enables customers to receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
What distinguishes the S106TBBIG41-H13 is its compatibility with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for a broad range of applications, such as embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, cryptocurrency hardware wallets, and handheld devices.
The module's Flexible Printed Circuit (FPC) is designed with a Zero Insertion Force (ZIF) connector type, allowing for effortless and direct connection to your PCB. This simplifies the integration process and ensures a secure and reliable connection.
Shineworld Innovations Limited, the manufacturer of the S106TBBIG41-H13, offers customization options to meet specific
requirements. They provide tailored solutions, including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility enables customers to receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT |
1 | Display Mode | TFT | |
2 | Diagonal Size | 1.06 | inch |
3 | Resolution | 96(RGB) x 160 | Dots |
4 | Active Area | 13.824(H) x 23.04(V) | mm |
5 | Outline Dimension | 16.12(H) x 29.76(V) | mm |
6 | Thickness | 1.69 ±0.1 | mm |
7 | Pixel Pitch | 0.144(W) x 0.144(H) | mm |
8 | Pixel Size | 0.144(W) x 0.144(H) | mm |
9 | Display Driver IC | GC9107 | - |
10 | Touch Driver IC | NO Touch | - |
11 | Display Color | 262K | - |
12 | Gray Scale | 8 | Bit |
13 | Brightness | 400 (Typ.) | cd /m2 |
14 | Interface | 4-wire SPI | - |
15 | IC Package Type | COG | - |
16 | Module Connecting Type | Soldering | - |
17 | Contrast Ratio | 800:1 (Typ.) | - |
18 | Pins | 13 | Pins |
19 | Operating Temperature | -20~70 | ℃ |
20 | Storage Temperature | -30~80 | ℃ |

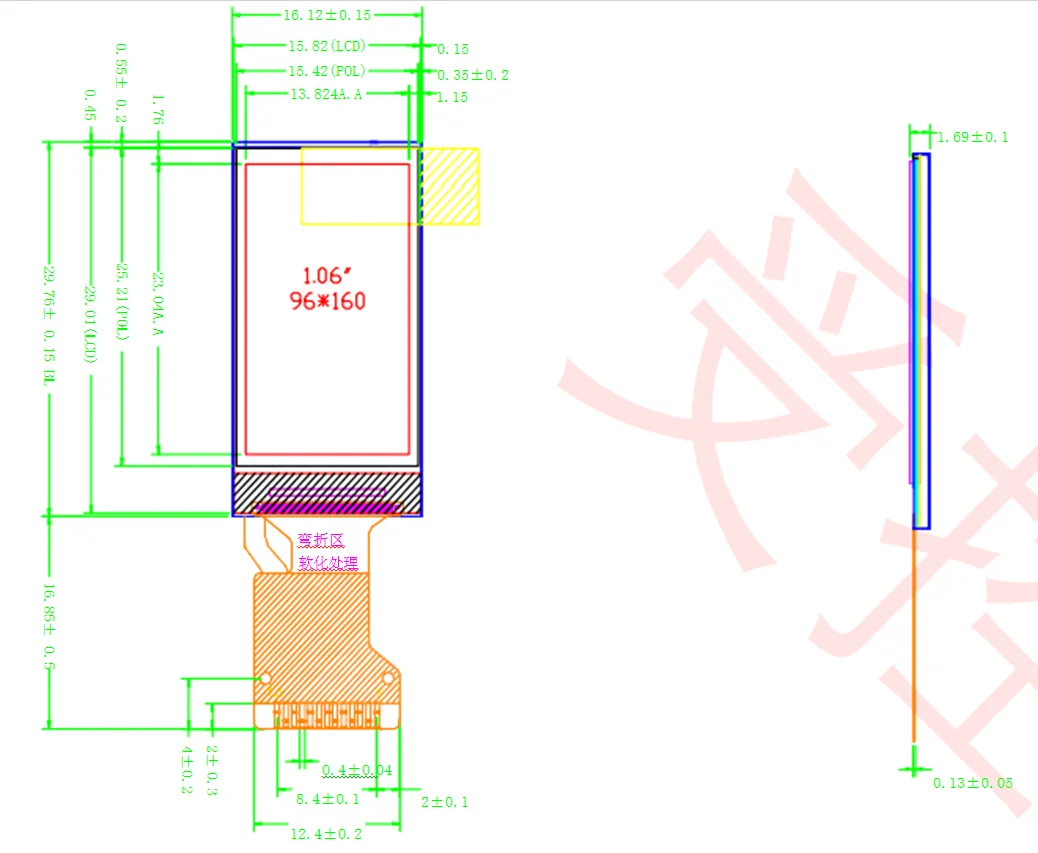

Drawings
