High Precision Flat Grinder Machine Price M7130 M7140 M7150 Hydraulic Surface Grinding Machine For Metal
- Category: >>>
- Supplier: Henan rowdai Machinery Equipment Co. LTD
Share on (1601006746182):
Product Overview
Description
Product Description

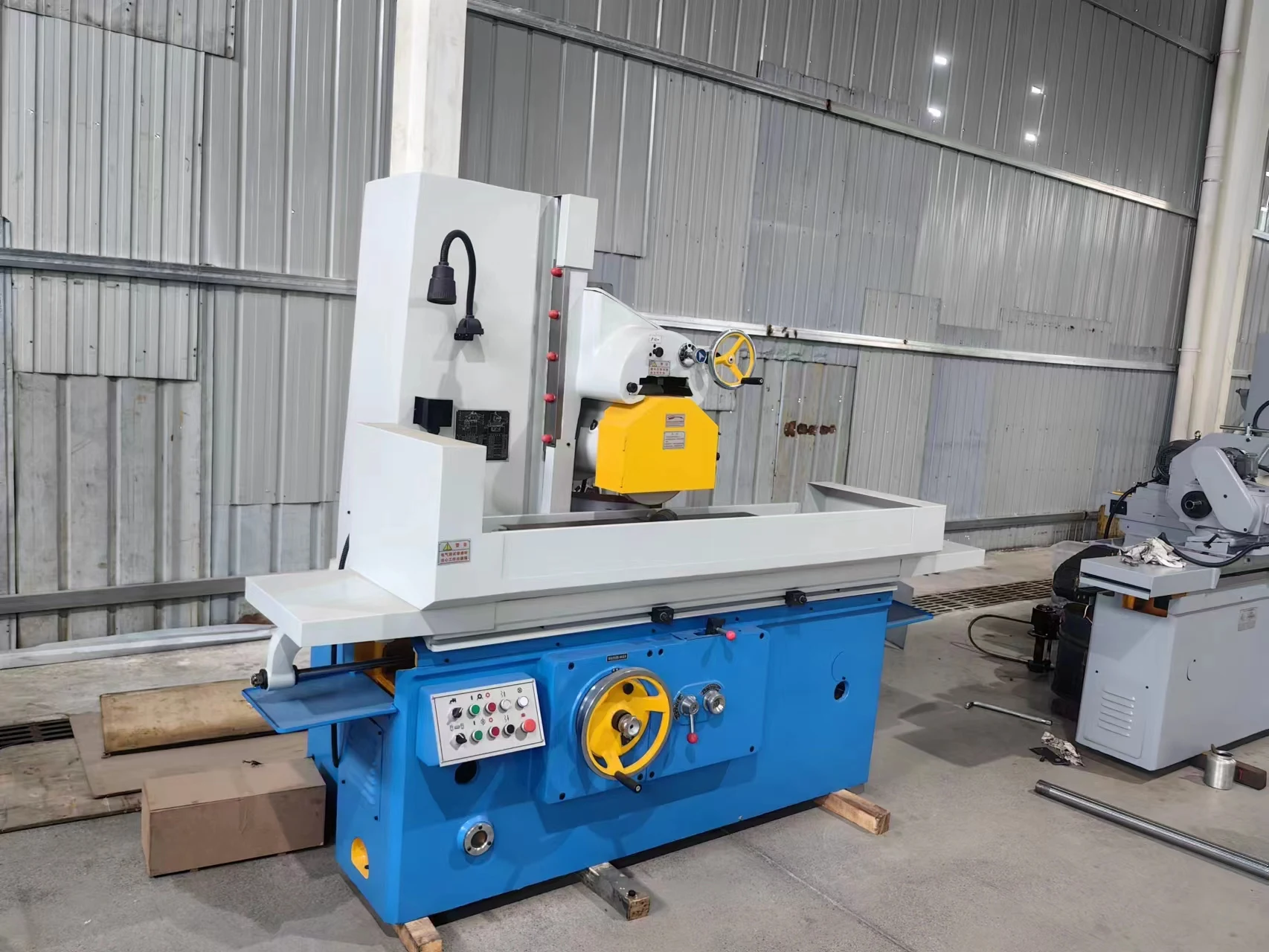

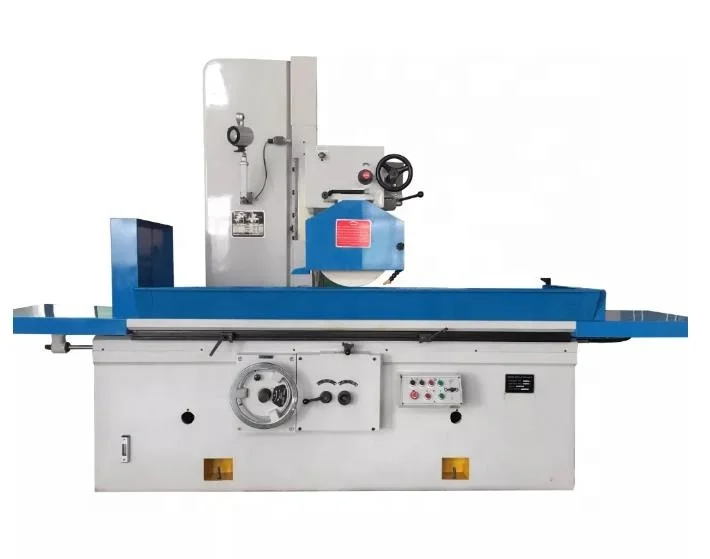

M7130/M7140/M7150 Surface Grinding Machine
Surface Grinder Grinding Machine is a universal surface grinding machine, with reasonable structure, good rigidity, beautiful appearance, easy to operate and other advantages. Suitable for grinding steel, cast iron and non-ferrous metal parts in machine shop and repair shop.
M7130/M7140/M7150 surface grinding machine has following features:
1. M7130 surface grinding machine mainly uses the grinding wheel to grind the workpiece in order to make the required flatness.
2. Rational structure, good rigidity, beautiful appearance and easy operation.
3. The table transverse movement can be realized by mechanical transmission and manual transmission.
The machine lead screw adopt special alloy steel to pass strict processing and technology for heating processing finished and it has high abrasive resistance.
The grinding head vertical can rapid lifting and it enhanced manufacturing efficiency
The grinding head cross movement drive by hydraulic, it can automatic and manual operation.
The lifting mechanism and mild steel shelf bracket adopt eccentric design easy by the adjustment that the lengthen service life of machine.
The grinding head vertical can rapid lifting and it enhanced manufacturing efficiency
The grinding head cross movement drive by hydraulic, it can automatic and manual operation.
The lifting mechanism and mild steel shelf bracket adopt eccentric design easy by the adjustment that the lengthen service life of machine.
Product Paramenters
Model ------ M7130*1000 | Unit | M7130*1000 | ||||
Table size(L×W) | mm | 1000×320 | ||||
Max movement of workingtable(L× W) | mm | 1100 | ||||
Working table | T-Slot(number×width) | 3×18 | ||||
Speed of working table | m/min | 3--25 | ||||
Max distance from spindle center to table surface | mm | 570 | ||||
Max travel of grinding head | Cross（Manual and hydraulic） | mm | 350 | |||
Vertical（Manual） | mm | 400 | ||||
Spindle speed | rpm | 1440 | ||||
Grinding head | Wheel Size （Outer diameter×width×Inner diameter） | mm | φ350×40×φ127 | |||
Scale on the vertical handwheel | mm | 0.01 | ||||
Grinding head feed per revolution of handwheel | mm | 1 | ||||
Total power | Total power | kw | 11 | |||
Spindle motor | Power | kw | 7.5 | |||
Speed | r/min | 1440 | ||||
Power | kw | 0.37 | ||||
Speed | r/min | 1440 | ||||
Power | kw | 3 | ||||
Speed | r/min | 960 | ||||
Coolant pump motor | Power | kw | 0.125 | |||
Speed | r/min | 2800 | ||||
Oil pump motor | Flow | L/min | 100 | |||
Working pressure | MPa | 1.5 | ||||
Working precision | The parallelism of working surface to base level | mm | 1000:0.015 | |||
Surface roughness | µm | Ra0.63 | ||||
Weight | N/G | kg | 3700/4300 | |||
Overall dimension（L×W×H） | Overall dimension（L×W×H） | mm | 2700×1700×2100 | |||

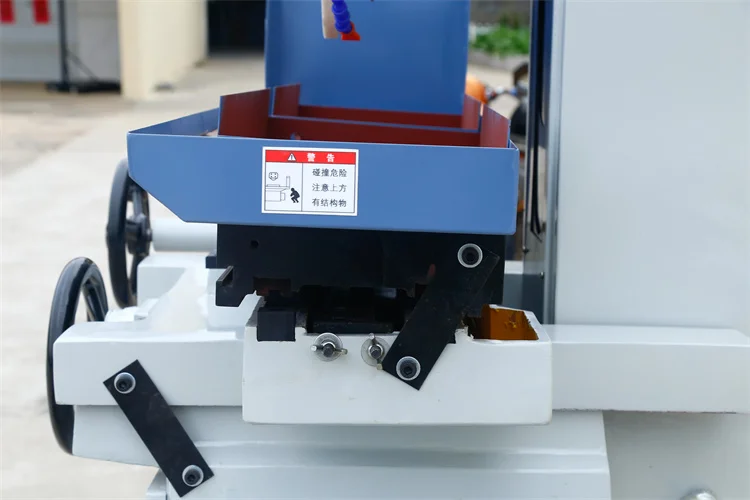

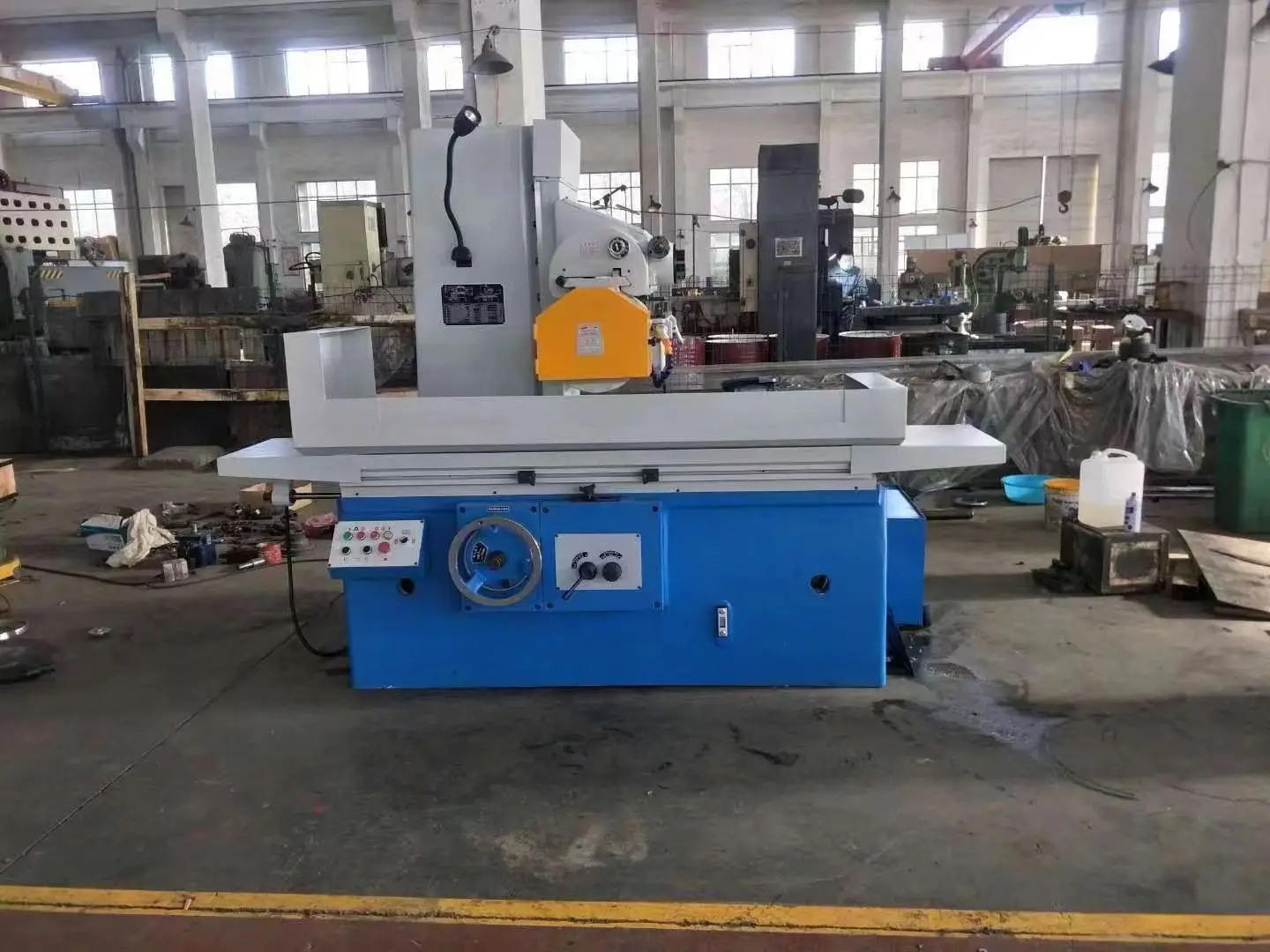

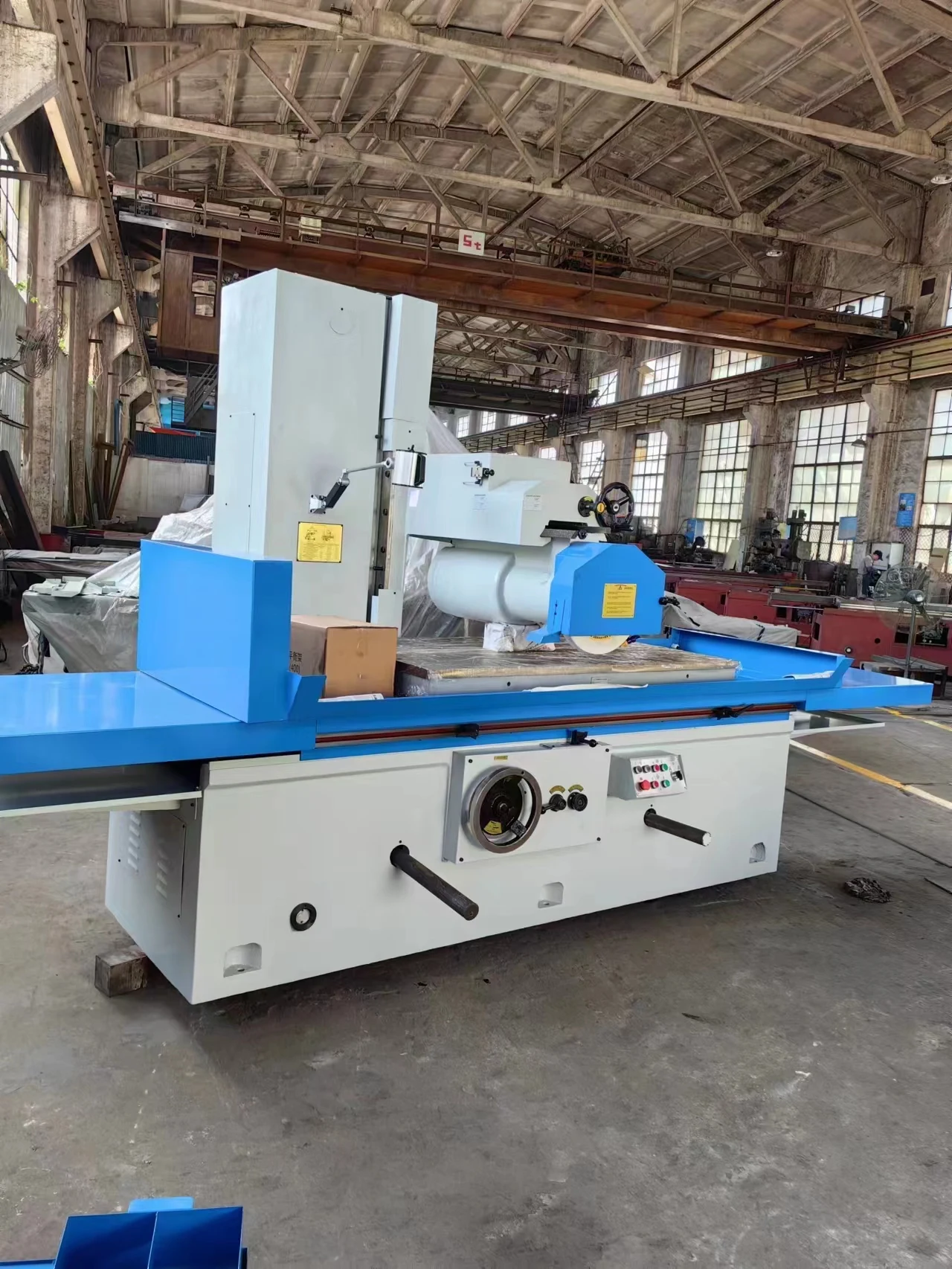

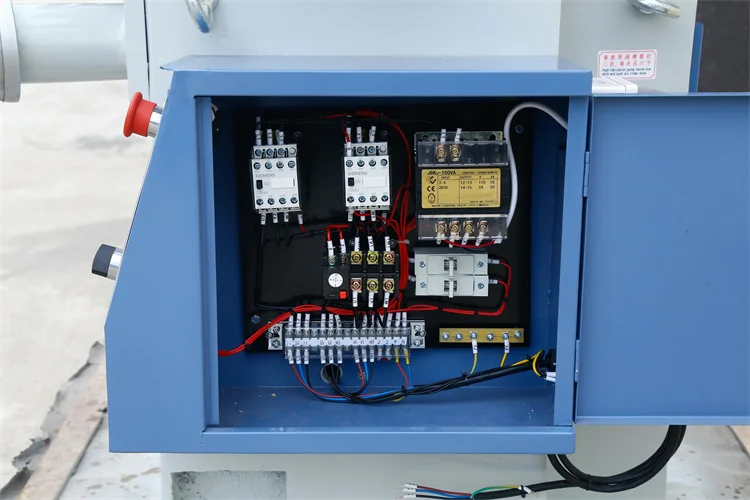

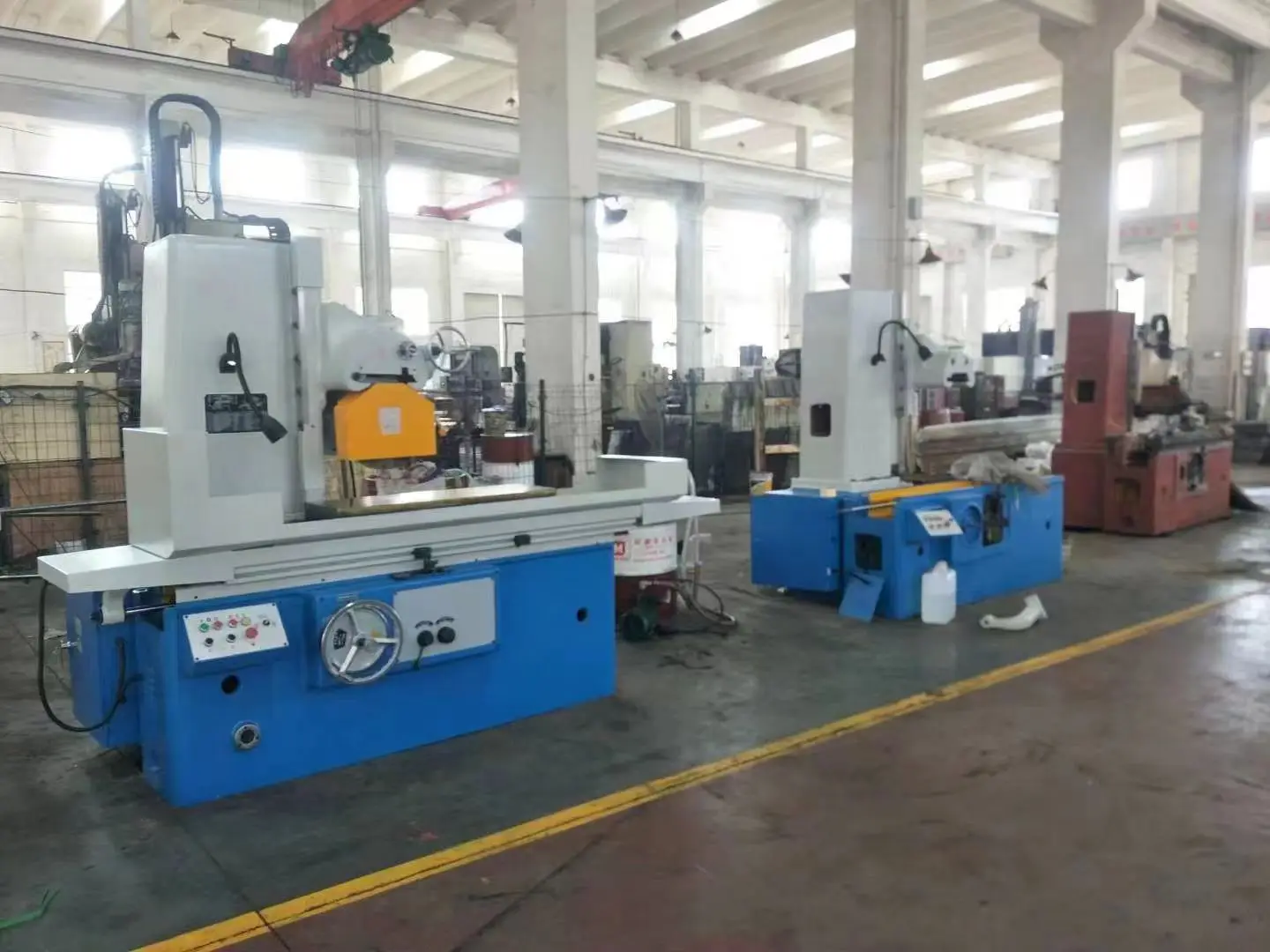

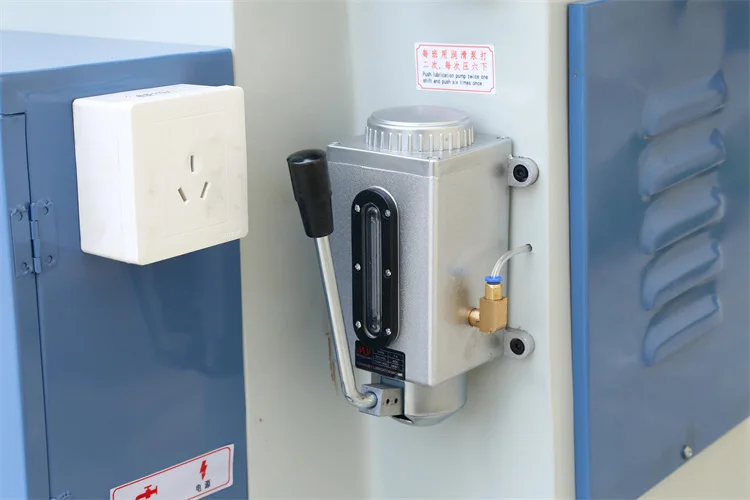

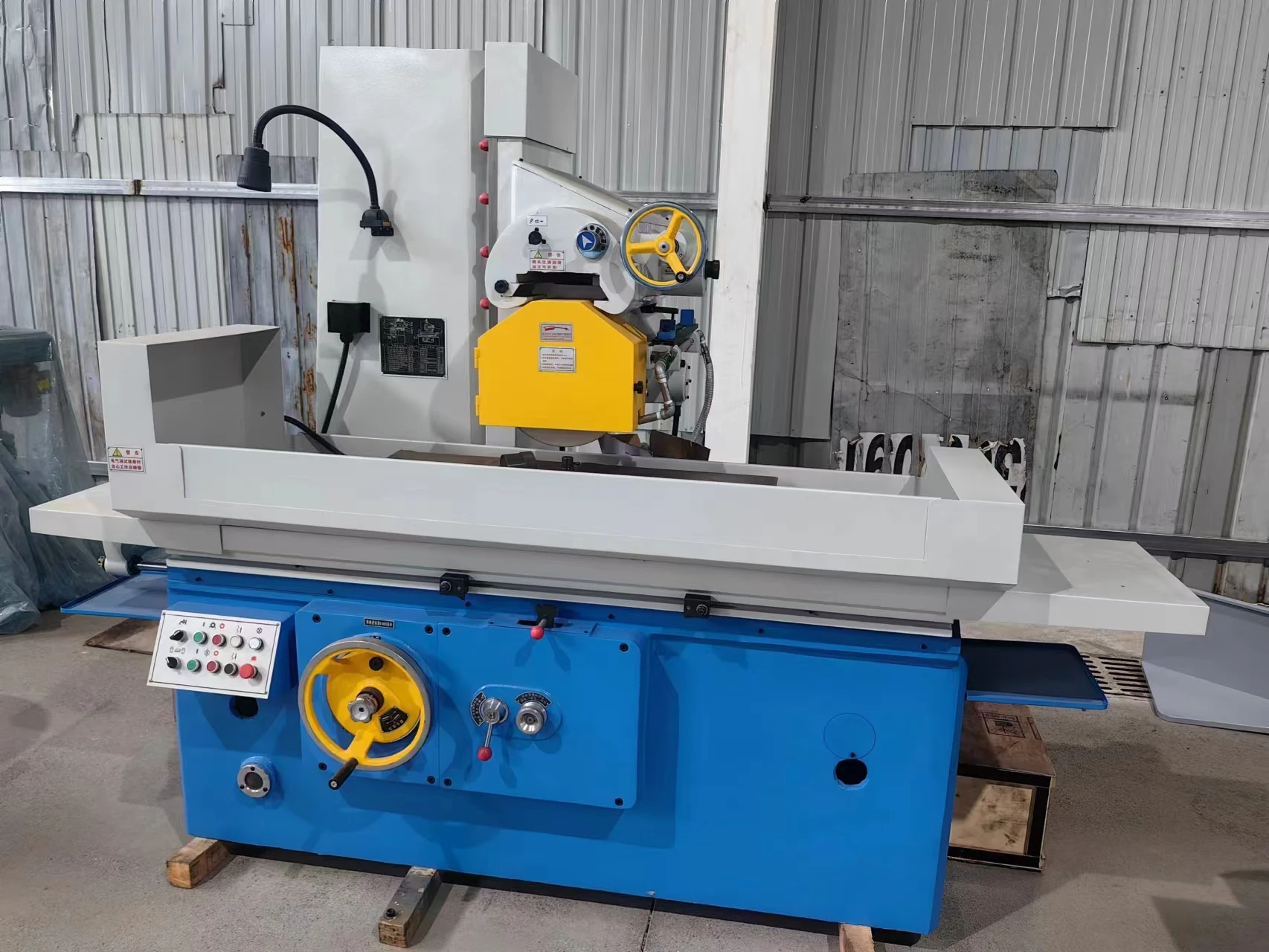

Details Images
