Mobile Portable Mini Small Central Machinery Universal Concrete Batch Plant Batching Station Mixing Plants
- Category: >>>
- Supplier: Henan Yulu Machinery Co. Ltd.
Share on (1601006758055):
Product Overview
Description
Product Description
Mobile Concrete Batching Plant.
Functions of mobile concrete batching plant
finished in the pulling chassis, combining aggregate, electronic weighing, mixing and lifting together. It can be
stopped to run or be pulled away easily, which is convenient to move and easy to install. It is can applied
to various construction sites like road surface, bridges, dams and airport, and also like architectural .
finished in the pulling chassis, combining aggregate, electronic weighing, mixing and lifting together. It can be
stopped to run or be pulled away easily, which is convenient to move and easy to install. It is can applied
to various construction sites like road surface, bridges, dams and airport, and also like architectural .
Why don't contact me?
1. Provide most suitable machine model
2. Provide the most suitable construction plan
3. Get the latest discounts on purchases!
Note: Scan WhatsApp QR code
1. Open WhatsApp and tap Settings.
2. Tap the QR code icon displayed next to your name.
3. Click Scan > OK.
4. Hold the device and scan it at the top of the QR code.
5. Click Add Contact.
6. Open wealth~
2. Provide the most suitable construction plan
3. Get the latest discounts on purchases!
Note: Scan WhatsApp QR code
1. Open WhatsApp and tap Settings.
2. Tap the QR code icon displayed next to your name.
3. Click Scan > OK.
4. Hold the device and scan it at the top of the QR code.
5. Click Add Contact.
6. Open wealth~
Product Paramenters
Main | Plant Model | YGS25 | YGS35 | YGS60 | YGS75 | ||||
Theo. Mixing Capacity | 25m3/h | 35m3/h | 60m3/h | 75m3/h | |||||
Concrete Discharge Height | 3.8m | 3.8m | 4.1m | 4.1m | |||||
Raw Material Feeding | Belt Conveyor | Belt Conveyor | Belt Conveyor | Belt Conveyor | |||||
Max. Aggregates Size | 60mm | 80mm | 80mm | 80mm | |||||
Mixing Time per Batch | 60-72s | 60-72s | 60-72s | 60-72s | |||||
Batching Machine | Model | PLD800 | PLD1200 | PLD1600 | PLD2400 | ||||
Aggregates Feed Height | 3.5m | 3.1m | 4.5m | 4.8m | |||||
Twin Shaft Concrete Mixer | Model | JS500 | JS750 | JS1000 | JS1500 | ||||
Raw Material Feeding | Belt Conveyor | Belt Conveyor | Belt Conveyor | Belt Conveyor | |||||
Mixing Motor | 18.5kw*1 | 30kw*1 | 22kw*2 | 30kw*2 | |||||
Feeding Motor | 7.5kw | 7.5kw | 11kw | 11kw | |||||
Weighing | Cement Weighing | Yes | Yes | Yes | Yes | ||||
Water Weighing | Yes | Yes | Yes | Yes | |||||
Additive Weighing | Yes | Yes | Yes | Yes | |||||
Screw Conveyor | Model | 219-6 | 219-6 | 219-8 | 219-8 | ||||
Conveying Distance | 6m | 6m | 8m | 8m | |||||
Motor Power | 7.5kw | 7.5kw | 11kw | 11kw | |||||
Cement Silo | Type | Vertical Bolted | Vertical Bolted | Vertical Bolted | Vertical Bolted | ||||
Storage Capacity | 50/100t | 50/100t | 100t*2 | 100t*2 | |||||
Control System | Model | Both computer type full-auto control and button type semi-auto control are available, depending on the customers' needs. | |||||||
Control Room | Yes | Yes | Yes | Yes | |||||
Note | bigger mobile concrete plant such as 120m3/h and 150m3/h are available. | ||||||||

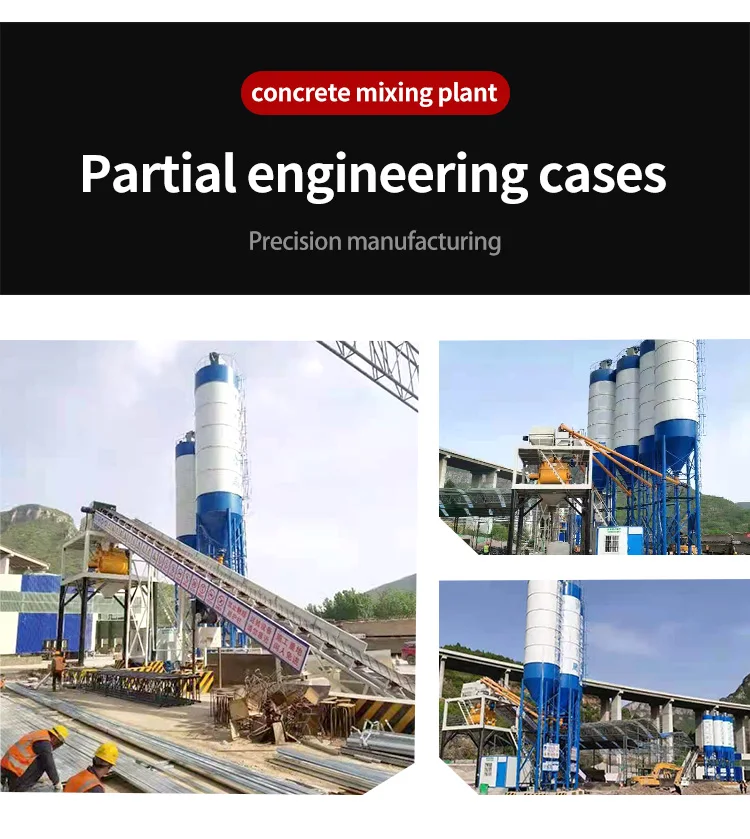

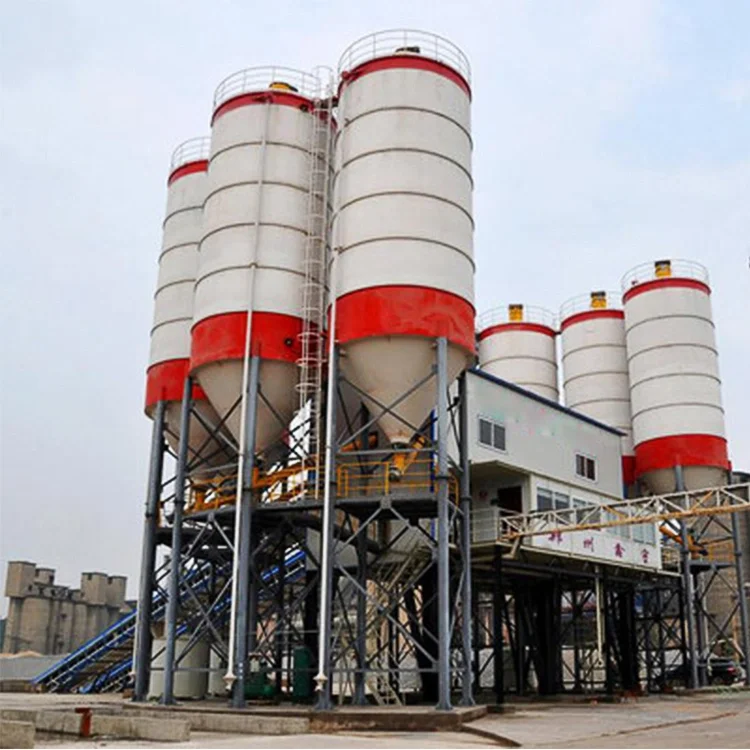

Product Display

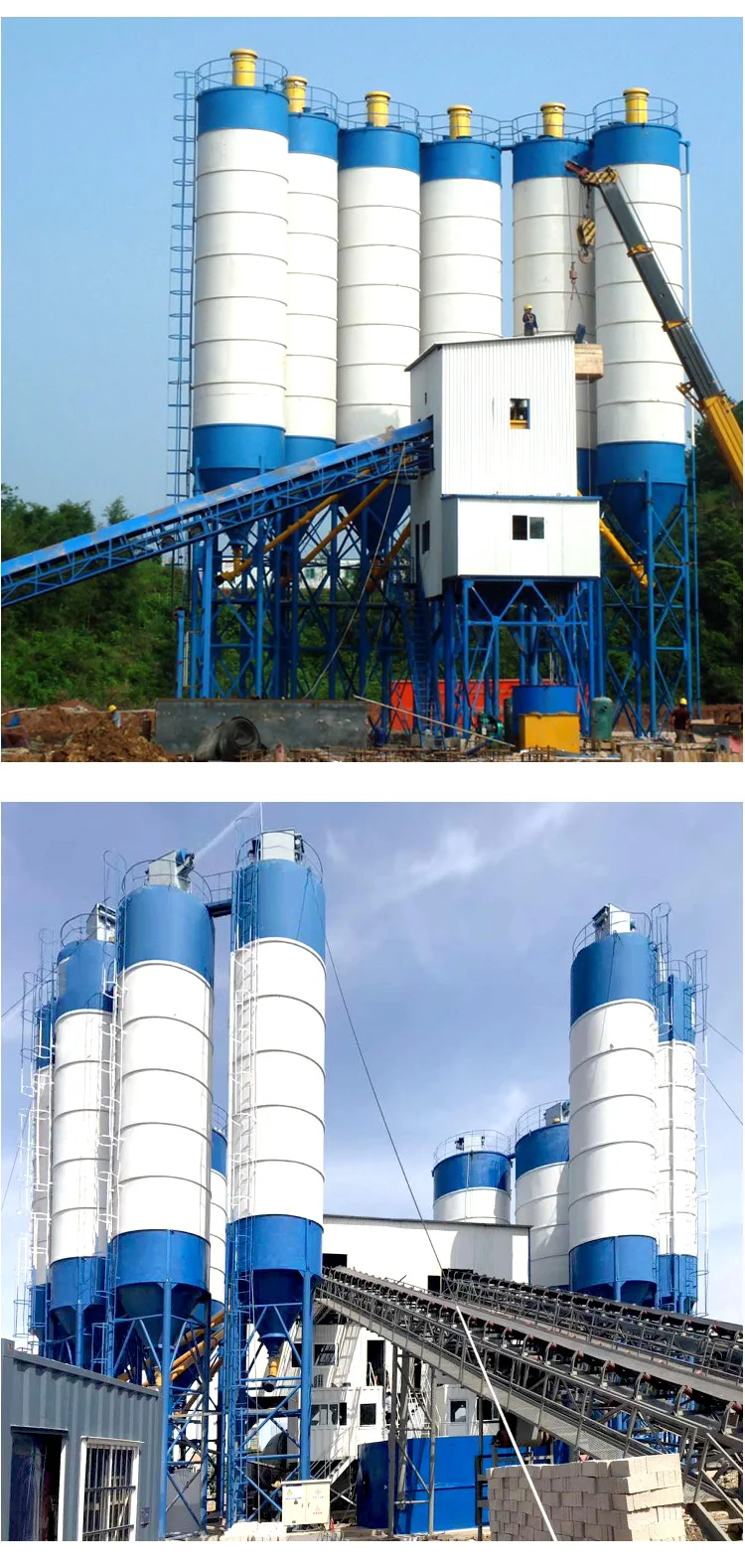

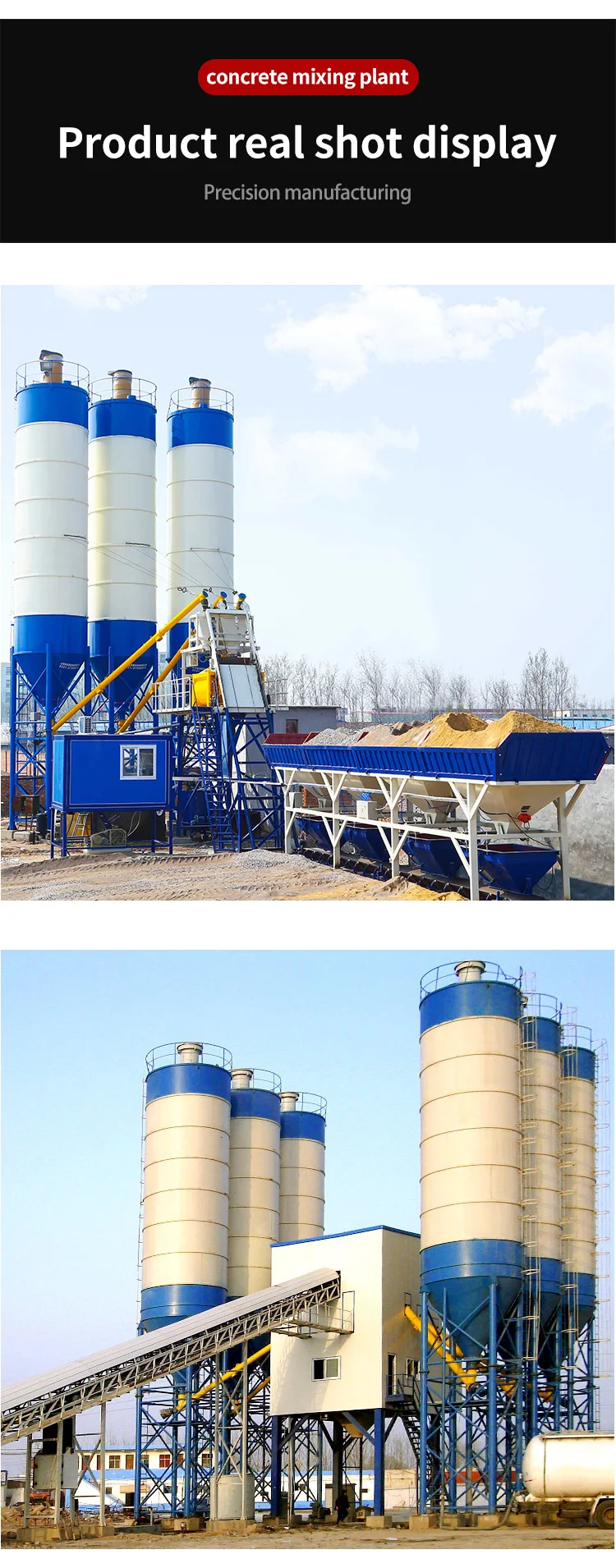

Product Real Shot
Product Usage
Our service
1.Whole process guidance
With more than 15 years of service experience,
we will spare no effort to provide support in selecting equipment, customizing production lines, improving supply chain, and post-optimization etc.
With more than 15 years of service experience,
we will spare no effort to provide support in selecting equipment, customizing production lines, improving supply chain, and post-optimization etc.
2.Provide a full set of construction method and equipment training
Provide design and construction solutions in terms of cost budget / progress improvement / quality control / safety management.
Provide design and construction solutions in terms of cost budget / progress improvement / quality control / safety management.
3.After-sales service system
Fully track the service system, focus on customer needs, first-class speed, skills, attitude, and provide support for customers' construction.
Fully track the service system, focus on customer needs, first-class speed, skills, attitude, and provide support for customers' construction.
phone: 00 86 155 1568 2190
4.Support customization
Relying on our powerful flexible production line, we can give you the right to fully choose the mold, drive method, accessories upgrade, shell material, appearance color and Logo etc.
Relying on our powerful flexible production line, we can give you the right to fully choose the mold, drive method, accessories upgrade, shell material, appearance color and Logo etc.
5.Extensive spare parts service
The spare parts warehouse of more than 50,000 square meters can meet the timely replacement and supplement of any wearing parts.
The spare parts warehouse of more than 50,000 square meters can meet the timely replacement and supplement of any wearing parts.
6.Support sea, land and air transportation
We can ship products to every corner of the world. If you need, we also support a series of tedious tasks such as customs clearance and tail end delivery.
We can ship products to every corner of the world. If you need, we also support a series of tedious tasks such as customs clearance and tail end delivery.
Product Packaging
Packaging Details
1. Out package: Standard marine export plwywood cases;
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Delivery Time
Within one week
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Delivery Time
Within one week
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
