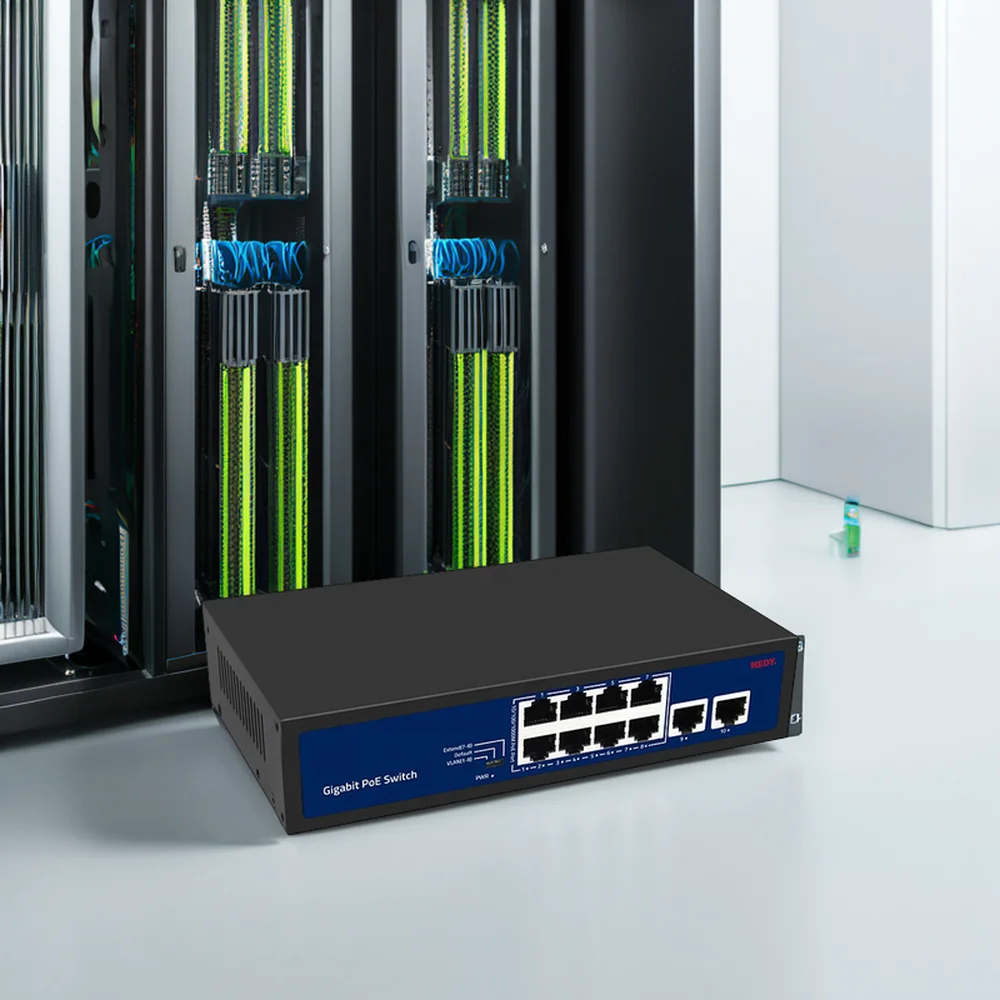

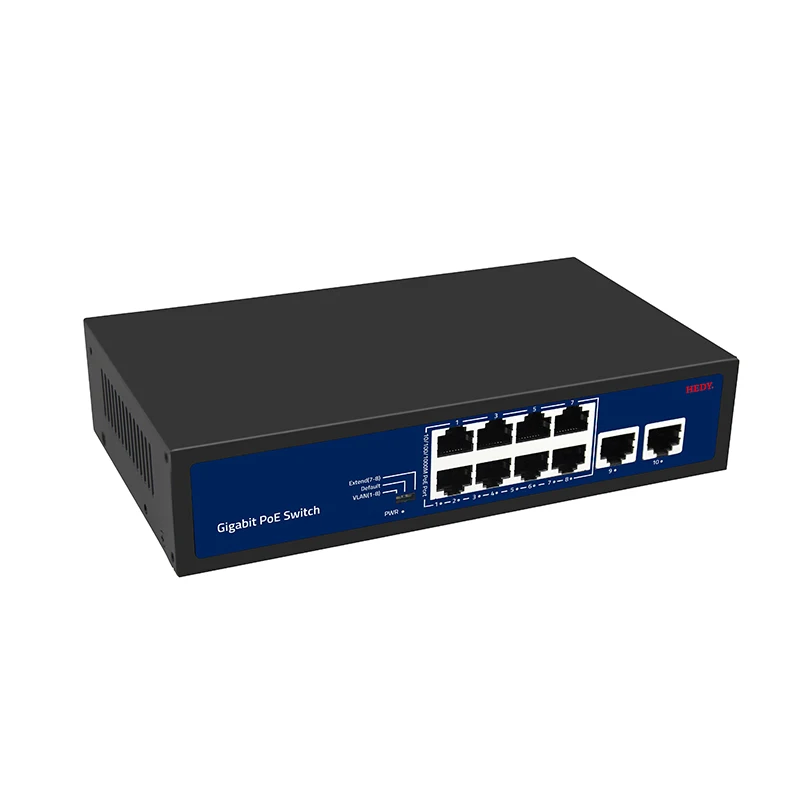

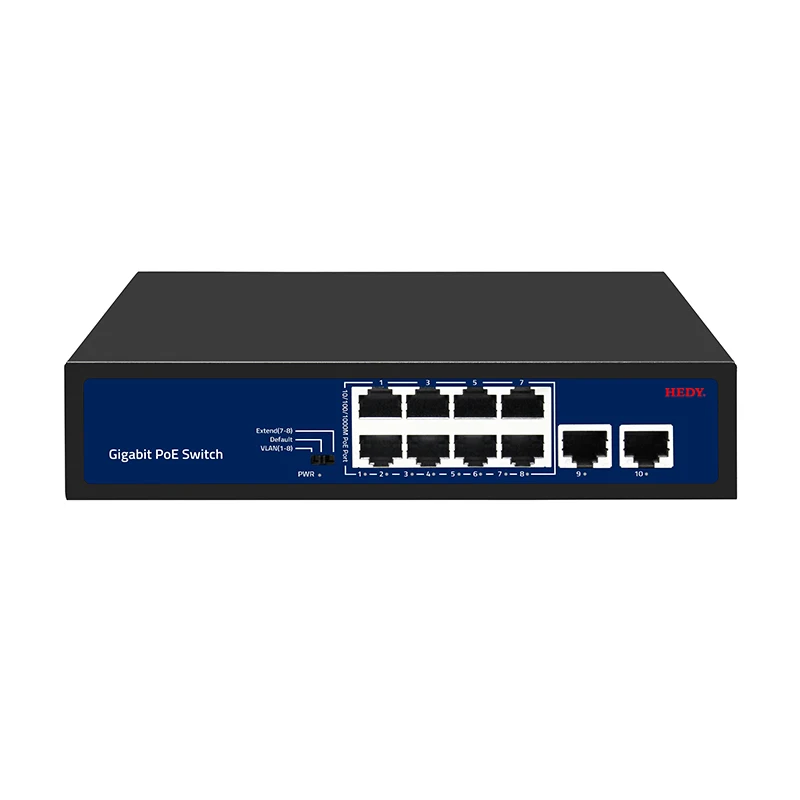

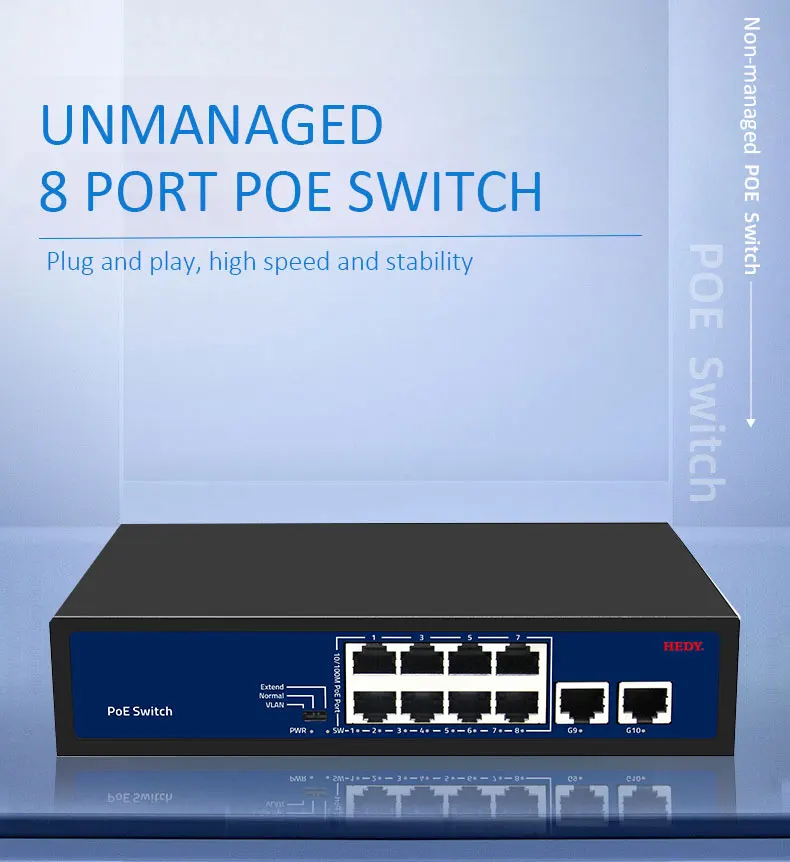

unmanaged 8 2 Ports PoE Switch 4 8 16 24 ports 10/100M & Gigabit ethernet fiber switch poe IEEE802.3af/at suitable CCTV,NVR

I/O Interface

Power

AC INPUT (100-240V)

Ethernet

8* Gigabit PoE Ethernet Ports
2* Gigabit Uplink Ethernet Port

Performance

Bandwidth

20Gbps

Pack forward rate

14.88Mpps

Memory cache

448Kbit

MAC address

2K

Transfer mode

Store and forward

Standard

Network Protocol

IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af(15.4W)
IEEE802.3at(30W)
POE port output voltage: DC 52V
POE power supply core: 1/2+; 3/6-

Network Medium

10Base-T : Cat3, 4, 5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)

Environment Standard

Working Environment

Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~95%, non-condensing

Function Indicator

Indicator

PWR (Power)，1-10 Green Light (Link&Data)

PWR

On: Powered on
Off: Powered off

1-10 Green Light (Link&Data)

On: Link normal
Off: Link blocked
Flashing: Data transmitting

DIP Mode

VLAN：Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface.
Default：Normal mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the
transmission rate is 10/100/1000M adaptive; The port AI mode is disabled.
Extend：Link extension mode, 7-8 ports force 10M, transmission distance extend to 250M.

Physical Structure

Structure Size

Product size: 200*118*44mm
Package size: 245*190*60mm
Net weight: 0.71KG
Gross weight: 0.99KG

Packing Info

Outer box size: 520*320*400mm
Packing quantity: 20 sets
Packing weight: 20.8KG

Power Voltage

Input voltage :AC100-240V
Power supply: 96W

Packing List

Switch 1 PC, Power cord 1 PC, User manual 1 PC, Certificate 1 PC

Order Info

HD8G2G-96-V4

10 Port Gigabit Standard PoE Switch
