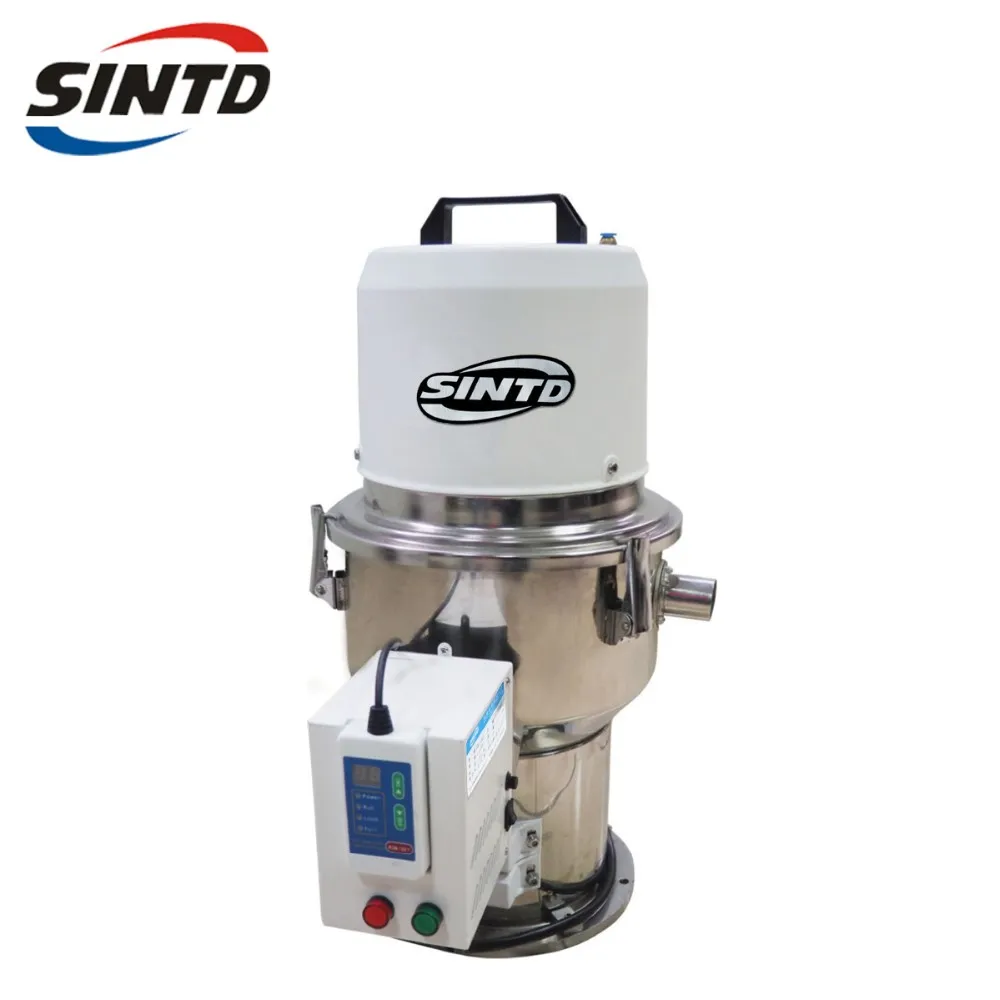

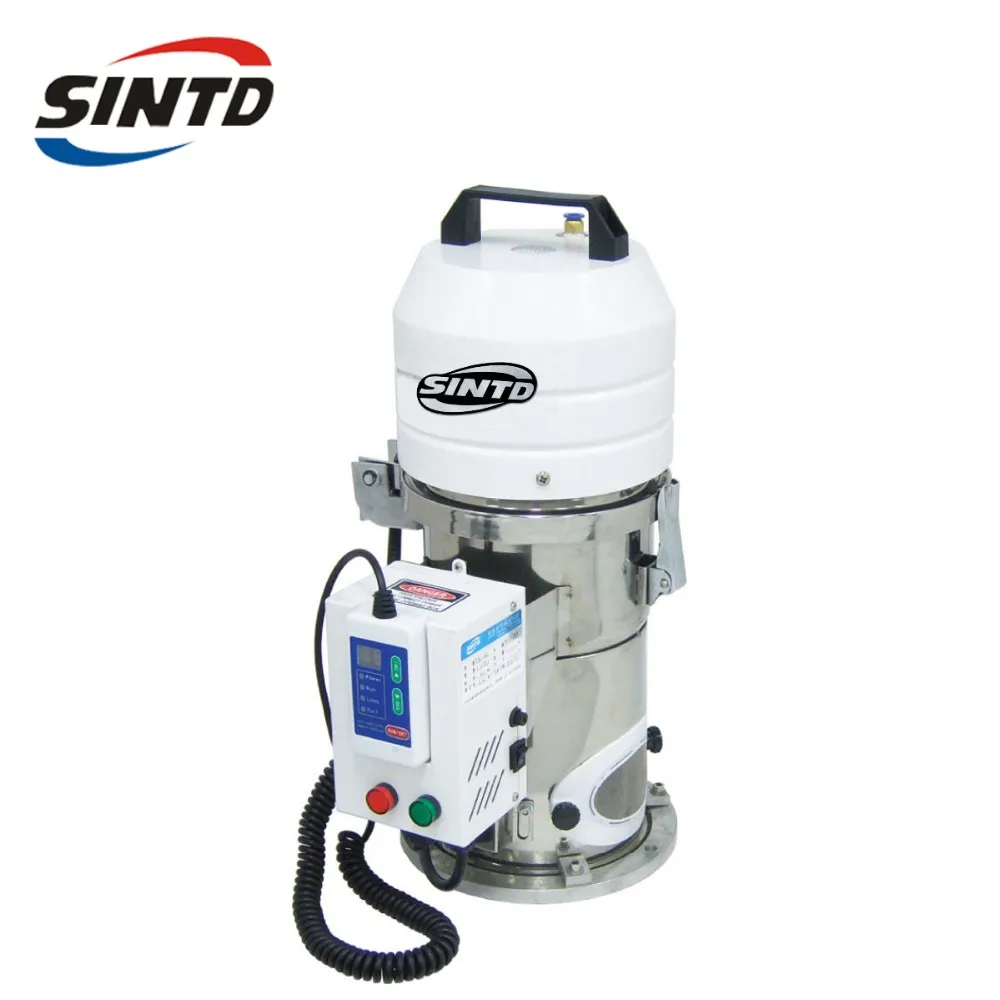

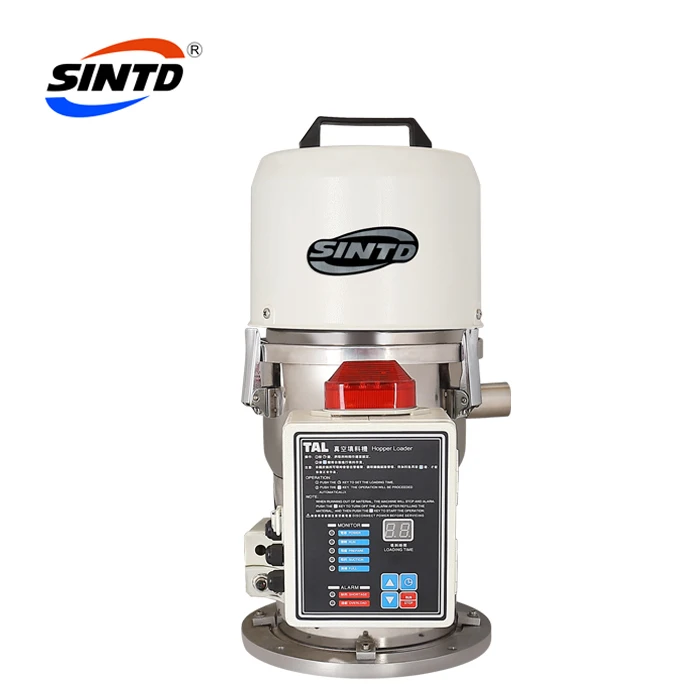

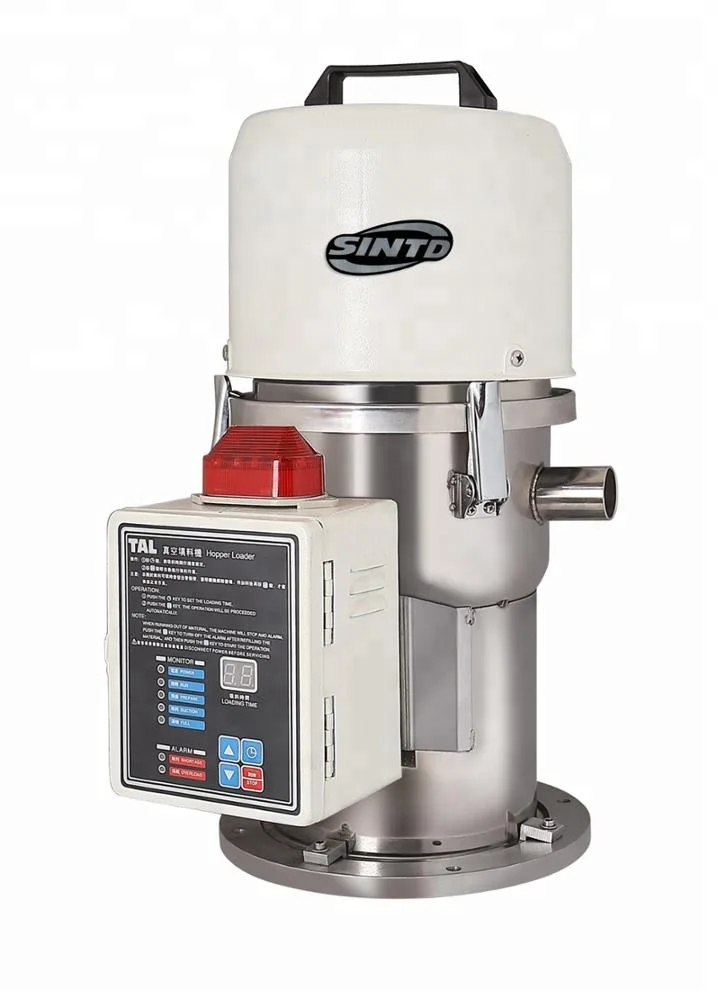

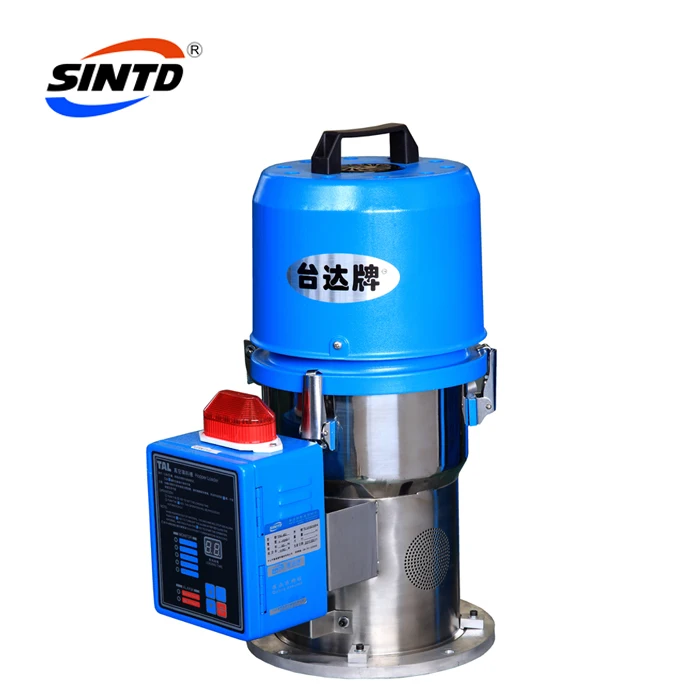

TAL 6U Industrial Euro Full Auto Plastic Powder Vacuum Feeder Suction Hopper Loader
- Category: >>>
- Supplier: Taida Plastic Technologies (zhongshan) Co. Ltd.
Share on (1601006804786):
Product Overview
Description
Product Description
Euro Self-contained Hopper Loaders
Instructions:
Euro design with stainless steel hopper to keep material from pollutions, in addition, it has an attractive and polis shed apperarance,and a sound proof motor cover to reduce noise level.And it is co invenient to move.Remote operation becomes simple and convenient by using a det achable control panel.
Features：
1、TAL-1.5U~TAL-12U use carbon brush motor with high rotation speed, large air flow.It is easy to install and move the small machine.
2、Microprocessor control is easy to operate. Control the machine accurately with multiple alarm indicators
3、Indicators of motor started assurance.
4、European two-proportion-valve electrical control function(optional)
Features：
2、Microprocessor control is easy to operate. Control the machine accurately with multiple alarm indicators
3、Indicators of motor started assurance.
4、European two-proportion-valve electrical control function(optional)
5、Hopper and Base can be adjusted to arbitrary direction.
6、TAL-U use the magnetic switch, while TAL-U-E use the photoelectric proximity switch. It is sensitive,and in stable quality.
7、All models are equipped with hinged hopper cover, convenient to clean the filter.
6、TAL-U use the magnetic switch, while TAL-U-E use the photoelectric proximity switch. It is sensitive,and in stable quality.
7、All models are equipped with hinged hopper cover, convenient to clean the filter.
8、TAL-3U/6U and other larger models can be equipped with outer dia 275mm base and mounted with hopper dryers THD-40U /THD-12 and other larger models(installation size:180mmx180mm)
9、TAL-1.5U model equipped with outer dia 220mm base can be mounted with THD-20U/40U(installation size:140mmX140mm)
10、TAL-U series are all with cloth filter, auto spray cleaning & dust removal device. Spray cleaning accumulators are optional to be used with TAL-6U and other larger models in order to reduce the manual cleaning times, and keep the equipment operation function.
11、Standard insulated European aggregate bin TCH-6U/12U/24U are optional. Equipped with aggregate bin under the hopper with magnetic switch, the loader can be directly mounted to the injection molding machine.
Upgraded to European Safety Circuit,add"CE” to the model.
9、TAL-1.5U model equipped with outer dia 220mm base can be mounted with THD-20U/40U(installation size:140mmX140mm)
10、TAL-U series are all with cloth filter, auto spray cleaning & dust removal device. Spray cleaning accumulators are optional to be used with TAL-6U and other larger models in order to reduce the manual cleaning times, and keep the equipment operation function.
11、Standard insulated European aggregate bin TCH-6U/12U/24U are optional. Equipped with aggregate bin under the hopper with magnetic switch, the loader can be directly mounted to the injection molding machine.
Upgraded to European Safety Circuit,add"CE” to the model.
NOTE:
1)Device that can auto-cleaning filter screen(use C to refer to,for example: TAL-3U-C.…),use 4~6kg/cm² preessure air.
2)Air accumulator (apply to TAL-6U,12U model o nly,use A to refer to,for example:TAL-6U-CA..).
2)Air accumulator (apply to TAL-6U,12U model o nly,use A to refer to,for example:TAL-6U-CA..).
3)Conveying capacity test standard:(height:4m)
Certifications
Packing & Delivery
Packaging | ||
Size(mm) | 1270(L) * 495(W) * 765(H) | |
Weight(kg) | 110 | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. | |
