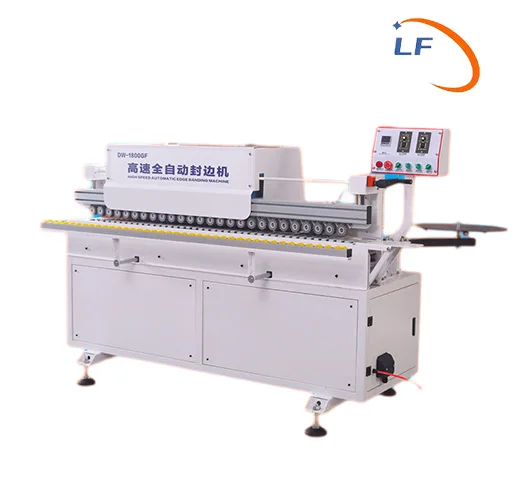

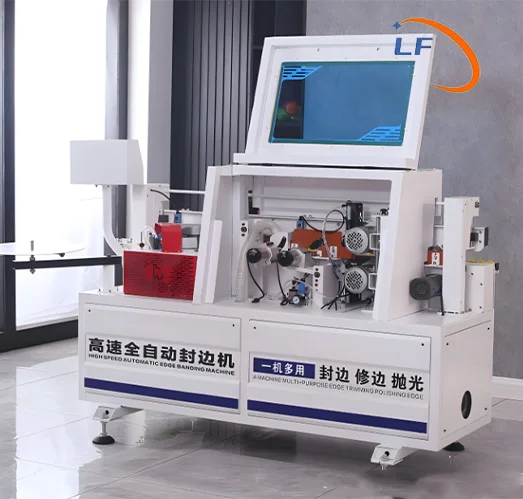

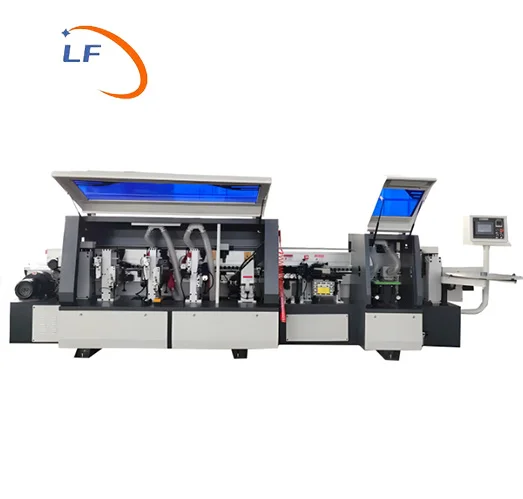

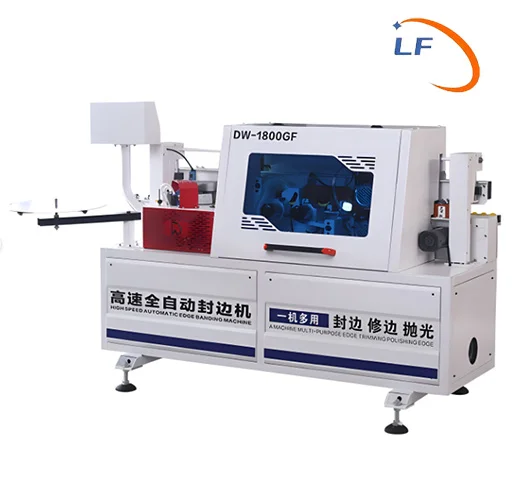

High speed Contour tracking fully automatic edge banding machine with edge
- Category: >>>
- Supplier: Yiwu Lifeng Mechanical Equipment Co. Ltd.
Share on (1601006831305):
Product Overview
Description
High speed Contour tracking fully automatic edge banding machine with edge
FEATURES AT A GLANCE
1.special and advanced PUR gluing device with high quality and better gluing performance.
2.With functions Gluing ,End cutting ,Rough trimming Fine trimming ,Scraping ,Buffing .
3.With touch screen control panel ,making it more convenient and direct while running.
4.Any errors will displayed on the screen ,make it easier to repair .
5.The fine trimming unit with high speed motor, ensure the high quality trimming performance.
6.High Quality electrical components, make sure the stable performance.
2.With functions Gluing ,End cutting ,Rough trimming Fine trimming ,Scraping ,Buffing .
3.With touch screen control panel ,making it more convenient and direct while running.
4.Any errors will displayed on the screen ,make it easier to repair .
5.The fine trimming unit with high speed motor, ensure the high quality trimming performance.
6.High Quality electrical components, make sure the stable performance.
1.The full automatic edge banding machine can polish the edge banding board , so that the color and smoothness of the edge banding
board can be better
2.The full automatic edge banding machine can also scrape the ripple marks generated in the process of curve edge banding to
ensure the smoothness of plate edge banding and surrounding parts .
3.The full automatic edge banding machine can apply glue on both side of the processed workpiece and edge banding strip through
special setting and structure ,so as to make the adhesion between edge banding strip and plate more firm
board can be better
2.The full automatic edge banding machine can also scrape the ripple marks generated in the process of curve edge banding to
ensure the smoothness of plate edge banding and surrounding parts .
3.The full automatic edge banding machine can apply glue on both side of the processed workpiece and edge banding strip through
special setting and structure ,so as to make the adhesion between edge banding strip and plate more firm
Model | 450 | |
Voltage | 380V 50HZ | |
Air source air pressure | 0.5-0.7Mpa | |
Total power | 9.5KW | |
Heating power | 2000W | |
Pre-milled motor | 380V 4000W | |
Trimming motor | 380V 2200W*2 | |
Polishing motor | 380V 400W*2 | |
Glue pot capacity | 4000ML | |
Sheet thickness | 5cm | |
Edge banding speed | 0-12 m/min | |
Weight | 430KG | |
Size | 3000*650*1350mm | |
A variety of models of edge sealing machine, the function can be arbitrary with, please consult the sales manager for details | ||
