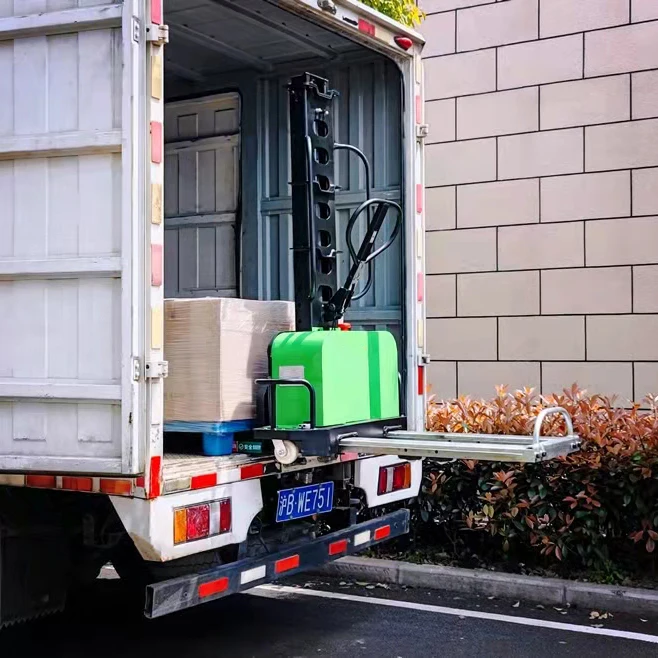

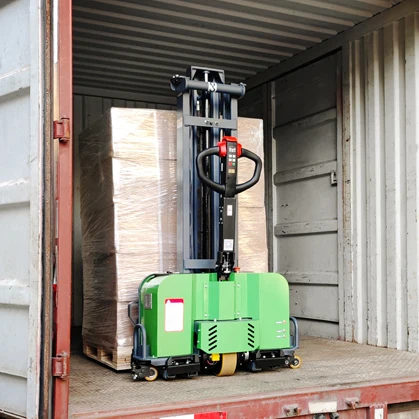

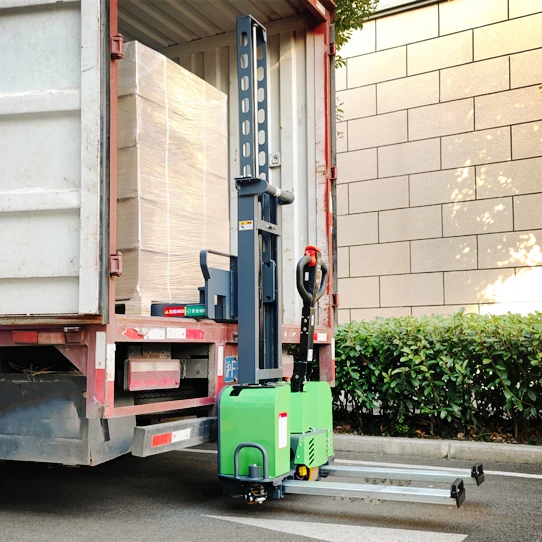

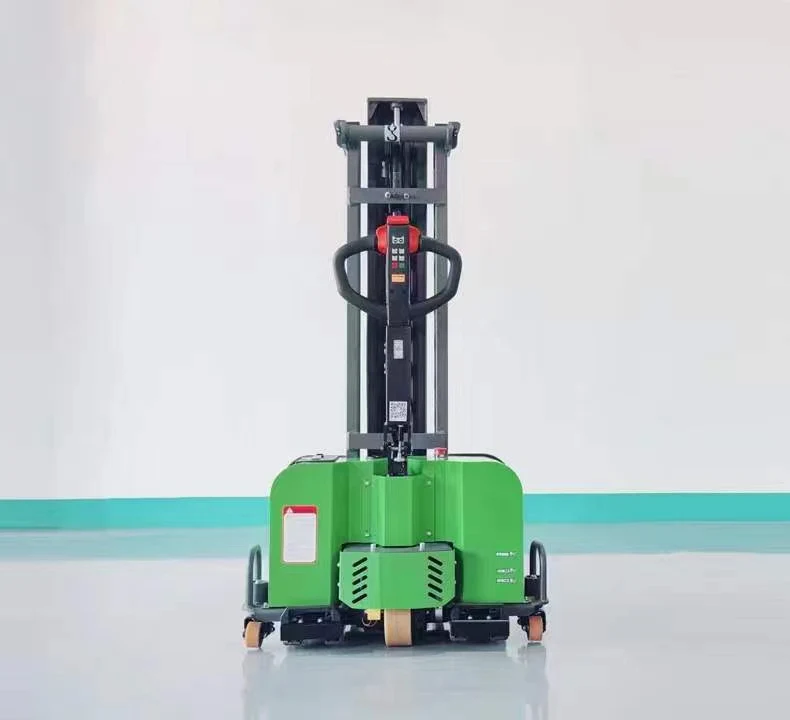

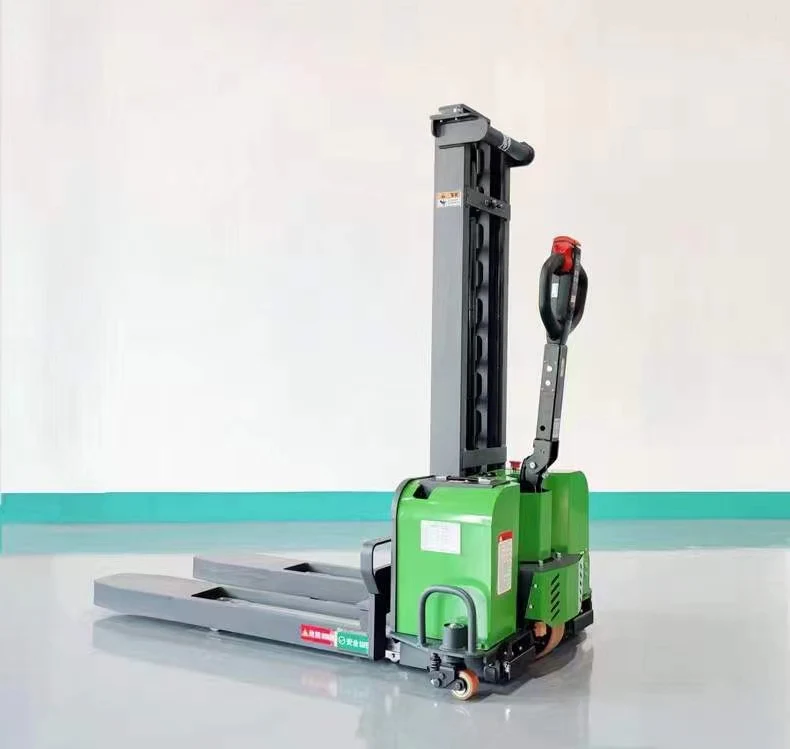

hot sale pallet truck 1.5 ton self lift full electric stacker 1.5m portable self loading stacker
- Category: >>>
- Supplier: Tianjin Konovi Technology Co. Ltd.
Share on (1601006833231):
Product Overview
Description
Product Description
All-electric truck-mounted forklift parameters | ||||||||
model | TF10-13 | TF10-15 | ||||||
Maximum load capacity | kg | 1000 | ||||||
with load center at | mm | 400 | ||||||
Maximum lifting height | mm | 1300 | 1500 | |||||
Overall length of frame | mm | 1600 | ||||||
Overall width of frame | mm | 890 | 890 | |||||
Mast lowered height | mm | 1630 | 1830 | |||||
Max height(mast lifted with backrest) | mm | 2880 | 3080 | |||||
Wheelbase | mm | 995 | ||||||
Fork length | mm | 1200 | ||||||
Fork outside width | mm | 630 | ||||||
Fork inside width | mm | 240 | ||||||
Fork thickness | mm | 70 | ||||||
min frounf height | mm | 30 | ||||||
Fork lowered height | mm | 80 | ||||||
Minimum turning radius | mm | 1300 | ||||||
Rated output | kw | 0.75 | ||||||
Rated output | kw | 1.2 | ||||||
Li-ion battery | V/AH | 24/48 | ||||||
Weight （with battery） | kg | 380 | 390 | |||||
