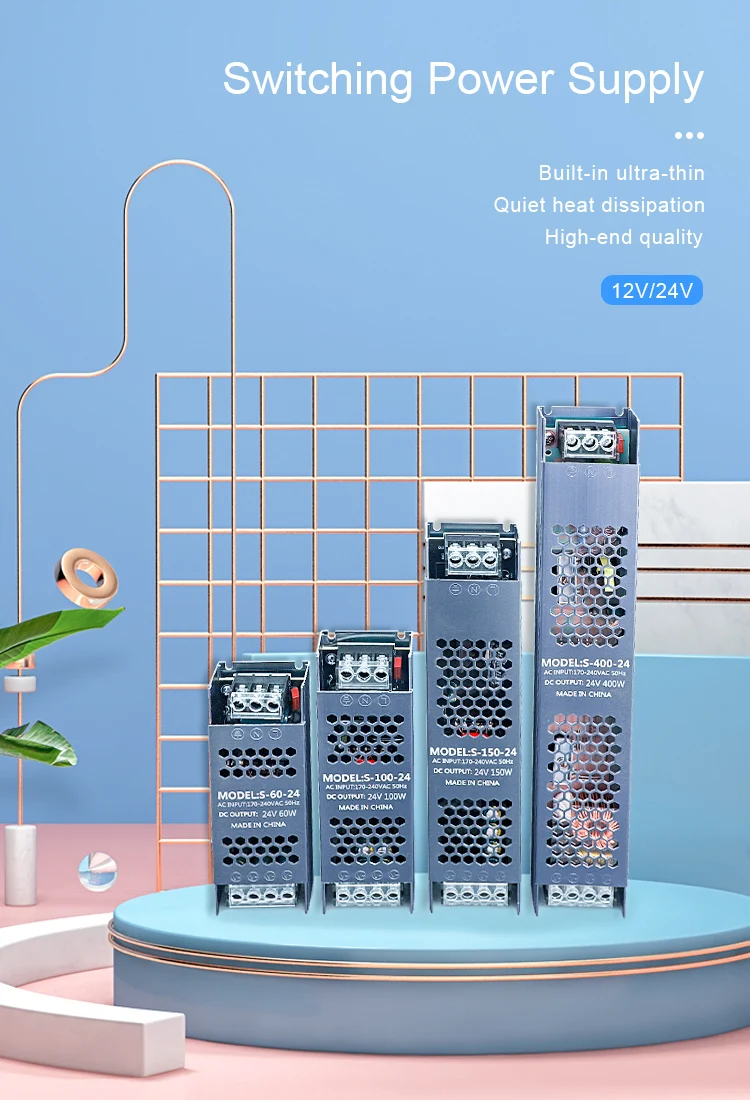

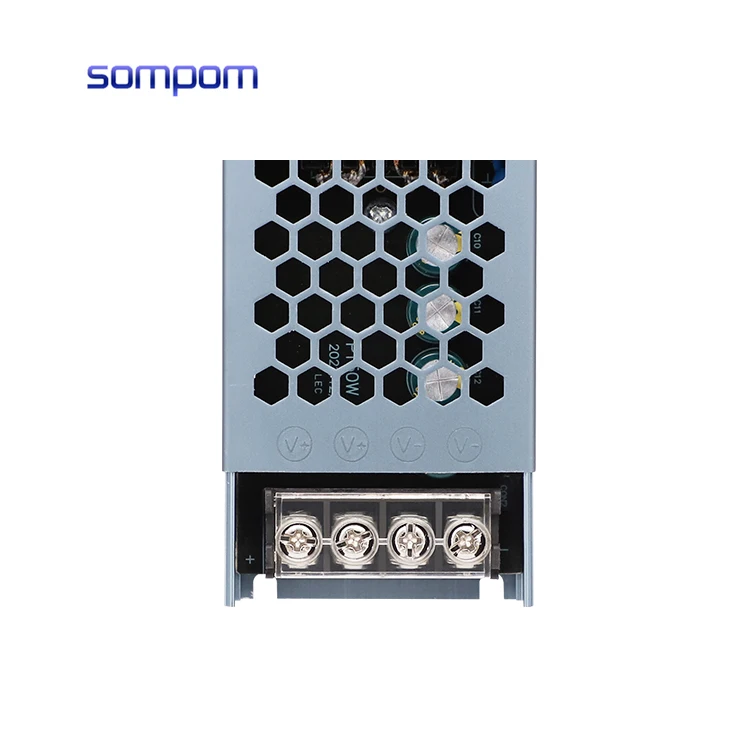

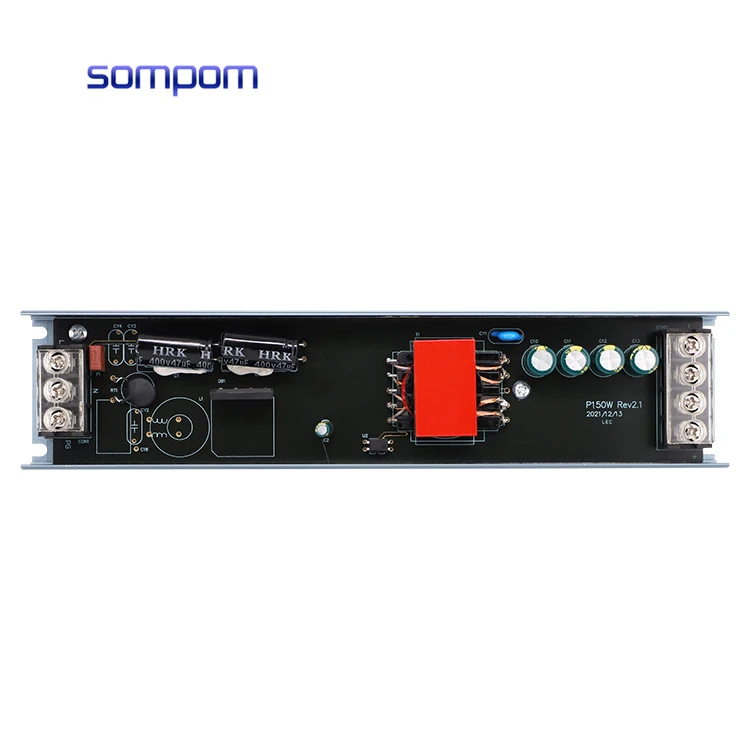

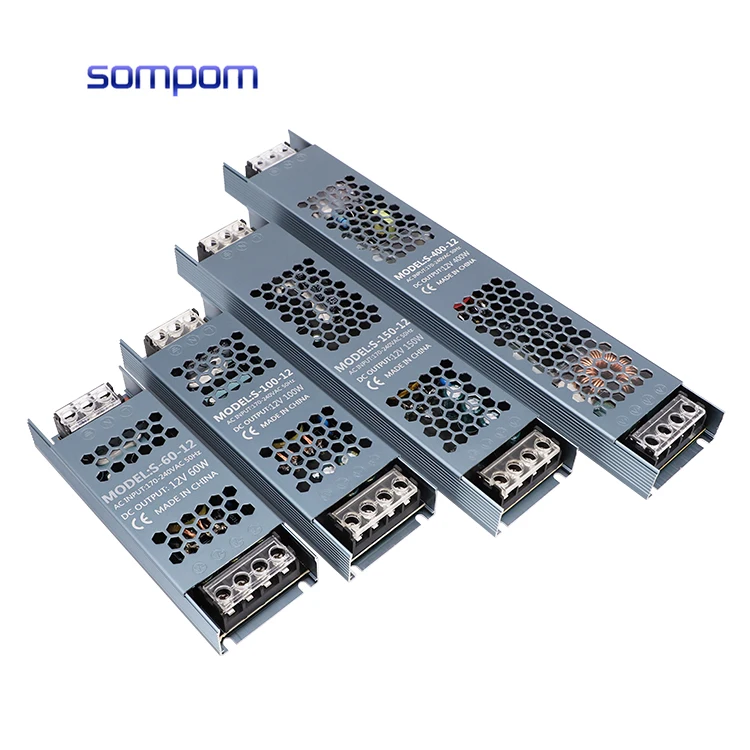

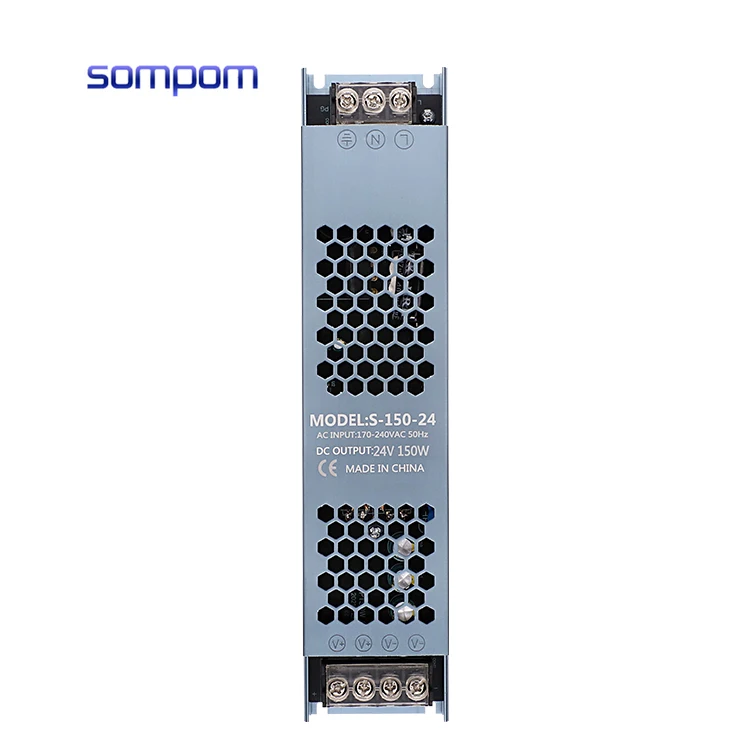

AC to DC 12V 24V 150W LED Slim Switching Power Supply 5A 8.3A 12.5A 25A 33.3A 60W 100W 150W 200W 300W 400W Single Output SMPS
- Category: >>>
- Supplier: Guangdong Province Sompom Industrial Co. Ltd.
Share on (1601006834023):
Product Overview
Description
Product Description
DC Output | DC Voltage: 12V |
DC Current : 12.5A | |
Ripple & Noise: 80MV | |
DC Adjustable Range: ±10% Rated Voltage | |
Voltage Tolerance: ±2.0% | |
Line Regulation: ±0.5% | |
Load Regulation: ±1% | |
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |

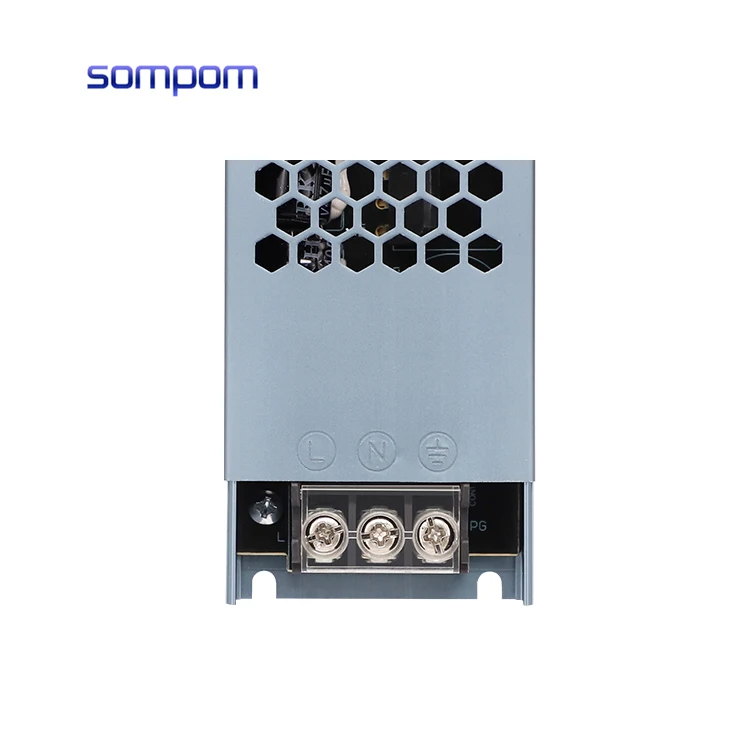

AC Input | AC Voltage Range: 170-240VAC |
Frequency Range: 47-63Hz | |
Efficiency:>85% | |
AC Current: 0.4A/230V | |
AC Inrush Current: 40A/230V | |
Leakage Current< 0.5mA /240VAC | |
Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
Over-temp. : Shut down O/P voltage, Auto-recovery | |
Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
Working Humidity:20 ~ 90% RH, non-condensing | |
Storage Temp.: -10~ +60C° | |
Storage Humidity: 10 ~ 95% RH | |
Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
Safety standards: CE,RoHS,FCC,ISO9001 |
Related products
Features: 110V/220V AC to DC Power Series 3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V | |
Model Series Link (View more) | |
Accessories
SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.

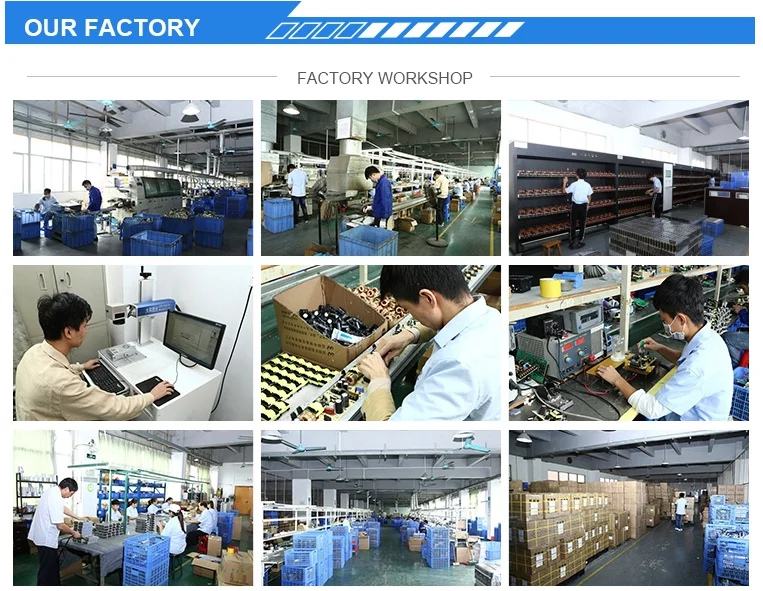

Our Factory
Our certificate
FAQ
Q1:What is your MOQ of switch power?
A:Our MOQ is 1 piece.
Q2:How many year warranty of your Led driver?
A:Two years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in Dongguan.
Q5:Is your power with copper transform or something?
A:We can do with complete copper transform and copper cladding aluminum.
Q6:What is your MOQ of switch power?
A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.
A:Our MOQ is 1 piece.
Q2:How many year warranty of your Led driver?
A:Two years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in Dongguan.
Q5:Is your power with copper transform or something?
A:We can do with complete copper transform and copper cladding aluminum.
Q6:What is your MOQ of switch power?
A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.
