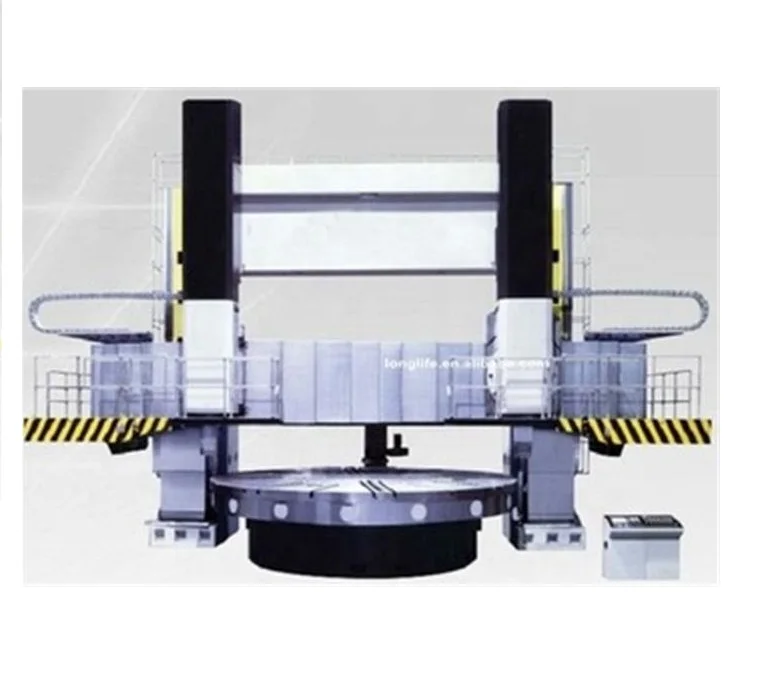

CK5263SxH/100 CNC Vertical Lathe/CNC Tornos Vertical
Related VTL Lathe
Short Summary
The cnc vertical lathe is of excellent performance, a wide range of technology, high productivity.
Based on referring to the advanced machine design and manufacturing technology, adopting the newest design philosophy, and combining the profound corporate culture, our company has developed a kind of delicate machine tools with mechatronics and hydraulics integration, and provided the world-class products for overseas and domestic customers.

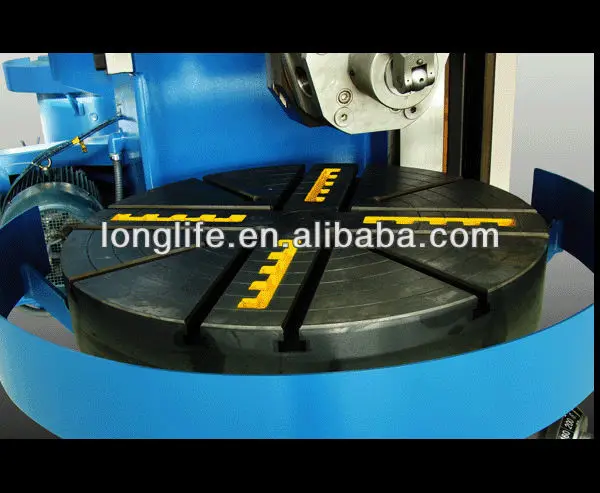

To make the lathe with high turning precision and enough rigidity and intensity, the table adopts integral casting and thermal symmetric structure, the main shaft bearing is the high-precision double row cylindrical roller bearing, and the table guideway.
CNC controllers: Fanuc, Siemens, GSK and so on.
* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice. XS
Main Technical Data
The parameter name | Unit | CK5263SxH/100 | |
Max. turning diameter | mm | 6300 | |
Table diameter | mm | 5700 | |
Max. height of workpiece | mm | 3150/4000 | |
Max. weight of workpiece | T | 100 | |
Max.torque of table | kN.m | 250 | |
Range of table speeds | rpm | 0.32-32 | |
Max. cutting force of rail head | kN | 70 | |
Swivel of rail head | ℃ | ||
| rpm | 0.1-500 | |
Horizontal travel of raihead | mm | 3400 | |
Ram travel of rail head | mm | 1600/2000 | |
Raoid traverse of tool heads | rpm | 3500 | |
Height of tool bar section(WxH) | mm | 50x50 | |
Power of main motor | kW | 110 | |
Overall dimensions(LxWxH) | cm | 1250x780x960/1090 | |
Weight of machine(Approx.) | T | 140/150 |

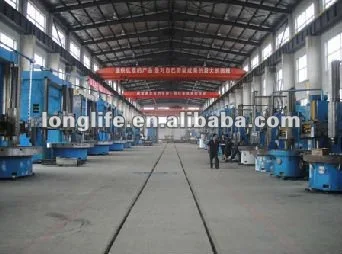

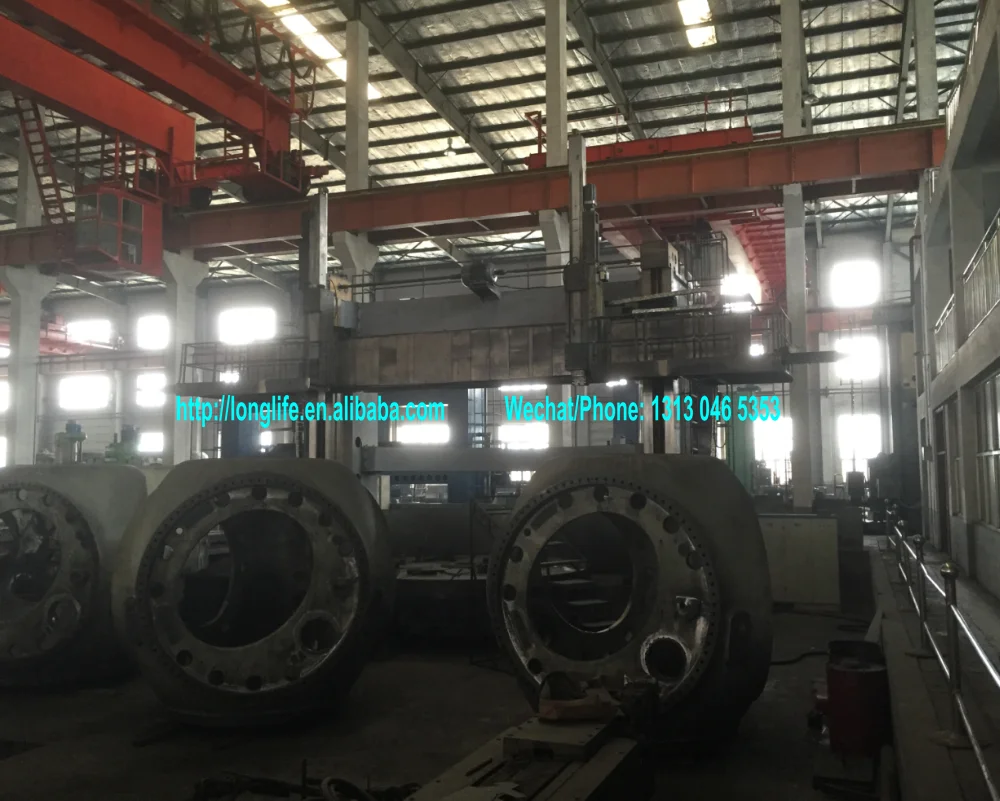

Factory Overview
