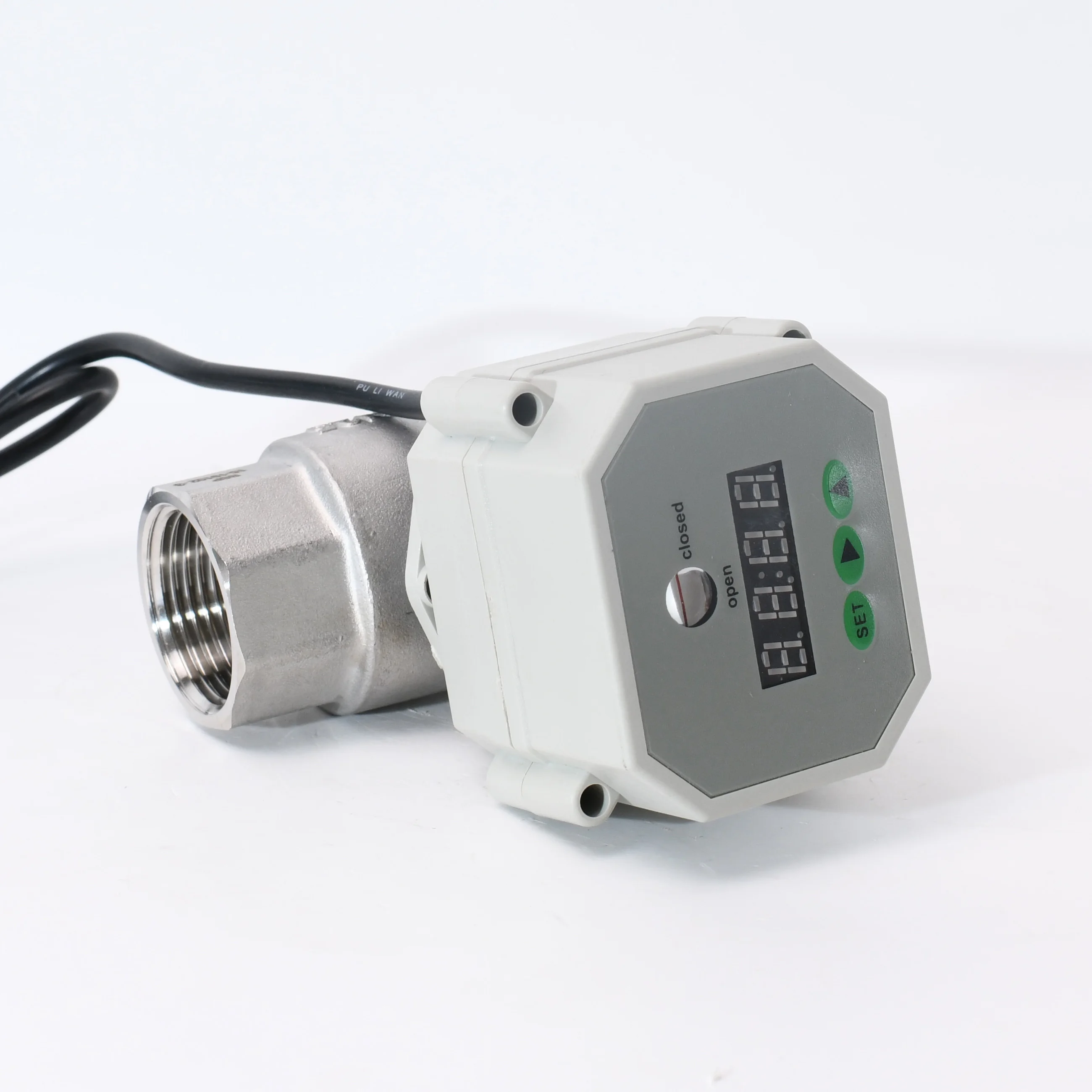

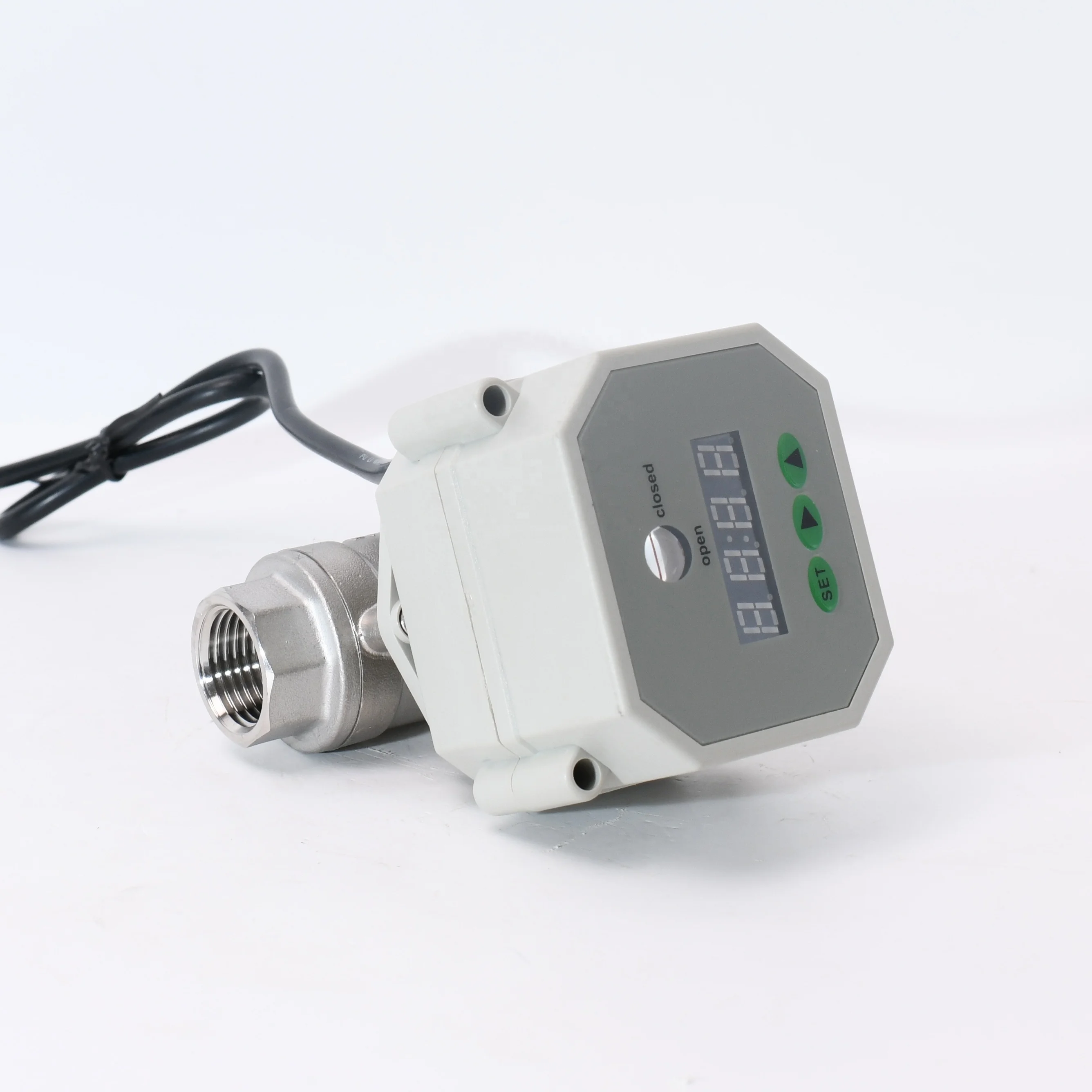

1/2'' DN15 AC/DC 9-24v SS304 electric drain timer control valve
| Size | NPT/BSP 1/2"' |
| Material | SS304 |
| Fields of applications | Water |
| Maximum working pressure | 1.0MPa |
| Rated Voltage | AC/DC9-24V |
| Packaging | Standard export package or Customized |
| Payment | L/C,D/P,T/T |
| Delivery | Ningbo Port,3-20 days after payment |
Technical Parameters:
| Working current | ≤ 500MA |
| Open/close time | ≤ 7 Sec |
| Life time | 70,000 times |
| Actuator material | Engineering Plastics |
| Sealing material | EPDM & PTFE |
| Actuator rotation | 90° |
| Max. torque force | 4 N.M |
| Cable Length | 0.5m,1.5m(Optional) |
| Environment temperature | -15℃~50℃ |
| Liquid temperature | 2℃~90℃ |
| Manual override | No |
| Indicator | Yes |
| Protection class | IP67 |
| Time control range | 0 H : 0M :0S --99 H 59 M 59 S |

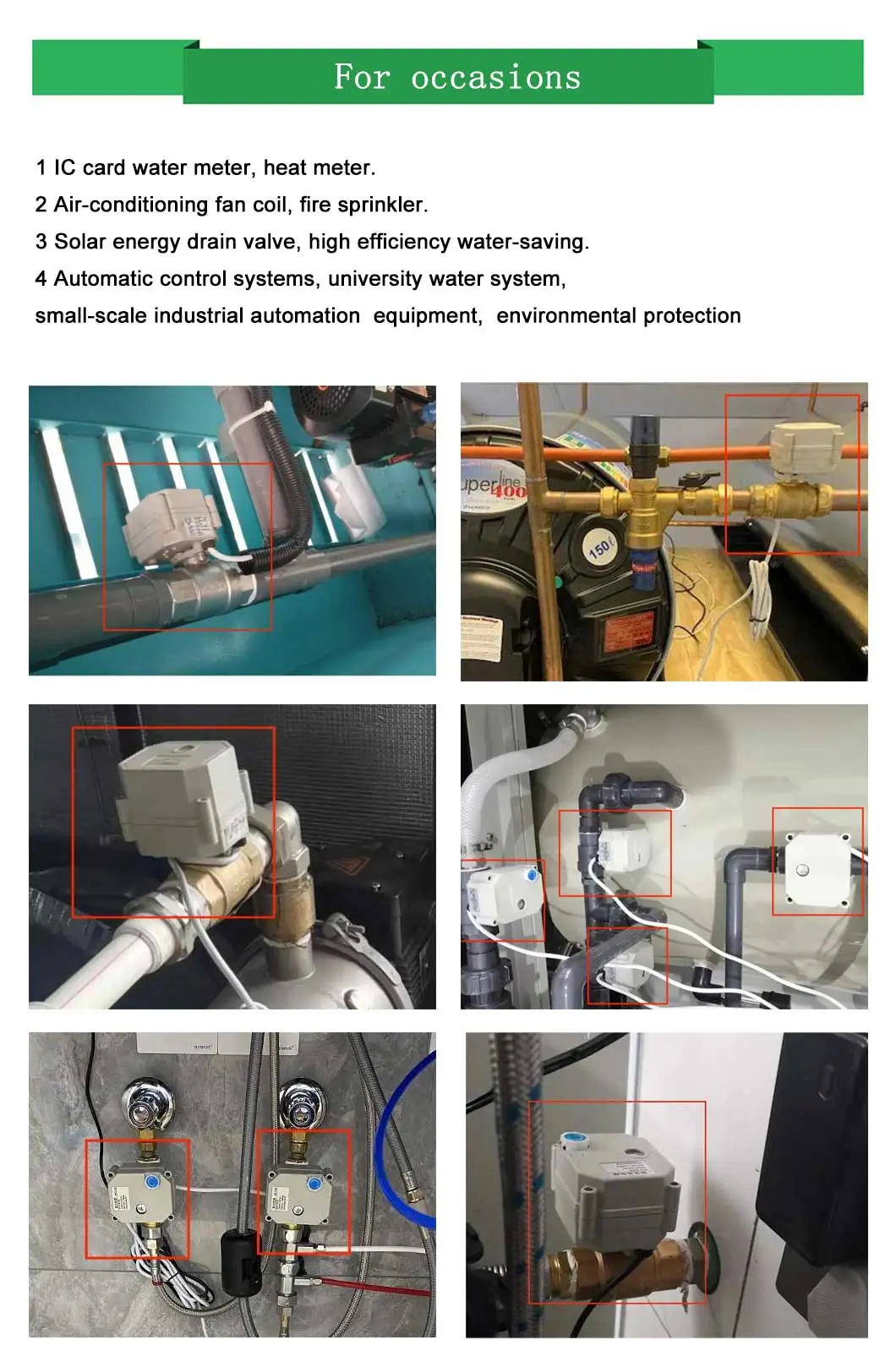

Product application :
Economic Mini Motorized Ball Valve in 2 or 3 way
Timer Control Motorized Ball Valve in Grey or Black housing
Water Leak Alarm & Automatic shut off system
Auto drain & Water cooling system
Electric brewing system
Heating & Cooling HAVC system
Water cooling bleed system
Rain water harvesting
Solar heating,undefloor heating
Irrigation system
Leak detection & water shut off system
Water saving system
And some other automatic control system.....
Pls confirm the above different versions of actuators
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, working voltage
3, wire control
4, valve manual override & indicator ( yes or no)
5, actuator cable length
TONHEFLOW is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
