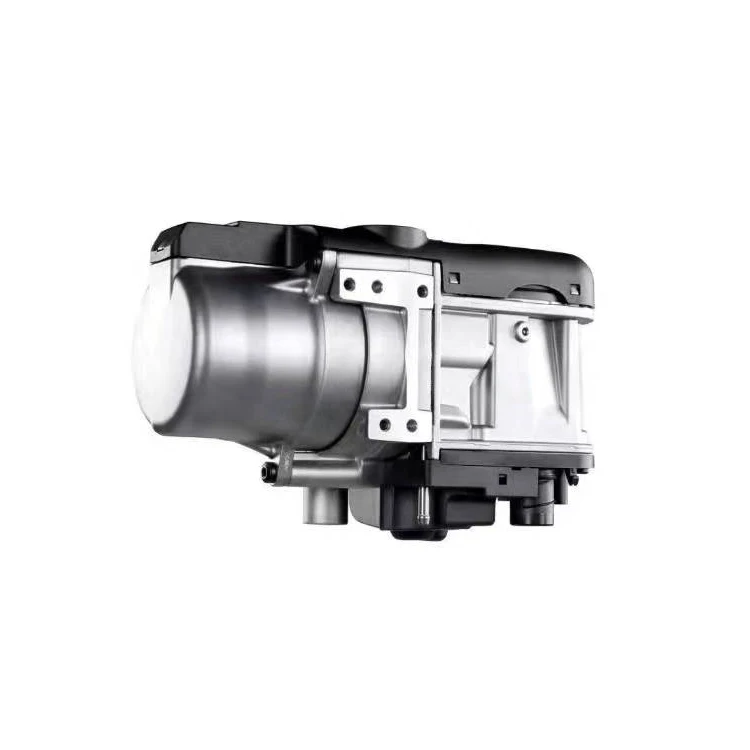

12/24 Volt DC Parking Heater 5KW Diesel Hot Water Heaters 12V/24V Electric Car Heating For Truck/Van/Caravan/RV with Fuel Tank
- Category: >>>
- Supplier: Nanjing Futrun Vehicles Technology Co. Ltd.
Share on (1601006921140):
Product Overview
Description
Details Images
Products Description
The parking heater is an in-vehicle heating device which is independent from the vehicle engine. Double effective advantage, pre-heating the engine or car cabin.

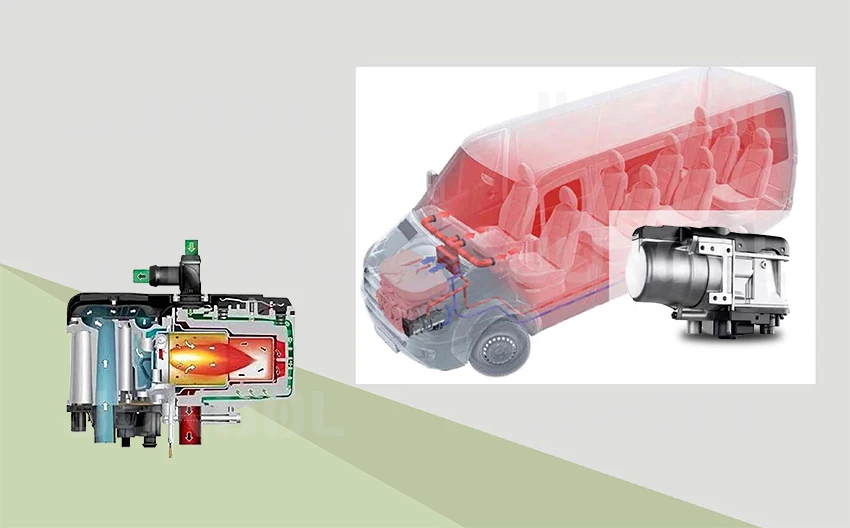

The heater is connected to the car engine cooling water circulation system, and the heat generated by the car is absorbed by the car's own heat ex changer, and then in the form of warm air, it is accurately measured and distributed to the interior of the car through the existing air duct. The preheating of the cooling water is used to preheat the engine. The heating start time can be set by the timer, or operated by the remote control to improve the comfort in the cabin

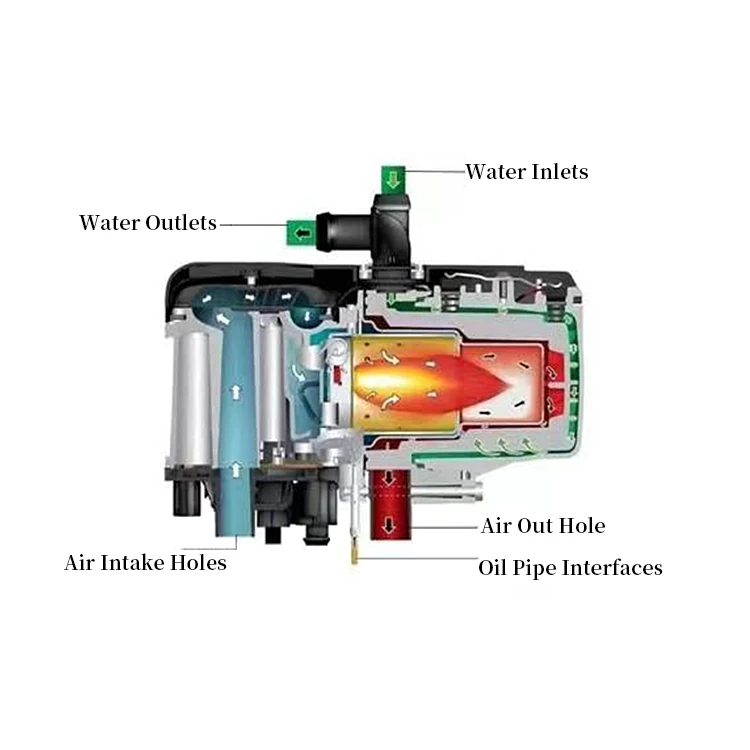

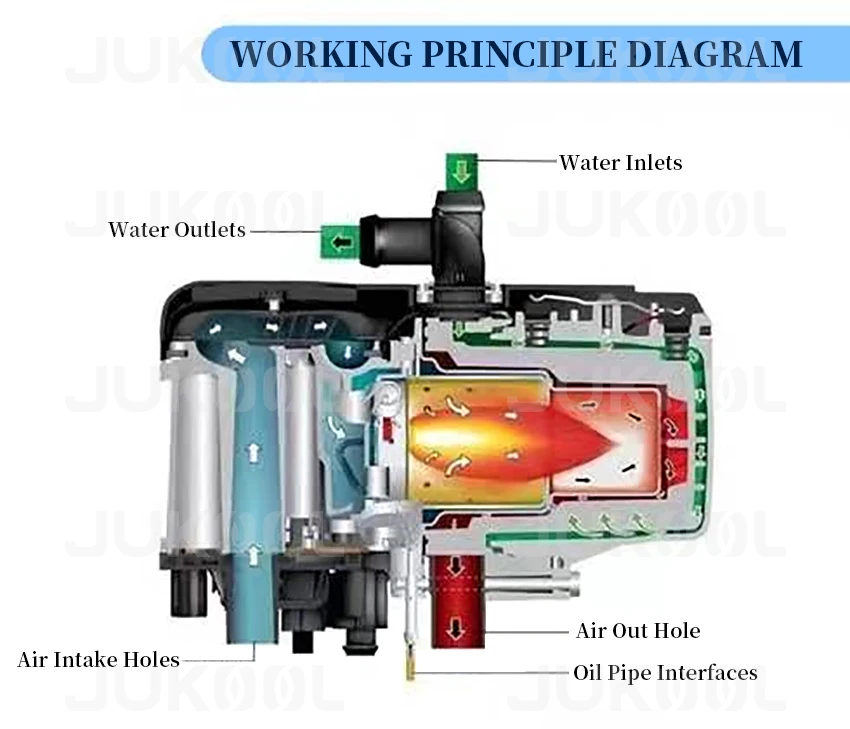

Combustion air absorbed from the environment and fuel from the fuel tank of the car are mixed and ignited. The heat reduction of the heat ex changer is transferred to the cooling circulation system of the car.
The heater is connected to the car engine cooling water circulation system, and the heat generated by the car is absorbed by the car's own heat ex changer, and then in the form of warm air, it is accurately measured and distributed to the interior of the car through the existing air duct. The preheating of the cooling water is used to preheat the engine. The heating start time can be set by the timer, or operated by the remote control to improve the comfort in the cabin
Combustion air absorbed from the environment and fuel from the fuel tank of the car are mixed and ignited. The heat reduction of the heat ex changer is transferred to the cooling circulation system of the car.
Main Features
1. Dual purpose: preheating the driver cabin and preheating the engine to protecting the engine
2. Ceramic ignition plug, start faster and more environmentally friendly
3. All die-cast aluminum shell design, high thermal efficiency, up to 90%
4. Lower fuel consumption and full exhaust gas can reach international standards
5. Low noise, low power consumption
6. Longer service life (using brushless motor, the service life can reach 10 years)
7. Full electronic control of function process
8. Real-time function monitoring, safety and diagnostic system
9. Maintenance-free, easy maintenance
2. Ceramic ignition plug, start faster and more environmentally friendly
3. All die-cast aluminum shell design, high thermal efficiency, up to 90%
4. Lower fuel consumption and full exhaust gas can reach international standards
5. Low noise, low power consumption
6. Longer service life (using brushless motor, the service life can reach 10 years)
7. Full electronic control of function process
8. Real-time function monitoring, safety and diagnostic system
9. Maintenance-free, easy maintenance

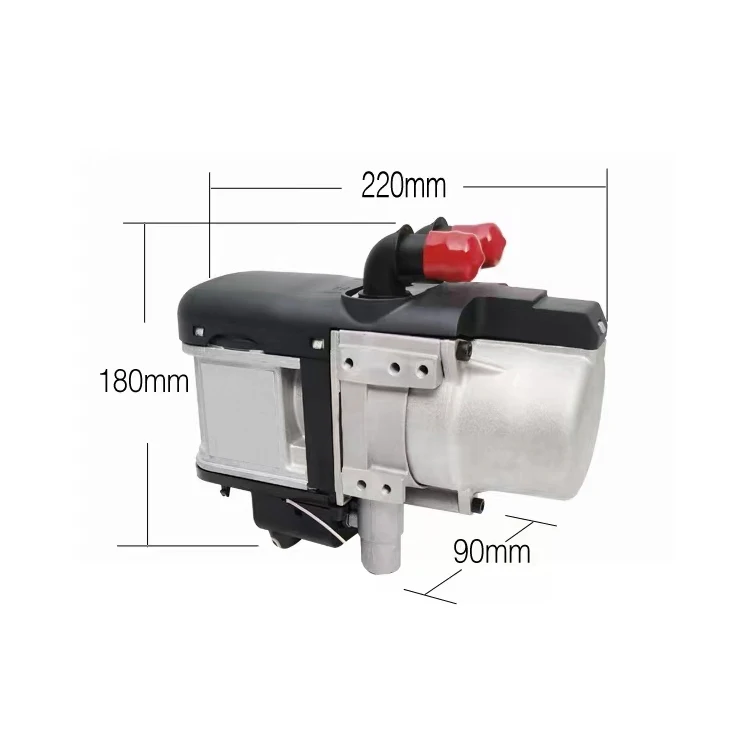

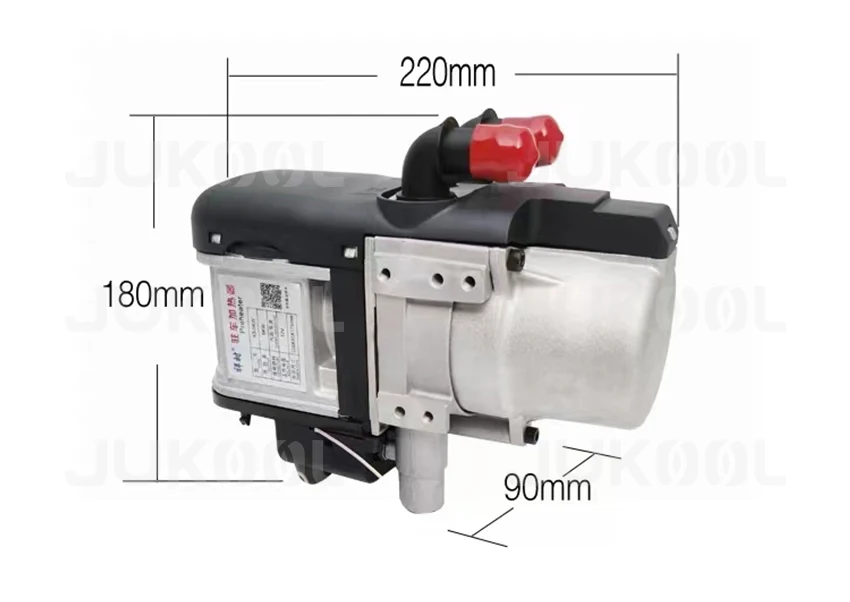

Product Parameters
Product Name | 12V/24V Electric Car Heating 5KW Diesel Hot Water Heaters 12/24 Volt DC Parking Heater For Truck/Van/Caravan/RV with Fuel Tank |
Model | FT-PH-Q5 |
Brand | JUKOOL |
Rated Voltage | 12V/24V |
Heating Power | 5kw |
Power Consumption | 0.35-0.5L/H |
Power | less than 39KW |
Oil Options | Diesel/Gasoline |
Application Altitude | ≤5000M |
Remote Control Distance | have obstacle 50M |
Applications
Installation Caution
Precautions for the installation of the heater
1. The heater is series connected to the engine water cycle
2. Install the heater water intake and outlet vertically, the length of the air intake pipe shorter than 1 meter.the import and export of the smoke exhaust pipes shorter than 2 meters, all pipe has to be hidden and position far away from those components cannot stand the heat. the combustion wind intake pipe and the smoke drainage pipes must not towards the direction of the vehicle.
1. The heater is series connected to the engine water cycle
2. Install the heater water intake and outlet vertically, the length of the air intake pipe shorter than 1 meter.the import and export of the smoke exhaust pipes shorter than 2 meters, all pipe has to be hidden and position far away from those components cannot stand the heat. the combustion wind intake pipe and the smoke drainage pipes must not towards the direction of the vehicle.
Precautions for installation of cold circulation system
1. Connect the heating with the car circulating water routine , the heater and the pump are below the lowest fluid of the engine water circulation;
2. The minimum water injection volume is 3.5L, system pressure reducing valve pressure is minimum 0.4 Bar, maximum 2.0 Bar;
3. When the system water volume under lowest situation, note that the temperature difference of heater water intake and outlet has to lower than 10K.
1. Connect the heating with the car circulating water routine , the heater and the pump are below the lowest fluid of the engine water circulation;
2. The minimum water injection volume is 3.5L, system pressure reducing valve pressure is minimum 0.4 Bar, maximum 2.0 Bar;
3. When the system water volume under lowest situation, note that the temperature difference of heater water intake and outlet has to lower than 10K.
Nanjing FUTRUN Vehicle Technology Co.,ltd
We specializes in products related with environment in vehicle as well as the completed solution of air conditioner and heating system for all kinds of vehicles. Our main products include air conditioner for bus and coach, air conditioner for trucks, air conditioner for off-high, truck refrigeration units etc.
We believe that a comfortable environment in vehicles can bring joy and ease to people and make people's mobility and working more efficient. More than 10 years experiences in field of automobile air conditioning and heating system allows us to be able to understand customer's requirement better. That's why we concentrate on developing customers and market orientation products with our expertise while placing high emphasis on quality.
We set up advanced test lab to guarantee the performance of our design reaches our pre-defined target. Our products have been adopted by some well-known bus and coach manufacturers like Yutong, Kinglong, BYD etc.
We enjoy long-term customer relationships based on a spirit of trust, and will continuously further develop these contacts with existing and new customers. All that we do is to fulfill our slogan: comfortable environment for better life.
We believe that a comfortable environment in vehicles can bring joy and ease to people and make people's mobility and working more efficient. More than 10 years experiences in field of automobile air conditioning and heating system allows us to be able to understand customer's requirement better. That's why we concentrate on developing customers and market orientation products with our expertise while placing high emphasis on quality.
We set up advanced test lab to guarantee the performance of our design reaches our pre-defined target. Our products have been adopted by some well-known bus and coach manufacturers like Yutong, Kinglong, BYD etc.
We enjoy long-term customer relationships based on a spirit of trust, and will continuously further develop these contacts with existing and new customers. All that we do is to fulfill our slogan: comfortable environment for better life.
Certifications
Type of Shipment
Type of shipping
We can do EXW, FCA, FOB, CIF, DDU ,DDP . Door to door delivery is available to solve all the headache for transportation. Customer only buy and wait for the parcel.
FAQ
Q. About power consumption
A: we developed and improved the circuit board , intelligent frequency conversion control for better power saving low voltage protection , when voltage and current is low, heater unit will auto remind user
Q.About oil consumption
A: Electronic metering: the control board to control the accurate oil output for fuel-saving and durable using Fuel saving and emission reduction : Adopt frequency conversion to accurately control the fuel input of the fuel pump, and control the air intake with the speed. The reasonable air-fuel ratio makes the fuel fully burned, no carbon deposits, no smoke, and prolonged service life
Q. About oil smell
A: we use sealed oil tank with cover, inner and outer air inlet has only air in to prevent the diesel oil volatilize with oil smell, if there is diesel oil smell, user need to check whether there is oil leakage
A: we developed and improved the circuit board , intelligent frequency conversion control for better power saving low voltage protection , when voltage and current is low, heater unit will auto remind user
Q.About oil consumption
A: Electronic metering: the control board to control the accurate oil output for fuel-saving and durable using Fuel saving and emission reduction : Adopt frequency conversion to accurately control the fuel input of the fuel pump, and control the air intake with the speed. The reasonable air-fuel ratio makes the fuel fully burned, no carbon deposits, no smoke, and prolonged service life
Q. About oil smell
A: we use sealed oil tank with cover, inner and outer air inlet has only air in to prevent the diesel oil volatilize with oil smell, if there is diesel oil smell, user need to check whether there is oil leakage
