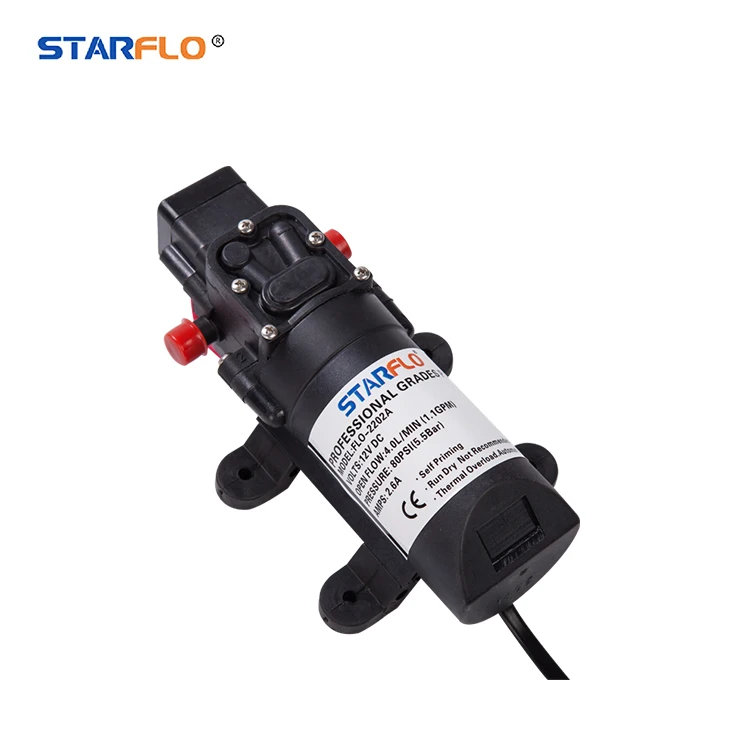

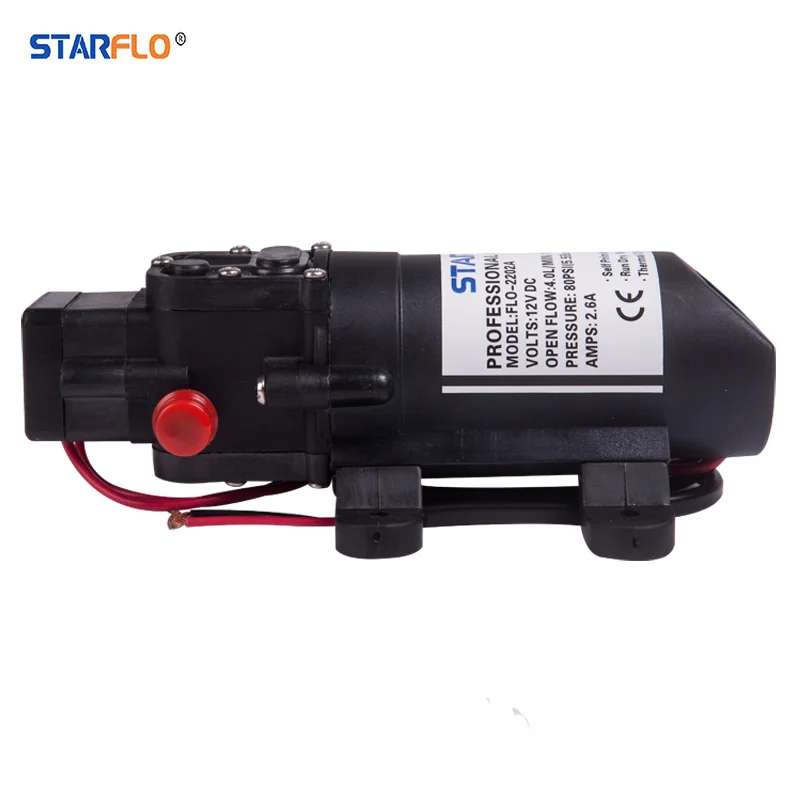

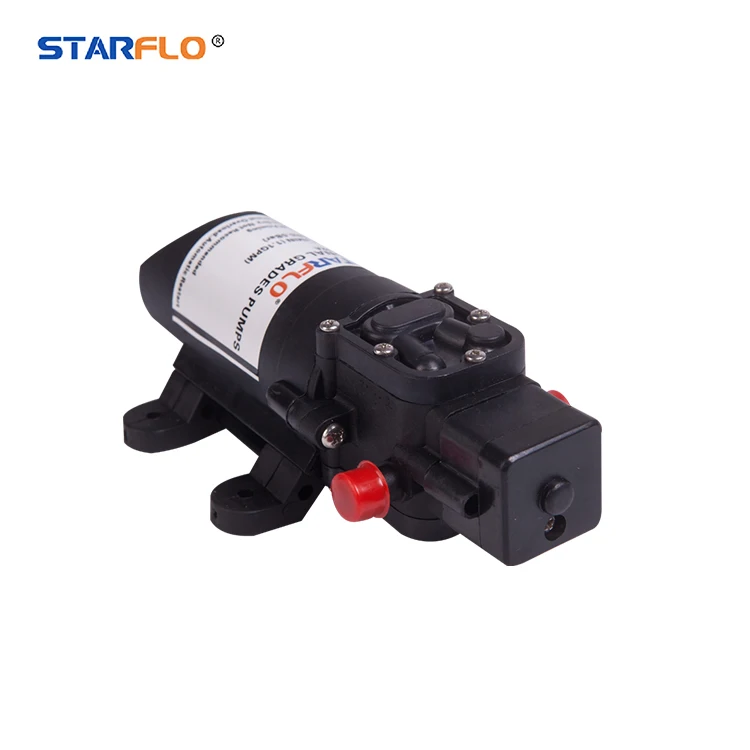

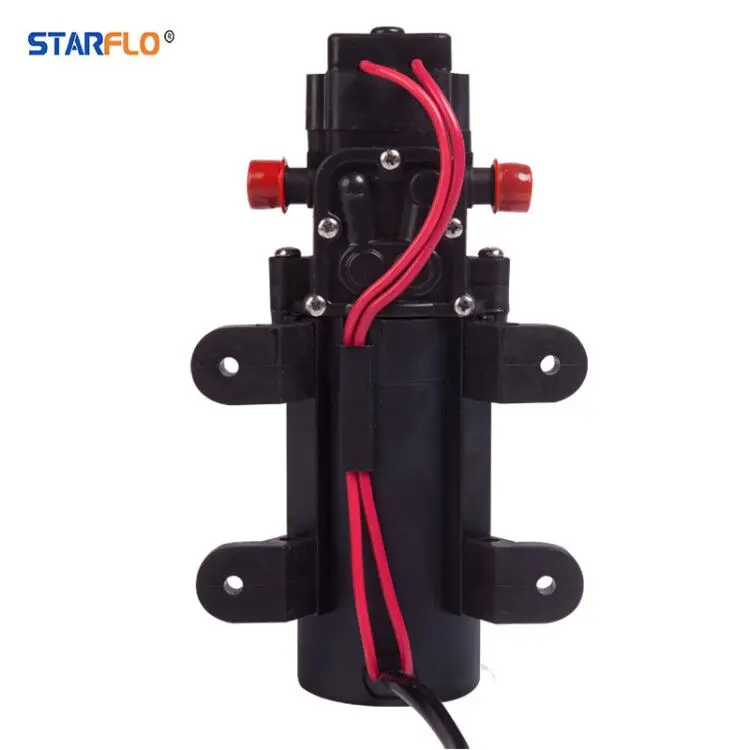

STARFLO 80PSI High Pressure Electric Diaphragm Micro Knapsack Electric Sprayer Backpack Pump

STARFLO 80PSI High Pressure Electric Diaphragm Micro Knapsack Electric Sprayer Backpack Pump

Low pressure 12 volt portable knapsack battery power price agriculture sanitizer agriculture sprayer pump

FLO Series Industrial Pumps are designed for a wide range of application and are constructed from a selection of material suitable for handlinga broad range of chemicals.The FLO Series of diaphragm pumps are self-priming and can be run constinously for short periods of time. The higher the duty cycle the shorter the expected life of the pump.

Typical pump uses are liquid transfer,spraying, circulation, filtration and dispensing.

   APPLICATION OF FLO-2202 PUMP

• Agriculture/Yacht / RV/Caravan pressurized water system


• Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)


• Cleaning machine, Humidifier, Water purification, Medical apparatus


• Food beverage filling & liquid transfer


• Any other pressurization system

    FEATURES OF MINI WATER PUMP

• Small size,Light weight and Stable performance.


• Special valve for liquid input and outpu.


• Antivibration pad,easy installation.


• Self-priming,Automatic Pressure Switch.


• Automatic Pressure Protection.


• Low Noise,with excellent resistant to chemical corrosion.

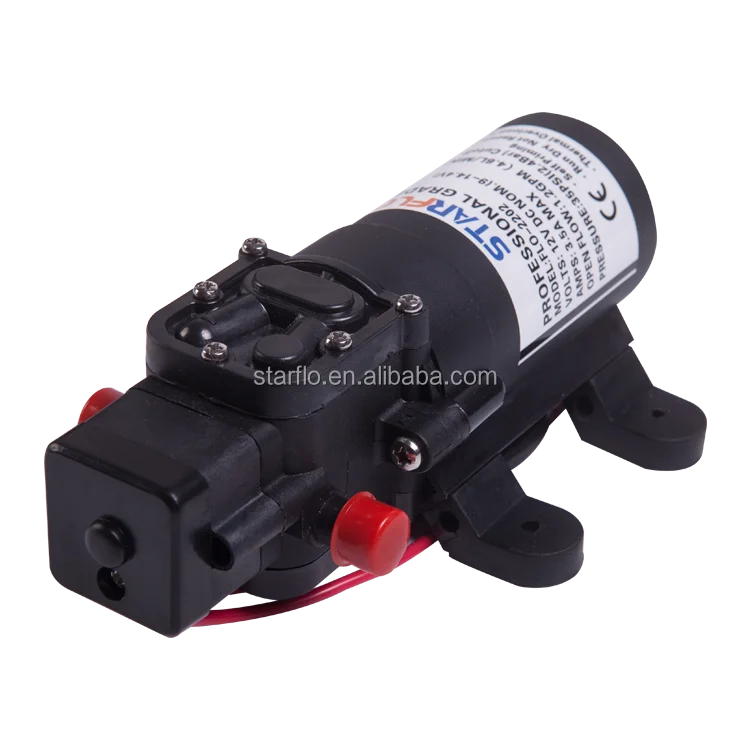

  FUNCTIONS OF DIAPHRAGM WATER PUMP

• High flow rate and low presurre requirements.


• Automatic electric water pump,working rate 1.8-2.5meters,max flow rate more than 5 meters.


• Water purification,filter machine,chemical metering and fluid supply.


• Food,Beverage filling and transfer.


• Controled by pressure switch.

  Operation

To start and prime the pump, the discharge line must be open allowing trapped air to escape thus avoiding the potential of airlock.

The pressure switch will shut off the pump automatically when the discharge valve is closed the pressure has risen to the switch OFF set point.The pressure switch will restart the pump of the pressure switch.

Demand Operation(intermittent duty)

Demand Operation is considered an "intermittent duty" application.The maximum intermittent duty cycle is that switch will cause the motor to reach its maximum themal limits.Once the maximum themal limit is reached, the motor must be allowed to settle to a lower temperature ideally being ambient before resuming operation.Running the pump at or near the maximum thermal limited for extended period of time will shorten the life of the pump and may result in immediate pump failure.

Bypass Operation(if equipped)

Models equipped with an external bypass system are designed to pump at high pressure while at low or high flow rates.

Models equipped with  a bypass only will continue to run until the power is manually turned off.  The FLO pumps are not recommended for continous duty service due to limited motor brush life.Operation at lower pressure and temperatures. However, will extend overall pump service life.

Mounting

The FLO Series pumps are self-priming.Vertical prime may depending on the fluid viscosity, suction tube size foot valve and pump configuration.The pump should be mounted in a dry and adequately ventilate area.If mounted within an enclosure,provisions to coor the motor may be necessary.

Preventative Maintenance Tips

If pumping a liquid other than water the pump should be flushed with water(if applicable) after each use.

Before freezing conditions occur, the pump must be liquid free or winterize with proper anti-freezing chemicals.

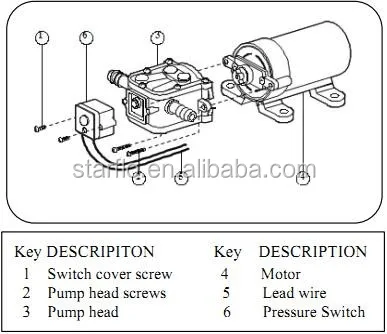

      Dimensional Drawing of mini water pump

      Q: What's your main products of your company?

A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump, bilge pump )for over 8 years with excellent quality and competitive price.

Q:How can I choose the most suitable pump?

A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended.

Q:What's your product MOQ of it?

 A:Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more  discount.

Q: What's your payment way?

A: Usually we accept T/T ,Western Union or PayPal.

Q: What's your delivery time?

A. 1.The stock samples can be sent to you within 2-3days by international express after received

   2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)

Q: How long is your pump lifetime?

A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor

For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
