Micro high torque dc worm gear motor 12 volt 24v brushless dc motor
Micro high torque dc worm gear motor 12 volt 24v brushless dc motor
Micro high torque dc worm gear motor 12 volt 24v brushless dc motor
Micro high torque dc worm gear motor 12 volt 24v brushless dc motor
Micro high torque dc worm gear motor 12 volt 24v brushless dc motor
Micro high torque dc worm gear motor 12 volt 24v brushless dc motor
Micro high torque dc worm gear motor 12 volt 24v brushless dc motor

Micro high torque dc worm gear motor 12 volt 24v brushless dc motor

Share on (1601006929966):


Price:US$ 6.55 - US$ 10.00

Quantity:


Product Overview

Description



Product Description

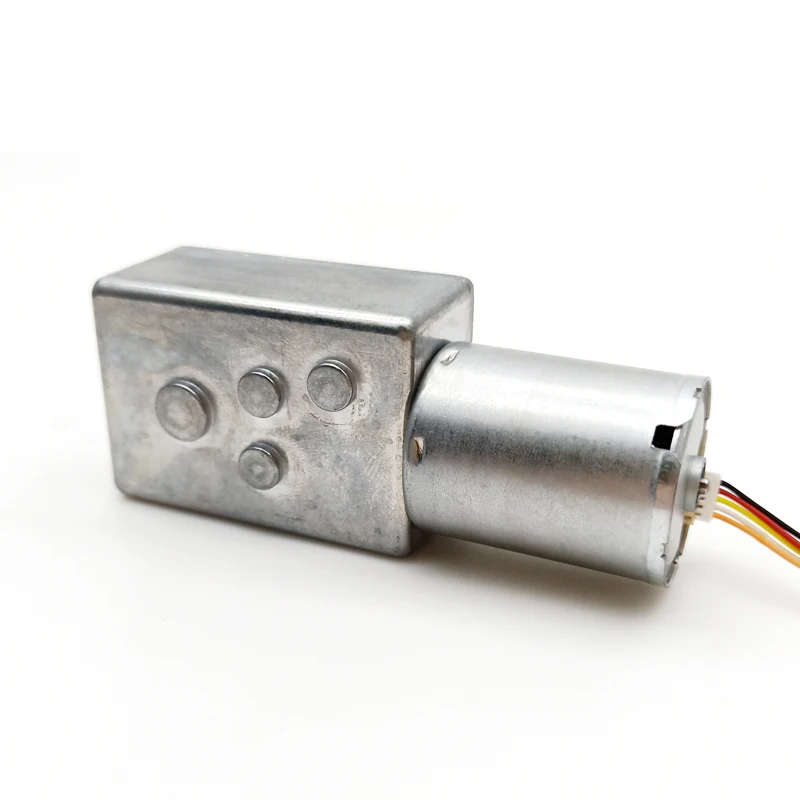

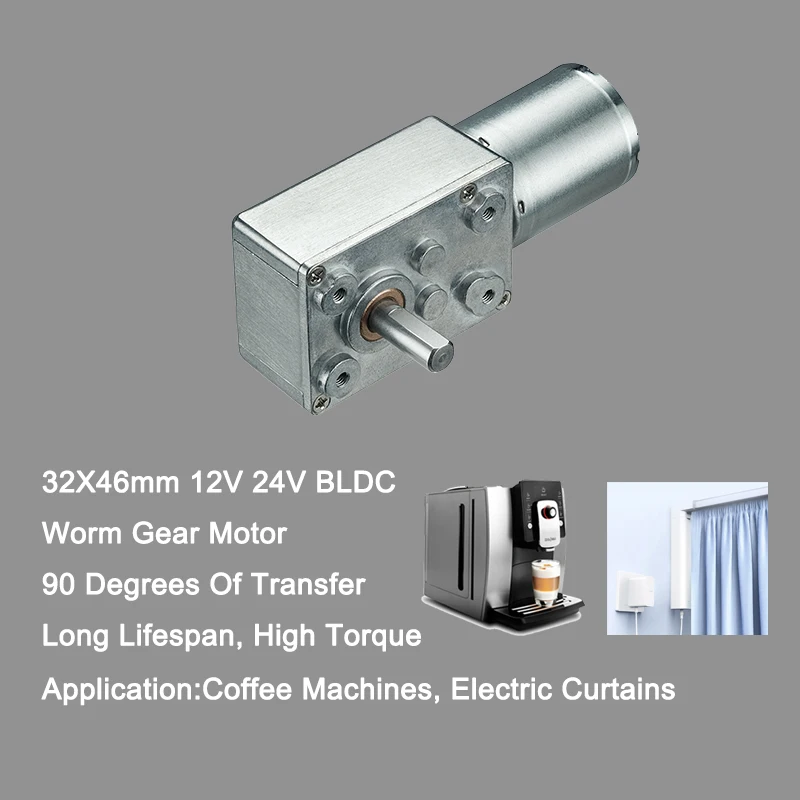

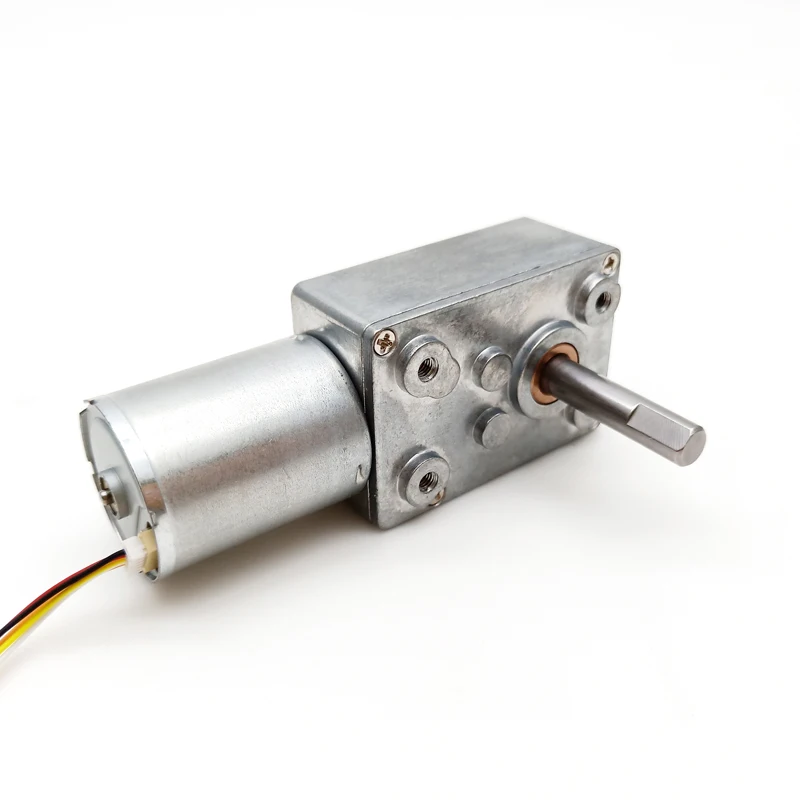

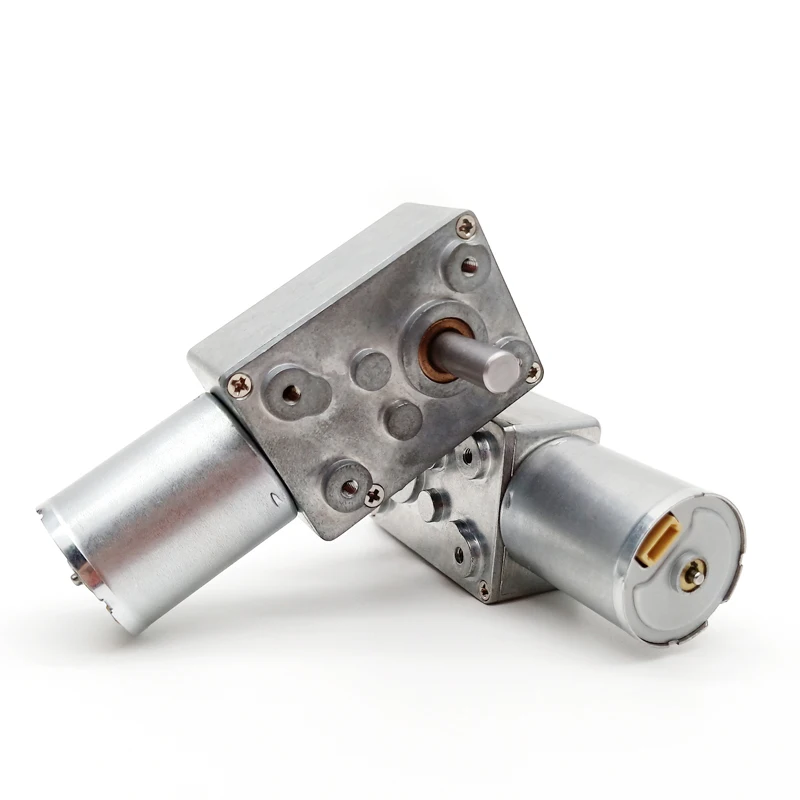

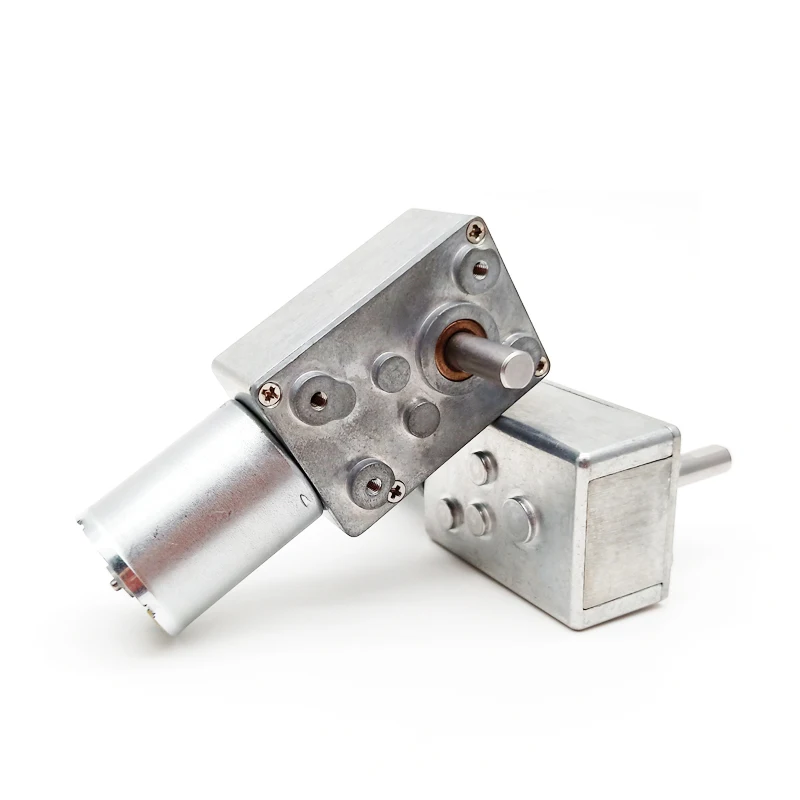

Micro high torque dc worm gear motor 12 volt 24v brushless dc motor


Main Features

32*46mm morm fearbox plus 370 per manet DC motor&24 mm brushless motor
Small size dc gear motor with low speed and big torque
32*46mm gear motor provide 1.0 Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder,11ppr
Reduction ratio:146、188、300、438、563、700、900、1020、1313、1688、2700

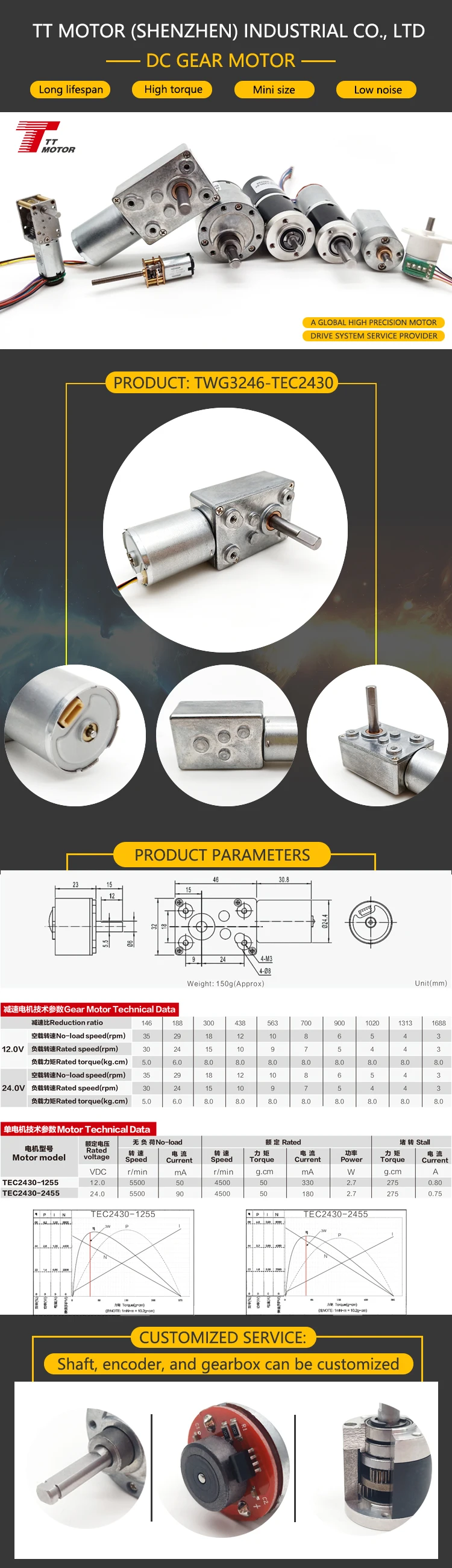

Model:Gear Motor TWG3246-TEC2430


TEC2430-0645
Rated voltage:6V DC
Rated speed:3500r/min
Output power:2.2W
No-load speed:4500r/min
Rated torque:62g.cm
Stall torque:120g/cm
No-load current:180mA
Rated current:570mA
Stall current:1.4A


TEC2430-1260
Rated voltage:12V DC
Rated speed:4600r/min
Output power:4.6W
No-load speed:6000r/min
Rated torque:84g.cm
Stall torque:140g/cm
No-load current:180mA
Rated current:800mA
Stall current:1.6A


TEC2430-2490
Rated voltage:24V DC
Rated speed:7200r/min
Output power:6.7W
No-load speed:9000r/min
Rated torque:90g.cm
Stall torque:180g/cm
No-load current:180mA
Rated current:500mA
Stall current:1.9A


TWG3246-TEC2430-0645


Reduction ratio
146
188
300
438
563
700
900
1020
1313
Length mm
46
46
46
46
46
46
46
46
46
No-load speed rpm
30
23
15
12
8
6
5
4
3
Rated speed rpm
24
18
12
10
6
5
4
4
3
Rated torque kg.cm
6
7
10
10
10
10
10
10
10
Max.momentary tolerance torque kg.cm
14
15
15
15
15
15
15
15
15


TWG3246-TEC4230-1260


Reduction ratio
146
188
300
438
563
700
900
1020
1313
Length mm
46
46
46
46
46
46
46
46
46
No-load speed rpm
40
30
20
13
10
8
6
5
4
Rated speed rpm
31
25
16
11
9
7
5
5
4
Rated torque kg.cm
8
10
10
10
10
10
10
10
10
Max.momentary tolerance torque kg.cm
15
15
15
15
15
15
15
15
15


TWG3246-TEC4230-2490


Reduction ratio
146
188
300
438
563
700
900
1020
1313
Length mm
46
46
46
46
46
46
46
46
46
No-load speed rpm
60
47
30
20
16
12
10
8
7
Rated speed rpm
49
38
25
17
14
11
9
7
7
Rated torque kg.cm
9
10
10
10
10
10
10
10
10
Max.momentary tolerance torque kg.cm
15
15
15
15
15
15
15
15
15




Product Application.
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.




Others application
Business Machines
Vending Machines
Printers
ATM
Copiers and Scanners
Camera and Optical
Video
Cameras
Projectors

Lawn and Garden
Lawn Mowers
Snow Blowers
Trimmers
Leaf Blowers


Certifications.
ISO9001, SGS, National high-tech enterprises, etc.










Our Company
TT Motor (HK) Industrial Co., Ltd. has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT aims to continue as a pioneer in the sales
overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us.
We look forward to being able to work together with you in the near future.




Our Customers
NIKE, FLEXTRONICS, STANLEY, etc.




Packing & Delivery
Standard packing




Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days; China
Post: Depends on ship to which country; Sea: Depends on ship to which country




Our Customer Feedback
Excellent quality, better price, good service, and on time delivery.










FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →
cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund
when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you
need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
