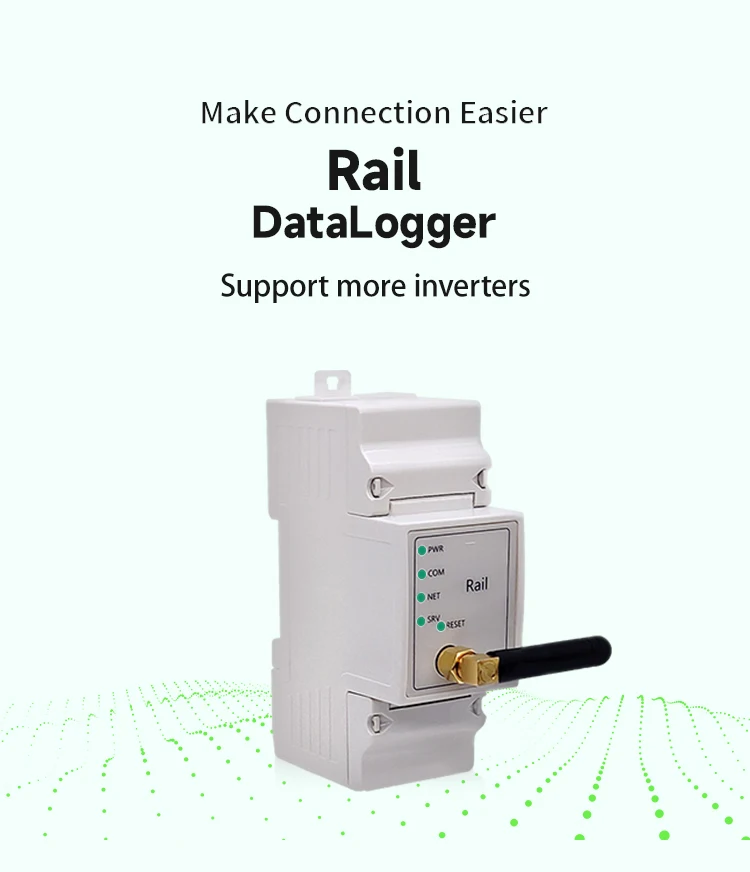

Eybond Wi Fi RS 485 IP21 All industrial equipment wireless network monitoring data logger

Share on (1601006963133):


Price:$52.40 - $57.80

Quantity:


Product Overview

Description



Product Description




Wi-Fi








                    power stations: 4000000+ stations                             Super compatible: 500+ brands and models
                    Large users: 3000000+ users                                      High capacity: 250+GW
                    Wide distribution: 50+ countries                                 Strong cooperation: 5500+ partners

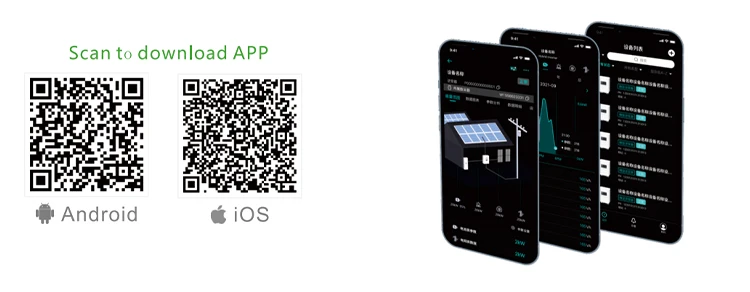

SmartESS APP

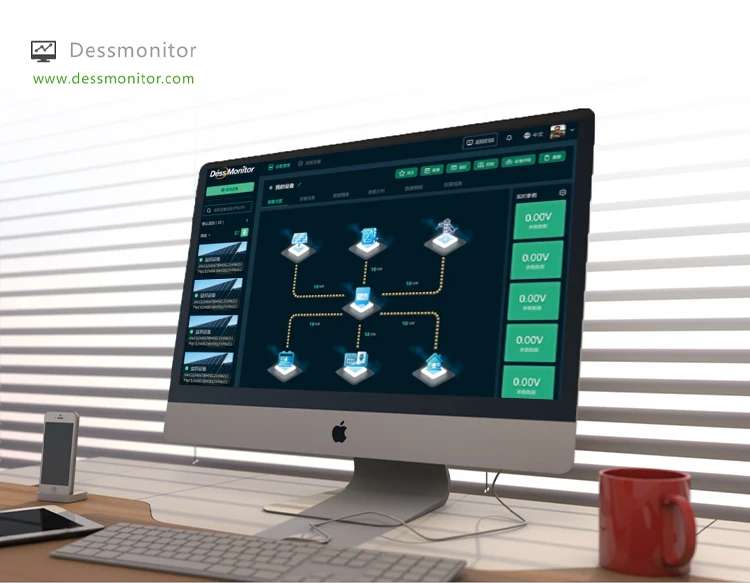

Dessmonitor Web
























































































































































Product modelWi-Fi.Rail4G.Rail
Basic parameter

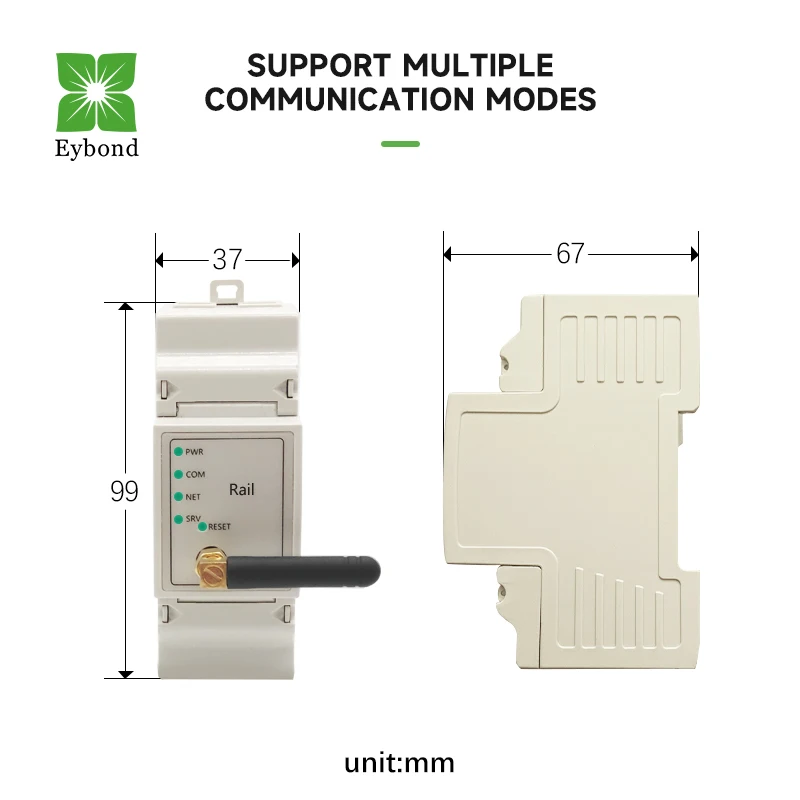

 Dimension 98*38*65mm 98*38*65mm

 Weight


 150g 150g
 Protection class IP21 IP21
 Installation mode Hang to the wall/lay flat Hang to the wall/lay flat
 Rated voltage AC220V AC220V
 Maximum current 50mA 100mA
 Indicator lights 4 4
 Operation temperature -30°C~+85°C -30C~+85°C
 Storage temperature -40°C~+90°C -40°C~+90°C
Communication parameter
 Local communication RS-485 RS-485
 Public network access Wi-Fi 4G
 Baud rate 9600bps(default) 9600bps(default)
 Working frequency 2.412GHz~2.484GHz

 FDD LTE:B1/B3/B5/B8


 TDD LTE:B38/B39/B40/B41


 GSM:900/1800


 Communication   standard IEEE802.11b/g/n LTE-Advanced/WirelessMAN-   Advanced(802.16m)
 Maximum transmission   rate 72Mbps 10Mbps
 Communication   distance 100m(open environment) Carrier network
 Antenna External sucker to increase the antenna External sucker to increase the antenna
 Antenna gain 2.5dBi 2.5dBi
 SIM card -- Nano card or chip card
Other parameters
 Watchdog Software watchdog+hardware watchdog Software watchdog+hardware watchdog

 Device layer


 communication protocol


 Modbus-RTU(mainstream),Non-Modbus-RTU Modbus-RTU

 Network layer


 communication protocol


 Modbus-TCP Modbus-TCP
 Arameters setting mode APP/remote server Massage /remote server
 Number of connected devices 1-10 1-10
 Warranty 2 years

 2 years


 Certification
 CE,RoHs


 CE,RoHs





Existing project customization services


_02.pngDomain name and logo customization                                             APP customization



_04.pngWechat small programs customization                                          Administrator customization

New project customization service




                    Private cloud deployment                                                     Intelligent hardware customization


_09.png                                Solution consulting                                                                 Software project development

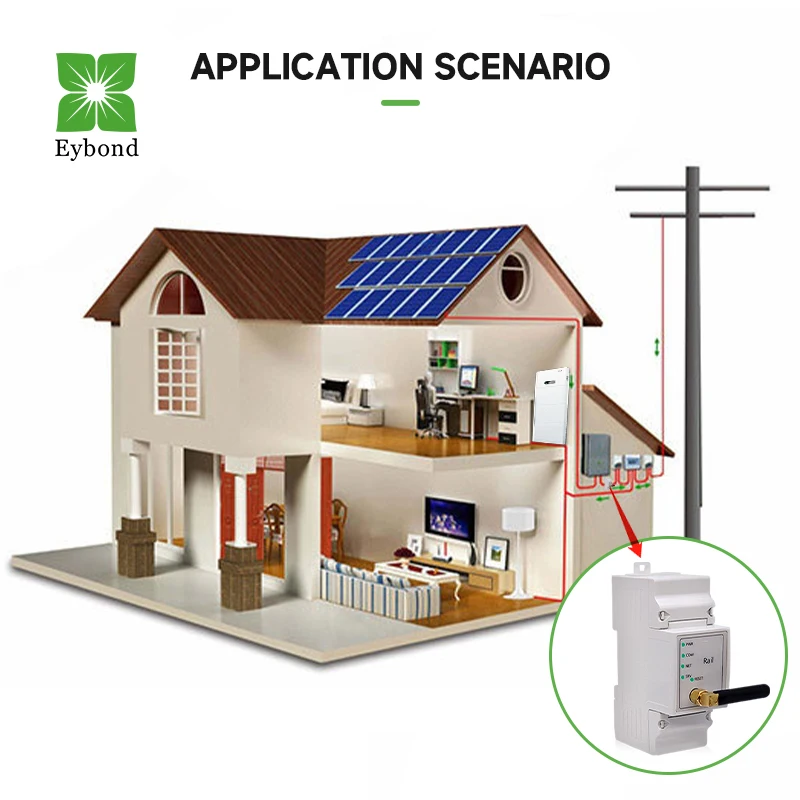

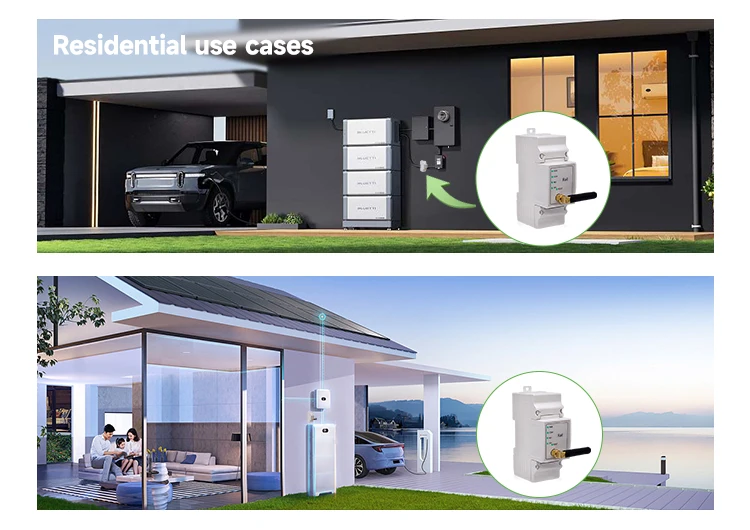

                                                                Application scenario







                                        PACKAGING AND LOGISTICS

    Since 2014, it has rich experience in the research and devel-opment and manufacturing of new energy data communication and other products, and has obtained more than 150 inventionpatents.
    We have a team of 200+ senior R&D engineers, occupying20,000 square meters in the central area of Shenzhen, to pro-vide you with R&D products and provide the best service.







Packaging & Shipping


1. Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS, it will take 3-7 working days to arrive in most countries.
2.We can also help you ship the goods by air line,then you need to go to Air port totake it, it takes about 2-7 days to arrive.
3.If goods are large quantity and you not need the goods so urgently, you can choose by sea to save some freight cost which takes about one month to arrive.
4.We can accept the payment method such as Paypal/Credit card/ L/C and T/T.





FAQ


Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to yourrequirements.
Q3: Whether the product can be customized logo?
A3: For bulk orders, we support custom logo.
Q4: How about the delivery time?
A4: For regular orders, it takes about 3-7 days for production, and it may take15-30 days for bulk orders or customized orders.
Q5: What are your delivery and payment terms?
A5: We accept EXW, FOB, CFR, CIF, etc. You can choose the one that suits youbest. Sample orders 100%in advance, bulk orders 100% balance.
Q6: After service and warranty?
A6: We provide 1 year warranty, if you have any problems in the use of products. please contact to your sales person.
Q7: How can we know the product quality?
A7: We suggest you to order a sample. Also, you can send us email for detailphotos for checking if you cannot get enough information in the product page
Q8: How can we get samples from you?


A8: Provide samples. Usually we need 5 days to arrange samples. If we do nothave business records with you before, we need to charge sample cost and mailexpress freight.
Q9: How do l choose the right datalogger to connect to my inverter? Can youhelp with the choice?
A9: Please provide the brand and model of the inverter, the nameplate of theinverter, the interface information, the communication protocol, we can helpyou choose the right datalogger.
