Manufacturer of exothermic welding powder ,hot melt solder powder, flux for welding rods

Product Overview

Description

Manufacturer of exothermic welding powder





Huadian Mould Power  materials is to melt the metal conductor through the high temperature produced by the oxidized metals in the reductive flux during the exothermic reducing reaction. This series of products include exothermic welding moulds, mould Handle clamp, exothermic welding flux and supporting operation Tool kit.

1. Good mechanical performance	Solder joint non-surface joint, there is no residual stress, permanent joints, good tensile strength and other mechanical properties.
2. Strong current load capacity	Solder joints and metal conductors are molecular binding. The solder joint current carrying capacity equal to conductor and it have good conductive properties. DC resistivity change close to zero after the welding point.
3. Resistant to large repeated current	Solder joints ’melting point is equivalent to the conductor, can withstand repetitive high current (fault) the impact, the joint no fuse phenomenon.
4. Strong anti-corrosion capacity	The copper bind and cover with the conductor closely, isolation protection from the joint, and thus greatly enhance the corrosion resistance of the conductor.
5. Convenient and safe construction	Without outside energy, professional equipment and professional welding operator, it can be operated safely indoors and outside, short welding time saves construction time.
6. Controllable welding temperature	According to the performance characteristics of metallic conductors, the product can achieve different reaction temperatures (up to 3400 ℃) by adjusting the ratio of the flux, solder joints to ensure a solid and reliable.

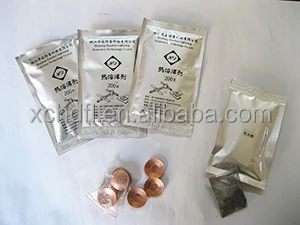

1.  Exothermic Welding Cartridge

























2. Thermal welding mold

Thermal welding mold is made of high temperature, semi-permanent high-purity graphite produced. It have: mold cavity, mold holes, injection holes and other components.

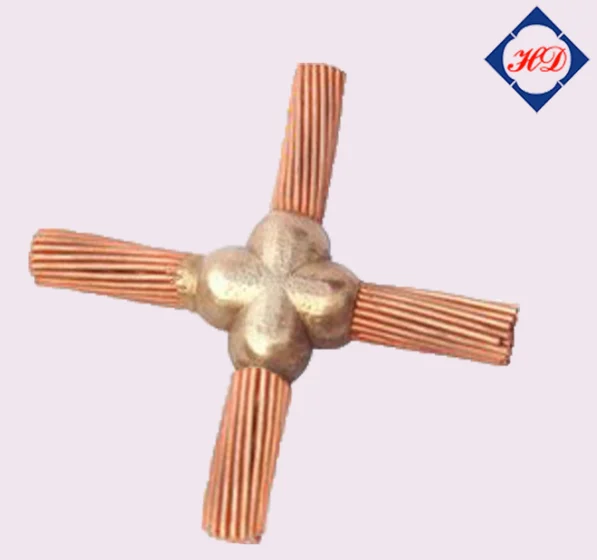

Mold making process should be based on a different shape conductor joint mode (-, T, +, etc.), the shape of the mold cavity, size and flow of the molten metal and rigorous design made of. According to required specifications welding flux, mold divided into four categories mold. For special requirements, Mold can be customized according to the joint mode and the required welding flux model.



Model	Flux Specifications	Model	Flux Specifications
HD-RM01	A≤90#	HD-RM04	A≥350#
HD-RM02	90#<A≤200#	HD-RM05	Special Mold
HD-RM03	200#<A≤300#

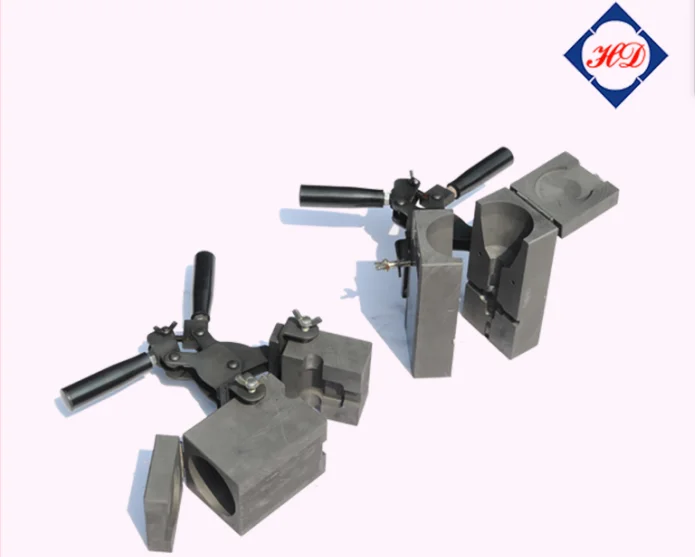

3. Welding Mold Holder

During welding process, the adjustable self-locking mold folder can ensure the welding mold clamp tightness, maintaining the mold’s cavity relatively sealed. According to the design requirements, the weld point rapid prototyping.Mold folder according to design requirements can be common. The special mold folder needs to be customized according to the special requirements of the mold.

Model	Scope	Remark
HD-RJ01	HD-RM01,02,03,04  Mold
HD-RJ02	HD-RM05  Special Mold

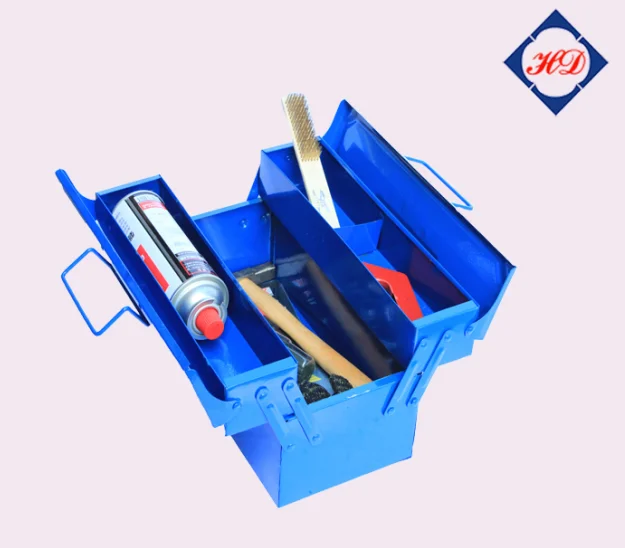

4. Welding Toolbox

  In the welding construction process, we need use special tools to adjust the mold and folder, insulated protective by work gloves, vegetable brush to clean the mold cavity and the joint surface. All welding tool be in the toolbox.



Model	Scope	Remark
HD-RG	HD-RM01,02,03,04,05  Mold
