Shenzhen supplier lead free 8 zones reflow oven for PCB assembly line
- Category: >>>
- Supplier: Shenzhen Oubel Technology Co. Ltd.
Share on (1601007023104):
Product Overview
Description
Product Description

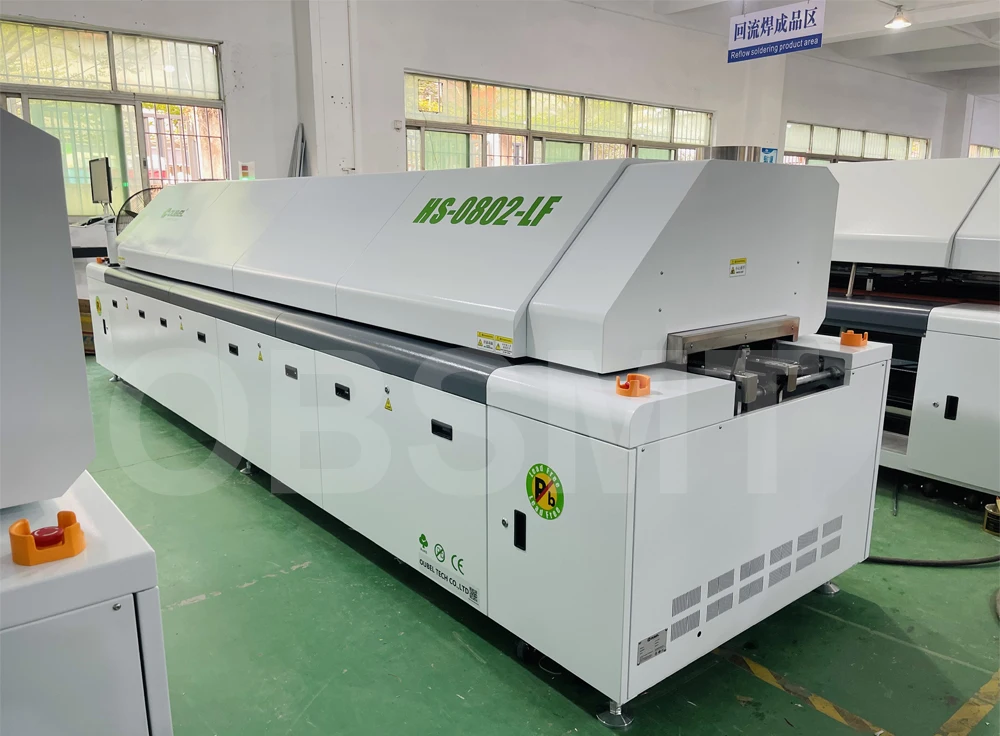

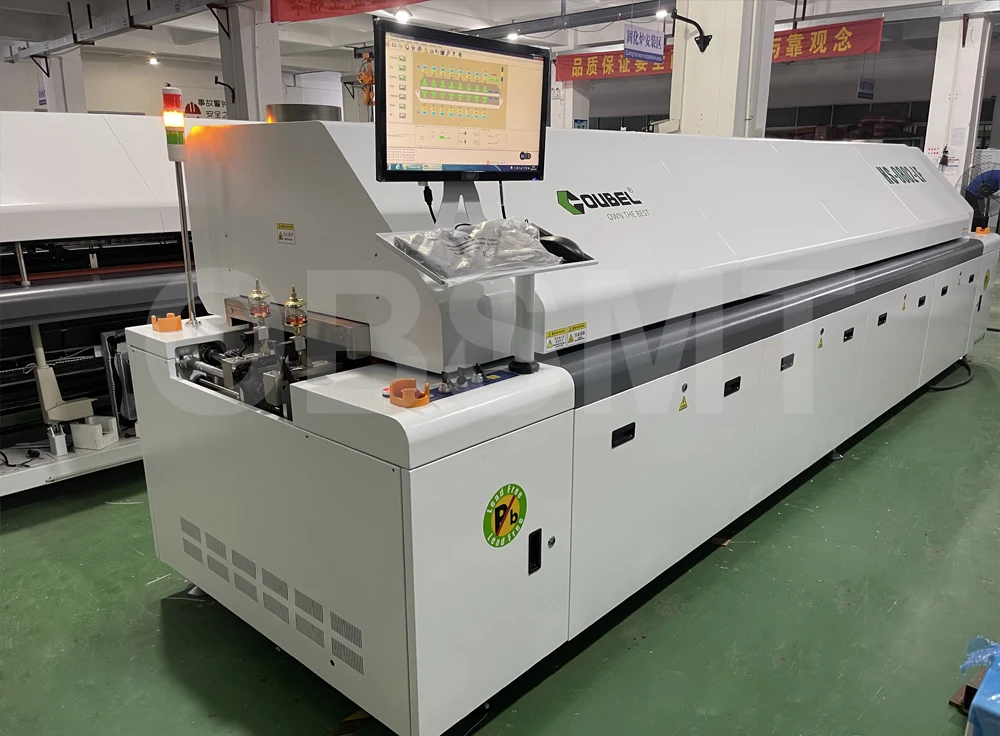

Shenzhen supplier lead free 8 zones reflow oven for PCB assembly line
Features of 8 Zones Reflow Oven :
2.The upper oven can be opened for clean the residual impurity in oven, It’s suitable for the use of No-clean solder paste.
3.UPS avoids the abnormal distortion of convey mesh and other parts when it was power off.
4.The power of protection ensures that the components can be sent out without destroy when the power is broken down.
5.Equipped with the alarm and drop board & block board detection function.
6.Equipped with the recorder function.
7. Hot air thermal convection provides uniformity and chips alignment.
8.The temperature of every heating zones was controlled by PC through PID separately, Independent hot air up & down. The real time temperature can be displayed through histogram.
9.Frequency inverter conveyor system
10.The temperature of PCB can be tested on line and all the data, profile can be reserved and printed.
11.The working status of the equipment can be displayed and inspected.
12.Every hardware interface can be tested.
23.Equipped with dual refrigeration system by water-cooling and central supporting system.
Features of 8 Zones Reflow Oven :
Model | HS-0802-LF |
Dimensions | 5520*1430*1530mm |
PCB width | 50-400mm |
Heating zone quantity | Up 8, down 8 |
Heating zone length | 3100mm |
Total Power | 26KW |
Normal working power | 8.8KW |
Power supply | 3P 5W AC 380℃ |
Warm up time | 20 minutes |
Temperature range | Room temperature-400℃ |
Controller | Touch screen+ PLC |
Temperature controller | PID closed loop control, SSR drive |
Temperature control precision | ±1 |
Alam introduction | Tower light: Yellow-warming: Green-normal: Red-abnormal |
Rail direction | L-R or R-L |

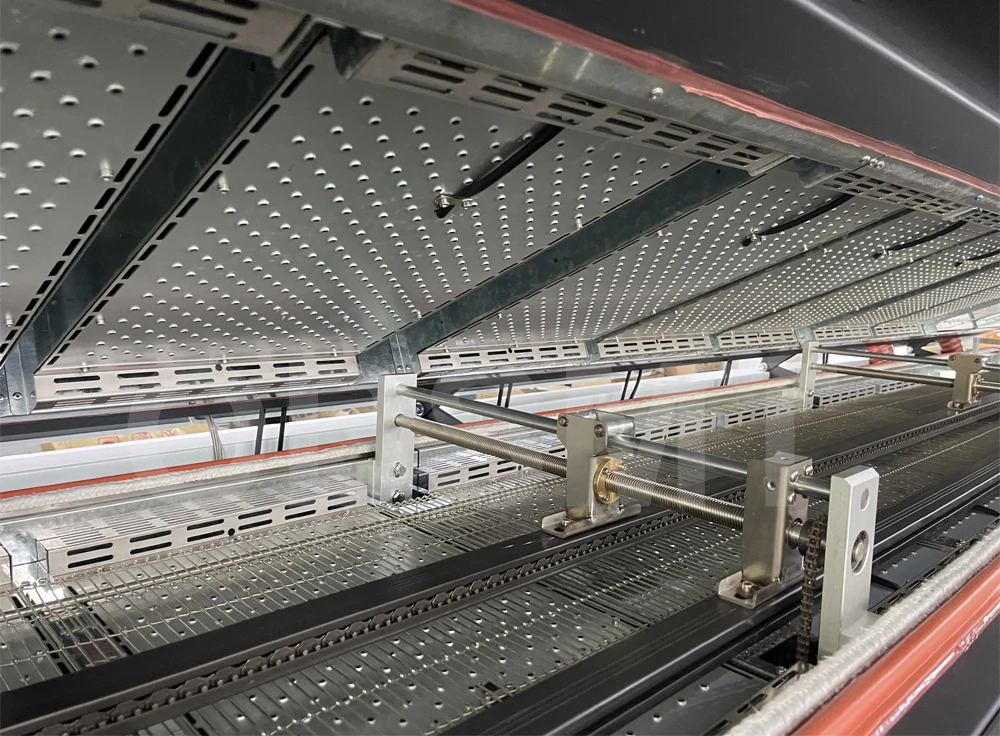

Transmission method | Chain conveyor and meshwork conveyor |
Conveyor height | 900±20mm |
Conveyor speed | 0~2000mm/min |
Color | PC white |
Weight | Approx.2000Kgs |

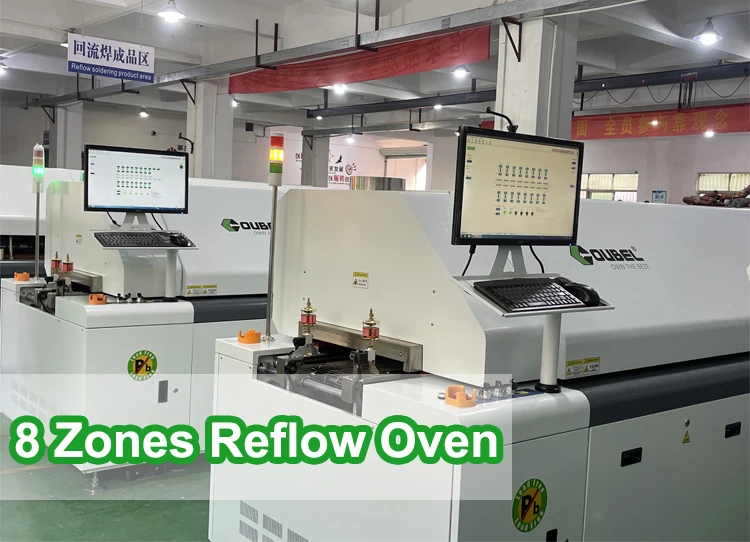

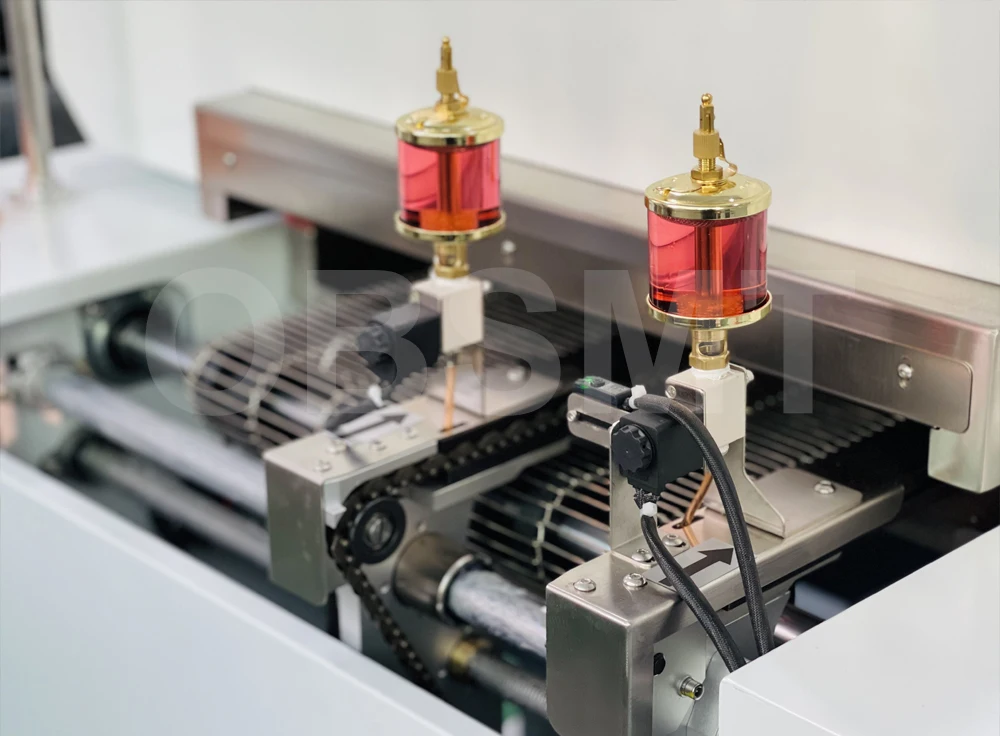

Detailed Images
Related Product
Packing&Delivery
Company Profile
Shenzhen Oubel Technology Co.,Ltd.
Oubel supplies the dispensing and PCB conformal coating machine, SMT &DIP machines that is supported by a global service network,we offer customer-inspired solutions in a range of industries. OUBEL is dedicated to making quality products that help our clients operate more efficiently and effectively. Oubel is guided by the principles of fairness to our suppliers, associates,clients and employees, and helping them achieve to the best of their potential.
Clients feedback
FAQ
1.Are you a trade company or a manufacture?
We are a manufacturer,OEM & ODM service are available.
2.What is your delivery date?
The delivery date is about 3-5 days after receipt of payment.
3.What is your payment terms?
Accept payment by T/T,Paypal,Alibaba.
4.Can you provide a whole line solution?
Yes, we can.We can supply SMT line,Coating line,DIP line and LED production line.
