Whole Set of Quantitative Vacuum Sausage Filling Twisting Tying Knotting Linking Machine
- Category: >>>
- Supplier: Jinan Zoyo Machinery Technology Co. Ltd.
Share on (1601007023997):
Product Overview
Description

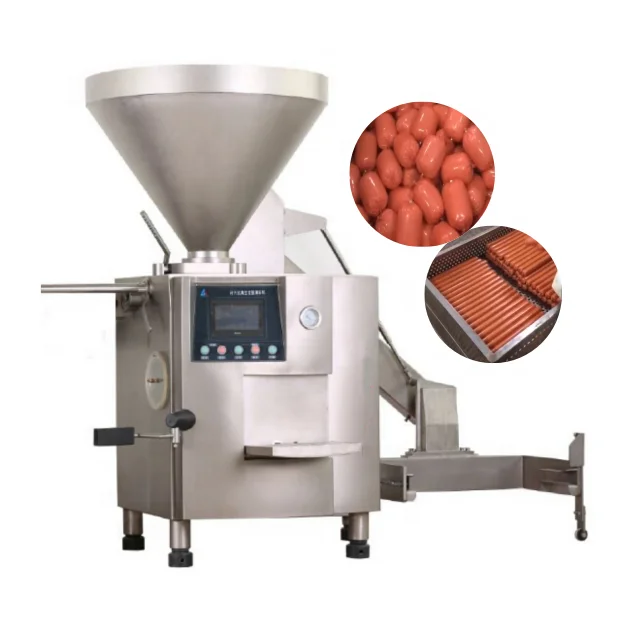

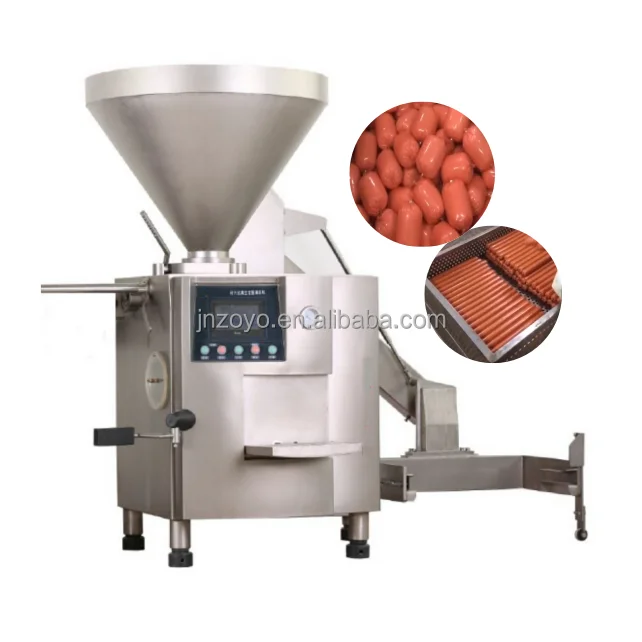

Whole Set of Quantitative Vacuum Sausage Filling Twisting Tying Knotting Linking Machine
Product Description
Characteristics
This machine is a computer-controlled automatic vacuum quantitative filling machine composed of the vane pump, servo motor-driven, and human-machine interface. It is an intestinal irrigation system for meat, sausages, and hams. Automatic compensation device for the machine has a blade so that the accuracy is up to 2.5 grams, The filling speed and the filling weight can be adjusted according to customers’ need.
This machine is to fill in the vacuum state, the hopper can be flipped so that the cleaning is more convenient.
This machine is to fill in the vacuum state, the hopper can be flipped so that the cleaning is more convenient.
This machine adopts high quality stainless steel materials. The key components are made of specially processed, durable, and controllable imported components, with advanced appearance technology, beautiful appearance, compact structure, easy fro operation and maintenance, and equipped with security. It is an ideal equipment for the meat processing industry.
Details Images

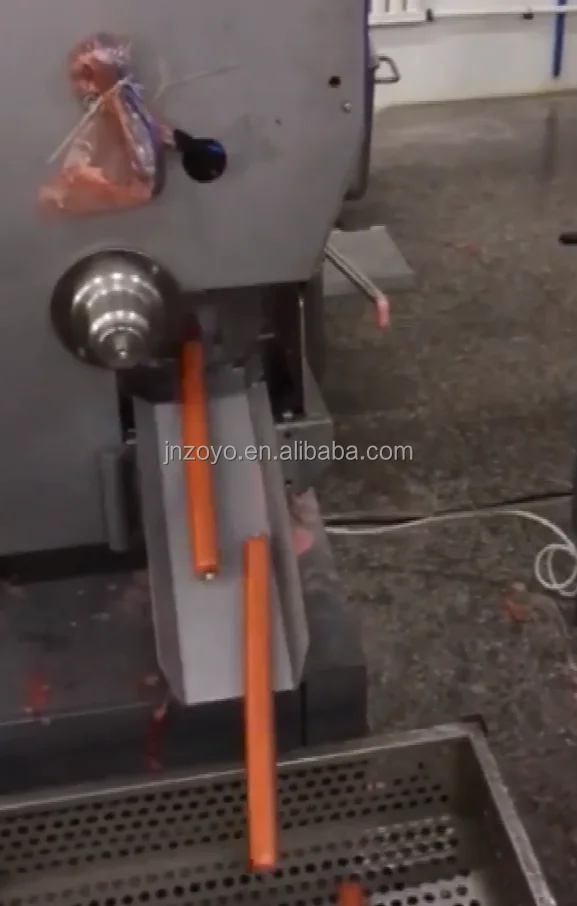

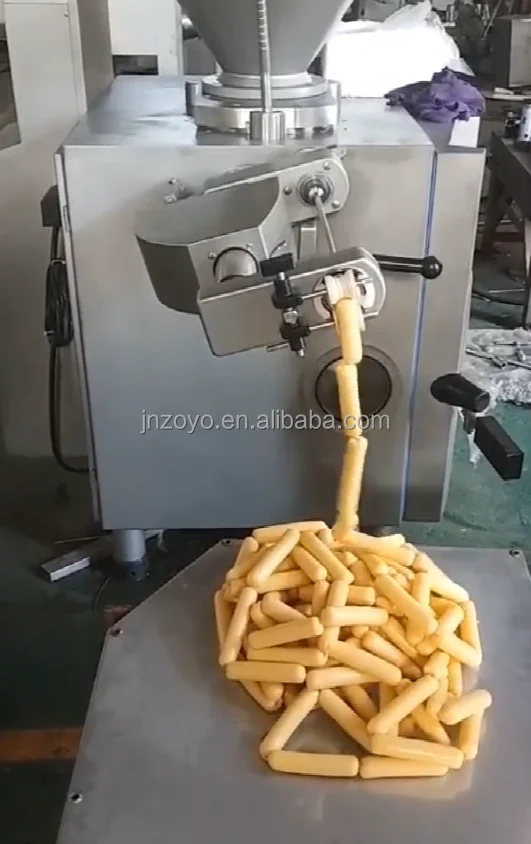

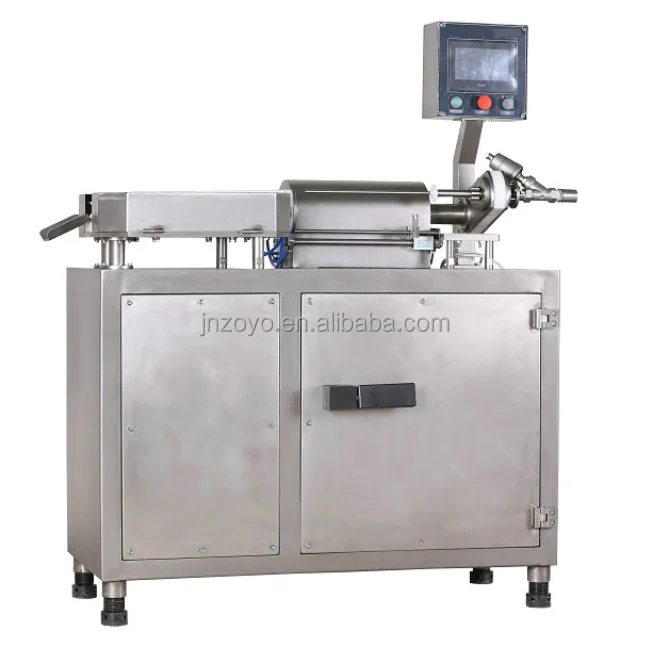

High Speed Twisting Machine ZYT-1200
Characteristics
The high-speed twisting machine adopts a programmable logic controller (PLC) as the core and a variable frequency motor as the power source. The electrical control adopts a fully enclosed control system, which can operate in various programming states. It is easy to adjust and has a high degree of automation, accurate actions, and stepless speed adjustment. It is a new type of industrial automation equipment that integrates automation technology, computer technology, and communication technology. It has the characteristics of flexible programming, complete functions, high efficiency, and simple operation.
The twisting machine has waterproof structures on each side door, safe and easy to use and maintain.
The key components of the twisting machine are processed using a machining center, ensuring the accuracy of the curve and action. And the core components have been carefully processed to achieve high smoothness and excellent wear resistance. All guiding components are made of high-quality copper alloy and high-quality stainless steel, which have good mechanical properties and corrosion resistance.
This twisting machine can be used in conjunction with various filling machines that can continuously and stably fill, forming an automated production line.
The twisting machine is equipped with twisted tubes of three sizes such asΦ9.5 , Φ11.5, Φ13.5 , corresponding casings can be selected. It has flexible adjustment of the twisting length and can continuously change the twisting speed according to user needs. We can produce products of various lengths. The available lengths are 3cm, 4cm, 5cm, 6cm, 7cm, 8cm, 9cm, 10cm, 11cm, 12cm, 13cm, 14cm, 15cm, 16cm, 17cm, 19cm, 20cm, etc. (default configuration is 4cm, 8cm, 12cm).

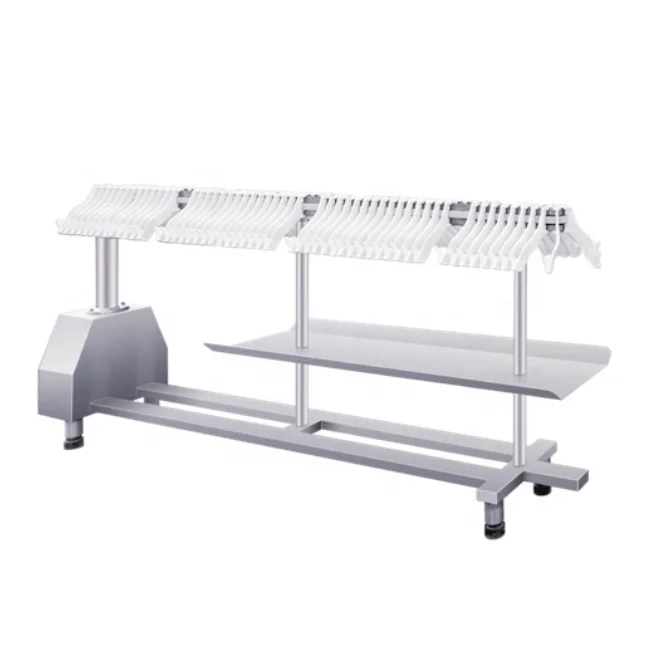

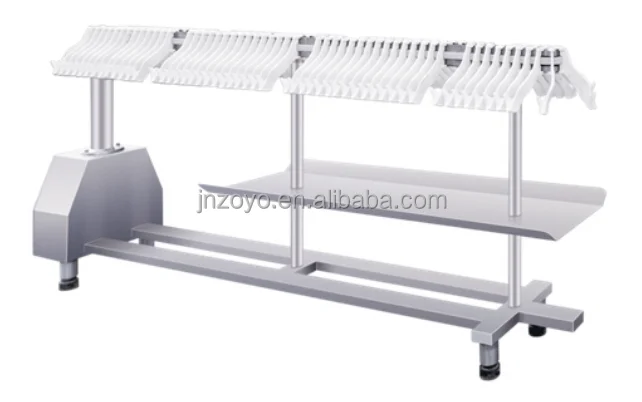

Linking Machine ZYL-1200
Characteristics
The hanging linking machine is controlled by PLC and powered by a servo motor. It is the integration of automation technology, computer technology, and communication technology. A new type of industrial automation equipment that integrates programming flexibility, multiple functions, high efficiency, and simple operation.
The key components of the hanging rod machine are manufactured by the machining center, ensuring the accuracy of the parts and the accuracy of the movements. Material selection of high-quality alloy
Steel and stainless steel have undergone special treatment to achieve high smoothness and excellent wear resistance.
It is suitable for hanging rods of various natural, collagen, and artificial intestinal casings, including straight and curved intestines.
Specification
Model (Vacuum Stuffer) | ZYVF-3600 |
Voltage | 380V 50Hz |
Capacity | 3600kg/h |
Power | 8KW |
Hopper volume | 245L or 250L |
Center height | 1000mm (adjustable) |
Quantitative accuracy | ±1% |
Filling pipe | Φ20, Φ25, Φ33, Φ40(can be customized) |
Tying pipe | Φ15, Φ20 |
Maximum vacuum degree | -0.1MPa |
Weight | 850kg |
Dimension | 1980*900*1820mm |
Model (Twisting Machine) | ZYT-1200 |
Voltage | 380V 50Hz |
Power | 3kW |
Speed | 1200pcs/min |
Center height | 1000mm(adjustable) |
Air source | Working pressure 0.5MPa |
Twisting length | 30-180mm |
Casing diameter | Nylon casing with a folding diameter of 25-45mm Collagen casing of 16-26mm |
Twisting tube | Φ9.5 , Φ11.5, Φ13.5 |
Application | Ordinary nylon, compression, collagen casing |
Weight | 350kg |
Dimension | 1310*550*1080mm |
Model (Linking Machine) | ZYL-1200 |
Voltage | 220V 50Hz |
Power | 2kW |
Working height | 1000mm |
Processing speed | Adapt to ZYT-1200, 1200pcs/min |
Application | Natural, collagen, and artificial casing sausages |
Weight | 150kg |
Dimension | 2600*450*1130mm |
Packing & Delivery
Inner water proof plastic films
Outer plywood package
Outer plywood package

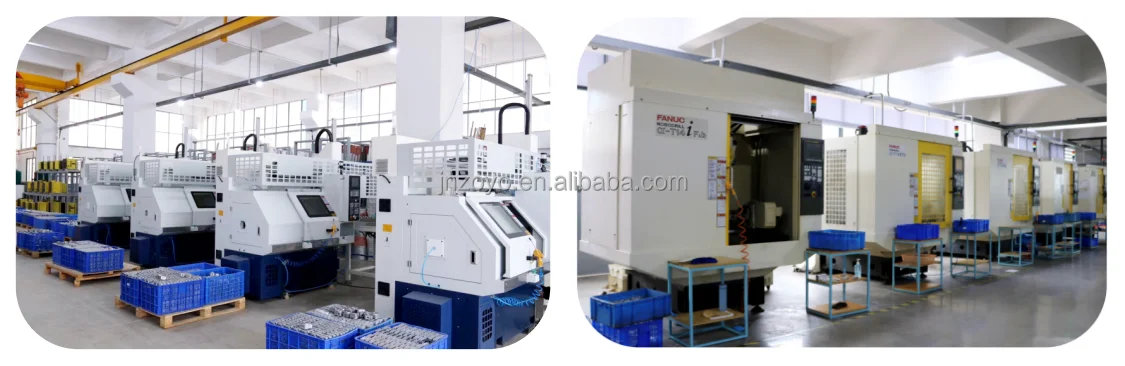

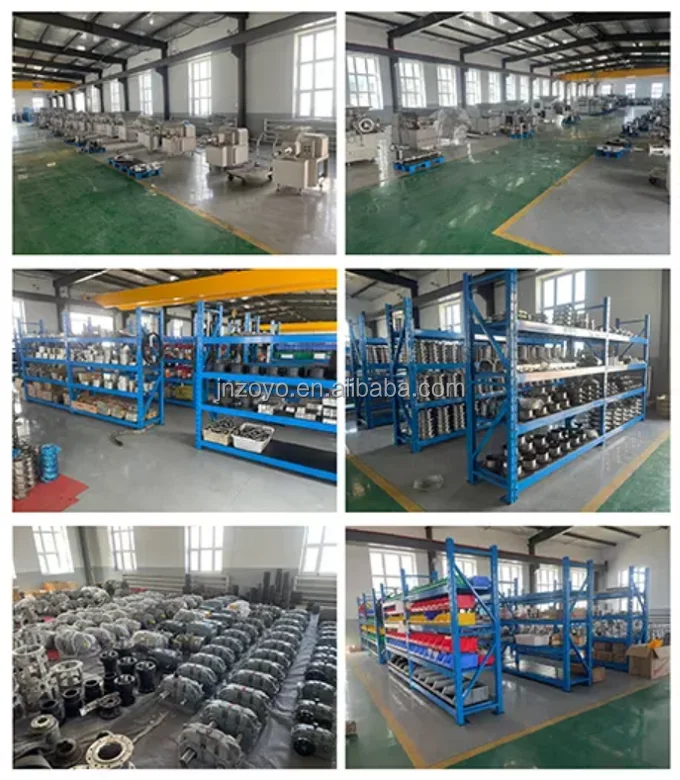

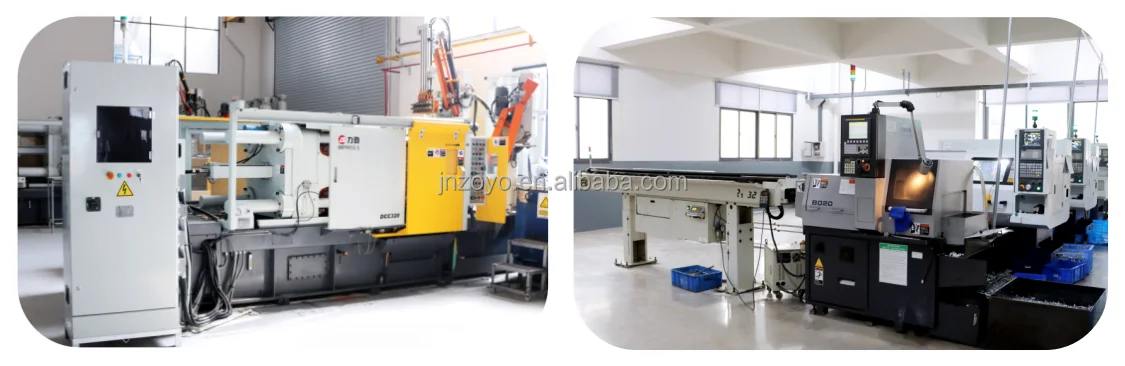

Company Profile
Jinan Zoyo Machinery Technology Co. , Ltd, established in 2016 year, is a professional manufacturer & exporter specialized in food machinery, dedicated in designing, manufacturing, and marketing the automatic production machines and production lines for easier processing of vegetable, meat, beverage, and packaging, etc.
Food level 304 stainless steel with sandblasting treatment enables healthier processing and output, and quick assembling and disassembling devices enable convenient cleaning and maintenance.
Our main products cover: 1) Vegetable and fruit processing machine 2) Meat processing machine 3) Baking machine 4) Beverage machine 5) Packaging machine 6) Kitchen equipments
We can provide one-stop solution for the industrial central kitchen, and customize the machines and processing lines according to customers' specific requirements for output and performance, etc.
We sincerely welcome customers, business associations, and friends from all over the world to contact us and seek cooperation for mutual benefits.
Food level 304 stainless steel with sandblasting treatment enables healthier processing and output, and quick assembling and disassembling devices enable convenient cleaning and maintenance.
Our main products cover: 1) Vegetable and fruit processing machine 2) Meat processing machine 3) Baking machine 4) Beverage machine 5) Packaging machine 6) Kitchen equipments
We can provide one-stop solution for the industrial central kitchen, and customize the machines and processing lines according to customers' specific requirements for output and performance, etc.
We sincerely welcome customers, business associations, and friends from all over the world to contact us and seek cooperation for mutual benefits.
