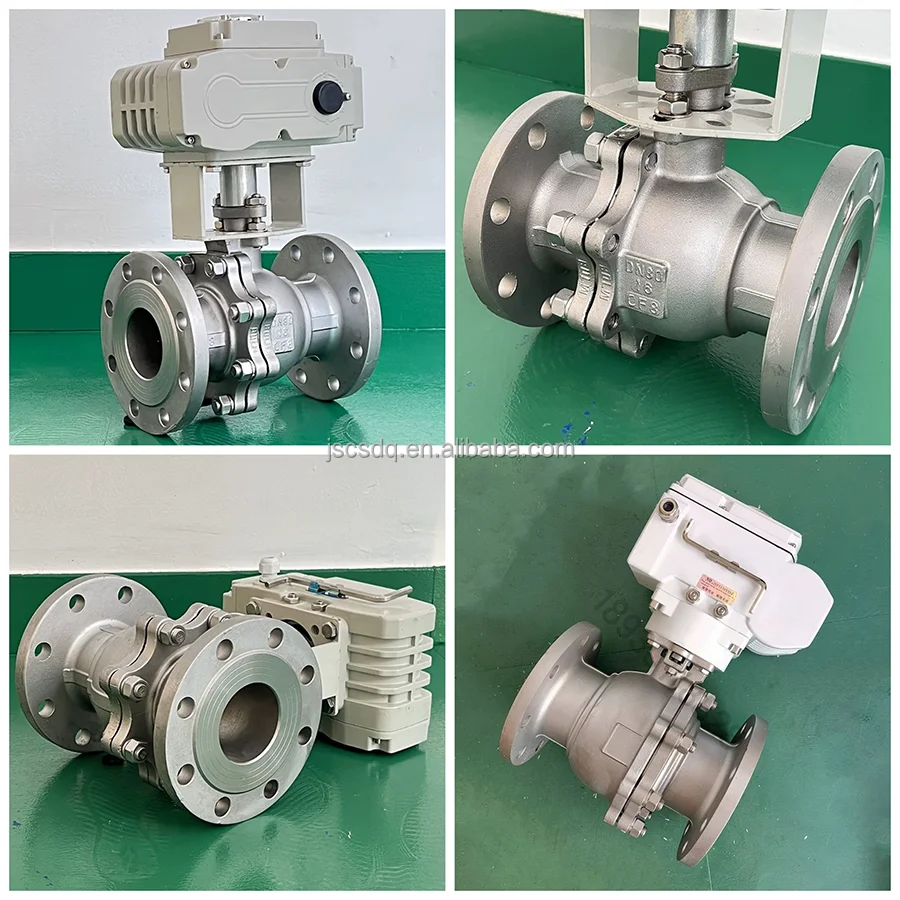

Dn80 3 Inch 3 Way L Port 24v Dc Flange Type Cf8m Stainless Steel Motorized Electric Ball Valve
- Category: >>>
- Supplier: Jiangsu Changshuo Electrical Equipment Co. Ltd.
Share on (1601007026739):
Product Overview
Description
Products Description
China API6d 609/ANSI 150lb/JIS10K/Pn16 Carbon Steel/Wcb/Stainless Steel 2PC/3PC/3-Way Manual Pneumatic Electric Actuated Flanged
Floating/Trunnion Control Ball Valve
Electric on-off ball valve consists of angular travel electric actuator and ball valve. Simple structure, rapid switching, large flow capacity, zero leakage, applicable to the fluid with high viscosity, fiber-containing, solid particle.
It has been widely used in petrochemical, metallurgy, light industry and other industrial automation field to cut off or open the gas / liquid transport pipeline.
Product Paramenters
Technical data: | ||||
● Valve body | ||||
Type | ON/OFF Ball valve | |||
Size (DN) | DN15 ~ DN300 mm | |||
Pressure rating | PN1.6 – PN6.4 Mpa | |||
Flange standard | JB/T79.1-94, 79.2-94 | |||
Body / ball material | WCB, CF8, CF8M / CF8, CF8M | |||
Bonnet type | Whole type | |||
Packing | V-type PTFE / flexible graphite | |||
Seat seal material | Soft seal: PTFE, Carbon fiber reinforced PTFE , Composite graphite | |||
Metal seal: CF8, CF8M + Stellite | ||||
Operation temperature | Seal: PTFE | -10~180℃ | ||
Seal: Carbon fiber reinforced PTFE | -40~200℃ | |||
Seal: Composite graphite | -40~500℃ | |||
Seal: CF8, CF8M + Stellite | -40~600℃ | |||
Leakage | Seal: PTFE | Zero leakage | ||
Seal: Carbon fiber reinforced PTFE | ||||
Seal: composite graphite | < 10^6 of rated flow | |||
Seal: CF8, CF8M + Stellite | < 10^5 of rated flow | |||
Flow characteristics | quick-opening | |||
Rated travel | Full-open 90° | |||
Remark: For metal seal, it is suggested to select Eccentric semi-ball valve | ||||
● Actuator | |
Type | Electric actuator, intelligent integrated |
Usage | ON/OFF |
Power supply | 220VAC, 380VAC |
Input signal | 4-20mA.DC or 1 -5 VDC |
Action type | Electric open / Electric close |
Environmental temperature | -25℃～+70℃ |

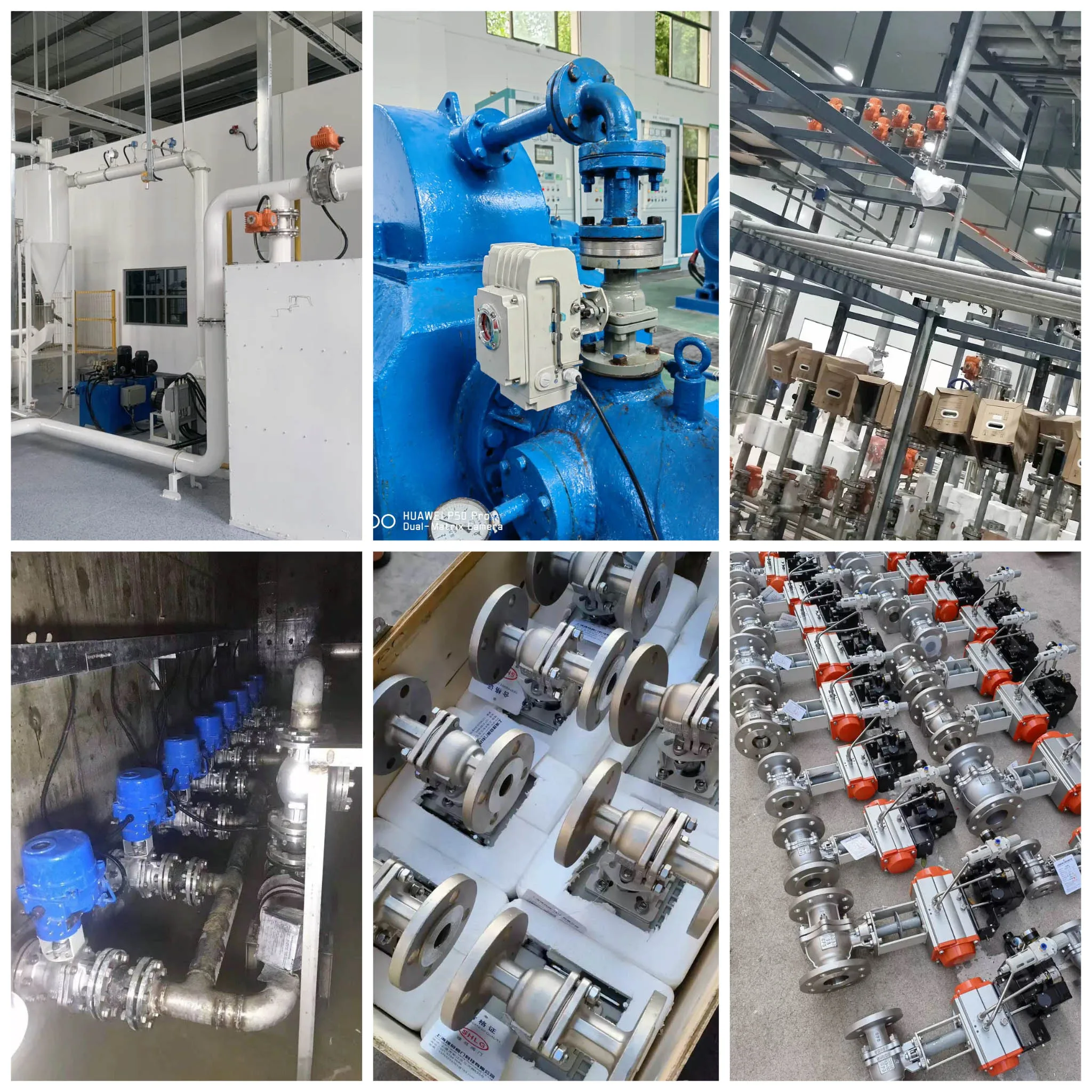

APPLICATION
Our Advantages
1. Integrating R&D, production, distributing and technical services |
2.After Warranty Service |
Site Installation and commissioning, 24 hours online support and Video technical support |
Recommend Products
DCS & SIS CONTROL SYSTEM SUPPLY
Company Profile
Jiangsu ChangShuo Electrical Equipment Co., Ltd
Jiangsu ChangShuo Electrical Equipment Co., Ltd has 15 years of professional experience which focus on electrical, instrument,control system and complete system service. We are a professional enterprise which integrating R&D, production, distributing and technical services.
Our main products include temperature instrument, pressure transmitter, flowmeter, level transmitter, control valve, control cable, electric control cabinet and DCS/SIS control system.
The products have obtained Certificate of Quality System ISO9001, Certificate of Explosion-proof and Certificate of Metrology etc.
We are working closely with customers of water treatment, food & drug industry, environmental protection, power enterprise, petro-chemical industry, metallurgy industry, shipbuilding and so on.
After many years experience, we become approved vendor of China National Petroleum Corporation (CNPC), SinoPEC Group, China National Offshore Oil Corporation (CNOOC), China National Nuclear Corp.(CNNC) , and so on.
For overseas customers, we offer ODM, OEM and also direct sales service.
Our experienced engineers and sales experts are your competent and dependable contacts locally.
Our main products include temperature instrument, pressure transmitter, flowmeter, level transmitter, control valve, control cable, electric control cabinet and DCS/SIS control system.
The products have obtained Certificate of Quality System ISO9001, Certificate of Explosion-proof and Certificate of Metrology etc.
We are working closely with customers of water treatment, food & drug industry, environmental protection, power enterprise, petro-chemical industry, metallurgy industry, shipbuilding and so on.
After many years experience, we become approved vendor of China National Petroleum Corporation (CNPC), SinoPEC Group, China National Offshore Oil Corporation (CNOOC), China National Nuclear Corp.(CNNC) , and so on.
For overseas customers, we offer ODM, OEM and also direct sales service.
Our experienced engineers and sales experts are your competent and dependable contacts locally.
Packing & Delivery
FAQ
FAQ
1. Q: Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.And we made many molds for our customers already. About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
2. Q: What's your quality control system?
A: MC, ISO9001, CE Certificated.
A: Yes.We made a lot of customized products for our customer before.And we made many molds for our customers already. About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
2. Q: What's your quality control system?
A: MC, ISO9001, CE Certificated.
3. Q: What is the warranty of your products?
A: Our warranty time is 18 months -3 years after shipment.
4. Q: What is lead time of your product?
A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.
5. Q: Do you provide customized products?
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.
6. Q: What is your MOQ?
A: We have no MOQ limit, small quantity order is acceptable.
7. Q: What's the transport?
A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.
8. Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU.
