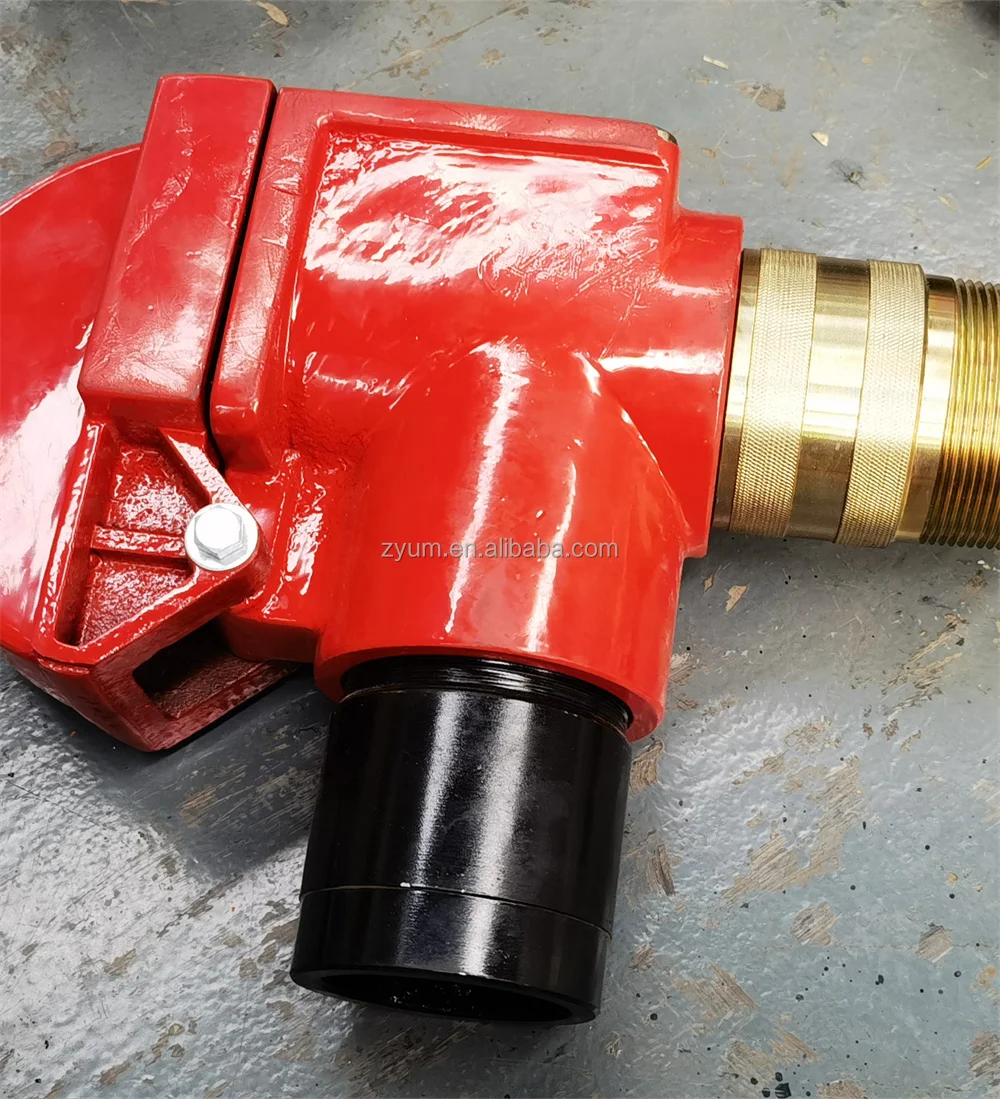

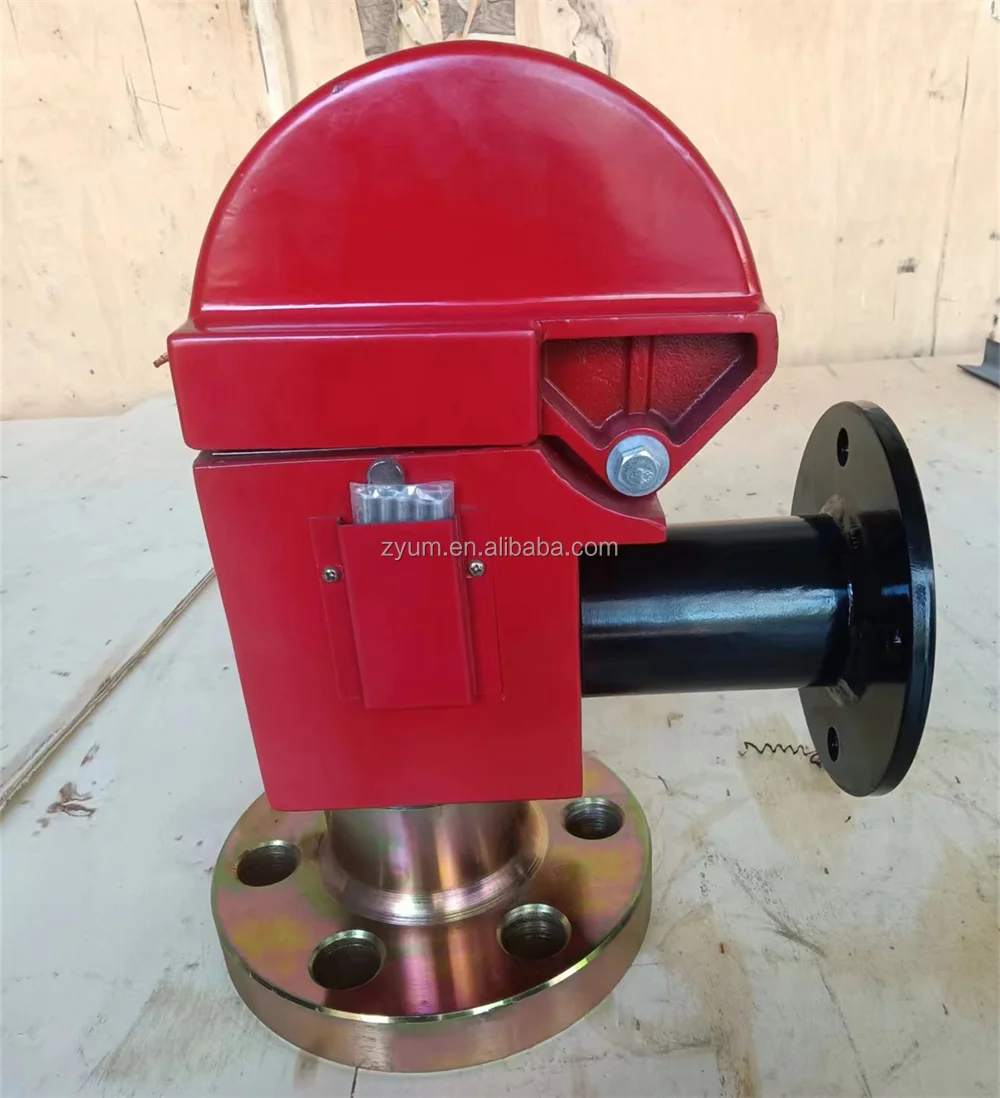

Hot sale f800 f1000 f1300 mud pump safety valve for oilfield drilling rig
- Category: >>>
- Supplier: Beijing Zhuoyue Union Machinery Development Co.Ltd
Share on (1601007049151):
Product Overview
Description
Products Description
Brand | Beijing Zhuoyue Union Machinery | ||||||
Material | Metal | ||||||
Size | Standard | ||||||
Warranty | 1 year | ||||||
Certification | PCOC, Reach, IECEE, scoc, EPA, GS | ||||||
Customized Support | Customized support | ||||||
Type | Center Drill Bit, Core Drill Bit, Countersink Drill Bit, Gun Drill Bit, Indexable Drill Bit, Spade Drill Bit, Twist Drill BitCenter Drill Bit, Core Drill Bit, Countersink Drill Bit, Gun Drill Bit, Indexable Drill Bit, Spade Drill Bit, Twist Drill Bit | ||||||
The drilling pump is the pump module that receives the cleaned drilling fluid from the circulation system and then delivers it through the high-pressure manifold to the discharge line of the drilling rig. The equipment included in the pumping module shall be factory assembled as much as possible. The base of the pumping module is the frame (metal structure) of the drilling pump. Each drilling pump is equipped with its own frame, on which the pump electric drive, pump lubrication and irrigation system, suction
line support system are mounted.
line support system are mounted.

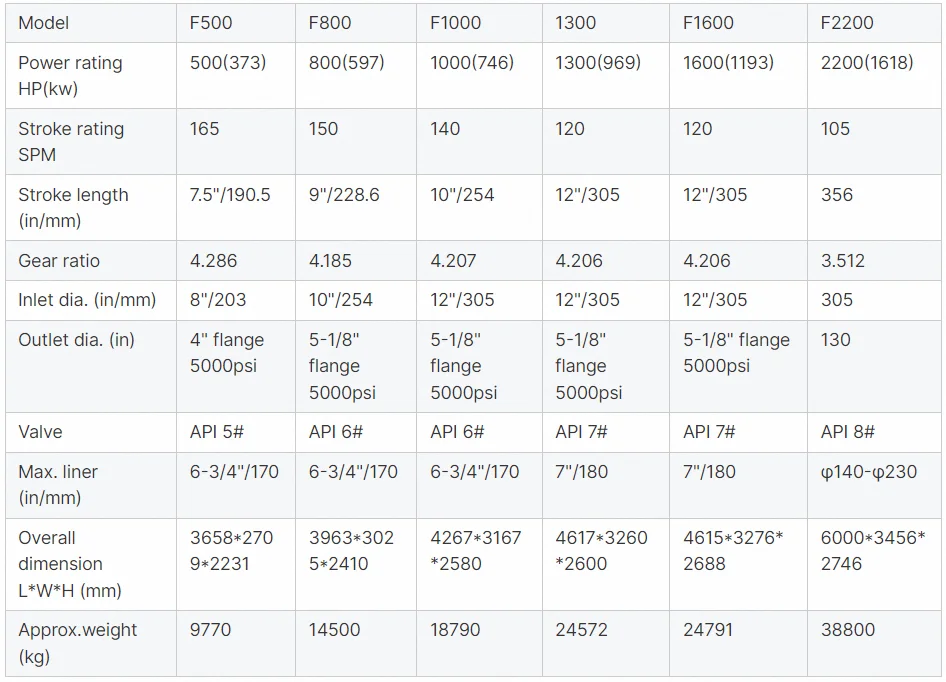

F Series Mud Pump Model | F500, F800, F1000, F1300,F1600,F2200 |
Part Number | AH37001-01.00 AH1601010100 AH37002-01.00 AH1601020100 |
Certificate | API 7K, API 4F, API Q1, ISO9001 |
The crank shaft is alloy steel casting and furnished withring gear, connecting rod and bearings etc.The tooth formof the ring gear is herring bone teeth. The ring gear bore and the crank shaft surface are interference fitted and they are both fastened with bolts and locking nuts. The largeend of the connecting rod is mounted on three eccentric straps of the crank shaft through single row short cylindrical roller bearing and the bearing. Both end softhe crank shaft are double row radials pherical roller bearings.small end is mounted on the cross head pin through double row long cylindrical rollerill
F Series Mud Pump Description
Our F series mud pump are designed and manufactured on the basis of American Emsco F series mud pump strictly according to America Petroleum Institution API 7K Standard. All of its expendable parts are interchangeable with any other spare parts produced according to API standard. Therefore it is easy to repair and maintain internationally .
F series mud pump are applicable to the requirement of high pump pressure in oilfield and high displacement technology of well
drilling with its solid and compact structure, small volume and out-standing operation performance.
F series mud pump are applicable to the requirement of high pump pressure in oilfield and high displacement technology of well
drilling with its solid and compact structure, small volume and out-standing operation performance.
F Series Mud Pump Description
F series mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance
effectively and extended the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener has an advanced
structure which is reliable to use and can make the pump realize its best suction performance.
The power end of F series mud pump adapts combined lubricating system of forced lubrication and splash lubrication. Reliable to
lubricate and increased the service life of power end.
effectively and extended the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener has an advanced
structure which is reliable to use and can make the pump realize its best suction performance.
The power end of F series mud pump adapts combined lubricating system of forced lubrication and splash lubrication. Reliable to
lubricate and increased the service life of power end.
For more information, please contact us. We will provide you with more services
Customer Visit Factory
Company Profile
Exhibition
Production Line
Certifications
Customer Service
FAQ
1. Who are we?
We are based in Tianjin, China, start from 2016,sell to Eastern Europe(30.00%),North America(10.00%),South
America(10.00%),Southeast Asia(10.00%),Africa(10.00%),Mid East(10.00%),Oceania(5.00%),Central
We are based in Tianjin, China, start from 2016,sell to Eastern Europe(30.00%),North America(10.00%),South
America(10.00%),Southeast Asia(10.00%),Africa(10.00%),Mid East(10.00%),Oceania(5.00%),Central
America(5.00%),South
Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
3.What can you buy from us?
Oil drilling rig and the related spares.
4. Why should you buy from us not from other suppliers?
1.Professional & Efficient, Customer Focus, Win-win Cooperation
Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;3.What can you buy from us?
Oil drilling rig and the related spares.
4. Why should you buy from us not from other suppliers?
1.Professional & Efficient, Customer Focus, Win-win Cooperation
2.Competitive price & within shortest lead time
3. Overseas technical after-sale services
4. OEM services
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
