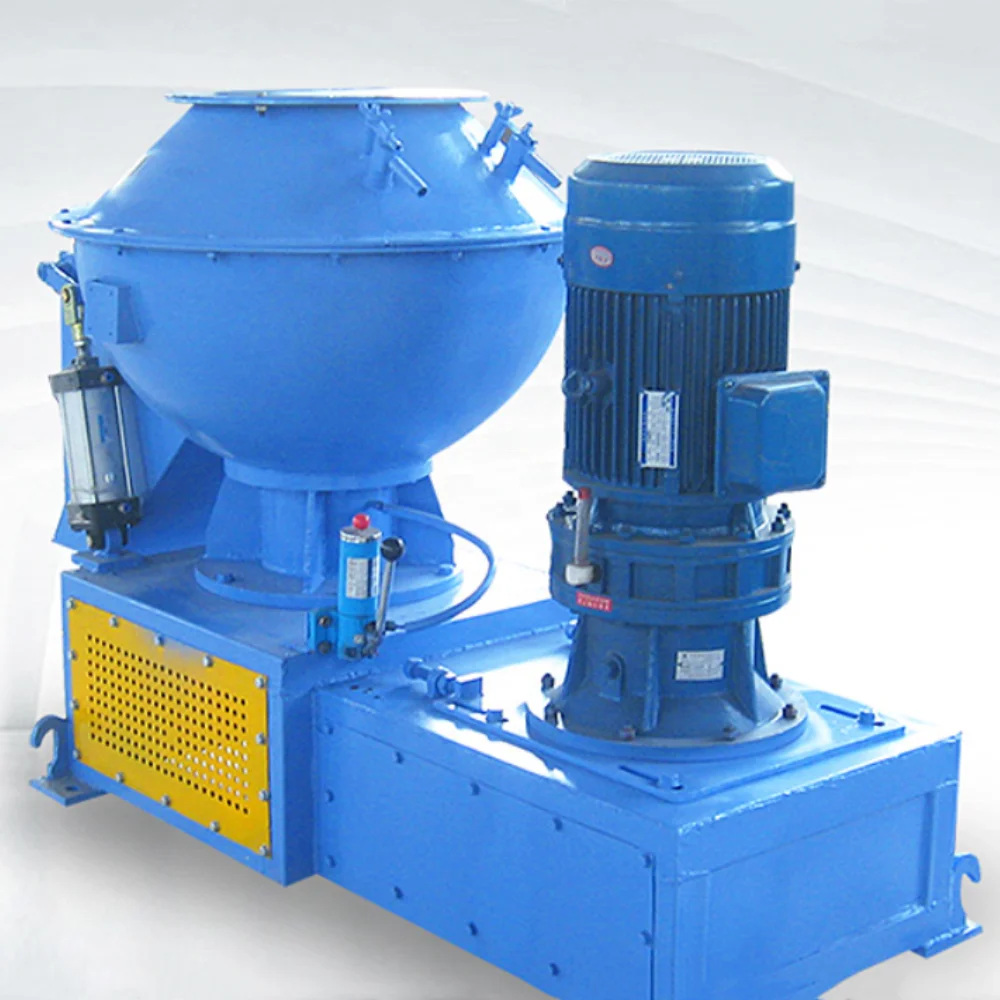

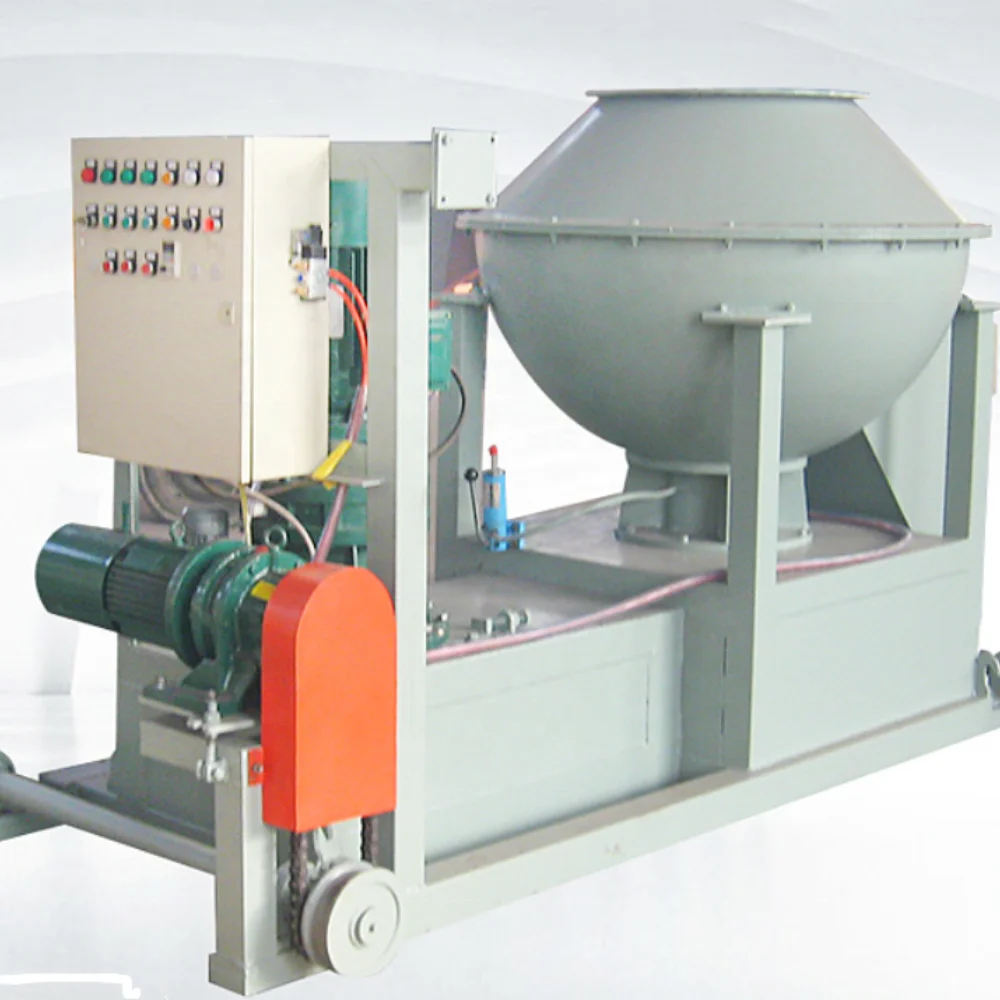

Bowl Type Sand Mixer for Furane Resins
- Category: >>>
- Supplier: Qingdao Tianzhuang Casting Machine Industry And Trade Co. Ltd.
Share on (1601007057498):
Product Overview
Description
Product Overview
S20 series high quality spheroidal bowl resin sand mixer speciication
S20 series high quality spheroidal bowl resin sand mixer is one kind of intermittent resin sand mixer, it is defferent with other kinds of resin sand mixer, because it is spherical sand container through special high- speed rotating blades to the sand to awirl cube movement, it an instant, so that sand and resin and curing agent binder full of mixed sand
FEATURES AT A GLANCE
small volume, light weight
sand mixing evenly, it is the main equipment for making small resin sand and core, typical single use.
sand mixing evenly, it is the main equipment for making small resin sand and core, typical single use.
This Bowl Type Coated Sand Mixer is only used for mixing self-hard core sand and molding sand.It can be used alone or combined with self-hardening sand equipment.
Right elevation
Left elevation
Front elevation

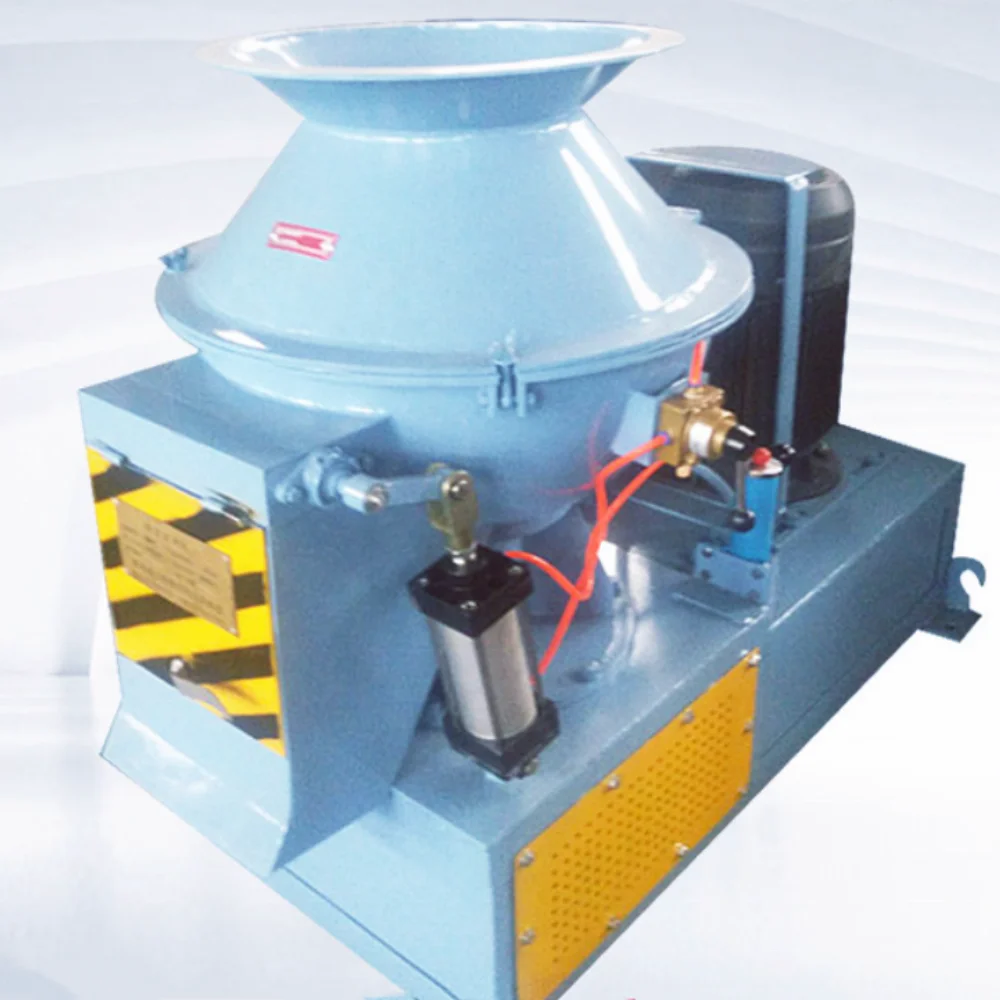

50kg Foundry Bowl Type Resin Sand Mixing Machine
Spherical rotary dumping drop type small sand mixing equipment, used for gravity casting or small volume, large batch core sand mixing. Its working principle is to quickly mix quartz sand, curing agent and resin into cast core sand. Through the core making equipment, the high-quality sand core with smooth surface, small gas generation, easy to collapse and accurate size is blown. Suitable for uniform mixing of resin sand, water glass, cold core AB resin sand. The equipment is widely used in auto parts valves, hardware sanitary ware, plumbing faucets, cast steel, cast iron, cast aluminum and other casting industries.
PRODUCT SPECIFICATIONS
Disc diameter | 600mm |
One feeding | 50-60kg |
Sand mixing time | 30s |
Mixer speed | 140r/min |
Motor power | 4kw-8p |
Machine dimensions | 1350*660*900mm |
