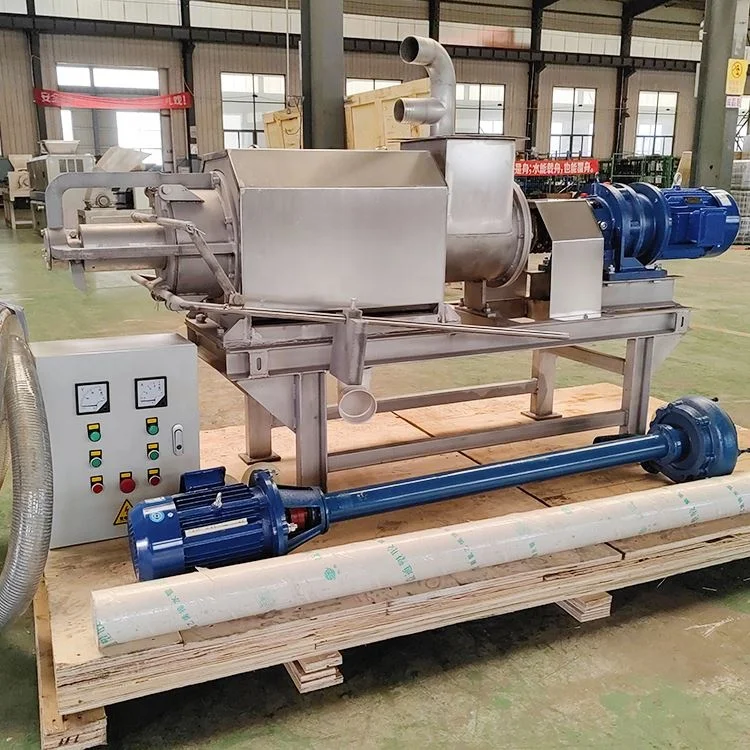

Hot sale cow dung separator/slurry solid liquid separator/automatic chicken manure cleaning machine
- Category: >>>
- Supplier: Zhengzhou Furui Machinery Co. Ltd.
Share on (1601007081244):
Product Overview
Description
Hot sale cow dung separator/slurry solid liquid separator/automatic chicken manure cleaning machine
Product Description
1.Equipment Introduction of cow dung separator

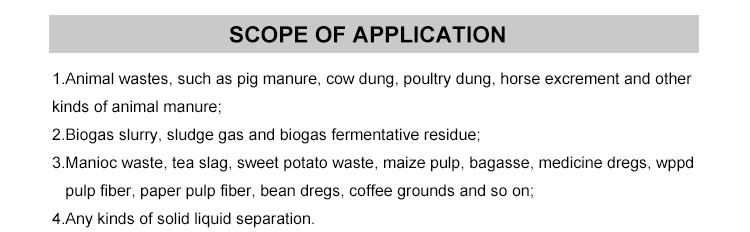

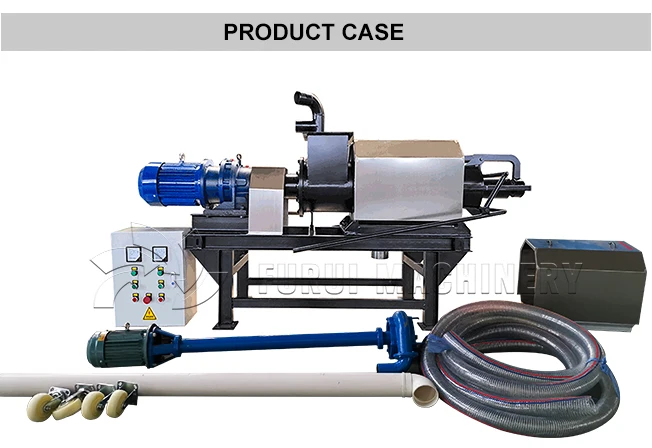

Screw press solid liquid separator is mainly consist of motor,reducer,screen,screw,pipe,pump, control cabinet.It is widely use in farm,especially for manure dewatering for cow,pig,horse,chicken,etc.
Spiral extrusion type solid-liquid separator is a new mechanical dewatering equipment developed by our company by referring to various advanced dewatering equipment at home and abroad and combining with our own dewatering equipment and manufacturing experience.Spiral extruding solid-liquid separator is mainly composed of control cabinet, pipeline, body, screen, extruding jiaolong, reduction motor, counterweight, unloading device and other parts, this equipment is widely used, and has been recognized by the majority of users in the market.

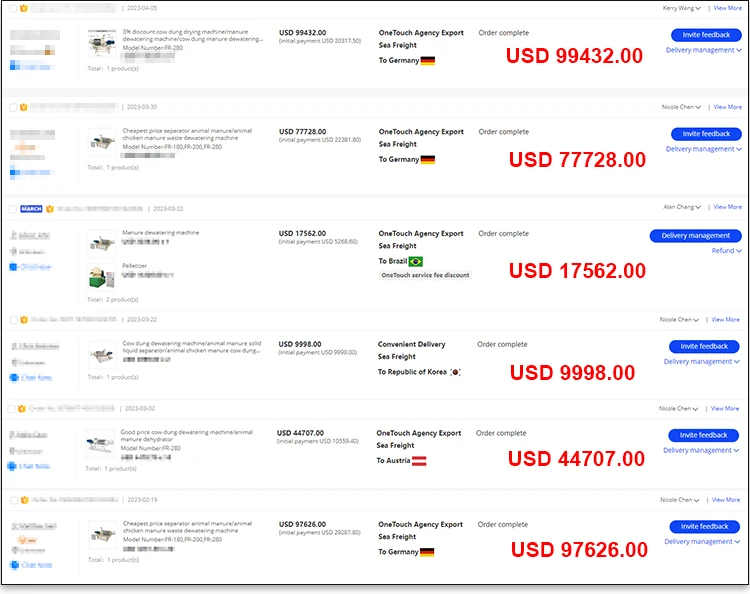

Real order from customer,welcome to send inquiry!
2.working principle of cow dung separator

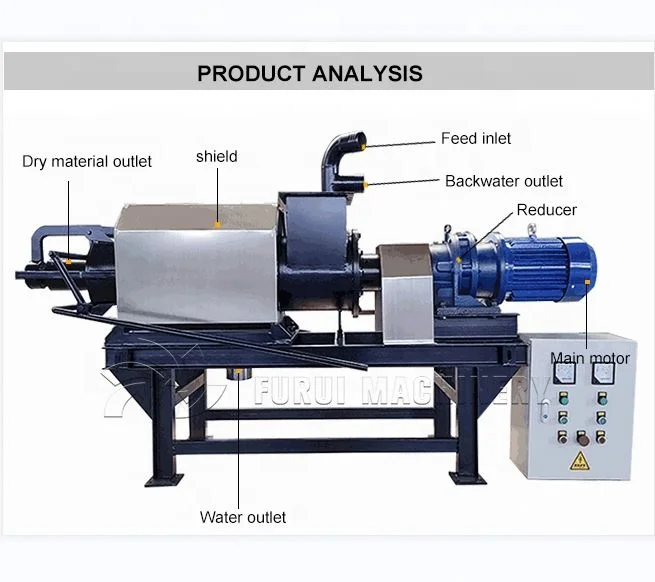

The principle of solid-liquid separator is spiral extrusion solid-liquid separation technology.The main components are: body, screen, extrusion and stranding, reduction motor, unloading device and other components.

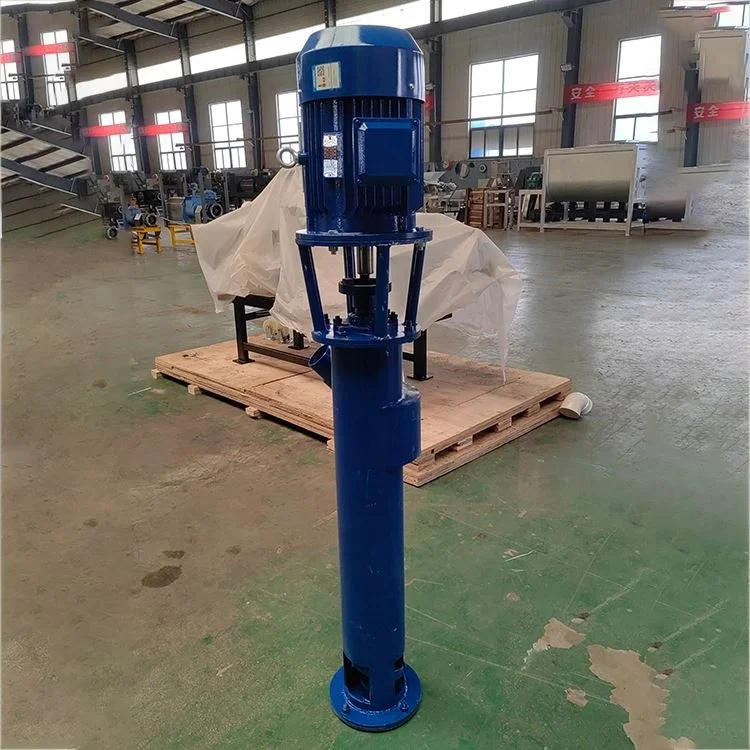

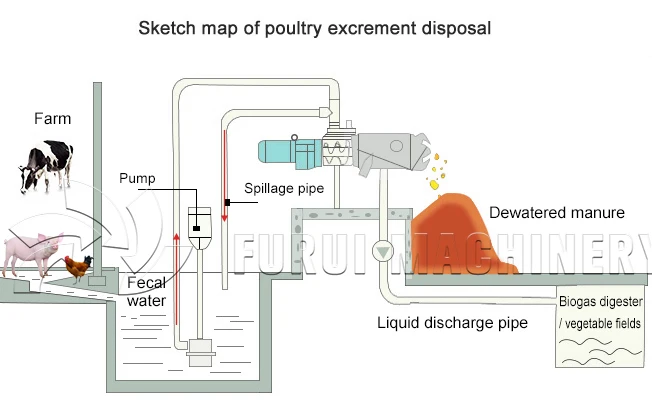

After the cutting feed pump pumps the mixture to the solid-liquid separator through the pipeline, the separator starts, and the mixture is gradually pushed forward to the front of the body by squeezing the stringer.
At the same time, the pressure of the leading edge is constantlyincreased, forcing the water in the material to extrude the screen and flow out of the drain pipe.The work of the extruder is continuous, the material is continuously pumped into the body, the leading edge of the pressure is increasing, when to a certain extent, the discharge port will be opened, extrusion extrusion port, to achieve the purpose of extrusion.In order to grasp the speed and water content of the discharge, the control device in front of the main engine can be adjusted to achieve a satisfactory and appropriate discharge state.

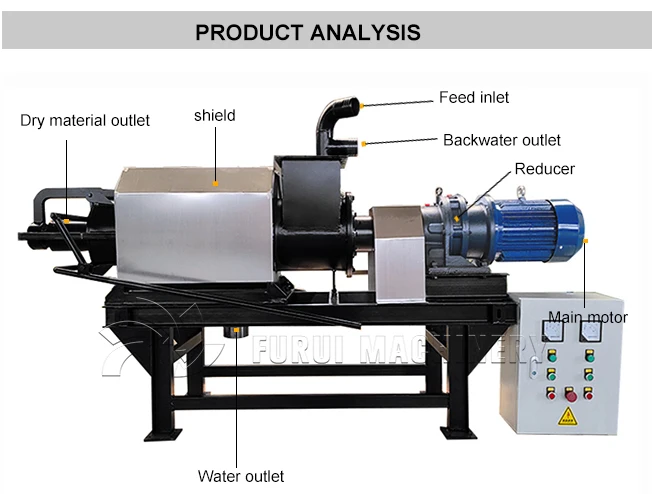

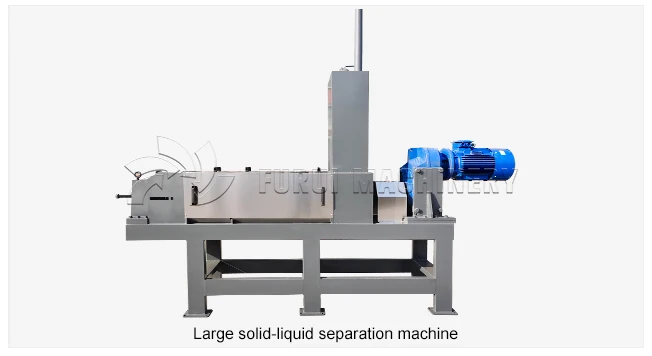

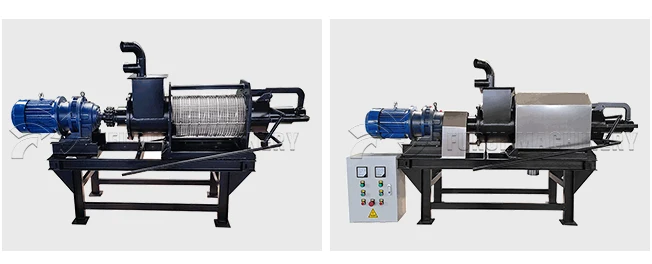

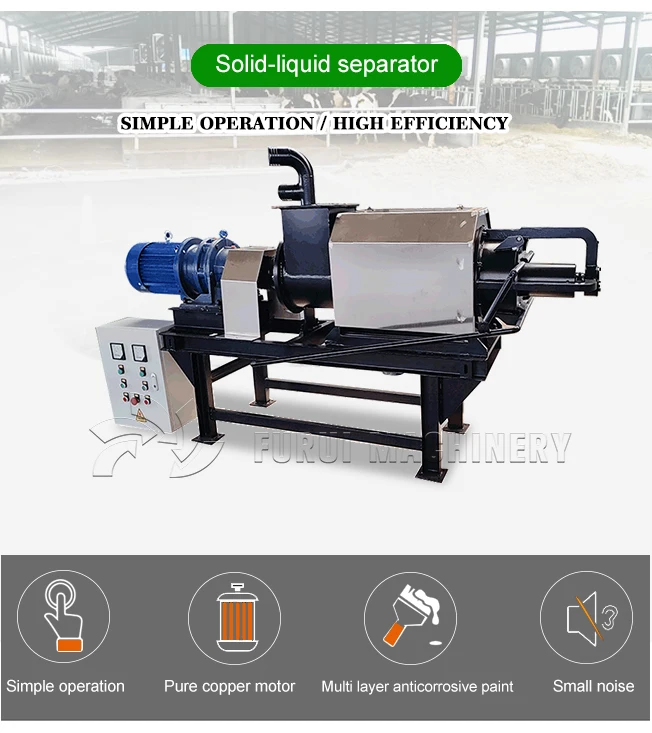

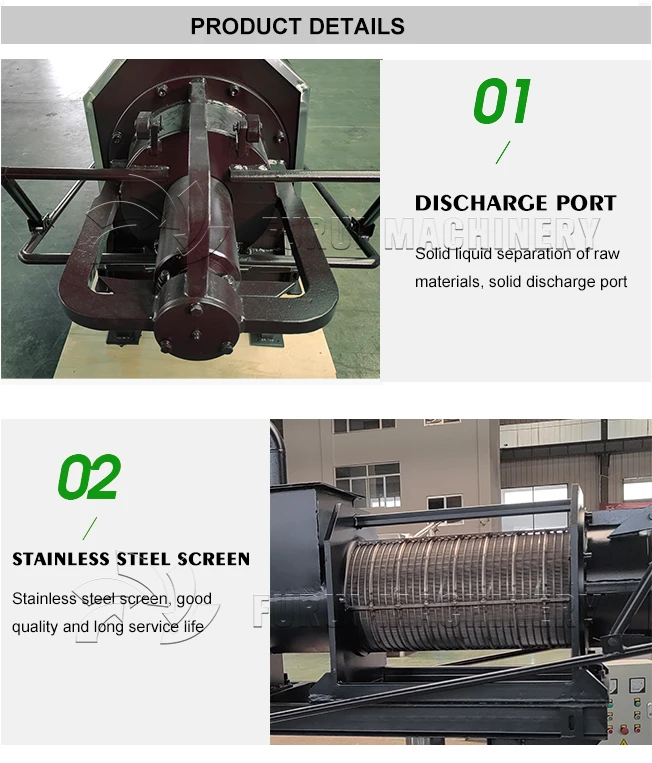

Model picture:
3.Features of cow dung separator
1.With 304stainless steel cover,which is easy to take off and observe.
2.Screw and screen adopt high quality 304SUS,Which is preservative,can use long time.
3.Easy operate,small dimension,low noise,work stable.
4.Low moisture content after press,you can’t press out water by hand.After press the moisture content is around 60%,of course it is not water weight 60%.

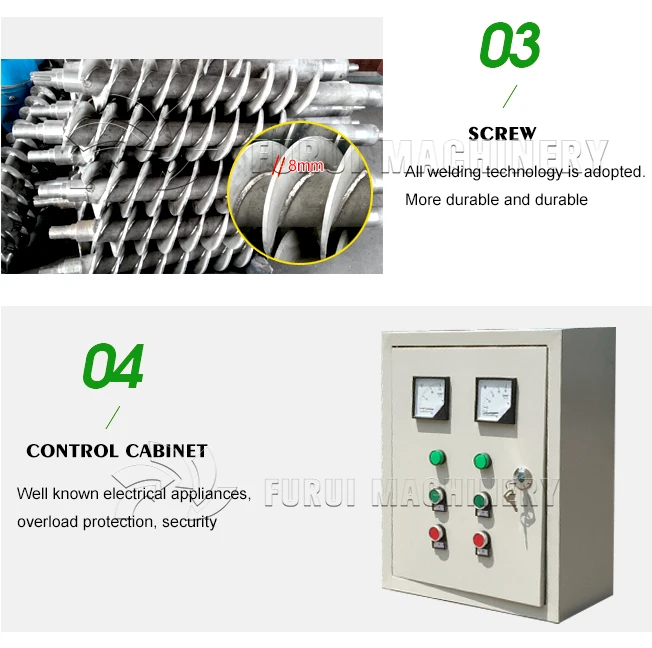

5.Screw is full welding,which is more durable.
2.Screw and screen adopt high quality 304SUS,Which is preservative,can use long time.
3.Easy operate,small dimension,low noise,work stable.
4.Low moisture content after press,you can’t press out water by hand.After press the moisture content is around 60%,of course it is not water weight 60%.
5.Screw is full welding,which is more durable.

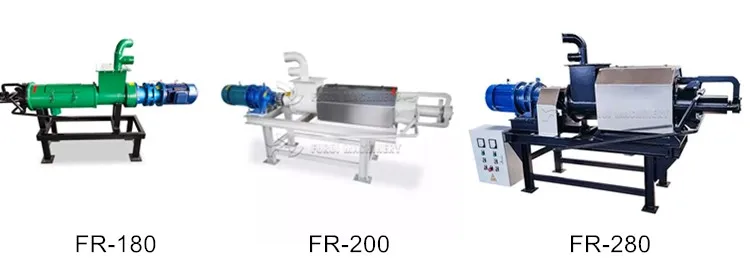

4.Specification of cow dung separator
Model | FR-180 | FR-200 | FR-280 |
Voltage | 380V | 380V | 380V |
power | 4kw | 4kw | 5.5kw/7.5kw |
Machine size(mm) | 2000*600*1300 | 2200*610*1350 | 2400*800*1300 |
Machine weight | 340kg | 510kg | 680kg |
Capacity | 8-10 M³/H | 10-15 M³/H | 20-25 M³/H |
Sieve diameter | 180mm | 200mm | 280mm |
Inlet diameter | 76mm | 76mm | 76mm |
Over flow port diameter | 76mm | 76mm | 76mm |
Drain pipe diameter | 110mm | 110mm | 110mm |
Material | Carbon steel &304 stainless steel | Ductile iron&304 stainless steel | Ductile iron &304 stainless steel |
Screw and sieve material | 304 stainless steel | 304 stainless steel | 304 stainless steel |

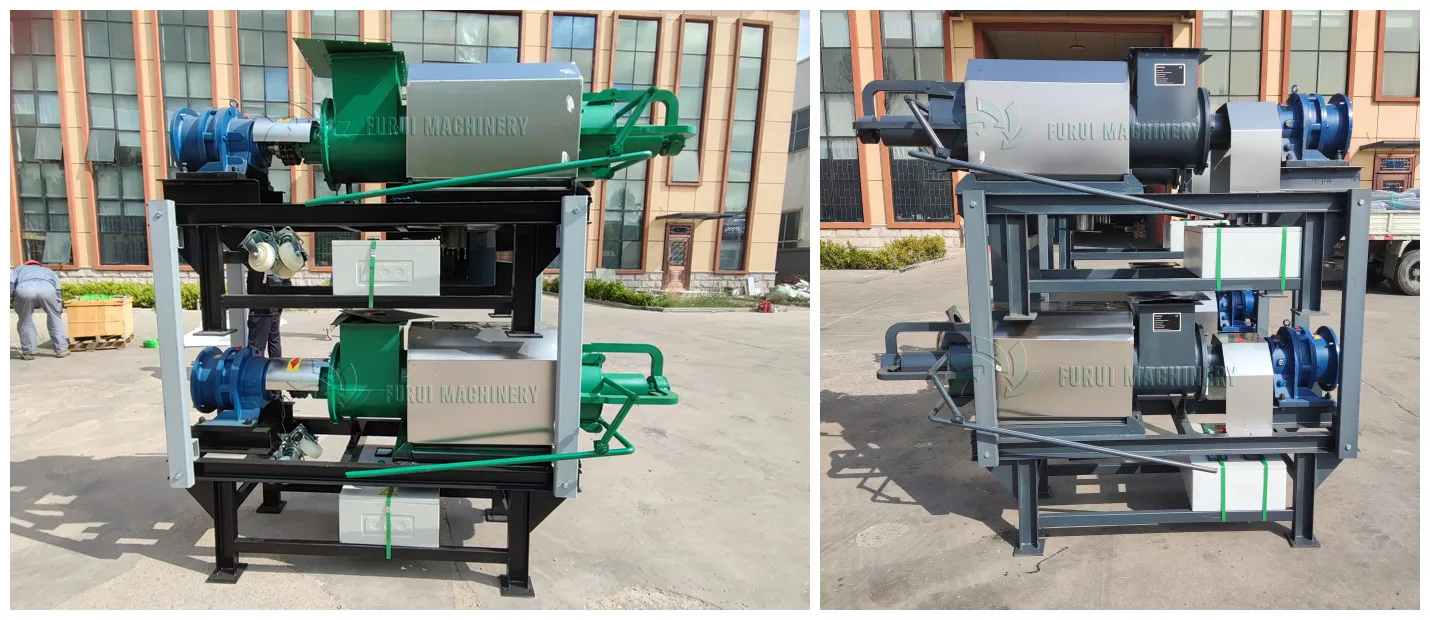

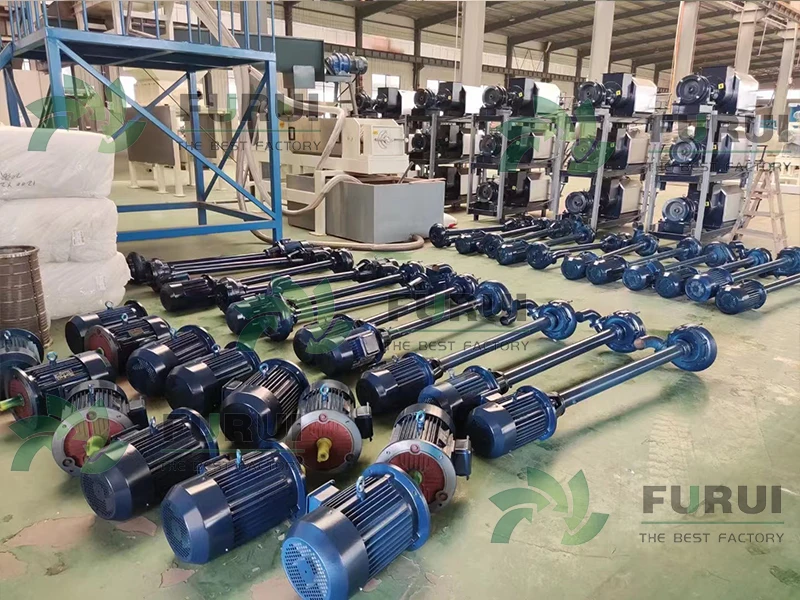

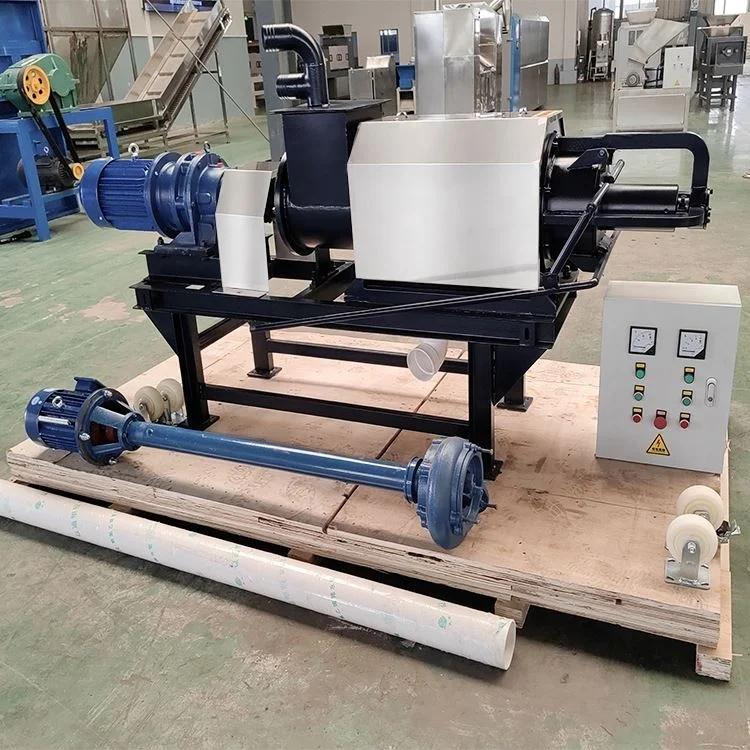

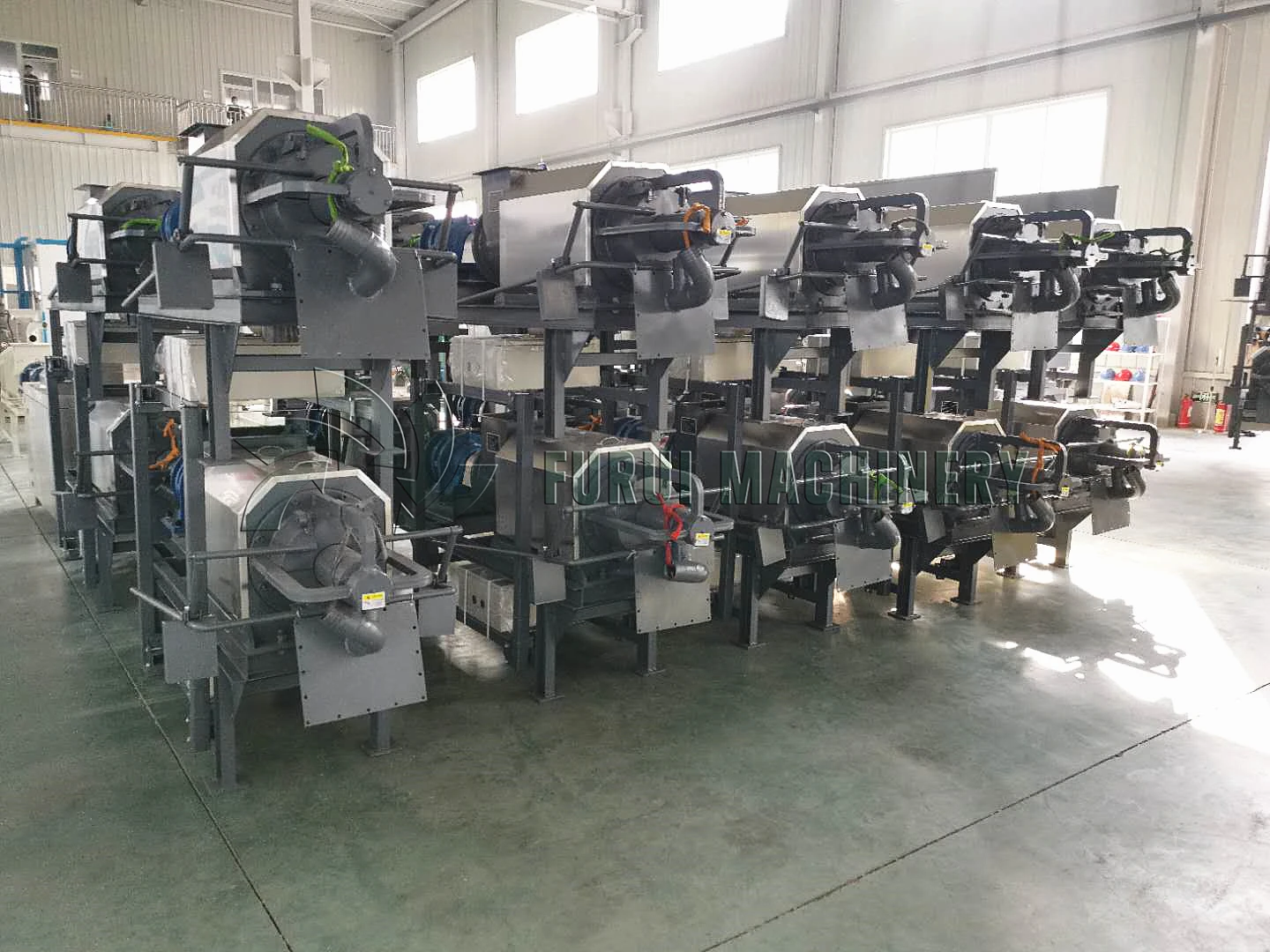

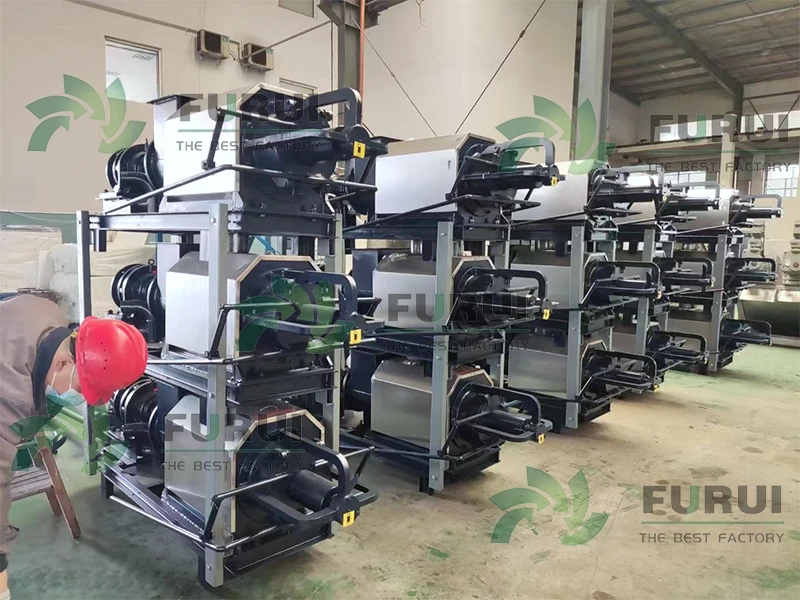

Shipping pictures for German customer's 5units FR-280:

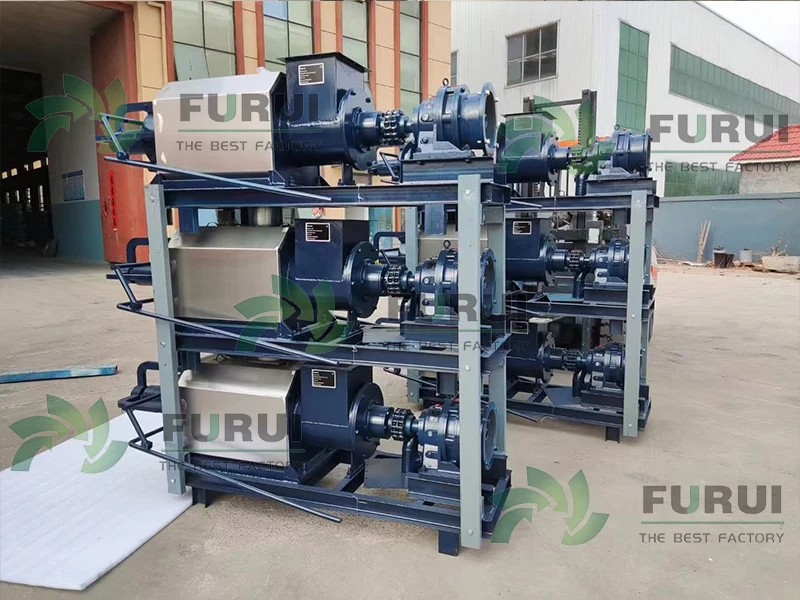

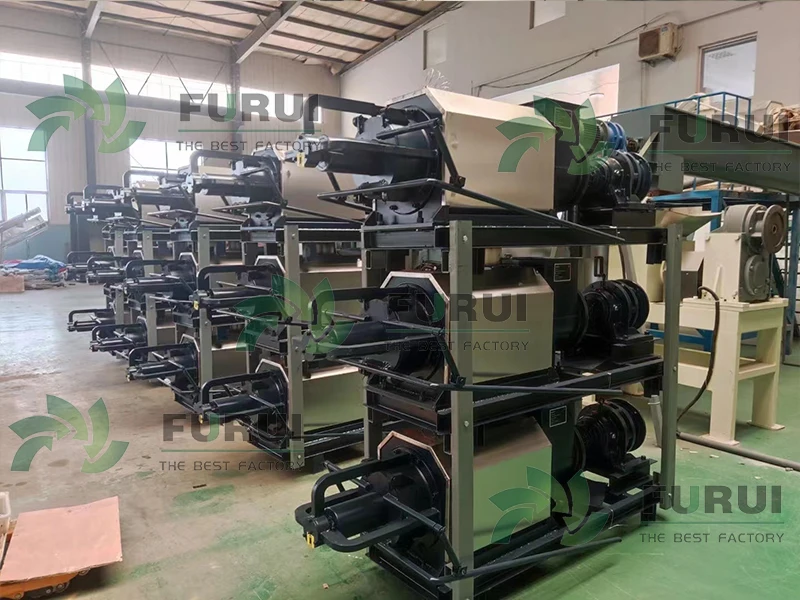

Shipping pictures for German customer's 24 units FR-280:

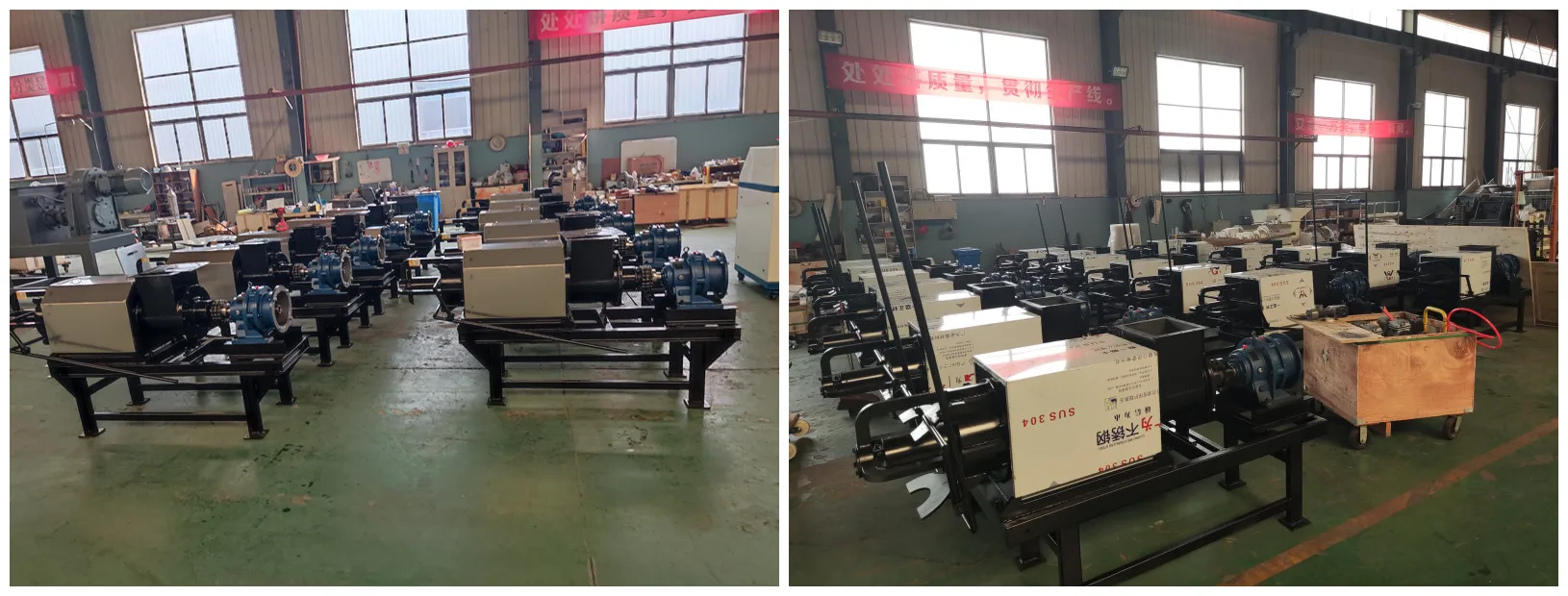

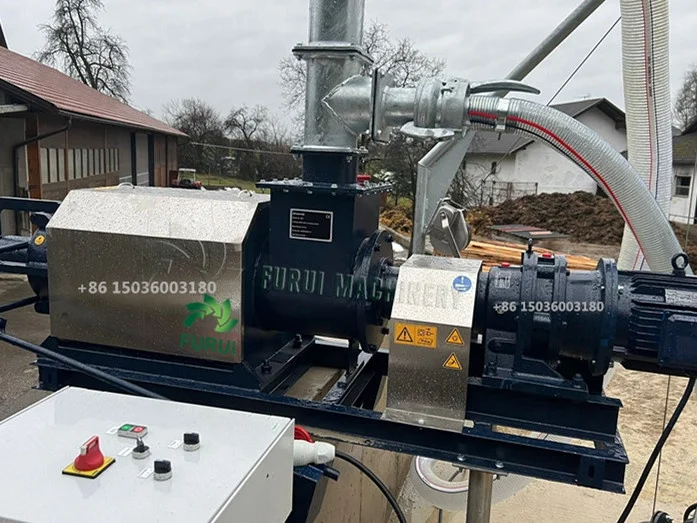

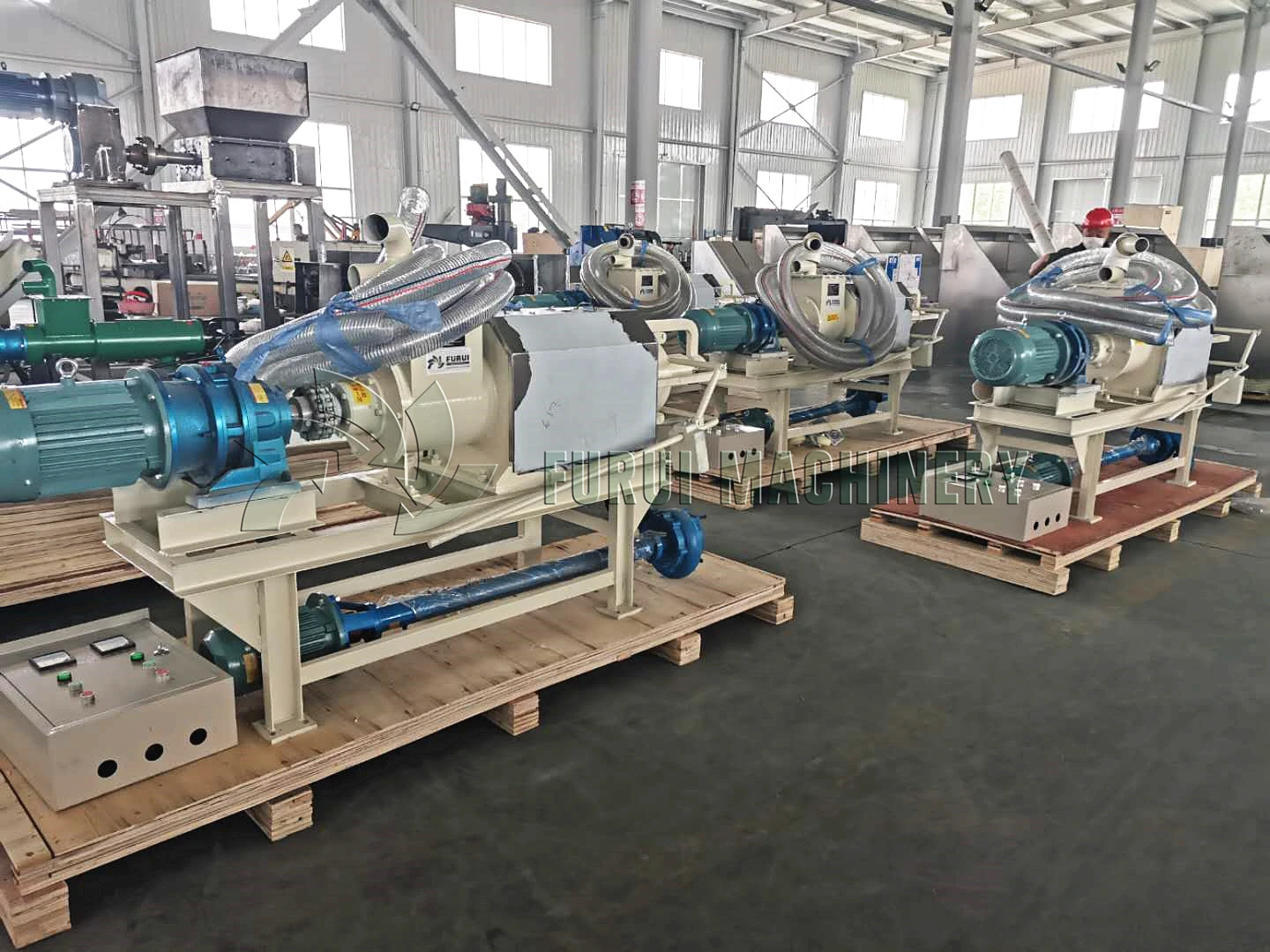

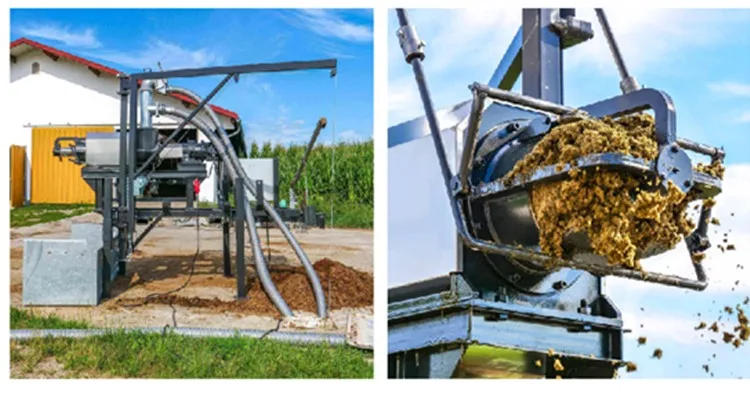

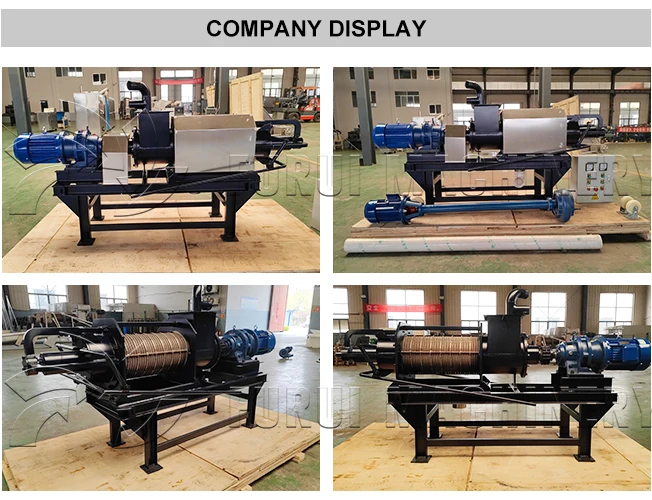

5.More pictures of cow dung dewatering system

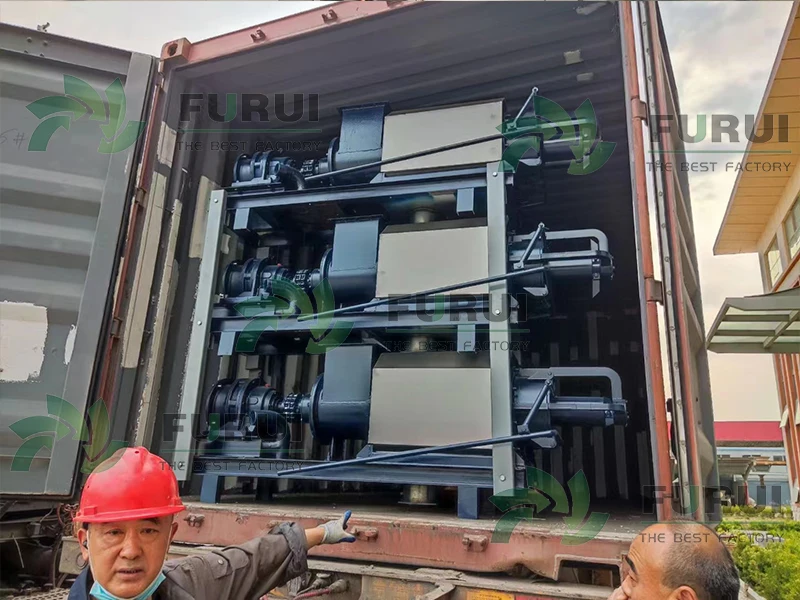

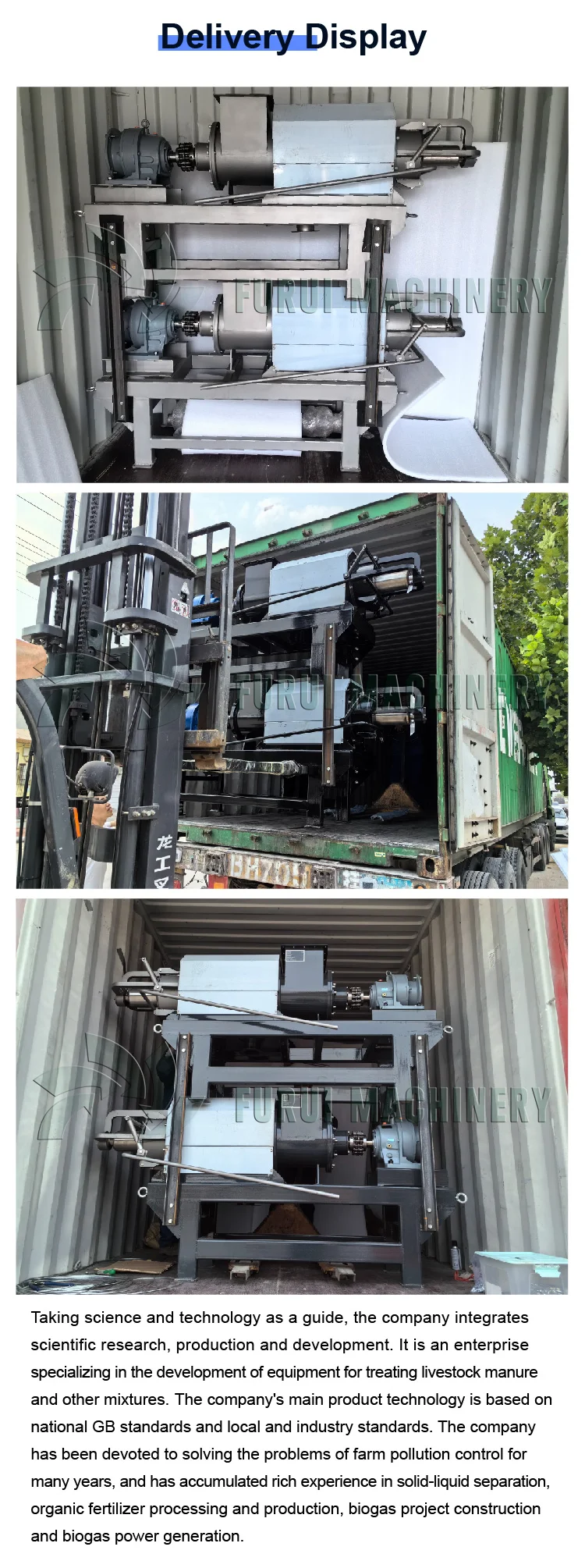

Delivery pictures 28units FR-280 to Austria:
