wire drawing machine,gold wire drawing machine,copper wire drawing machine with annealing
- Category: >>>
- Supplier: Hangzhou Candid I/E Co. Ltd.
Share on (1601007086676):
Product Overview
Description
Product Description

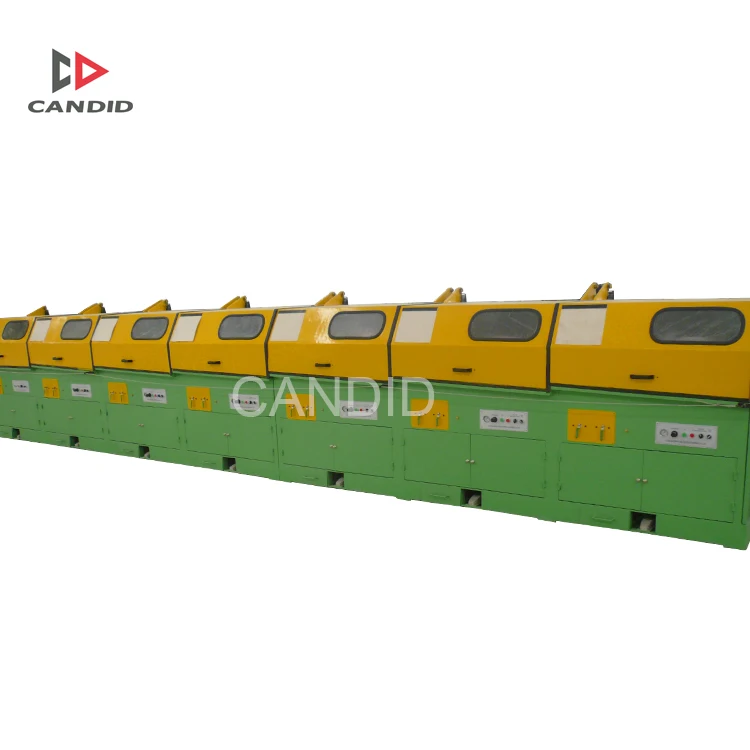

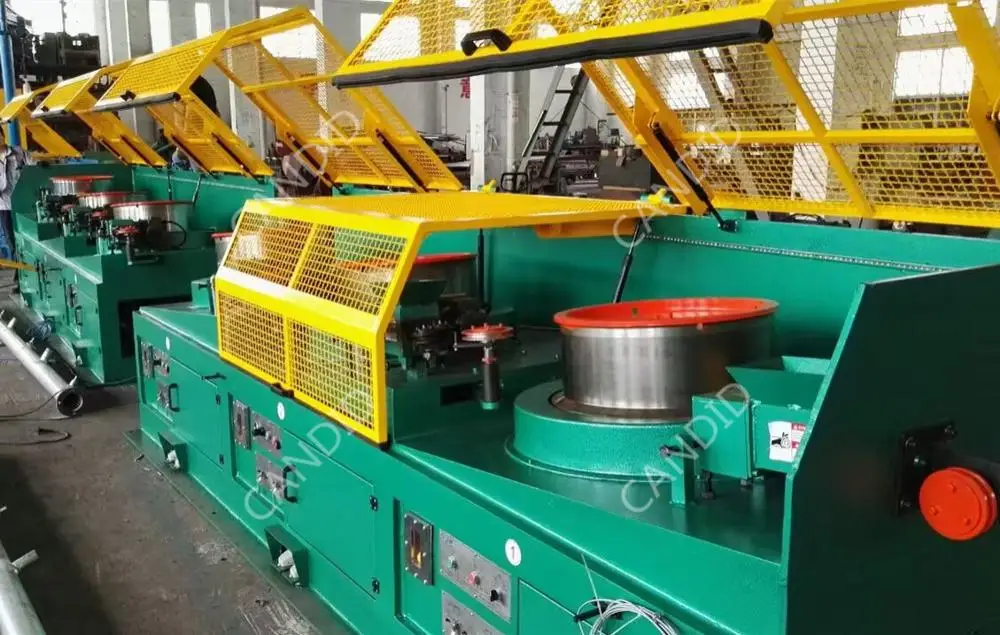

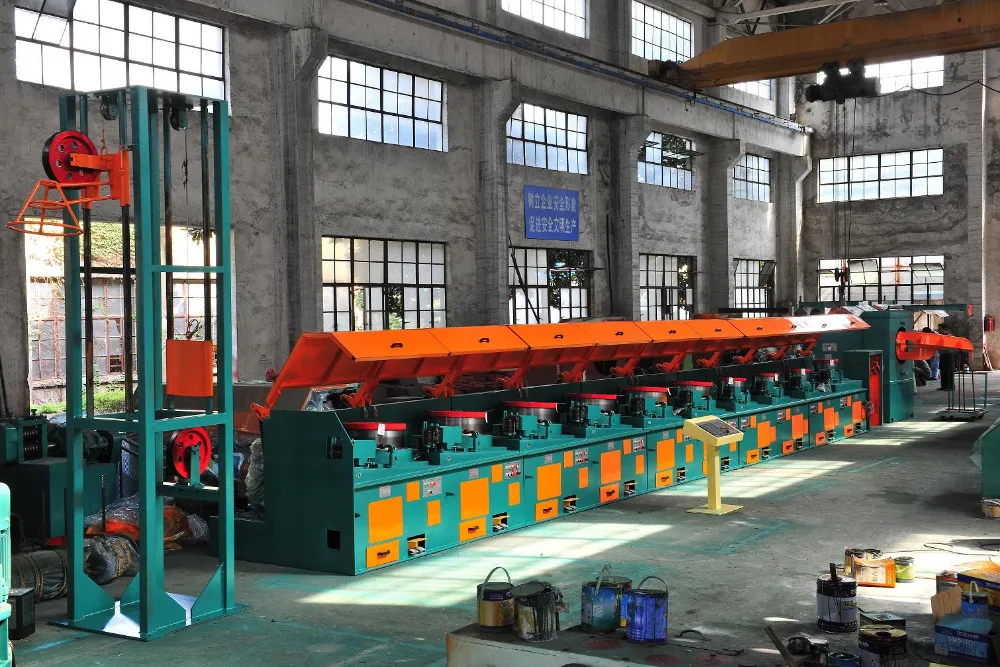

Continuous Wire Drawing Machine
Main Technical Parameter
| Type | 560 | 550 | 450 | 350 |
| Material Intensity | δb≥110kg/mm2 | 120kg/mm2 | 128kg/mm2 | δb≤140kg/mm2 |
| Max. Dia. Of Inlet Wire | 6.5mm-4.4mm | 6.5mm | 4mm | 2.6-1.5mm |
| Min. Dia. Of Outlet Wire | 2.6mm-1.8mm | 2.2mm | 1.6mm | 1.2-0.8mm |
| Block | 1 | 1 | 1 | 1 |
| Max. average condensation | 0.3 | 20% | 20% | 21% |
| Total Condensation | 78-88.5% | 78% | 77.90% | 78% |
| Max. Speed of Block | 245m/min | 260m/min | 280m/min | 200m/min |
| Total Power | 22/30kw | 18.5/22kw | 11/15kw | 5.5/7.5kw |
Accessory Equipment
| Name | Model | Range of Dia. |
| Discharging Machine | ||
| Pointing Machine | F-96 | 6.5-1.5mm |
| Pointing Machine | F-80 | 3.5-1.0mm |
| Butt-Welding Machine | UN-10 | 8--2mm |
| Butt-Welding Machine | UN-3 | 6.5-1.5mm |
| Butt-Welding Machine | UN-1 | 3.5-1.0mm |
| Automatic Discharging Machine | XB-600 | capacity 800kg |
| Automatic Discharging Machine | XB-360 | capacity 400kg |
| I Type Spool Reeling Machine | SG-800 | capacity 800kg |
| I Type Reeling Machine | SG-630 | capacity 500kg |
| Descaling Machine | SW650 | |
| Motorless Descaling Machine | with steel brush | |
| Well Type Furnace | RJ-90-9 |
