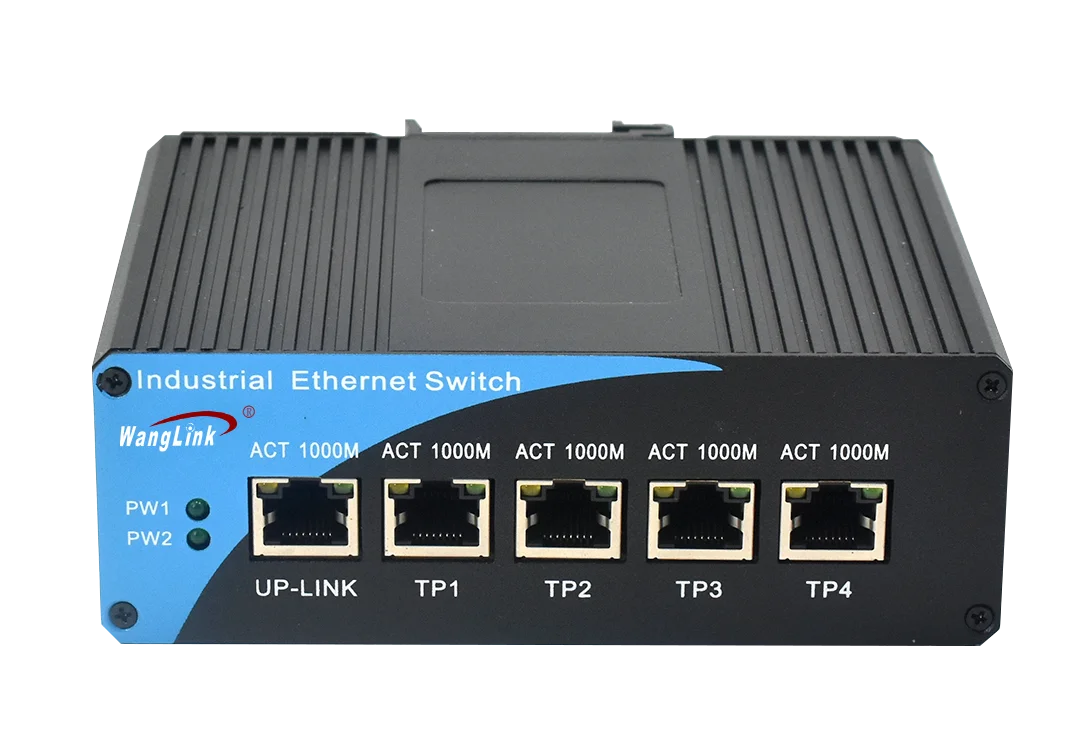

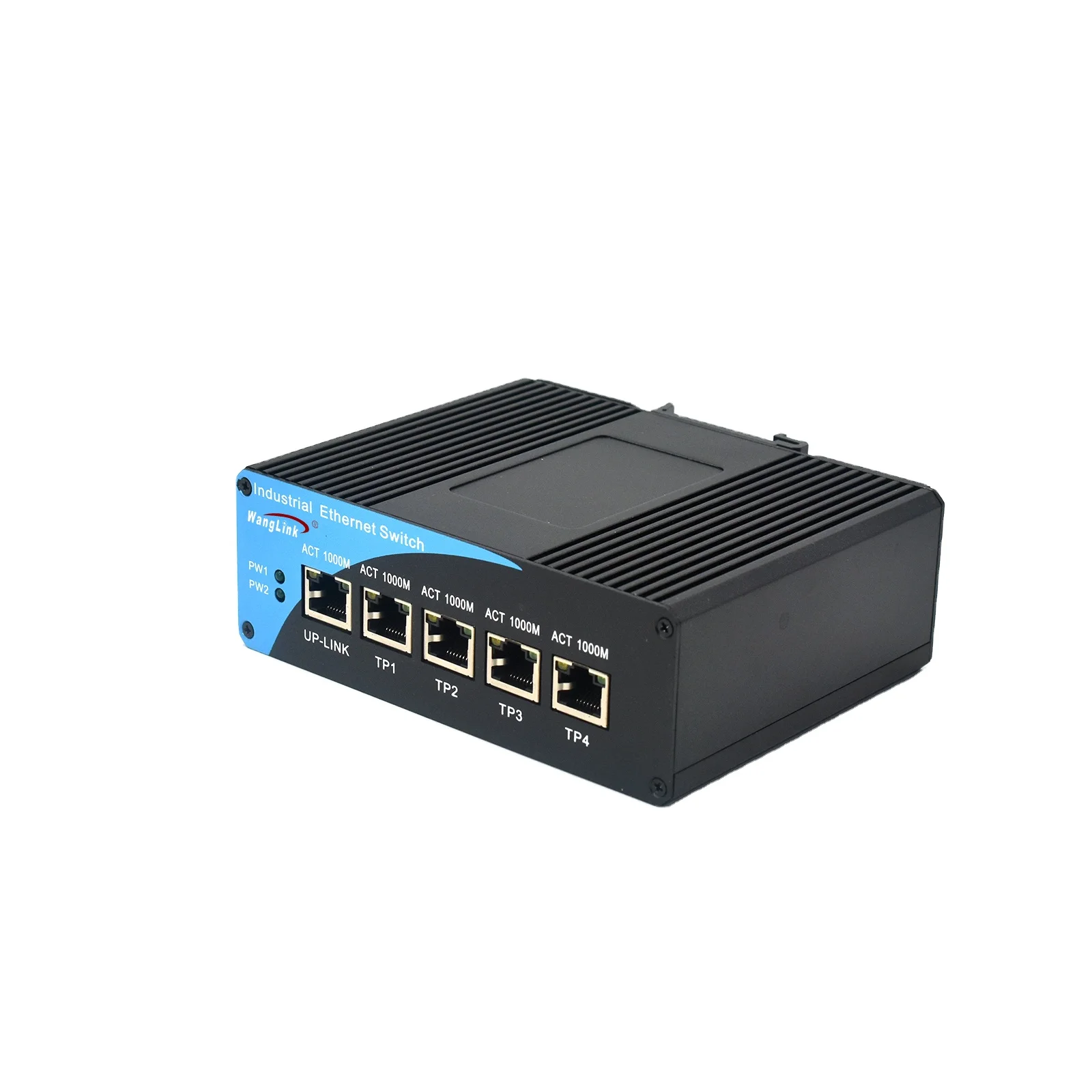

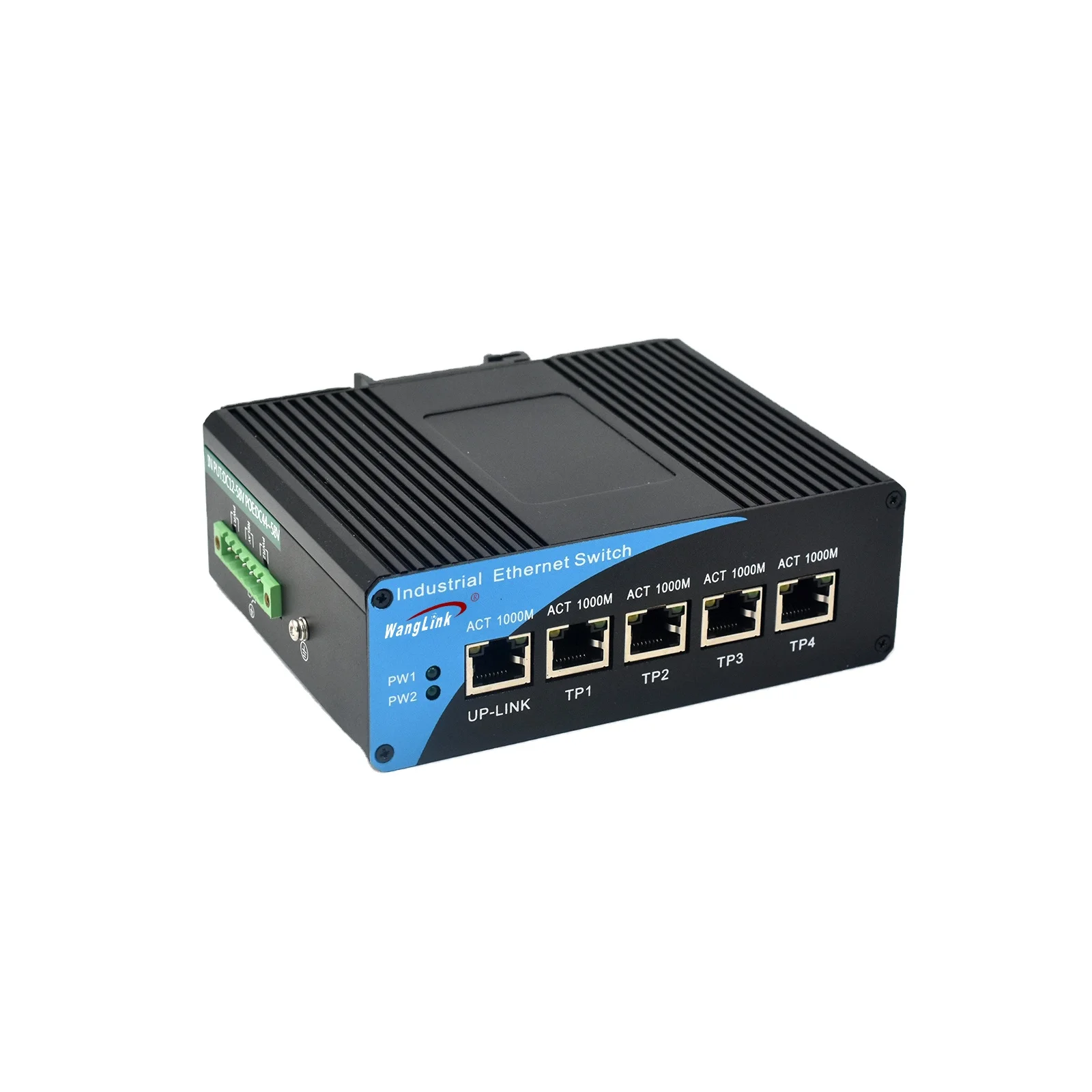

Wanglink Industrial Ethernet Switch 4 10/100M Ports 1 FE RJ45 Uplink Port Network Switches for CCTV Camera
- Category: >>>
- Supplier: Shenzhen Wangguang Technology Co. Ltd.
Share on (1601007157683):
Product Overview
Description
Recommend Products
Products Description
This is an Industrial grade switch which designed for harsh/extreme industrial environments. It has 5 10/100Mbps Ethernet port. It adopts industrial-grade standard design and supports dual redundant power supplies. Dust-proof, moisture-proof, lightning-proof, high and low temperature resistant. The mean time between failures reaches 300,000 hours and can be widely used in industrial control automation, road traffic control automation, building automation systems, etc. , computer room monitoring systems and other industrial application scenarios, the work is stable, reliable, and efficient, can help create a rock-solid
industrial Internet of Things, suitable for long-term work in various harsh environments.
Products Feature
* 5 10/100Base-TX RJ45 port;
* Support 10/100mpbs speed adaptation.
* All ports support half/full duplex auto-negotiation and automatic MDI/MDI-X function;
* Support line-speed forwarding
* Adopt imported lightning protection devices to protect against lightning strikes, resist induced high voltage, and prevent surges, etc.;
* -45℃～+85℃ wide temperature design ensures that the equipment can adapt to various harsh on-site environments
* Supports dual redundant power supply, overload protection and reverse connection protection;
* Plug and play, simple operation, no configuration required;
* IP40 protection level, corrugated high-strength metal casing, fanless, low power consumption design.
* IEC Class.A electromagnetic protection level, ultra-high EMC electromagnetic compatibility.
* Support 10/100mpbs speed adaptation.
* All ports support half/full duplex auto-negotiation and automatic MDI/MDI-X function;
* Support line-speed forwarding
* Adopt imported lightning protection devices to protect against lightning strikes, resist induced high voltage, and prevent surges, etc.;
* -45℃～+85℃ wide temperature design ensures that the equipment can adapt to various harsh on-site environments
* Supports dual redundant power supply, overload protection and reverse connection protection;
* Plug and play, simple operation, no configuration required;
* IP40 protection level, corrugated high-strength metal casing, fanless, low power consumption design.
* IEC Class.A electromagnetic protection level, ultra-high EMC electromagnetic compatibility.
Specification
IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3x flow control | |
Interface information | Downlink port: 4 10/100M Base-T network ports |
Uplink port: 1 10/100M Base-T network port | |
RJ45 network port: 5 10/100M Base-T network port (standard RJ45) | |
10/100Mbps adaptive | |
10Base-T: ≤100m (CAT3,4,5 UTP) | |
100Base-TX: ≤100m (CAT3,4,5 UTP) | |
Mechanical properties | Shell material: metal shell |
Appearance dimensions (length*depth*height): 139 mm× 108 mm× 50 mm | |
Installation method: DIN rail type | |
Heat dissipation method: natural cooling, no fan | |
Weight: < 0.6KG | |
Environmental properties | Working temperature: -40 ℃ ～+ 85 ℃ |
Storage temperature: -40 ℃ ～+85℃ | |
Relative humidity: 5% ~ 95% (non-condensing) | |
Exchange properties | Bandwidth: 1.2Gbps |
Packet forwarding rate (whole machine) : 0.8928Mpps | |
Exchange method: store-and-forward | |
MAC table : 2K | |
Case space : 512K | |
Jumbo frame: 2048B | |
Power supply | Input voltage: DC12V-58V (dual redundant) |
Power interface: 6- core Phoenix terminal | |
Power supply protection: positive and negative pole misconnection protection | |
Power consumption: < 5 W | |
Indicator light | Port light (fluctuation switch control): Ø Indicator light: 100M Link/ACT Yellow; Ø Indicator light: 100M Link/ACT Green; |
Power light: Green (PW1-PW2) | |
Security properties | Shell protection: IP40 |
Surge impact IEC61000-4-5: | |
Signal end: common mode ±4KV, differential mode ±2KV | |
Power supply end: common mode ±4KV, differential mode ±2KV | |
Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
Pulse immunity IEC61000-4-4: signal terminal: ±2KV, power terminal: ±2KV | |
Shock: IEC 60068-2-27 | |
Free fall: IEC 60068-2-32 | |
Vibration: IEC 60068-2-6 | |
MTBF: 300000 hours | |
Warranty | 3 Years |

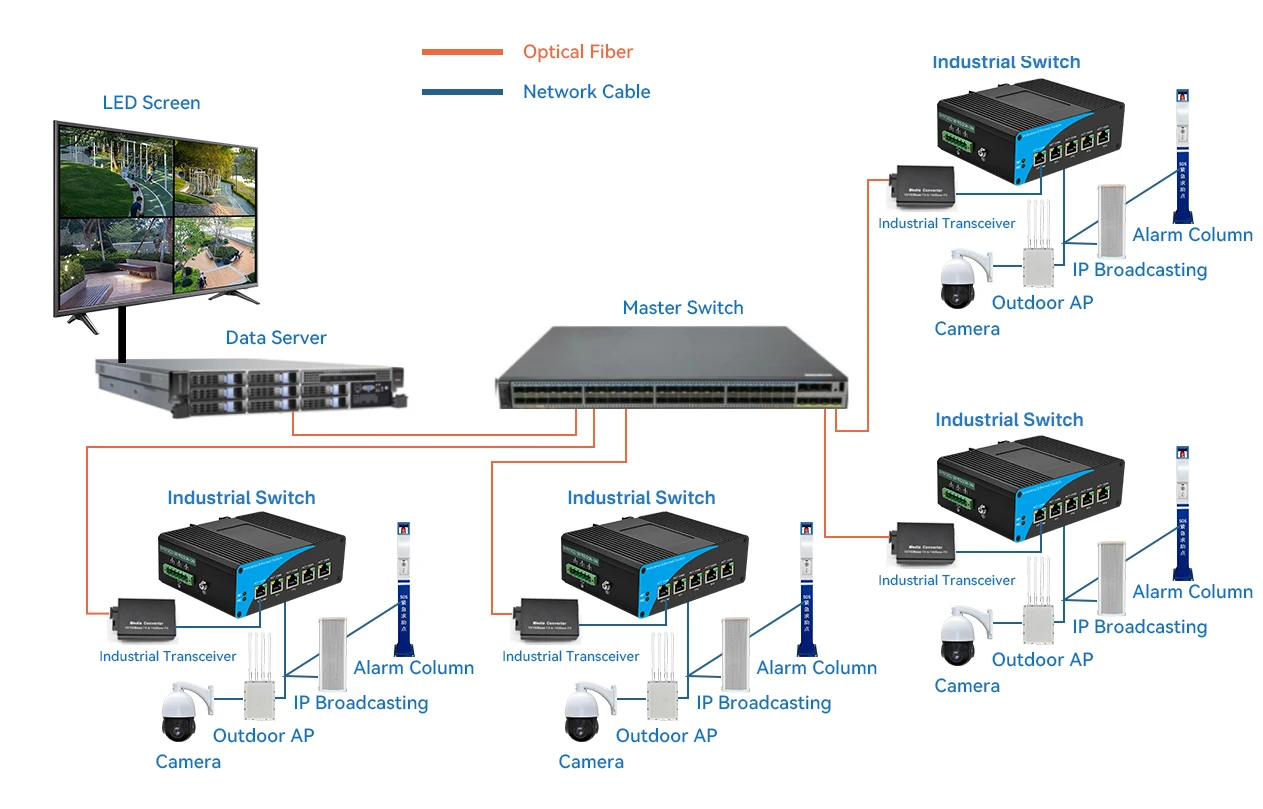

Applications
