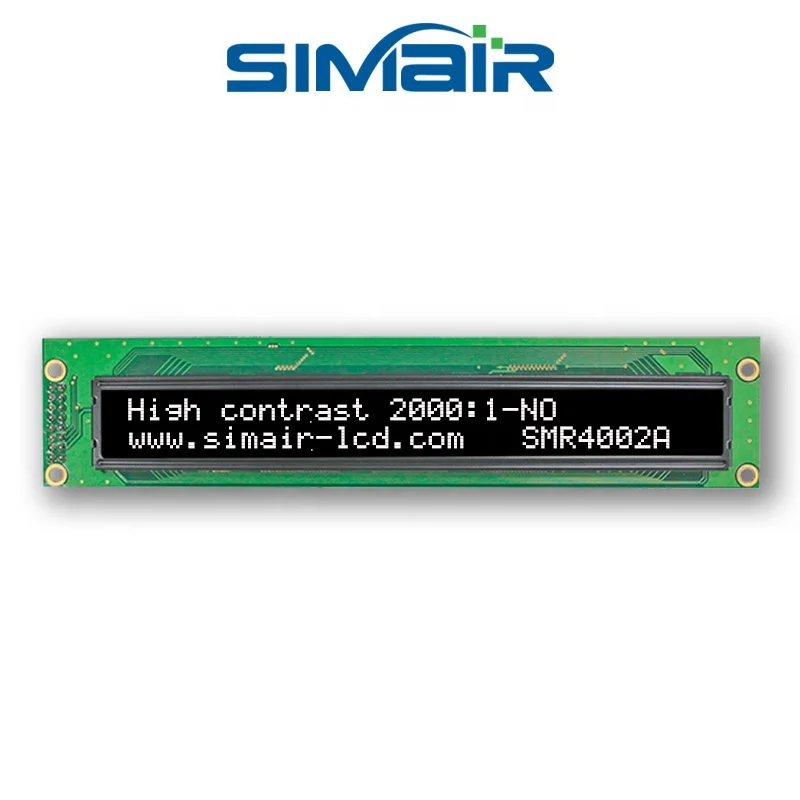

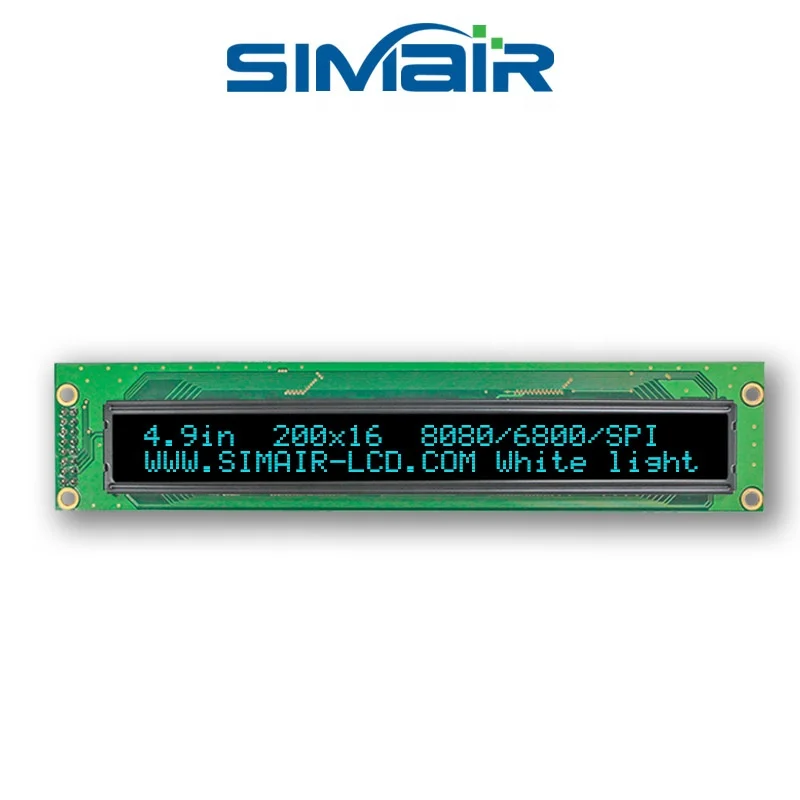

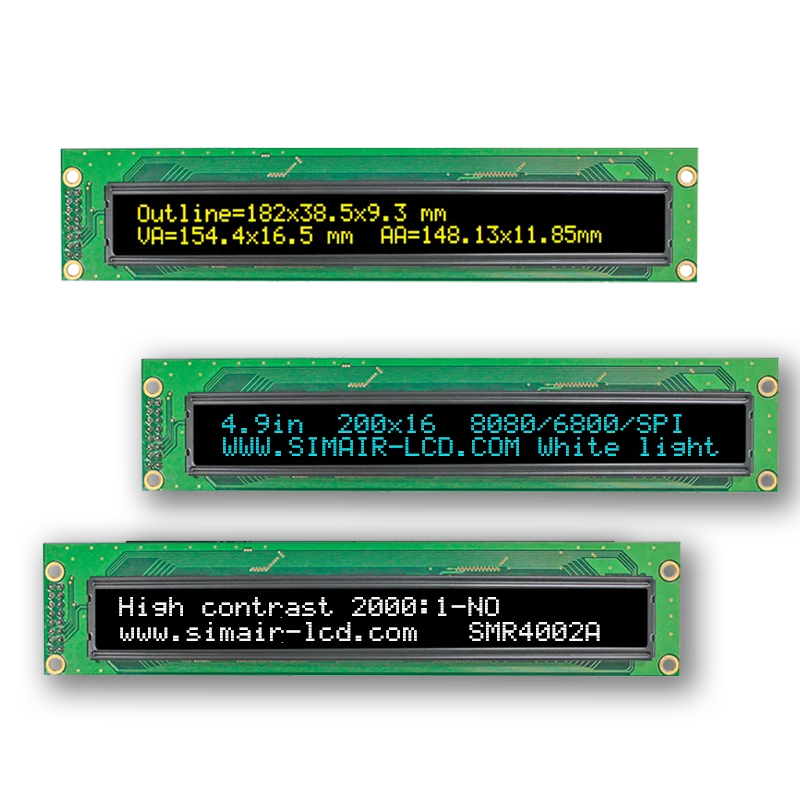

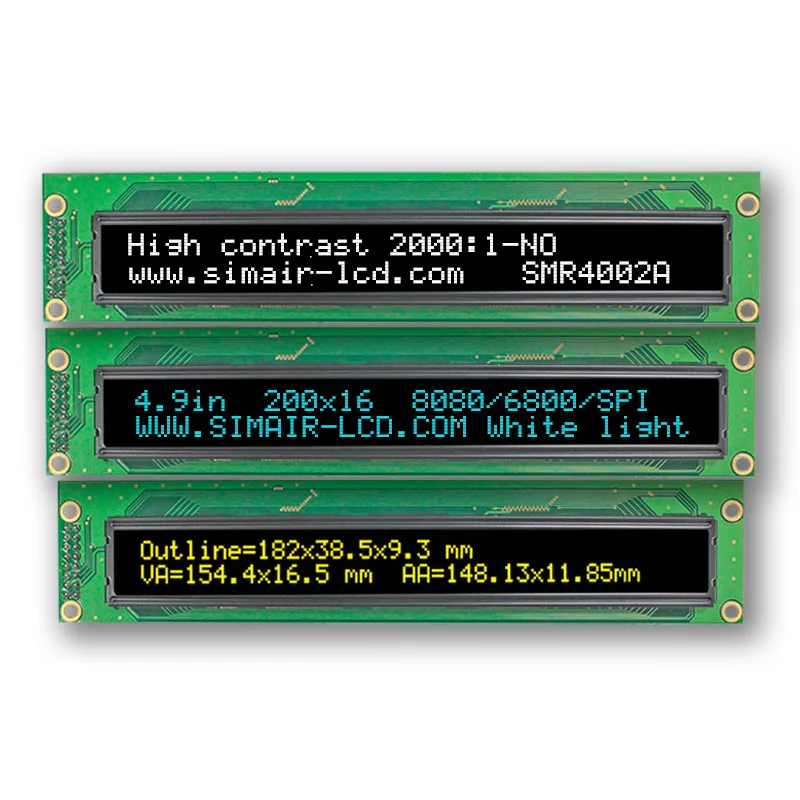

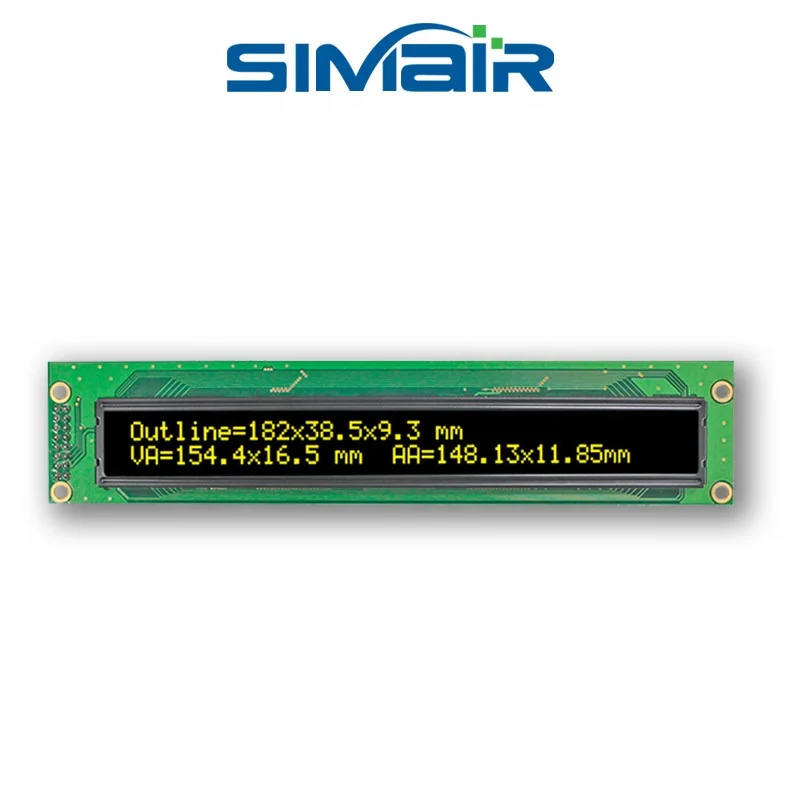

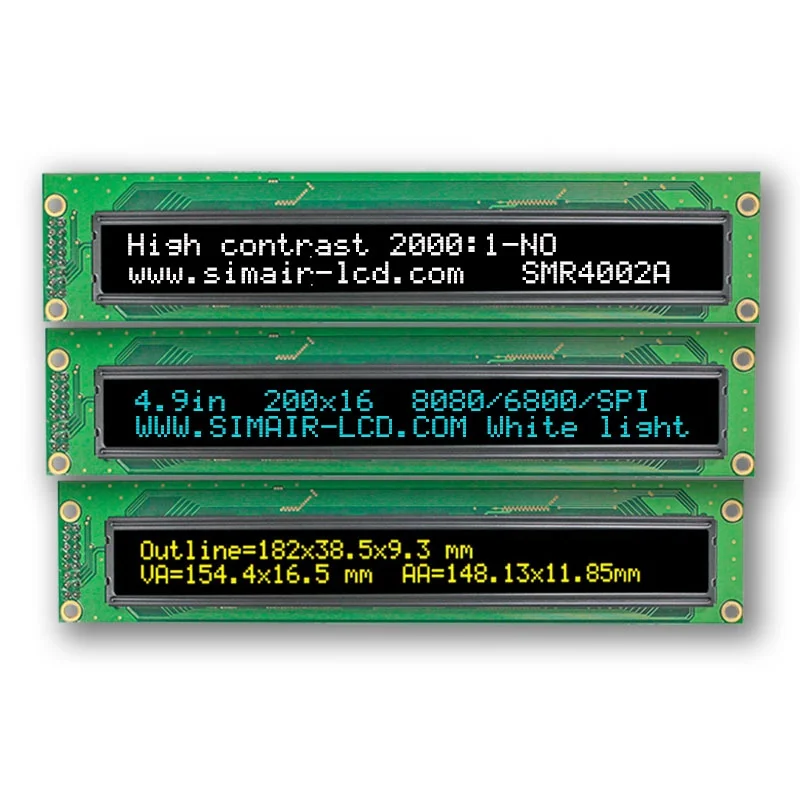

Real LCM WEH004002A Parallel SPI Serial 4002 WS0010 40X2 Character LCD Module Winstar 4002 Oled Display
- Category: >>>
- Supplier: Wuxi Siminuo Technology Co. Ltd.
Share on (1601007158704):
Product Overview
Description
Product Description
1.Features
Model | SMR4002A-OLED | ||||||||
Model size | 182(L)x38.5(W)x9.3(H)mm | ||||||||
View Area | 154.4x16.5mm | ||||||||
Built-in fonts | English/Japanese, West European, Scandinavian European, and Cyrillic (Russian) | ||||||||
Display Colour | Yellow | White | Blue | Sky-blue | Green | ||||
Operating voltage | 3.3V-5V | ||||||||
Driver IC | WS0010-TX | ||||||||
Net weight(g) | 180 | ||||||||
Interface | Preset 6800, optional 8080 or SPI | ||||||||
Number of chracter | 40 characters x 2 lines | ||||||||
Operating Temperature | -40℃ ~ +80℃ | ||||||||
Storage Temperature | -40℃ ~ +85℃ | ||||||||
Product features | Light and thin, Low power consumption, Ultra-wide temperature, High brightness, Fast response, Wide viewing angle | ||||||||

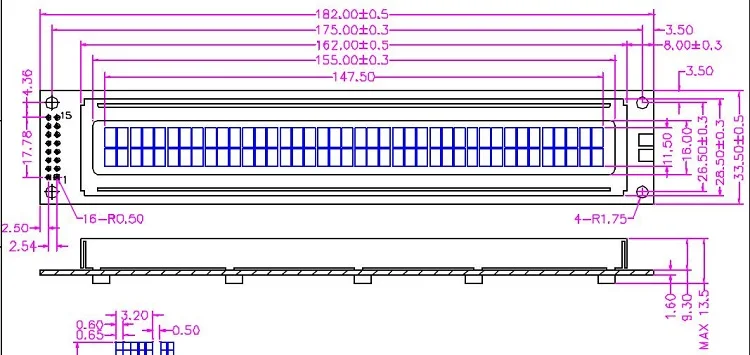

2.Extenal Dimensions

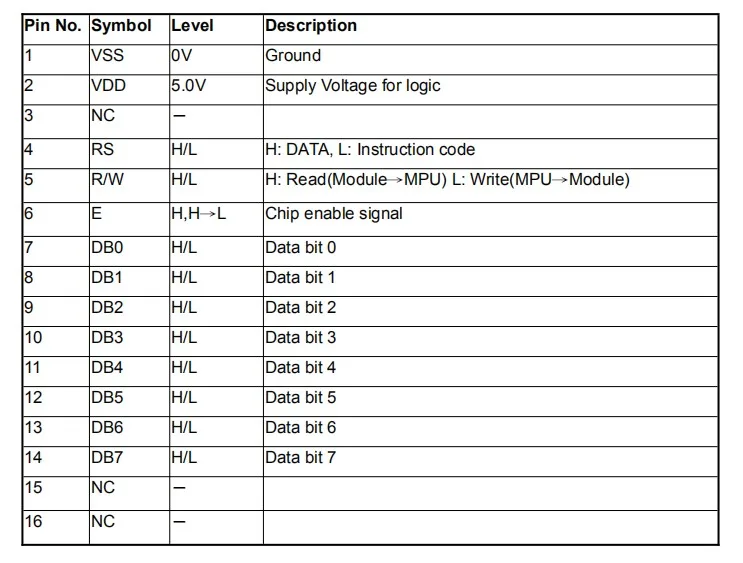

3.Pin Description
product details
OLED Advantage
►Compatible with traditional 4002 LCD
►Ultra-fast response speed: -+25 ℃ -Only 10 μs
►Ultra-wide viewing angle : up to +/-175 degrees
►Ultra-fast response speed: -+25 ℃ -Only 10 μs
►Ultra-wide viewing angle : up to +/-175 degrees
►Thin and light,No backlight required, self-luminous
►Ultra-high brightness
►High contrast : 2000:1 and above
►Ultra wide temperature — minus 40 ℃ ~ plus 80 ℃
►Low current consumption-reduce CO2 emissions
►Multiple colors to choose:white / yellow / Sky-blue
►Multiple colors to choose:white / yellow / Sky-blue
OLED display technology is widely used in mobile phones, digital cameras, DVD players, personal digital assistants (PDAs), laptops, car audio and TV. OLED displays are thin and light because they don't use backlight. OLED displays also have a widescreen viewing angle of up to 170 degrees, with an operating voltage of two to ten volts (V).
reasonable line layout
more stable performance
High quality gold plated PCB
built-in WS0010-TX Controller
built-in 4 fonts
COB Process
Standard 16 pin interface
Patented products
environmental protection raw materials
Certifications
Manufacturing Technique
Company Profile
About us
Wuxi simair Technology Co., Ltd., founded in 2012, is a high-tech enterprise specializing in the production and R & D of LCD,LED, LCM, OLED, TFT and related components.We has perfect quality management system. We have powerful LCM R&D, manufacturing and quality control team, which can quickly provide solutions according to the diversified needs of customers.
Our LCD is widely used in communication equipment, electronic products, household appliances, instrument panel, etc. it is mainly sold to European, American, Asian, Australian, Hong Kong and domestic markets.
Shipment & Payment
Contact us
Wuxi Simair Technology Co., Ltd.
Address:
No. 1555, Huishan Road, Huishan District, Wuxi City, Jiangsu Province, China
Contacts:Sandy chen
Tel:+86 -18552057004
Fax:0086-755-29517347
E-mail:350006658@qq.com
Website:www.simair-lcd.com
FAQ
Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Can you customize the product? How can I get the samples?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Can you customize the product? How can I get the samples?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.
Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling &samples → Samples finished → Delivery via freight or sea collect.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: The products are through the relevant certification, it can be exported.
Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.
Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 10 years.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: The products are through the relevant certification, it can be exported.
Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.
Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 10 years.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
