Original Dell PowerEdge GPU Server PowerEdge R750xa R740 R940XA T640 R7525 C6520 C6525 C4140
- Category: >>>
- Supplier: Beijing Shibei Acceleration Technology Co. Ltd.
Share on (1601007169685):
Product Overview
Description

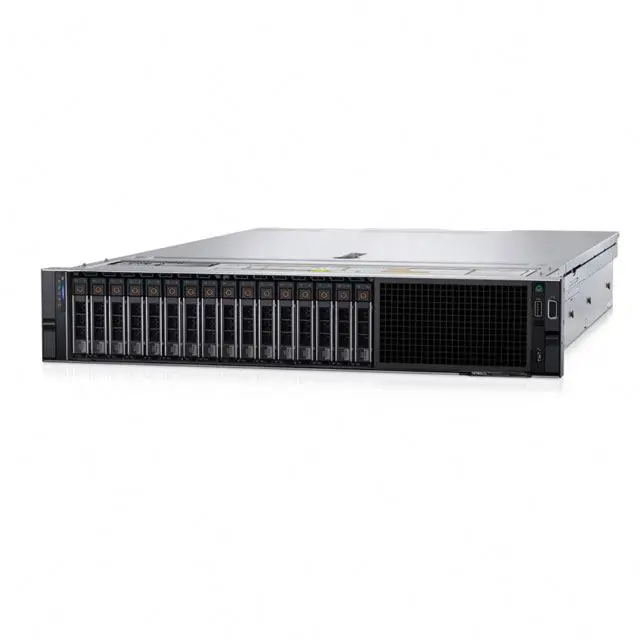

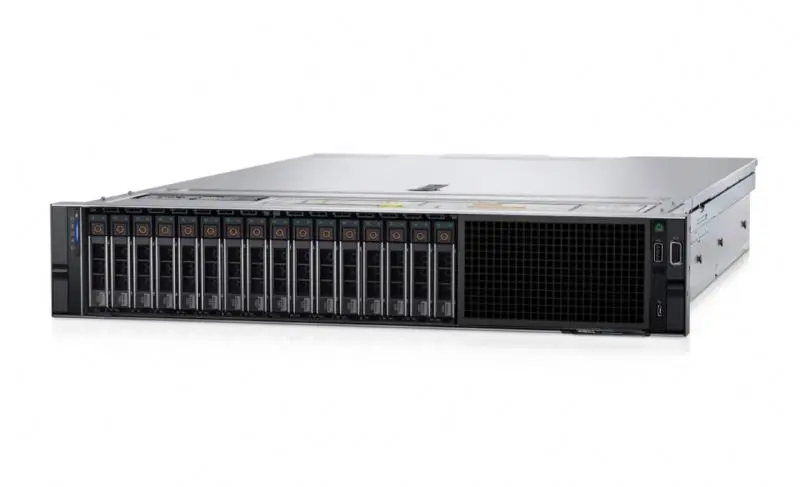

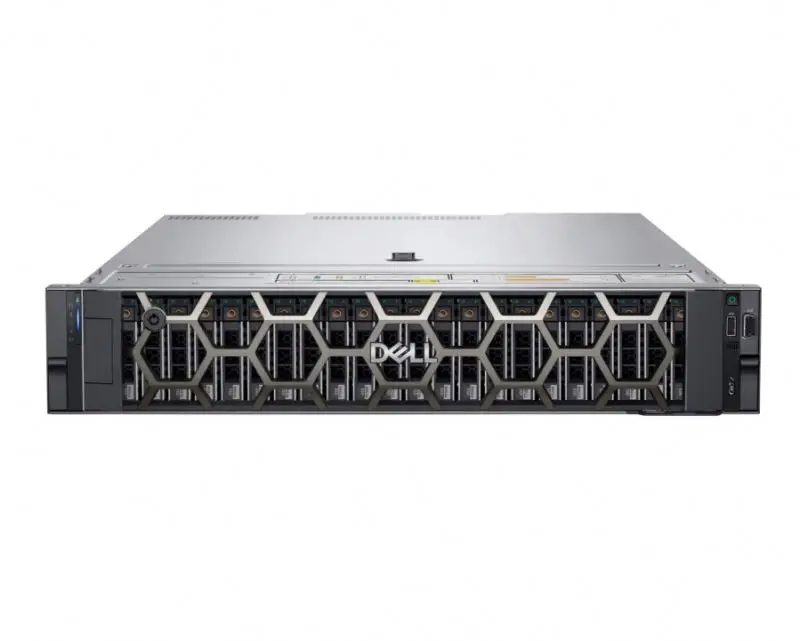

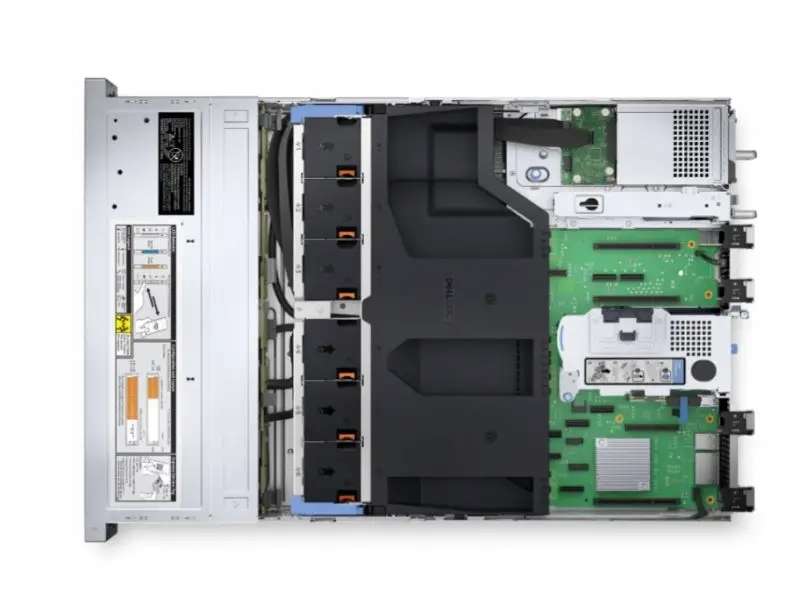

Original Dell PowerEdge GPU Server PowerEdge R750xa R740 R940XA T640 R7525 C6520 C6525 C4140
Feature | Technical Specifications |
Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
Memory | • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only |
Storage controllers | • Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
Drive Bays | Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
Power Supplies | • 800 W Platinum AC/240 mixed mode • 1100 W Titanium AC/240 mixed mode • 1400 W Platinum AC/240 mixed mode • 2400 W Platinum AC/240 mixed mode |
Cooling Options | Air cooling, optional processor liquid cooling |
Fans | • Standard fan/High performance SLVR fan/High performance GOLD fan • Up to six hot plug fans |
Dimensions | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 758.3 mm (29.85 inches) - without bezel 772.14 mm (30.39 inches) - with bezel |
Form Factor | 2U rack server |
Embedded Management | • iDRAC9 • iDRAC Service Module • iDRAC Direct• Quick Sync 2 wireless module |
Bezel | Optional LCD bezel or security bezel |
OpenManage Software | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
Mobility | OpenManage Mobile |
GPU Options | Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators |
Front Ports | • 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 2.0 • 1 x VGA |

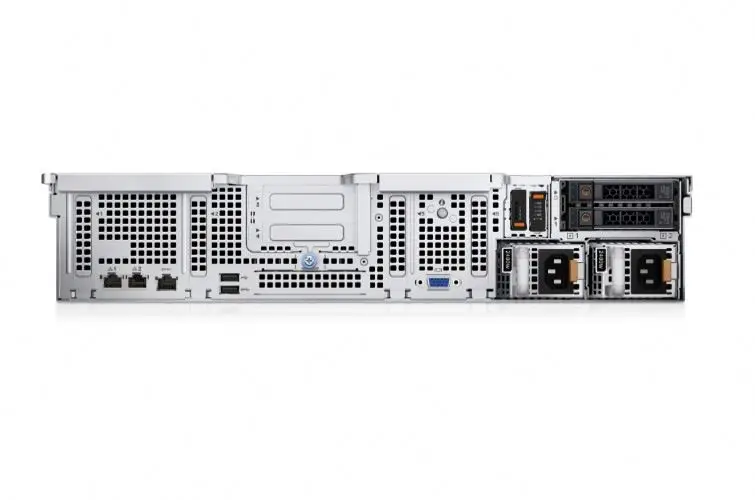

Rear Ports | • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA |
Internal Ports | 1 x USB 3.0 |
PCIe | Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules |
FAQ
FAQ
1)How long will you ship goods out when we order from you?
We will ship goods out within 2 working days when we get the order.
2). Which payment ways we can choose? We can provide different payment ways for every clients, such as Paypal, West Union, T/T,and so on.
3). Which logistics will you use to ship goods to us? DHL, Fedex, Aramex, TNT and other special logistics will be used for
shippment.
3). Which logistics will you use to ship goods to us? DHL, Fedex, Aramex, TNT and other special logistics will be used for
shippment.
