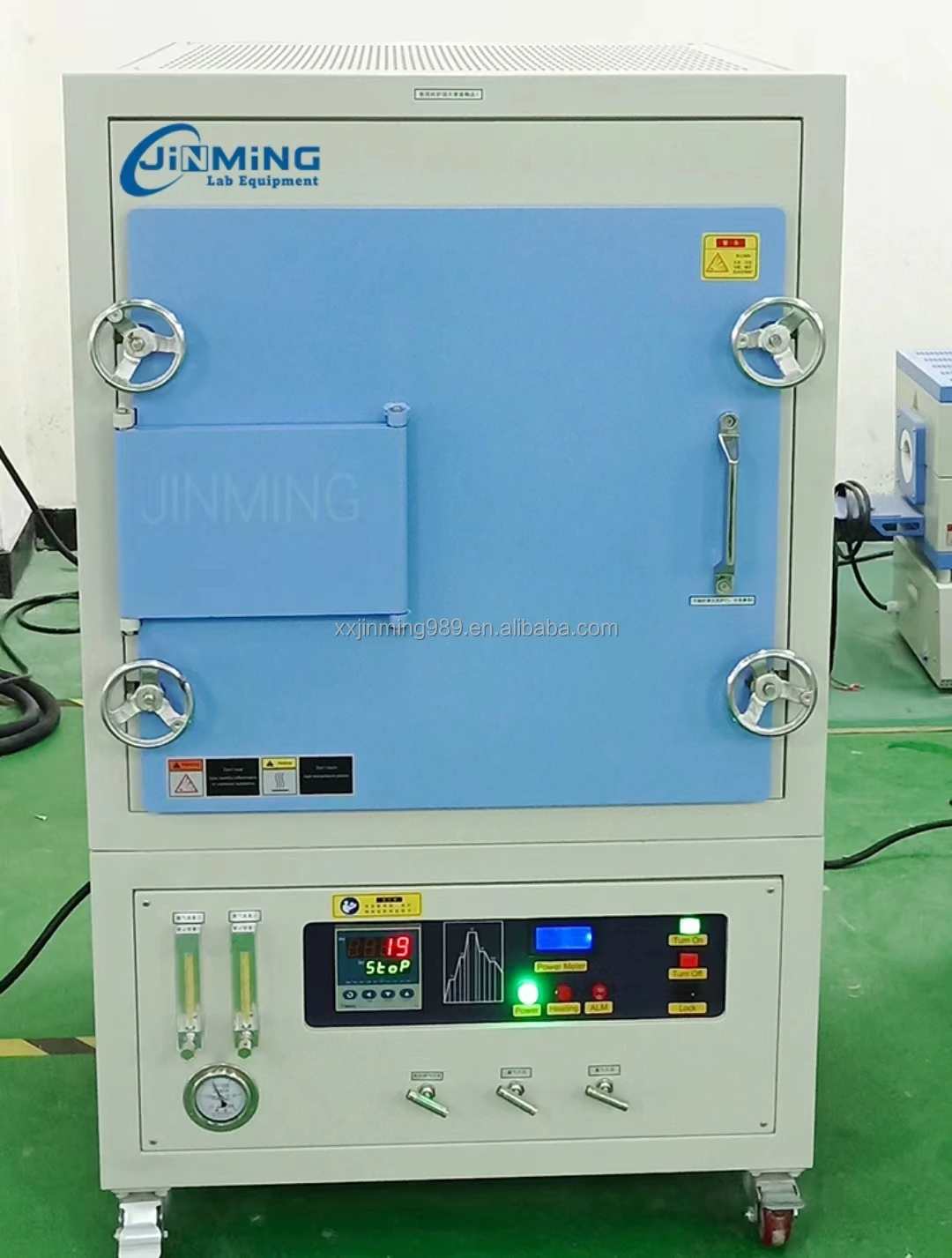

Hydrogen Atmosphere Furnace atmosphere muffle furnace /lab furnace with gas inlet and outlet
- Category: >>>
- Supplier: Xinxiang Jinming Electronic Equipment Co. Ltd.
Share on (1601007257129):
Product Overview
Description
Hydrogen Atmosphere Furnace atmosphere muffle furnace /lab furnace with gas inlet and outlet
Application :
It is an ideal product for universities, scientific research institutes, industrial and mining enterprises to do atmosphere protection sintering and atmosphere reduction
Product Description :
The atmosphere furnace adopts double-layer shell structure and PID program temperature control system, phase-shift triggering and thyristor control, the furnace adopts alumina polycrystalline fiber material, the double-layer furnace shell is equipped with an air cooling system, the shell is sealed as a whole, the cover plate is sealed with temperature-resistant silicone, the furnace door is equipped with silicone pad and the water cooling system, and the gas enters and exits through the breech after passing through the flow meter. There are a number of air inlet and outlet of the washing furnace, which can be pre-vacuumed and can pass argon, nitrogen, oxygen, ammonia decomposition gas and other gases. The furnace has the advantages of balanced temperature field, low surface temperature, fast rising and falling temperature rate, energy saving, etc.
Features & Advantages :
1, the heating element adopts high temperature silicon molybdenum rod, the furnace adopts alumina polycrystalline fiber material, good thermal insulation performance, durable, high tensile strength, greatly improve the service life.
2, can be vacuumed, and can be passed into a variety of protective atmosphere (flammable and explosive, highly corrosive gas except);
3, overtemperature alarm, leakage protection, safe and reliable operation;
4, Optional through the touch screen operation of the vacuum system, inflation system, temperature control system for program control, easy to operate, accurate
| Technical parameter | ||
| Chamber size | 300*300*300mm ,capacity 27L (Accept custom-made size according to Clients demands) | |
| Max. temperature | 1700°C | |
| Working temperature | ≤1600℃ | |
| Temprature control |
3) Over temperature protection | |
| feasible gas: | nitrogen, argon, oxygen and other gases | |
| Ultimate Vacuum rate | 0.1Mpa | |
| Heating rate | 0-200 oC suggest heating rate 0-10oC/ min, 200oC-1600oC, suggest heating rate: 0-20oC/ min | |
| Thermocouple | B type double platinum rhodium thermocouple | |
| Temperature accuracy | +/- 1 oC | |

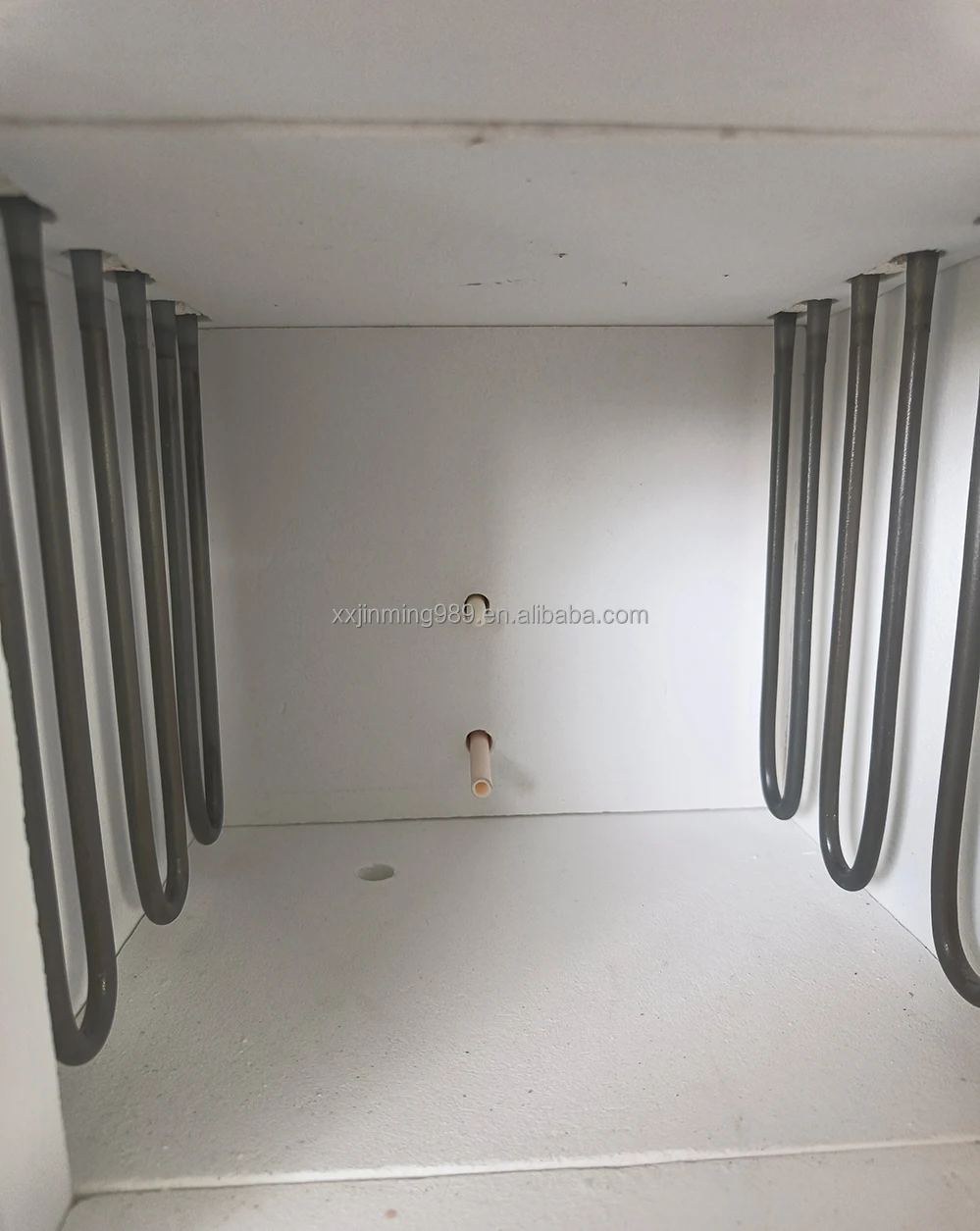

| Heating element | High purity U type Model 1800 MoSi2 Heating element, less iron components, no pollution. | |
| Furnace structure | Double layer steel casing with dual cooling fan, temperature of furnace shell below 60oC | |
| Thick Furnace Insulation | Three layers of ceramic fiber insulation materials. 1) First layer: 1800°C ceramic fiber board 2 ) Second layer: 1600°C ceramic fiber board 3 )Third layer : 1260°C ceramic fiber board
| |

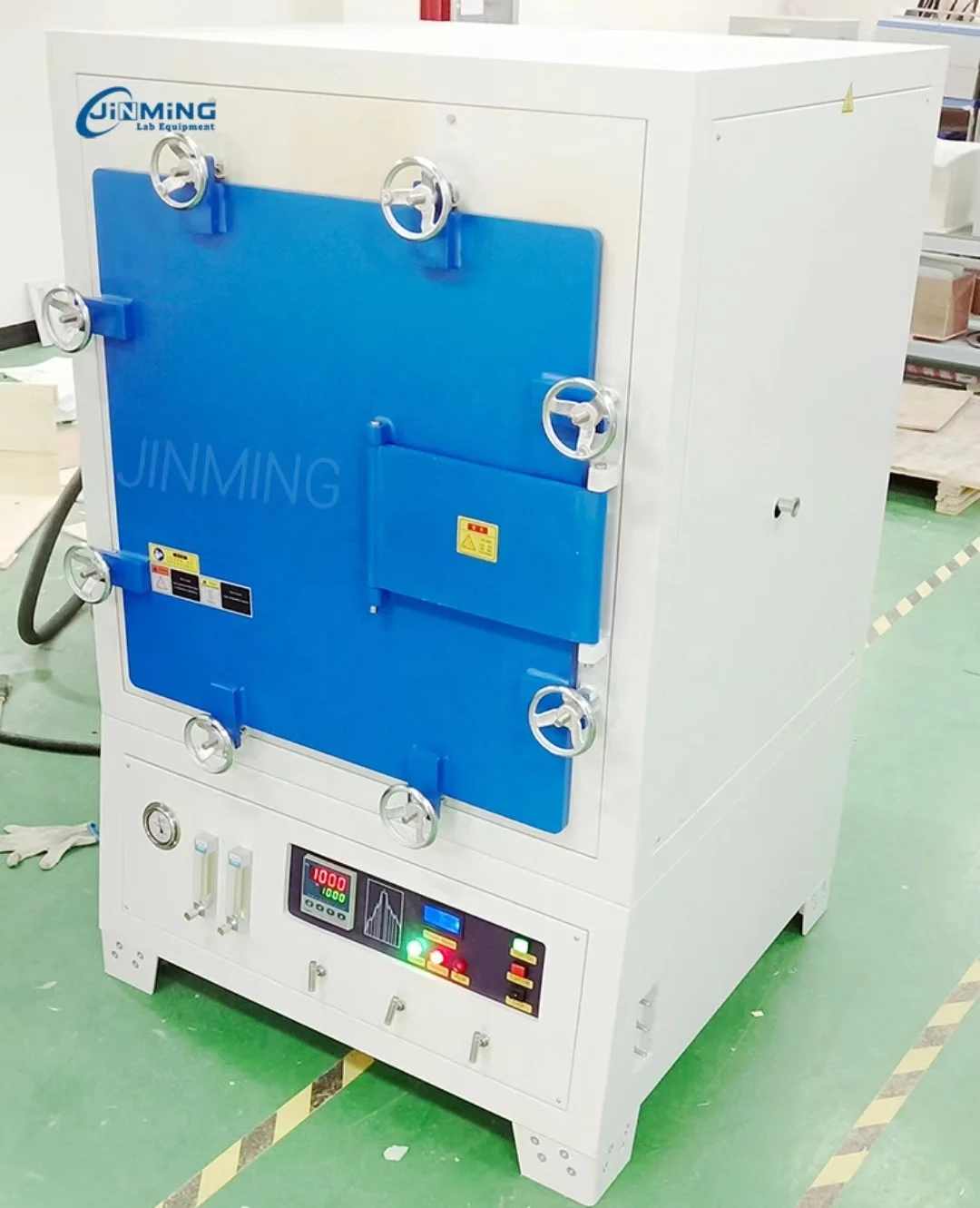

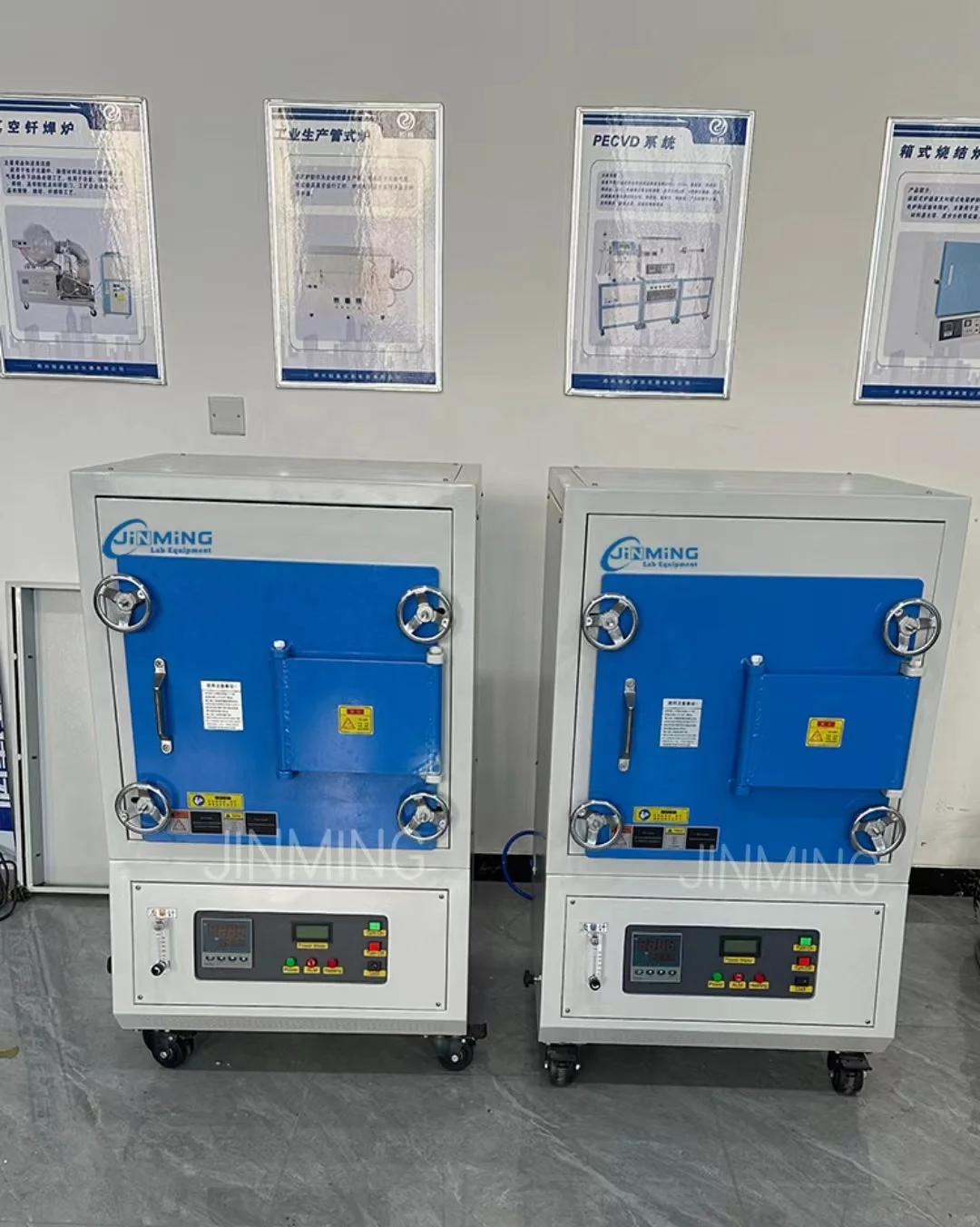

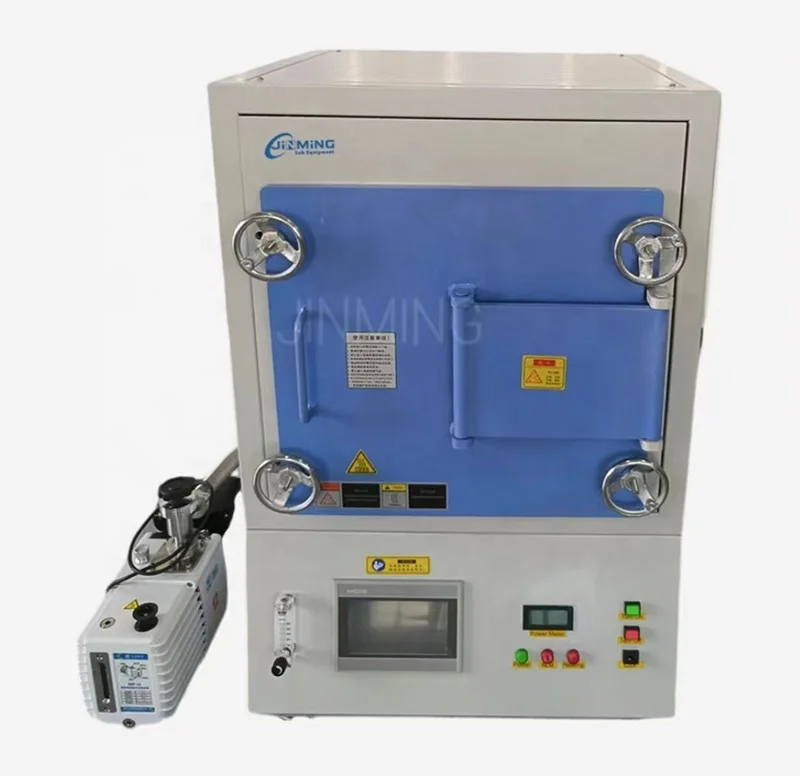

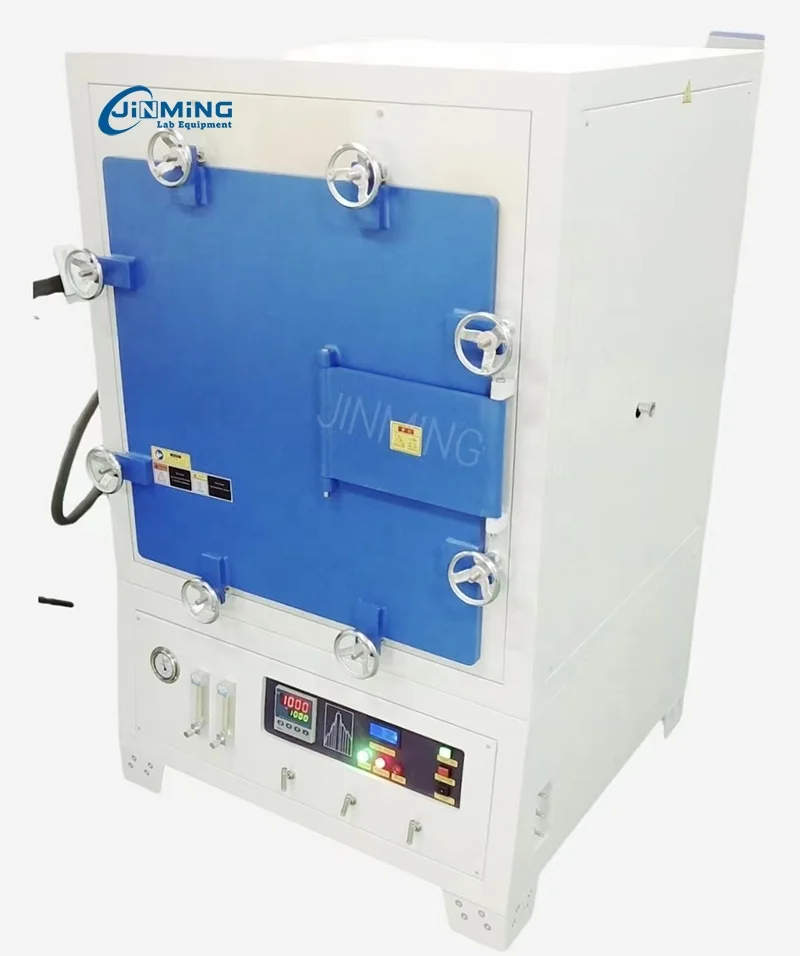

Detailed Pictures
Packing & Delivery :

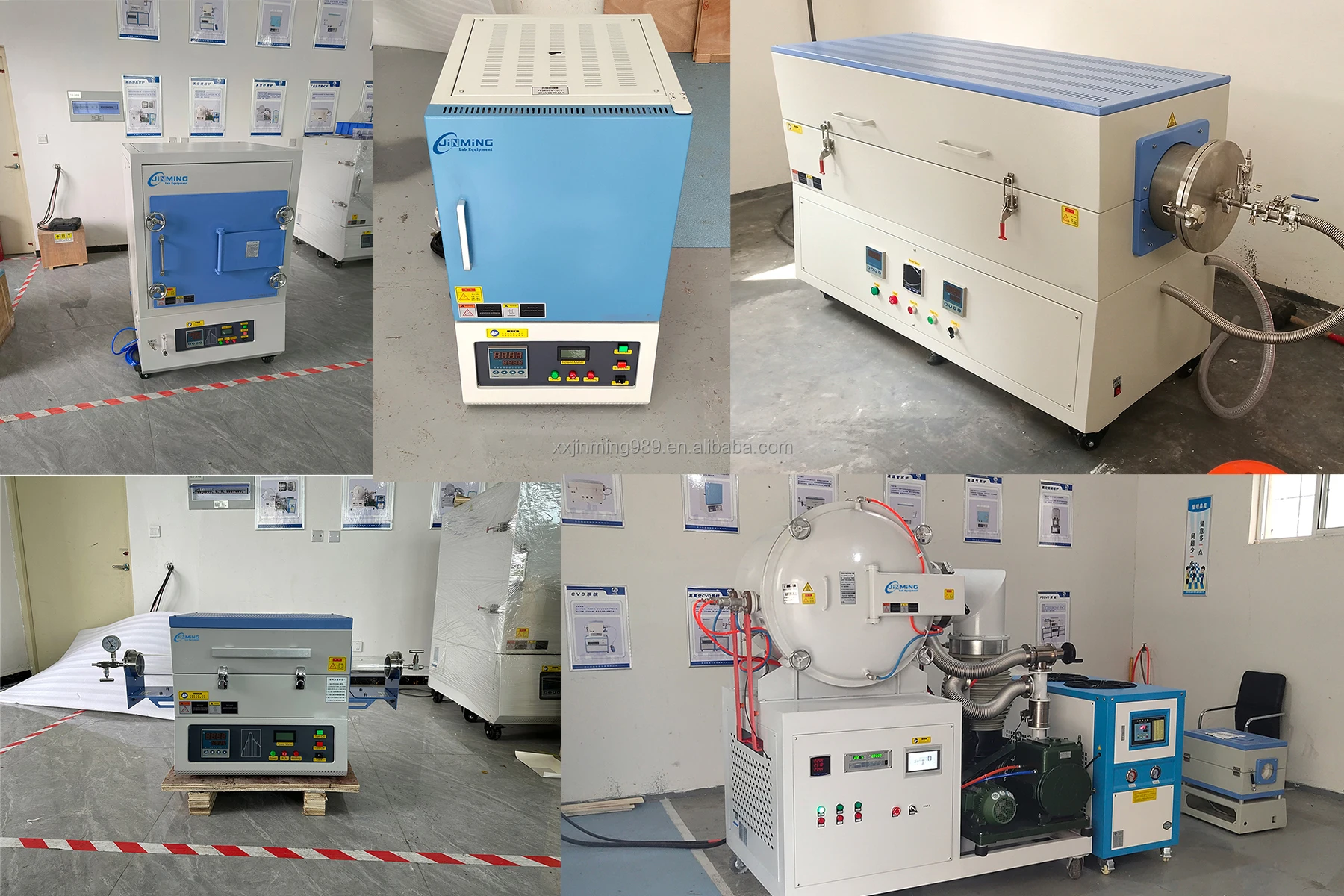

Our Other Products :
FAQ
1. Are you furnace manufacturer ?
A: Yes, we are professional lab furnace manufacturer with many years of sale and production experience in China.
2. Q:What kind terms of payment can be accepted?
A: D/P , T/T, Western Union, Paypal, etc.
3. Q: Could I ask for customized voltage and electricity plug ?
A: Yes,we can custom-made according to our clients demands from different countries .
4. Q: What about the delivery time?
A: Normally 15-20 days prouction time after received advance payment or based on order quantity and arrange production schedule.
5. Q: What about the guarantee period?
A: The furnace guarantee period is one year , and could supply technical support and service for free all the time .
6. Q: What is your advantages?
A: Professional and economical technical Proposal , Excellent quality and service ,and fast & reliable delivery .
