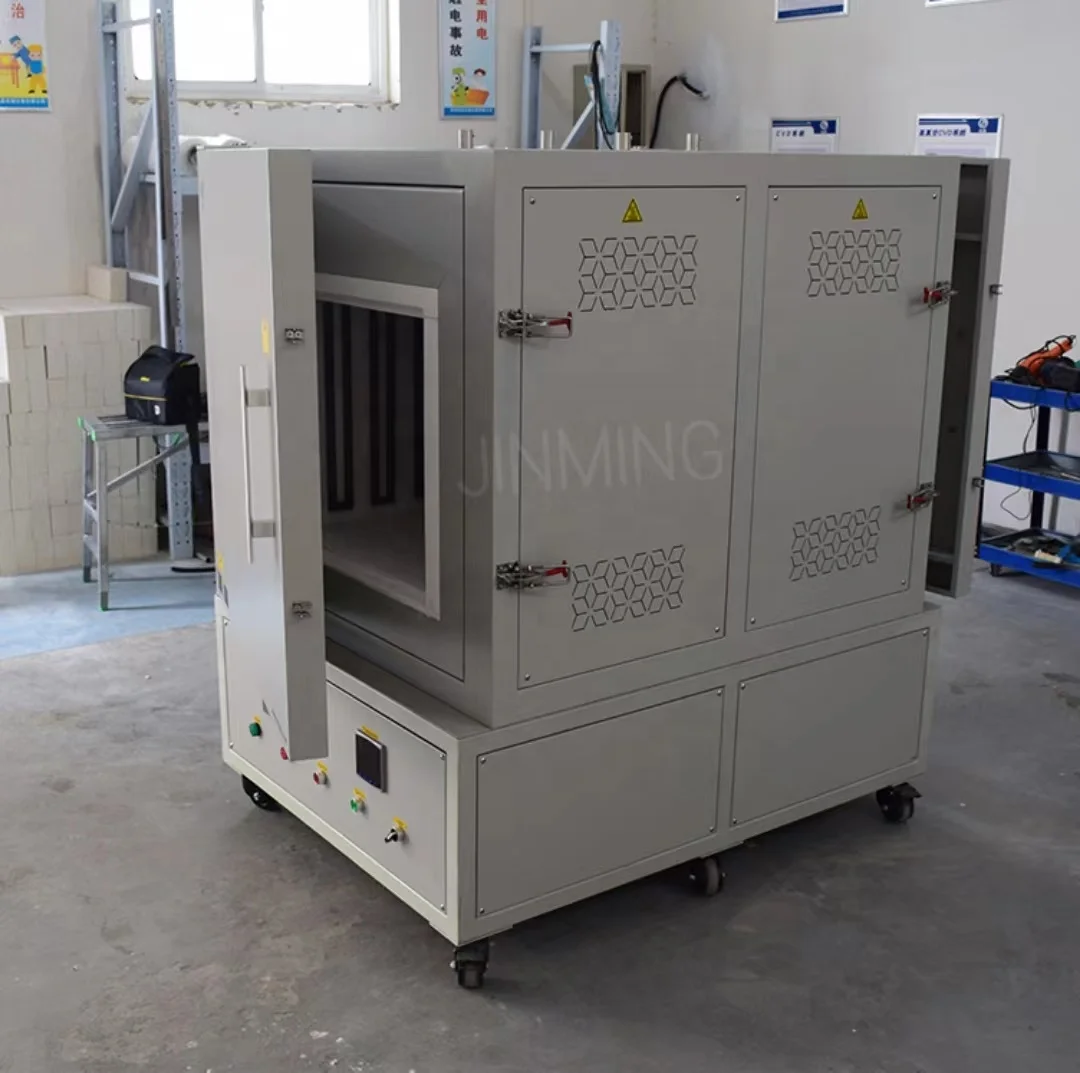

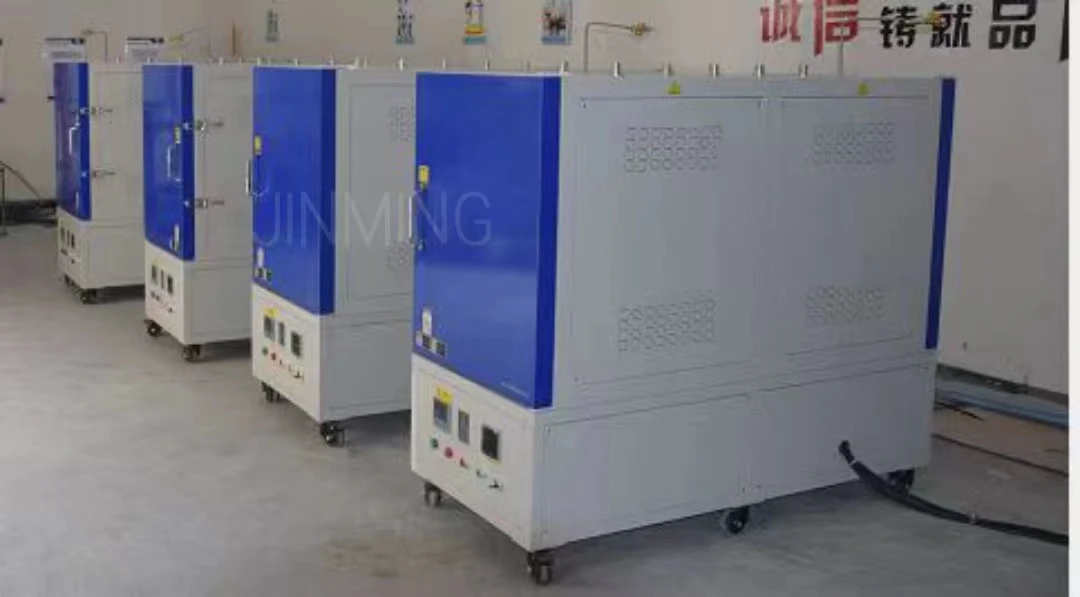

Double doors 1200C 1400C 1600C PID controlling ceramic sintering electric muffle furnace

Product Overview

Description

Double doors( front and back doors ) big chamber 1200C 1400C 1600C PID controlling ceramic sintering electric muffle furnace



Product Description :

This 1400 degree high temperature box furnace /muffle furnace adopts imported alumina polycrystalline fiber for furnace chambers , With good insulation performance, durable, high tensile strength, no stray ball, high purity, energy saving effect is obviously better than domestic fiber materials, and high temperature High quality silicon carbide rods as heating element, the highest temperature can reach 1400℃; Double shell structure, advanced vacuum heat insulation technology, greatly reduce the box surface temperature; The B-type double platinum rhodium thermocouple is equipped with PID intelligent 30-stage temperature control system, and is equipped with over-temperature, decoupling, over-current protection and other functions. The furnace has the advantages of balanced temperature field, low surface temperature, fast rising and falling temperature rate, and energy saving.



Technical parameter
Chamber size	450*450*1000mm ,capacity 202L  300*300*300mm ,capacity 27L 300*300*400mm ,capcity 36 L  500*500*500mm ,capacity  125 L (Accept custom-made size according to Clients demands)
Max. temperature	1400°C
Working temperature	≤1300℃
Temprature control	1) PID automatic control via SCR (Silicon Controlled Rectifier)power control with phase angle fired, current limiting resistor. intelligent 30-stage temperature control system 2) Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.   3) Over temperature protection
Heating rate	0-20 oC /min
Thermocouple	S type thermocouple
Temperature accuracy	+/- 1 oC
Heating element	High purity U type SIC Rods , less iron components, no pollution.
Furnace structure	Double layer steel casing with dual cooling fan, temperature of furnace shell below 60oC
Thick Furnace Insulation	Three layers of ceramic fiber insulation materials.                                                                      1) First layer: 1800°C ceramic fiber board                                                                                      2 ) Second layer: 1600°C ceramic fiber board 3 )Third layer : 1260°C ceramic fiber board

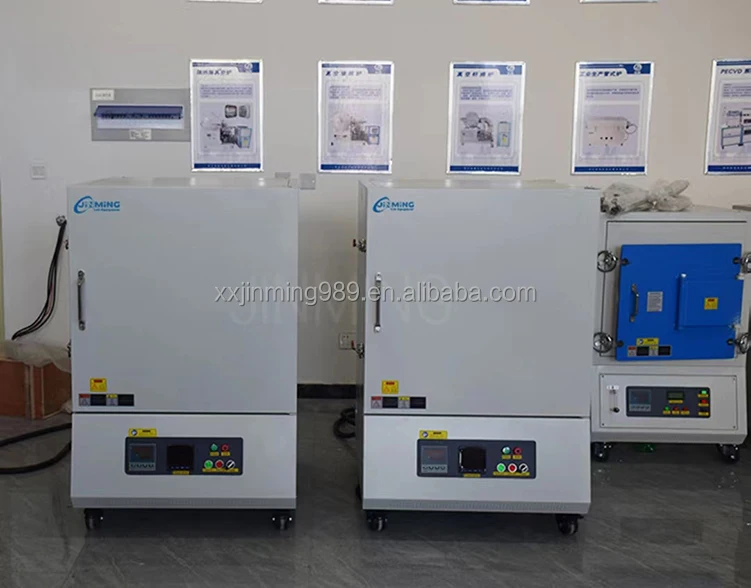

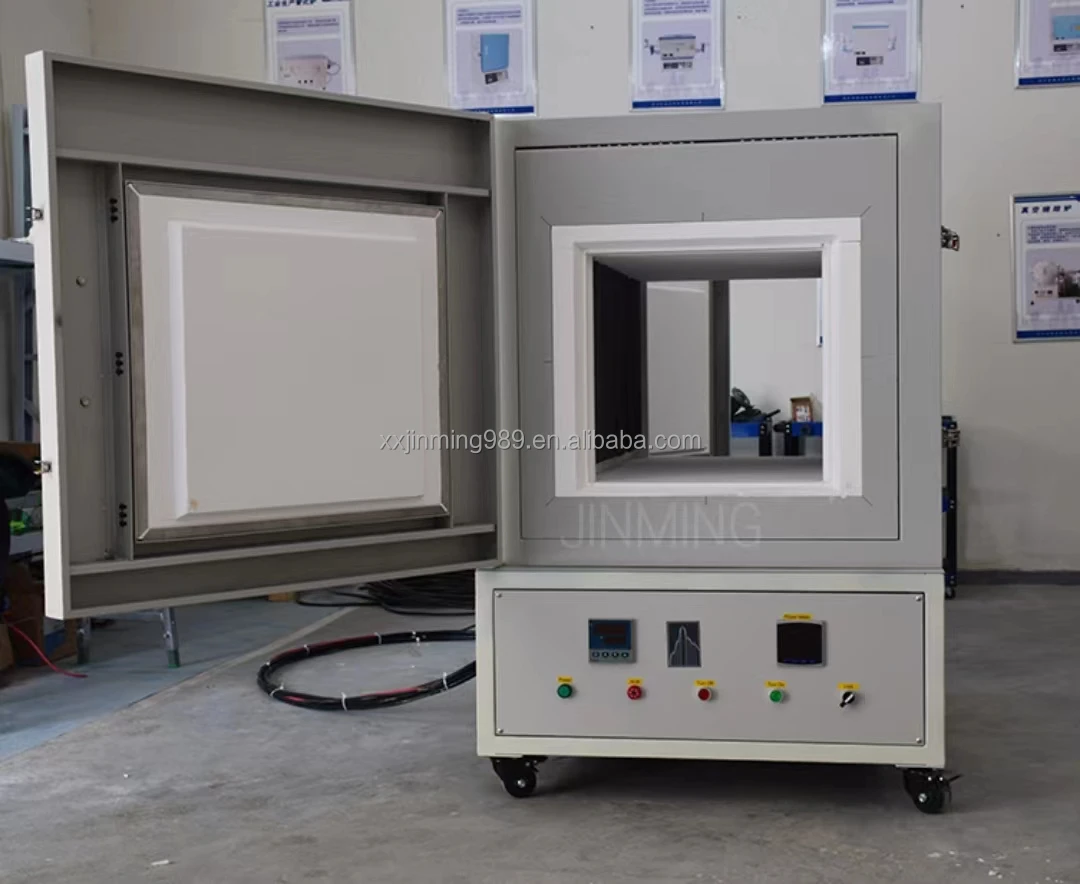

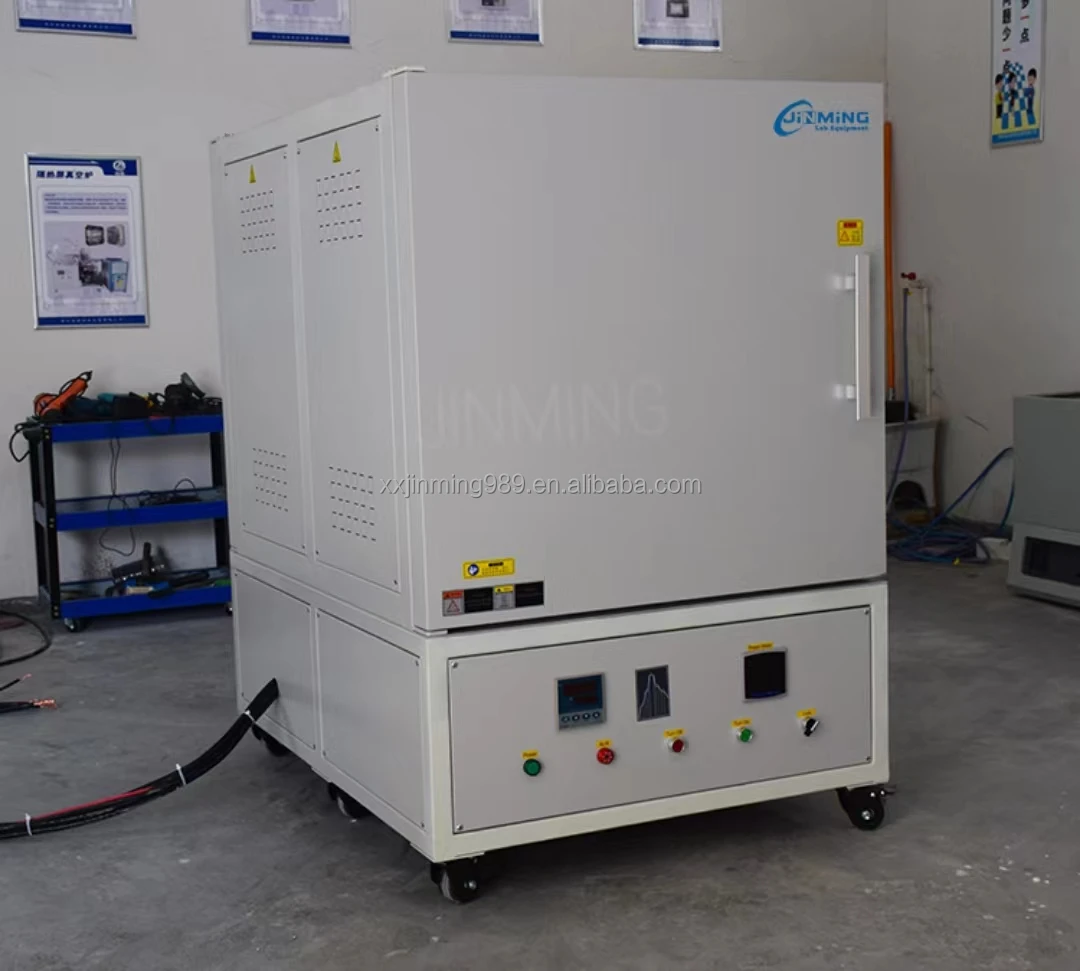

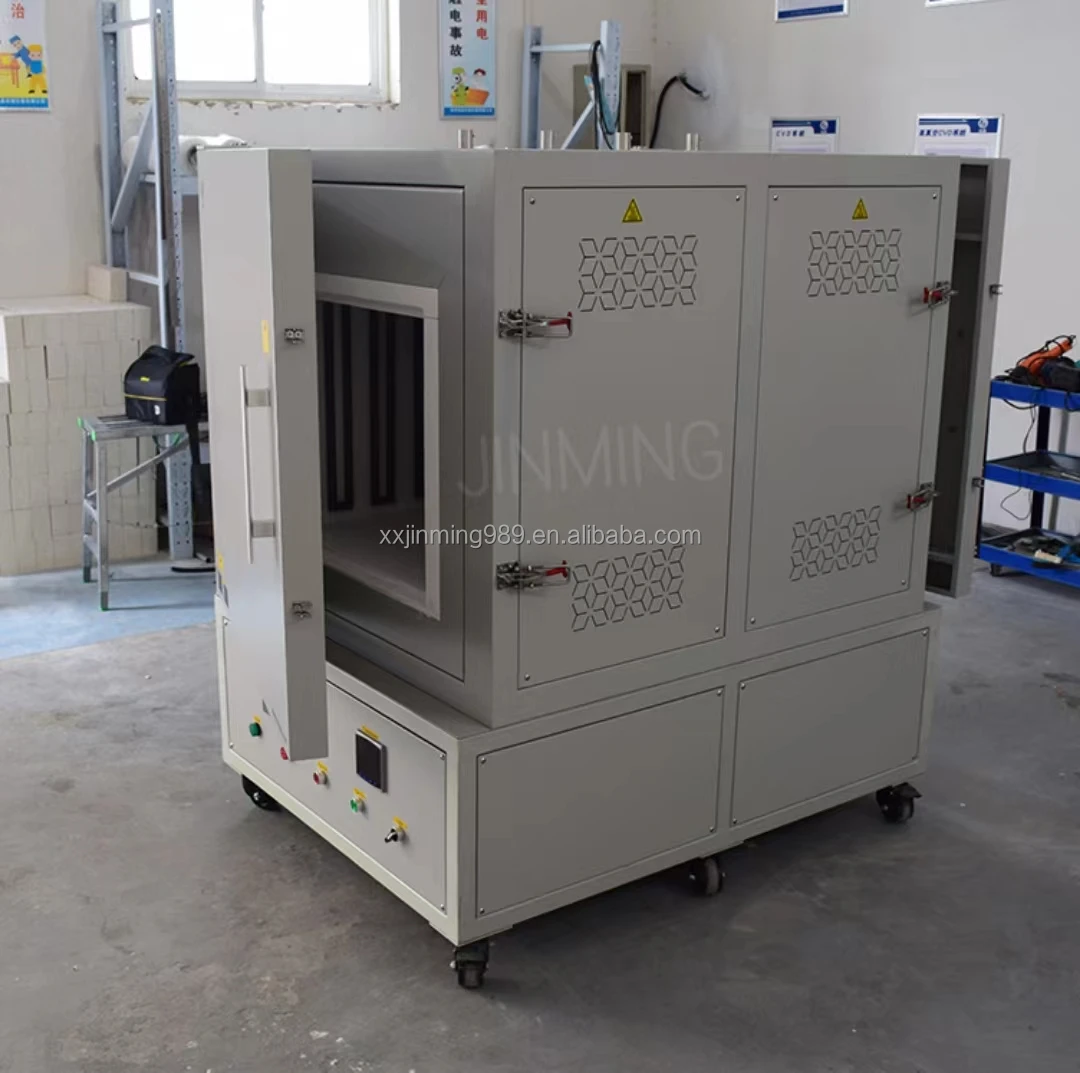

Detailed Pictures :







Packing & Delivery :

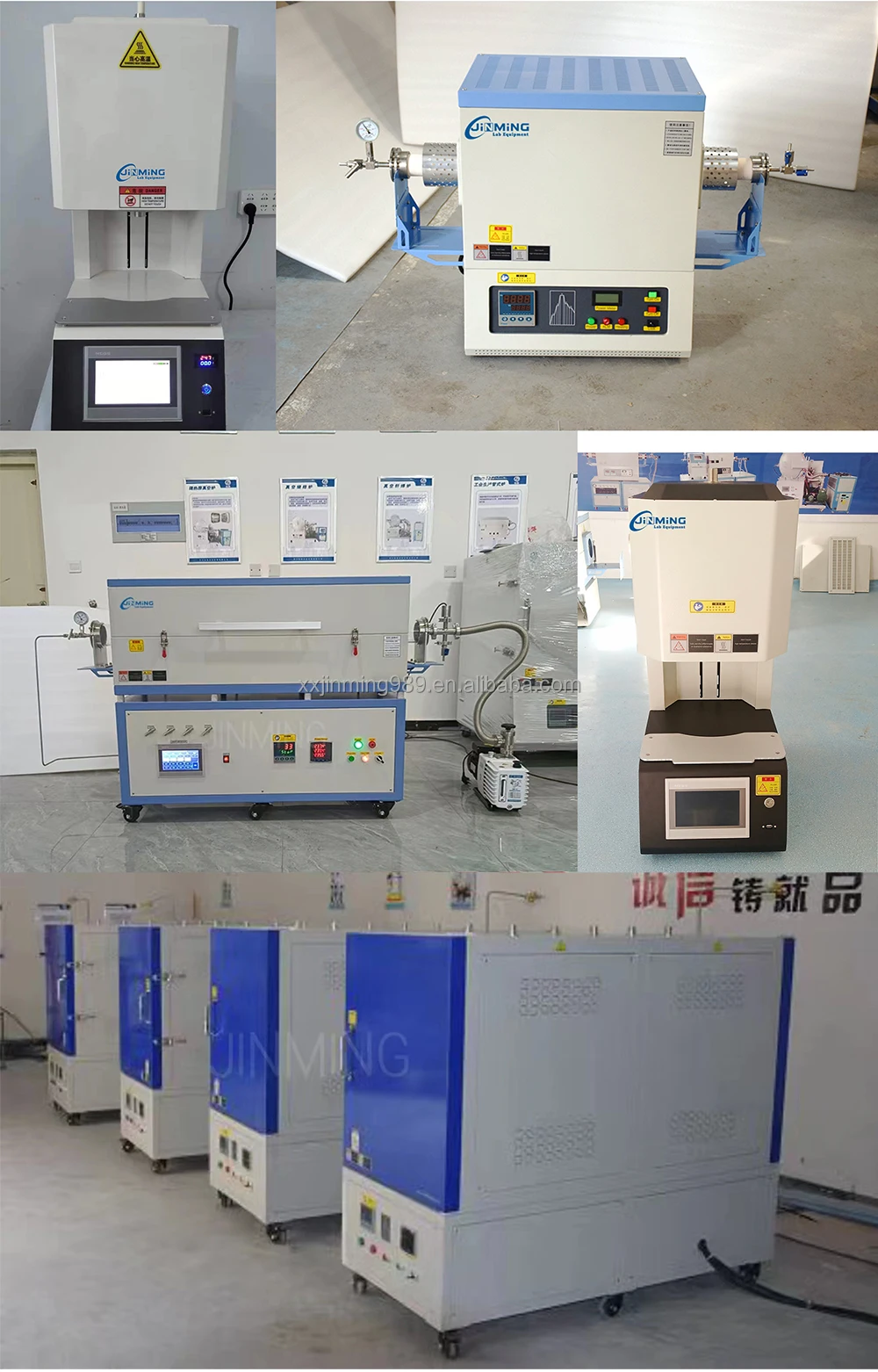

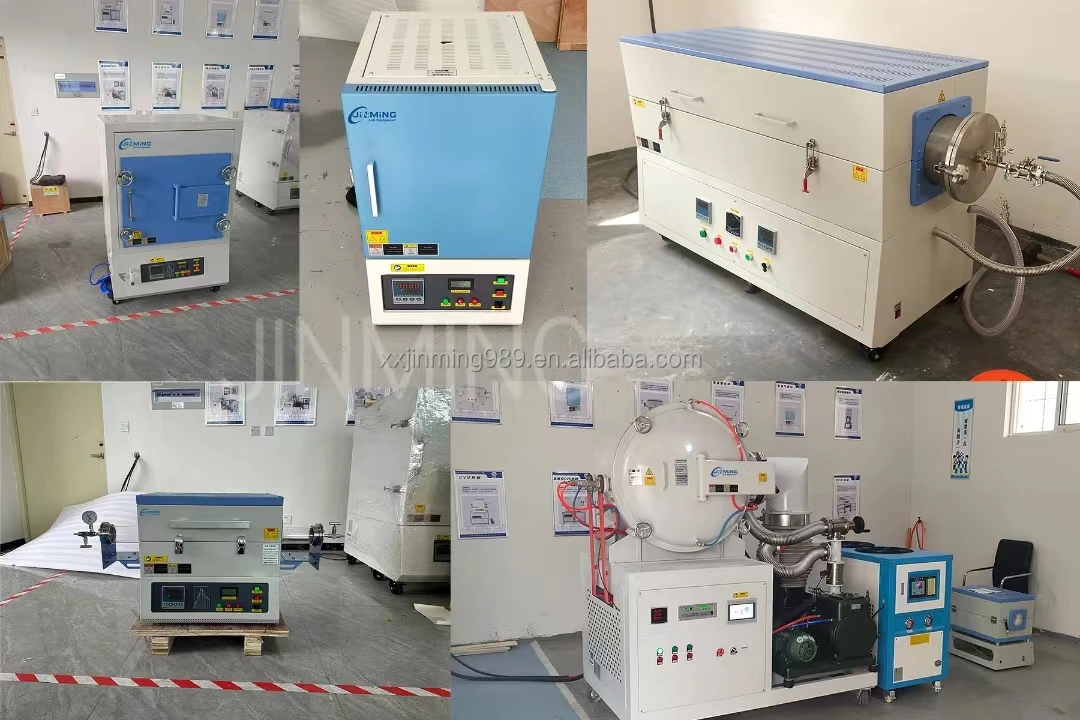

 Our Other Products :

FAQ

1. Are you furnace manufacturer ?

A: Yes, we are professional lab furnace manufacturer with many years of sale and production experience in China.



2. Q:What kind terms of payment can be accepted?

    A:  D/P , T/T, Western Union, Paypal, etc.



3. Q: Could I ask for customized voltage and electricity plug ?

    A: Yes,we can custom-made according to our clients demands from different countries .



4. Q: What about the delivery time?

    A: Normally 15-20 days prouction time after received advance payment or based on order quantity and arrange production schedule.



5. Q: What about the guarantee period?

    A: The furnace guarantee period is one year , and could supply technical support and service  for free all the time .



6. Q: What is your advantages?

    A: Professional and economical technical Proposal , Excellent quality and service ,and fast & reliable delivery .
