Mark-600 Handheld Soil Analyzer
Napco Technology Is Safety Guard for Soil-Mark-600 Handheld Soil Analyzer
Heavy metal pollutants remaining in the soil will still cause harm to the human body after many years. Some production activities in the manufacturing and mining industries, the use of fertilizers and pesticides in the agricultural sector, and improper landfill disposal all have the risk of soil pollution, which may lead to heavy metal pollutants such as cadmium, mercury, lead, and chromium hazards.
Therefore screenin g and remediation of soil contamination is a major challenge. In situ soils analysis, contaminated soil testing and sediments screen with XRF is an effective solution to address such challenges. The handheld XRF analysis method is an internationally recognized method for soil heavy metal screening.
Mark-600 Series Handheld Soil Analyzer is an important tool for soil and sediment screening. It can detect hazardous heavy metals within seconds. Using our Mark-600 for on-site rapid soil screening significantly reduces the number of samples that need to send to laboratory for analysis, reducing analysis costs and analysis time. And soil treatment and remediation costs can be minimized by rapidly screening and delineating contaminated areas and identifying remediation areas on-site.
Models of Mark-600 Series
Model | 600 | 600P | 600S |
Excitation | Ceramic packaged microfocus X-ray tube, Ag Anode 50kV | ||
Detector | High-performance Si-Pin detector | Optimized SDD detector (with Graphene window) | Optimized SDD detector (with Graphene window) |
Resolution | 140eV FWHM | 129eV FWHM | 129eV FWHM |
Filter | Multi-position automatic filter changer | ||
Window | Kapton with anti-puncture window design optional | ||
Battery | 7.2V Li-ion battery, 6800 mAh | ||
Display | Capacitive touch screen (5-inch 720P) | ||
CPU | i.Mx 8M Mini quad core 1.8GHz | ||
Signal Processor | 4096-pixel multi-channel detector / 80 MHz ADC digital signal processor | ||
Data storage | Over 100,000 data storage | ||
Data transfer | WIFI, USB | ||
Structural design | The unique structural design effectively increases the heat dissipation of the X-ray tube | ||
Radiation safety | Safety Guard induction device, when there is no sample in the test area, the source will shut, providing maximum safety protection. Password-protected user security | ||
Camera (Optional) | Integrated CCD camera with autofocus lens for positioning and recording measuring point positions | ||
Elements | Mo, Nb, Zr , Bi, Pb, Se, W , Zn , Cu, Ni, Co, Fe, Mn, Cr, V , Ti, As, Rb, Sr, K , Ca, Ba, Cd, Hg, Br, Sb, Sn, Cs, Te, Ag, Y, U , Th, Sc, Pd, Re, Ta, Hf | Mo, Nb, Zr , Bi, Pb, Se, W , Zn , Cu, Ni, Co, Fe, Mn, Cr, V , Ti, As, Rb, Sr, K , Ca, Ba, Cd, Hg, Br, Sb, Sn, Cs, Te, Ag, Y, U , Th, Sc, Pd, Re, Ta, Hf | Mo, Nb, Zr , Bi, Pb, Se, W , Zn , Cu, Ni, Co, Fe, Mn, Cr, V , Ti, As, Rb, Sr, K , Ca, Ba, Cd, Hg, Br, Sb, Sn, Cs, Te, Ag, Y, U , Th, Sc, Pd, Re, Ta, Hf, Mg, Al, Si, P, S |
Finished Products

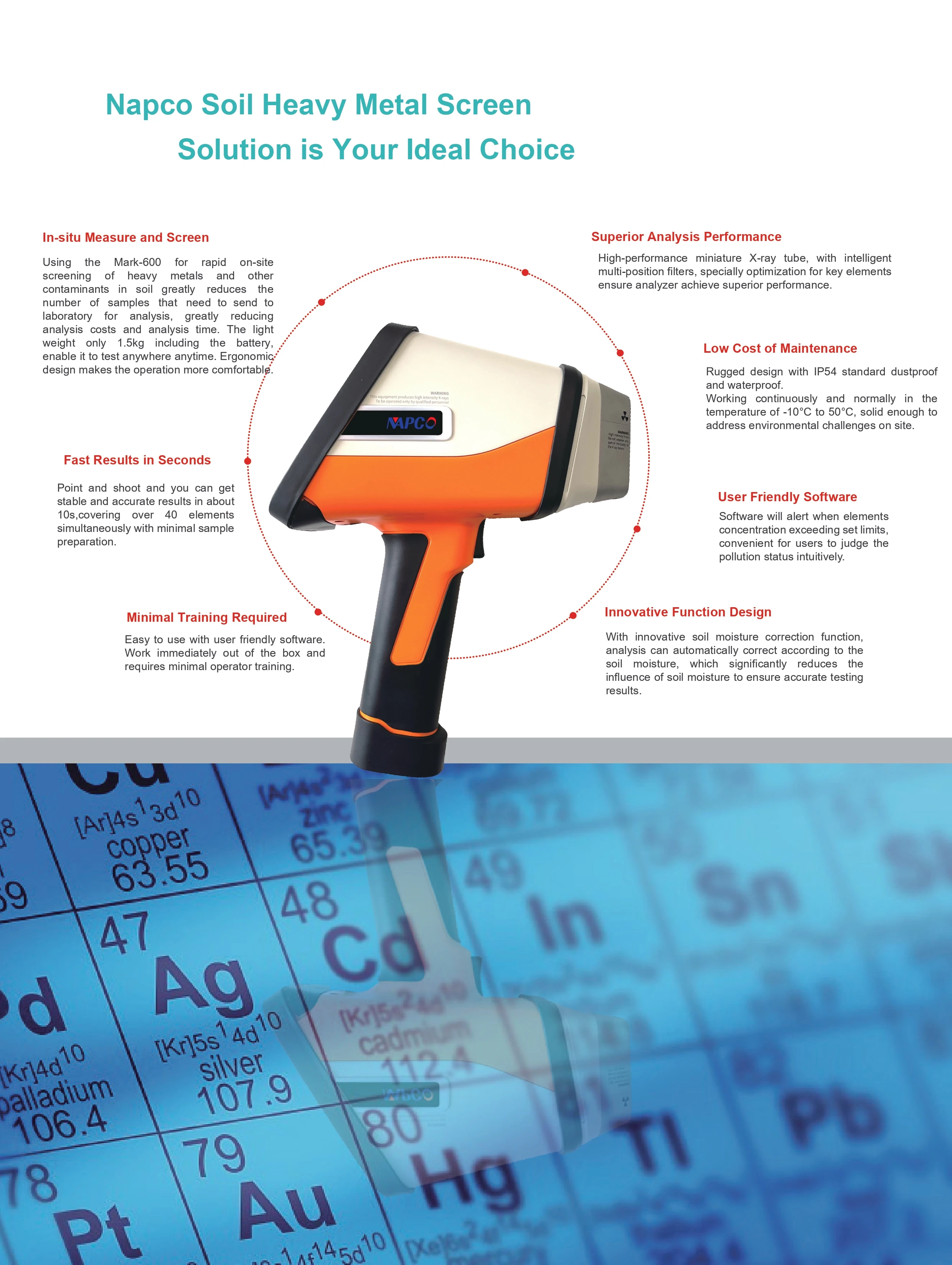

Advantages of the MARK 600
- In-situ Measure and Screen
- Superior Analysis Performance
- Fast Results in Seconds
- Innovative Function Design
- User Friendly Software
- Low Cost of Maintenance
Useful Accessories Options
Mark-600 series handheld soil analyzers can be equipped with uniquely designed bench-top test stand, portable test stand, etc., which can greatly simplify the customer's test work. And carbon fiber puncture-proof windows can be quickly replaced to avoid detector damage.
Bench-top Test Stand - Allows hands-free measurement of samples. Completely shielded to protect the operator from any scattered
radiation.
Portable Test Stand - Folds up for easy transport and portability. Allows hands-free measurement of samples. Completely shielded to protect the operator from any scattered radiation.
Backscatter Shield - A flexible and robust shield attaches to the analyzer’s cone, protecting the operator from any backscattered x ray during analysis.
Carbon Fiber Anti-Puncture Window - Carbon fiber anti-puncture windows can be used to effectively protect the window film from damage by irregular samples testing.
Packaging & Shipping
Packing Size: 400 * 430 * 350(mm)
Packaging Details: Standard Export Wooden Box Packing, Filling with soft foam
Shipping Methods: CIF (Air Cargo & Sea Cargo) , DDP ( DHL, FedEx, EMS, TNT, UPS, etc.)
