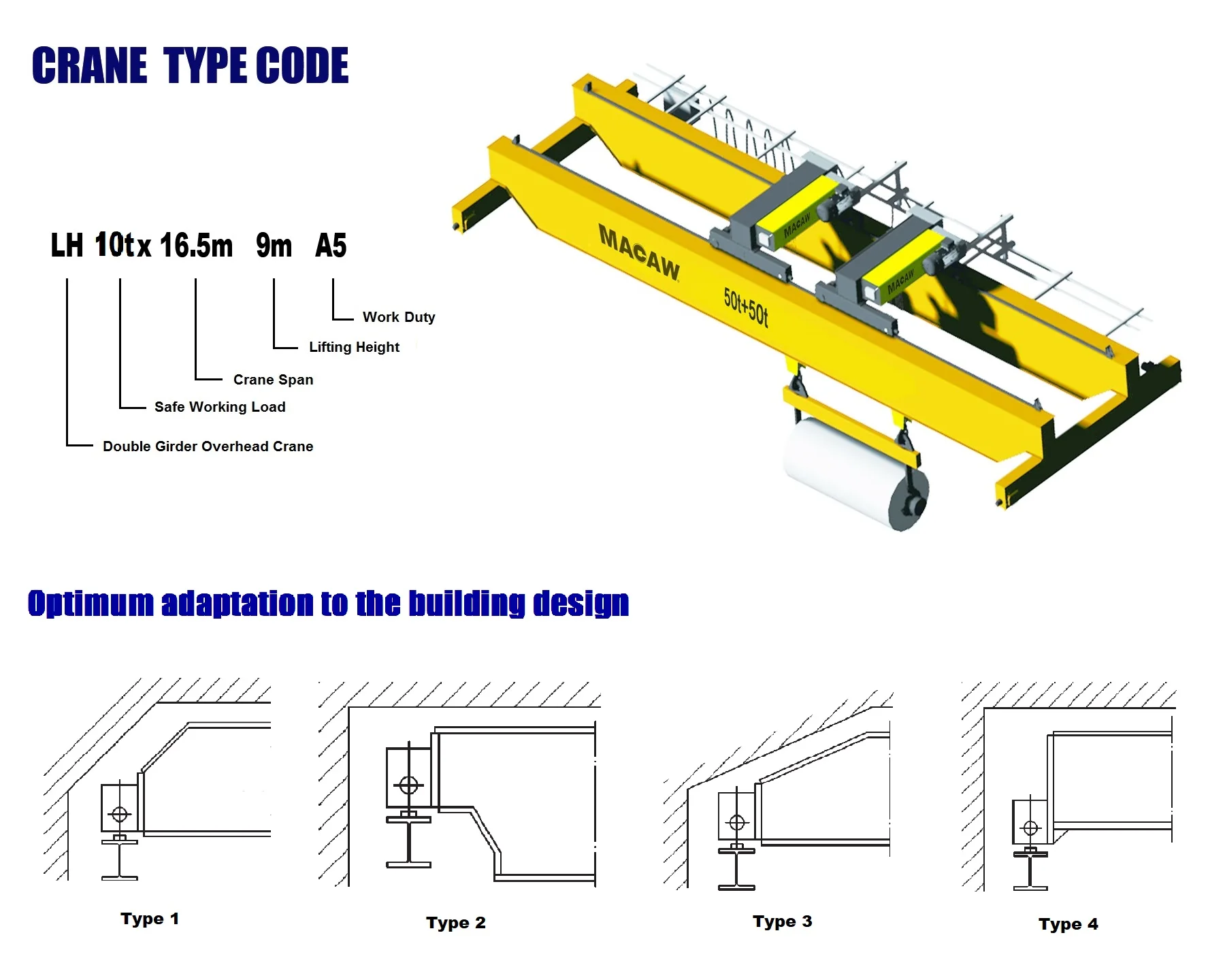

LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00

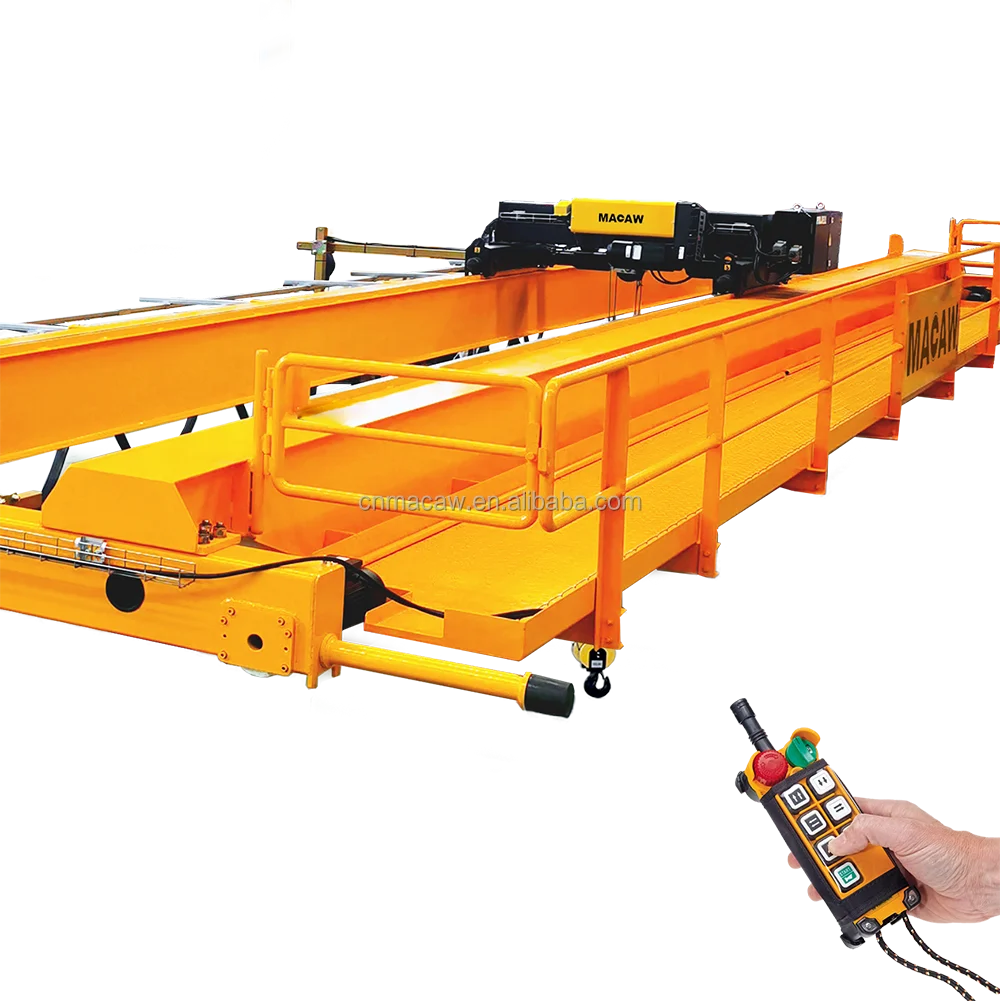

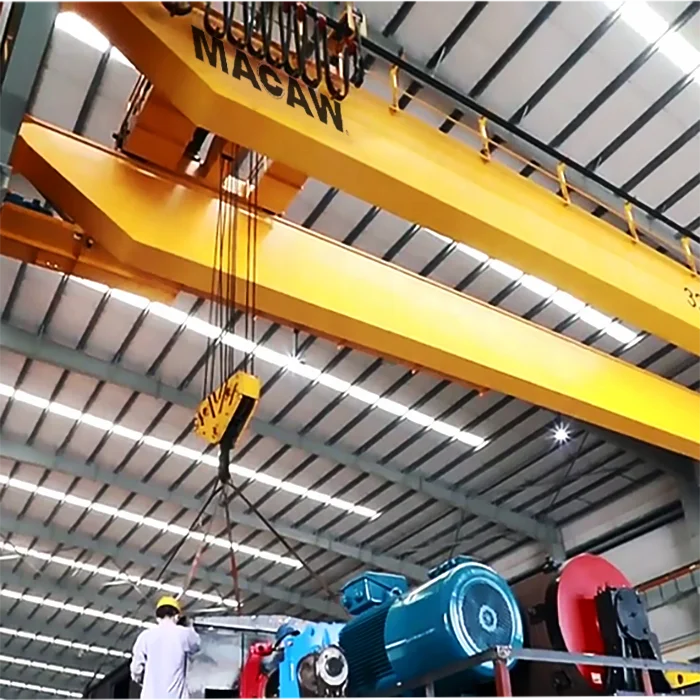

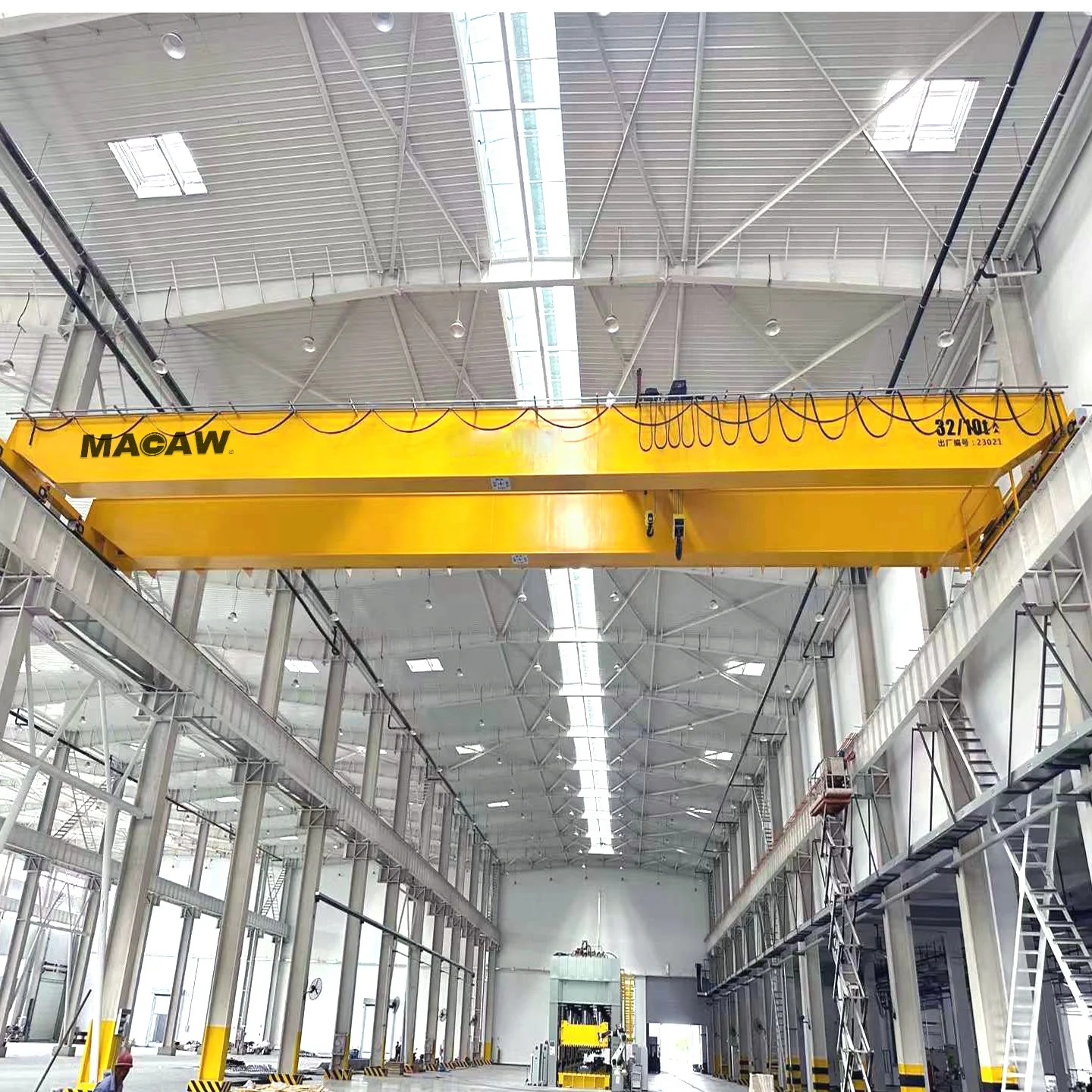

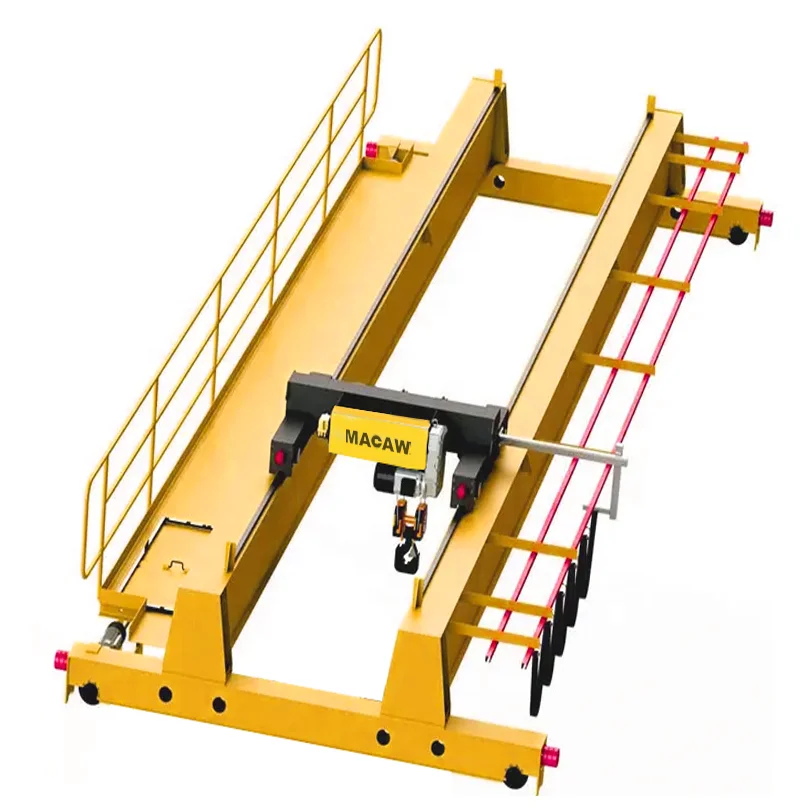

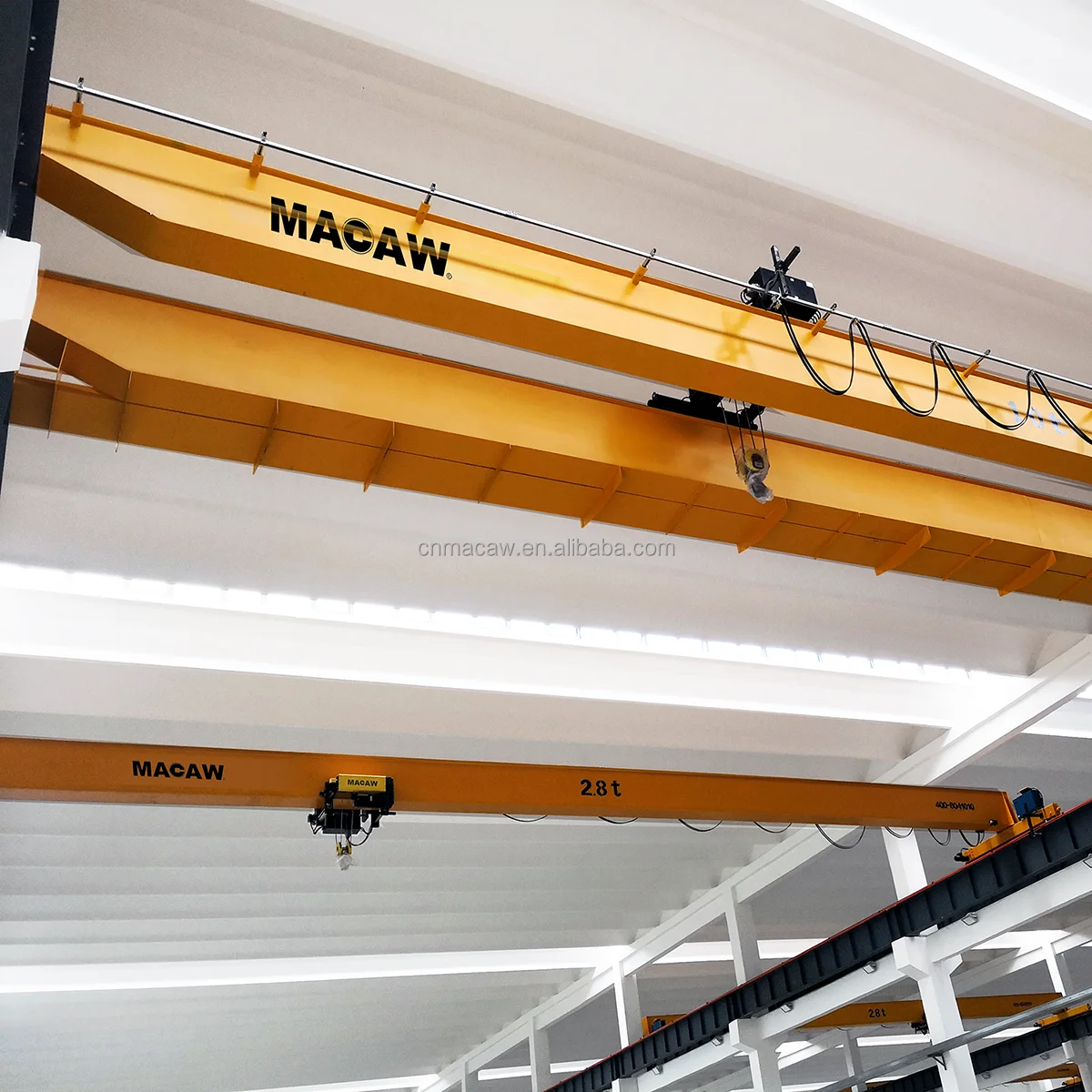

Span 7.5 22.5m europe bridge travelling crane 10 ton Double girder workshop overhead crane for maintenance workshop
- Category: >>>
- Supplier: Toptech Machinery Wuxi Co. Ltd.
Share on (1601007475395):
Product Overview
Description
Products Description
Feature:
1.Light weight structure,excellent performance, advanced design concept, effectively improve space utilization.
2.Made of high quality steel, durable and corrosion resistant.
3.Complete standard configuration, stable running, fast positioning, stable and safe operation.
4.Simple maintenance, low installation & maintenance costs, and long service life.
4.Simple maintenance, low installation & maintenance costs, and long service life.
Crane Control Panel
Electric Hoist
Festoon System
Crane Remote Control

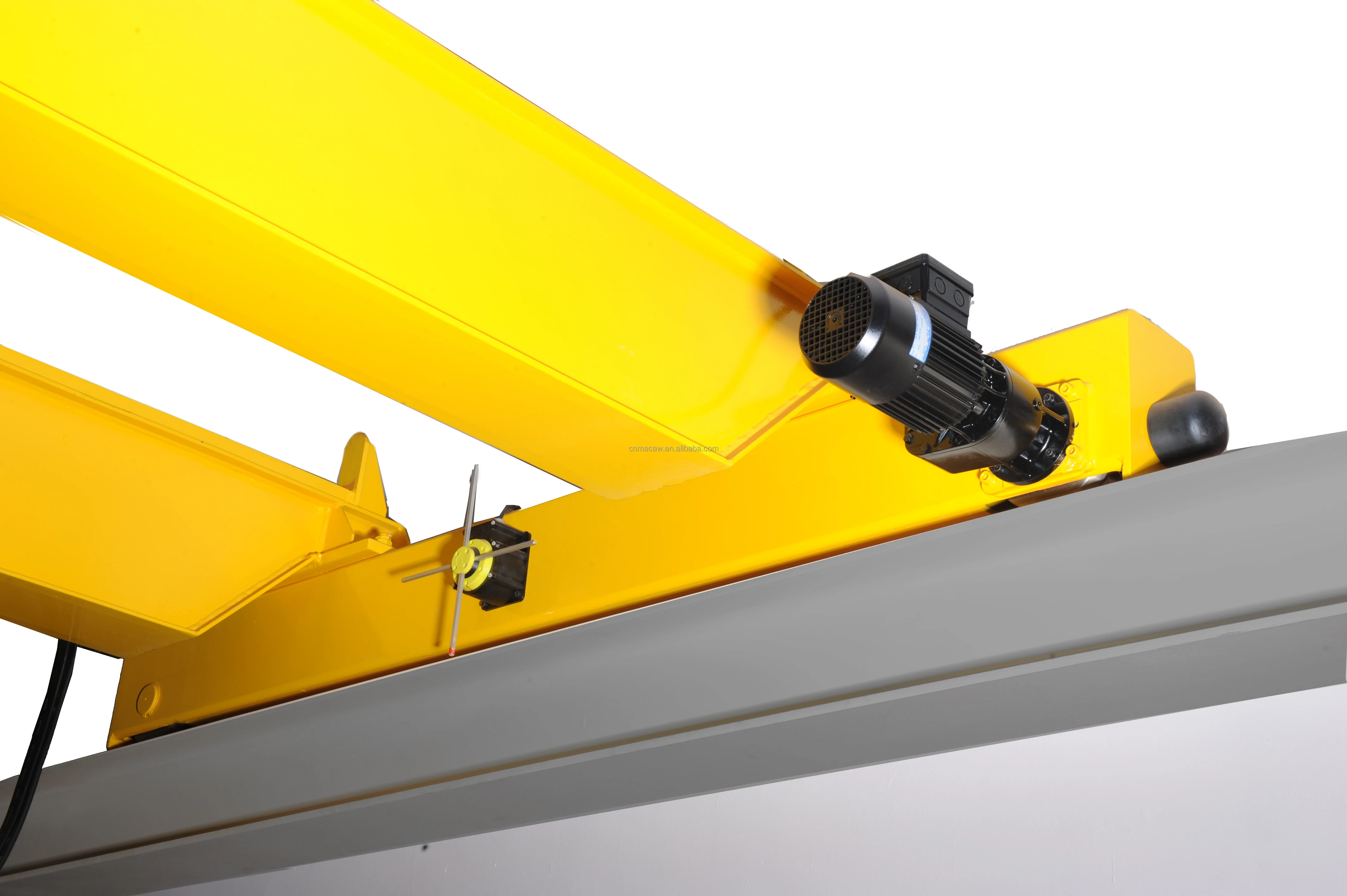

End carriages with driven motor
Crane Limit Switch
Product Application
Technical Parameter
Basic Data | ||||||||||||||||||
Crane Span (m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 34.5 | |||||||||
Crane Weight (t) | 4.57 | 6.52 | 8.29 | 10.08 | 12.36 | 14.42 | 17.53 | 20.62 | 26.36 | |||||||||
Trolley Weight (t) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |||||||||
Max.Wheel Load (KN) | 62.9 | 69 | 74.5 | 79.1 | 84.4 | 90.1 | 97.6 | 105.3 | 119.6 | |||||||||
Min.Wheel Load (KN) | 10.3 | 13.7 | 16.7 | 20.6 | 26.1 | 30.5 | 38 | 45.3 | 58.9 | |||||||||
Crane Wheel Quantity (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||
Recommend Crane Rail | P22 | P22 | P22 | P22 | P22 | P30 | P30 | P30 | P30 | |||||||||
Operation Speed (m/min) | ||||||||||||||||||
Lifting Speed | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | ||||||||||
Trolley Speed | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | ||||||||||
Bridge Speed | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | ||||||||||
Driven Motor Power (KW) | ||||||||||||||||||
Lifting Motor | 9.5/1.5 | |||||||||||||||||
Trolley Motor | 0.44*2 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | ||||||||||
Bridge Motor | 1.2*2 | 1.2*2 | 1.2*2 | 1.2*2 | 1.2*2 | 1.6*2 | 1.6*2 | 2.5*2 | 2.5*2 | |||||||||
Crane Power | 12.78 | 12.78 | 12.78 | 12.78 | 12.78 | 13.58 | 13.58 | 15.38 | 15.38 | |||||||||
Note：
Cranes have many kinds of specifications to choose,the data in this table base on 9M top of rail.
This is for user and designing institue reference only when selecting cranes type. More detailed data and technical solution,please contact with us.
This is for user and designing institue reference only when selecting cranes type. More detailed data and technical solution,please contact with us.
Recommend Products
Packaging & Delivery
Electric overhead crane girder part
Electric hoist part
Company Profile
TOPTECH MACHINERY WUXI CO., LTD is a comprehensive enterprise in lifting equipment industry. We are
specialized in various electric hoist, electric overhead crane, crane component and other related
products.
The electric crane & hoist produced by our company have the advantages of low noise, light weight,
compact structure, superior performance, safe and simple operation, easy installation and maintenance,
and etc.
Our products are widely used in material handling, machining, mold development, industrial automation
assembly line, product assembly, wind power generation and other industries.
We keep learning new design concept and the advanced product development of the world crane
industry, and always focus on the benefit of our clients.
Our mission is to provide the most suitable material handling equipment for our clients, to lift up
business value of partners.
Our core values are Reliability and safety. Safety is key to performance. Protecting your staff and
equipment is part of our dedication to zero harm.
specialized in various electric hoist, electric overhead crane, crane component and other related
products.
The electric crane & hoist produced by our company have the advantages of low noise, light weight,
compact structure, superior performance, safe and simple operation, easy installation and maintenance,
and etc.
Our products are widely used in material handling, machining, mold development, industrial automation
assembly line, product assembly, wind power generation and other industries.
We keep learning new design concept and the advanced product development of the world crane
industry, and always focus on the benefit of our clients.
Our mission is to provide the most suitable material handling equipment for our clients, to lift up
business value of partners.
Our core values are Reliability and safety. Safety is key to performance. Protecting your staff and
equipment is part of our dedication to zero harm.
FAQ
Q. What's the information should I provide when inquiry on Electric crane and electric hoist?
More parameters, more better.
Lift capacity ?
span ?
lift height ?
power sourceor other specials you give us will be more appreciated ?
span ?
lift height ?
power sourceor other specials you give us will be more appreciated ?
Plesee provide us the rquest lifting capacity, lifting height, span, power supply, building dimesnsion etc.
And if you can give us your design drawing, that will be very helpful.
Q.Which kind crane can you provide?
With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, We are able to provide you with complete competitive solutions for material handling based on your demands.
With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, We are able to provide you with complete competitive solutions for material handling based on your demands.
Q. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit
yourcountry.
Q:The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
Q. Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit
yourcountry.
Q:The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
Q. Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
