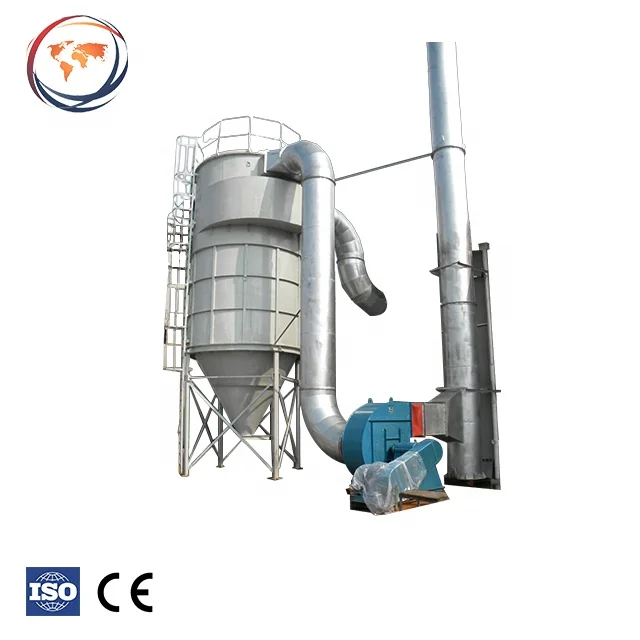

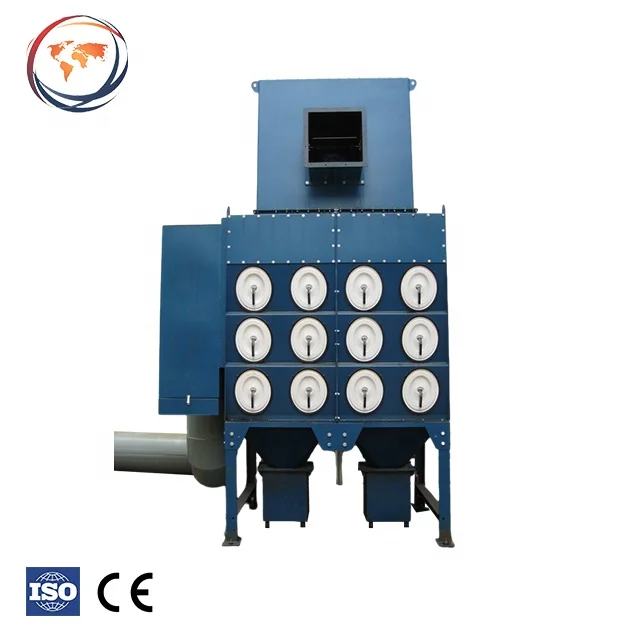

Xinyuan separation of heated combustion smoke particles Fabric Dust Collector treatment of atmospheric pollutants
- Category: >>>
- Supplier: Ningbo Xieli International Trade Co. Ltd.
Share on (1601007484624):
Product Overview
Description
Product Overview
Filter Dust Collector Series

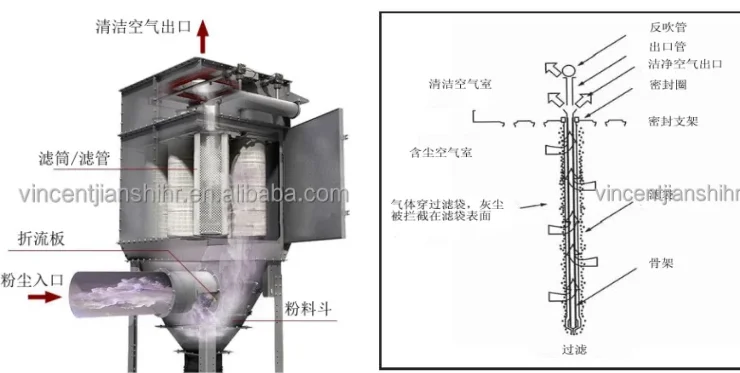

Filter dust collector with cartridge and bag types.The structure of a cartridge-type dust collector consists of an inlet pipe, an outlet pipe, a housing, a dust hopper, a cleaning device, a deflector, an airflow distribution plate, cartridges, and an
electrical control device.
Cartridge-type dust collectors have the advantages of small size, high efficiency, cost-effectiveness, and easy maintenance. They are widely used in industries such as cement, steel, power generation, food processing, pharmaceuticals, and many others. They are considered the best solution for overcoming challenges faced by traditional dust collectors, such as difficulties in collecting ultra-fine dust, high filtration velocity, poor dust cleaning performance, bag wear and leakage, and high operating costs.
Compared to various bag-type and electrostatic precipitators available in the market, cartridge-type dust collectors offer larger effective filtration area, lower pressure drop, low emissions, compact size, and longer service life. They represent a new direction for the development of industrial dust collectors.
Bag-type dust collectors use filter media with both circular and rectangular shapes. The installation methods of the filter media can be either side-insertion or vertical installation. The working principle of bag-type dust collectors involves two stages: filtration and dust cleaning.
electrical control device.
Cartridge-type dust collectors have the advantages of small size, high efficiency, cost-effectiveness, and easy maintenance. They are widely used in industries such as cement, steel, power generation, food processing, pharmaceuticals, and many others. They are considered the best solution for overcoming challenges faced by traditional dust collectors, such as difficulties in collecting ultra-fine dust, high filtration velocity, poor dust cleaning performance, bag wear and leakage, and high operating costs.
Compared to various bag-type and electrostatic precipitators available in the market, cartridge-type dust collectors offer larger effective filtration area, lower pressure drop, low emissions, compact size, and longer service life. They represent a new direction for the development of industrial dust collectors.
Bag-type dust collectors use filter media with both circular and rectangular shapes. The installation methods of the filter media can be either side-insertion or vertical installation. The working principle of bag-type dust collectors involves two stages: filtration and dust cleaning.
FEATURES AT A GLANCE
*modular combination design, allowing for easy expansion in both length and width directions, just like building blocks. The size
of the filter media can be selected according to installation needs, enabling precise matching with the available space
on-site.*Quick-change fixtures make it easy to replace cartridges/filters/tubes, requiring only one person to complete the task
independently.
*With advanced integrated system design, our dust collectors can handle high temperatures, high and low pressures, flammable and
explosive materials, as well as dust with water/oil content and sparks.

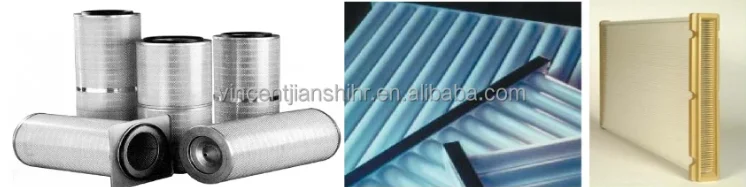

* Multiple filter materials are available to meet different separation precision requirements and application scenarios.
* *Various methods for dust discharge are provided, including ash transport vehicles of different capacities, ash discharge
valves, flexible connections, screw conveyors, and pneumatic conveyors.
* The dust collectors are equipped with a highly reliable explosion-proof system, including explosion venting membranes, flame
arrestors, automatic spark extinguishing devices, shock wave detectors, explosion prevention devices, ensuring safer equipment
operation.
of the filter media can be selected according to installation needs, enabling precise matching with the available space
on-site.*Quick-change fixtures make it easy to replace cartridges/filters/tubes, requiring only one person to complete the task
independently.
*With advanced integrated system design, our dust collectors can handle high temperatures, high and low pressures, flammable and
explosive materials, as well as dust with water/oil content and sparks.
* Multiple filter materials are available to meet different separation precision requirements and application scenarios.
* *Various methods for dust discharge are provided, including ash transport vehicles of different capacities, ash discharge
valves, flexible connections, screw conveyors, and pneumatic conveyors.
* The dust collectors are equipped with a highly reliable explosion-proof system, including explosion venting membranes, flame
arrestors, automatic spark extinguishing devices, shock wave detectors, explosion prevention devices, ensuring safer equipment
operation.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | MO8-S180 |
2 | Power supply | 380V/50HZ |
3 | Gas Flow Rate | 29600m3/h(specifically designed for welding fumes/ drying dust from grain processing, though it may vary for other types of dust) |
4 | Purification Efficiency | ≈98% |
5 | Dimensions | 3600×6004×7585(mm) |
6 | Weight | 4733KG |
7 | Motor power | 22KW |
SIMILAR PRODUCTS
FAQ
Q1：What is application scenarios of Filter Dust Collector Series?
A1: Conventional cartridge/filter dust collectors are typically suitable for purifying a small amount of smoke and dust. However, with our patented system, we have successfully expanded its application to areas such as waste copper smelting and high-concentration recovery of oil-containing carbon black. It can be applied in almost all particle separation fields except for moist gases, oil fumes, and oil mists, particularly in restricted installation sites such as indoor environments.Bag-type dust collectors can be applied in almost any situation where smoke and dust separation is required, except for oil mists, oil fumes, and moist gases. They are widely used in industries such as tobacco, pharmaceuticals, chemicals, food processing, construction materials, metallurgy, power generation, metal processing, casting, mining, and more for dust removal, powder recovery, and smoke purification purposes.
Q2: What is the characteristic of the Filter Dust Collector unit?
A2: Unlike other equipment manufacturers that rely on purchasing filter cartridges, we differentiate ourselves by continuously improving our filter cartridges and dust cleaning mechanisms through experiments and engineering applications. This has led to the development of our unique patented system. Only by achieving the optimal match between filtration and dust cleaning can we maximize the efficiency of the dust collector. With a wide range of functional accessories and superior performance, our cartridge/filter/bag-typed dust collectors can be applied in the majority of solid particle and smoke separation fields.
Q3: How is the quality of your dust collectors?
A3: Our dust collectors are known for providing excellent filtration efficiency and reliable performance. We use high-quality
materials and advanced technology to manufacture our dust collectors, ensuring their quality. In addition, we have strict quality control procedures to inspect and test each product to meet high standards. Overall, our dust collectors are trustworthy in terms of quality.
Q4: How is the after-sales service for your Industrial dust removal equipment？
A4: We provide one-year warranty period to ensure that customers receive continuous support and satisfactory user experience after purchasing our Industrial dust removal equipment. Our after-sales team will respond promptly to customer inquiries and provide technical services.
A1: Conventional cartridge/filter dust collectors are typically suitable for purifying a small amount of smoke and dust. However, with our patented system, we have successfully expanded its application to areas such as waste copper smelting and high-concentration recovery of oil-containing carbon black. It can be applied in almost all particle separation fields except for moist gases, oil fumes, and oil mists, particularly in restricted installation sites such as indoor environments.Bag-type dust collectors can be applied in almost any situation where smoke and dust separation is required, except for oil mists, oil fumes, and moist gases. They are widely used in industries such as tobacco, pharmaceuticals, chemicals, food processing, construction materials, metallurgy, power generation, metal processing, casting, mining, and more for dust removal, powder recovery, and smoke purification purposes.
Q2: What is the characteristic of the Filter Dust Collector unit?
A2: Unlike other equipment manufacturers that rely on purchasing filter cartridges, we differentiate ourselves by continuously improving our filter cartridges and dust cleaning mechanisms through experiments and engineering applications. This has led to the development of our unique patented system. Only by achieving the optimal match between filtration and dust cleaning can we maximize the efficiency of the dust collector. With a wide range of functional accessories and superior performance, our cartridge/filter/bag-typed dust collectors can be applied in the majority of solid particle and smoke separation fields.
Q3: How is the quality of your dust collectors?
A3: Our dust collectors are known for providing excellent filtration efficiency and reliable performance. We use high-quality
materials and advanced technology to manufacture our dust collectors, ensuring their quality. In addition, we have strict quality control procedures to inspect and test each product to meet high standards. Overall, our dust collectors are trustworthy in terms of quality.
Q4: How is the after-sales service for your Industrial dust removal equipment？
A4: We provide one-year warranty period to ensure that customers receive continuous support and satisfactory user experience after purchasing our Industrial dust removal equipment. Our after-sales team will respond promptly to customer inquiries and provide technical services.
