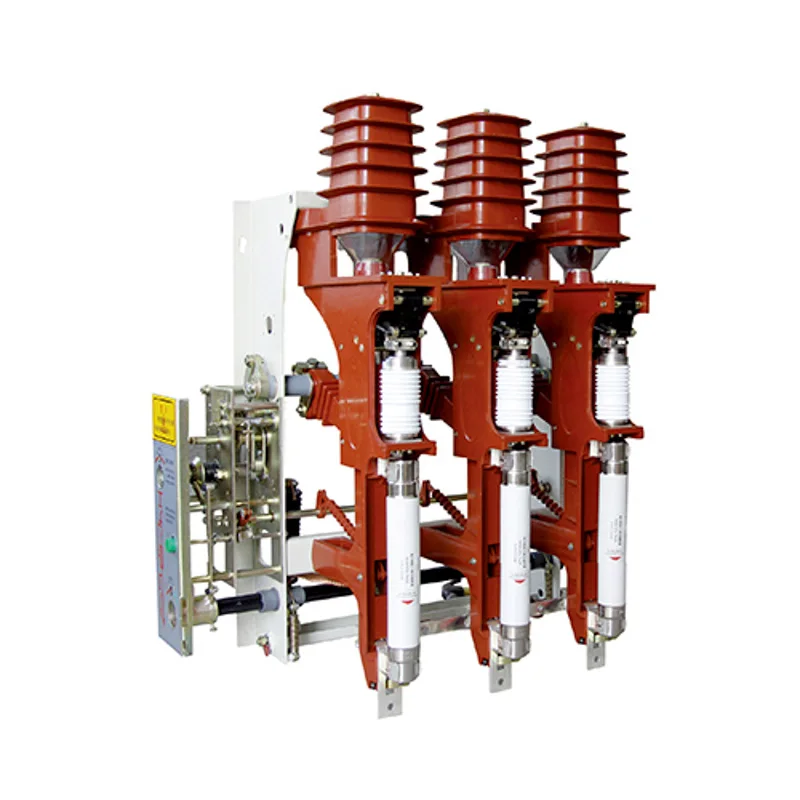

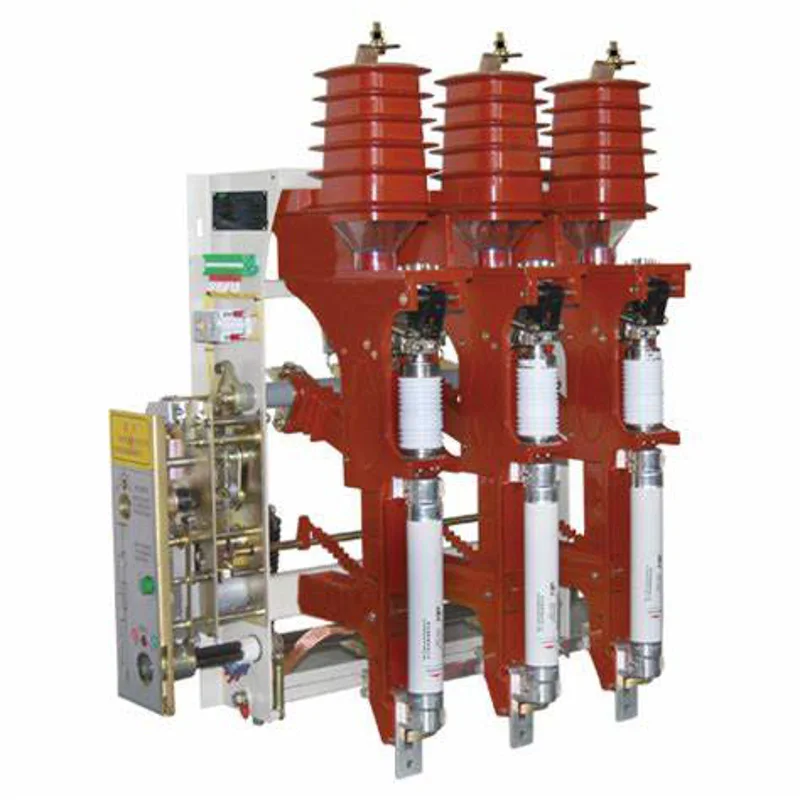

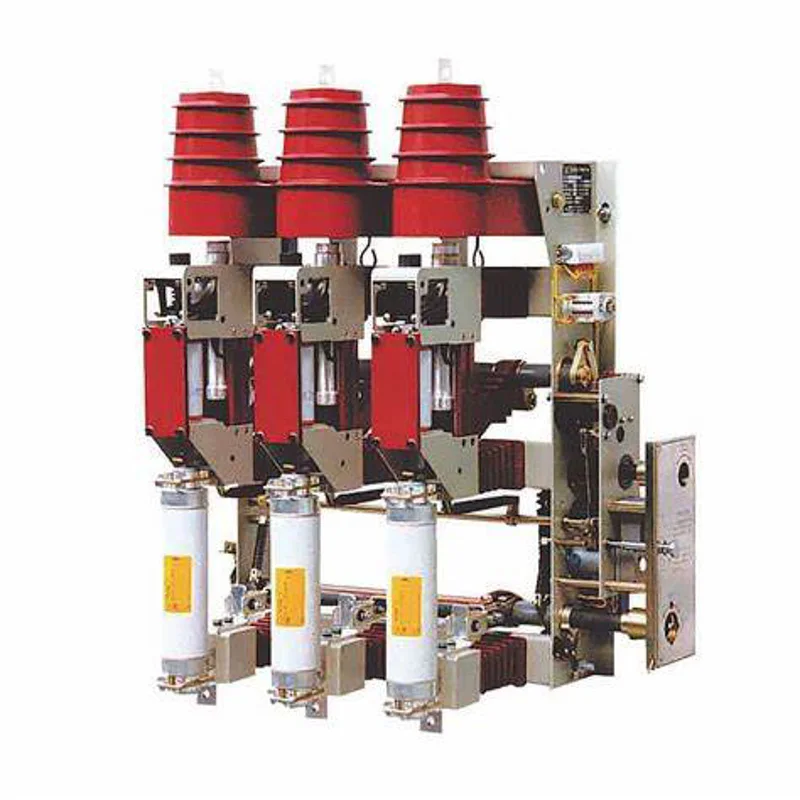

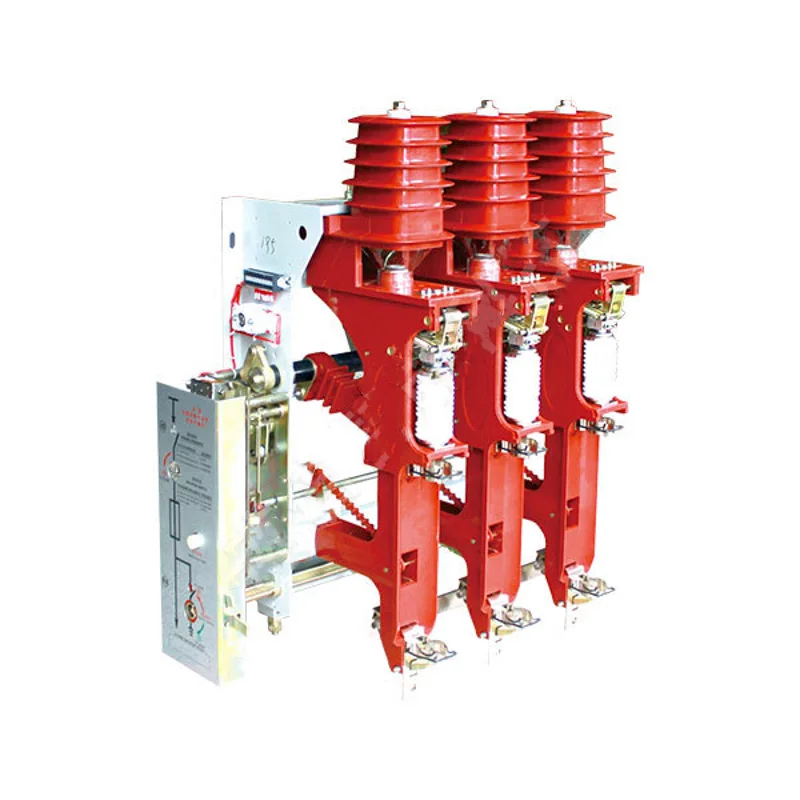

12KV 630A JHFZN25 12RD Indoor Vacuum Load Switch Combination Fuse Component for Fuse Components Category
- Category: >>>
- Supplier: YUEQING L&R NEW ENERGY CO. LTD.
Share on (1601007521428):
Product Overview
Description
Product Description
Product Overview:
FZN25-12D/T630-20 indoor use AC high voltage vacuum load switch and FZRN25-12D /T125- 31.5 indoor use AC high voltage vacuum fuse switch are the control and protective equipment for AC50Hz, three-phase, 12kV distribution system, these products free from oil, poison, flame and explosion, widely used in distribution system of mineral enterprises and high buildings and etc. The later one can provide more reliable protection for distribution transformer and other electric equipment,than circuit breaker, especially suitable for ring main system, dual extensible power supply unit or kiosk substation.
FZN25-12D/T630-20 indoor use AC high voltage vacuum load switch is the control and protective equipment for AC50Hz, three-phase, 12KV distribution system of mineral enterprises and high buildings and etc, used to switch on/off loading current, closing loop current, no-load transformer, cable charged current. This model has earthing switch able to withstand short circuit making capacity. Operating mechanism can be controlled by hand or motor, make it able to perform three remote operations.
FZRN25-12D /T125 - 31.5 indoor use AC high voltage vacuum fuse switch (hereinafter call:fuse switch), is the control and
protective equipment for AC50Hz, three-phase, 12KV distribution system of mineral enterprises and high buildings and etc, used to control load and protect against short circuit fault. This model has earthing switch able to withstand short circuit making capacity.Operating mechanism can be controlled by hand or motor, make it able to perform three remote operations.
The load switch complies with GB3804 standard, fuse switch complies with GB16926 standard
FZN25-12D/T630-20 indoor use AC high voltage vacuum load switch and FZRN25-12D /T125- 31.5 indoor use AC high voltage vacuum fuse switch are the control and protective equipment for AC50Hz, three-phase, 12kV distribution system, these products free from oil, poison, flame and explosion, widely used in distribution system of mineral enterprises and high buildings and etc. The later one can provide more reliable protection for distribution transformer and other electric equipment,than circuit breaker, especially suitable for ring main system, dual extensible power supply unit or kiosk substation.
FZN25-12D/T630-20 indoor use AC high voltage vacuum load switch is the control and protective equipment for AC50Hz, three-phase, 12KV distribution system of mineral enterprises and high buildings and etc, used to switch on/off loading current, closing loop current, no-load transformer, cable charged current. This model has earthing switch able to withstand short circuit making capacity. Operating mechanism can be controlled by hand or motor, make it able to perform three remote operations.
FZRN25-12D /T125 - 31.5 indoor use AC high voltage vacuum fuse switch (hereinafter call:fuse switch), is the control and
protective equipment for AC50Hz, three-phase, 12KV distribution system of mineral enterprises and high buildings and etc, used to control load and protect against short circuit fault. This model has earthing switch able to withstand short circuit making capacity.Operating mechanism can be controlled by hand or motor, make it able to perform three remote operations.
The load switch complies with GB3804 standard, fuse switch complies with GB16926 standard
Specification
Item | Unit | FZN25-12D/T630-20 | FZRN25-12D/T125-31.5 | |||
Rated voltage | kV | 12 | ||||
Rated frequency | Hz | 50 | ||||
Rated current | A | 630 | 125 | |||
Rated insulation level | 1min power frequency withstand voltage | kV | Across the arcing chamber distance:30; To earth and between phases:42; Across the isolating distance 48 | |||
Lightning impulse withstand voltage | kV | Across the vacuum arcing chamber distance:60; To earth and between phases:75; Across the isolating distance: 85 | ||||
Rated dynamic stability current(peak) | kA | 50 | － | |||
4s thermal stability current | kA | 20 | － | |||
Rated active load breaking current | A | 630 | 125 | |||
Rated closed loop breaking current | A | 630 | 125 | |||
Rated cable-charging breaking current | A | 10 | 10 | |||
Breaking no load transformer capacity | kVA | 1250 | 1250 | |||
Rated short-circuit breaking current | kA | － | 31.5 | |||
Rated transfer current | A | － | 870 | |||
Type of fuse | － | SDLAJ-12 SFLAJ-12 | ||||
The impactor outputs energy | J | － | 2-5(medium) | |||
Rated short-circuit making current | kA | 50 | ||||
Ground switch rated dynamic stability current | kA | 50 | ||||
Ground switch 2S thermal stability current | kA | 20 | ||||
Rated voltage of auxiliary circuit | V | AC/CD220;110 | ||||
Mechanical life | time | 10000 | ||||
