DDP Deliver Lifepo4 Battery Grade A 3.2V 200Ah 280Ah 304Ah 314Ah 580Ah Li ion Battery DIY 12V 24V 48V Battery packs
- Category: >>>
- Supplier: Shenzhen Topway New Energy Co. Ltd.
Share on (1601007524936):
Product Overview
Description
Products Description
Model | 302Ah | LF304 | 310Ah | 315Ah | 340Ah | ||||
Size(mm) | 173*207*72 | 173*207*72 | 173*204*72 | 173*207*72 | 175*202*81 | ||||
Weight(kg) | 5.6 | 5.7 | 5.7 | 5.65 | 6.2 | ||||
Cycle life | 6000 Cycle | ||||||||
BMS | Support JK, Daly BMS.,etc. Support 4S(12V 100A-200A), 8S(24V 100A-200A), 16S(48V 100A-200A,. etc) | ||||||||
Packaging | 4pcs/carton, with EVA foam and waterproof package bag | ||||||||
Shipping time | Poland & Germany stock, 3-5 working days; CN stock, 35-45 working days(by sea) | ||||||||
Standard Voltage | 3.22V | ||||||||
lnternal Resistance | ≤0.25mQ | ||||||||
Standard charge current | 60.4A(0.2C) | 60.8A(0.2C) | 62A(0.2C) | 63A(0.2C) | 68A(0.2C) | ||||
Max. charge current | 302A(1C) | 304A(1C) | 310A(1C) | 315A(1C) | 340A(1C) | ||||
Standard discharge current | 0.2C | ||||||||
Max discharge current | 1C | ||||||||
Operating temperature | Charging: 0 °C ~45 °C; Discharging: -20 °C ~60 °C | ||||||||
Products Description
Battery Type | Voltage | Capacity | Max Charge Current | Max Dis. Current | AC IR. |
LF50K | 3.2V | 50Ah | 100A | 150A | ≤0.5mΩ |
LF80 | 3.2V | 80Ah | 80A | 240A | ≤0.5mΩ |
LF100 | 3.2V | 100Ah | 100A | 300A | ≤0.5mΩ |
LF105 | 3.2V | 105Ah | 105A | 315A | ≤0.5mΩ |
LF160 | 3.2V | 160Ah | 160A | 320A | ≤0.5mΩ |
200Ah | 3.2V | 200Ah | 200A | 200A | ≤0.4mΩ |
202Ah | 3.2V | 202Ah | 202A | 202A | ≤0.4mΩ |
LF230 | 3.2V | 230Ah | 230A | 230A | ≤0.25mΩ |
280Ah | 3.2V | 280Ah | 280A | 280A | ≤0.25mΩ |
LF280K | 3.2V | 280Ah | 280A | 280A | ≤0.25mΩ |
302Ah | 3.2V | 302Ah | 302A | 302A | ≤0.25mΩ |
LF304 | 3.2V | 304Ah | 304A | 304A | ≤0.25mΩ |
315Ah | 3.2V | 315Ah | 315A | 315A | ≤0.25mΩ |
320Ah | 3.2V | 320Ah | 320A | 320A | ≤0.25mΩ |
340Ah | 3.2V | 340Ah | 340A | 340A | ≤0.25mΩ |
Tewaycell main products:
Professional provide Lifepo4 cells capacity ranging from 10AH to 400AH, 12V / 24V / 36V / 48V / 72V / 96V battery pack, 200A high current batery pack, stackable home solar energy storage system, and high voltage stackable lifepo4 battery.

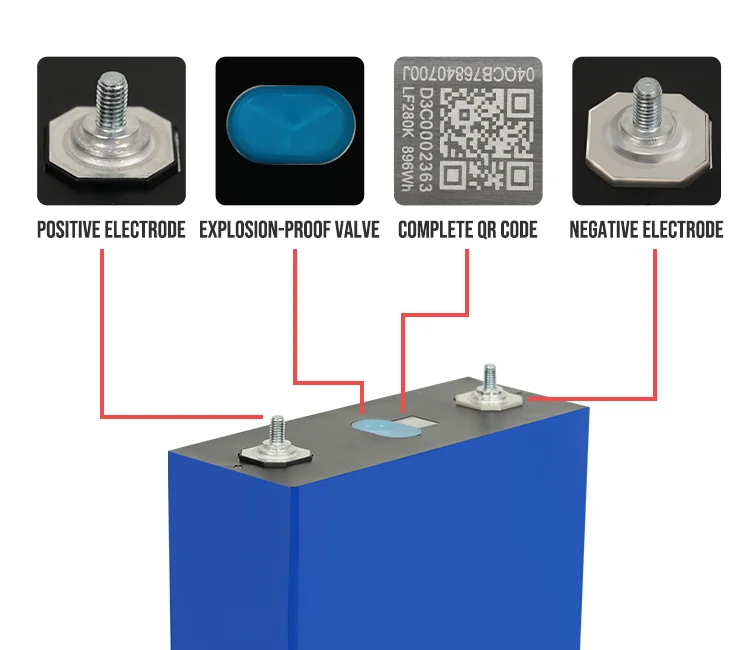

This one is new model LF280K, with original QR code
All cells with Quality new, 6000cycles and warranty for 3 years.
All cells will be matched (voltage, capacity, resistance) before delivery.
All cells with FREE busbars, screws and bolts.
All cells will be matched (voltage, capacity, resistance) before delivery.
All cells with FREE busbars, screws and bolts.
OUR ADVANTAGE
Quality New
High quality battery cells with multi-Protect safety system, ensures your safety and the protection for the battery uses(No leaking problem)
EU Stock
3-5 Working days ship from EU stock (Germany/Poland)
Longer Cycle Life
Under the recommended conditions 80% SOC after 6000 cycles
Match the Smart BMS and Inverter
Besides battery cells, we also selling smart BMS and inverter. Satisfy your DIY design to the greatest extent.
Tewaycell Grade A Bttery
1. We promise: All the LiFePO4 battery cell are Quality A series. And it has 3 years warranty
2. Most of the Battery Cell is DDP shipping, which including tax and VAT. Besides, we will choose the best shipping way according to your country. Also, you can contact us, we will give you the best price.
3. We support online installation guidance, Troubleshooting support, and free replacement parts service
4. All the cells support DIY battery pack. If you need a inverter or BMS, we can give you more discount.

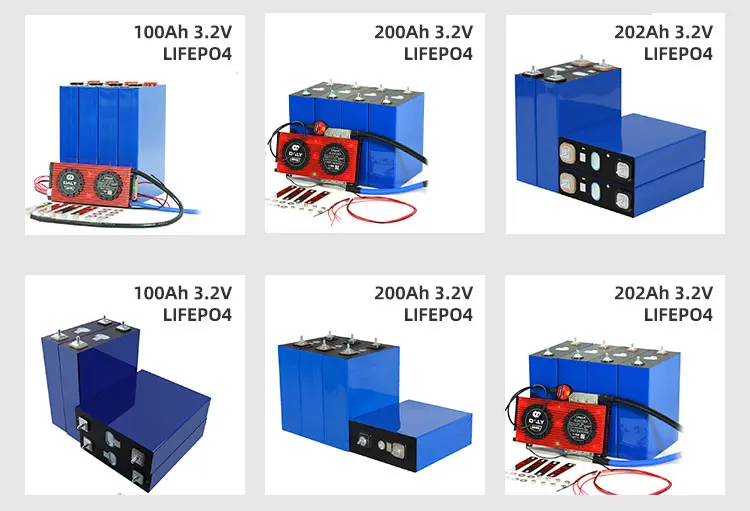

MORE TYPES AS BELOW:
Customer Reviews
Company Profile
Exhibition
Certifications
Support Inverter
TIPS
Almost all inverters on the market support matching, if not, you can contact us, we will give you a solution
Packaging & Shipping
About Shipping
Poland / Germany Stock:5-7 days.
CN Stock: Ship by sea needs 35-45 working days; Ship by train needs 30-40 working days; Ship by Air needs 10-15 working days
